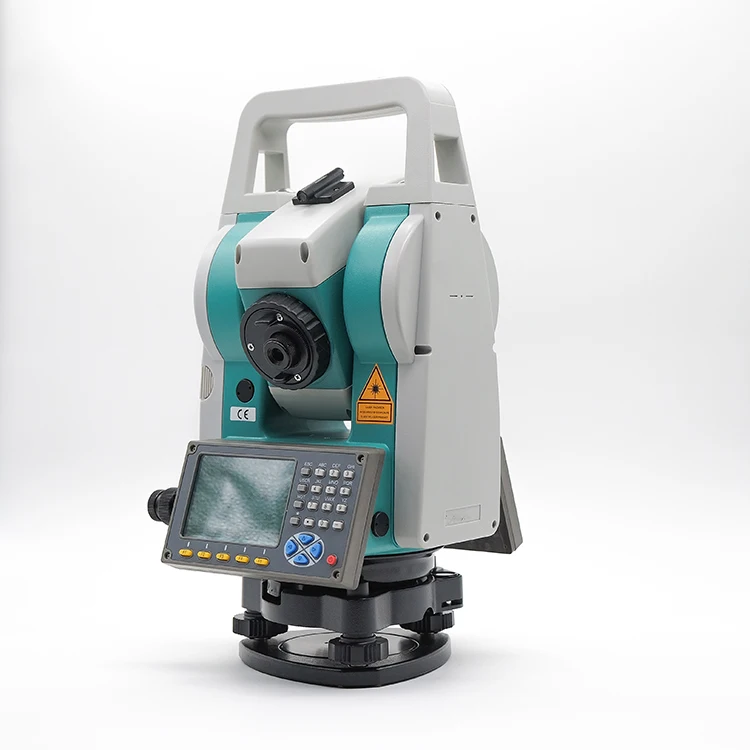

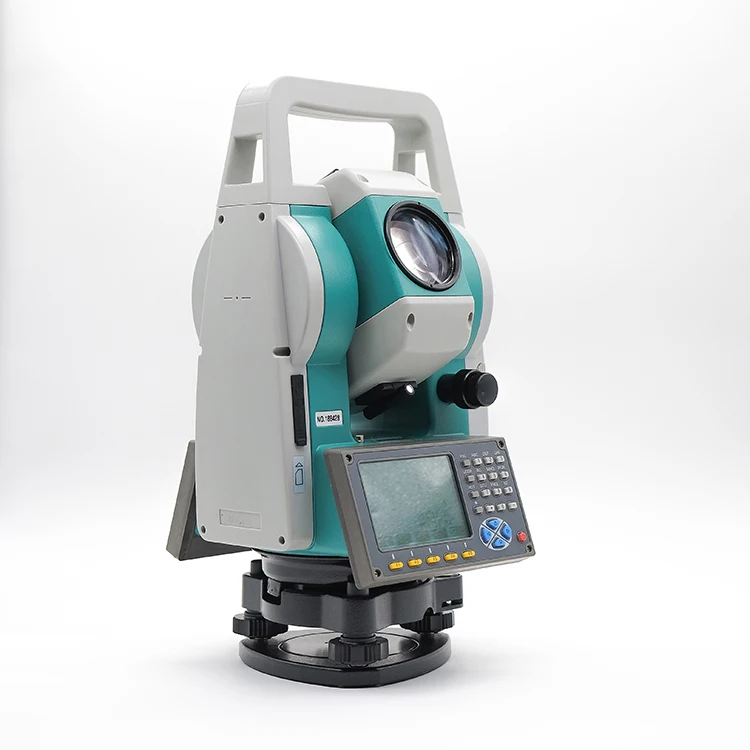

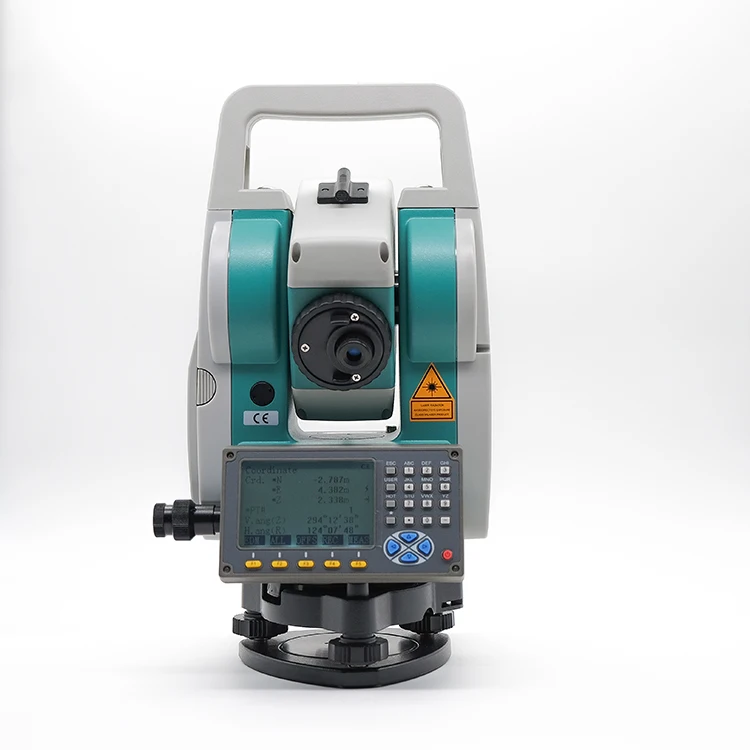

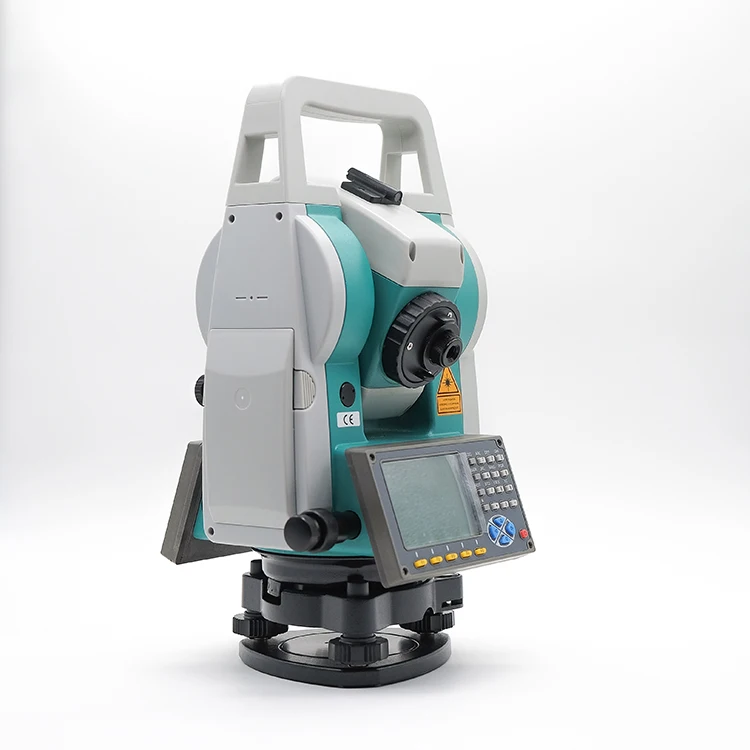

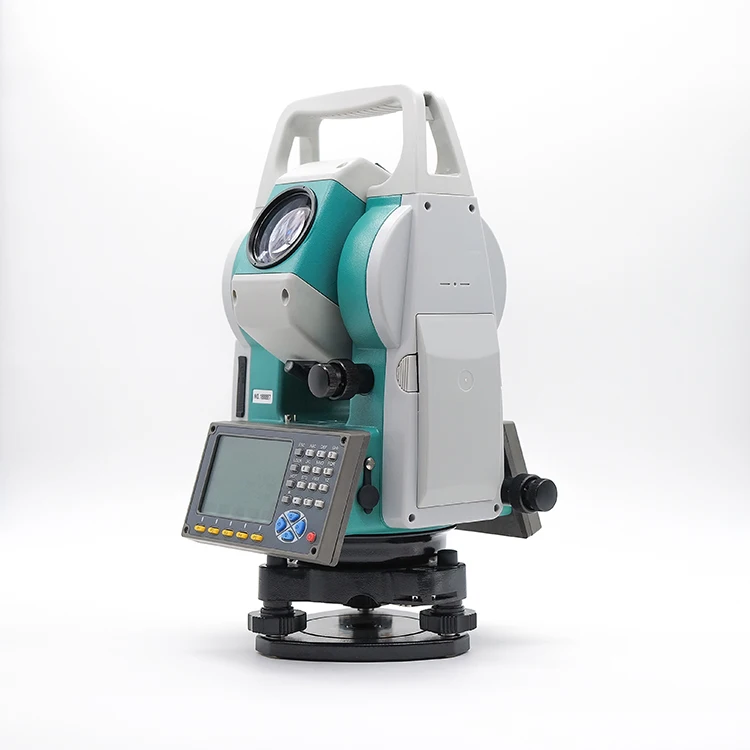

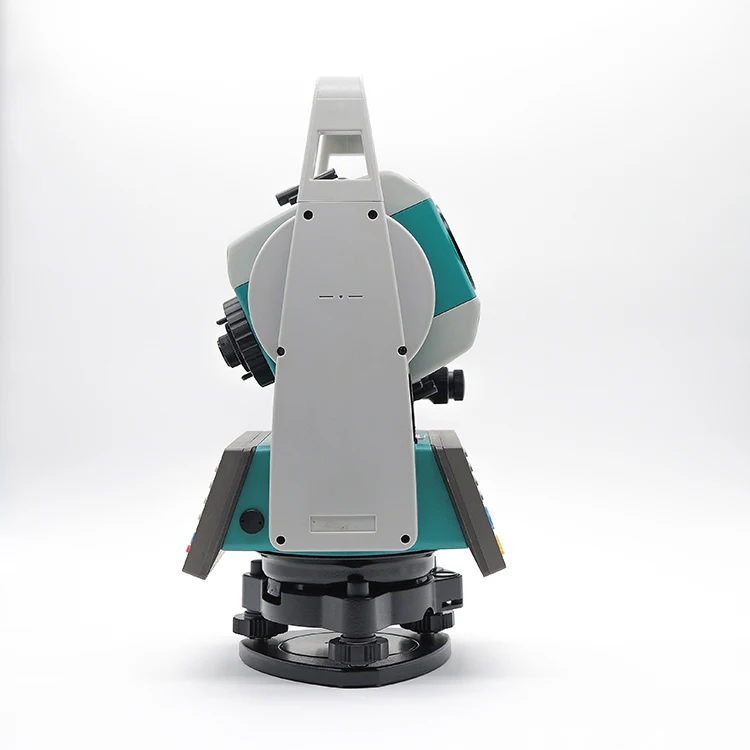

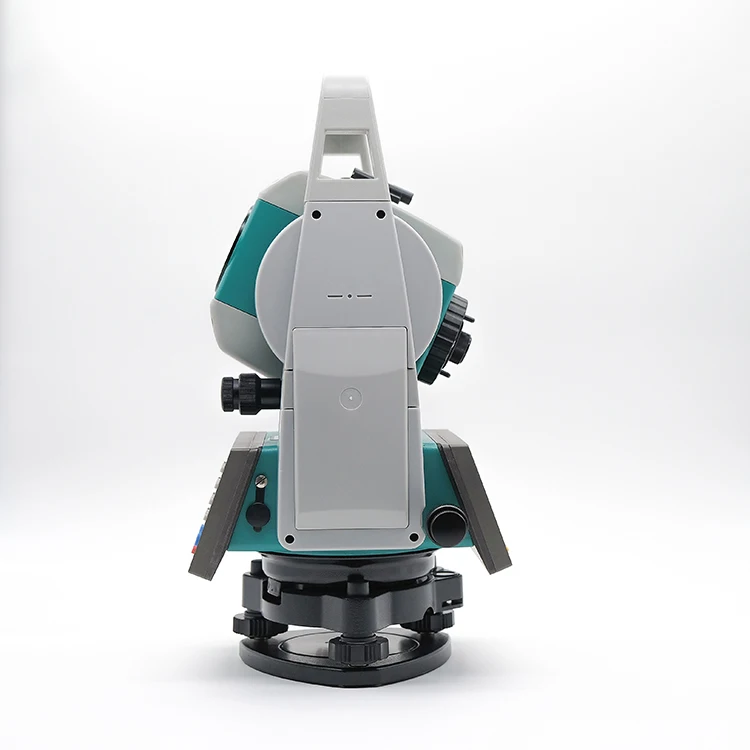

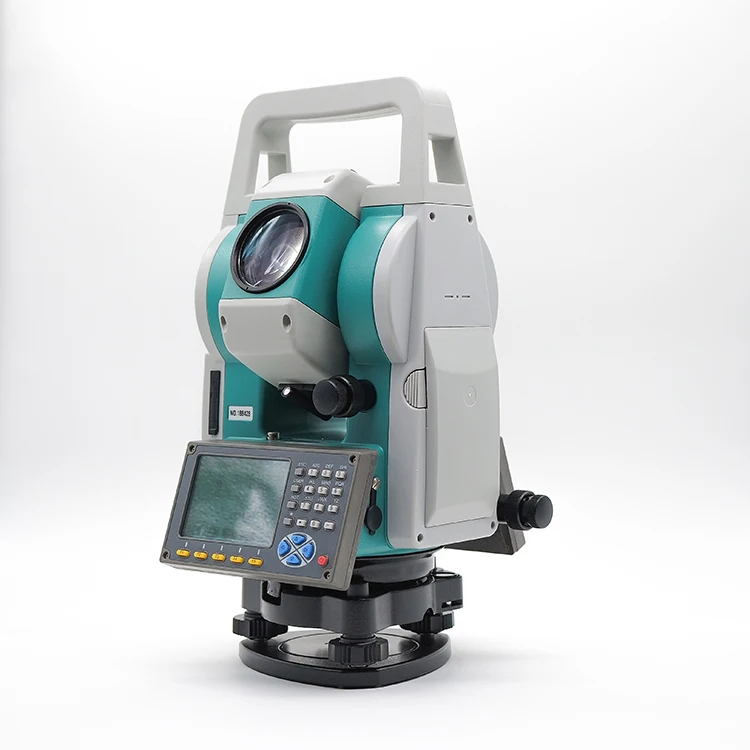

High Quality Mato MTS1202 Reflectorless With Angle Accuracy 2' Total Station
- Category: >>>
- Supplier: Jiangxi New Land Surveying Company
Share on (1600845972287):
Product Overview
Description
High Quality MTS1202 Reflectorless With Angle Accuracy 2'' Total Station
Company Information
| Distance Measurement | |
| Max. Range Single Prism | 5.0km |
| Reflectorless | 600m |
| *Object in shade, or sky overcast | |
| Accuracy Reflector Fine | ±(2mm + 2X10-6 D) |
| Accuracy Reflector Tracking | ± (5mm 4-2X10-6 • D) |
| Accuracy Reflectlorless Fine | ±(5mm + 2X10-6 • D) |
| Accuracy Reflectlorless Tracking | ±(10mm-1-2X10-6 - D) |
| Reading | Max: 99999999.9999m Min:0.1mm |
| Measuring Time Reflector | Fine<0.3s, Tracking<0.1s |
| Measuring Time Reflectorless | 0.3-3s |
| Atmosphere Correction | Manual Input, Au to correction |
| Atmosphere Refraction and Earth Curvature Correction | Manual Input, Au to correction |
| Prism Constant | Manual Input, Au to correction |
| Dist.Unit | Meter/ US.Feet/lnternational Feet/ Feet-inch optional |
| Angle Measurement | |
| Measuring Method | Absolute Continuous |
| Dia of Encoder Disk | 79mm |
| Minimum Reading | 1” /5„ |
| Accuracy | 2” 5” |
| Detection Method | Horizontal: Dual, Vertical Dual |
| Telescope | |
| Image | Erect |
| Tube Length | 154mm |
| Effective Apertu re | 45mm (EDM:50MM) |
| Magnification | 30X |
| Field of View | 1° 30' |
| Minimum Focus Distance | lm |
| Resolving Power | 3” |
| Reticle Illumination | Adjustable |
| Auto Compensator | |
| System | Dual axis liquid-electric |
| Working Range | ±3' |
| Accuracy | 1'' |
| Vial | |
| Plate Vial | 30"/2mm |
| Circular Vial | 8'/2mm |
| Optical Plummet(optional) | |
| Image | Erect |
| Magnification | 3X |
| Focusing Range | 0.5m - oo |
| Field of View | 5° |
| On-board Battery | |
| Type | Rechargeable Lithium battery |
| Voltage | 7.4V DC |
| Continuous Operation Time | 8 hrs |
| Others | |
| IP Standard | IP65 |
| Keyboard | Alphanumeric 24 keys |
| Display | LCD 6 lines. Digital Screen |
| Data Communication | RS-232, USB, SD card |
| Temperature | from -20 to 50 |
| Dimension and Weight | 160X150 X330mm, 5.2kg |
