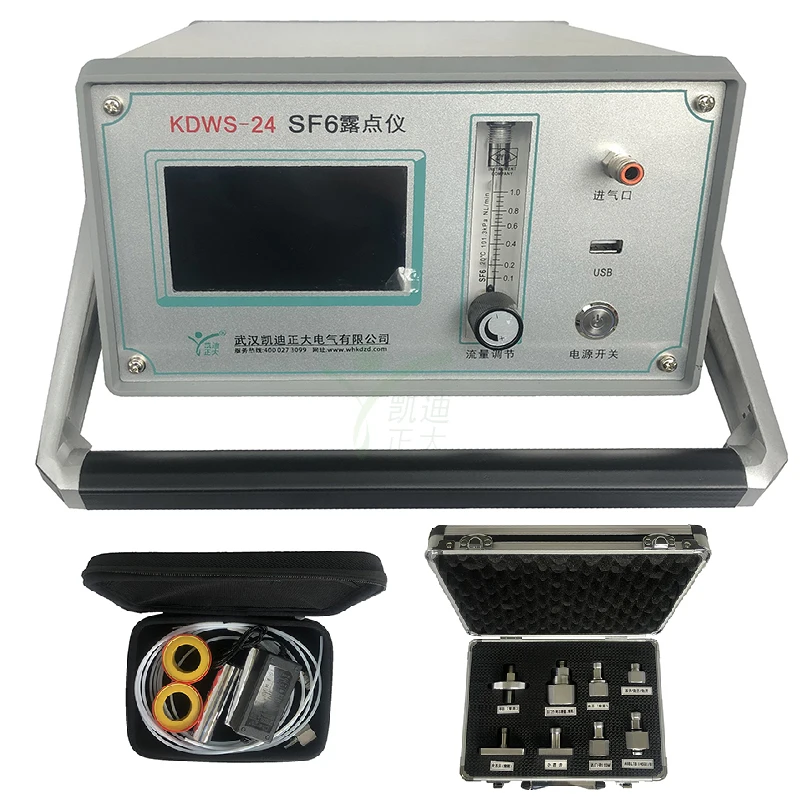

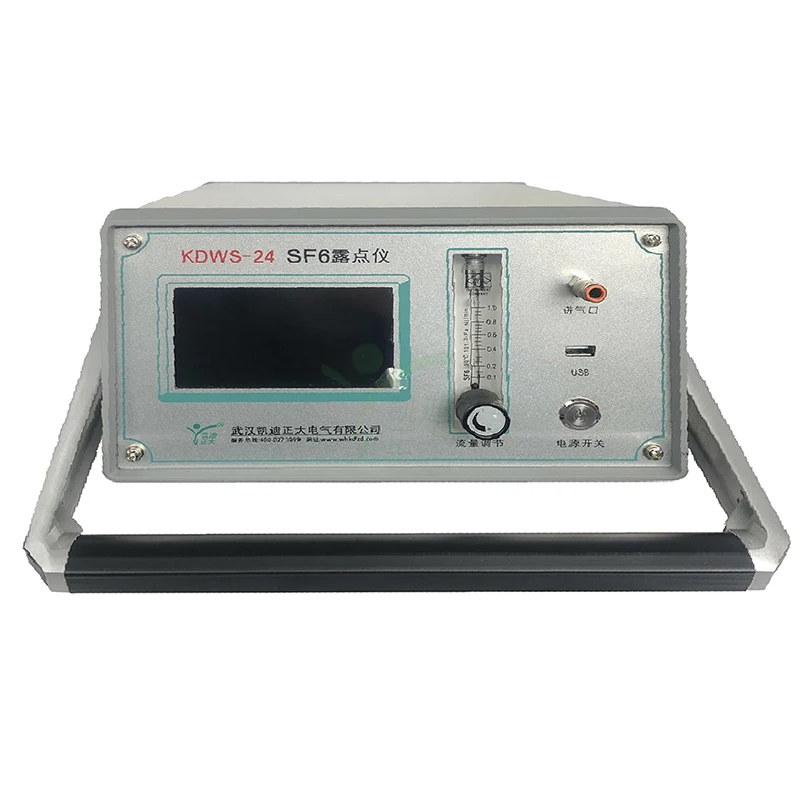

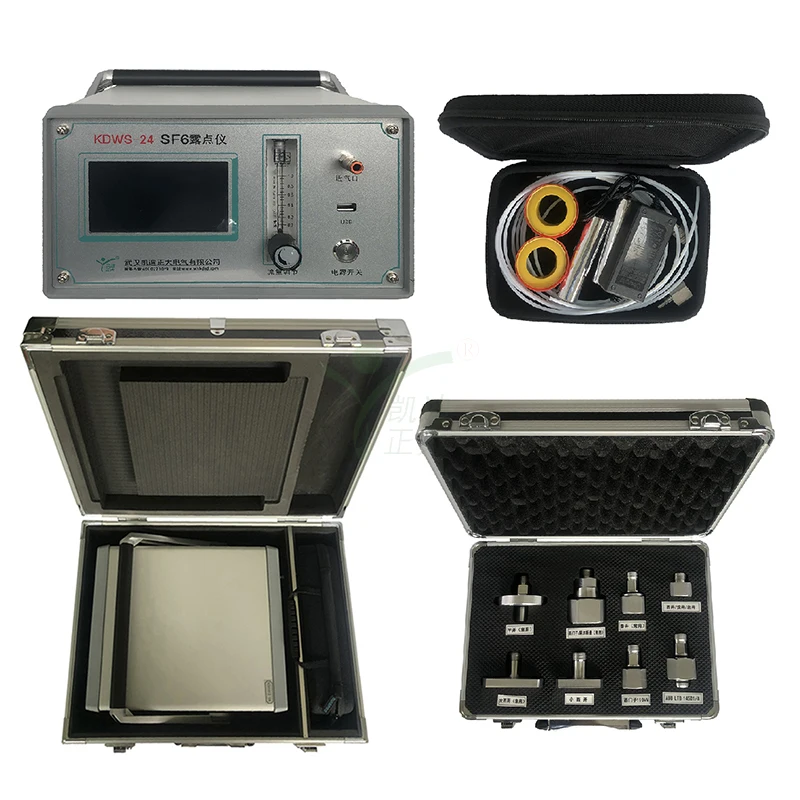

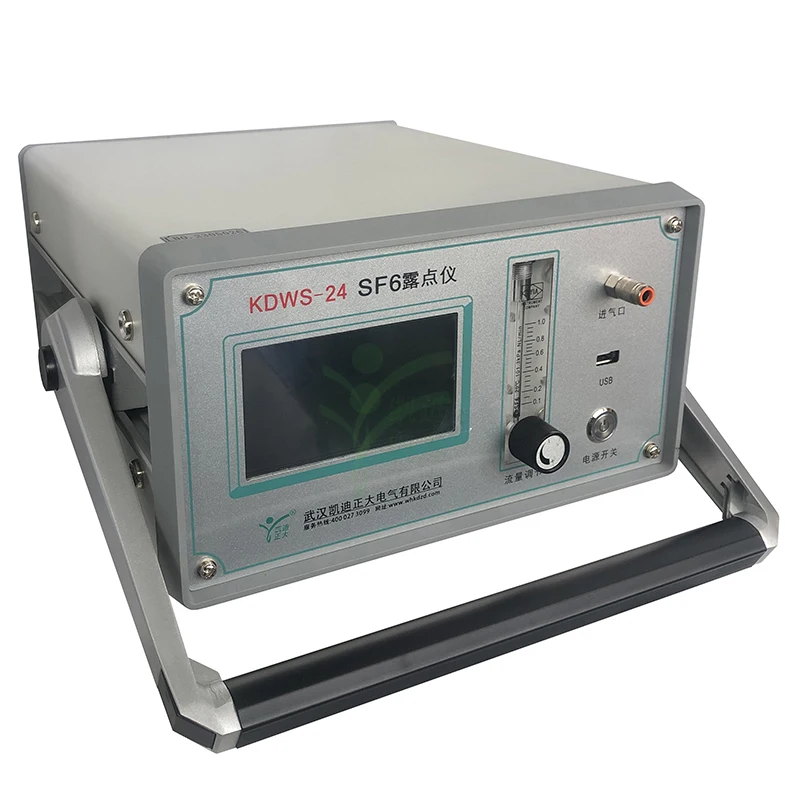

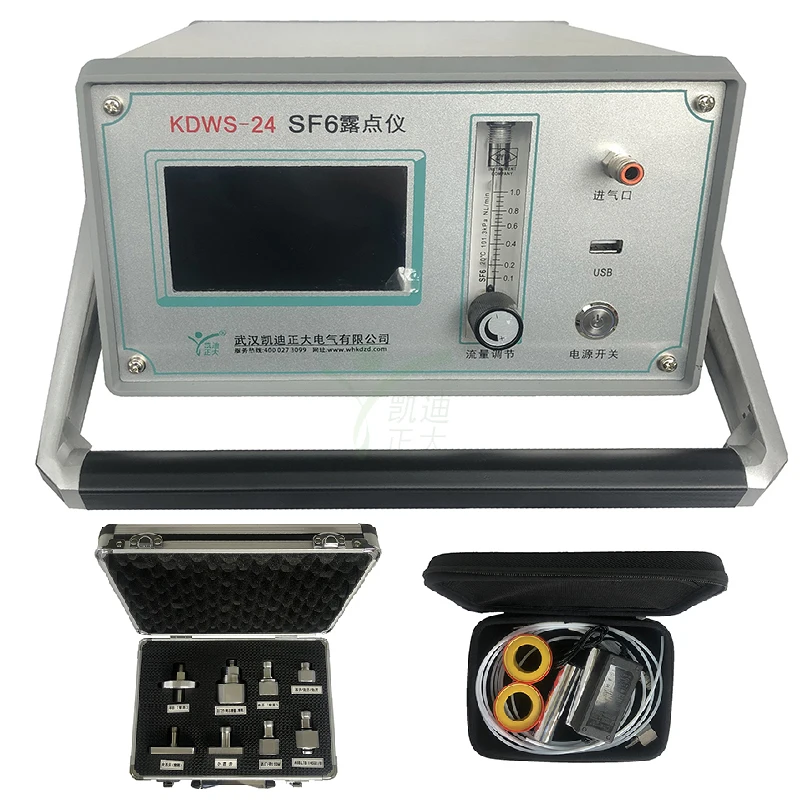

Manufacture portable sulfur hexafluoride gas analyser sf6 gas moisture analyzer
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600845990983):
Product Overview
Description
1. Measuring range | dew point - 80 ~ + 20 ℃; (support ppmv, etc.); | |
2. Measurement accuracy | the measurement accuracy is better than ± 0.5 ℃ (within a certain range); | |
When the dew point temperature is lower than 0 ℃, the sensor output is frost point; | ||
3. Response time | 45 seconds for 63% and 90 seconds for 90% (+ 20 ℃) | |
+20→-20℃ Td 5s[45s] | ||
-20→-60℃ Td10s[240s]; | ||
4. Resolution | dew point 0.1 ℃ or 0.1ppm; | |
5. Repeatability | ± 0.5 ℃ | |
6. Gas flow | 0.4 ～ 1 (L / min); Adjust SF6 at 0.5 ～ 0.9l/min and H2 at 0.1 ～ 0.4l/min; | |
7. Pressure measurement | 0 ～ 1.0MPa | |
8. Probe protection | stainless steel sintered filter screen. | |
9. Working temperature | - 40 ℃ ~ + 80 ℃ | |
10. Operating environment | temperature： - 35 ~ + 60 ℃; Pressure： 0 ~ 20bar. | |
11. Electronic mass flowmeter. | ||
12. Working voltage | 110 ~ 220VAC, built-in rechargeable battery, AC and DC. | |
13. Lithium battery, AC / DC dual-use, automatic switching, overcharge and discharge protection function. | ||
14. Battery performance | charging time is more than 20 hours, and can be used for 10 hours | |
15. Size | 250 × one hundred × 300mm3； | |
16. Weight | 3kg | |
Product Description
Technical characteristics
(1) Self calibration: The sensor probe can automatically calibrate the zero point, automatically eliminating system errors caused by zero and drift, ensuring the accuracy of each measurement, and avoiding the tedious annual calibration.
(2) Fast gas saving: After starting the machine and entering the measurement state, the dew point measurement time for each SF6 gas is about 2 minutes.
(3) Self locking joint: Adopting Germany's original imported self locking joint, safe and reliable, without air leakage.
(4) Data storage: Adopting a large capacity design, it can store up to 200 sets of test data.
(5) Curve function: The large screen curve displays the dew point measurement process.
(6) Clear display: The color LCD screen directly displays dew point, micro water (ppm), ambient temperature, ambient humidity, time, and date.
(7) RS232 interface: can be connected to a PC serial port for data transmission.
(8) Built-in power supply: Equipped with a 4Ah rechargeable lithium battery, it can work continuously for 10 hours when fully charged at once.
technical parameter
Measurement range: -80 ℃~+20 ℃
Dew point measurement accuracy: ± 0.5 ℃ (-60 ℃ -+20 ℃); ±1.0℃（－80℃～－60℃）
Dew point response time (+20 ℃): 63% takes 5 seconds; 0% takes 45 seconds (-60 ℃ to+20 ℃); 63% takes 10 seconds; 90% takes 240 seconds (+20 ℃ to -60 ℃)
Environmental temperature: -40 ℃~+60 ℃
Environmental humidity: 0-100% RH
Display device: 3.5 inch color LCD display
Power supply: AC 220V built-in rechargeable battery
Battery performance: Charging time: 20 hours; Used for more than 10 hours.
Pressure: ≤ 1.5 Mpa
Resolution: 0.01 ℃ or 0.1PPM
Weight: 5 kilograms
Size: 250 × one hundred and fifty × 300mm
Working temperature: -40 ℃~+60 ℃
Storage temperature: -40 ℃~+80 ℃
(1) Self calibration: The sensor probe can automatically calibrate the zero point, automatically eliminating system errors caused by zero and drift, ensuring the accuracy of each measurement, and avoiding the tedious annual calibration.
(2) Fast gas saving: After starting the machine and entering the measurement state, the dew point measurement time for each SF6 gas is about 2 minutes.
(3) Self locking joint: Adopting Germany's original imported self locking joint, safe and reliable, without air leakage.
(4) Data storage: Adopting a large capacity design, it can store up to 200 sets of test data.
(5) Curve function: The large screen curve displays the dew point measurement process.
(6) Clear display: The color LCD screen directly displays dew point, micro water (ppm), ambient temperature, ambient humidity, time, and date.
(7) RS232 interface: can be connected to a PC serial port for data transmission.
(8) Built-in power supply: Equipped with a 4Ah rechargeable lithium battery, it can work continuously for 10 hours when fully charged at once.
technical parameter
Measurement range: -80 ℃~+20 ℃
Dew point measurement accuracy: ± 0.5 ℃ (-60 ℃ -+20 ℃); ±1.0℃（－80℃～－60℃）
Dew point response time (+20 ℃): 63% takes 5 seconds; 0% takes 45 seconds (-60 ℃ to+20 ℃); 63% takes 10 seconds; 90% takes 240 seconds (+20 ℃ to -60 ℃)
Environmental temperature: -40 ℃~+60 ℃
Environmental humidity: 0-100% RH
Display device: 3.5 inch color LCD display
Power supply: AC 220V built-in rechargeable battery
Battery performance: Charging time: 20 hours; Used for more than 10 hours.
Pressure: ≤ 1.5 Mpa
Resolution: 0.01 ℃ or 0.1PPM
Weight: 5 kilograms
Size: 250 × one hundred and fifty × 300mm
Working temperature: -40 ℃~+60 ℃
Storage temperature: -40 ℃~+80 ℃
Company Profile
Certifications
Product packaging
FAQ
1. How is our product? We are manufacturer, so preferential price and high quality can guarantee. 2. How soon to get price? Usually provide within 6 hours once receiving inquiry. If you are very urgent, please call us then we will do in priority. 3. Whal is your terms of delivery? EXW,FOB, CFR, CIF, ect. Pls select your most conveient and cost effective. 4. When there is difficulty in using ? We will first provide equipment operation manual, operation video, or provide training through remote video call. Ifnecessary, engineers will serve on door. 5. What about the leading time for production? That depends on order qty and product item. For normal items, usually within 3 working days. Delivery time is determined by the logistics , generally is 5-7 days. 6.How to send? For most of our customers, we provide door-to-door service. You only to through import customs clearance proceduresand pay the import tariff. 7. How is packing and will the goods be damaged? We will pack standard export packing for everyequipment, so far there is no damage yet, pls no worry. |
