TESmart KVM over IP 100M 3D 1080P Video Transmitter and Receiver 4K30hz HDMI KVM Extender

Share on (1600846135486):


Price:

Quantity:


Product Overview

Description





Product Description


This HDMI KVM Extender with audio out, HKE1011A7U, extends HDMI and USB up to 100 meters over a single CAT-5e cable.

Providing access to keyboard, mouse, touch-panels, printers, and USB drive. S


Features



\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t

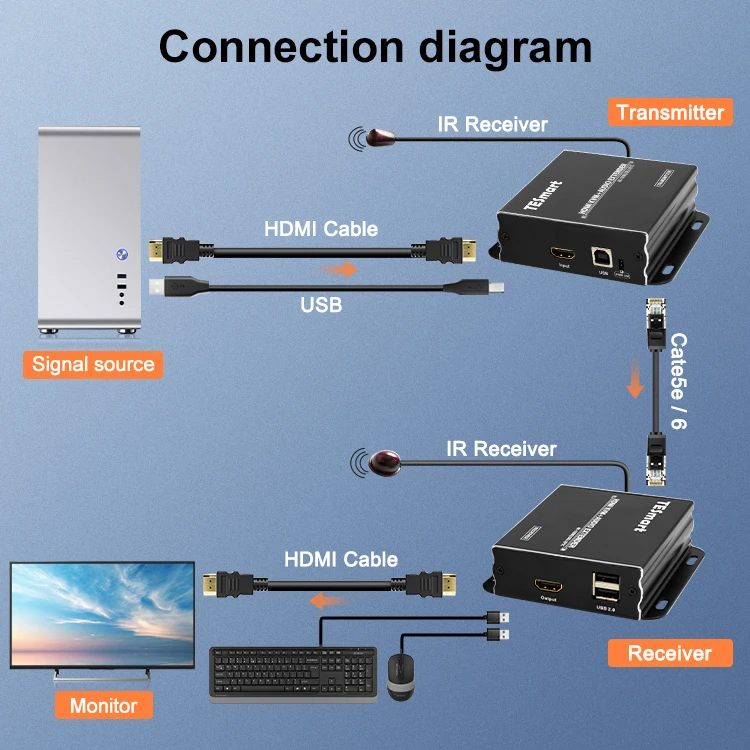

\t\t\t\t\t\t\tUse single UTP cable (CAT5e/6, should follow EIA/TIA 568B standard) to substitut HDMI and USB cable to extend longer transmission distance


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

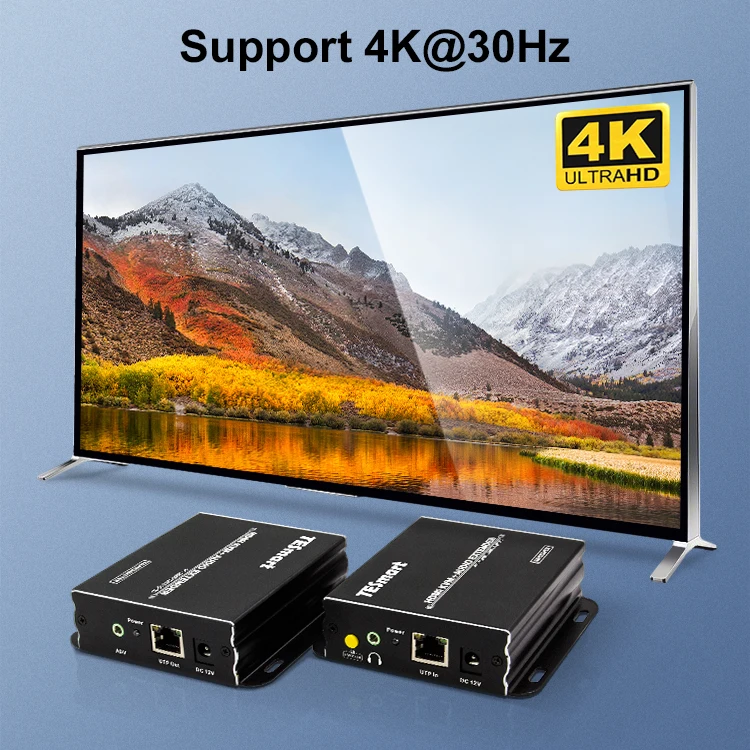

\t\t\t\t\t\t\tResolution up to 3840*2160@30Hz (For 100M UTP)


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tSupport TMDS equalization and enhancement


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

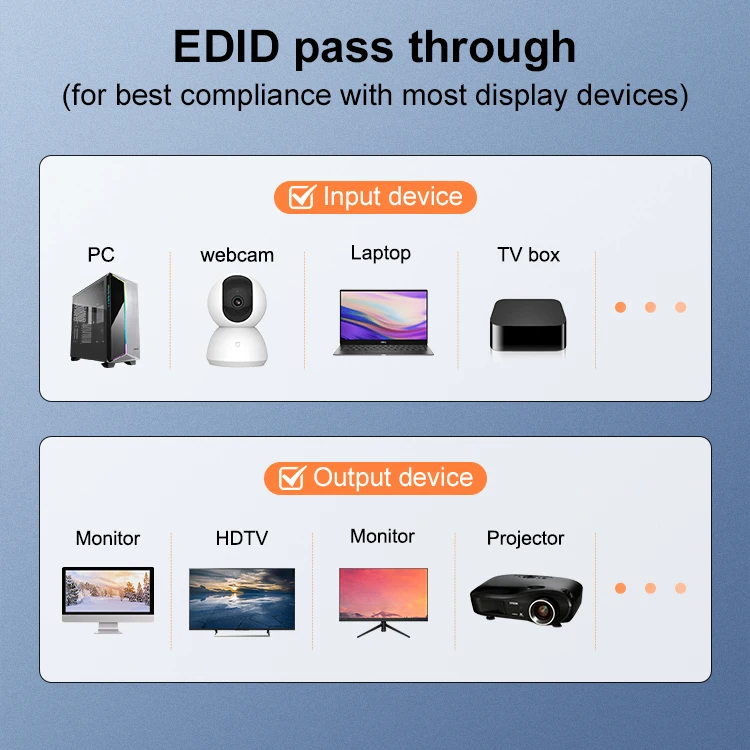

\t\t\t\t\t\t\tSupport EDID pass through via LAN, for best compliance with most display devices


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tProviding access to keyboard, mouse, touch-panels, printers, and USB drive etc


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tWith customized remote button, it is easy to turn on PC remotely


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tSupport PoC (Power Over Cable), transmitter powered by receiver


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tSupport DVI source and display with the use of HDMI-to-DVI adapters


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tNot support HDCP


\t\t\t\t\t\t

\t\t\t\t\t\t

\t\t\t\t\t\t\t
\t\t\t\t\t\t

\t\t\t\t\t\t\tSupport audio out from receiver





Specification



\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t
\t\t\t\t\t\t
\t\t\t\t\t\t

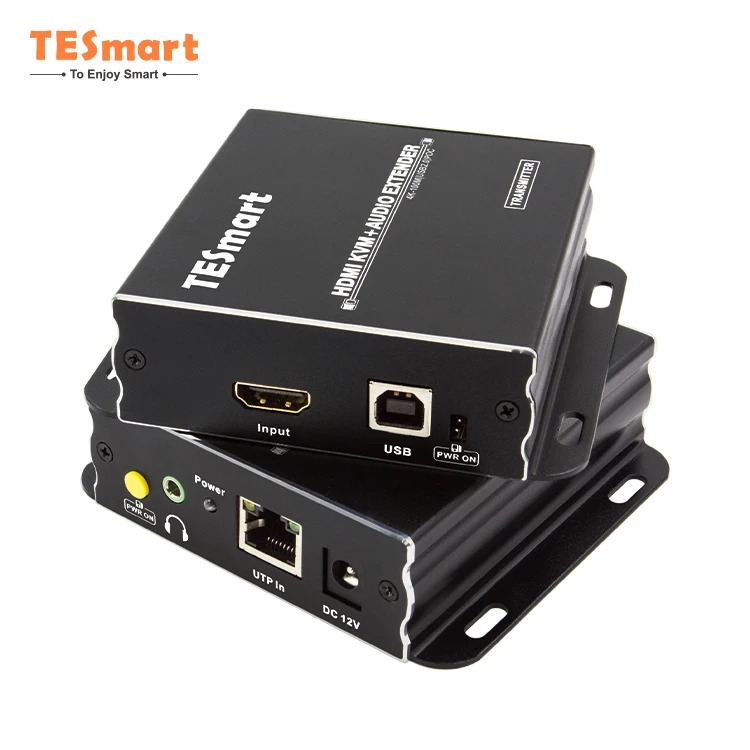

HKE1011A7U
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t100M HDMI KVM+Audio UHD Extender
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tTechnical
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tHDCP compliance
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tNo
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tData rate
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t10.2 Gbps
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tMax. resolution
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t3840*2160@30Hz 4:4:4( For 100M UTP cable)

3840*2160@60Hz 4:2:0( For 100M UTP cable)

\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tESD protection
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tHuman body model - ±8KV (Air-gap discharge)
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tInput
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tTransmitter: 1* HDMI Type A, 1* AUX(Reserved for service)

Receiver: 1* RJ45,2* USB Type A (USB2.0)

\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tOutput
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tTransmitter: 1* RJ45, 1* USB Type B

Receiver: 1* HDMI Type A, 1* AUX(for Audio out)

\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tESD protection
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tHuman body model - ±8KV (Air-gap discharge)
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tMechanical
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t

material
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tAluminum Alloy
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tProduct dimensions
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tRX: 91 (W) x 103 (D) x 30 (H) mm

TX: 91 (W) x 103 (D) x 30 (H) mm

\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tItem weight
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t330g
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tPower supply
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tDC 12V 2A
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tOperating/storage temperature
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t0 to 70 degree/-40 to 85 degree
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\tOperating humidity
\t\t\t\t\t\t\t


\t\t\t\t\t\t

\t\t\t\t\t\t\t


\t\t\t\t\t\t\t\t10 to 90% RH



Packing list


1 * HDMI KVM Transmitter
\t\t\t\t


\t\t\t\t


\t\t\t\t\t1 * HDMI KVM Receiver
\t\t\t\t


\t\t\t\t


\t\t\t\t\t1 * DC 12V 2A Power Adapter
\t\t\t\t


\t\t\t\t


\t\t\t\t\t1 * Quick-Start Guide
