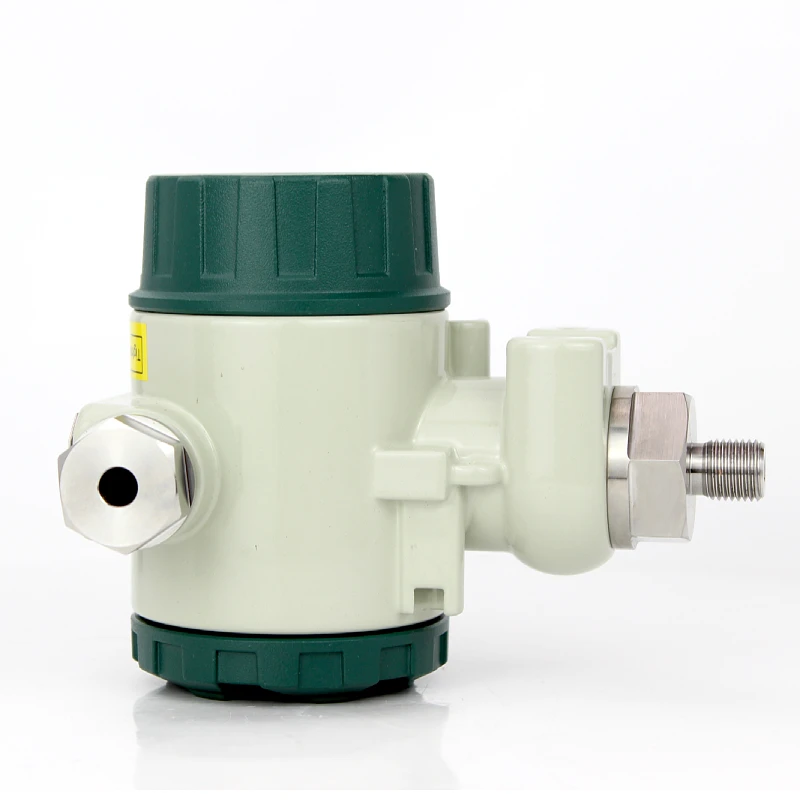

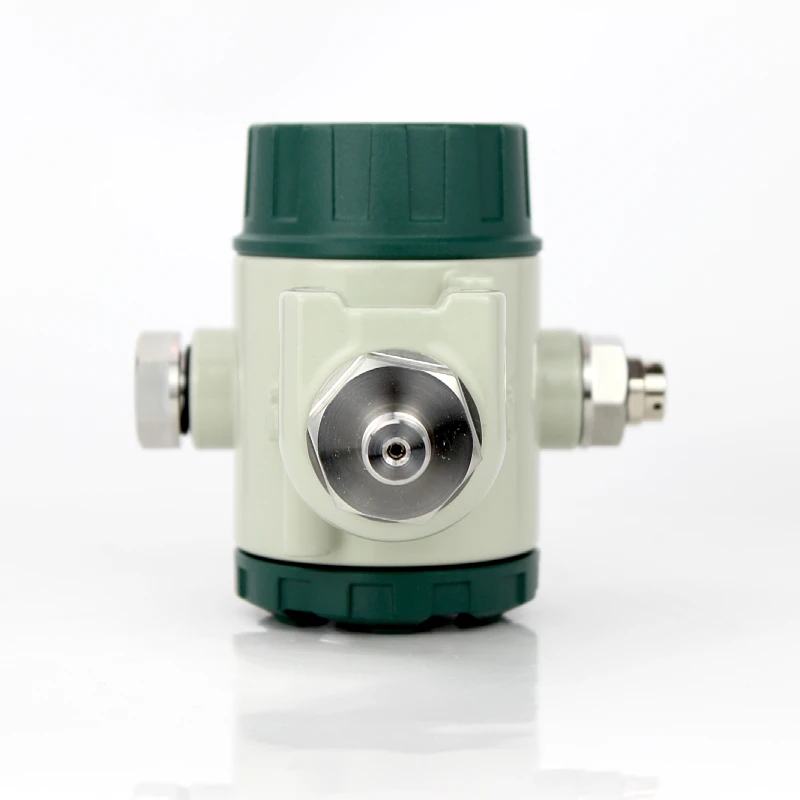

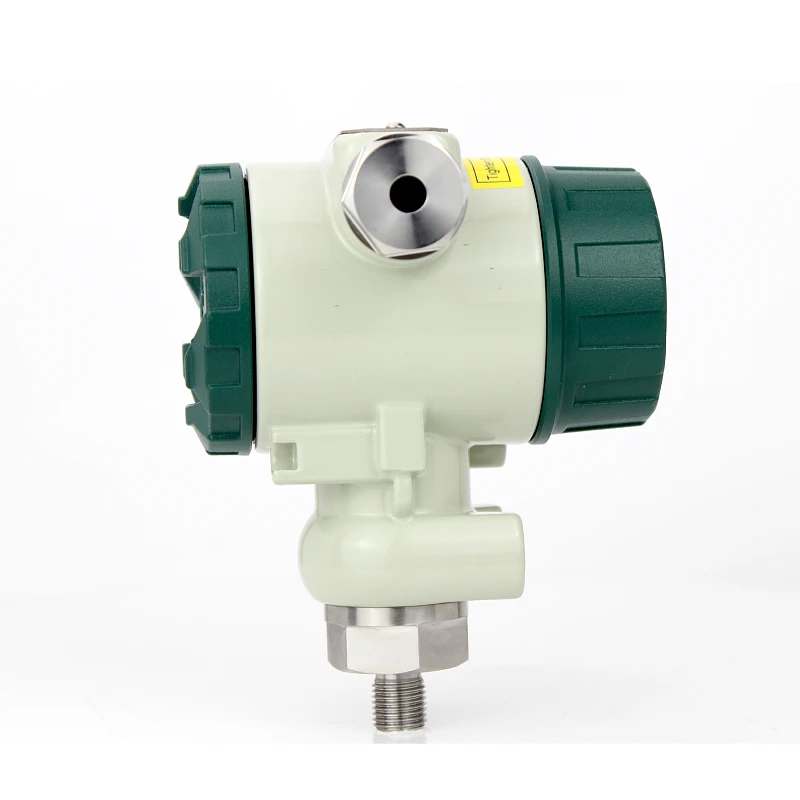

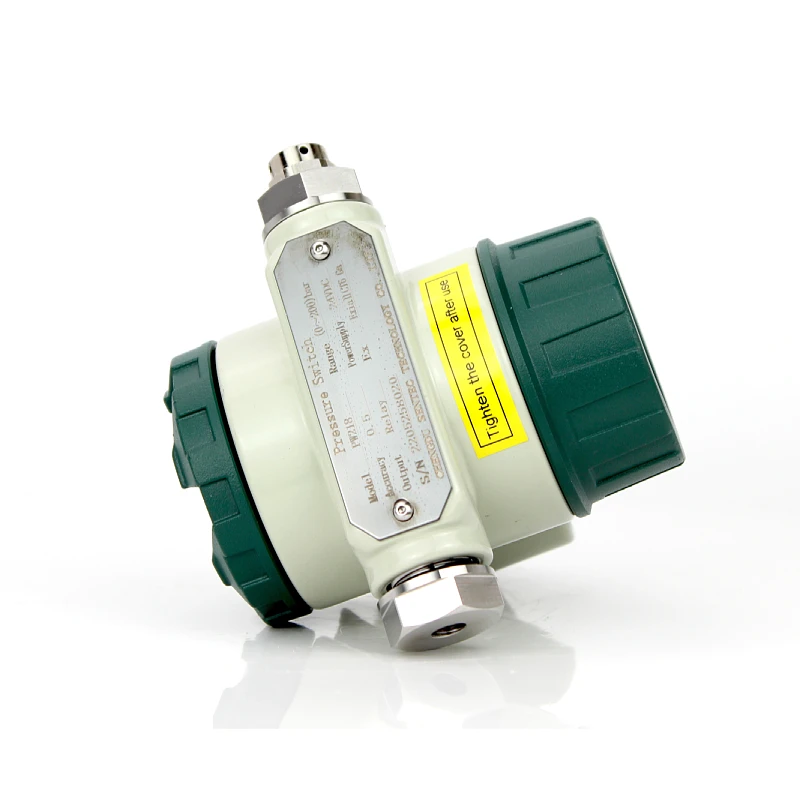

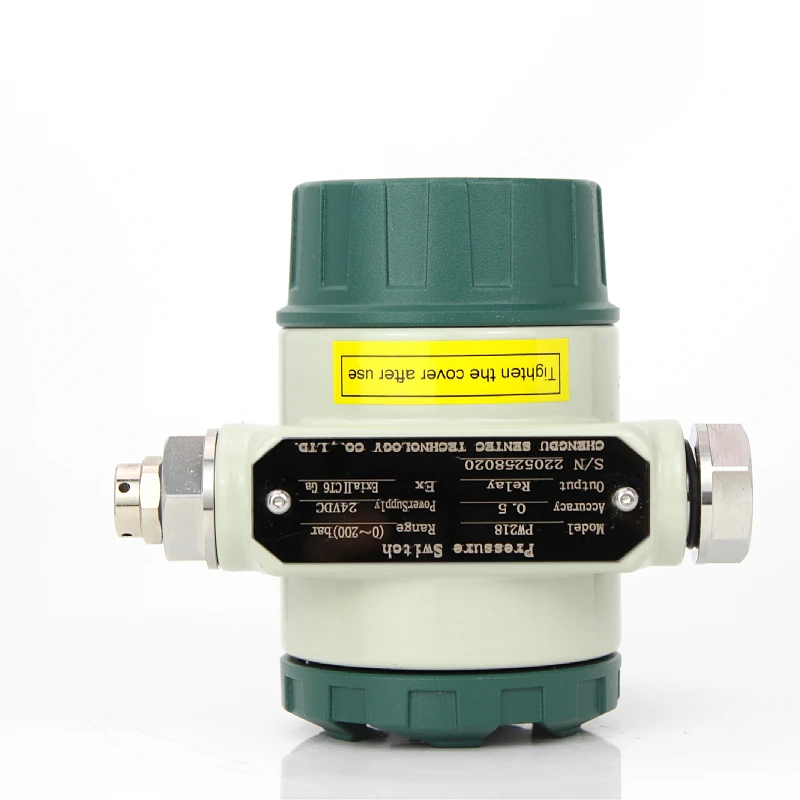

PM430 OEM service industry pressure sensor 4 20mA transducer pressure transmitter oil gas water pressure with digital display
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600846152477):
Product Overview
Description
On-site display, multiple output signals
High stability, low drift
Flameproof, IP66 protection

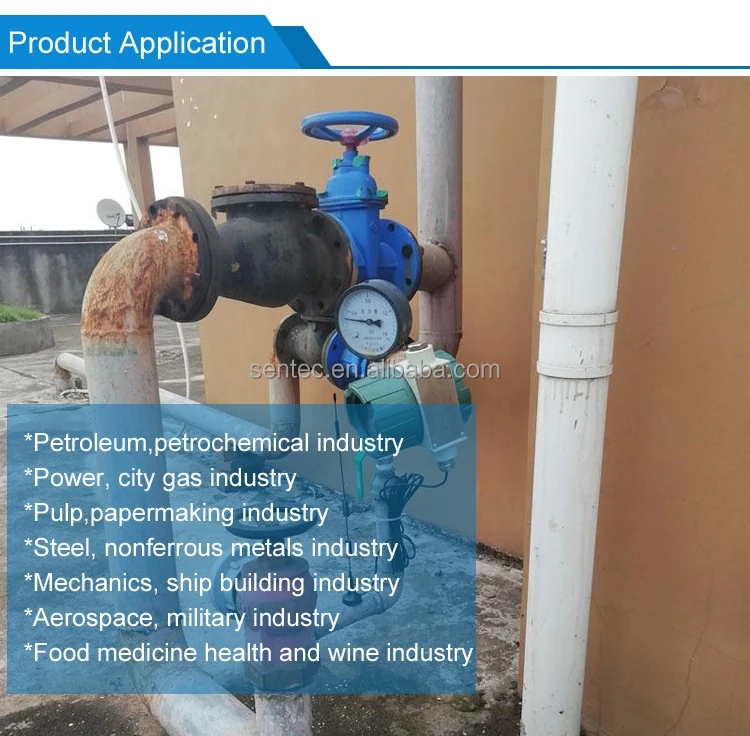

Can be applied to harsh environments such as
pollution, humidity, flflammable and explosive
High stability, low drift
Flameproof, IP66 protection
Can be applied to harsh environments such as
pollution, humidity, flflammable and explosive
Range | -0.1MPa...0kPa~10kPa...100MPa | ||||
Overload capability | Below 10MPa ≤ 2 times full scale 10MPa and above ≤1.5 times full scale | ||||
Accuracy | 0.1% (custom), 0.25% (typical), 0.5% (maximum) | ||||
Long-term stability | ±0.1%FS/year (typical), ±0.2%FS/year (maximum) | ||||
Pressure Type | G (gauge pressure), A (absolute pressure), S (sealed gauge pressure) | ||||
Zero temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) | ||||
Sensitivity temperature drift | ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa) | ||||
Compensation temperature | 0°C~50°C(≤100kPa), -10°C~70°C(typical) | ||||
Working temperature | -40°C~80°C, -20 ° C ~ 60 ° C (explosion-proof type) | ||||
Power supply | 15~ 30V (Default 24V) | ||||

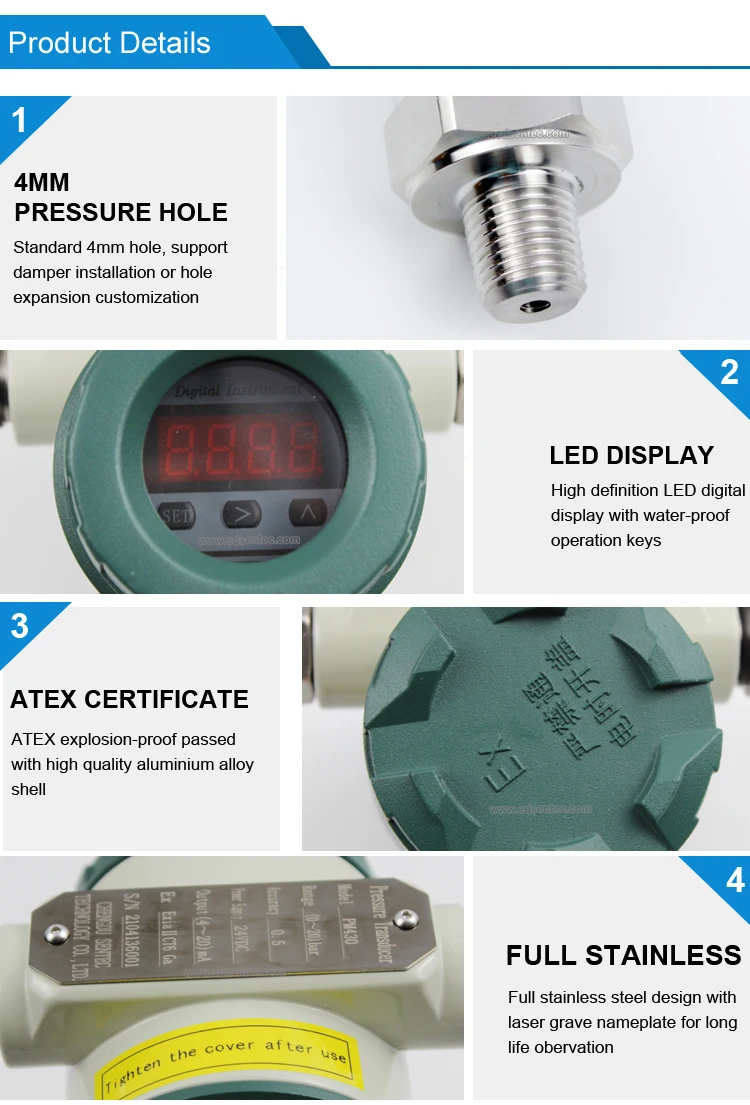

Live display | 4-digit LED or LCD | ||||
Output Signal | 4mA~20mA (superimposable HART protocol) RS485 (can output 4mA~20mA signal at the same time) | ||||
Load Resistance | Current type: ≤ (U-12) / 0.02 (Ω) | ||||
Explosion-proof grade | Intrinsically safe type: Ex d IIC T5 Gb | ||||
Protection level | IP65/IP67 | ||||
The specific price is subject to the parameters, please contact us for the quotation.
