Tonewinner Dolby Atmos 2000 Watts blueteeth wireless active power home theater system setup for 12 60 square meter room
- Category: >>>
- Supplier: Guangzhou Tonewinner Electronics Co. Ltd.
Share on (1600846159995):
Product Overview
Description
Product Description

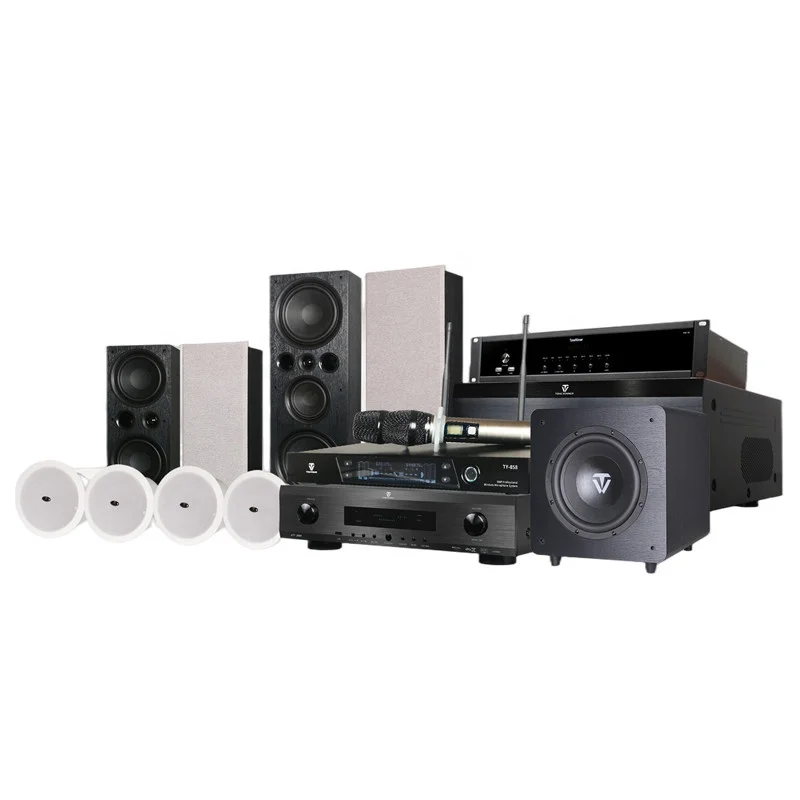

Tonewinner Dolby Atmos 2000 Watts home theater system setup for 12-60 square meter room
Introduction
Dolby Atmos home theatre system setup, If you want the karaoke system, you can contact me to replace the preamplifier.

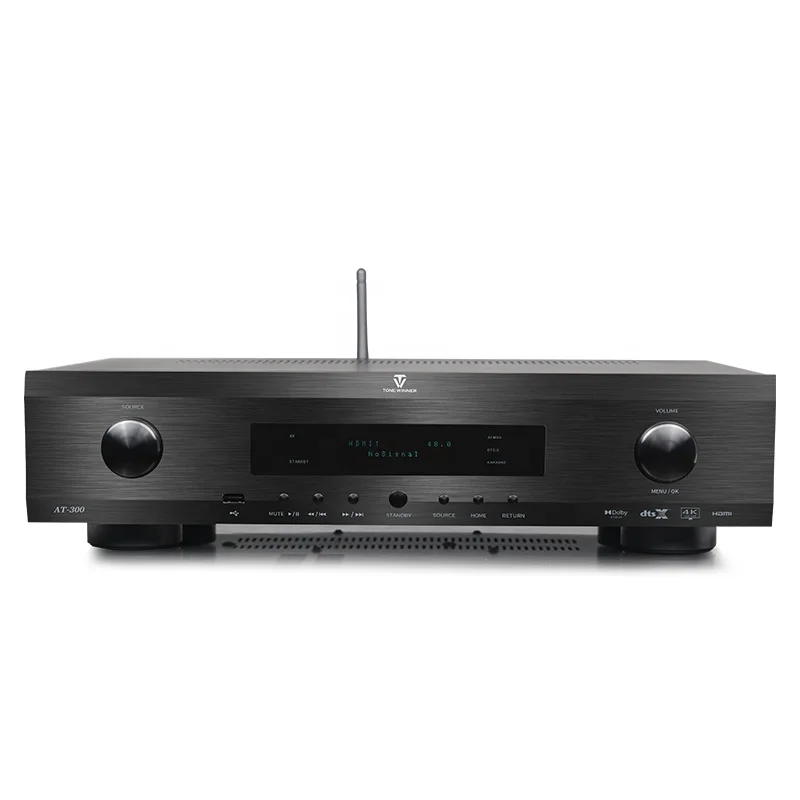

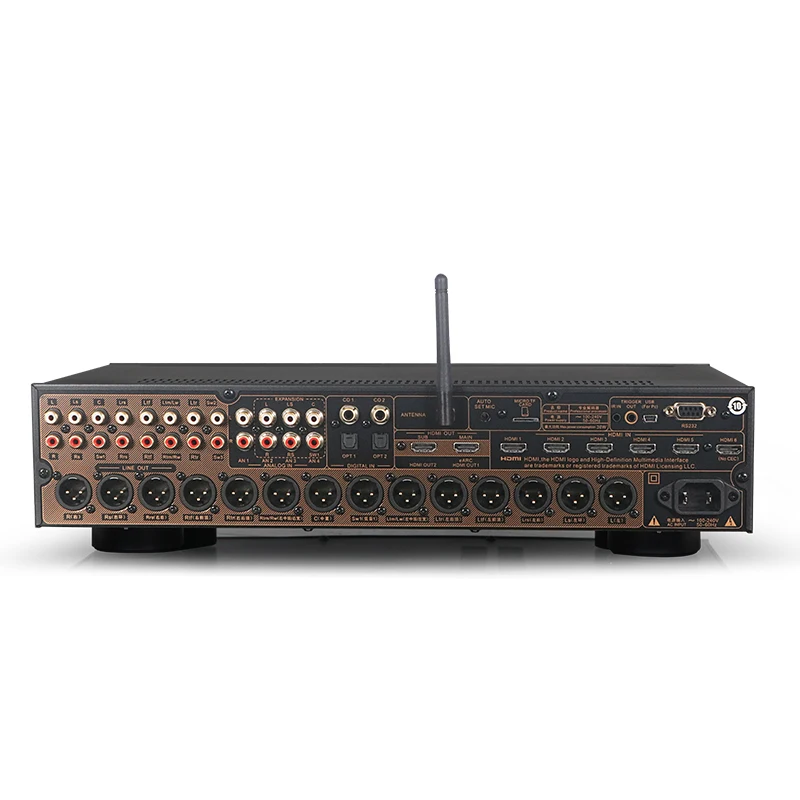

Mean Feature of the decoder AT-300
1. Support Dolby Atmos DolbyTrue HD & all the downward Dolby audio formats.
2. Support DTS:X, DTS-Master & all the downward HD audio formats.
3. Support HDMI2.0 & HDCP2.2.
4. Support 4K/60Hz，RGB 4:4:4, 18GHz full bandwidth video signal, support Dolby Vision and HDR 10+ video signal.
5. Support stacked OSD menu operation display.
6. Support 9.3.4 or 7.3.6 in total 16 channels Dolby Atmos decoding lineout output.
7. Built-in auto smart room acoustic testing & compensation for spectral characteristic, loudness of each channel & distances
between each channel.
8. Built-in audio receiver function.
9. Built-in audio player function, support files playing from TF card & USB disk, support several lossless & compressed audio
format files playing, such as FLAC, APE, WAV, MP3 & etc; support multi-layer folder management.
10. Support smart phone App control.
11. Support over 12 kinds of drivers configuration from 2.0 channel to 7.3.6.
12. Support HDMI 6 in 2 out, 2 ways coaxial 2 ways optical audio output, 3 ways of analogue audio input.
13. Support 5.1 channel external mixing input & can add external mixer.
14. Support RS232 integrated controller, IR inputs, and Trigger outputs.
15. Support HDMI ARC, eARC, and CEC.
16. Support as high as 1 second lip sync adjustment.
17. Each channel has as many as 7 to 11 band parameters EQ.
18. Support audio video signal combine group.
19. Use the latest ADI new due core DSP.
20. Support input source independent setting & parameters storing function.
21. Support random combination of video and audio signals from different input sources.
22. Support user-defined rename for the input source name.
2. Support DTS:X, DTS-Master & all the downward HD audio formats.
3. Support HDMI2.0 & HDCP2.2.
4. Support 4K/60Hz，RGB 4:4:4, 18GHz full bandwidth video signal, support Dolby Vision and HDR 10+ video signal.
5. Support stacked OSD menu operation display.
6. Support 9.3.4 or 7.3.6 in total 16 channels Dolby Atmos decoding lineout output.
7. Built-in auto smart room acoustic testing & compensation for spectral characteristic, loudness of each channel & distances
between each channel.
8. Built-in audio receiver function.
9. Built-in audio player function, support files playing from TF card & USB disk, support several lossless & compressed audio
format files playing, such as FLAC, APE, WAV, MP3 & etc; support multi-layer folder management.
10. Support smart phone App control.
11. Support over 12 kinds of drivers configuration from 2.0 channel to 7.3.6.
12. Support HDMI 6 in 2 out, 2 ways coaxial 2 ways optical audio output, 3 ways of analogue audio input.
13. Support 5.1 channel external mixing input & can add external mixer.
14. Support RS232 integrated controller, IR inputs, and Trigger outputs.
15. Support HDMI ARC, eARC, and CEC.
16. Support as high as 1 second lip sync adjustment.
17. Each channel has as many as 7 to 11 band parameters EQ.
18. Support audio video signal combine group.
19. Use the latest ADI new due core DSP.
20. Support input source independent setting & parameters storing function.
21. Support random combination of video and audio signals from different input sources.
22. Support user-defined rename for the input source name.

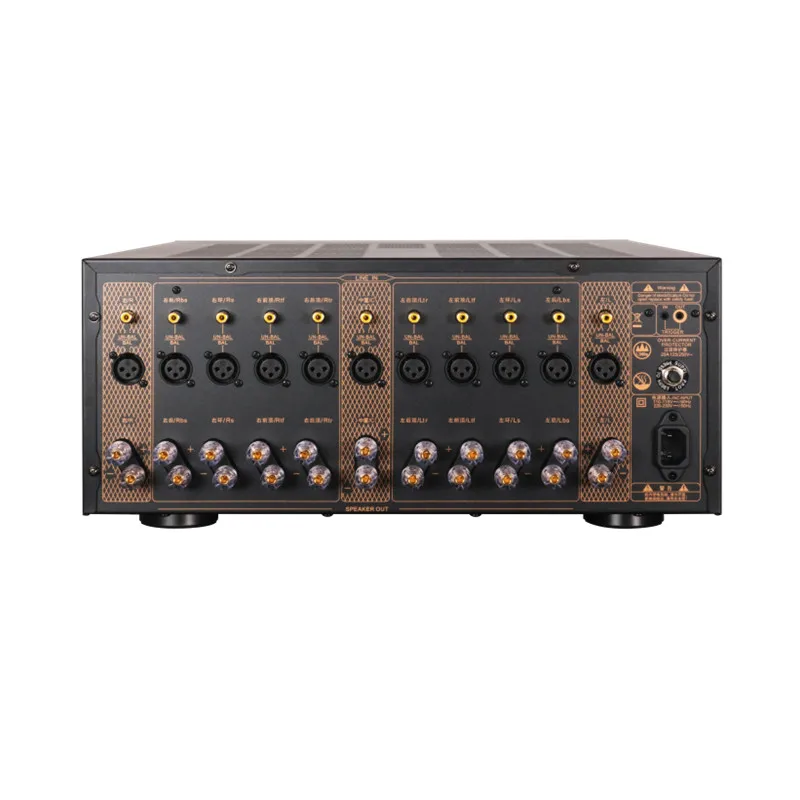

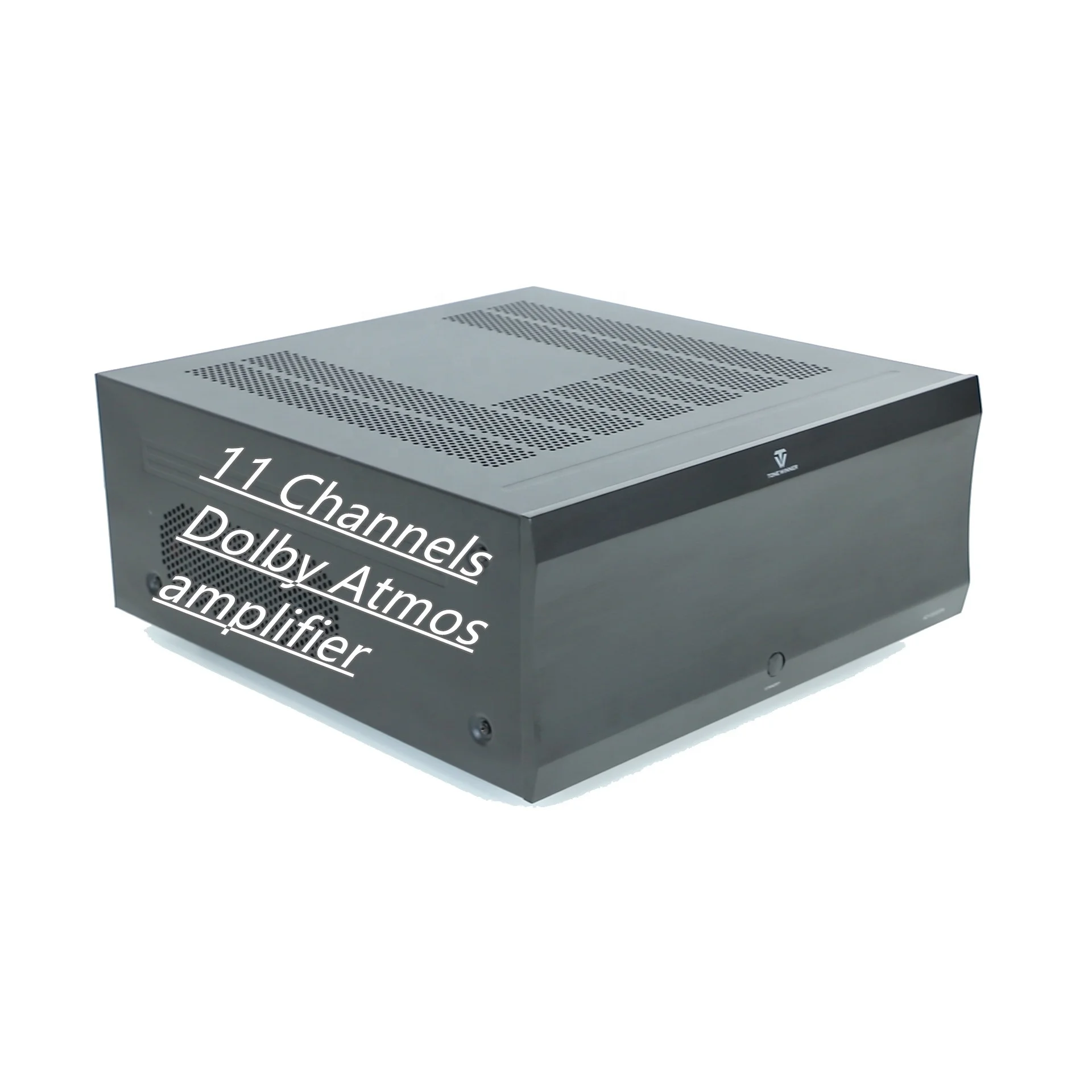

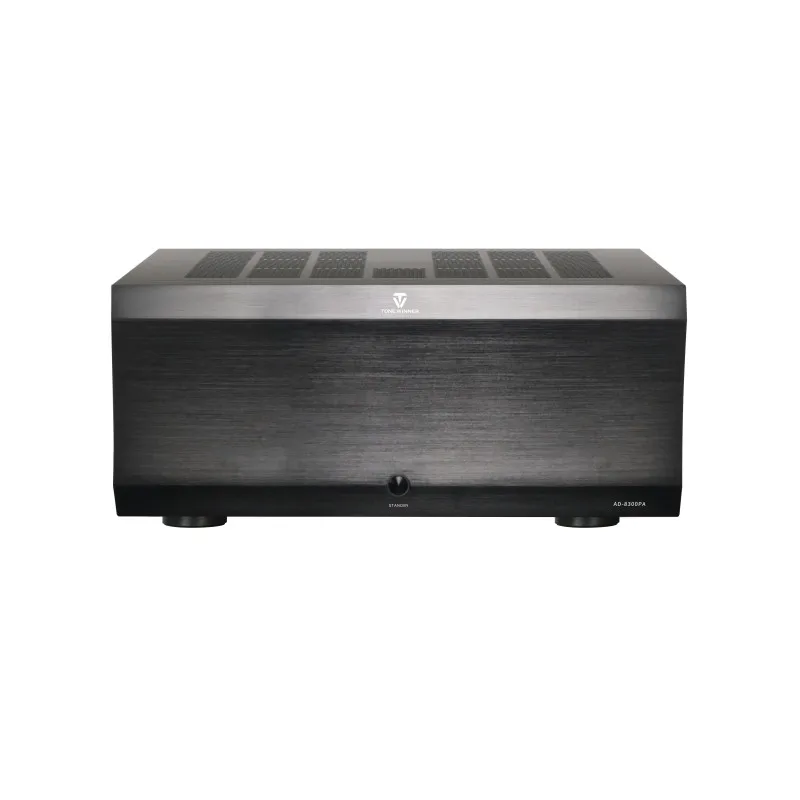

Mean Feature of the amplifier AD-8300PA
1.11 independent amplifier circuit modules, low distortion, high speed and high fidelity.
2. It has the memory of power-off in the state of power-on, and has four fan temperature control and wind speed control program.
3. Support power output 3*300Watt+8*155Watt 8ohm.
4. FL,FR,C channels use high power design.
5. It has a perfect amplifier protection circuit and power protection circuit.
2. It has the memory of power-off in the state of power-on, and has four fan temperature control and wind speed control program.
3. Support power output 3*300Watt+8*155Watt 8ohm.
4. FL,FR,C channels use high power design.
5. It has a perfect amplifier protection circuit and power protection circuit.
Specifications
Model | AT-300 decoder | Channel | 9.3.4/ 7.3.6 |
SNR | ≥98dB(A weight, direct mode) | THD | ≤0.02% （1KHz，normal working） |
Rated input impedance | 20kΩ（analog input） | Rated output impedance | 1kΩ |
Frequency | 10Hz-50kHz (+1/-3dB, analog direct) | Gain | ≥14dB (analog direct) |
Channel separation | ＞80dB (analog direct） | Input level | ≥2Vrms (analog direct) |
Power vlotage | ~100V-~240V （50Hz-60Hz） | Default volume range | The default volume range is 0-80. Actual gain mode: "-65-15" (-65 to + 15) |
N.W. | 4.4kg | Dimension | 431x100x326mm (W×H×D) |
Parameters | AD-8300PA(Amplifier) | Rated impedance | 8 ohms |
SNR | ≥110dB(A weight) | Unit gain | 29dB |
THD | ≤0.03%(1KHZ, normal working condition) | Unit size | 450mmX460mmX210mm |
Power output/channel | 300W*3+155W*8 (8Ω,THD=1%,1KHz) | N.W | 20KG |
Frequency range | 10Hz-118KHz(+1/-3dB) | Material | Aluminum alloy |
Channel | 11 | Accessories | Manual, guarantee card, power cord and signal wire |

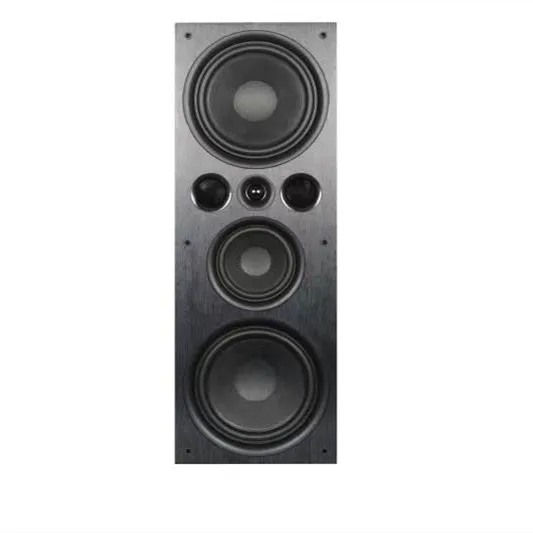

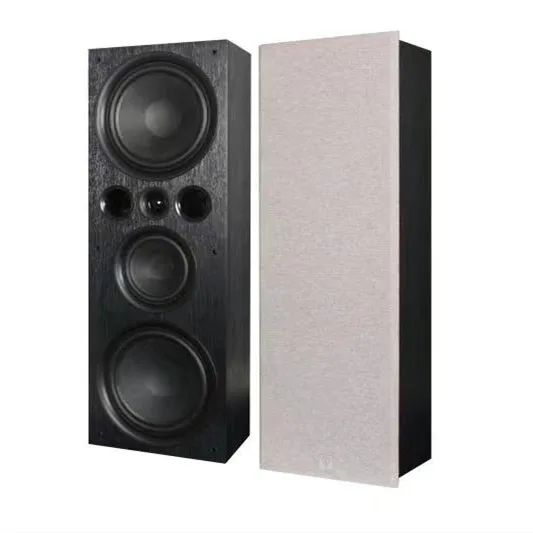

Parameters | QS-8.2+（main+center speaker) | Driver | 1"×1+5"×1+8’’×2 |
Sensitivity | 85dB | Frequance Range | 48Hz—20KHZ |
Rated impedance | 4Ω | Rated Power | 110W |
N.W | 11kG/Pcs | Speaker Size | 244x690x142mm（W*H*D) |
Install Hole Size | W: 248-260mm, H: 694-700mm, D: ≥145mm | Package Size | 326x782x230mm（W*H*D） |
Parameters | QS-6.2+(surround sound speaker) | Driver | 1"×1+6.5"×2 |
Sensitivity | 86dB | Frequance Range | 60Hz—20KHZ |
Rated impedance | 4Ω | Rated Power range | 30—120W |
N.W. | 6.5KG/Pcs | G.W. | 14.5KG/Pairs |
Install hole size | Width 200-212mm、Height 454-460mm、Depth≥131mm | Speaker size/ Package size（W*H*D） | 216*470*136mm/ 278*532*382mm |

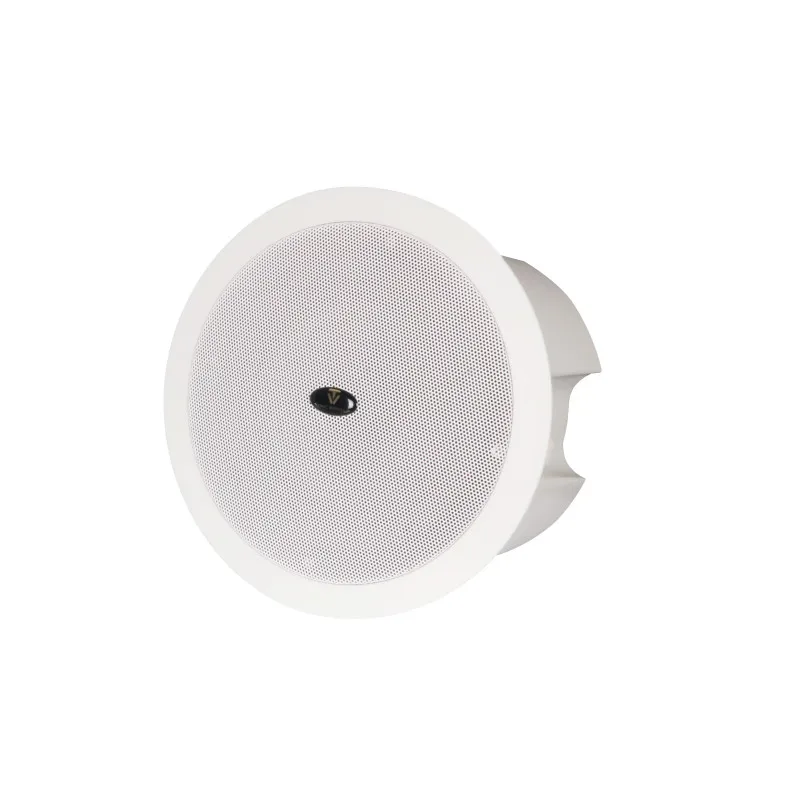

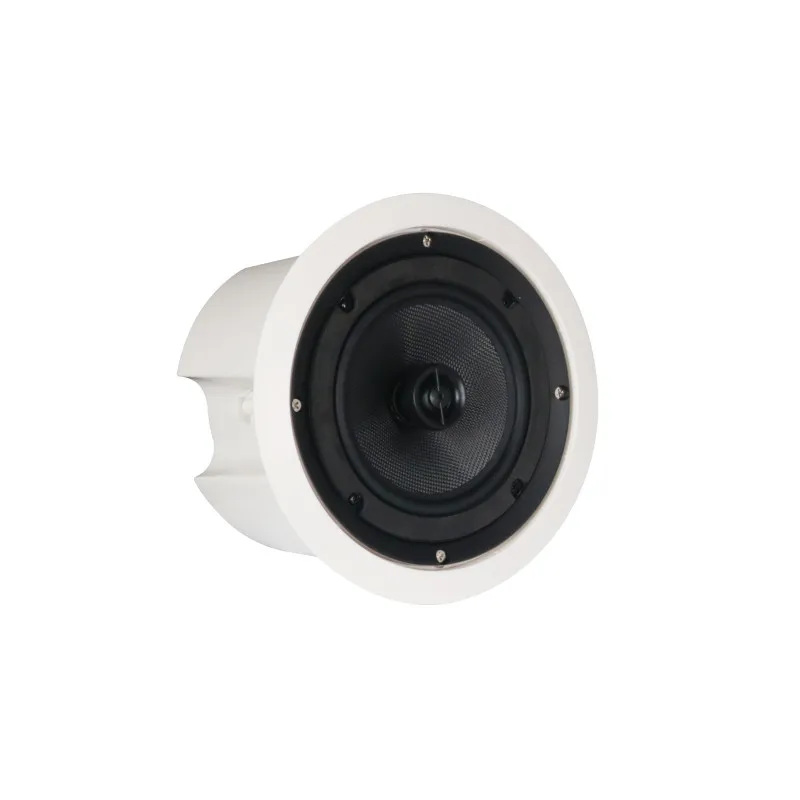

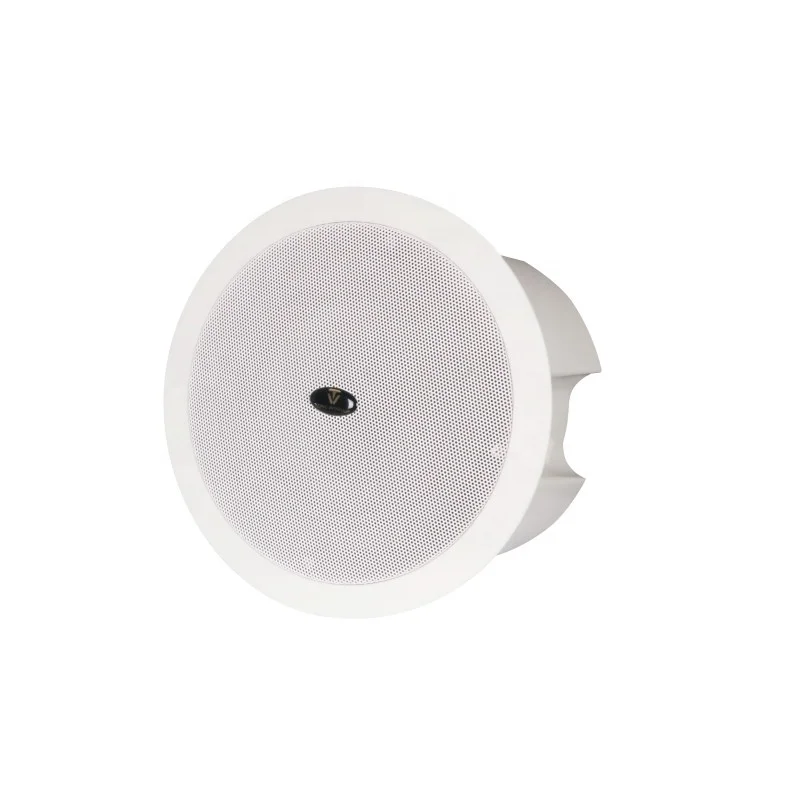

Parameters | QS-6+(ceiling speaker） | Driver | 6"x1+1"x1 |
Sensitivity | 86dB | Frequance Range | 98Hz~20KHz |
Rated impedance | 8Ω | Rated Power output | 55W |
Input power | 15-110W | DC impedance | 6.4Ω+15% |
N.W. | 2KG/Pcs | G.W. | 5KG/Pairs |
Install hole size | ф206-216mm(diameter)*140（depth）mm | Dimensions | ф240(diameter)*145±1.5（depth）mm |

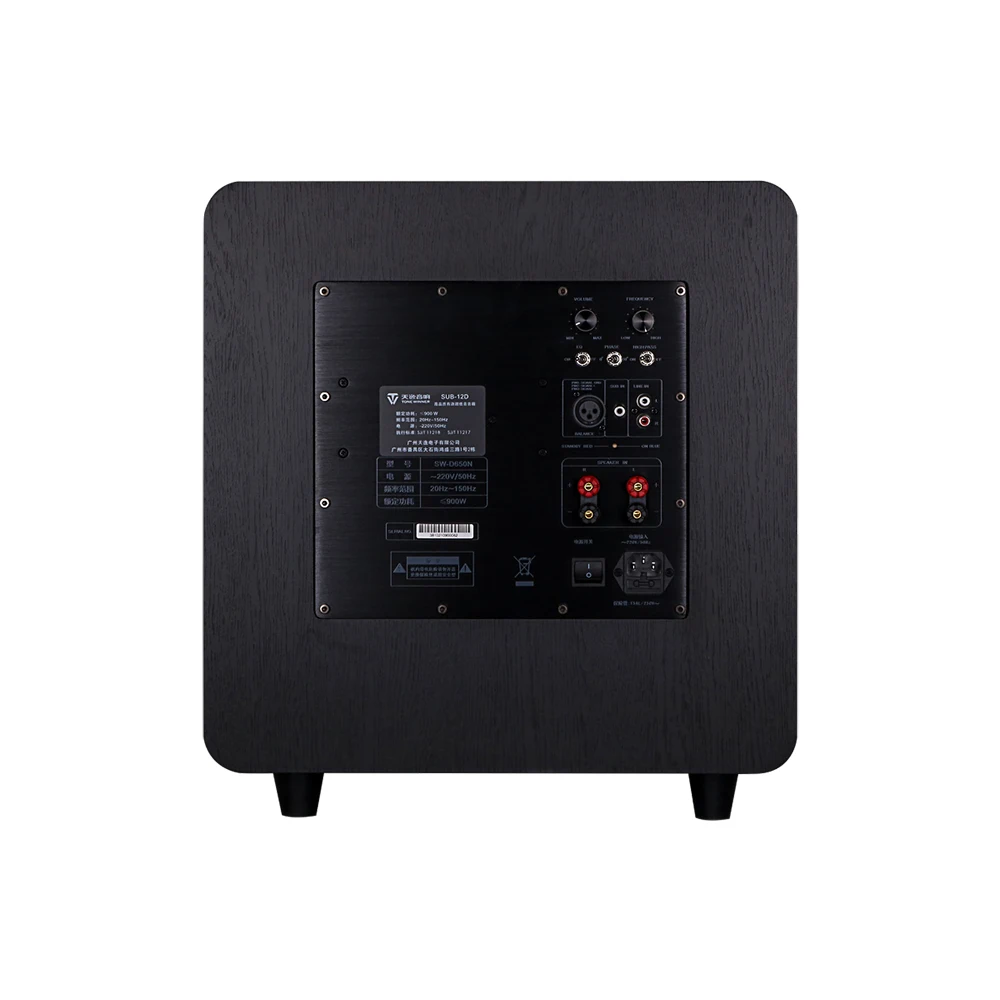

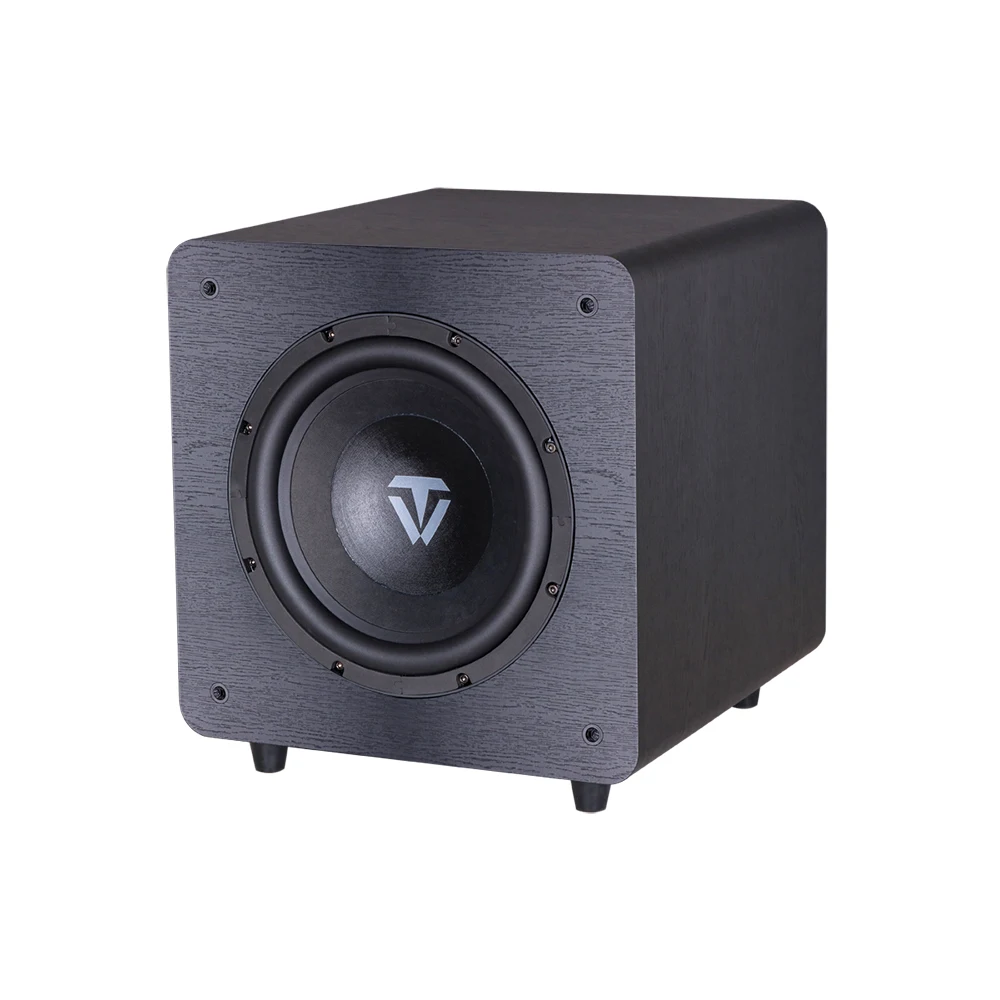

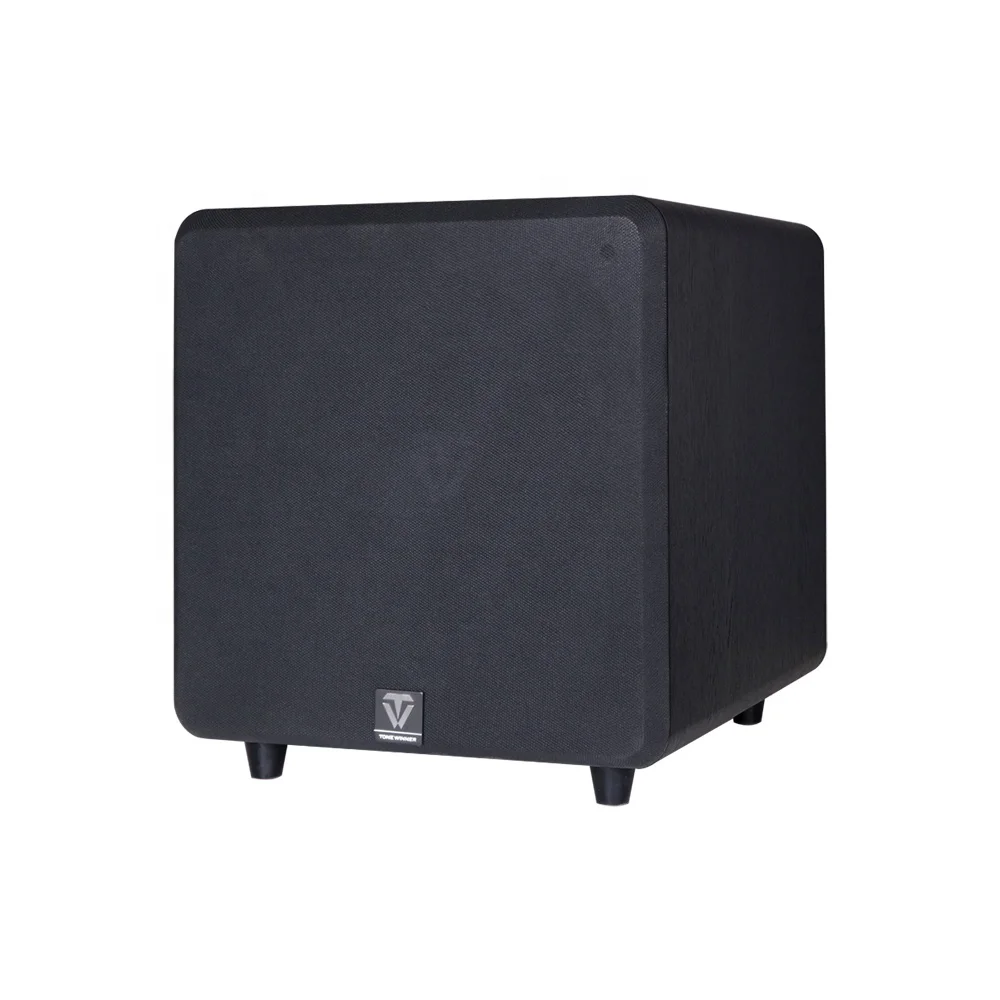

Model | SUB-12D(subwoofer) | Speaker Unit | 12 inch |
Minimum Power EMF | ≤350mv | Rated Inpedance | 4Ω |
Input level | ≤800mV RMS | SNR | ≥80dB(A weight） |
Output power | 600W | Power consumption | ≤900w |
N.W | 25kg/piece | G.W | 29kg/piece |
Size | 420×460×455mm(W×H×D） | Package Size | 538×557×525mm |

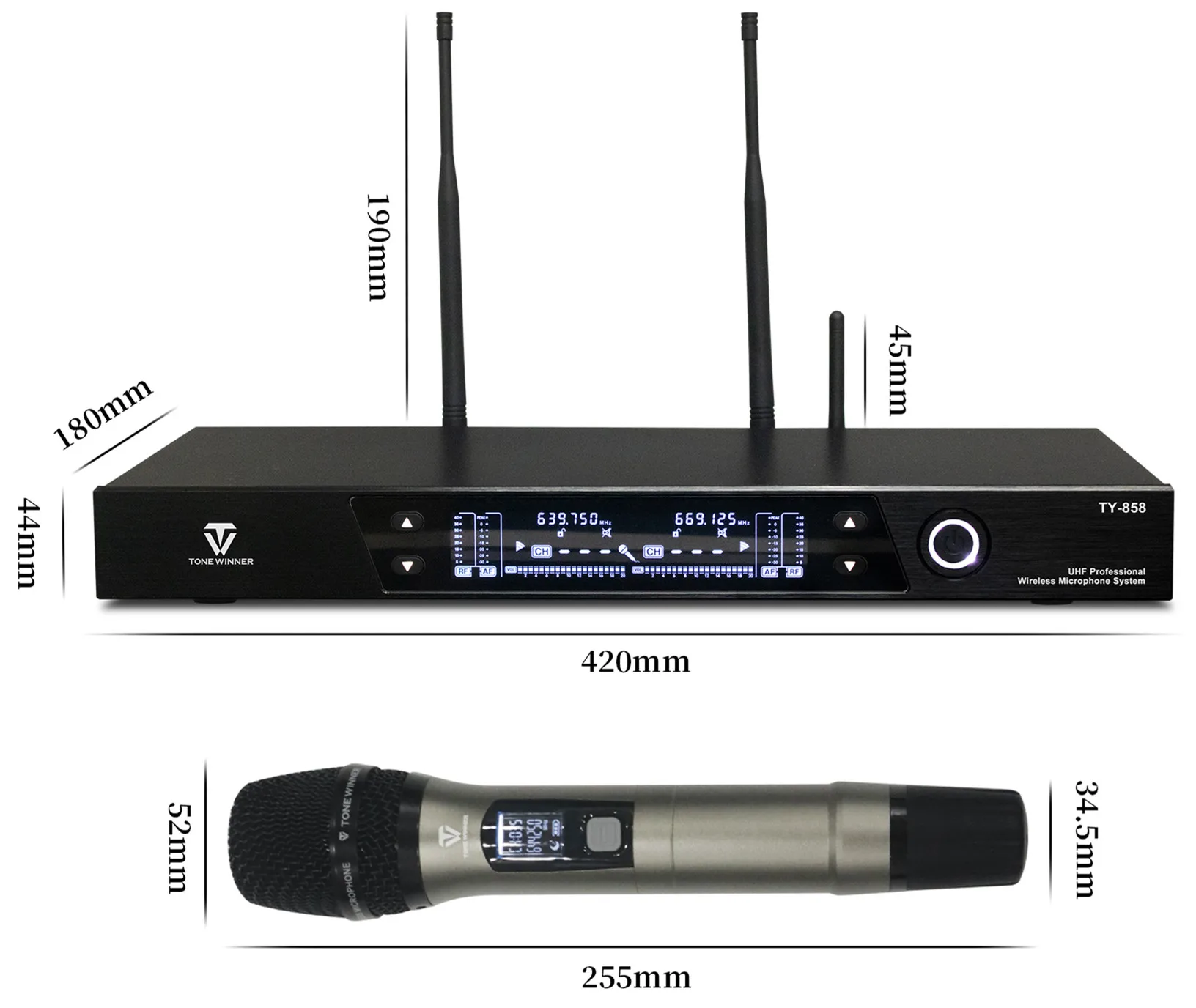

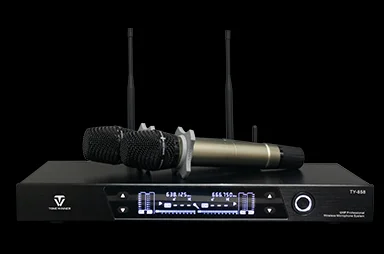

Model | TY-858 (Microphone) | Frequance Range | 40Hz-18KHz |
debugging method | FM-PLL phase-locked loop control | Binding mode | RF automatic frequency pairing |
THD | ≤1% | Receiving sensitivity | 95dB |
Output | Balanced (XLR) and 6.35mm | SNR | ≥100dB |
