WB 420F Automatic Spice chili powder black pepper sachet 1kg Powder Packing Machine

Share on (1600846160679):


Price:$7,200.00

Quantity:


Product Overview

Description



Detailed Images





name card




WB-420F Automatic 1kg powder packing machine for spice chili powder black pepper sachet wrapping machine ,contact Claire ,whatsapp008613321906856

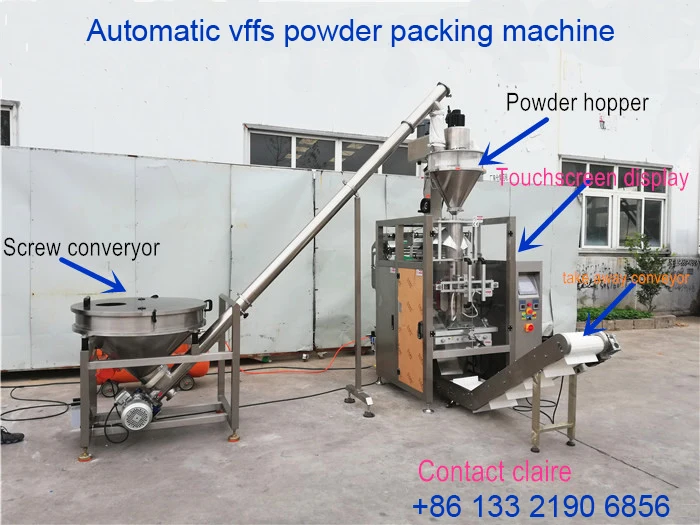

This full  packing system including below machines :


1) automatic VFFS Powder packing machine


2)  Auger screw elevator


3) Take away Conveyor belt





VFFS Powder






 Finished bag samples powder sachet sample

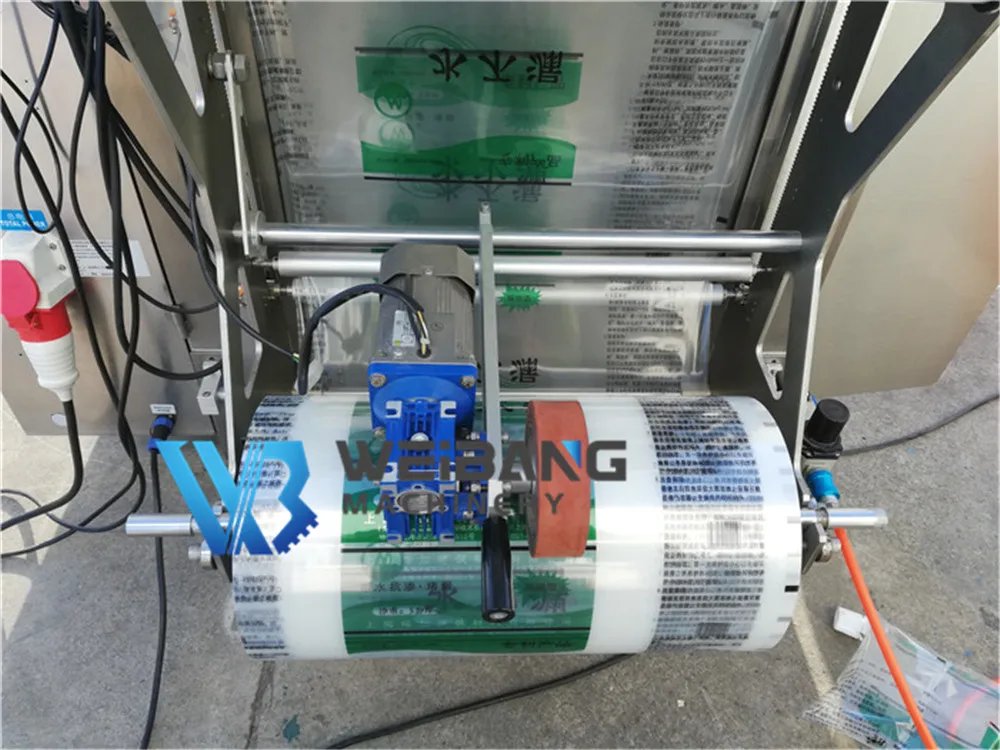

Plastic film roller


420 520 720F (9)

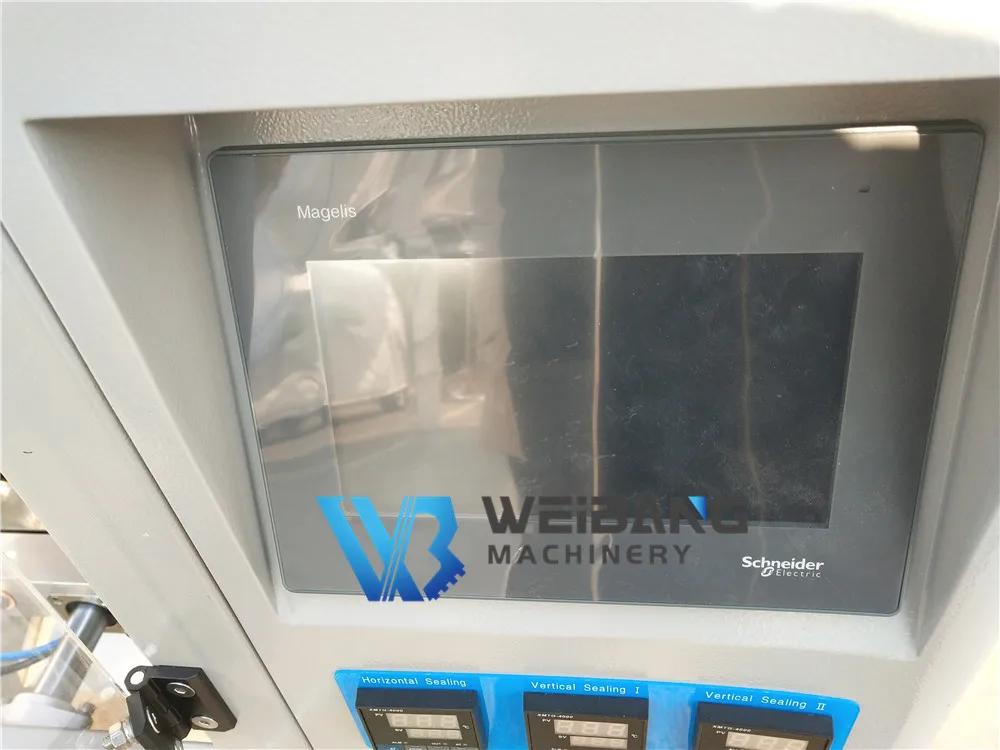

Touch screen : PLC Control, We use world famous Brand like SIMENS, SCHNIDER

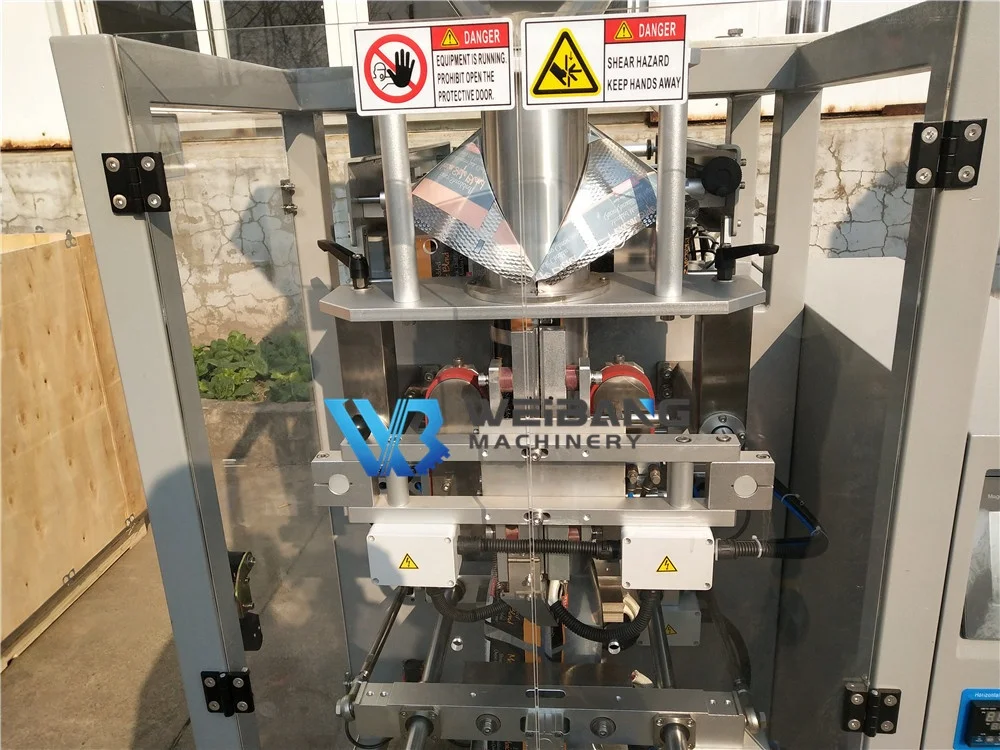

Bag former :Contrat part material made of SS304 ,The machine come with 1 set bag former already ,if you have different bag width ,just exchange an extra bag former .


 420L  (2).jpg

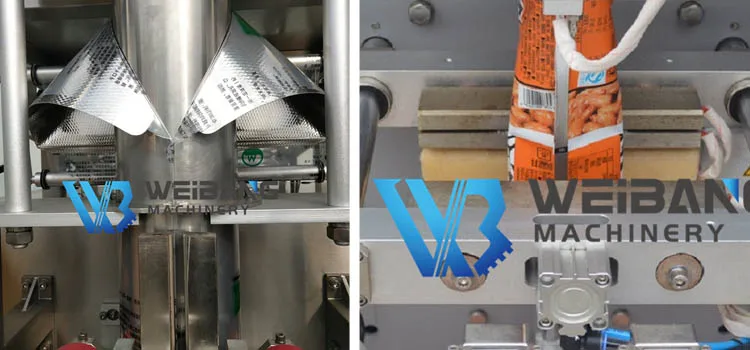

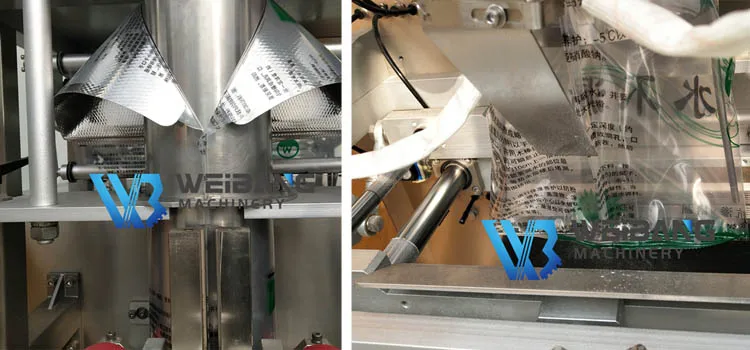

Sealing part:The sealing type can be made as Back seal /gusset bag /bottom bag

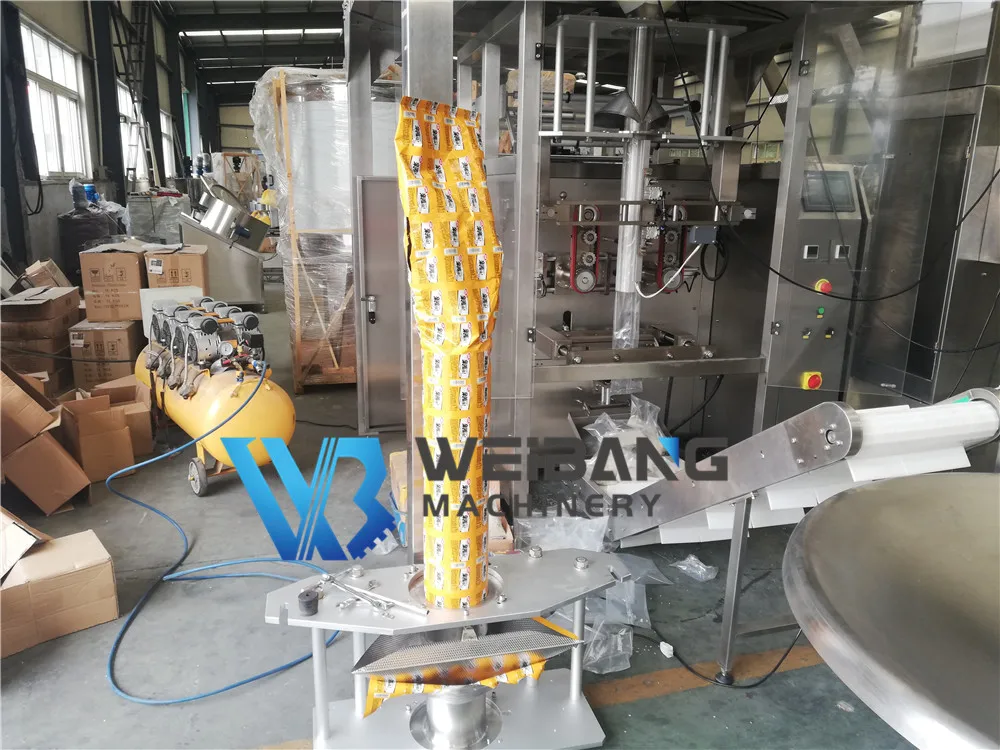

Extra bag former for different bag size :

WB-720Z Packing  (16)

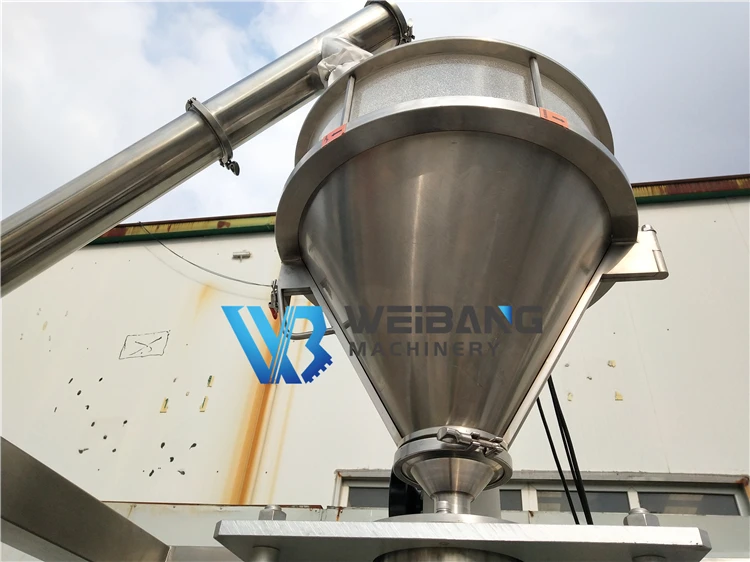

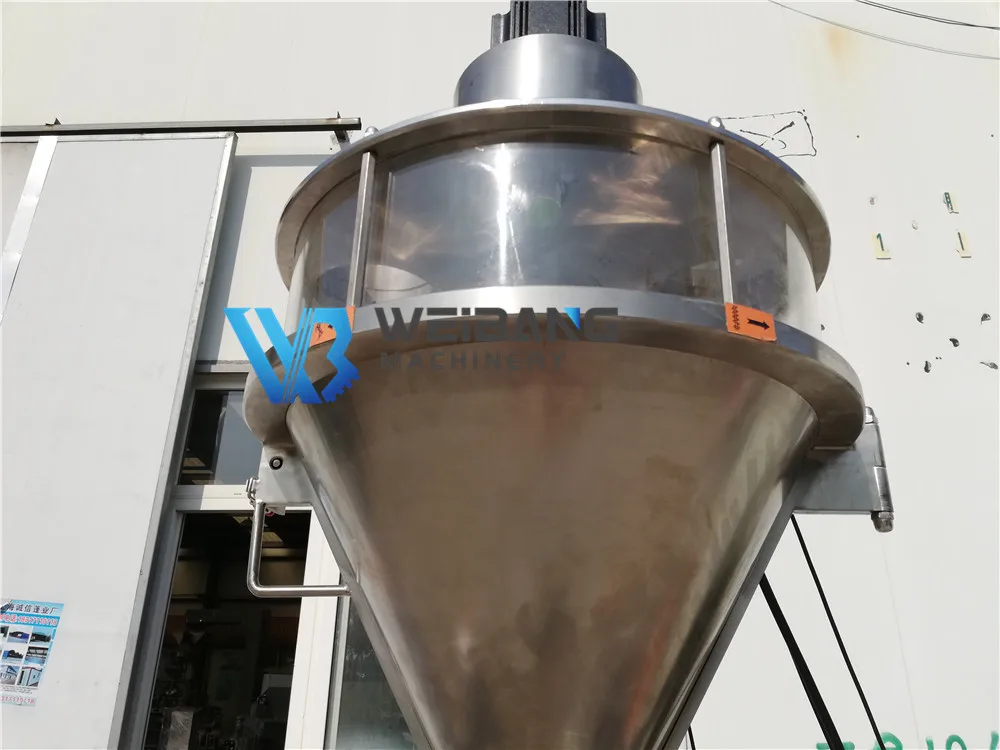

Auger screw weigher measurement

420F 1kg   (6)

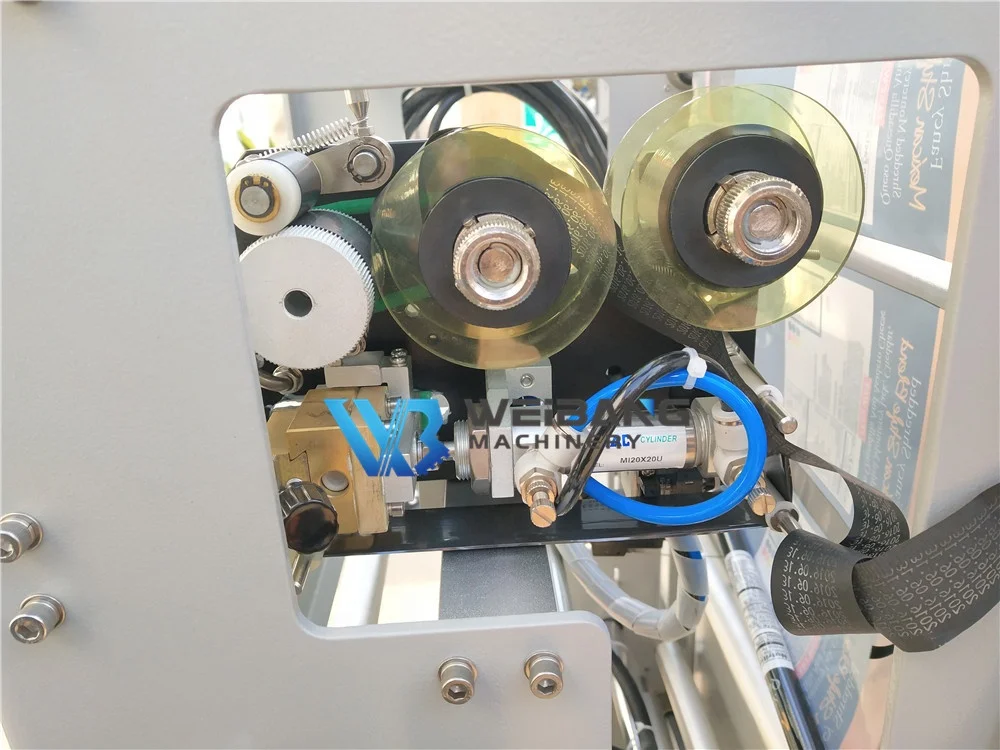

 Optional device : ribbon stamper code printer


420L  (6).jpg

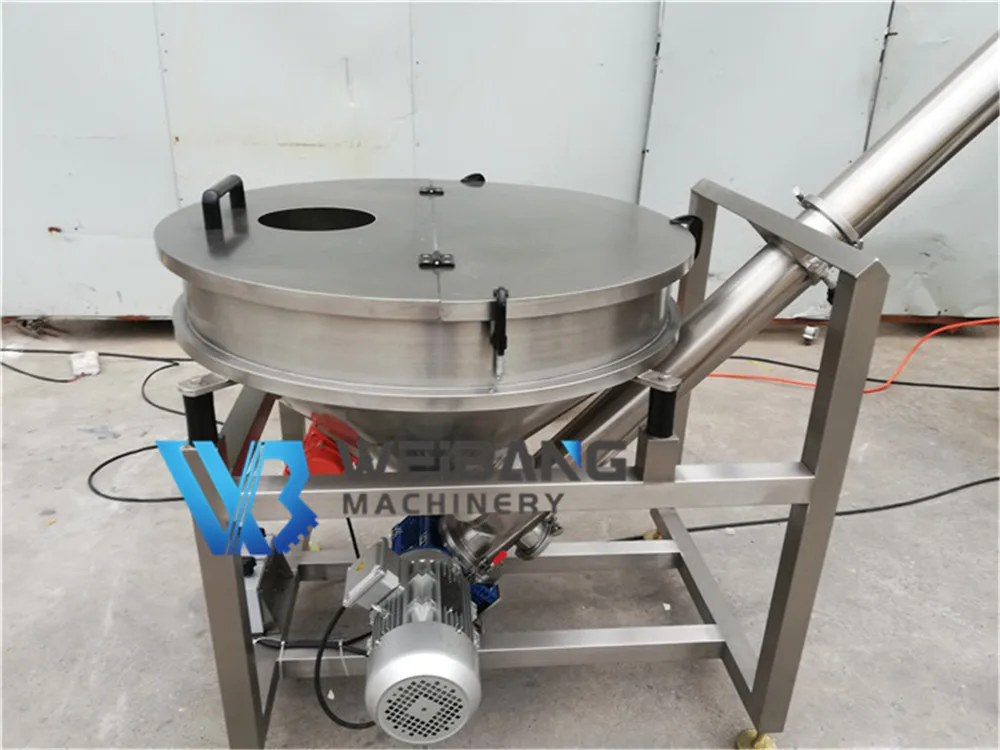

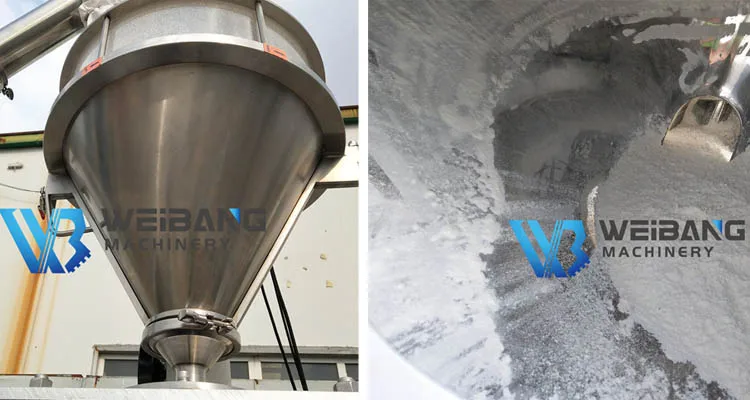

Auger screw :


420 520 720F (4)



Product Description





This Vertical packing machine is mainly used for packing powder products: such as milk powder, coffee powder, corn, condiment,  herbal powder,flour,starch,spices,curry powder,protein powder ,chemical and medical powders , etc.











Function and features:


1. This machine can automatically complete the following work: material lifting--Auger screw weigher measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products --sorting finished products.


2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the intellectualized degree, and equipped with safety protection.


3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product, it can be used at any time without resetting.


4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to be promptly ruled out.


5. Can make hole punching device according to customer's request.


6. This machine has stainless steel type and carbon steel type for choice.





Technical parameter:

































































































Model No.WB-420WB-520WB-720
Packing speed10-40 bags/min5-50 bags/min5-40 bags/min
Packing volume2000ml3500ml5000ml
Making bag sizeL: 60-300mm,W: 80-200mm     L: 80-400mm,          W: 150-250mm   L: 80-450mm,         W: 200-350mm
Film width< 420mm<520mm<720mm
Thickness of film roll0.04-0.09mm0.04-0.09mm0.04-0.09mm
Pulling film typeDouble belt pull filmDouble belt pull filmDouble belt pull film
Air consumption0.8Mpa,0.5m³/min0.8Mpa,0.5m³/min0.8Mpa,0.5m³/min
Packing accuracy1%1%1%
Power2.5 KW2.5 KW3.0kw
Power supplyAC220V,50/60HzAC220V,50/60HzAC220V,50/60Hz
Seal typePillow seal,Gusset bag,Pillow seal,Gusset bag,Pillow seal,Gusset bag
Block bottom bagBlock bottom bagBlock bottom bag
Main machine net weight450kgs550kgs700kgs
Main machine dimensionL1320 x W920 x H1390mm1500x1140x1540mm1800x1250x1780mm







we also have other smaller bag packing machines

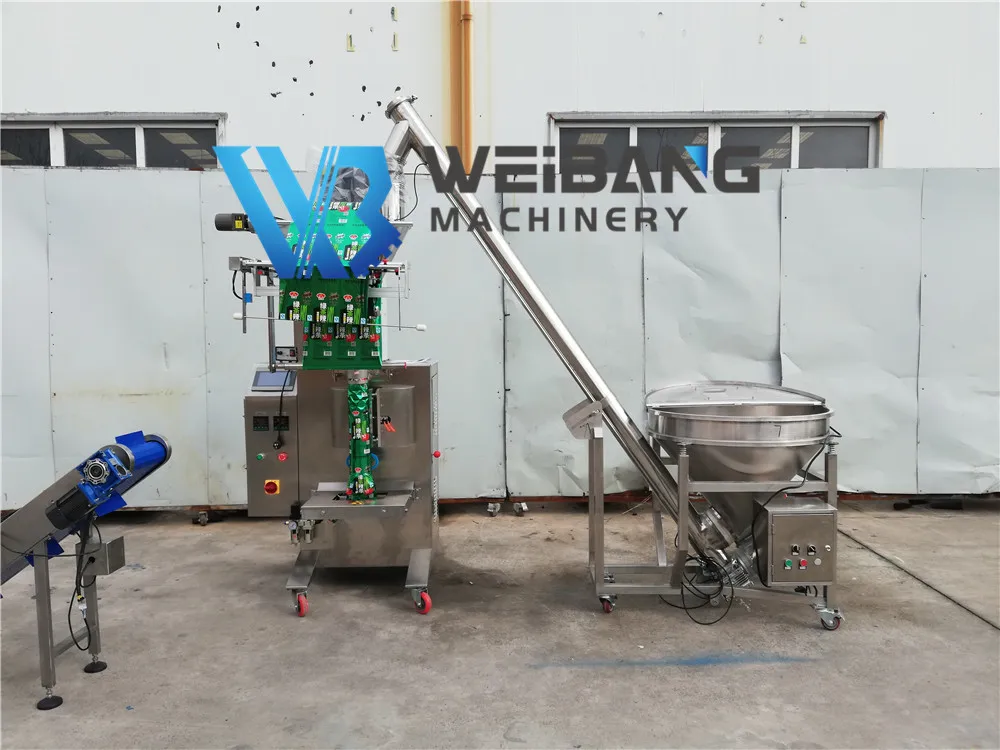

                                                                     500g 1kgs powder bag packing 300F Powder (21)

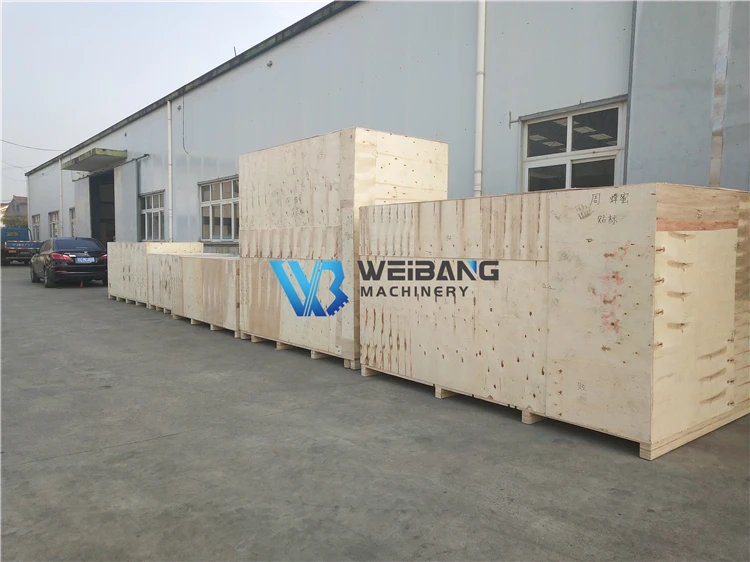

Packing and Delivery
