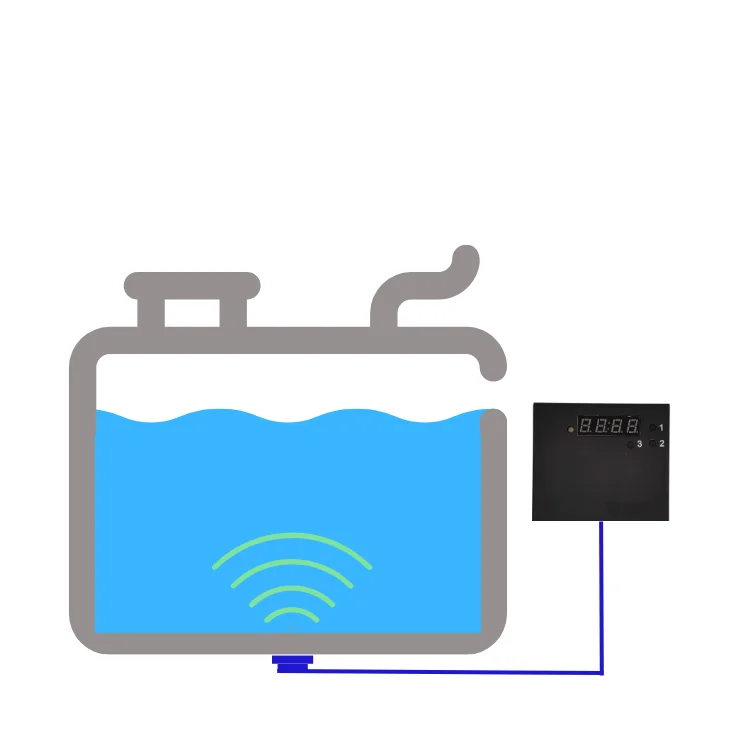

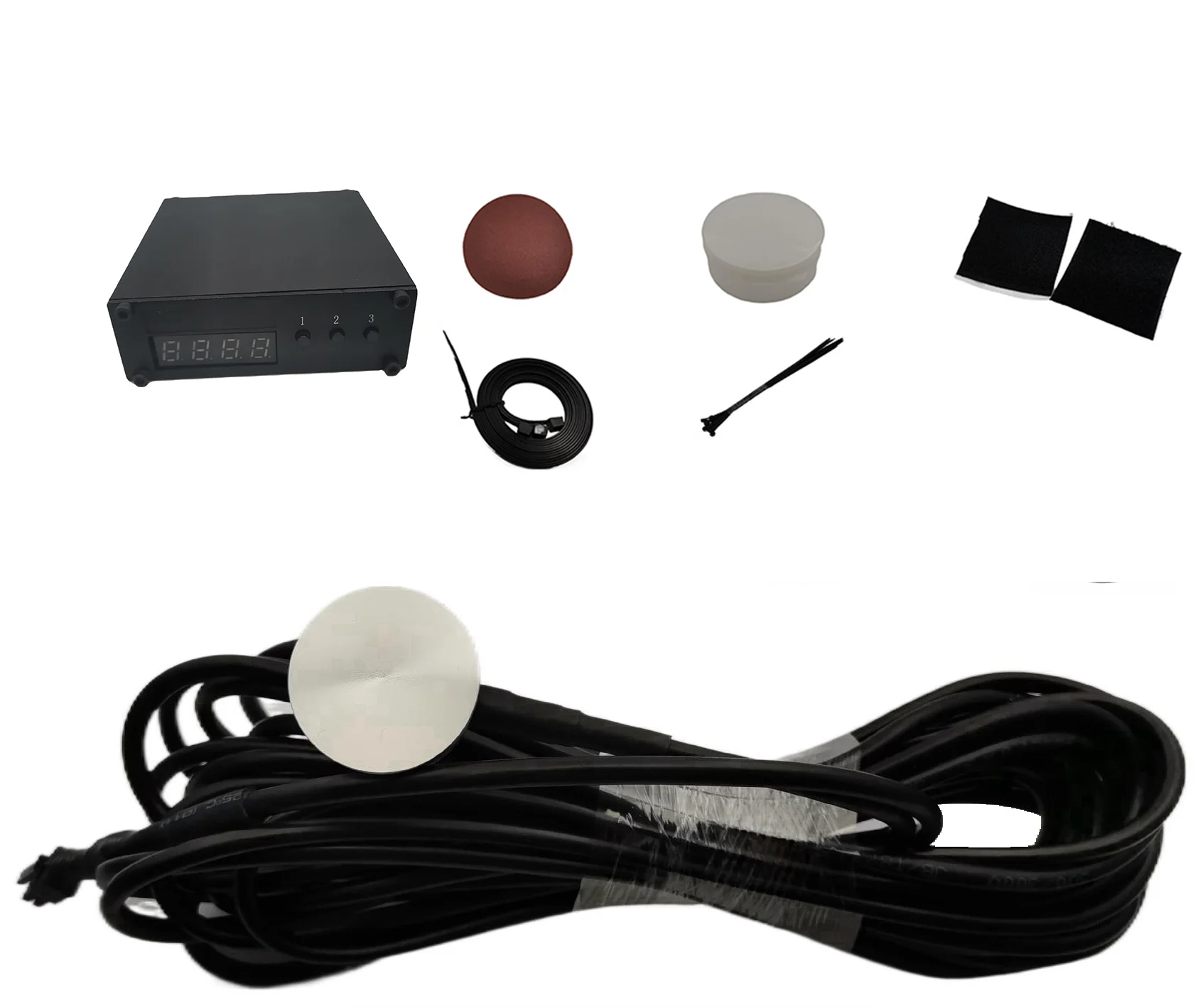

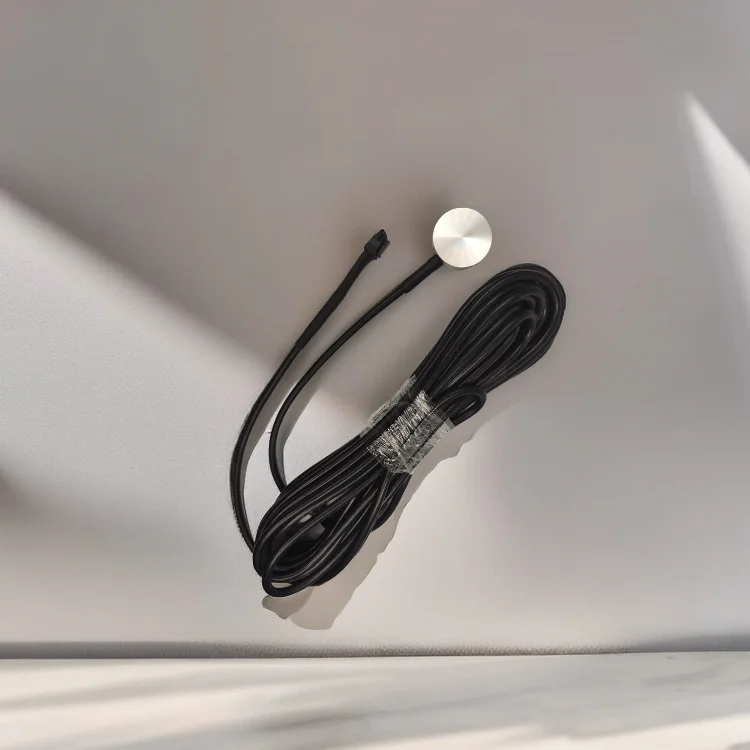

Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor
Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor

Wholesale No Drawing Hole Ultrasonic Sensor for Fuel Large Measuring Range Ultrasonic Oil Level Sensor

Share on (1600846176409):


Price:

Quantity:


Product Overview

Description



Products Description


Operating voltage
9~36VDC
Maxinmum power consumption
0.8W/12VDC
Working temperature
-40℃~+85℃(Industry level)
Working humidity
5%~90%
Measurement range
Determined according to materials and thickness of the container; for a steel plate of 5mm thick, the measurement scope is 5~200cm.
Presssure bearing scope
≤0.8kg or 0.8MPa
Liquid measurement accuracy
±1%
Equipment interface

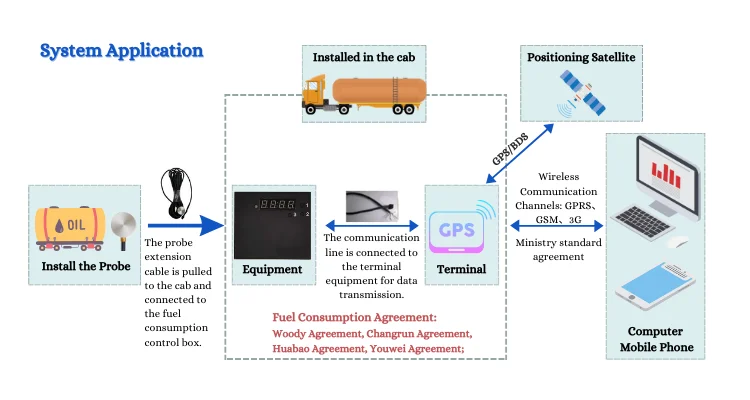

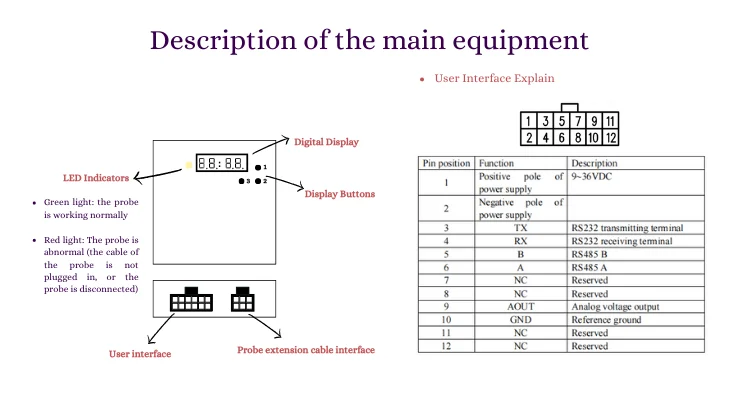

Provide output port of analog voltage/current, RS232, and RS485 data port.
Communication port parameters
The default baud rate is 9600. No check bit, 8-digit data bits, 1-digit stop bit, and no fluid control. The liquid level value measured by the sensor in a real-time manner is given per 10s after smoothing processing.

Note: The baud rate and interval of data transmission can be customized.
