2023 Newest Box Feed Vibrating Powder Coating Gun Machine For maf

Product Overview

Description

CE Approved Fast Change Color Powder Coating Spray Machine

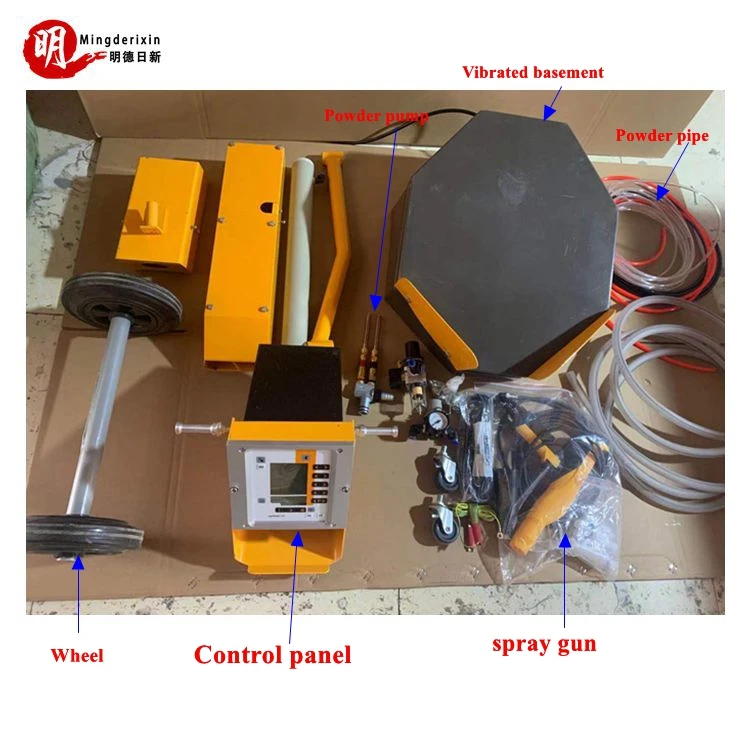

 1-Specification







Part Name	Quantity
Gun	1 SET
Controller	1 SET
Low Temperature Soft Powder Pipe	1 SET /3.5Meters
Vertical Powder Pump	1 SET
Stainless Steel Barrel	1 SET /40L
Overflow Pipe	1 SET
Movable Trolley	1 SET
Oil and Water Separator	1 SET

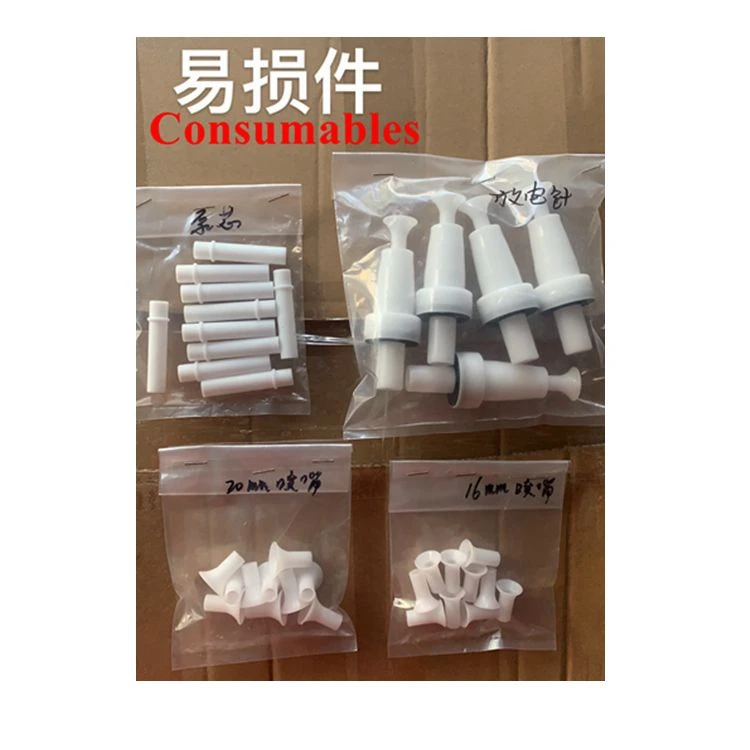

Consumables	Some

2- Parameters

Electric Parameters
1	Supply Voltage	220-240V,customized
2	Frequency	50-60hz
3	Power	50W
4	Security Grade	IP54
5	Working Temperature	0-40C
Air Supply Parameters
1	Compressed air of main interface diameters	8meters
2	Input air pressure	4-8Bar
3	Maximum Water Content	1.3g/m3
4	Maximum Oil Content	0.1mg/m3
Spraying Gun Parameters
1	Maximum Output Voltage	120kv
2	Maximum Output Current	120µA
3	The length of Powder Tube	3.5meters
4	The length of Cable	3.5meters
5	The Maximum Powder Output	650g/min
Package ( Fumigation-free Wooden Box)
1	Size	650mm(L)*470mm(W)*950mm(H)
2	Weight	45.5KG



3-Application

4- Advantage



1. Quicker color change

2. Processing the powder directly from the original powder manufacturer's container

3. Powder coating for metallic and difficult powders

4.Total emptying of the powder container due to inclined vibrating base

5. Easy to complete the groove, angle and other electrostatic shielding parts of the spray, the performance of the extraordinary coating effect

6. with the workpiece shape and distance changes automatically adjust the static output, without manual frequent adjustment

7. advanced high-speed automatic follow control system, will automatically inhibit the fire before  it occurs

8. the whole heat less, continuous work better stability, more competent 24 hours of continuous work

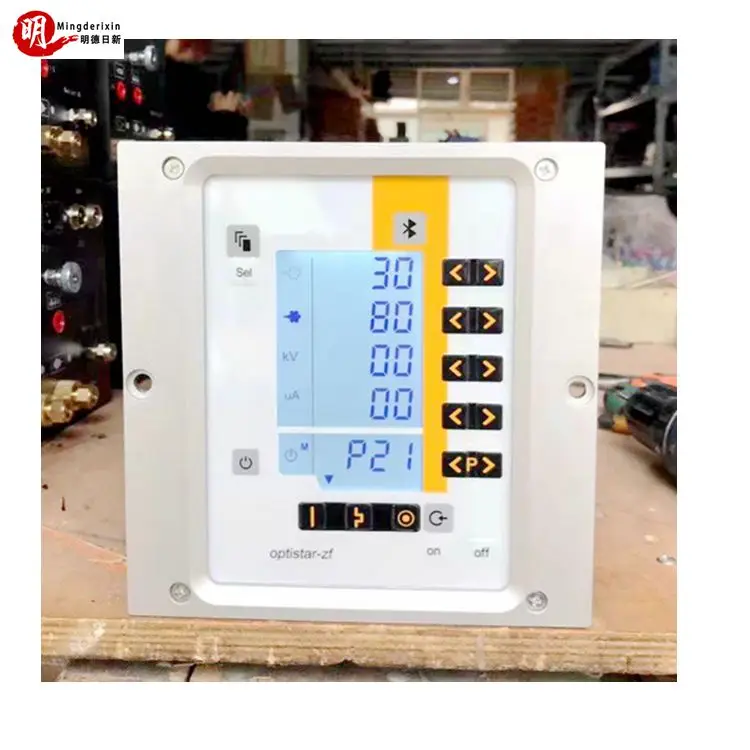

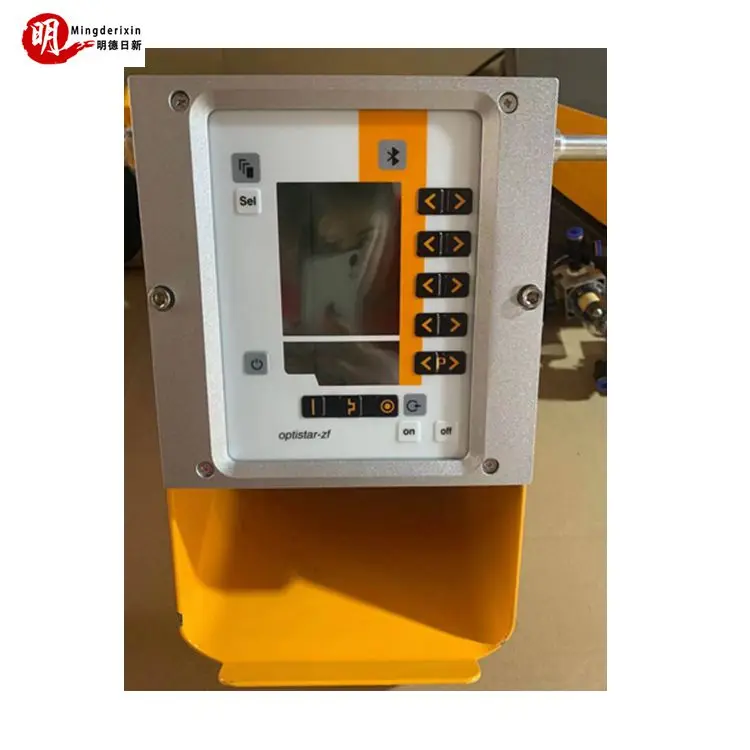

9. digital display control system, while displaying the preset voltage, preset current

10. preset settings exceed the reasonable limit automatic alarm reminder

11. configure the low temperature does not stick powder powder quality powder, the use of light, easy to clean

12.All the powder in the box can be used thanks to the inclined vibrating table. The fluidized suction

tube is optimized for a constant powder delivery

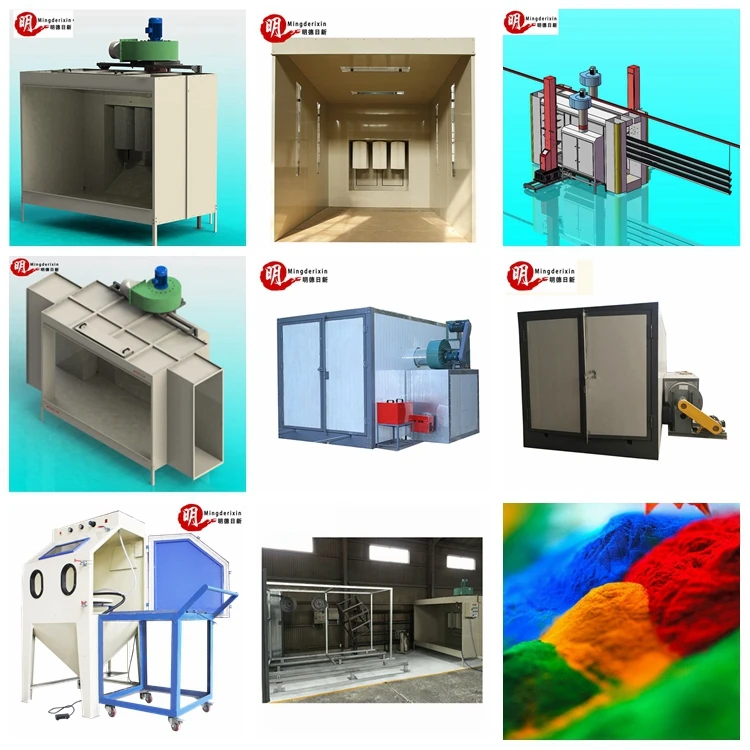

5-Other Models

No.	Model	Name
1	MD-SG01	Top Quality Powder Coating Gun
2	MD-SG02	Economical Powder Coating Gun
3	MD-SG03	Enamel Powder Coating Gun
4	MD-SG04	Vibration Base Powder Coating Gun
5	MD-SG05	Automatic Powder Coating Gun
Choose your favorite one according to your requirement
