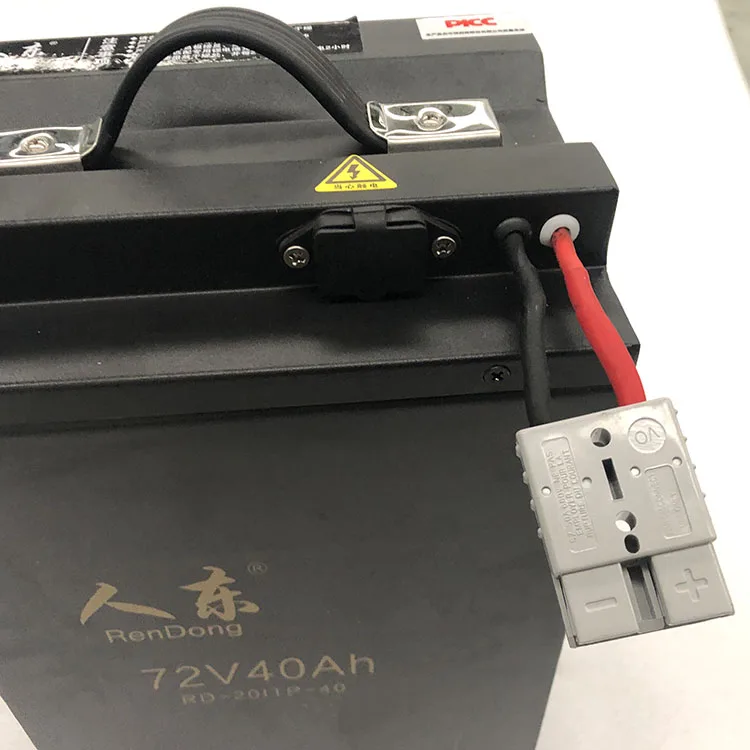

Deep Cycle Lifepo4 Battery Pack 72v 40ah 3000w Lifepo4 Lithium Iron Phosphate Battery
- Category: >>>
- Supplier: Jiangxi Rendong New Energy Co. Ltd.
Share on (1600846276024):
Product Overview
Description

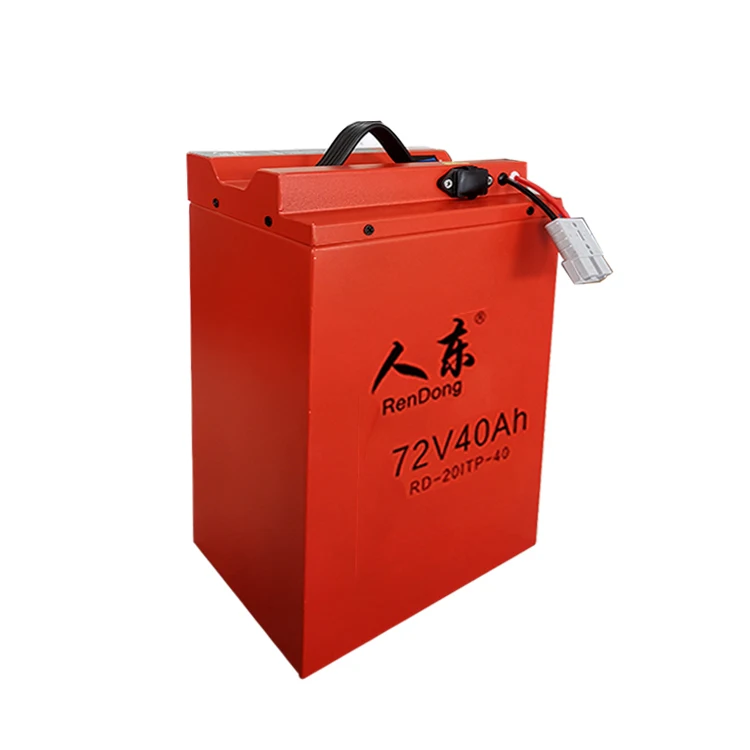

Deep Cycle Lifepo4 Battery Pack 72v 40ah 3000w Lifepo4 Lithium Iron Phosphate Battery
Product Description
Item | General Parameter | ||
Model | ITP-40000mAh-20S1P | ||
Standard capacity(0.5C) | Typical:40Ah Min:40Ah | ||
Rated voltage | 72V | ||
Max.Charge voltage | ≤ 84V(standard:84V) | ||
Discharge Cut-off voltage | 60V | ||
Standard charge current | ≤ 8.0A | ||
Rated Continuous discharge current | 40A | ||
Max continuous discharge current | ≤ 40A | ||
Over-Current Protection value | Continuous working current | ≤ 40A | |
Time-delay discharge current | 40A≤ I ≤50A | ||
Max Instantaneous discharge current | 50A≤ I ≤80A | ||
Single cell charge protection voltage | 4.2V±0.05 | ||
Single cell cut-off voltage | 3.0V±0.05V | ||
Impedance(Max,at 1000Hz.) | ≤ 150mΩ | ||
Battery dimension | MAX L215×W165×H340mm | ||
Weight(approx) | 20.5kg | ||
Mass Ratio of Energy | 193Wh/Kg | ||
Interface | charge/discharge: 3 pins socket and Anderson plug | ||
Working Condition (CC/CV) | Standard | -20℃~60℃ | |
Humidity | 50%~85% | ||
Storage | 0℃~40℃ | ||
LiFePO4 Battery Advantages:
1.Green products. Currently, lithium iron phosphate is the safest cathode material for lithium ion batteries. It does not contain any heavy metal elements harmful to human body.
2.Cheap raw materials and abundant resources.
3.Large theoretical capacity. Can release more capacity, large and balanced discharge.
4.The voltage platform has good characteristics, and the balance of its charge and discharge voltage platform can approach the stabilized power supply.
5.Good performance at high temperature.
6.Moderate energy storage, positive electrode materials can be compatible with most electrolyte systems.
7.Long life cycle.
Li-ion(NCM) Battery Advantages:
1.High energy density is the biggest advantage of ternary lithium battery.
2.With excellent comprehensive performance, which is balanced in capacity and safety.
3.Light weight and small footprint.
4.Better endurance and longer duration.
5.Good low temperature performance.
6.High charging efficiency.
Lithium battery charger:
| Battery Pack Rated Voltage | Max.Output Voltage | Output Current Range | AC Input Voltage Range | Socket Standard |
| 6V | 7.3V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 12V | 14.6V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 24V | 29.2V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 36V | 43.8V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 48V | 54.6V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 48V | 58.4V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 48V | 58.8V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 60V | 71.4V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
| 72V | 87.6V | 1-100A | 110-260V; 40-70HZ | EU/AU/UK/US... |
 |  |
If you need a matching lithium charger, please directly contact us for more details.
Related Products

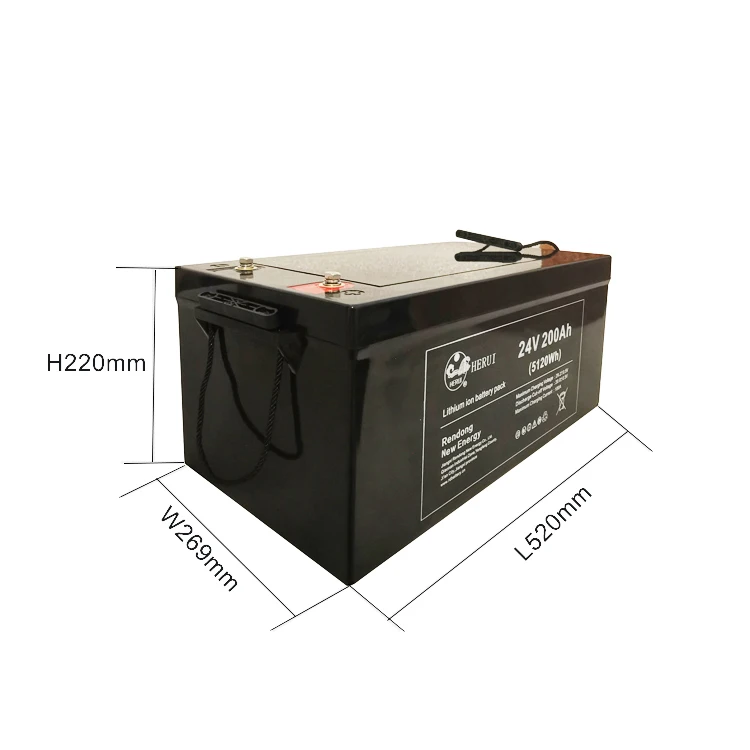

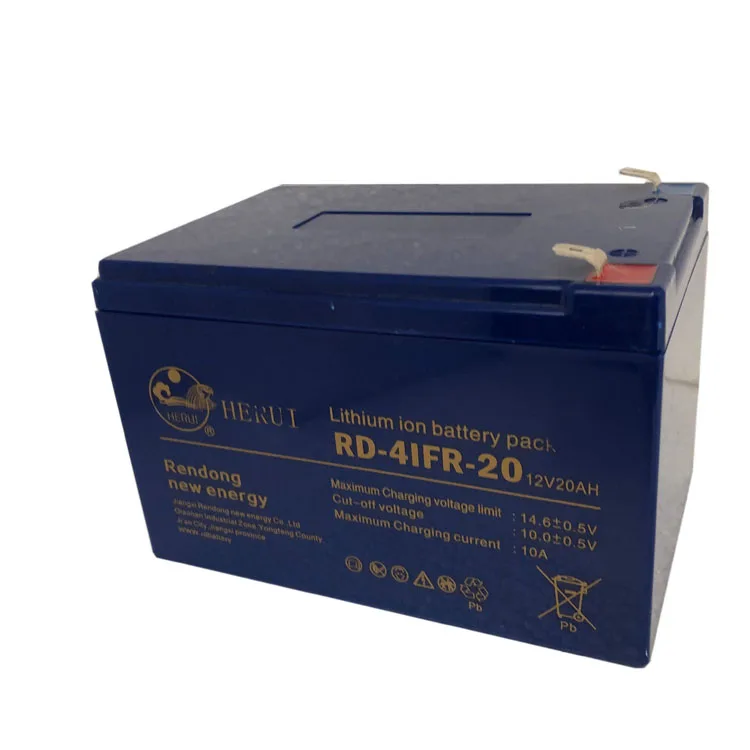

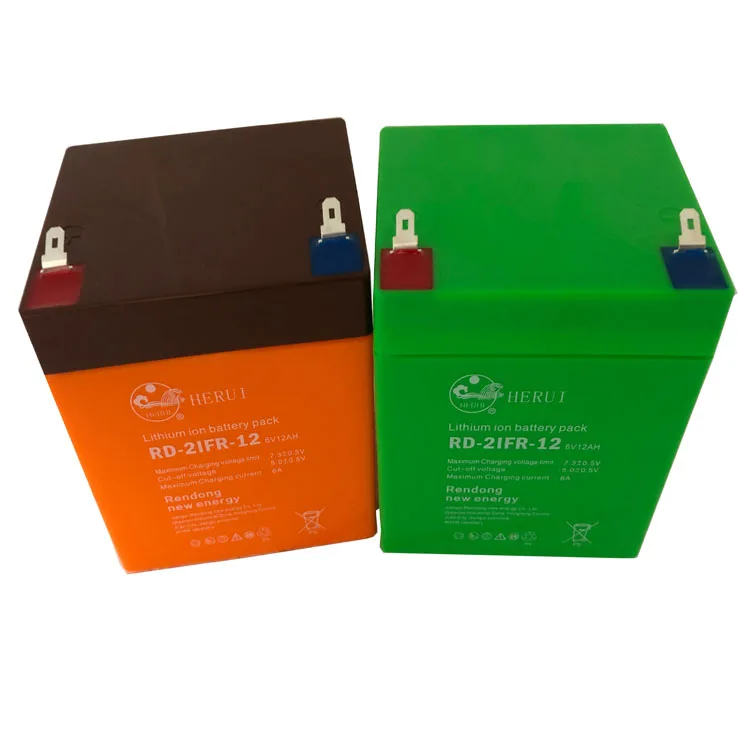

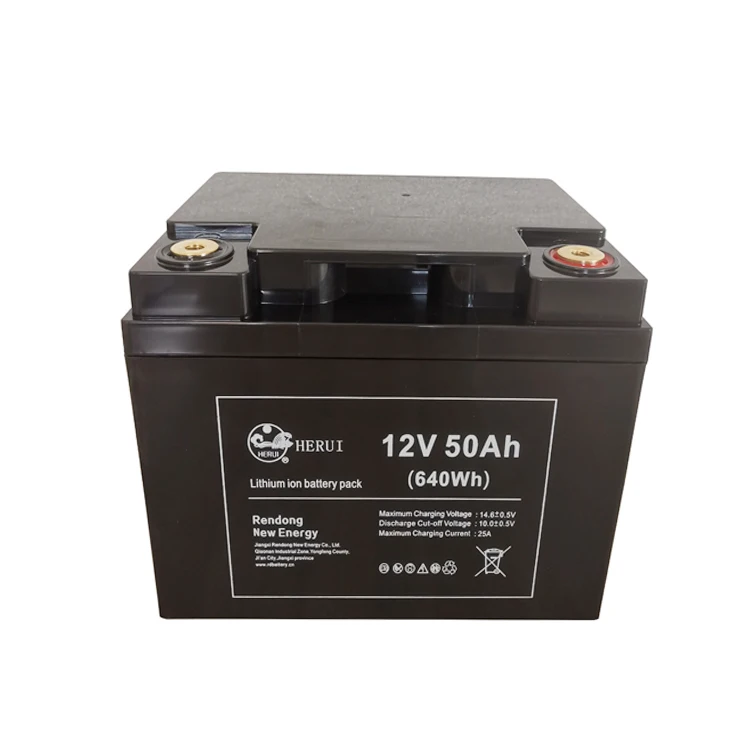

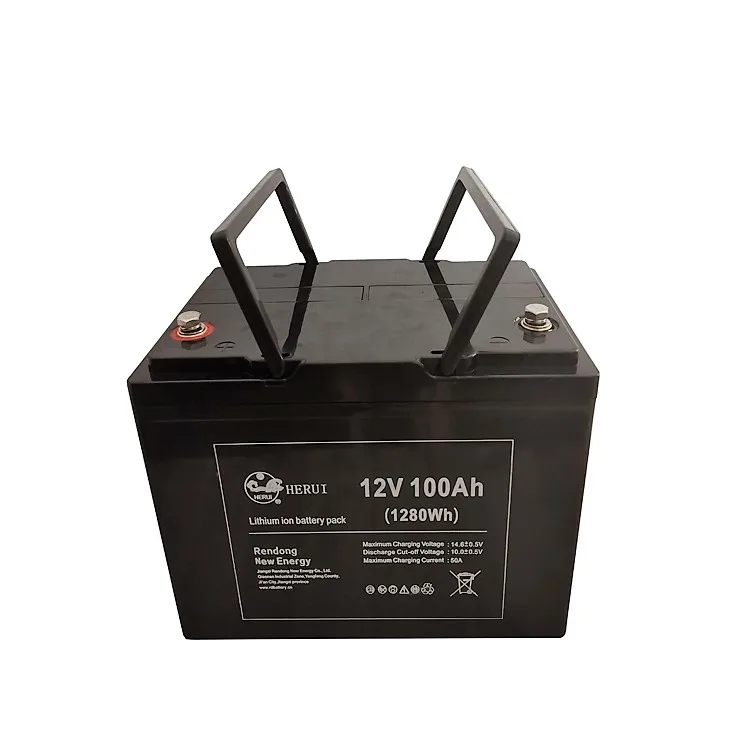

6V 12Ah Lifepo4 battery 12V 20Ah Lifepo4 battery 12V 50Ah lifepo4 battery 12V 100Ah lithium battery

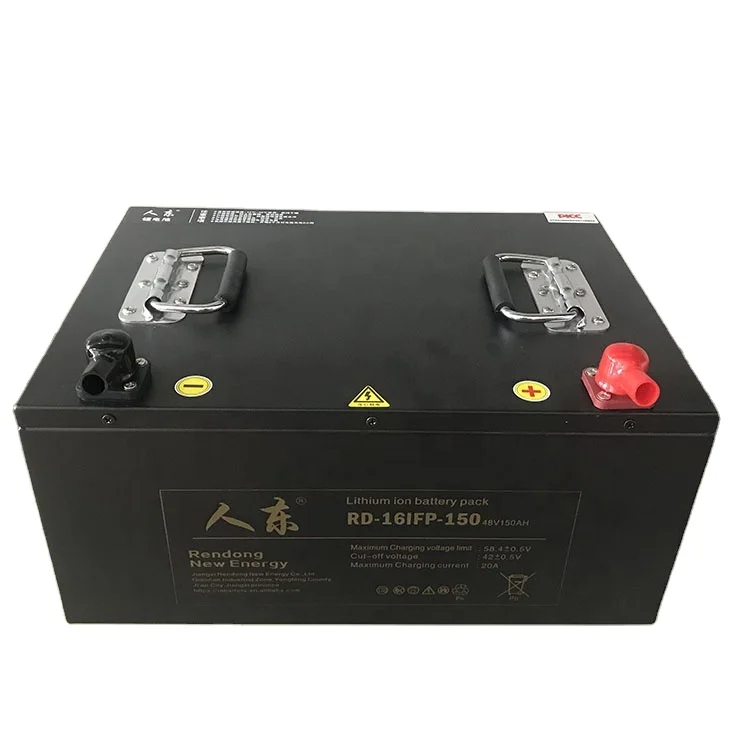

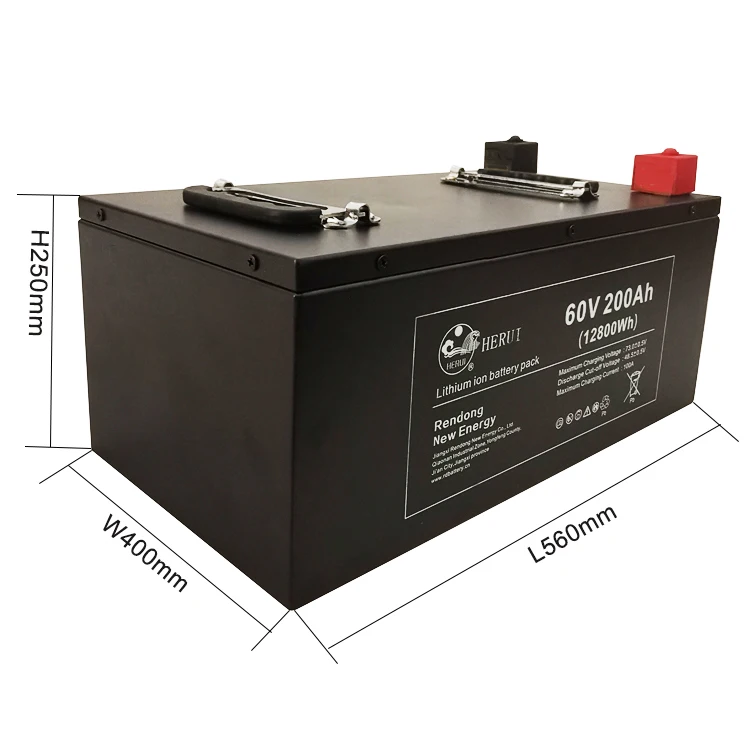

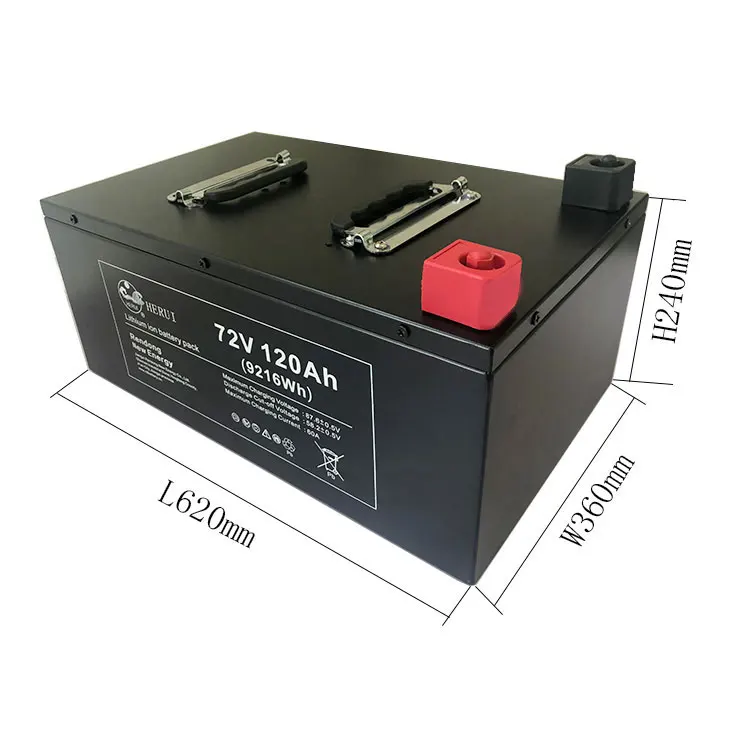

Lifepo4 battery 24V 48V 150Ah EV battery pack 60V 200Ah lifepo4 battery 72V 120Ah golf cart battery

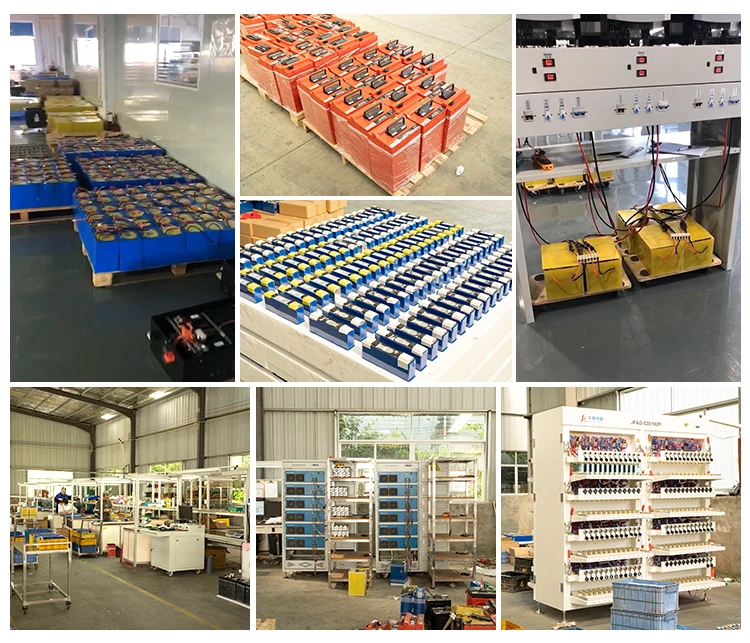

Our Factory
Our Service
Service aim:
Quality products, Competitive price, Fast delivery
Our Company Competitive Advantage:
1.20 years marketing experience in domestic battery line and 10 years experience of producing battery.
2.Carried on self-renovation and automatic production, with group of professional engineers.
3.All the productions are inspected carefully by QC before delivery.
4.Top quality with competitive price help you gain your market.
5.Low MOQ request and small order accept for supporting clients.
6.Customized battery pack is acceptable.
7.Quick response and faster delivery.
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer in Jiangxi more than 10 years.
Q2: Can I have a sample order?
A: Yes. We support sample order for quality inspection. Customized is available.
Q3: Do you have any MOQ limit?
A: We are not very strictly with MOQ, small order is accepted.
Q4: What’s your lead time?
A: Usually can be delivered within 15-25 days. Large quantities need to be negotiated.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you ship the goods?
A: We usually ship by DHL, UPS, Fedex,TNT for samples and large quantities should be by sea.
Q7: Do you supply OEM service or private label?
A: Yes. We can produce according to customer’s requirement.
