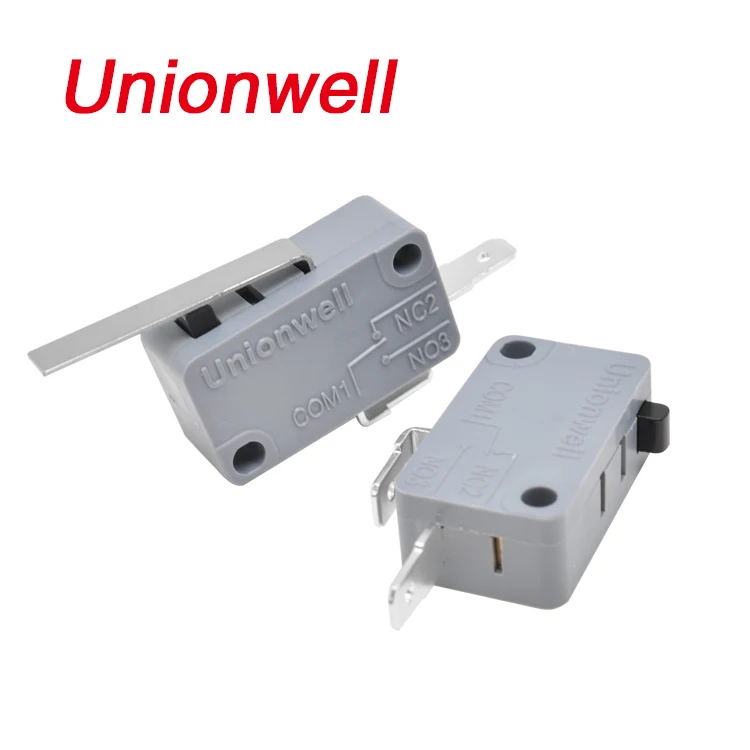

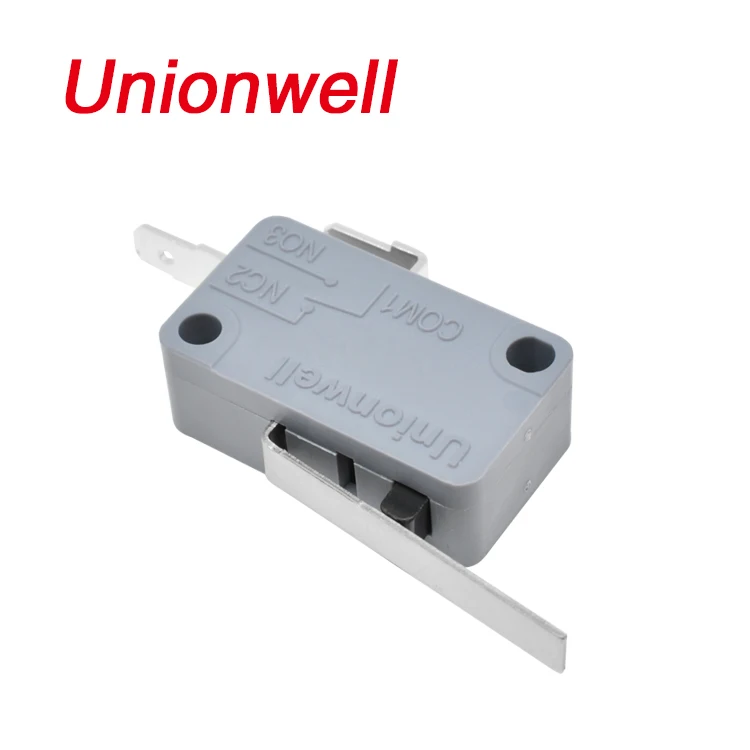

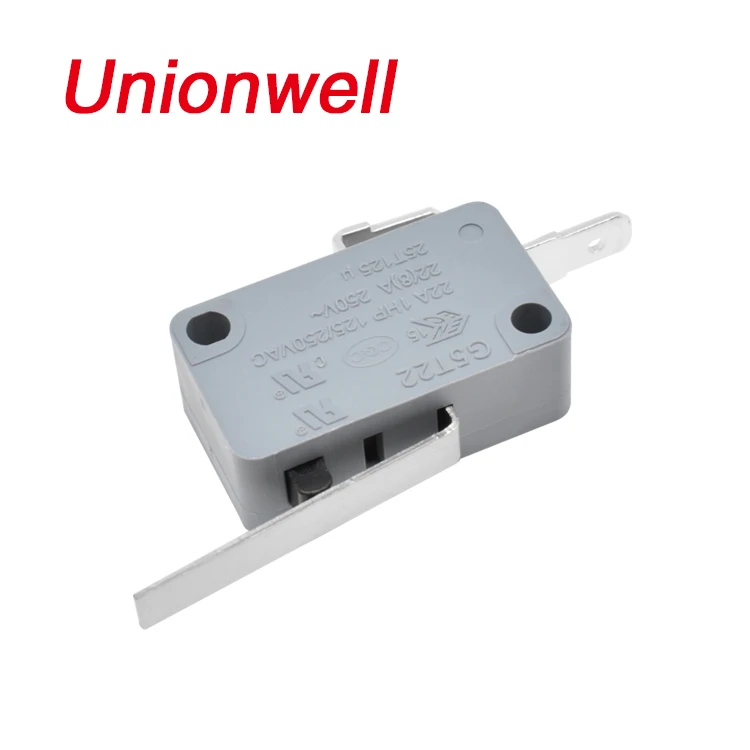

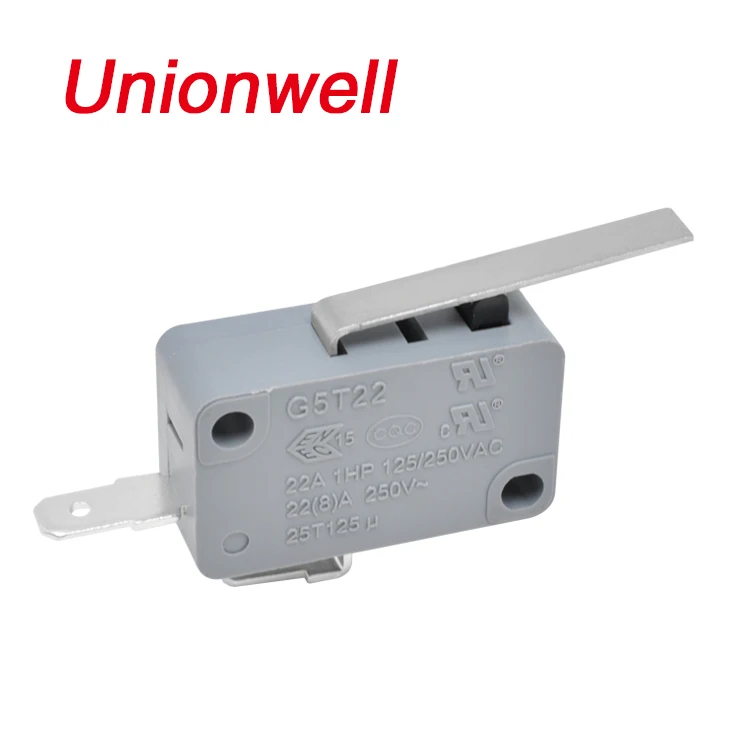

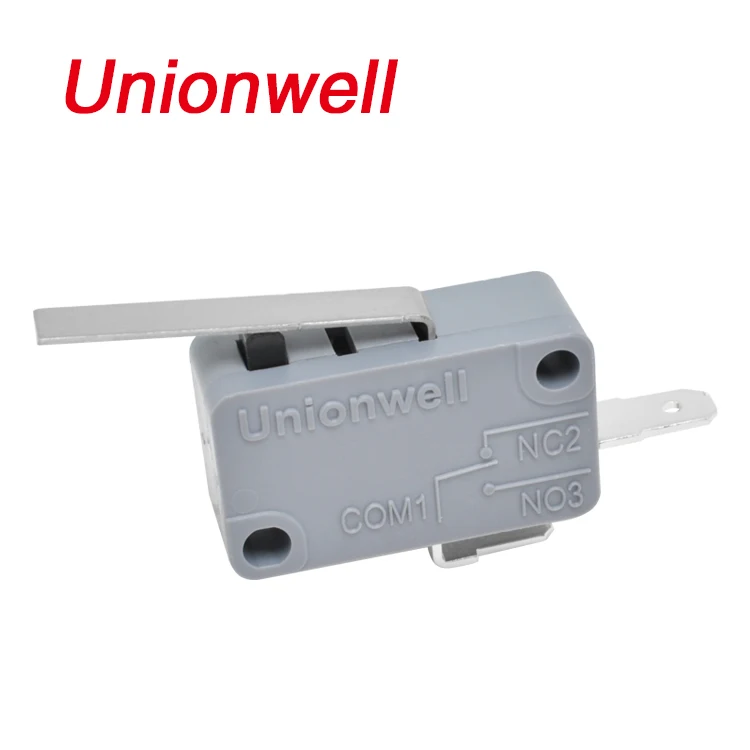

G5T22 Series Liquid Level Controller Micro Switch Automatic Beverage Machine Limit Switch With Long Handle 5A Current Switch
- Category: >>>
- Supplier: Huizhou Grandye Industrial Co. Ltd.
Share on (1600846301366):
Product Overview
Description
G5 Basic Micro Switch
* Features
- Tightconfiguration, smallcontact gap, snap action, high sensitivity and small operating travel
- Longlife, high reliability
- Global safety approvals
- Wide operating force(7gf~600gf)
- Variety of temperature grade (25T85 25T125 25T150)
- With optional PTI grade (175V, 250V, 600V)
- Variety of levers
Products Description
Application | ||||||
Car washer | Rollover valve | Vending machine | Water heater | |||
Auto Electronics | coffee machine | compressor | Small equipment | |||
Product Parameters
Operating speed | 0. 1mm-1m/s(Related with actuator forms) | ||||||
Operating frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | ||||||
Insulation resistance | ≥ 100 Ω (500VDC) | ||||||
Contact resistance | ≤ 100m Ω (Initial value) | ||||||
Between each terminals of the same polarity | AC1000V, 50/60нz, Imin | ||||||
Betweencurrent-carrying metal partand ground. and between eachterminaland non -current carring metal parts | AC1500V, 50/60HZ, 1min. | ||||||
Vibration resistance | 10-55HZ, 1.5mm Double amplitude | ||||||
Shock resistance | Destruction:0F> 1.0N: 1000m/s2 (approx. 100G) max. 0F≤ 1.0N:400m/s2 (approx. 40G) max. 0F> 1.0N:200m/s2 (approx. 20G) max. 0F≤ 1.0N:100m/s2 (approx. 10G) max. | ||||||
Life expectancy | Mechanical >10,000, 000 cycles or 1, 000,000 cycles Electrical >50,000 cycles or 100,000 cycles | ||||||
Electrical | Min. 100, 000次/cycles(Depend on part NO.) | ||||||
Weight | Approx. 6.2g(No lever). | ||||||
Free sample is available
