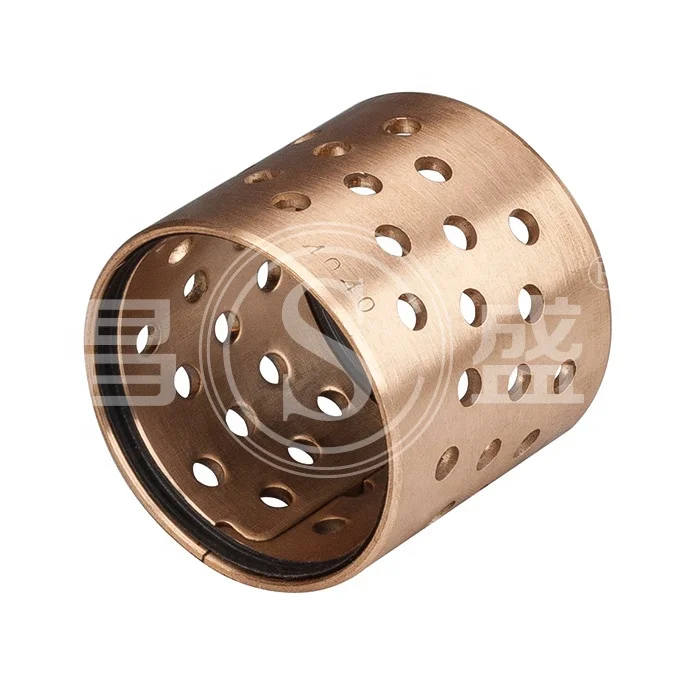

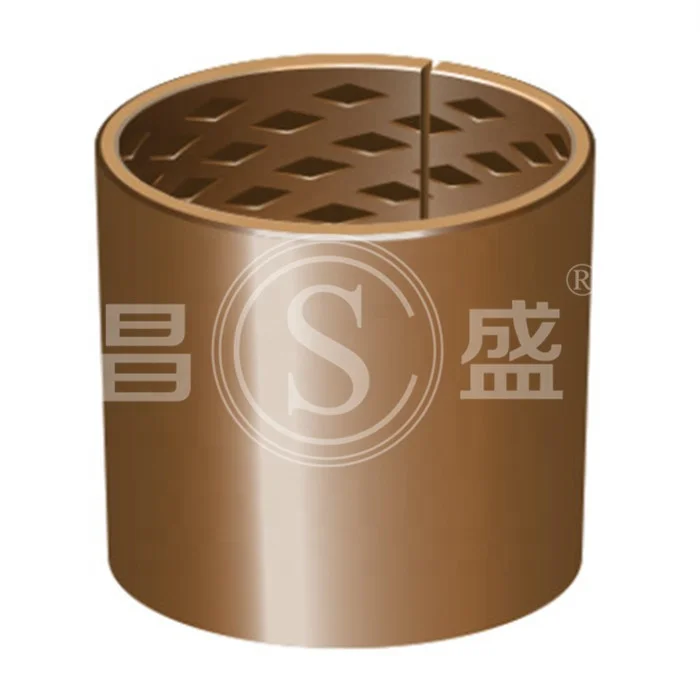

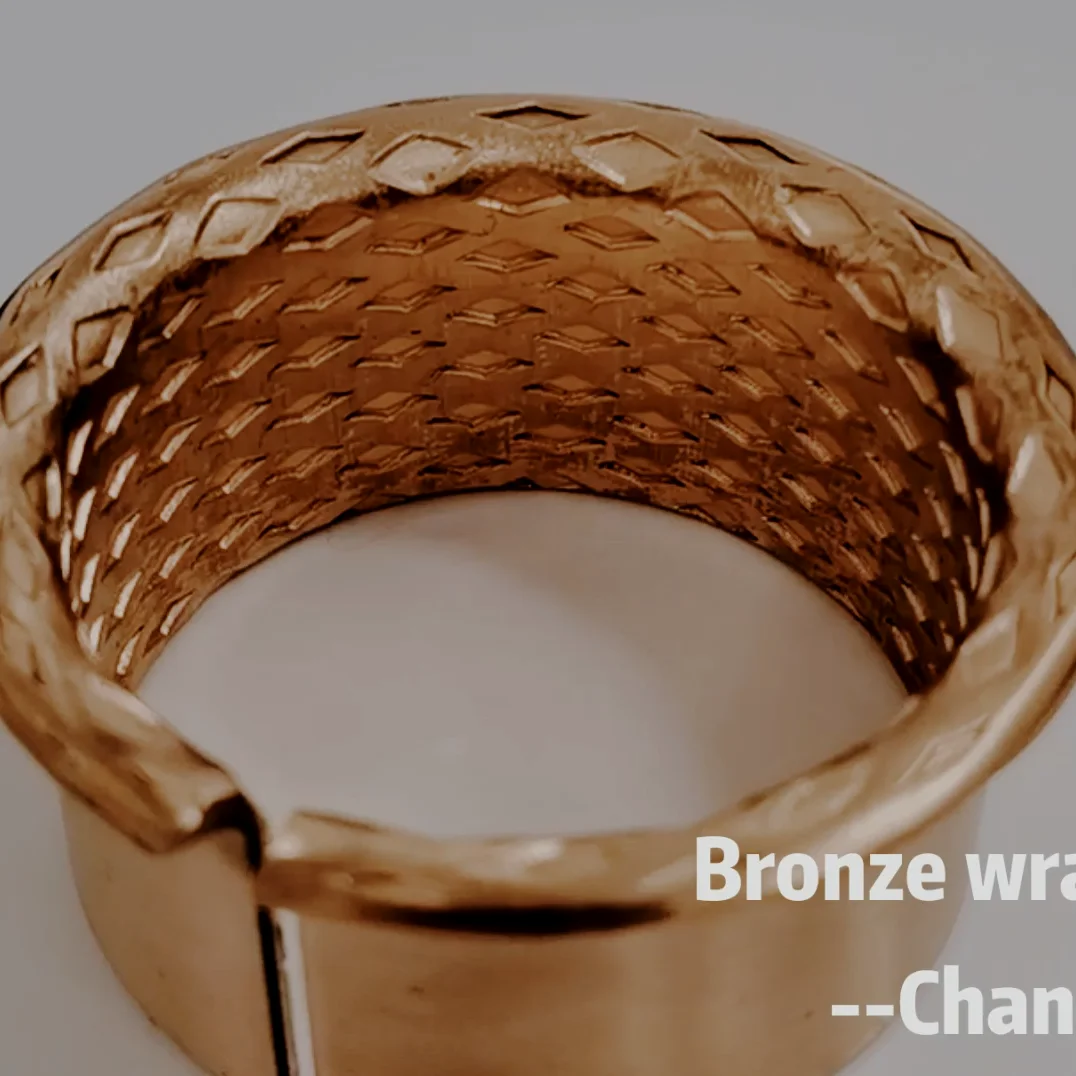

Corrosion resistant, wear resistant and high capacity wrapped bronze bushing with various types of oil pockets

Share on (1600846308668):


Price:$1.50

Quantity:


Product Overview

Description



Product Description


Corrosion-resistant, wear-resistant and high-capacity wrapped bronze bushing with various types of oil pockets
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble

Plain Bearing Bushing with Collar Rolled Flange Bearings with Lubricating Holes are made from high grade alloyed, hot rolled, phosphorous tin bronze. The slide bearings are especially designed to withstand heavy loads and to be shock-resistant.

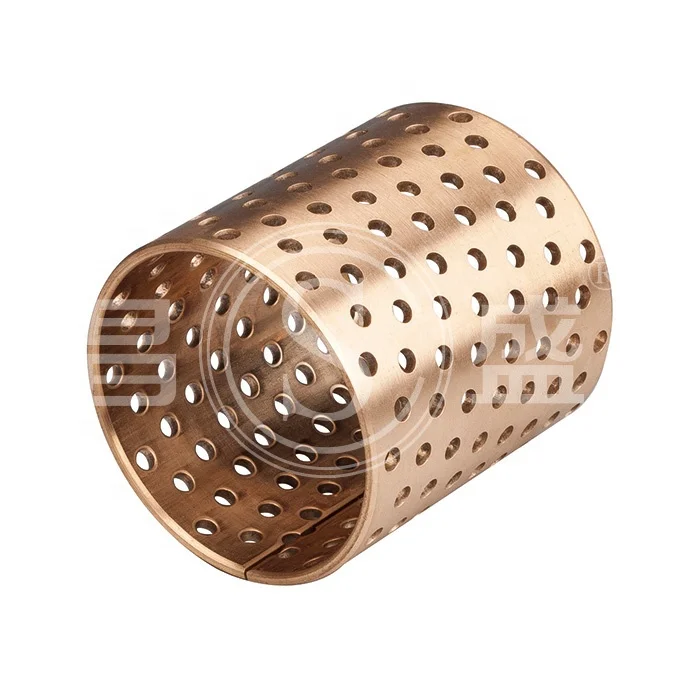

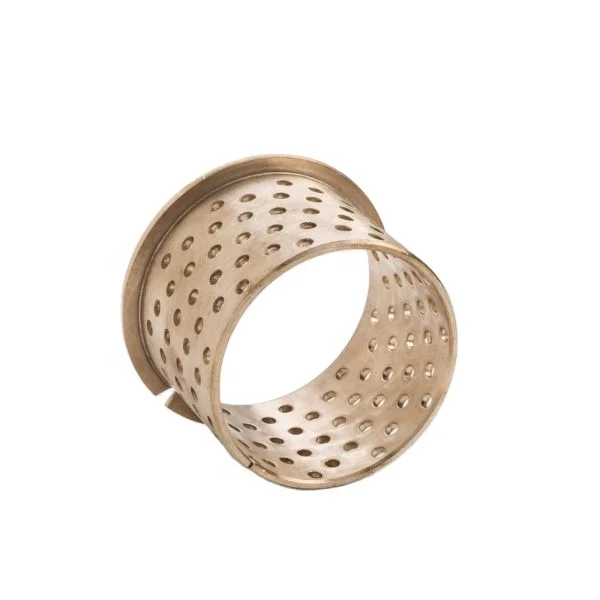

The entire bearing surface consists of “punched-through-holes” that provides improved lubricating properties and fewer maintenance periods that reduces friction, both at start up and during operation. FB092 Flanged bronze bushing is intended for radial, oscillating and axial movements and are especially suited for medium to high loads.

Assembly
The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.

Shaft/Axle – Bearing play
To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.

Lubrication
Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.

Special manufacturing
We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.






Detailed Images




Technical Data.


Max.Load (Static)
120N/mm²
Max.Load (Dynamic)
40N/mm²
Max.Speed (Lubrication)
2m/s
Max.PV
2.8N/mm²*m/s
Tensile strength
450N/mm²
Hardness
HB 110-150
Elongation
0.4
Temperature
-100℃~+200℃
Friction coefficient
0.08-0.25
Thermal conductivity
58W(m*k)-1
Coef. of thermal expansion
18.5*10-6*K-1


Our Company


Jiashan Changsheng Composite Bearing Factory, established in 2001, is a professional manufacturer engaged in the research,development, production, sale and service of all kinds of Oilless Sliding Bearing, Self Lubricated Bearing, Bimetal Bushing,Wrapped Bronze Bushing, Graphite Bronze Bushing. We are located in Jiaxing with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Automatic roll forming machine, and our cooperated company has C N C lathe machine, Punching hole machine, Machining Center. In addition, we have obtained certificates of I A T F 1 6 9 4 9:2 0 1 6 Quality System / RoHS testing report. We also have microscope metallographic test equipment and Alloy Thickness Gauge. Our technical staff can also use C A D software to draw professional drawings according to customer requirements to customize products for customers. Our Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Italy, Ukraine, Russia, Spain, Sweden, Canada, Malaysia. We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.



Changsheng Factory
Changsheng Office


Changsheng Showcase
Changsheng Workshop

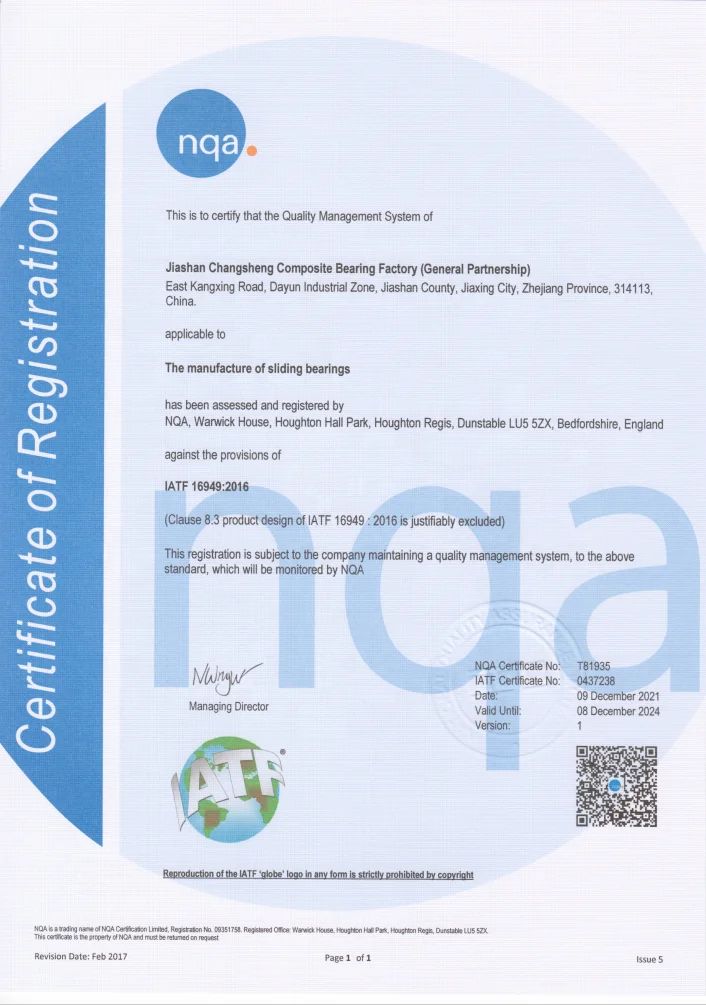

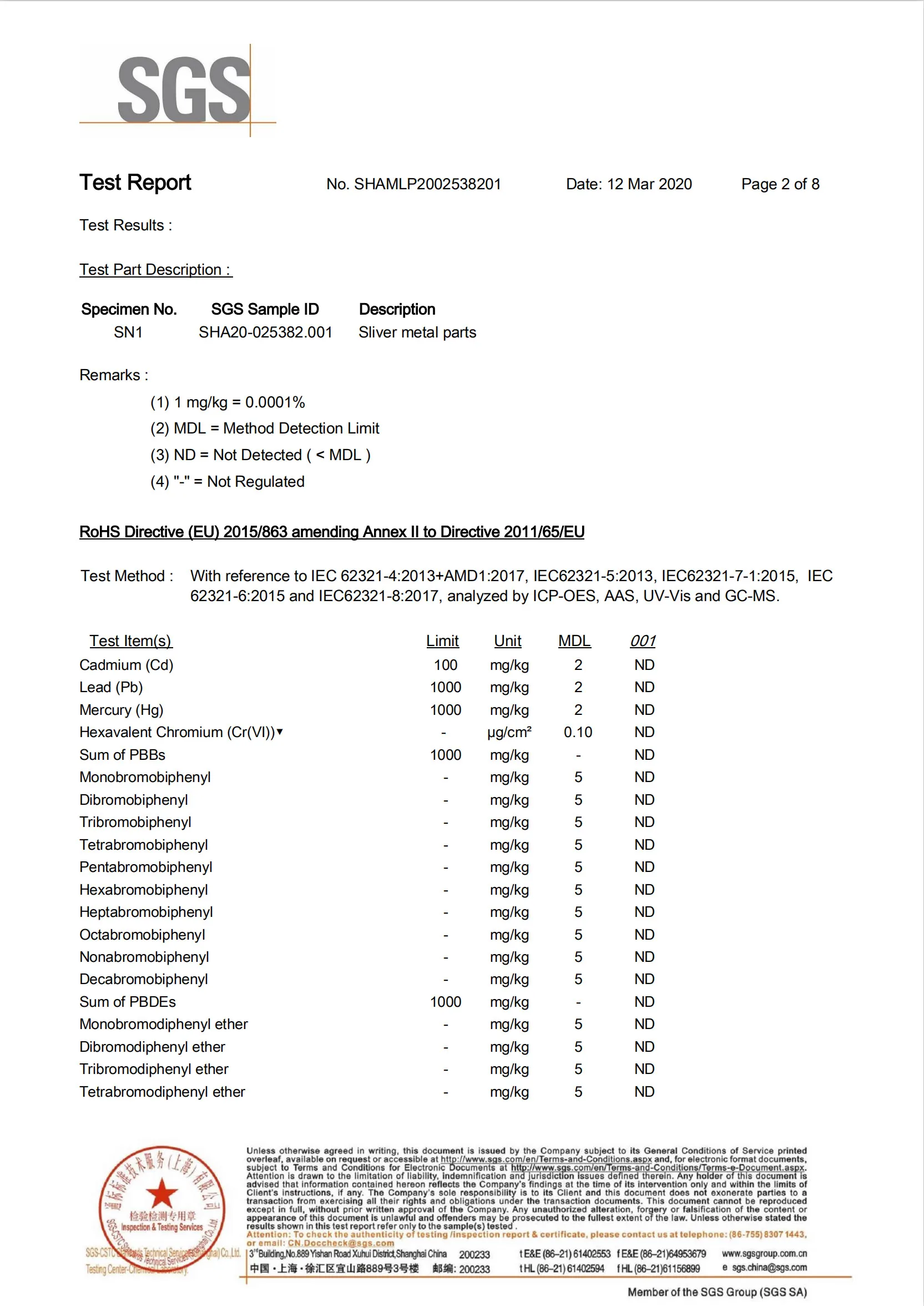

Certifications




Packing & Delivery


Packing Details: First in roll, and then put them into cartons or as per customer's special requirement.
Delivery Details: 15-25 days after getting the deposit.


Small bushings packed in bags
Big bushings packed in rolls

24 cartons/pallet
