LZ6/560 straight wire drawing machine
Pull the 5.5-7.0mm busbar to the 2.8mm finished wire
The height of the pay-off arm is adjusted using a cylinder expansion and contraction method for easy threading. And the wire is not easily tangled. And equipped with a disorderly line safety stop switch

Five shell stripping wheels mechanically shell the wire in different directions to completely remove the oxide skin on the surface of the wire, and collect the oxide skin into the box without causing environmental pollution

Each drum is equipped with a wire pressing device to prevent the wire from slipping off the drum during shutdown. Thus reducing the workload of employees and improving work efficiency, making the operation of the entire wire drawing machine more convenient and with superior automation performance.

Process design ideas and processes

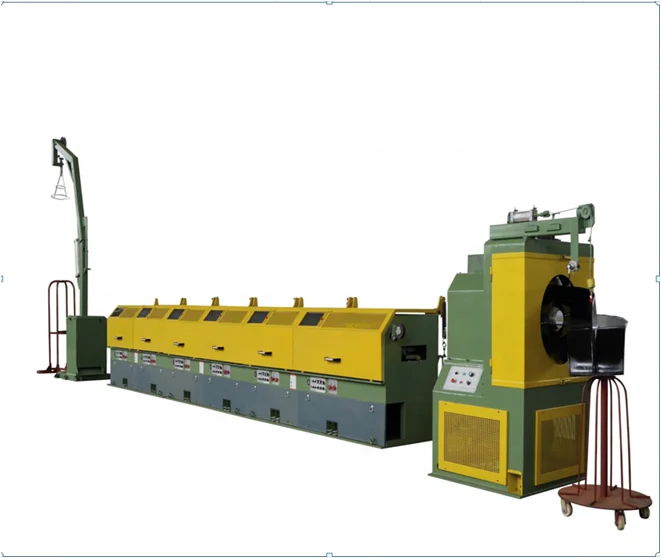

 Φ 5.5-7.0mm busbar - upper pull-out wire rack → enclosed unpowered shelling machine → LZ6/560 straight wire drawing machine (finished wire diameter) Φ 2.8-5.5mm) - Tensioning machine - → QMSB-560 elephant nose take-up machine


FEATURES AT A GLANCE


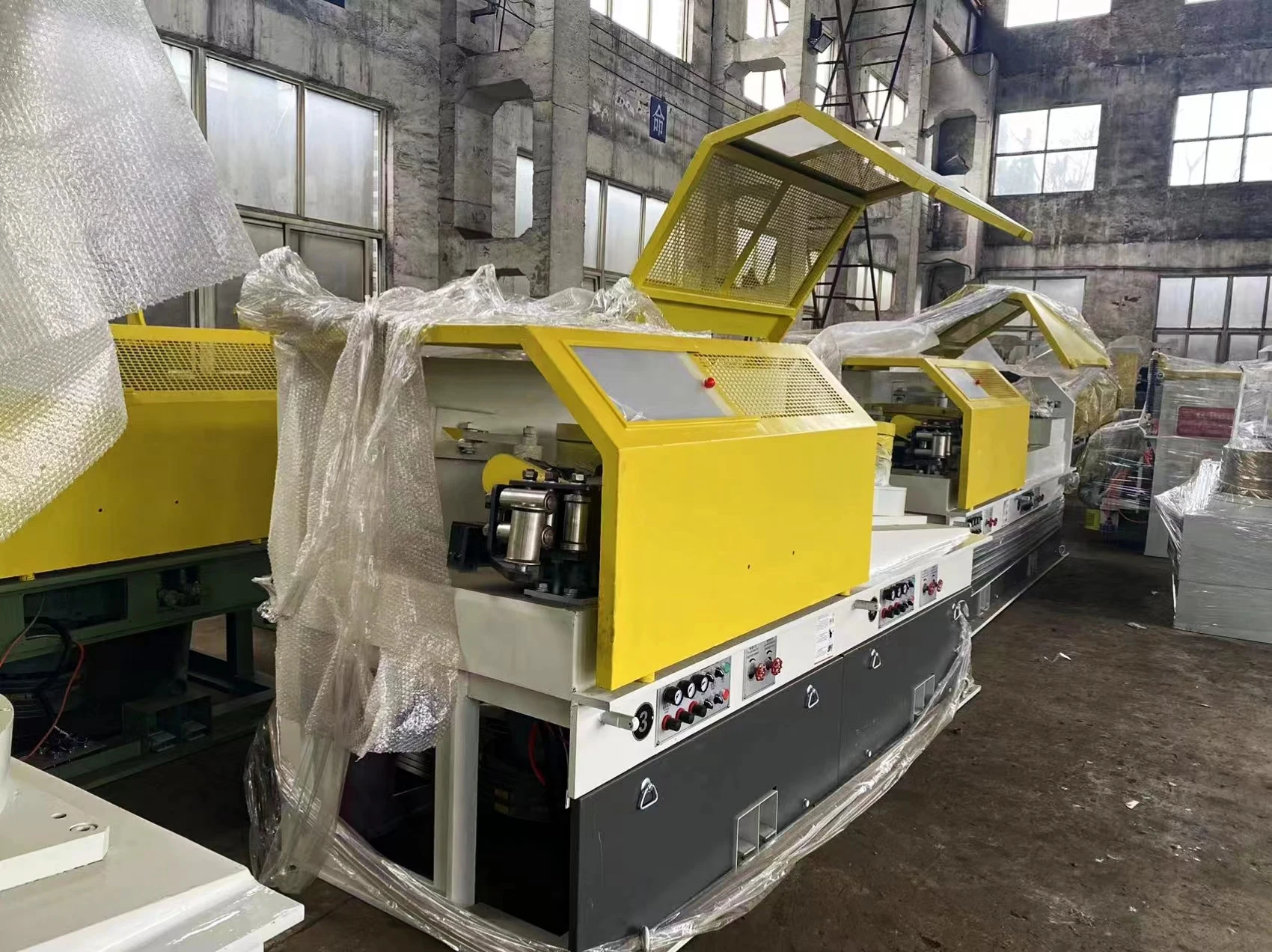

LZ6/560 straight wire drawing machine
Simple and convenient operation,
automation performance, safety, energy conservation and efficiency,
steel plate welding,
separate lighting





PRODUCT SPECIFICATIONS


Pulling up style Pay-off Stand
for Inlet wire coil input covers a small area. The air cylinder telescopic mode is adopted to adjust the height of the upper drawing type pay off frame of the pay off arm, which is convenient for threading. And the wire is not easy to be disordered. And it is equipped with the safety of disordered lines
Stop switch
Closed non powered shelling machine
for wire 5.5-8mm
The machine uses 5 peeling wheels to mechanically peel the wire in different directions, so that the oxide skin on the wire surface is completely peeled off, and the oxide skin is collected in the box, which will not cause environmental pollution
QMSB-560 Elephant nose shape wire take-up machine
1) Motor: 22Kw Variable Frequency
2) Inverter , HuiChuan Brand
3) 9 wheel V shap two direction straighter
4) take up drum 560mm, coated HRC62
5) about 500KG per coil
6. height of the coiler: 980mm
7. it can be controlled together with drawing machine also can stop and start seperately


ZE-96 Rolling machine
1）Rolling Diameter： 96mm
2）max. rolling wire: 8.0mm
3) Min. Rolling wire: 2.0mm
4) motor: 3kw
UN-10 Butt welding machine
1）max. Diameter: 8.0mm
2) min. Diameter: 2.0mm
3) Rated Capacity: 10mm
small pack coiler

small pack coiler with cylinder


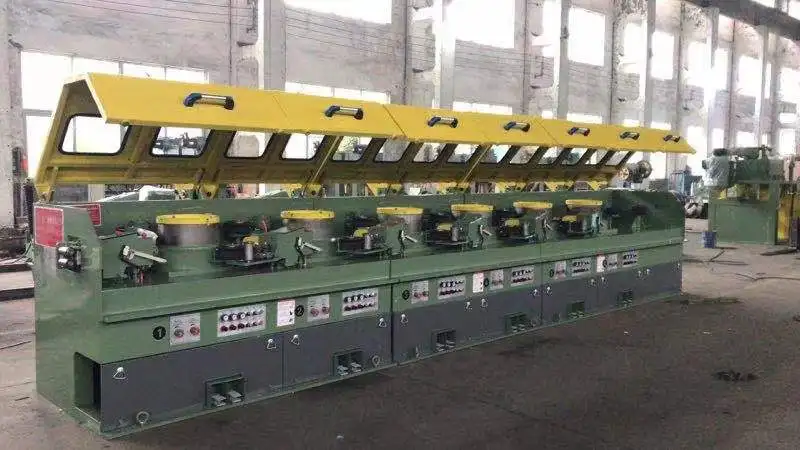

LZ6/560 Straight Drawing machine
Drum Diameter
560mm
Drawing passes
6
Inlet wire Diameter
Φ5.5-7.0mm
Finished outlet wire diameter
Φ2.8mm-Φ6.0mm
Inlet wire Strength
≤800mpa
Maximum compression ratio
84.00%
Average one pass compression Ratio
26.32%
Maximum line speed about
12.5m/s(750m/Min)
Motor Power
1st,2nd, both 37Kw
3rd-6th all 30KW
Drawing mould dimension
out diameter 40mm, thickness25mm
Cooling water Pressure
≥0.25mpa
Cooling water Flow
≥6m3/h(recycle use)
Air Pressure
≥0.6mpa
Air Flow
≥1.5m3/h
Drum distribute
vertical and inclined
Wire inlet direction
from Left to Right
Wire input way
start to draw after the shelling machine
Wire take-up way
Elephant Nose shape wire take up machine
finished wire straight way
passing the straightening way of the Elephant nose then coil
Wire Press device
equiped with press device of every drum
guide wheel and # shape roller
all these coated HRC60

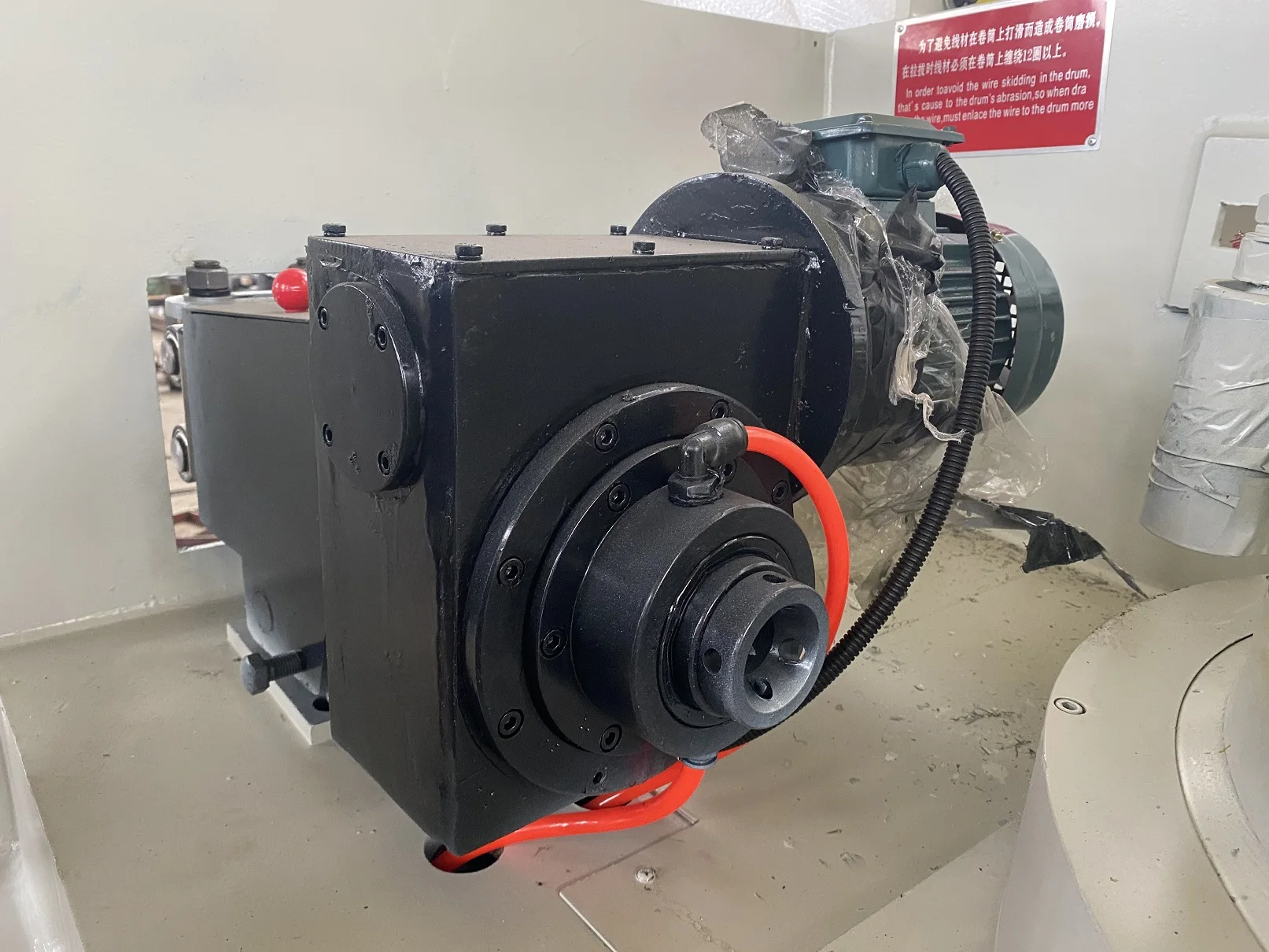

Drawing mould box
includes Lubricating powder and water cooling

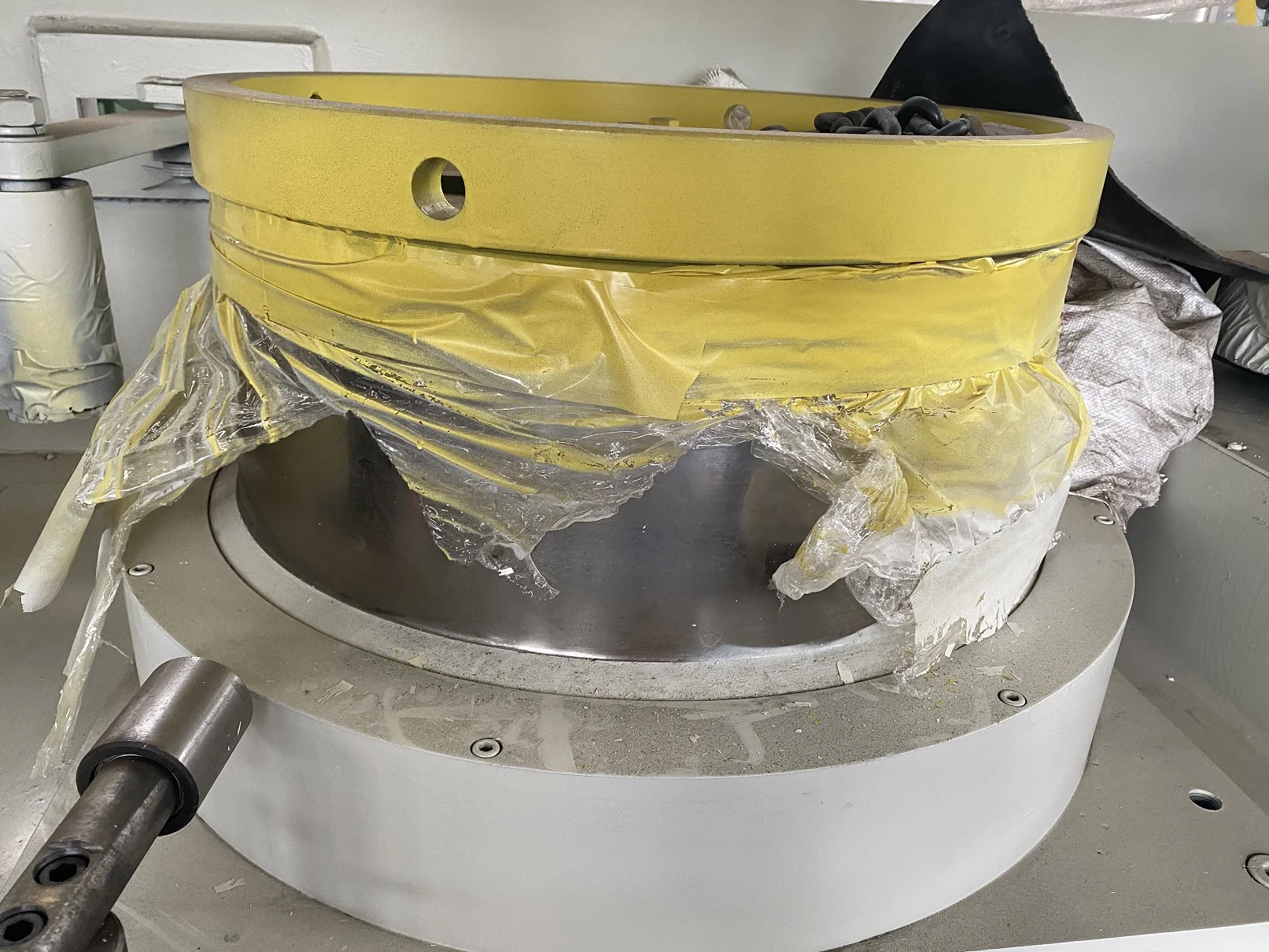

Drawing Drum
Drum diameter 560mm , 1）material: cast steeel ZG45, surface
 weld4.5mm, and coating 0.5mm Tungsten carbide HRC62；
2）Anti corrosion
treatment of zinc lithium alloy inside the drum
Drum Cooling
(1) Internal cooling of the drum: three water pipes are used on the
 inner wall of the drum to spray water in the direction of 120
degrees. The water is sprayed to all parts of the drum through the
 blade type water ring for full cooling. (2) External cooling of
the drum: the ventilation pipe under the outside of the drum is
forced to cool the drum surface and the wire in a 360 degree
direction to keep the drum surface at the normal use temperature
Tension Shaft
inside equipped with tension shaft
Safe Device
safety shield, auto shutdown detection
Light
Every machine equipped with Light
Braking system
Pneumatic brake

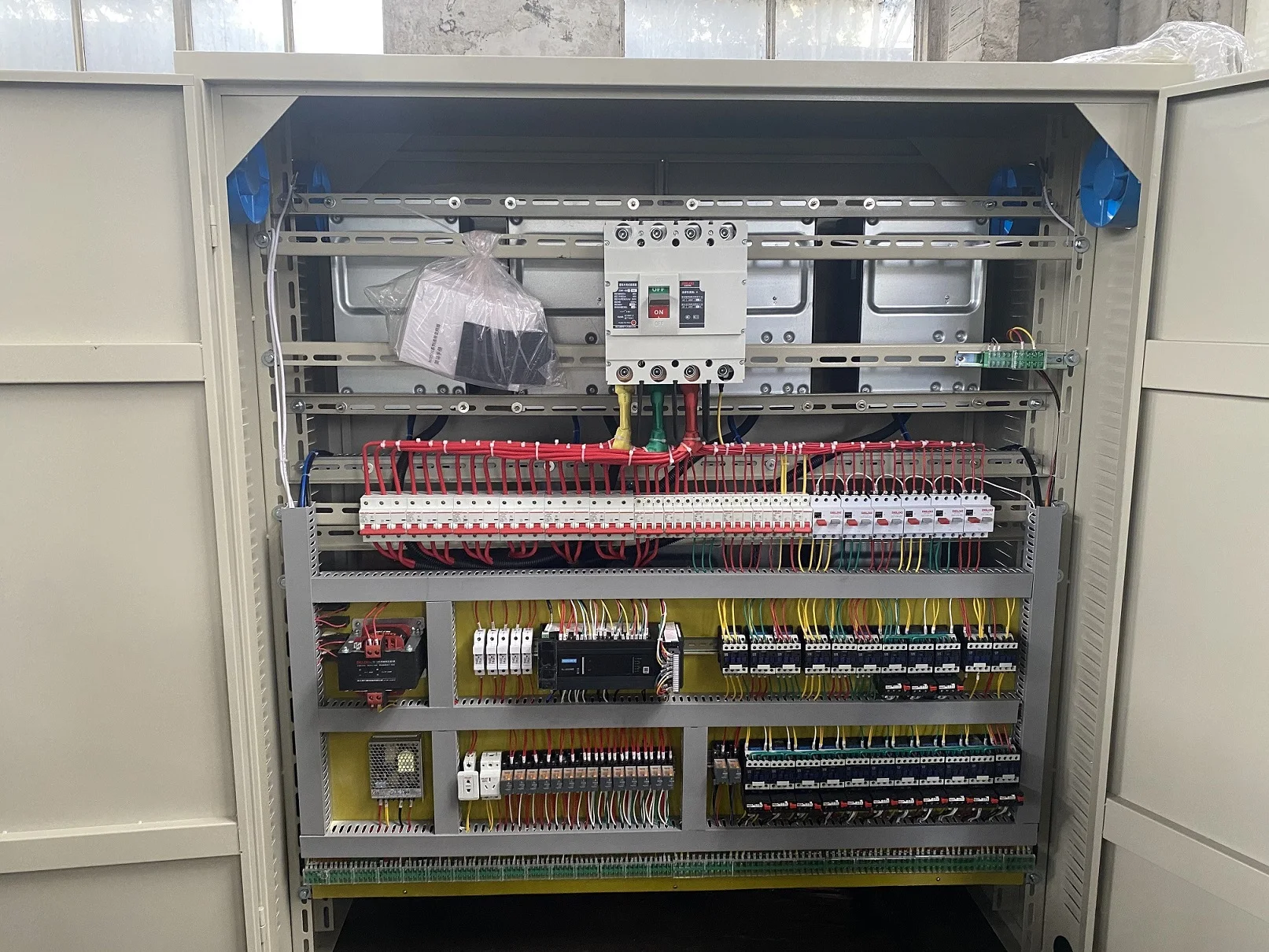

Electric control system
PLC，Human interface， touch screen10‘’，Inverter ,
“HuiChuan ”brand
low voltage switch: CHINT，Sensor: Shanghai brand


PRODUCT CONFIGURATION


SALES AND SERVICE NETWORK




Successful Project


Wire drawing machine
Wire drawing machine
Wire drawing machine




FAQ
