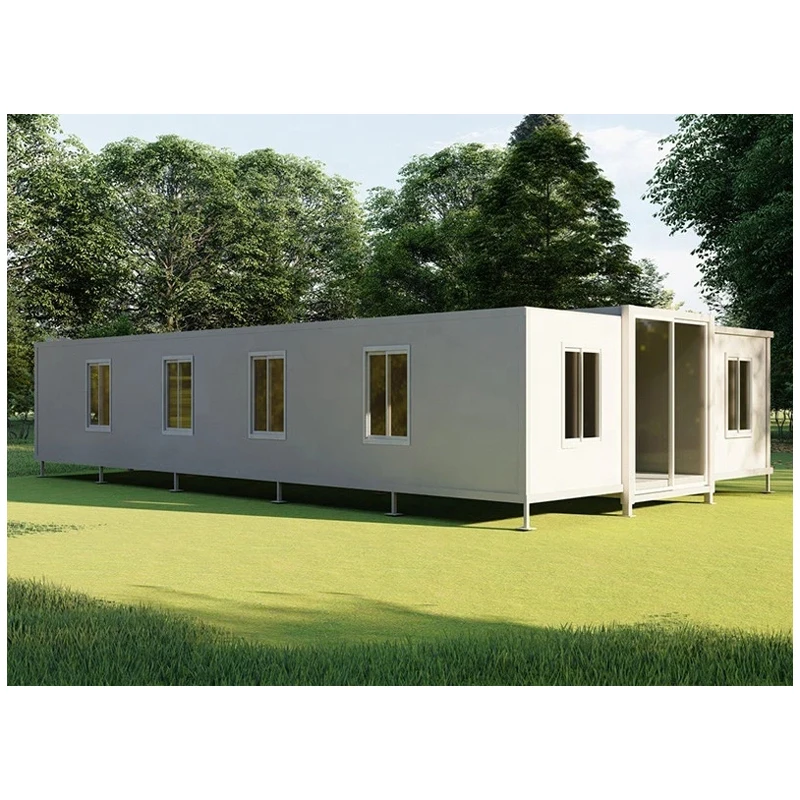

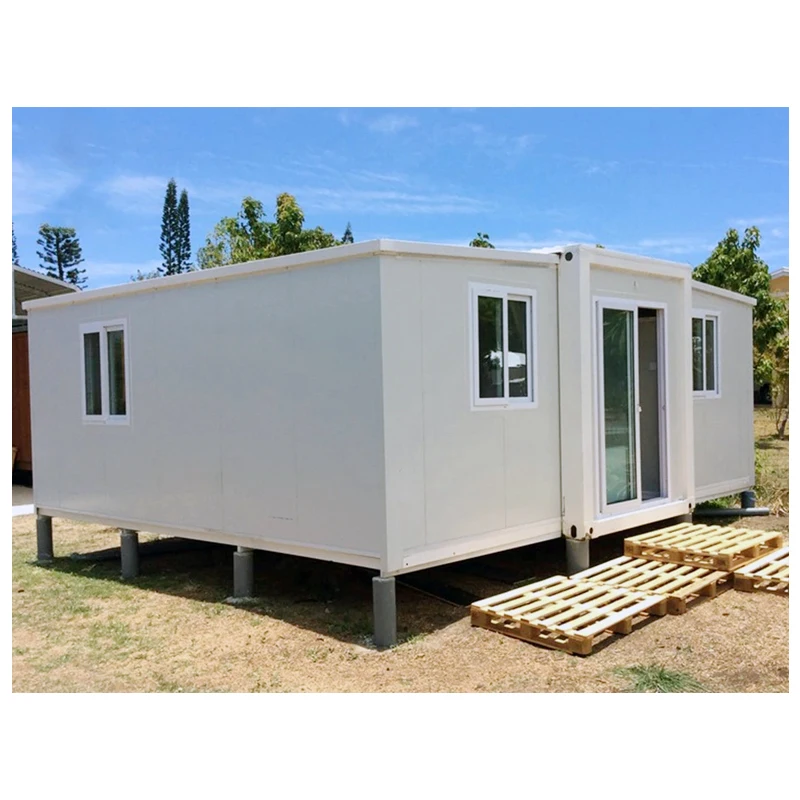

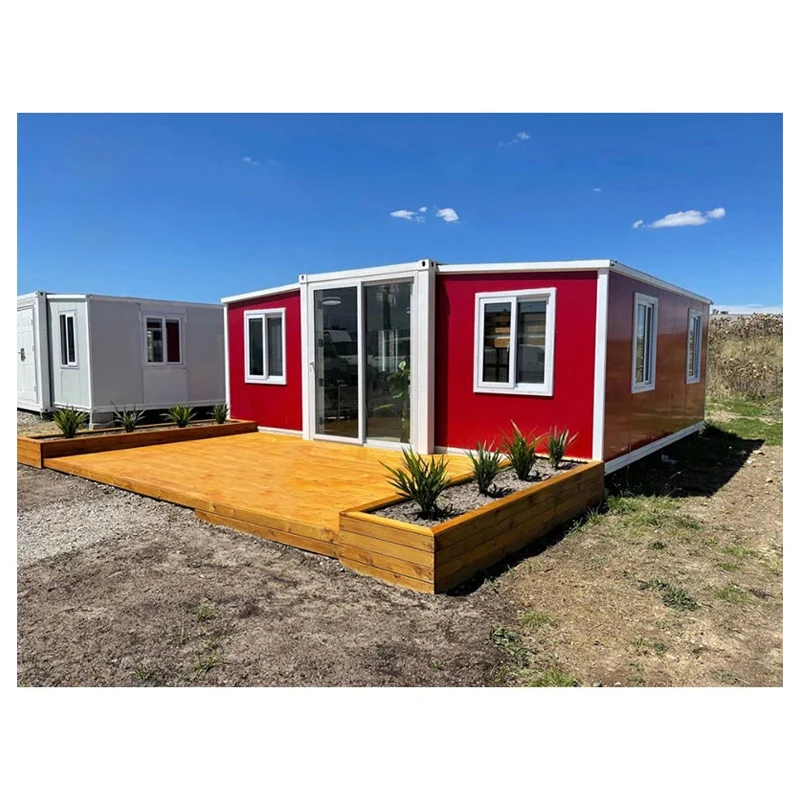

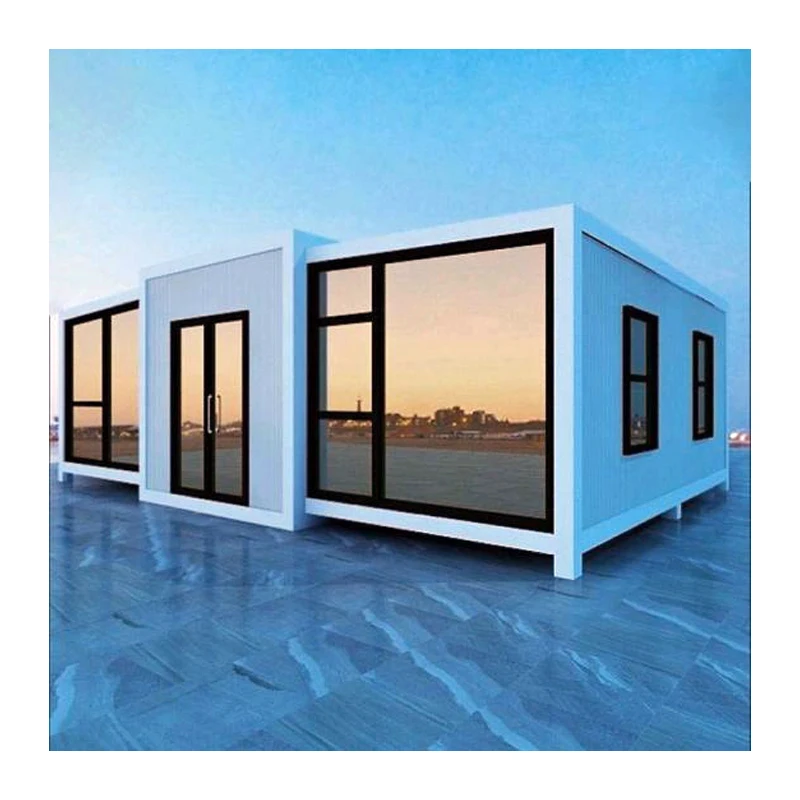

Li Xin Cheap Prefab Home Garden Buildings Foldable Prefabricated Bedroom Expandable Tiny Living Container House
- Category: >>>
- Supplier: Foshan Lixin Steel Material Co. Ltd.
Share on (1600846352054):
Product Overview
Description
Product Paramenters
Basic Feature | External dimensions(mm) | 6360*5800*2480(side 2270) | |
Internal dimensions(mm) | 6260*5560*2280(side 2150) | ||
Folding state(mm) | 2160*5800*2480 | ||
Totalmass(kg） | 2100 | ||
Frame Structure | Top side member | T2.5mmQ235B | |
Bottom side rail | T2.5mmQ235B | ||
End side member | T2.5mmQ235B | ||
Side wall frame | T2.0mmQ235B | ||
Subframe | T2.0mmQ235B | ||
Hanging head | T4mm Q235B | ||
Folding hinge | 13mm galvanized | ||
Protective coating for integral frame | Electrostatic spraying / direct white plastic powder | ||
Middle cabinet top and bottom | 80*100*2.5thick square pipe | ||
Topand bottom of side cabine | 40*60*2.0 thick square tube | ||
Box top | External roof | T0.5mm galvanized sheet | |
Internal ceiling | Type831 ceiling | ||
Wallboard | Middle roof insulation | T50mm EPS sandwich panel | |
Side wall,front and rear wall panels | T75mm EPS sandwich panel | ||
Internal partition | T50mm EPS sandwich panel | ||
Internal toilet | 1900*1000mm | ||
Floor | Middle Floor | Fireproof glass magnesium floor 15mm | |
Floor on both sides | Bamboofloring 18mm | ||
Electrical System | Electrical wiring shall be installed in strict accordance with moisture-proof specifications, and all electrical productsshall comply with CE certification. Connect the circuit according to the circuit engineering specifications. Indoor:2LED lamps,1 luxury ceiling lamp,3 five hole single opening sockets,2 ten hole sockets,1 air conditioning socketand 1 20A leakage protector. Voltage 220V,50Hz | ||
Door | High quality security steel door 970*1970 mm | ||
Windows | The window PVC sliding window (920 * 920)mm two units | ||
Toilet and Bathroom | 1 high-grade ceramic toilet, 1 basin, PVC decoration panel wall, one barthroom, one titanium magnesium alloy glass door | ||
Transpotation | By sea, one 40ft HQ can load two units | ||

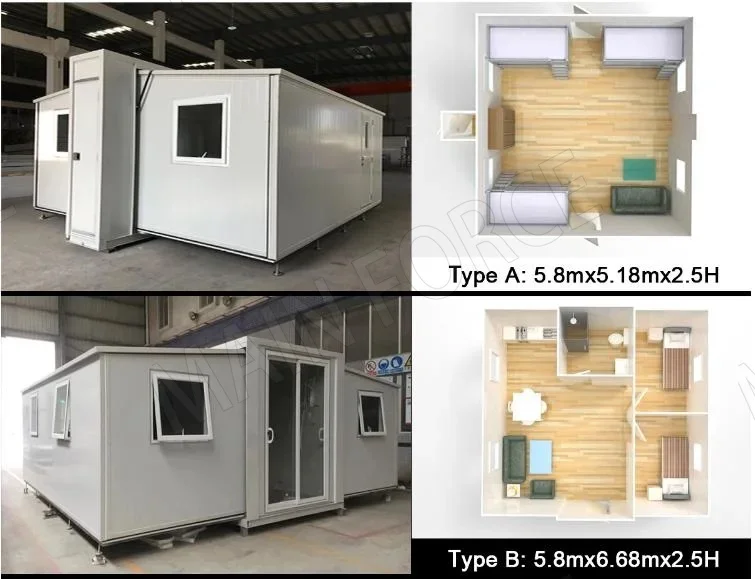

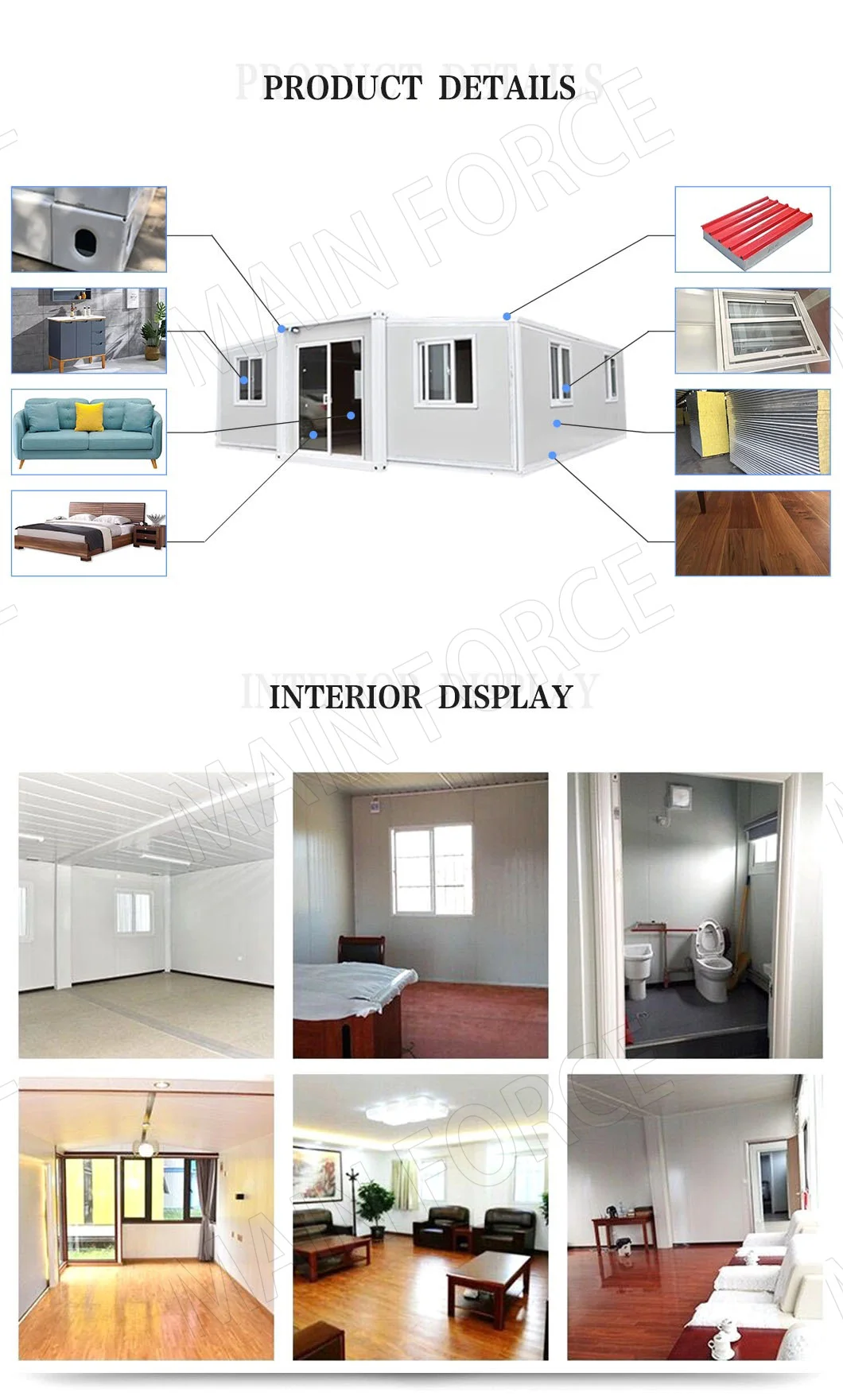

Products Structure

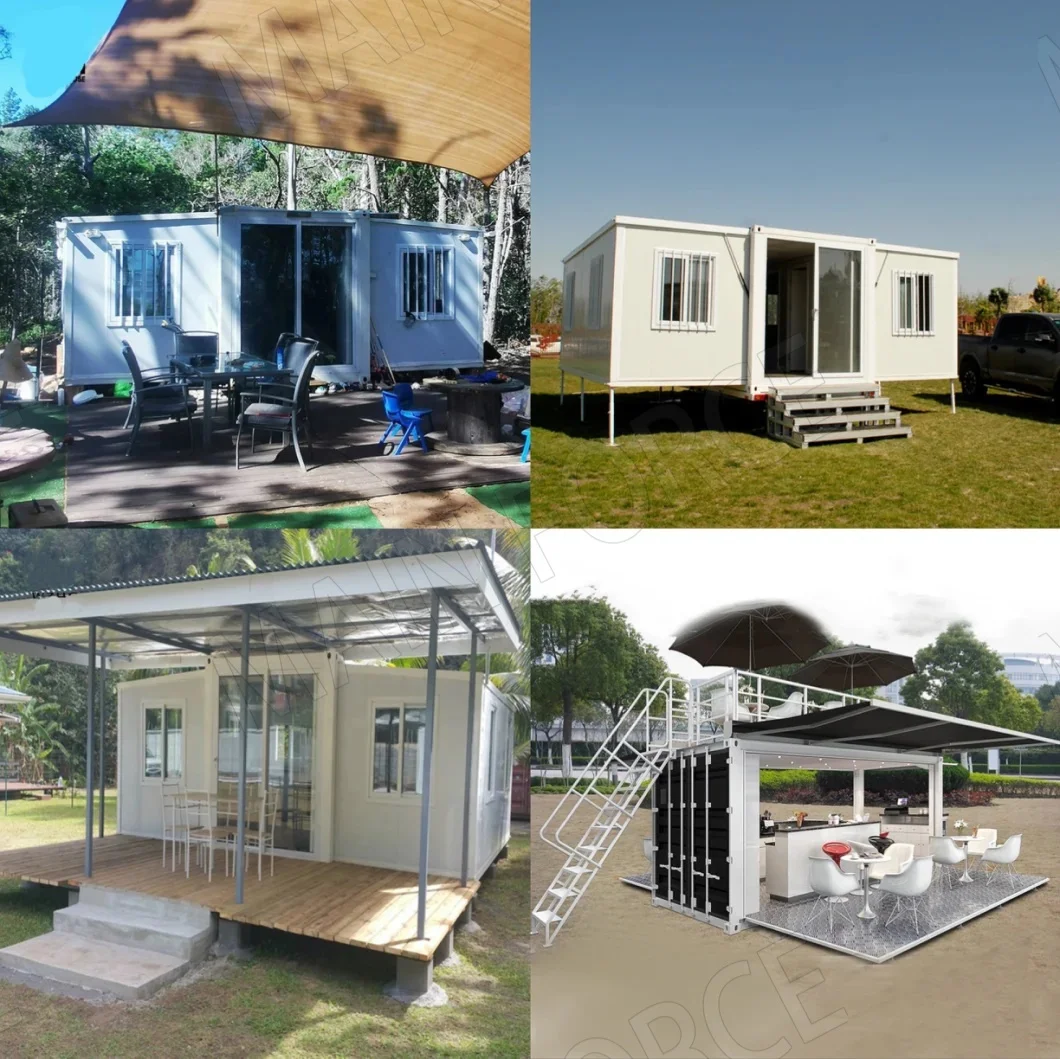

Project Case

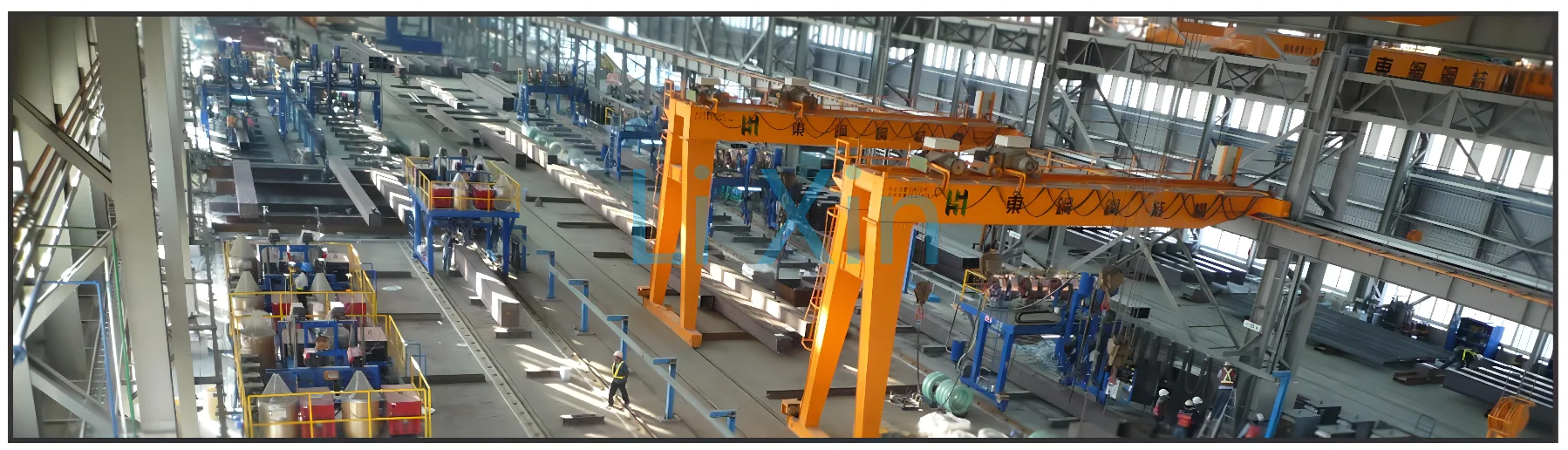

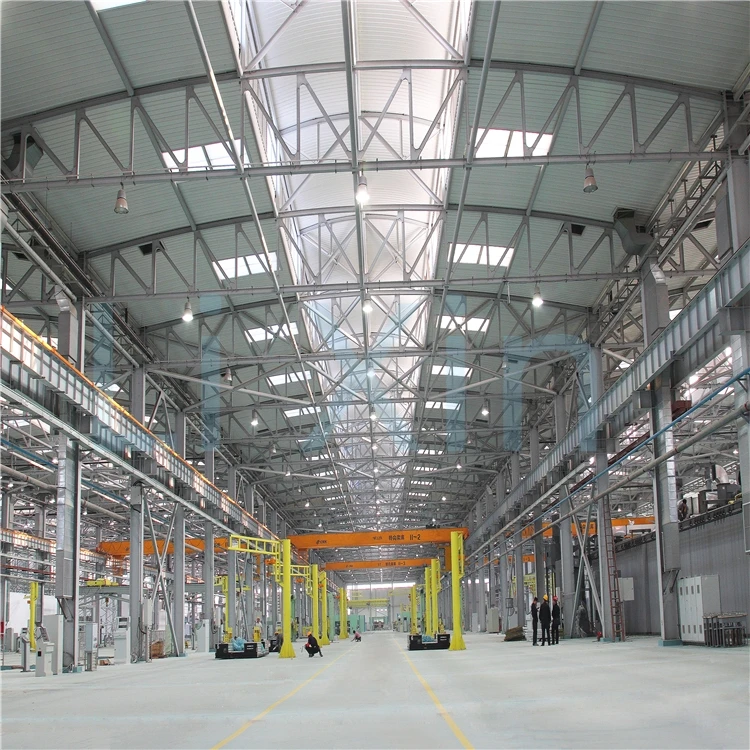

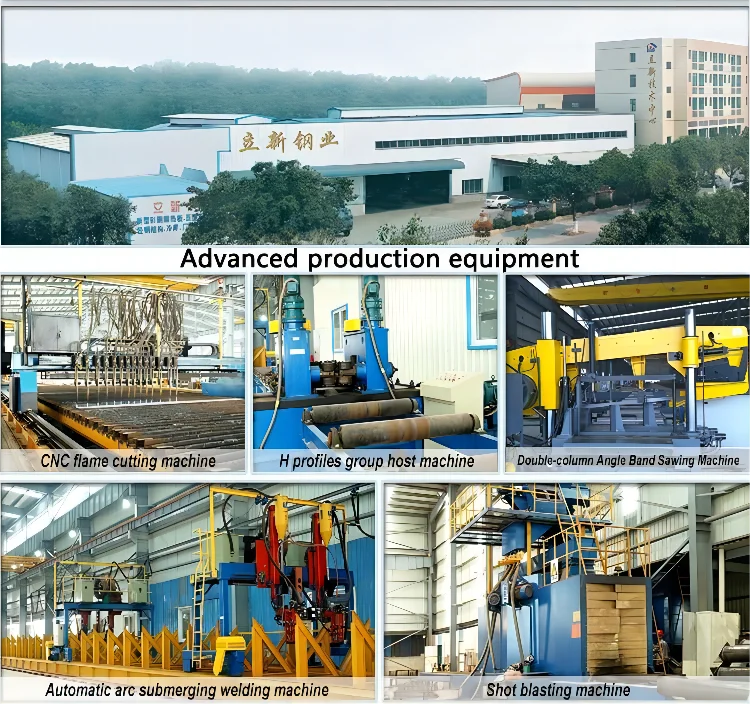

Workplace
Foshan Lixin Steel Material Co., ltd as a most influential steel products suppliers in China, it already has 17 years experience in this industry zone.
Advanced production lines for steel structure and cladding structure,such as the world leading CNC cutting machine with cutting capacity of maximum thickness 200m and the maximum dimension 5m*28m.
Large scale cutting saw can cut the profile for 1250mm and the large scale three dimensional CNC drilling machine have the drilling capacity for H profile section area 1250mm.
The large scale plan CNC drilling machine can drill the maximum 2m*1.6m with maximum thickness 100mm and maximum bore diameter 100mm.
The shot blasting machine can small scale equipments for fabrication,welding and painting.
FAQ
1.How to get accuracy quotation?
Please tell us below basis but important information for offering price:
(1)Weather and the wind speed of destination :
With the information we can select the suitable strength material for the construction.
Special in heavy snow or strong wind area.
(2)Size of the project and floors :
We need detailed length+wide+high size. Then we can calculate the cost of the material.
(3)Material of the wall and roof :
We suggest to use steel sheet or sandwich panel as normal.
And insulation of the sandwich panel can be: EPS, glass wool, rock wool, PU etc.
(4)Size of the door and windows :
We need to know the detailed size so that we can calculate the cost of the material.
If you have special request of the material please don’t hesitate to let me know.
(5)Special requirement :
Earthquake, Tornado, heavy snowfall area need to inform us.
The more detailed description the clear price we can offer.
(1)Weather and the wind speed of destination :
With the information we can select the suitable strength material for the construction.
Special in heavy snow or strong wind area.
(2)Size of the project and floors :
We need detailed length+wide+high size. Then we can calculate the cost of the material.
(3)Material of the wall and roof :
We suggest to use steel sheet or sandwich panel as normal.
And insulation of the sandwich panel can be: EPS, glass wool, rock wool, PU etc.
(4)Size of the door and windows :
We need to know the detailed size so that we can calculate the cost of the material.
If you have special request of the material please don’t hesitate to let me know.
(5)Special requirement :
Earthquake, Tornado, heavy snowfall area need to inform us.
The more detailed description the clear price we can offer.
2.What we can do for you?
Welcome to provide us your drawing of the project, we will offer the price and produce as your drawings;
or you can tell us as detailed as possible what you want, so that we can offer different option or design for you.
All accessories that you want to purchase from China, we can provide you suggestion.
or you can tell us as detailed as possible what you want, so that we can offer different option or design for you.
All accessories that you want to purchase from China, we can provide you suggestion.
3.How to install after the goods arrival destination?
We will provide detailed illustration to you. If it’s necessary, we will send technicians to help you.
However, all the expense such as visa, air ticket, accommodation, wages will be covered by buyers.
However, all the expense such as visa, air ticket, accommodation, wages will be covered by buyers.
