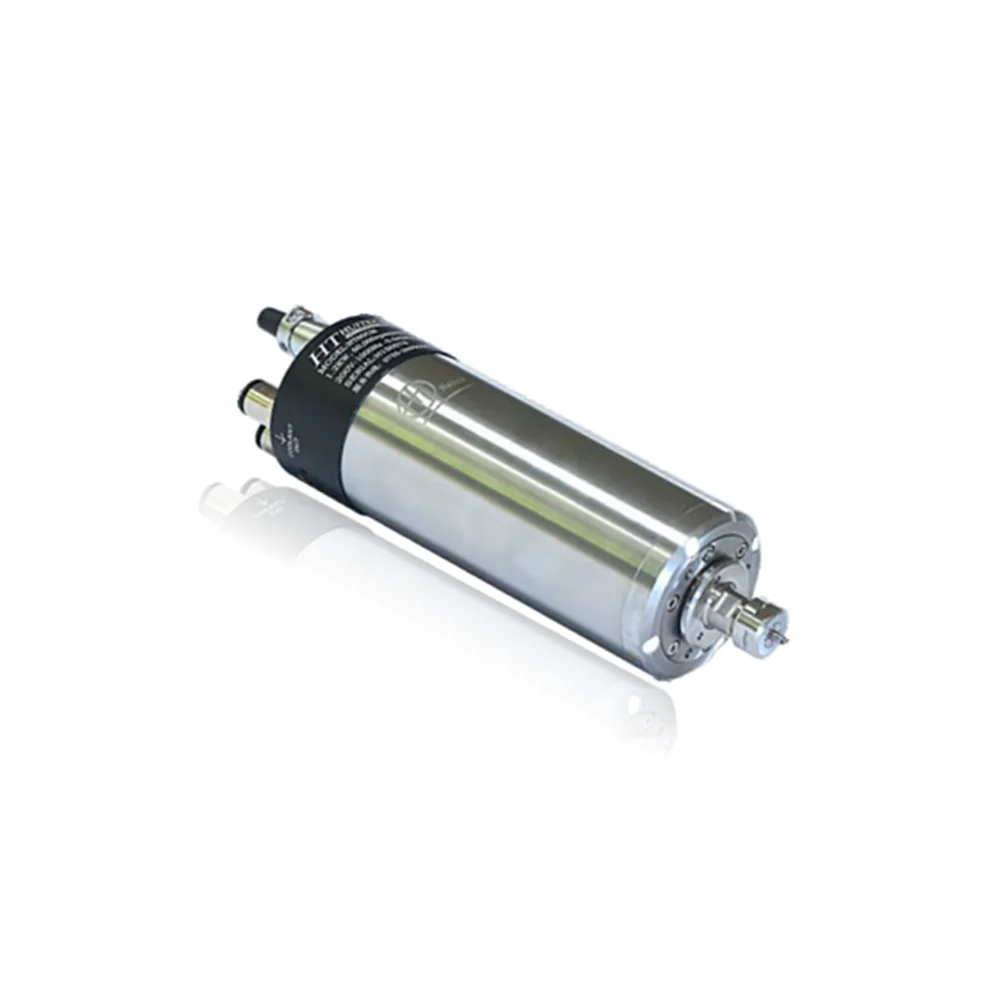

60000 RPM ATC Spindle CNC Machine spindle motor machine tool spindle
- Category: >>>
- Supplier: Dongguan Kexin Electron Co. Ltd.
Share on (1600846366544):
Product Overview
Description

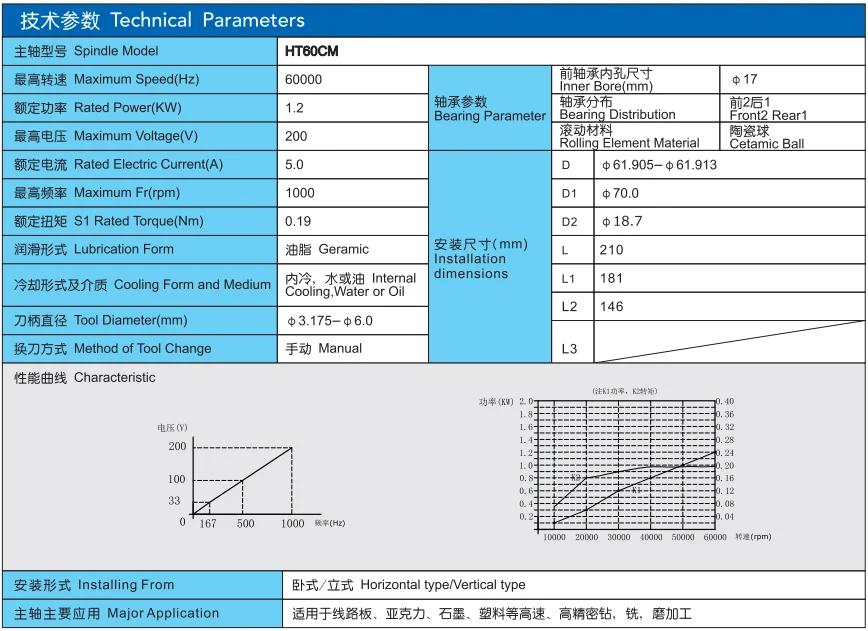

TECHNICAL PARAMETERS | ||||||||
spindle model | HT60CM | |||||||
maximum speed（HZ) | 60000 | Inner Bore(mm) | 17 | |||||
Rated Power(KW) | Bearing distribution | Front2 Rear1 | ||||||
Maximum Voltage(V) | 200 | Rolling Element Material | Cetamic Ball | |||||

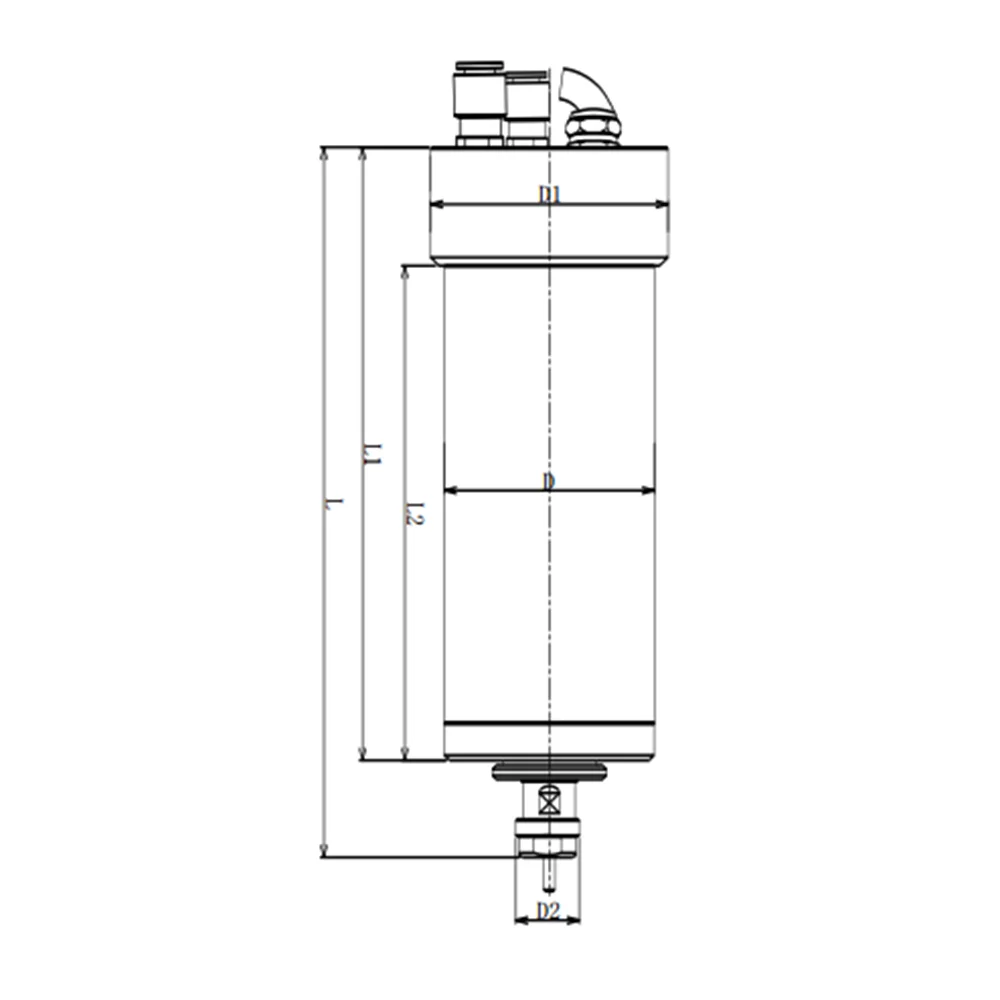

Rated Electric Current(A) | 5.0 | Installation dimensions (mm) | D | φ61.905-φ 61.913 | ||||
Maximum Fr(rpm) | 1000 | D1 | φ 70.0 | |||||
S1 Rated Torque(Nm) | 0.19 | D2 | φ 18.7 | |||||
Lubrication Form | Geramic | L | 210 | |||||
Cooling Form and Medium | Internal Cooling,Water or Oil | L1 | 181 | |||||
Tool Diameter(mm) | 3.175-6.0 | L2 | L2 | |||||
Method of Tool Change | Manual | L3 | ||||||
Method of Tool Change | Horizontal type/Nertical type | |||||||
Major Application | PCB,acrylic, graphite, clinker, high precision drilling, milling | |||||||
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ ?
A:Each size 50pcs
Q: If can be customized ?
A:Yes,we can customized according to your requirement
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ ?
A:Each size 50pcs
Q: If can be customized ?
A:Yes,we can customized according to your requirement
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.
