1500V PV DC Power Cable UV Resistant 100% Copper Conductor Solar Single Wire 6mm2
- Category: Power Cables >>>
- Supplier: Dongguan,Slocable,Photovoltaic,Technology,Co.,Ltd.
Share on:
Product Overview
Description

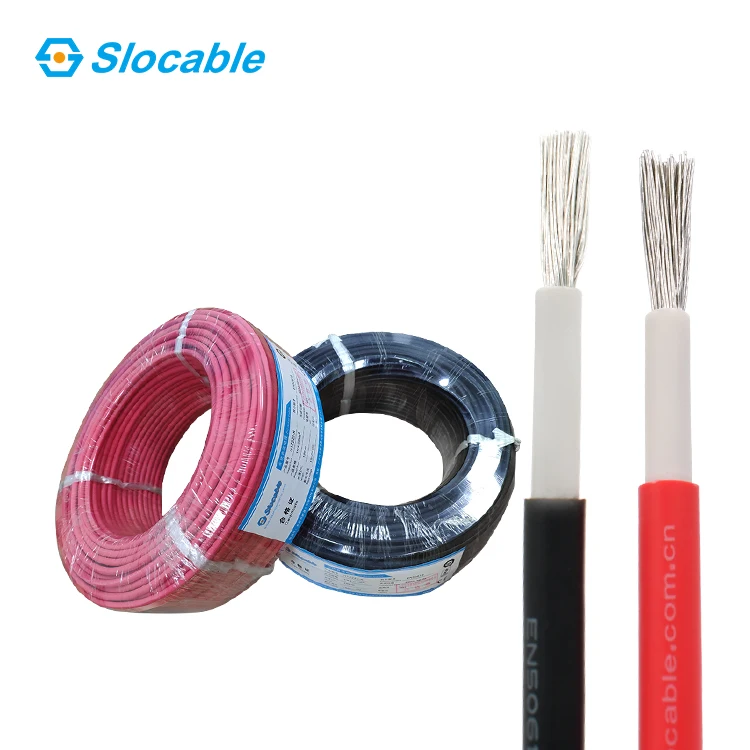

Slocable 1500V DC Power Cable UV Resistant Class 5 Tinned 100% Copper Conductor Solar Single Wire 6mm2
Product Description
Detail Information for Solar Single Wire 6mm
|
Technical Data of Solar Single Wire 6mm
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x6mm2 | 6.0mm2 | 81x φ0.3mm | 3.3mm | 3.52 Ω/km | 7.2mm | 1500V | 70A |
We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores, please consult me directly if necessary

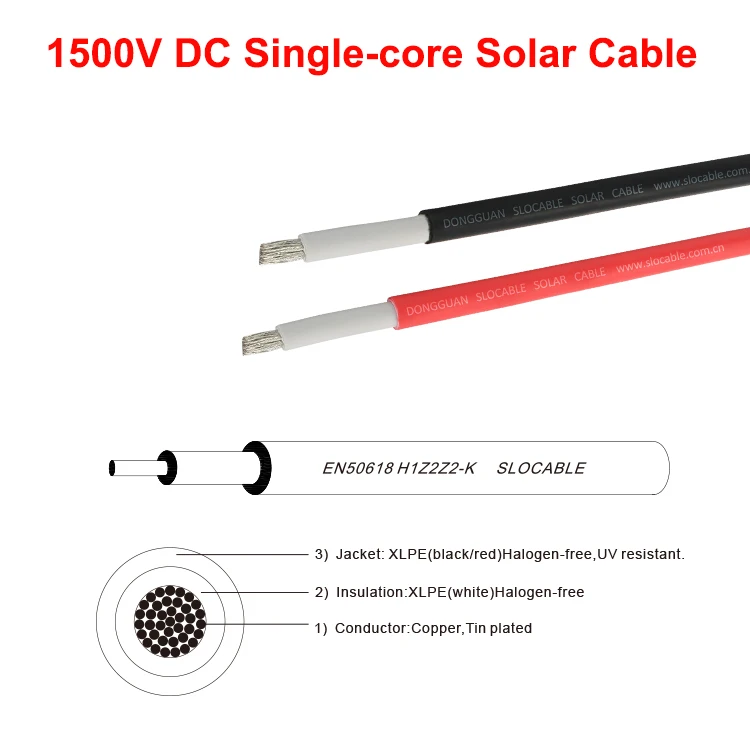

Wire: Copper (Class 5, tinned) | UV resistance |
Insulation material: XLPE | High wear and abrasion resistance |
Double insulated | Flame test according to: EN60332-1-2 |
Halogen-free | Smallest permissible Bending Radius: 5 x D
|
High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +85℃ |
Microde-resistant | Colours: Black & Red |
