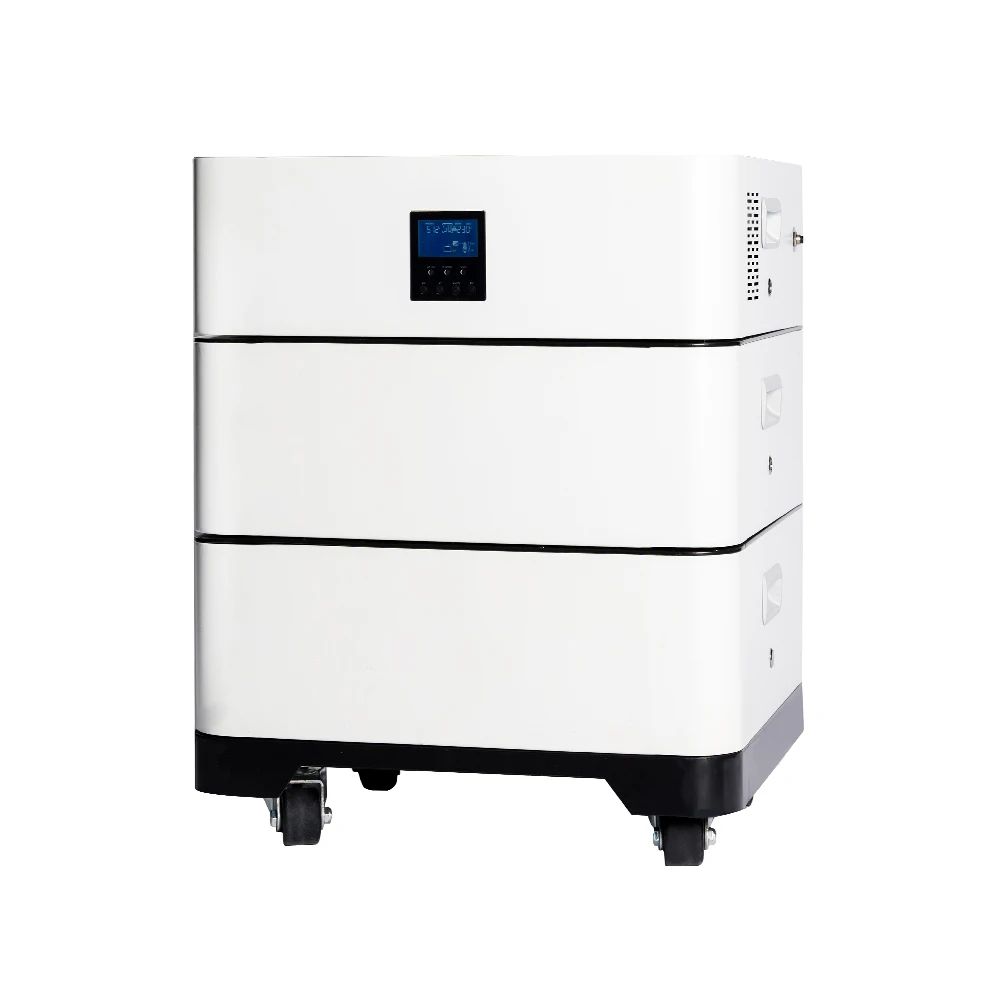

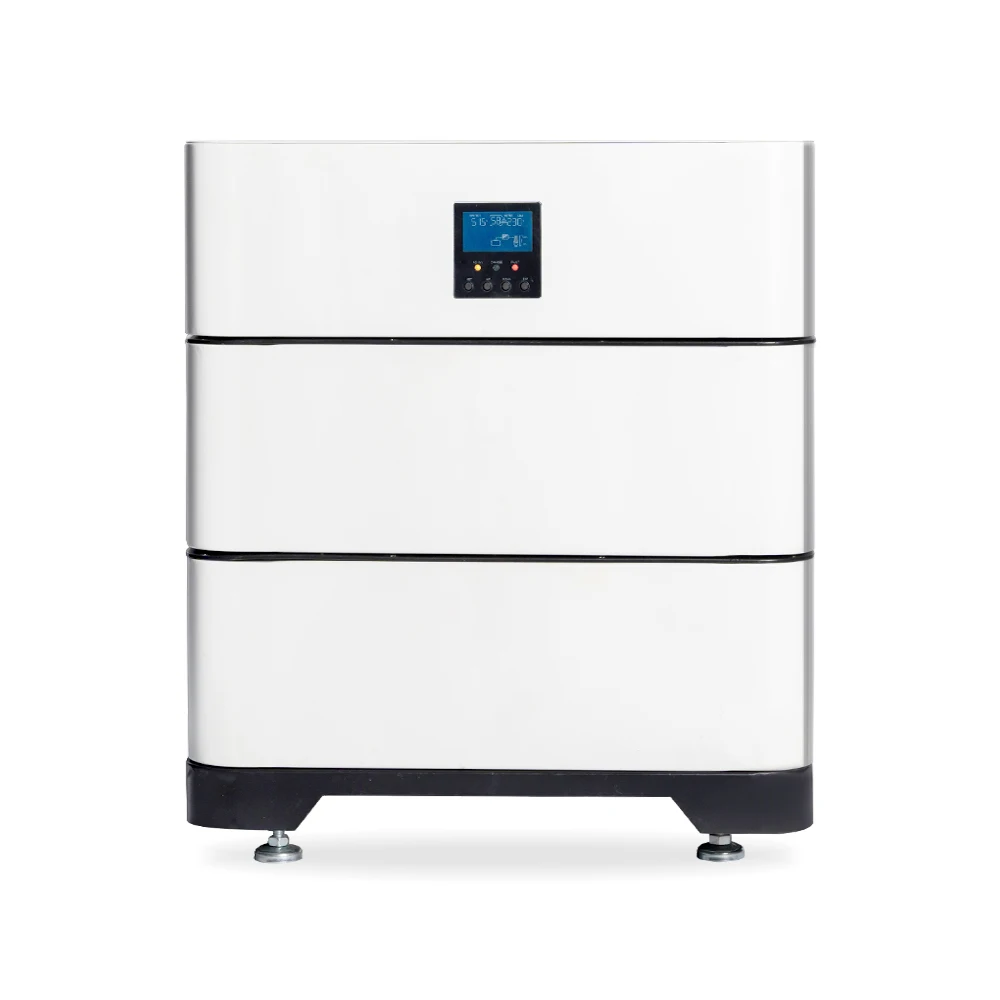

Home 48V 10KWH 15KWH 20kwh Solar Inverter Battery 51.2V 100ah 200ah 300ah Stackable LiFePO4 Energy Storage Battery
- Category: >>>
- Supplier: Chengdu Jute Technology Co. Ltd.
Share on (1600846397016):
Product Overview
Description
Local warehouse in Germany: Fast delivery within 7 days
Products Description
Product Parameter

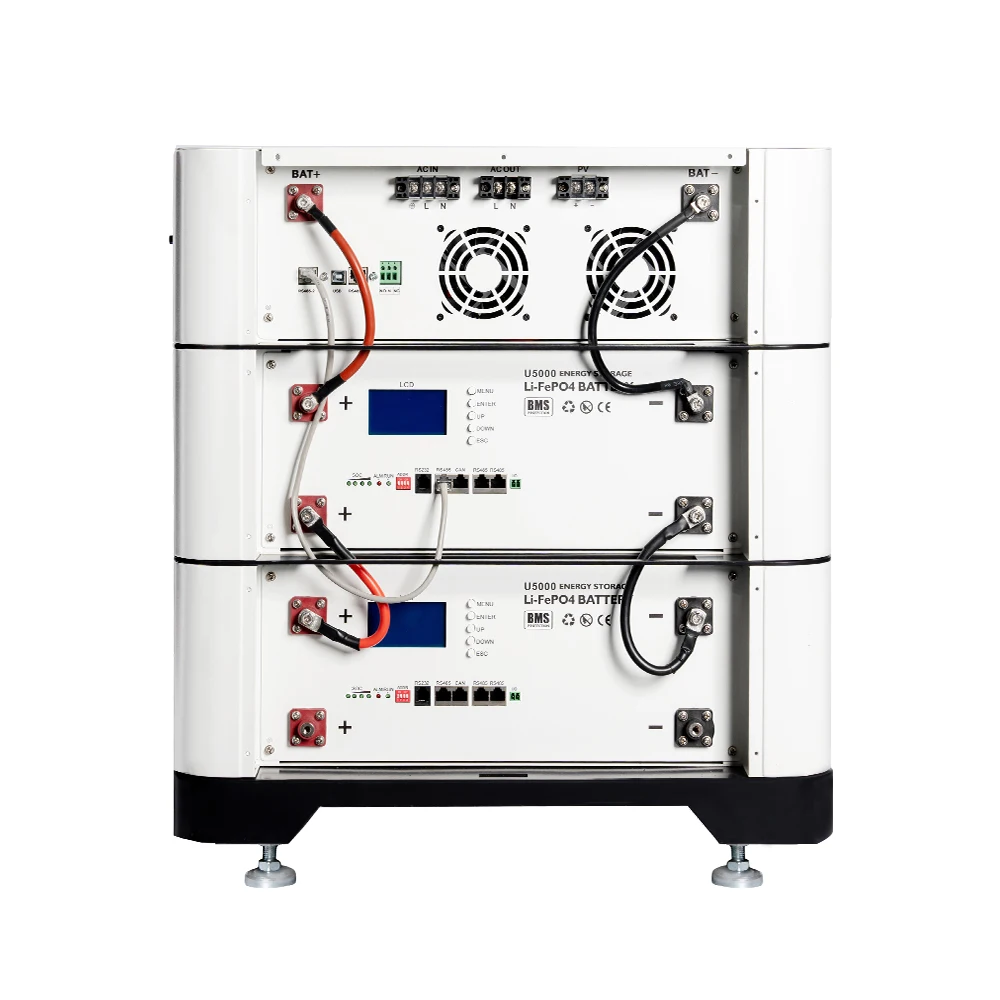

Stacked energy storage (Home)
Model | LFS 5kw+5.12kwh | LFS 5kw+10.24kwh | LFS 5kw+15.36kwh | LFS 5kw+20.48kwh | LFS 5kw+25.6kwh | |||||
Lithium battery | ||||||||||
Voltage | Single module capacity | |||||||||
Module number | 1pcs | 2pcs | 3pcs | 4pcs | 5pcs | |||||
Total energy capacity | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | 25.6kwh | |||||
Standard voltage | 51.2V | |||||||||
Working voltage | 43.2v-57.6V | |||||||||
Standard discharge current | 100A | 200A | 300A | 400A | 500A | |||||
Standard charging current | 50A | 100A | 150A | 200A | 250A | |||||
Suggested DOD | 80% | |||||||||
Humidity | 20%-60% | |||||||||
Installation | Stacked | |||||||||
IP rating | IP20 | |||||||||

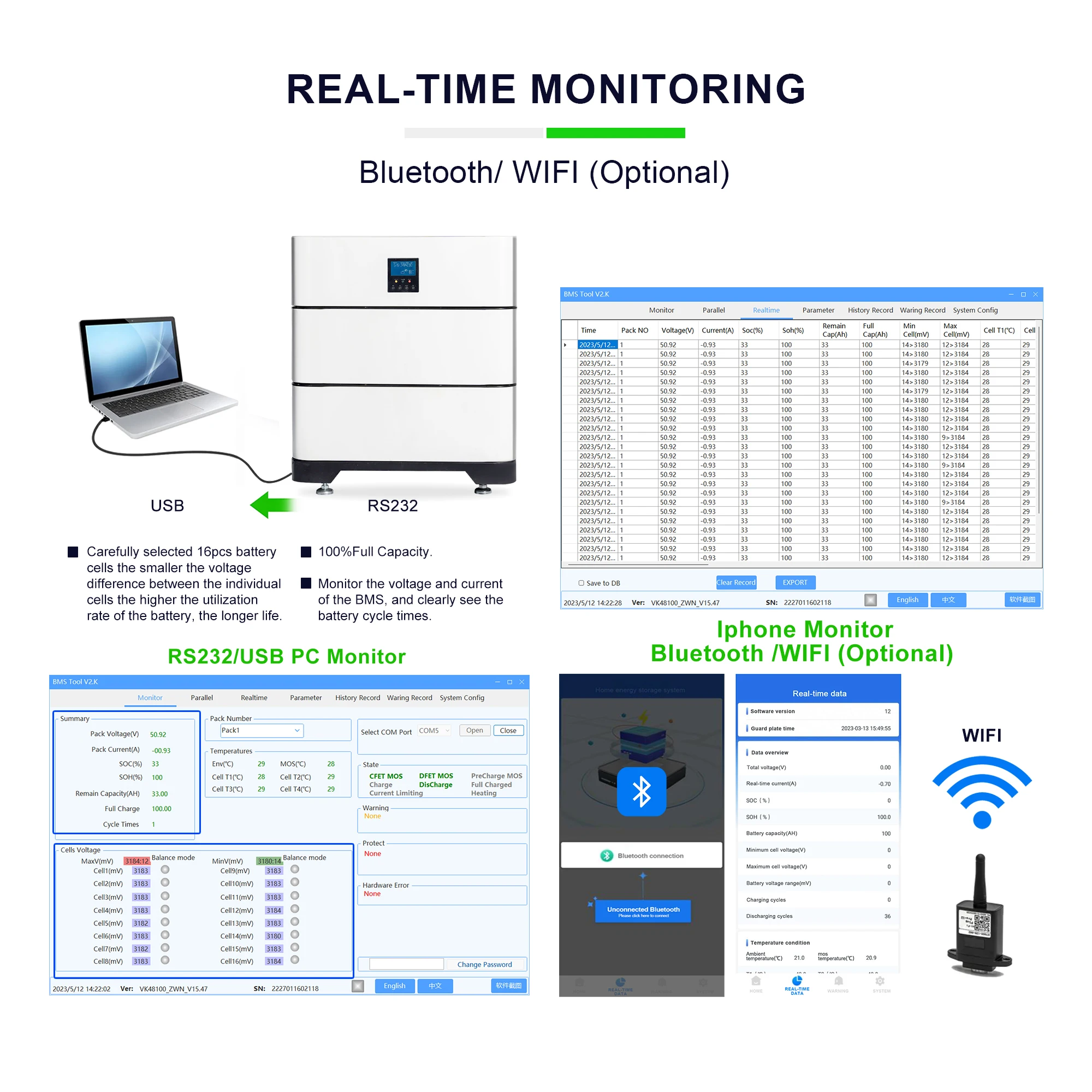

Communication | CAN/RS485/RS232(WIFI,bluetooth is optional and need extra cost) | |||||||||
Product size/unit | 550*500*185mm | |||||||||
N.W./unit | 40kg | |||||||||
Battery Input | ||||||||||
Battery type | LFP | |||||||||
Rated Battery Input Voltage | 51.2V ( Minimum Startup Voltage 44V) | |||||||||
Hybrid Charging Max Charging Current | 80A | |||||||||
Battery Voltage Range | 40Vdc~60Vdc ± 0.6Vdc(Under voltage Warning/Shutdown Voltage/Over voltage/Warning/Over voltage Recover y...) | |||||||||
Solar Input | ||||||||||
Maximum PV Open-circuit Voltage | 500Vdc | |||||||||
PV Working Voltage Range | 120-500Vdc | |||||||||
MPPT Voltage Range | 120-450Vdc | |||||||||
Maximum PV Input Current | 18A | |||||||||
Maximum PV Input Power | 5200W | |||||||||
Maximum PV Charging Current | 80A | |||||||||
AC Input（generator/grid） | ||||||||||
Mains Maximum ChargingCurrent | 60A | |||||||||
Rated Output Voltage (Vac) | 230Vac (200/208/220/240Vac） | |||||||||
Rated Output Power (VA) | 5000（4350/4500/4800/5000） | |||||||||
Rated Output Power(W) | 5000（4350/4500/4800/5000） | |||||||||
Peak Power | 10000VA | |||||||||
On-load Motor Capacity | 4HP | |||||||||
Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz | |||||||||
Maximum Efficiency | >90% | |||||||||
No-load Loss | Non Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） | |||||||||
1. How long will a 48V 100Ah LiFePO4 battery last?
The lifespan of a 48V 100Ah LiFePO4 battery will depend on several factors, such as the number of charge and discharge cycles, the depth of discharge, the charging and discharging current, and the operating temperature. Typically, LiFePO4 batteries are designed to last for thousands of cycles, and their lifespan can range from 5 to 20 years, depending on how they are used and maintained.
Assuming the battery is cycled once per day with a depth of discharge of 80%, it can last for around 10 years or 3,650 cycles. However, if the battery is cycled less frequently or with a lower depth of discharge, its lifespan can be extended further.
It's essential to note that the actual lifespan of a LiFePO4 battery can vary depending on many factors and may differ from the estimated lifespan. Proper maintenance, including proper charging and storage, can help maximize the battery's lifespan.

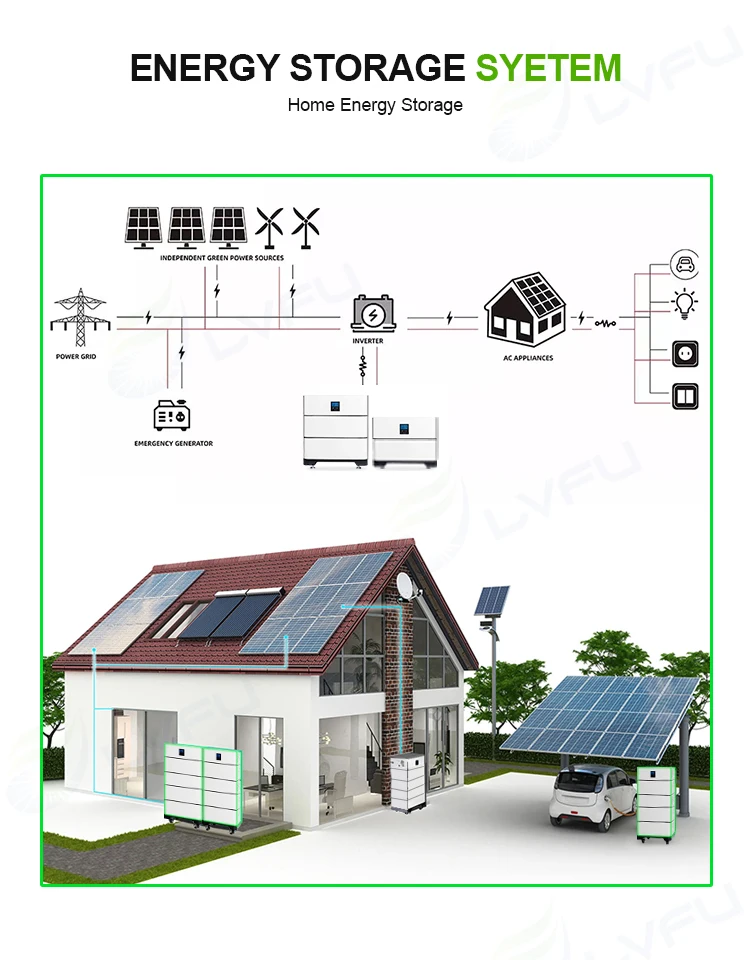

Using solar energy storage batteries has many benefits, including:
1. Energy independence: Solar energy storage batteries allow individuals and businesses to store excess solar energy generated during the day for use at night or during periods of low sunlight. This provides energy independence and can reduce reliance on external energy sources.
2. Increased energy efficiency: By storing excess solar energy, solar energy storage batteries can help to increase energy efficiency and reduce waste.
3. Grid independence: Solar energy storage batteries can also be used in off-grid applications, providing a reliable source of energy in remote or isolated areas.
4. Cost savings: By storing excess solar energy, solar energy storage batteries can help to reduce energy costs by allowing individuals and businesses to use stored energy during periods of high demand or when electricity rates are at their peak.
5. Environmental benefits: Solar energy storage batteries can help to reduce reliance on traditional fossil fuel-based energy sources, and reduce harmful emissions, making them an environmentally friendly energy solution.
2. Increased energy efficiency: By storing excess solar energy, solar energy storage batteries can help to increase energy efficiency and reduce waste.
3. Grid independence: Solar energy storage batteries can also be used in off-grid applications, providing a reliable source of energy in remote or isolated areas.
4. Cost savings: By storing excess solar energy, solar energy storage batteries can help to reduce energy costs by allowing individuals and businesses to use stored energy during periods of high demand or when electricity rates are at their peak.
5. Environmental benefits: Solar energy storage batteries can help to reduce reliance on traditional fossil fuel-based energy sources, and reduce harmful emissions, making them an environmentally friendly energy solution.
Overall, using solar energy storage batteries provides many benefits, including increased energy independence, efficiency, and
cost savings, as well as environmental benefits.
cost savings, as well as environmental benefits.
