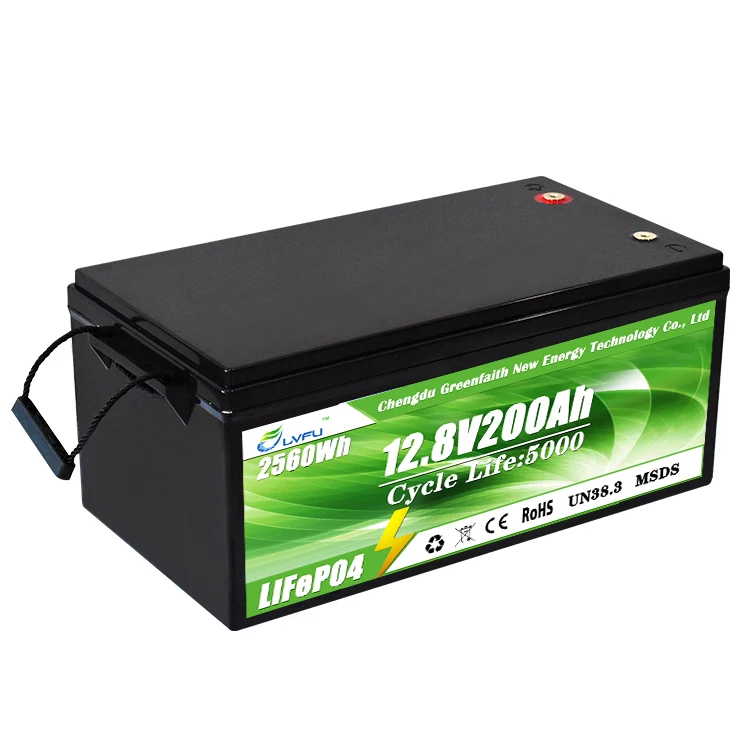

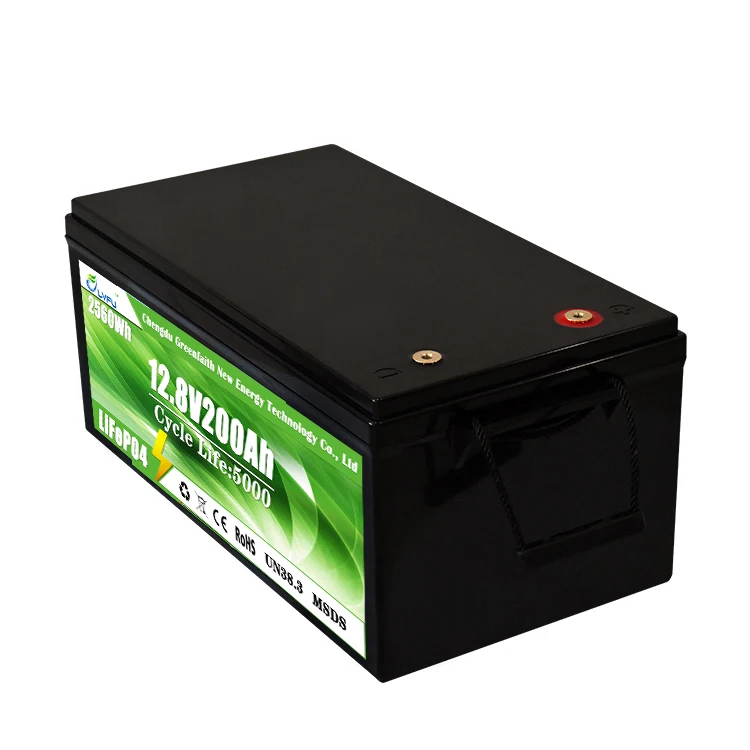

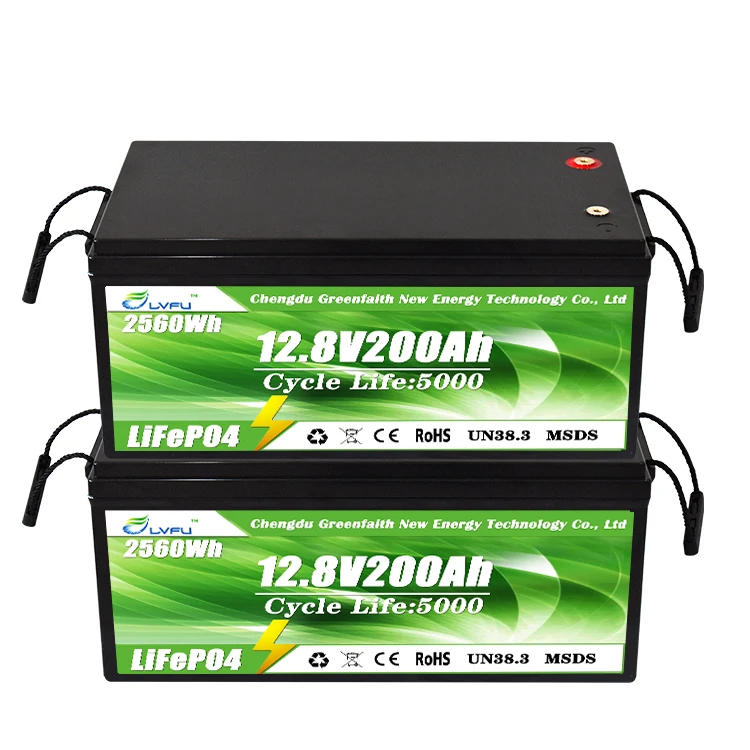

Deep Cycle 12V Lithium Battery LFP Lithium iron Phosphate 12v 100ah 200ah Lifepo4 batteries for Home Energy Storage
- Category: >>>
- Supplier: Air Bath International Trade (Chengdu) Co. Ltd.
Share on (1600846495096):
Product Overview
Description
Products Description

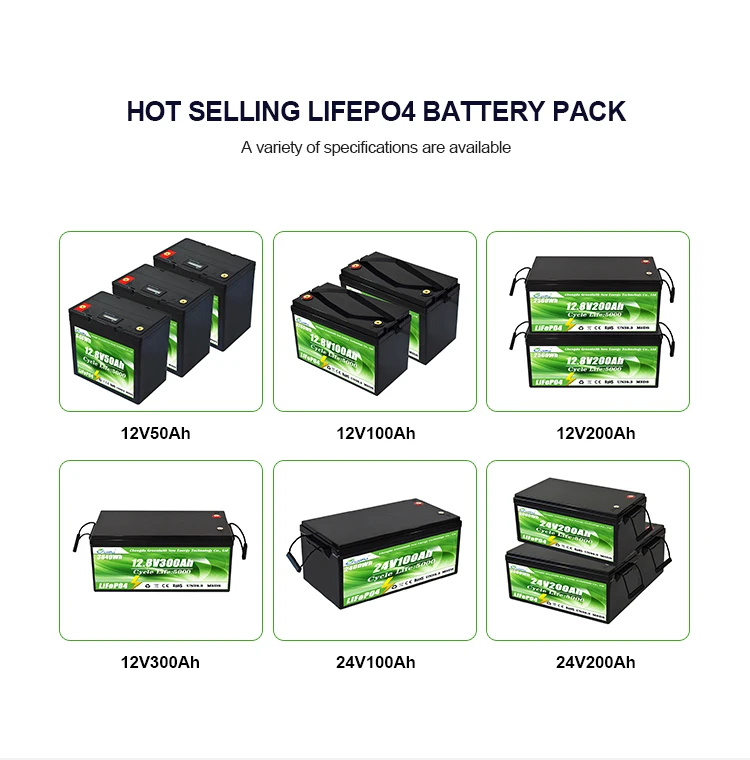

Battery Model | 12V 50AH | 12V 100AH | 12V 200AH | 12V 300AH | |||
Battery Type | LiFeP04:(BYD/EVE/CATL Cell） | ||||||
Battery Capacity | 600WH | 1200WH | 2400WH | 3600WH | |||
Voltage window (V-DC) | 10V-14.4V | ||||||
Maximum continuous charging current | 25A | 50A | 50A | 100A | |||
Maximum continuous discharge current | 50A | 100A | 100A | 200A | |||
Maximum pulse current | 150A 3S | 300A 3S | 300A 3S | 400A 3S | |||
Product Size（MM） | L260*Wl68*H209 | L330*W175*H221 | L532*W207*H215 | L522*W270*H220 | |||
Weight(KG) | 6KG | 12KG | 22KG | 29KG | |||
Maximum number of series connected | 4S 48V | ||||||
Maximum number of parallel connected | 10P | ||||||
Storage Time Charging | The normal voltage is charged once every 3 months, and the voltage of 10 V-10.SV must be charged the next day. | ||||||
Cycle Life(+25C-0.2C) | >6000 | ||||||
Case Material | ABS | ||||||
Functions can be added | LCD/Bluetooth/Heating/485 | ||||||
Battery protection | Overcharge protection, overdischarge protection, overcurrent protection, short ci「cuit protection,vertemperature protection | ||||||
Cautions
1、 The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
2、 The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3、 Do not reverse the polarity of the battery pack for any reason;
4、 Do not charge in reverse polarity;
5、 Please use a professional charger for charging;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
1、 The charging current should be less than the maximum charging current specified in the product specifications. A charging current greater than the recommended current may damage the battery;
2、 The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3、 Do not reverse the polarity of the battery pack for any reason;
4、 Do not charge in reverse polarity;
5、 Please use a professional charger for charging;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
