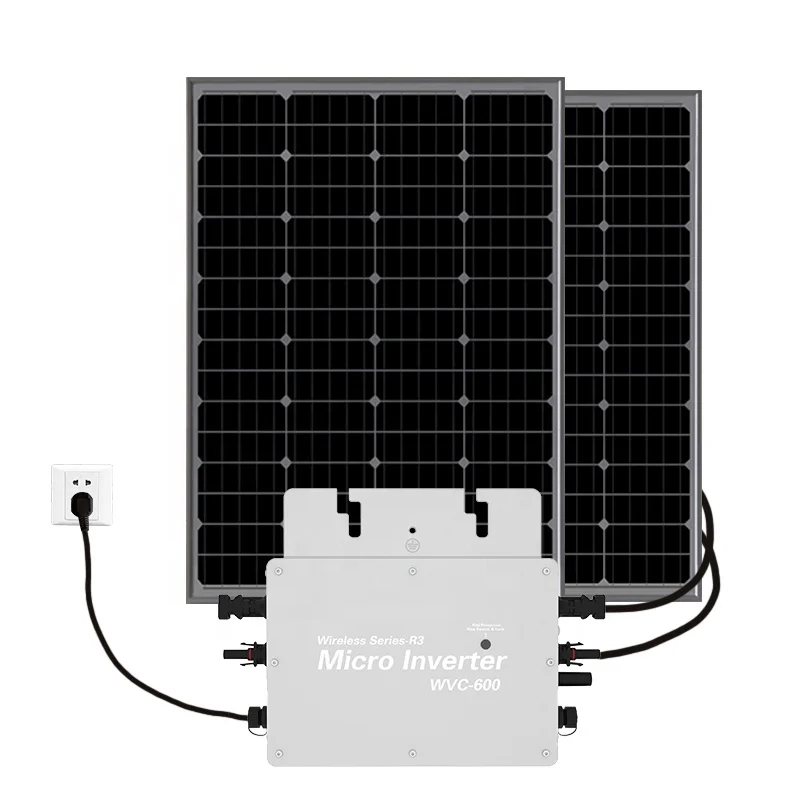

Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System
Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System
Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System
Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System
Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System
Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System

Balcony Panel 400w Black Mounting Rail Extension Cable 600w Micro Inverter Betteri Bc01 End IP68 solar Balcony System

Share on (1600846511454):


Price:$75.60 - $286.00

Quantity:

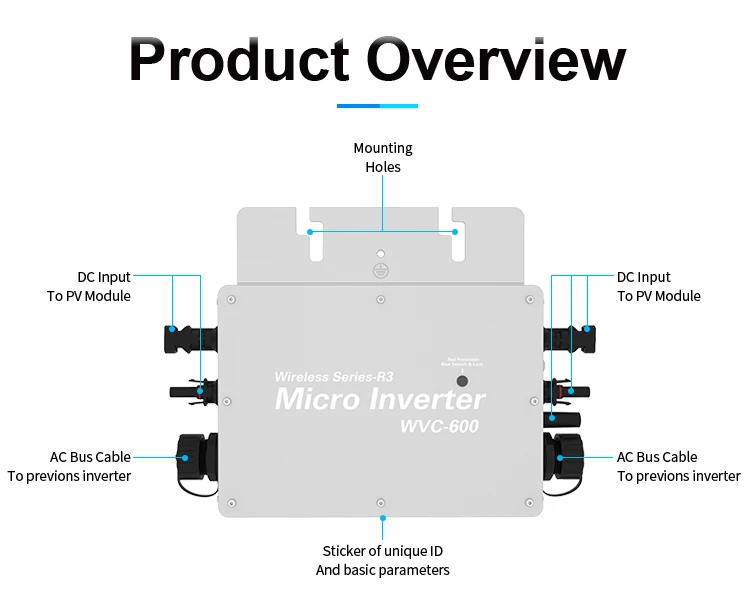

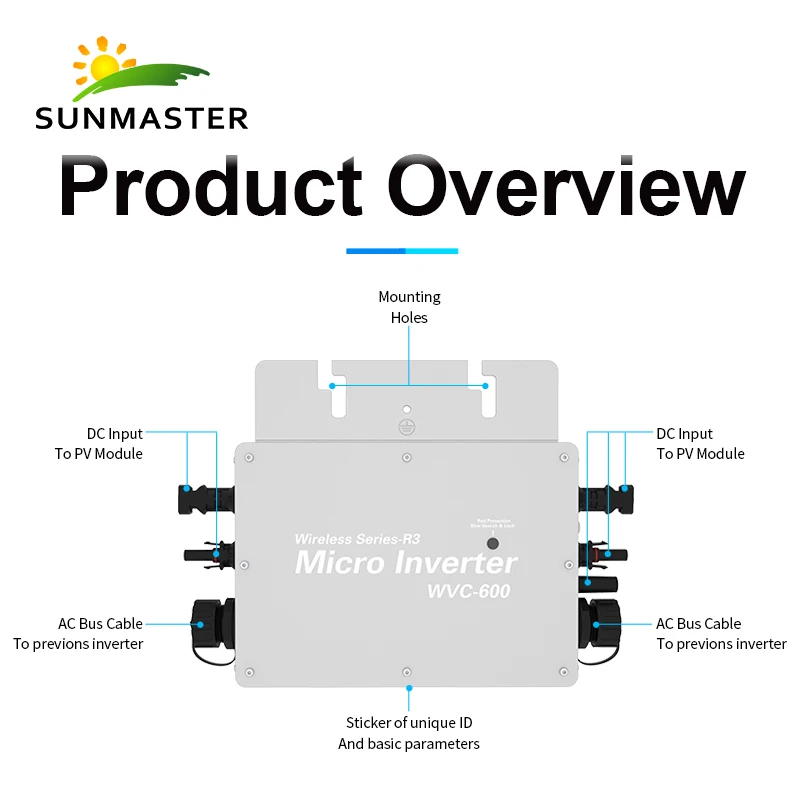

Product Overview

Description


_01.jpg_02.jpg                                    Contact us to get the details certification doucmentsdj_03.jpg_04.jpg_06.jpg_07.jpg


                                                       more other specification,Contact us nowdj























































































Input(DC)


Recommended Input Power [W]



2*280-440



MPPT Voltage Range [V]



33-48



Operating Voltage Range [V]



16-60



Max. Input Voltage [V]



60



Max. Input Current [A]



11.5



Max. Input Short Circuit Current[A]



15



Output [AC]


Max. Continous Output Power [W]



700



Nominal Output Current [A]



3.04



Max. Output Current [A]



3.19



Nominal Output Voltage [V]



220/230/240, L/N/PE



Nominal Frequency [Hz]



50/60



Power Factor



>0.99




Output Current Harmonic Distortion




<3%




Max. Units Per 20A Branch




7



Efficiency


Peak Inverter Efficiency



96.7%



CEC Weighted Efficiency



96.5%



Nominal MPPT Efficiency



99.9%



Night Time Power Consumption [mW]



<50





                      If you have any specific requrements,Contact us nowdj_11.jpg_12.jpg_13.jpg_14.jpg_15.jpg
