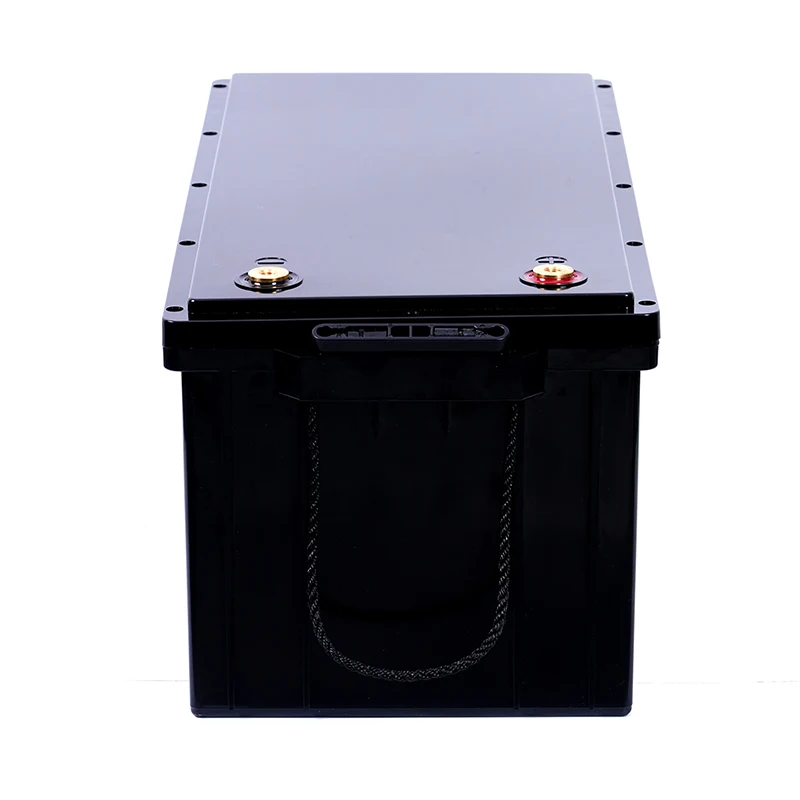

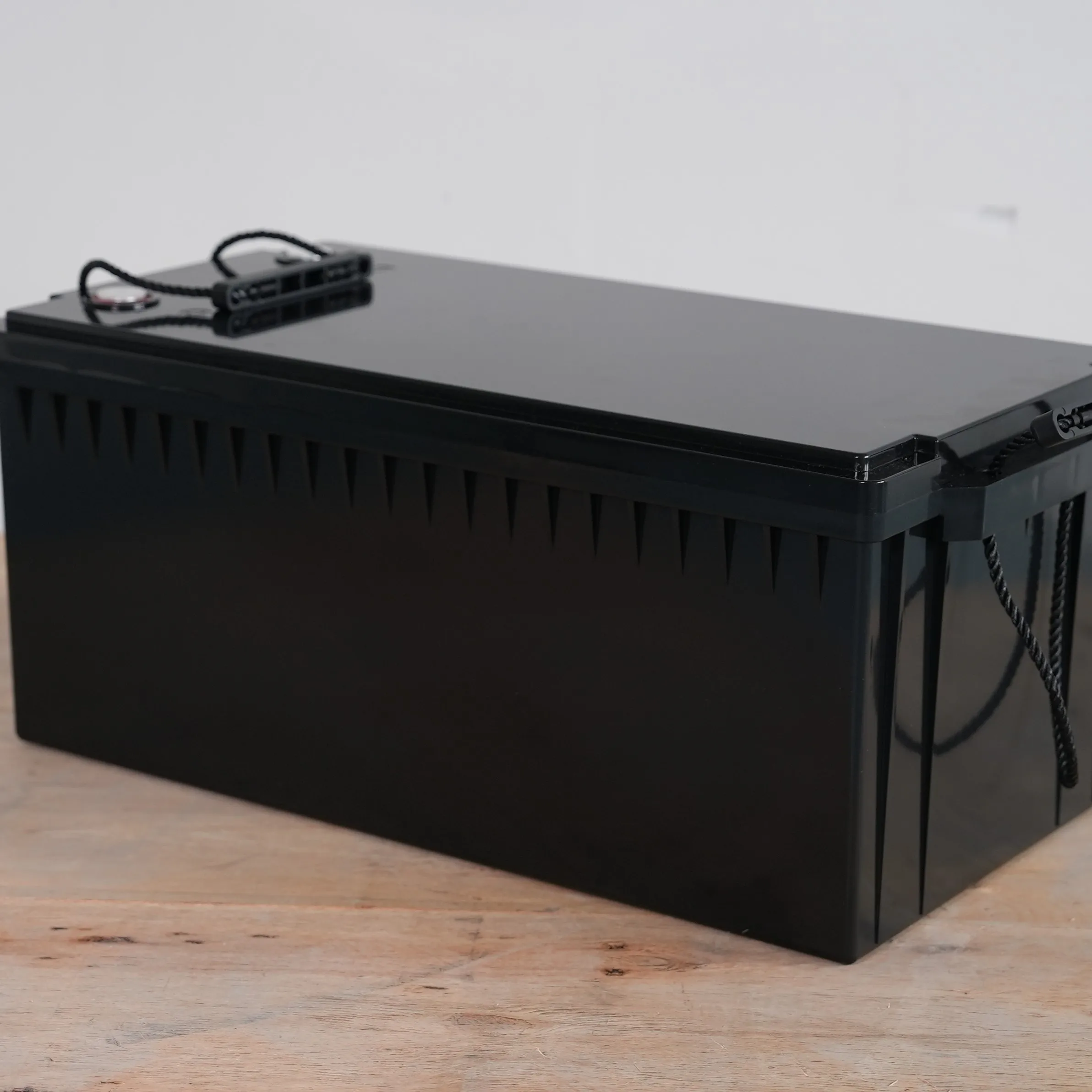

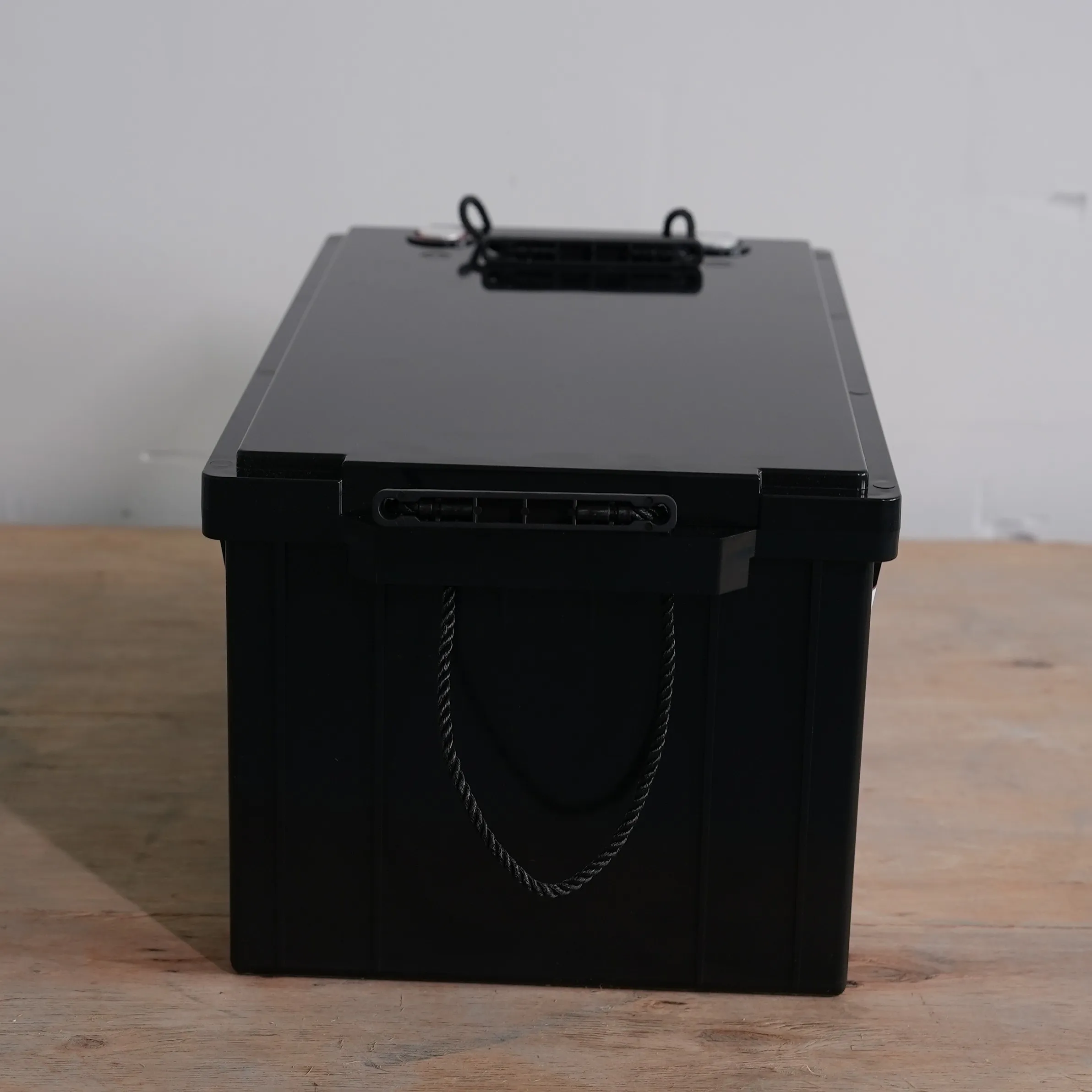

12.8V 200AH lifepo4 battery 12V 100AH lithium iron phosphate battery lithium ion batterie solaire lithium 200ah for solar system

Share on (1600846529639):


Price:$217.00 - $230.00

Quantity:


Product Overview

Description


12.8V 200AH lifepo4 battery 12V 100AH lithium iron phosphate battery lithium ion batterie solaire lithium 200ah for solar system



Product Description


Longer Lifetime & Deep Cycle: Lithium iron phosphate battery compared with the 200-500 cycles of lead-acid, The service life ratio is long, the weight is light and the number of cycles is up to 6000 times, our lifepo4 battery for home energy storage photovoltaic system used A+ cells, the battery delivers 2560Wh and can endure up to 6000 cycles.(6000 cycles @80% DOD).

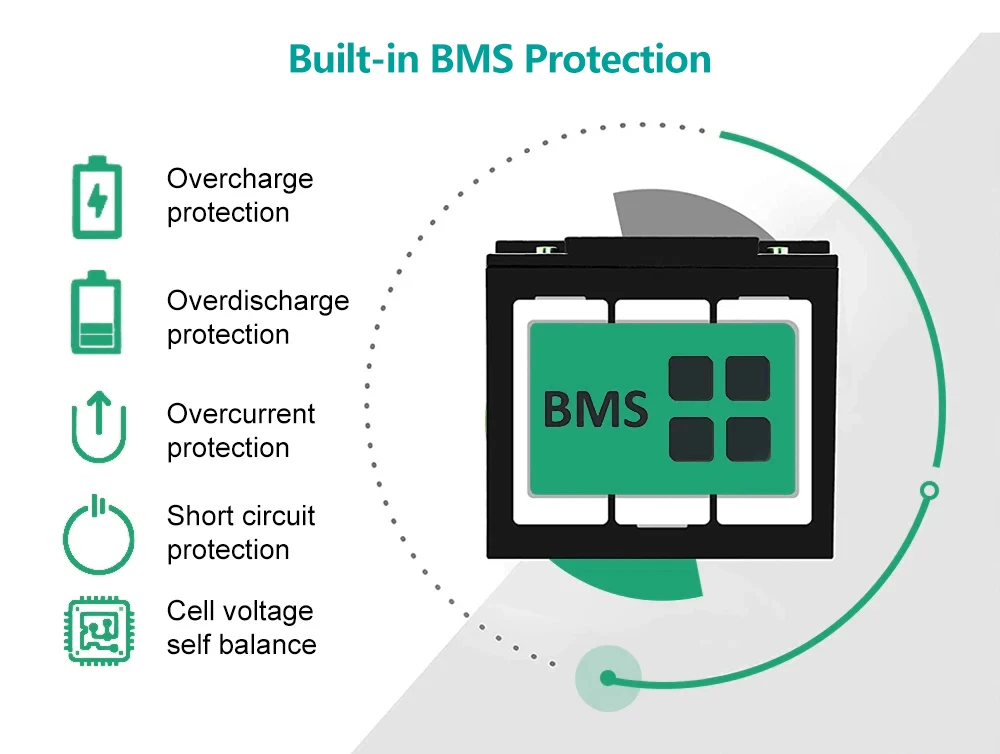

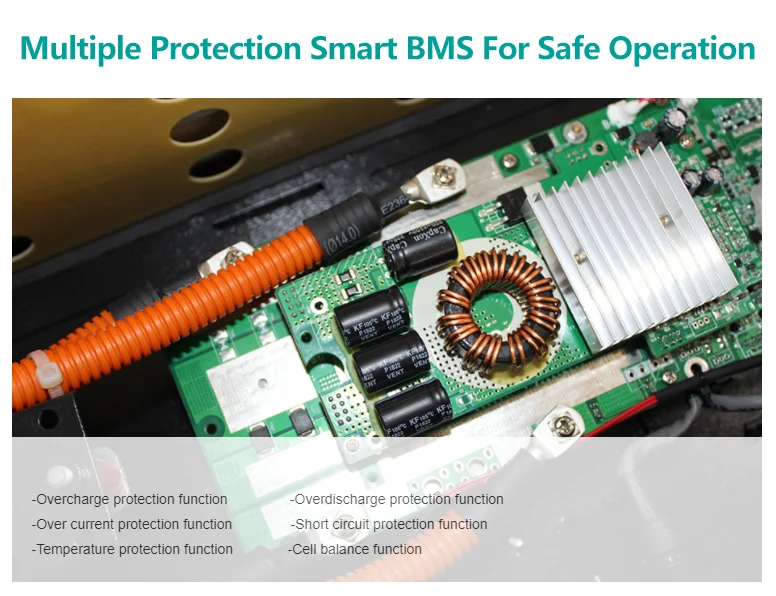

Built-in BMS Protection: Our 200Ah lifepo4 battery is built in Reliable BMS Protection. This intelligent design ensures optimal safety and better heat dissipation function to protect battery cells which can prevent the LifePO4 battery from the most common issues causing of battery failures, such as overcharge, over-discharge, over-current, short circuit and high temperature. It also has obtained SDS/UN38.3/CE certifications, ensuring its quality and safety.

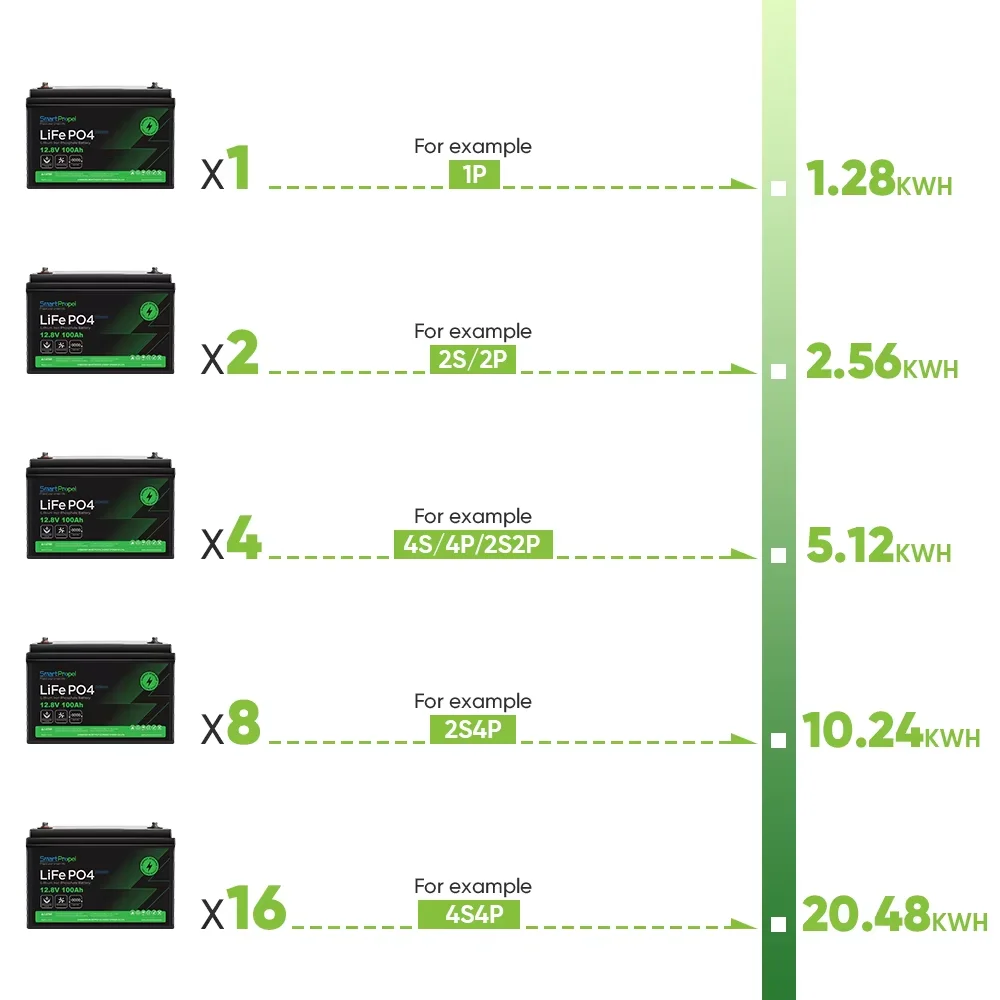

Connect for Larger Capacity: 12V LiFePO4 battery 200Ah could connect in parallel & in series for larger capacity. Allow being extended up to 4S or 16P.





Widely Use: Powerful energy expansion system could be widely used for home storage system (avoiding the effects of power outages), off-grid system, RV, Trolling Motor, Boat, Marine, trailer, and outdoor activities.

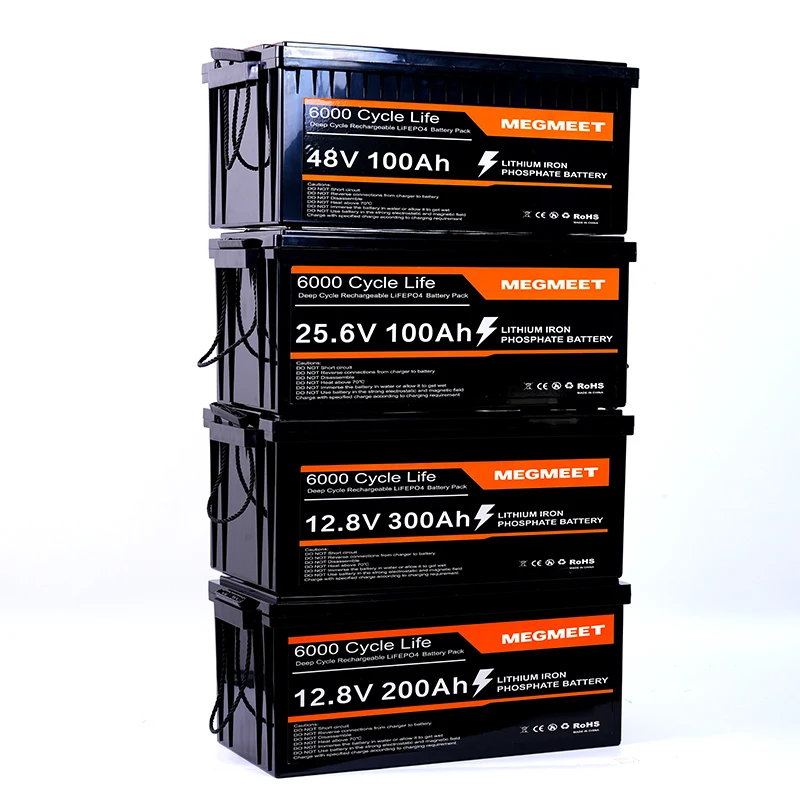

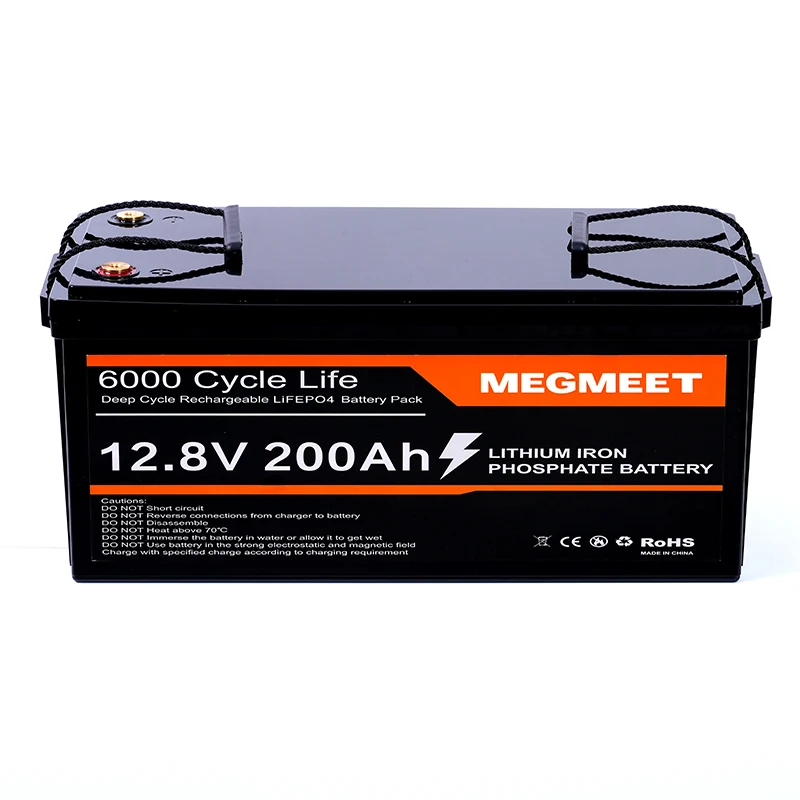

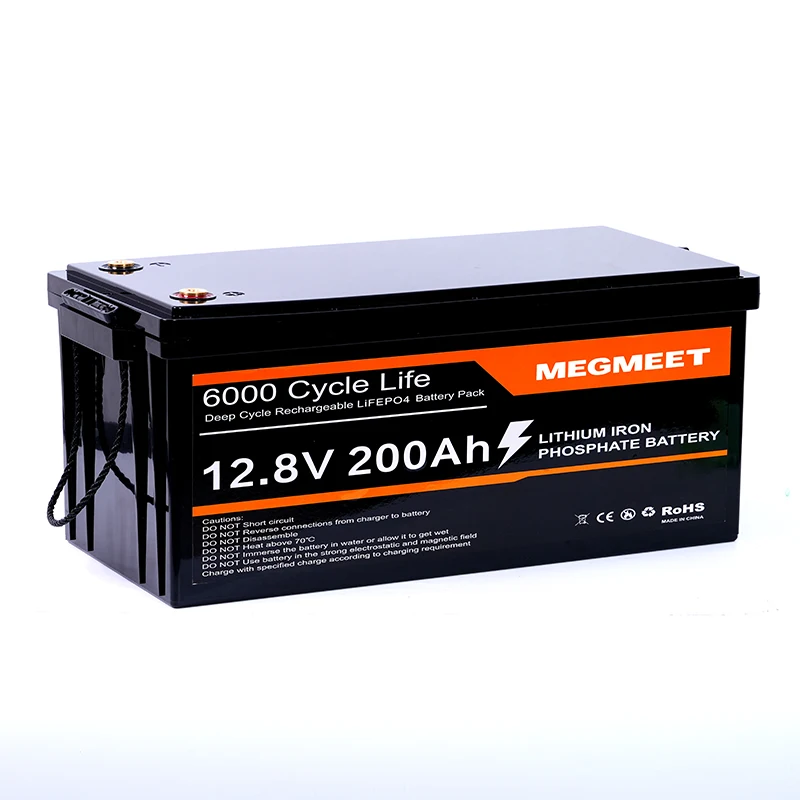

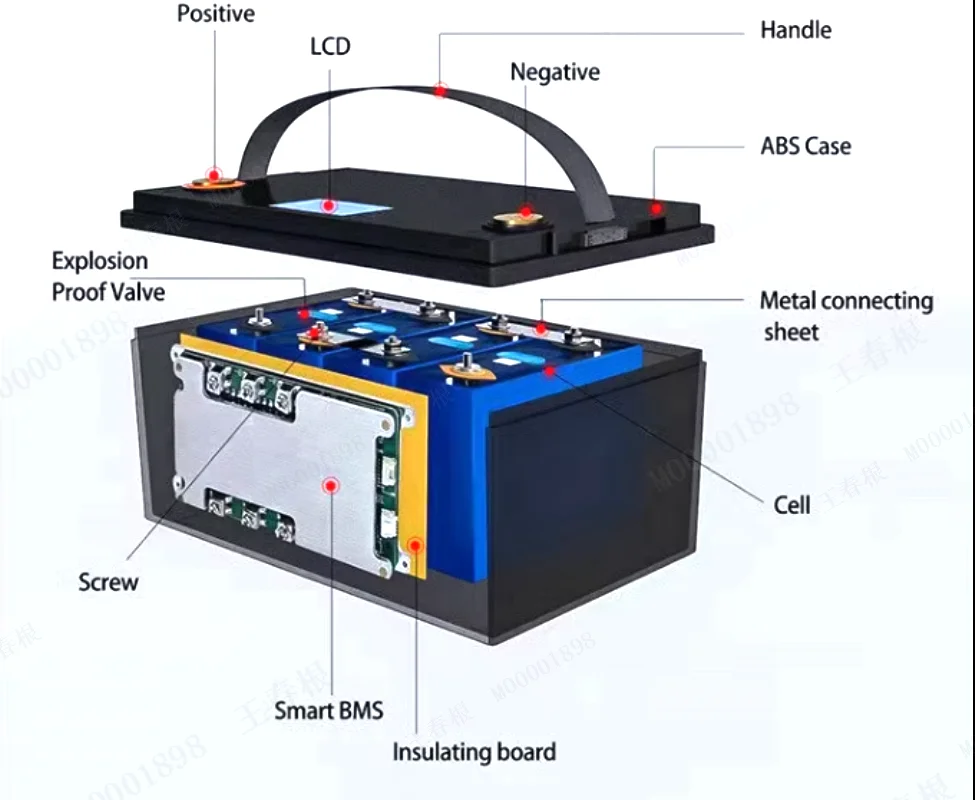

12.8V200AH-312.8V200AH-112.8V200AH-212.8V200AH 1Lead-acid to battery (1)Lead-acid to battery (3)Lead-acid to battery (2)BMS battery-3 (1)BMS battery-3 (1)








Specification


 Product Technical Specification Parameters



























































































































Items



Parameters



Noted
























Performance



Battery Voltage



12.8V



4S



Battery Capacity



200Ah



0.5C



Charging Cut-Off Voltage



14.6V



Single Cell 3.65V



Discharging Cut-Off Voltage



10V



Single Cell 2.5V-Adjustable



Charging Current



200A



Maximum Current-200A



Discharging Current



200A



Continuous Working Current



Internal Resistance



≤25mΩ































Protections



Over -Charging Voltage Protection



14.6V



Settable



Over-Discharging Voltage Protection



10V



Settable



Charging Over-Current Protection



200A



Settable



Short Circuit Protection



YES



Remove load or charging can be lifted



BMS Temperature Protection



-25~70℃



Electricity and ambient temperature protection












Use Environment



Working Temperature



-10℃~60℃







Storage And Shipping Temperature



-20℃~55℃







Relative Humidity



95%







Atmospheric Pressure



70kPa-106kPa
















Dimensions



Weight



19Kg



Net weight



Weight



 21±0.3% Kg



Gross Weight



Size



522x238x222±3mm



   Product Size



Size



595x312x297±3mm






  Out packing size




Our Services


_07





Company Information







Megmeet Advantages

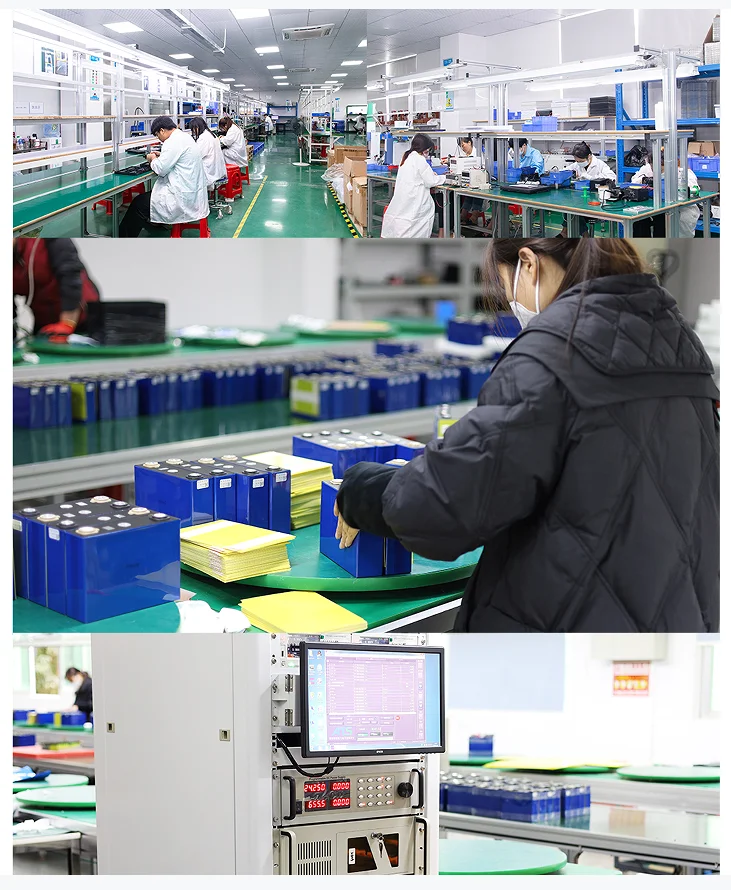

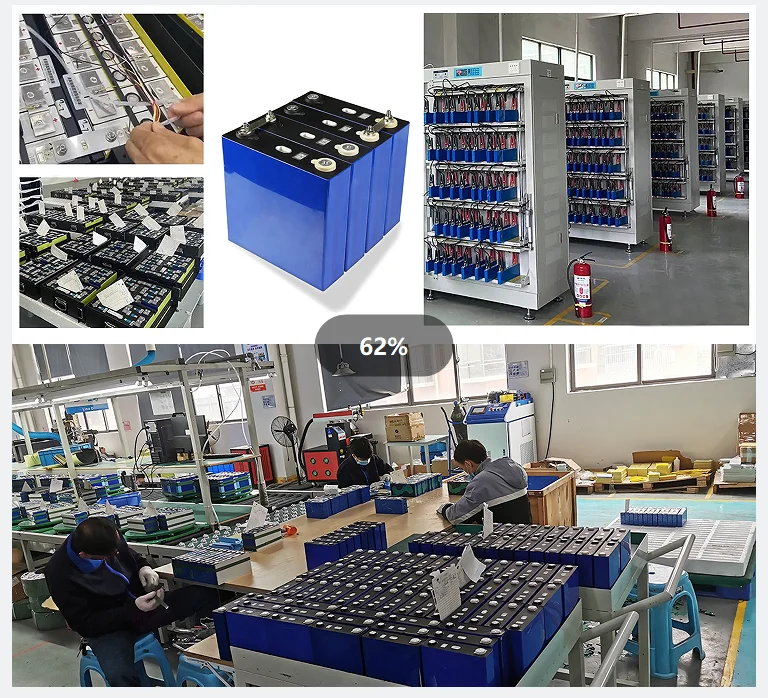

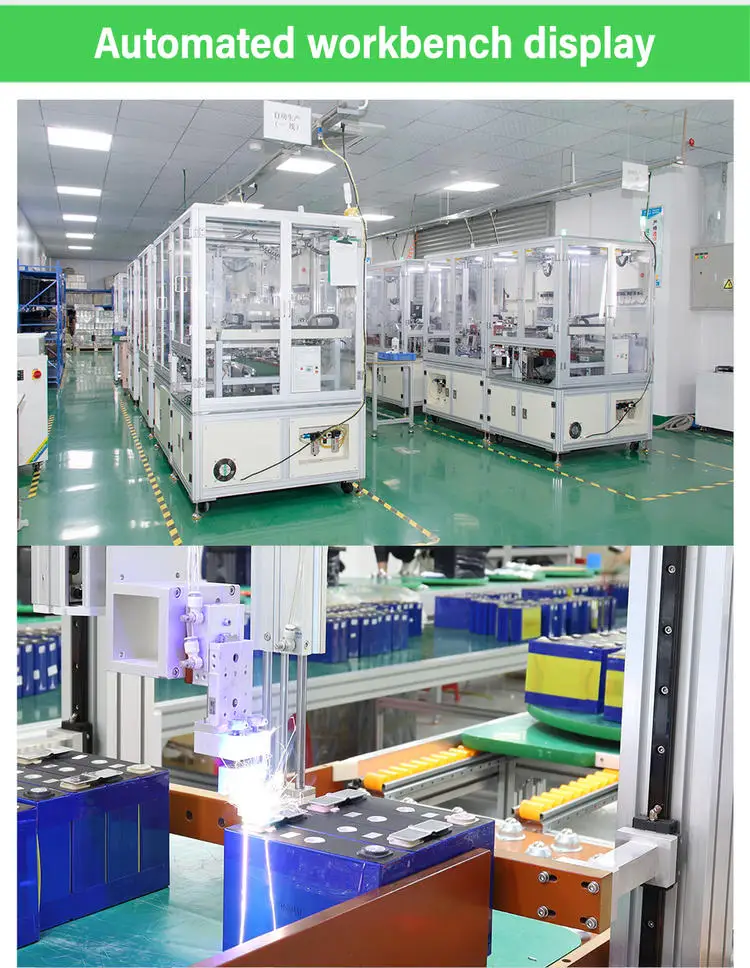

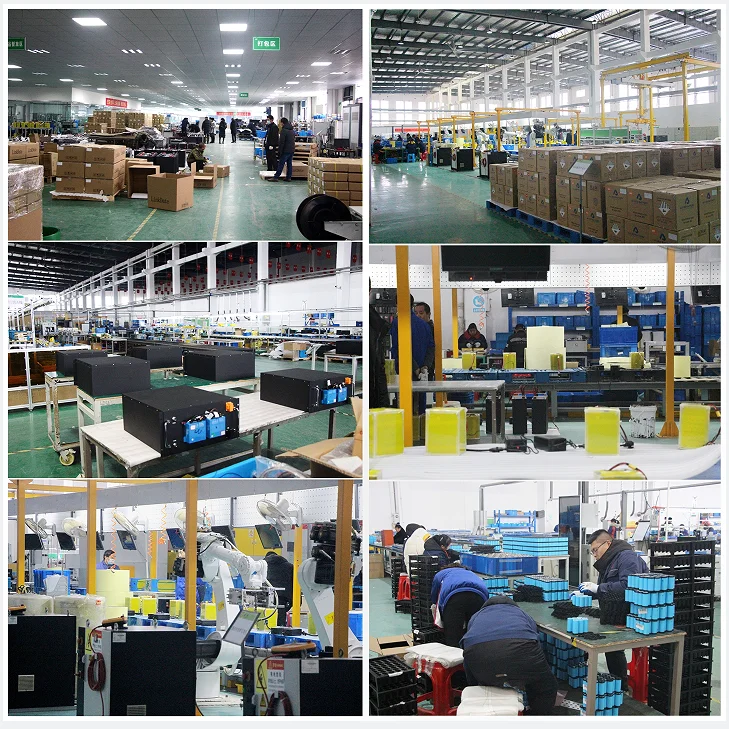

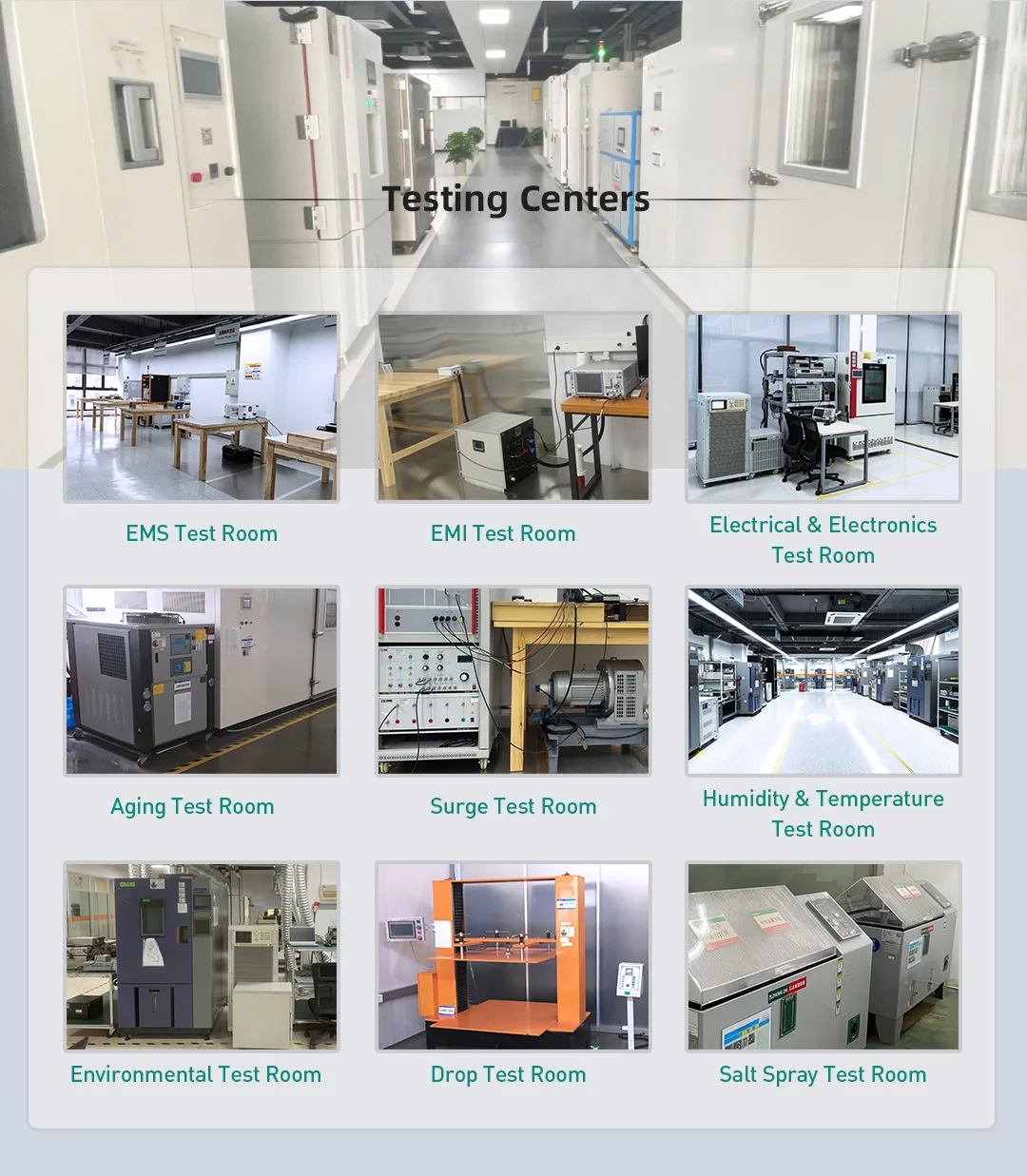

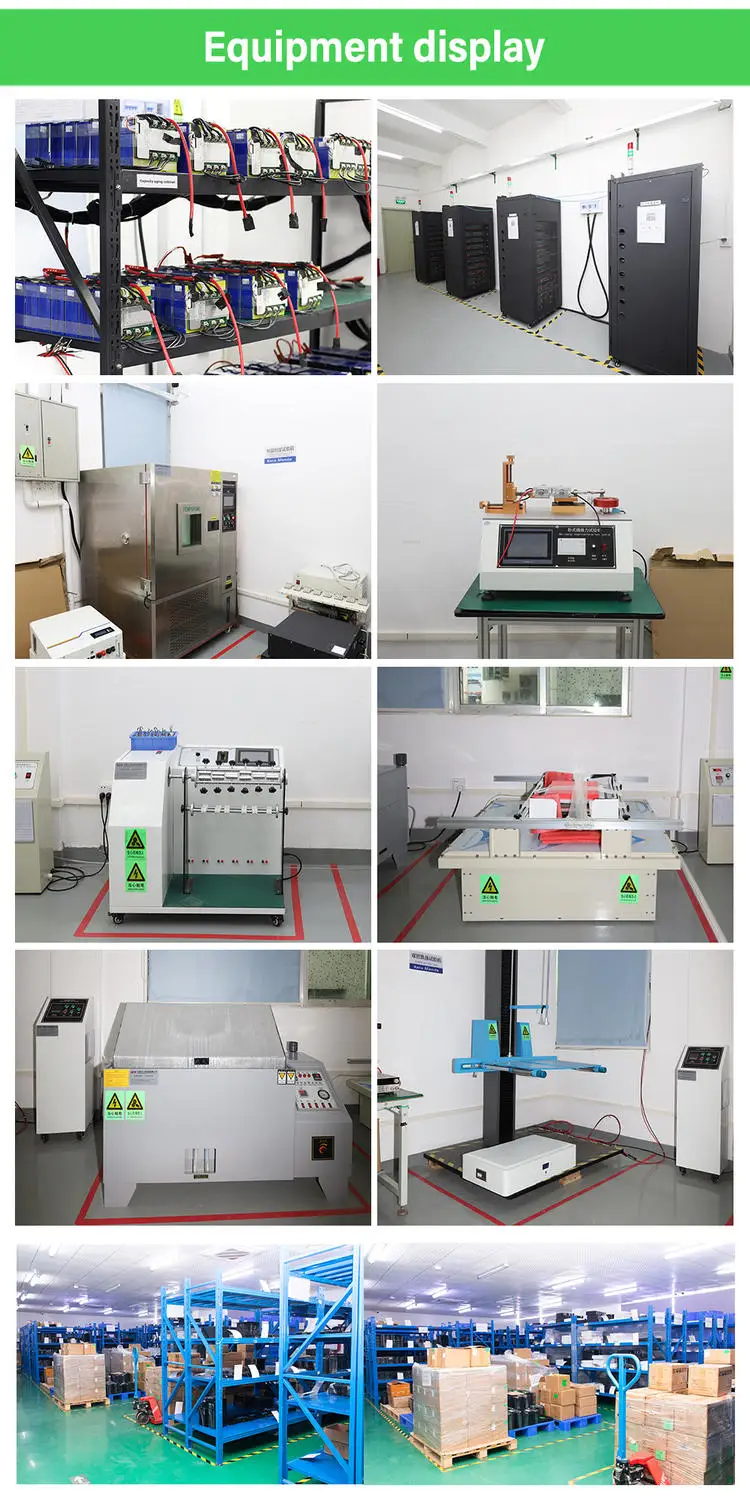

_02_03Factory show-5.jpgFactory show-1.pngFactory show-3.pngFactory show-4.png_05Test equipment show-1.jpg





Exhibition

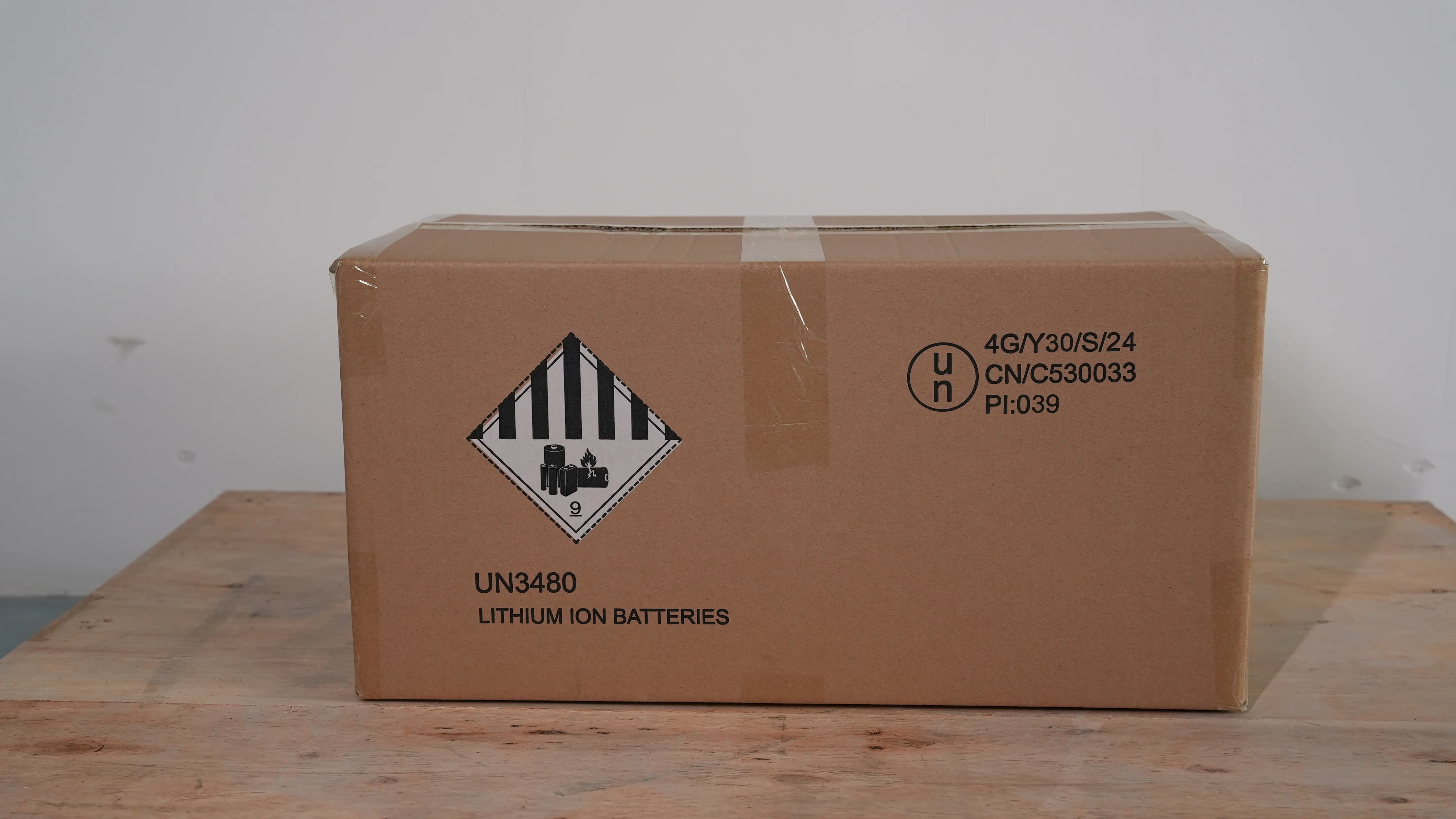

Packaging & Shipping
