Air cooling TXLG020 Dry compound screw vacuum pump
- Category: >>>
- Supplier: Xiamen Mibay Technology Co. Ltd.
Share on (1600847009438):
Product Overview
Description
Air cooled TXLG020 screw vacuum pump
Product description:

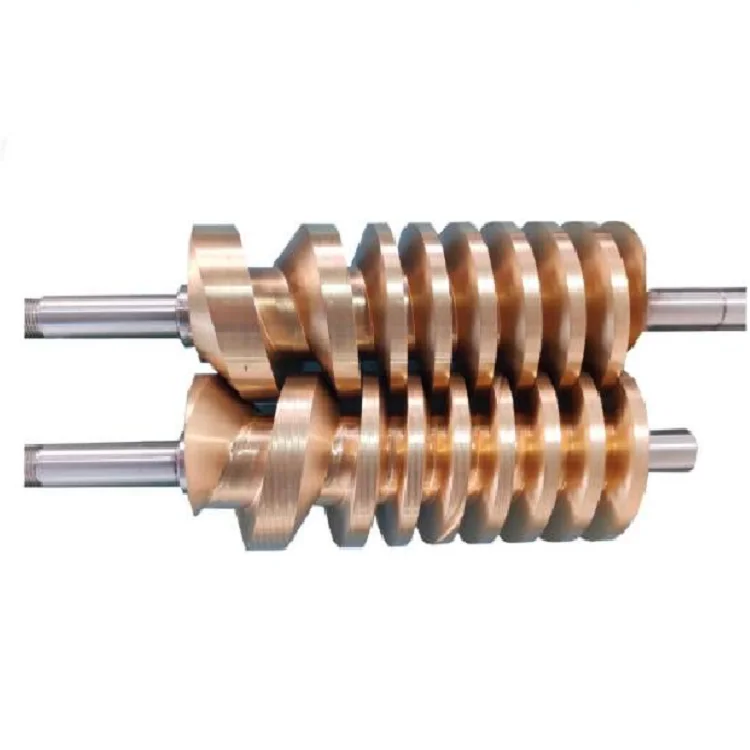

TXLG dry composite screw vacuum pump is our company on the basis of absorbing many foreign vacuum pumps, using the fifth generation of composite variable pitch screw technology (energy saving 30%, low exhaust temperature), independent innovation and development of new environmental protection vacuum pump, with high efficiency, energy saving, environmental protection, light weight, easy to use, reliable performance and other characteristics, on behalf of the future development direction of vacuum pump.
Typical Use
● Oil and gas recovery Biological medicine Food Processing
● Single crystal furnace Vacuum formingVacuum flame refining
● Electronic photovoltaic Semiconductor synthesis Biological products
● Pharmaceutical process Chemical process
● Solvent recovery Organic solvent recovery Medical instruments
● Oil and gas recovery Thin film preparation
● Biochemical testing analysis
● microelectronics solar energy Material Handling
● Single crystal furnace Vacuum formingVacuum flame refining
● Electronic photovoltaic Semiconductor synthesis Biological products
● Pharmaceutical process Chemical process
● Solvent recovery Organic solvent recovery Medical instruments
● Oil and gas recovery Thin film preparation
● Biochemical testing analysis
● microelectronics solar energy Material Handling

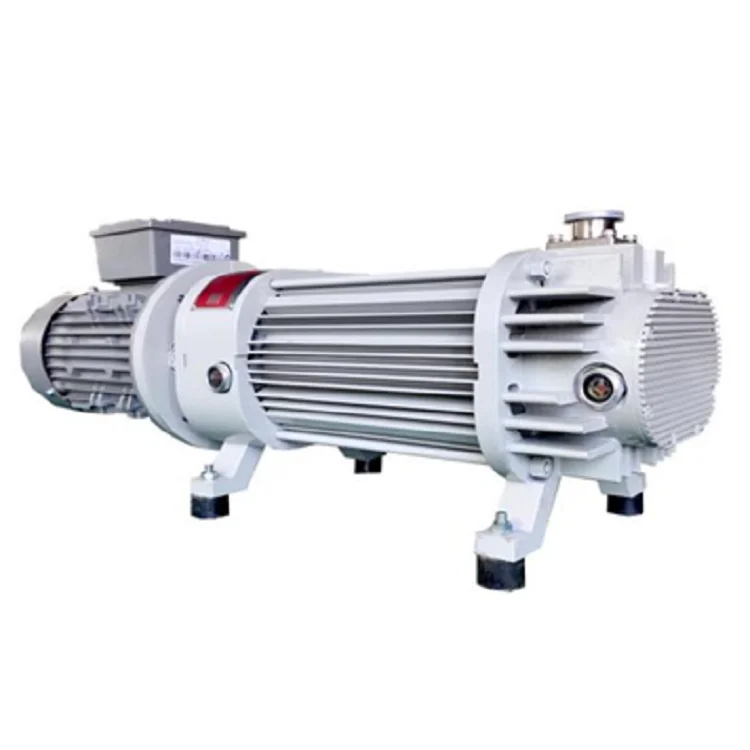

Air cooling TXLG020 Dry compound screw vacuum pump
TECHNICAL SPECIFICATIONS
Product Model | 50/60Hz | TXLG020 | TXLG050 | TXLG080 |
Pumping Speed | 50Hz | 18m³/H | 48m³/H | 78m³/H |
60Hz | 22m³/H | 54mm³/H | 86mm³/H | |
Ultimate Pressure | Pa | <1 | <1 | <1 |
Inlet Diameter | KF40 | KF40 | KF40 | |
Voltage | 50Hz | 200-240/345-415V | 200-240/345-415V | 200-240/345-415V |
60Hz | 220-275/380-480V | 220-275/380-480V | 220-275/380-480V | |
Motor Power | kW | 1.1 | 1.5 | 2.2 |
Rotate Speed | rpm | 2800 | 2800 | 2840 |
Noise Level | dB | 65 | 65 | 70 |
Cooling Mode | Air Cooling | Air Cooling | Air Cooling | |
Net Weight | kg | 48 | 48 | 53 |

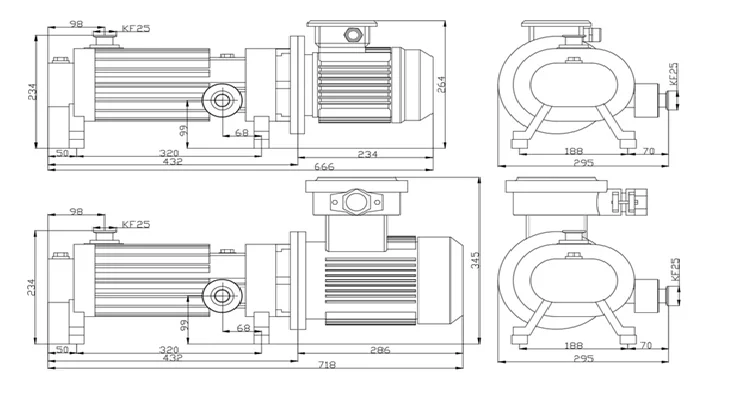

Dimensional drawing：
Air cooling dry screw vacuum pump

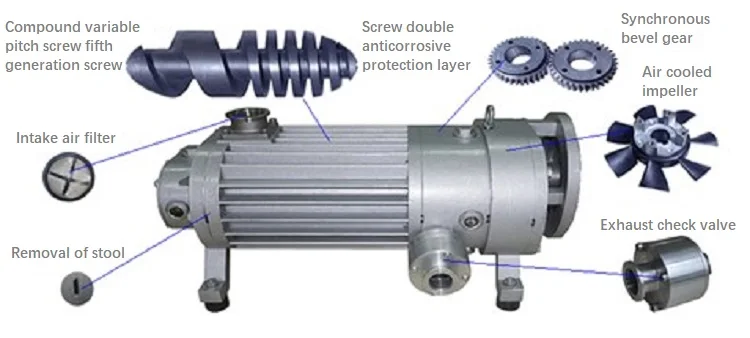

ADVANTAGES

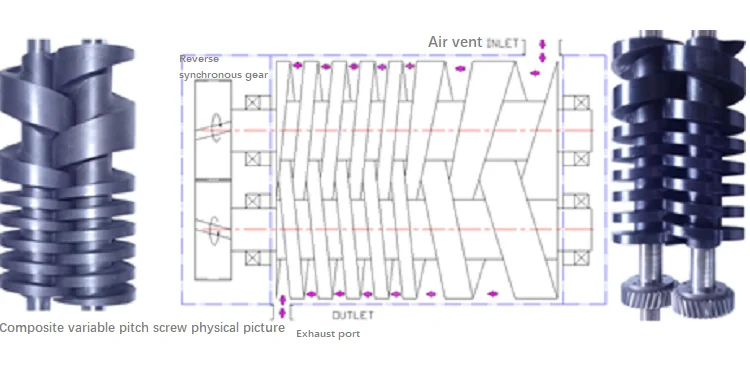

● Advanced technology, using advanced fifth generation composite screw technology;
● Environmental protection - no oil, no water, no pollution, can obtain a clean vacuum, and the extracted materials can be recycled
and reused; Energy saving, adopting variable pitch energy-saving technology, can reduce energy consumption by 30%;
● Resistant to chemical corrosion, the pump chamber has a corrosion-resistant nano ceramic protective layer, and the O-ring is made
of EPDM material, which is resistant to organic solvent corrosion;
● Air cooled, adopting an air cooled structure, making it more convenient and simple to use; Save manpower, with maintenance cycles
ranging from thousands to tens of thousands of hours;
● High extreme vacuum, ≤ 1Pa, wide working area, continuous operation from extreme vacuum to atmospheric pressure;
● Double ended mechanical seal, using the most advanced magnetic sealing device to make the seal more reliable, with smooth exhaust
and good liquid handling ability;
● Lightweight, using new lightweight materials, with a relatively light weight. Low noise, using high-precision machining parts,
resulting in low noise;
● Environmental protection - no oil, no water, no pollution, can obtain a clean vacuum, and the extracted materials can be recycled
and reused; Energy saving, adopting variable pitch energy-saving technology, can reduce energy consumption by 30%;
● Resistant to chemical corrosion, the pump chamber has a corrosion-resistant nano ceramic protective layer, and the O-ring is made
of EPDM material, which is resistant to organic solvent corrosion;
● Air cooled, adopting an air cooled structure, making it more convenient and simple to use; Save manpower, with maintenance cycles
ranging from thousands to tens of thousands of hours;
● High extreme vacuum, ≤ 1Pa, wide working area, continuous operation from extreme vacuum to atmospheric pressure;
● Double ended mechanical seal, using the most advanced magnetic sealing device to make the seal more reliable, with smooth exhaust
and good liquid handling ability;
● Lightweight, using new lightweight materials, with a relatively light weight. Low noise, using high-precision machining parts,
resulting in low noise;

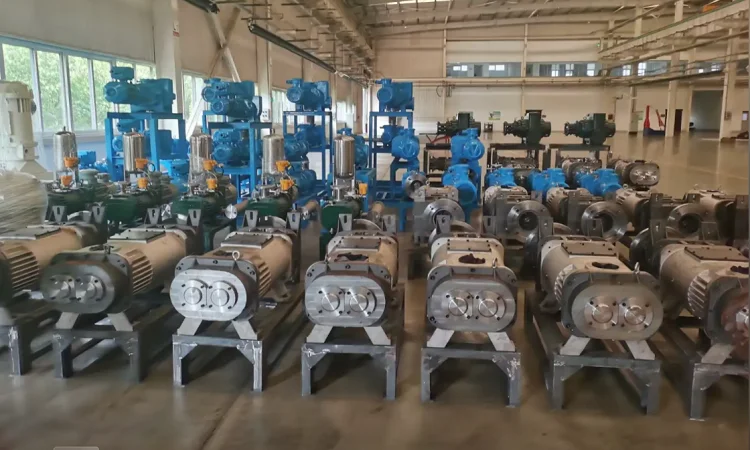

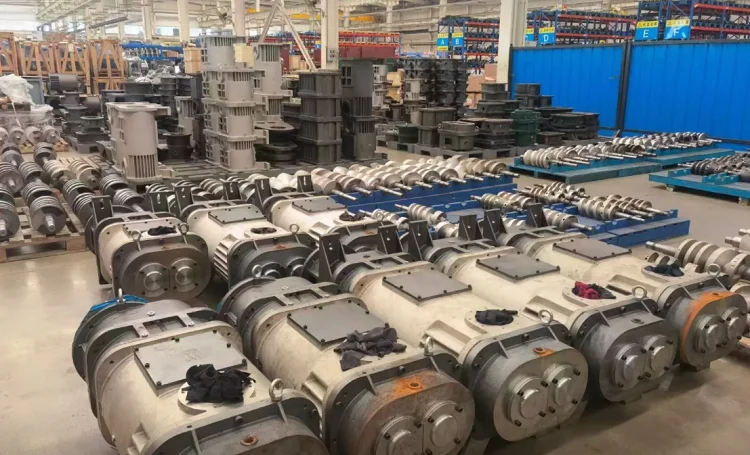

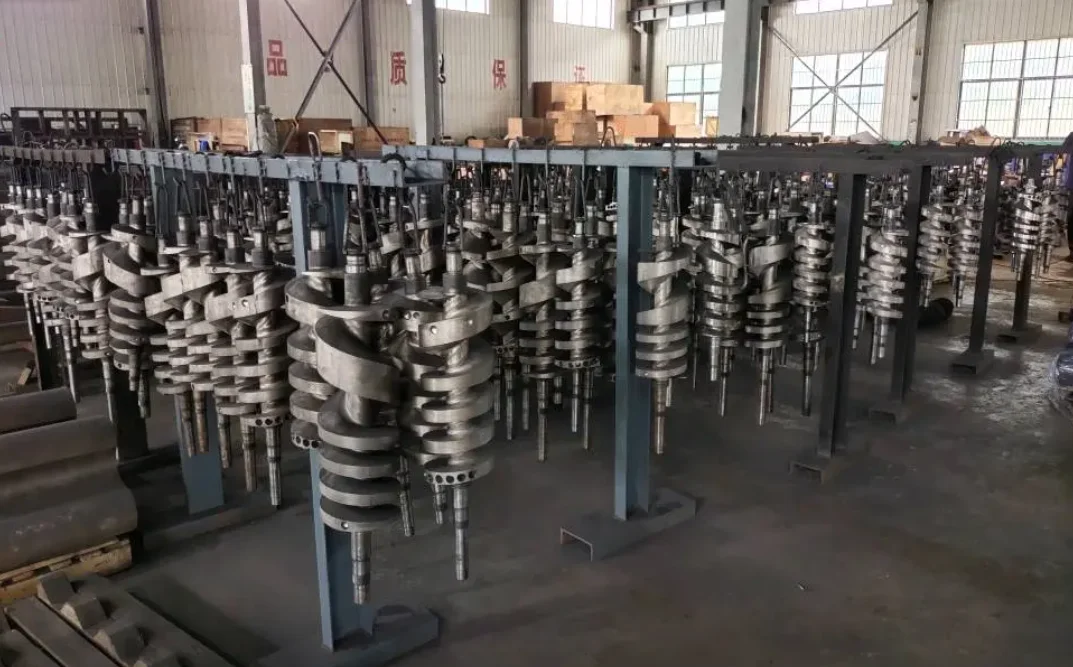

Exhibition
