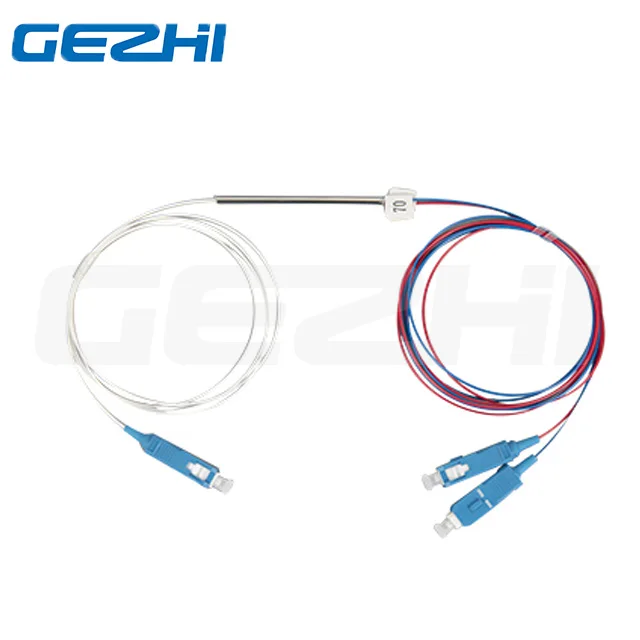

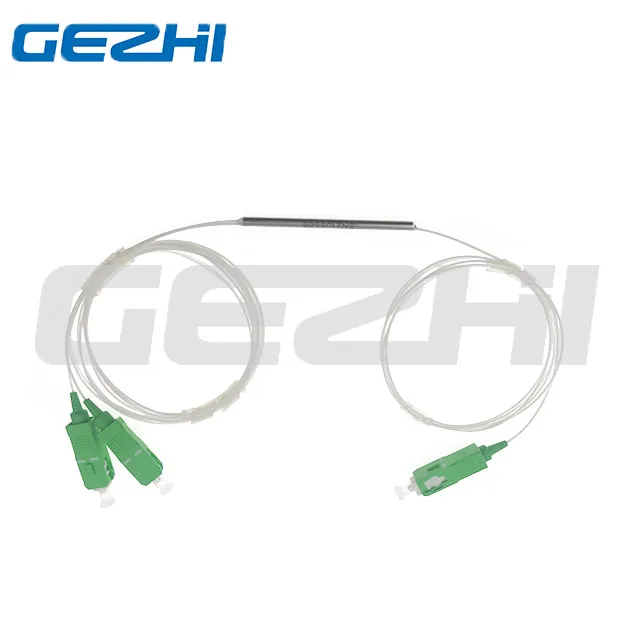

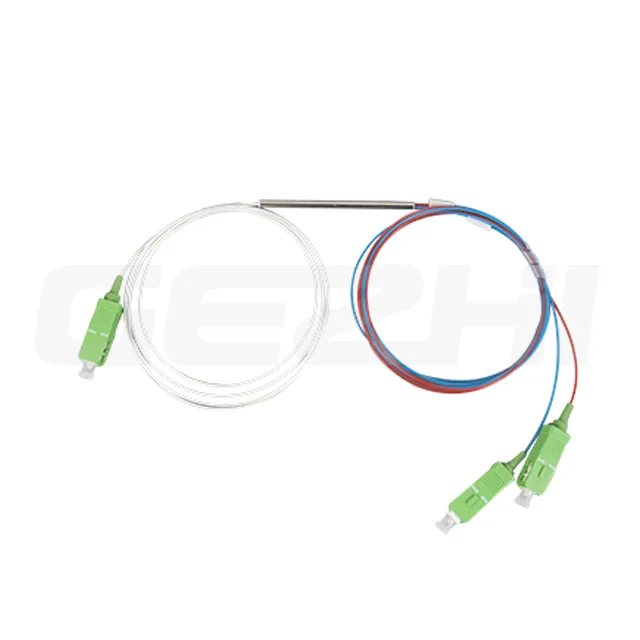

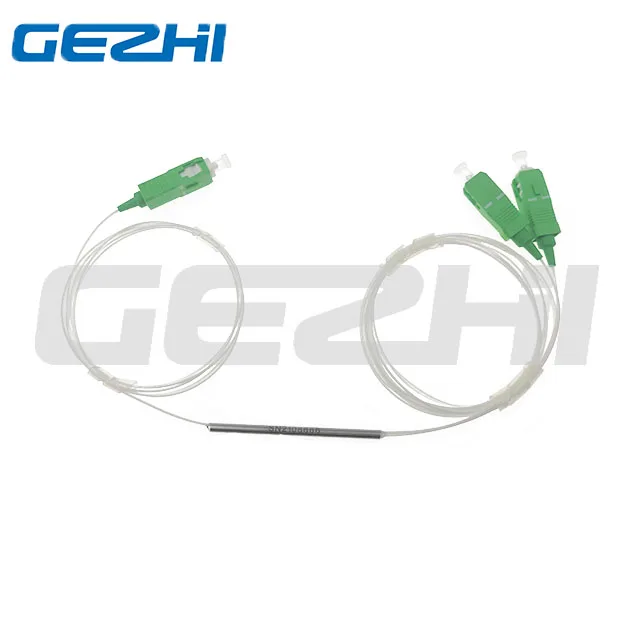

High quality 1x2 FBT splitter coupler 2 way PLC splitters 1x2 fiber optic splitter
- Category: >>>
- Supplier: Shenzhen Gezhi Photonics Co. Ltd.
Share on (1600847071600):
Product Overview
Description
Product Overview
Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output
fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80%
of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important
part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).
fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80%
of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important
part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).
Application
Optical Fiber Communication Systems Optical Fiber CATV Passive
Optical Network (PON) Optical Amplifiers Optical Access
Networks/LAN Monitoring Systems Optical Fiber Sensor
Optical Network (PON) Optical Amplifiers Optical Access
Networks/LAN Monitoring Systems Optical Fiber Sensor
FEATURES AT A GLANCE
1. Excellent Environmental Stability
2. Excellent Mechanical performance
3. Good uniformity and low insertion loss
4. Low insertion loss and low polarization dependent loss
5. Uniform power splitting, and good stability and reliability
6. The Large-scale manufacture ability with automatic packaging technology which leads the low-cost advantage
2. Excellent Mechanical performance
3. Good uniformity and low insertion loss
4. Low insertion loss and low polarization dependent loss
5. Uniform power splitting, and good stability and reliability
6. The Large-scale manufacture ability with automatic packaging technology which leads the low-cost advantage
PRODUCT SPECIFICATIONS
Parameter | 1xN PLC Splitter Specification | ||||||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |||||||
Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 | ||||||
Max | 3.8 | 7.1 | 10.3 | 13.5 | 16.5 | 20.5 | |||||||
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 2.5 | ||||||
Max | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |||||||
PDL(dB)Max | Typical | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | ||||||
Max | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |||||||
Wavelength department loss(dB) | Typical | 0.1 | 0.1 | 0.1 | 0.3 | 0.4 | 0.7 | ||||||
Max | 0.2 | 0.3 | 0.4 | 0.6 | 0.8 | 1.0 | |||||||
Temperature department loss | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | ||||||
Max | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | |||||||
Directivity (dB) Min | 55 | ||||||||||||
Return Loss (dB) Min | 55(50) | ||||||||||||
Operating Temperature (°C) | -40~ +85 | ||||||||||||
Storage Temperature (°C) | -40 ~ +85 | ||||||||||||
Fiber length | 1m or Customized | ||||||||||||
Fiber Type | G657A | ||||||||||||
Connector Type | Customized | ||||||||||||
PLC Splitter Bare Fiber (mm) | 4x4x40 | 4x4x40 | 4x4x40 | 4x7x50 | 4x7x50 | 4x12x60 | |||||||
PLC Splitter Blcokless mm) | 4x4x40 | 4x7x60 | 4x7x60 | 4x12x60 | 6x20x80 | 6x40x100 | |||||||
PLC Splitter Module (mm) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 141x115x18 | |||||||
PLC-splitter-rack-mountable(mm) | 19’1U 2U Rack-Mount Box, LGX Box, ODF Box | ||||||||||||
High Quality & Stability Material
High Reliable & Stable quality
PLC Chip
PLC Chip
G657A1 Fiber with min10mm bend radius allow tighter or bending
zirconia ceramic ferrules
Test Enviroment
NO-dust workshop | High Temp. Ageing & High-Low Temperature cycling | Relay Reliable Testing | 100% Testing Before Shipment | ||
SIMILAR PRODUCTS
FAQ
Q1：Can I have a sample order? What is your MOQ ?
A1：Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
