Heating Stainless Steel Food Grade Gold Small Size Essential Oil Ethanol Extraction Equipment
Heating Stainless Steel Food Grade Gold Small Size Essential Oil Ethanol Extraction Equipment
Product Description
This unit is one of our best-sellers in the market, with multi-functions, great performance and sophisticated technologies, exclusive used for extraction and concentration for precious medicine, low temperature extraction and concentration for plants or fresh food and also for trial project in scientific, higher education institution and manufacturer lab.
Features
1. Composed by: extractor, tubular heater, evaporator, condenser, oil separator, liquid pump, weighting vent, liquid storage, filter, vacuum pump and electric box. With defoamers on the top of extraction tank and evaporator.

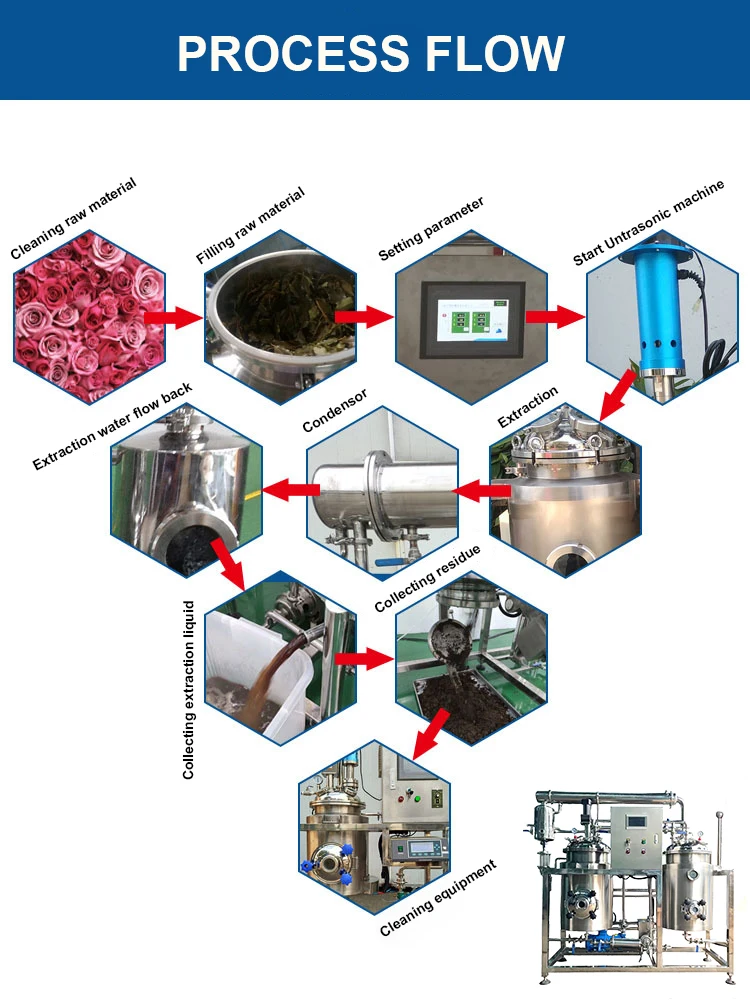

2. Heat reflux circulation extraction and concentration, conventional extraction, concentration, precipitation, percolation and etc.
3. Can operate in the condition of minus pressure, normal pressure, normal pressure and plus pressure. Apply to water-extraction, all meet GMP requirements.
4. With multi-functions, highly efficient, great energy saving and wide range of application, it is quite the leader in nationwide.

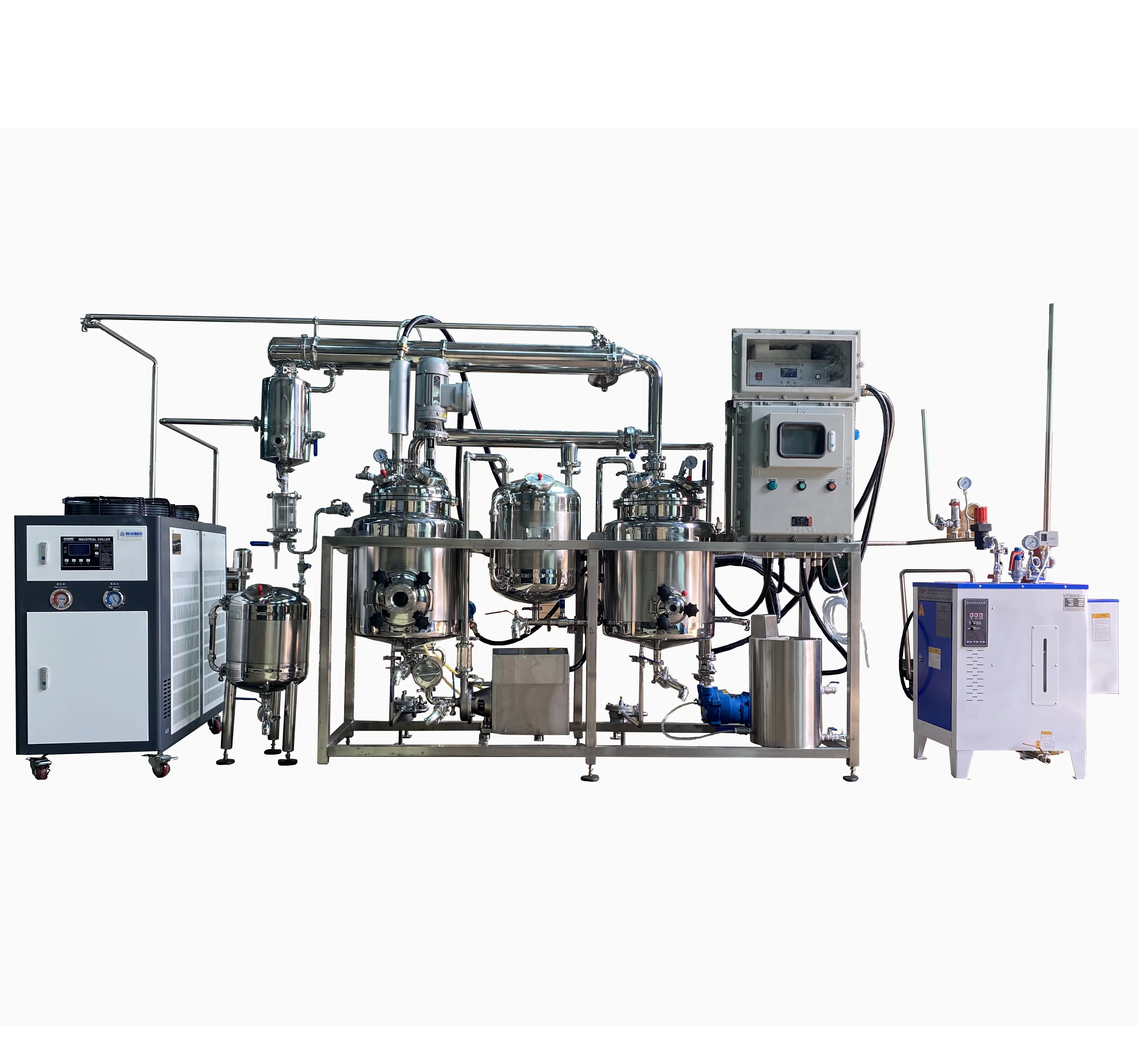

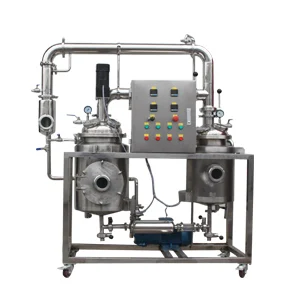

Laboratory Miniature Multi-functional Extraction Evaporator Concentrator(10L-100L)
| Model | RY-NSG-10 | RY-NSG-20 | RY-NSG-30 | RY-NSG-50 | RY-NSG-100 | |
| Extractor | Volume (L) | 10 | 20 | 30 | 50 | 100 |
| Jacket Working pressure (Mpa) | 0.15 | |||||
| Container Working Pressure (Mpa) | 0.09 | |||||
| Concentrator | Volume (L) | 10 | 20 | 30 | 50 | 100 |
| Inner Vacuum (Mpa) | -0.08 | |||||
| Heating Pipe Working Pressure (Mpa) | 0.9 | |||||
| Heat Reflux Capacity (L/h) | 3 | 5 | 5 | 8 | 10 | |
| Vacuum Pump | Voltage (V) | 380 | ||||
| Power (Kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | |
| Water Pump | Power (Kw) | 0.75 | ||||
200L-3000LMulti-functional Extraction Evaporator Concentrator
Volume of extracting tank (L) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 |
Evaporating capacity of concentrator (kg/h) | 1000 | 1500 | 2000 | 2500 | 3000 | 3500 |
Used pressure (Mpa) | 0.08~0.2 | |||||
Used vacuum degree (Mpa) | 0.05~0.08 | |||||
Extract & concentrate temperature (°c) | 70~100 | |||||
Extract& concentrate time (hours/batch) | 4~5 | |||||
