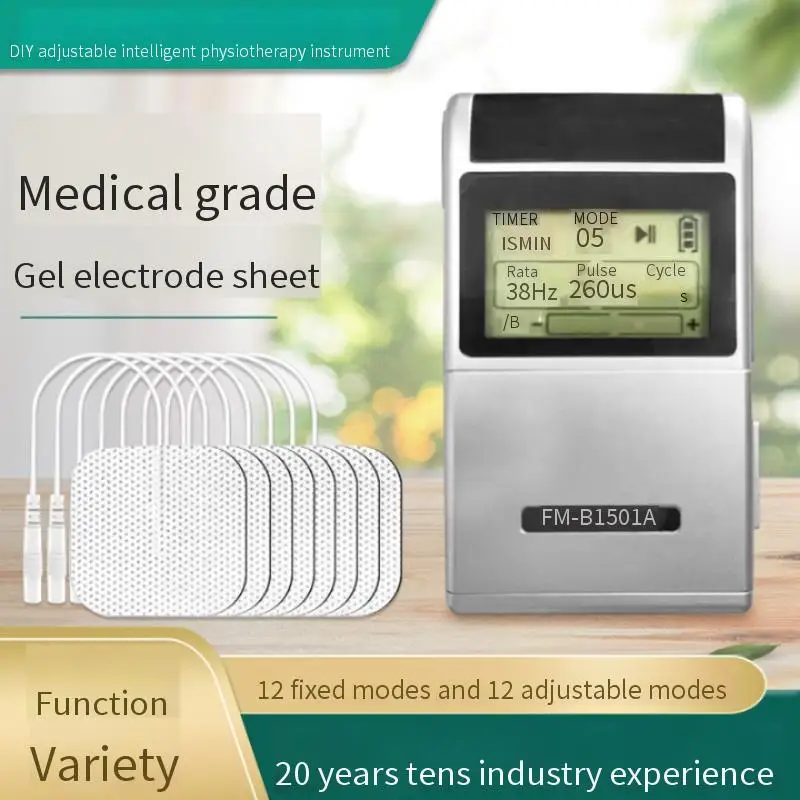

Medium and low frequency pulse DIY adjustable frequency pulse width therapy instrument US510K meridian digital massager
- Category: >>>
- Supplier: Shenzhen Lig Technology Co. Ltd.
Share on (1600847248271):
Product Overview
Description
Product Description

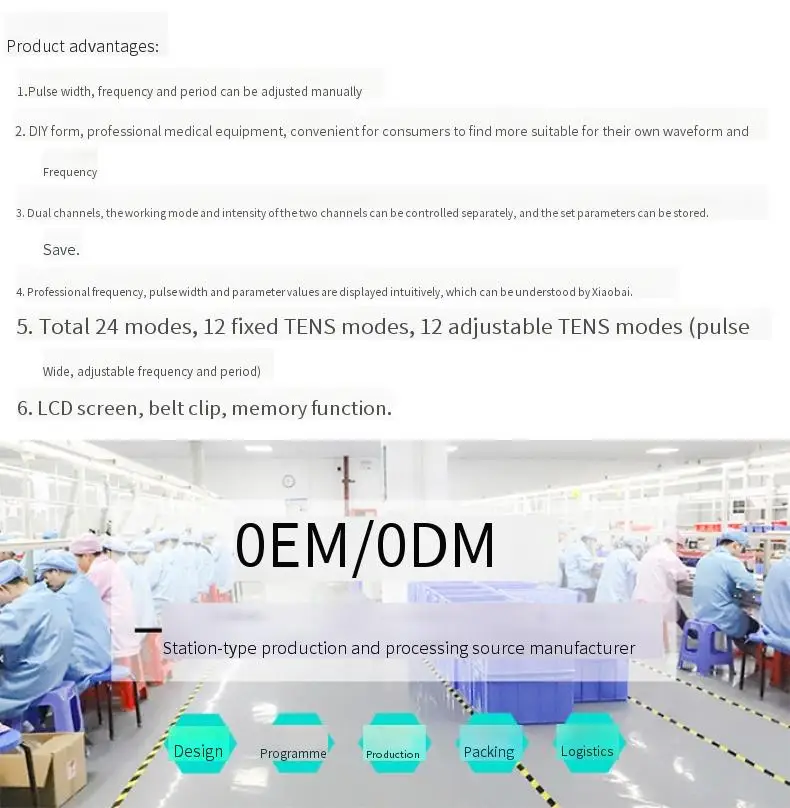

Product advantages:
1. Pulse width, frequency, and cycle can be manually adjusted
2. DIY format, professional level medical equipment, convenient for consumers to find more suitable waveforms and
frequency
3. Dual channel, the working mode and intensity of both channels can be controlled separately, and the set parameters can be stored
Save.
4. Professional frequency, pulse width, and parameter values are displayed visually, which can be understood by even the novice

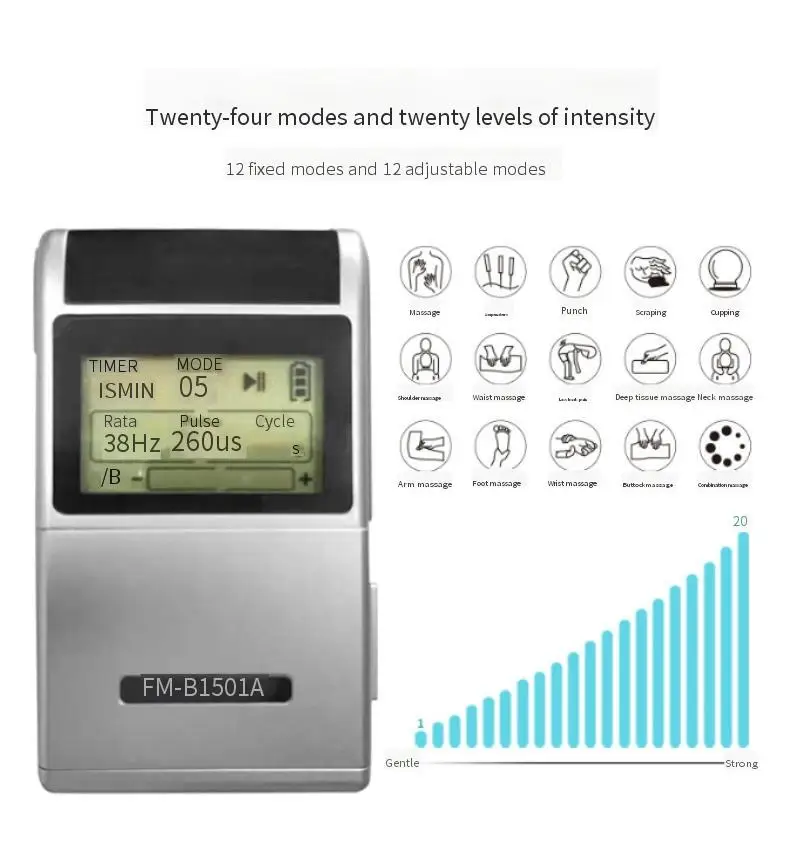

5. There are a total of 24 modes, 12 fixed TENS modes, and 12 adjustable TENS modes (pulse
Width, frequency and period adjustable)
6. LCD display screen, belt clamp, memory function.
OEM/ODM
One stop production and processing source manufacturer
Design Plan Production Packaging
logistics

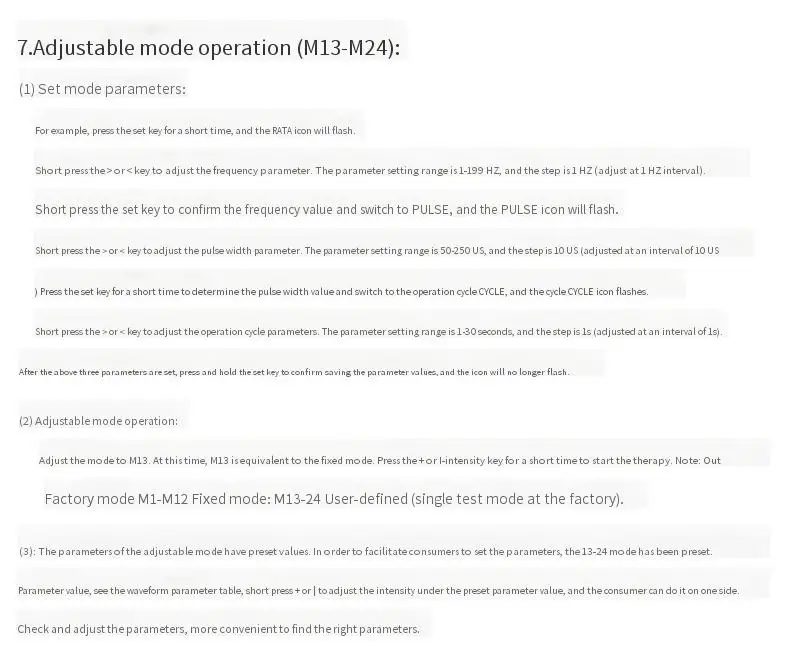

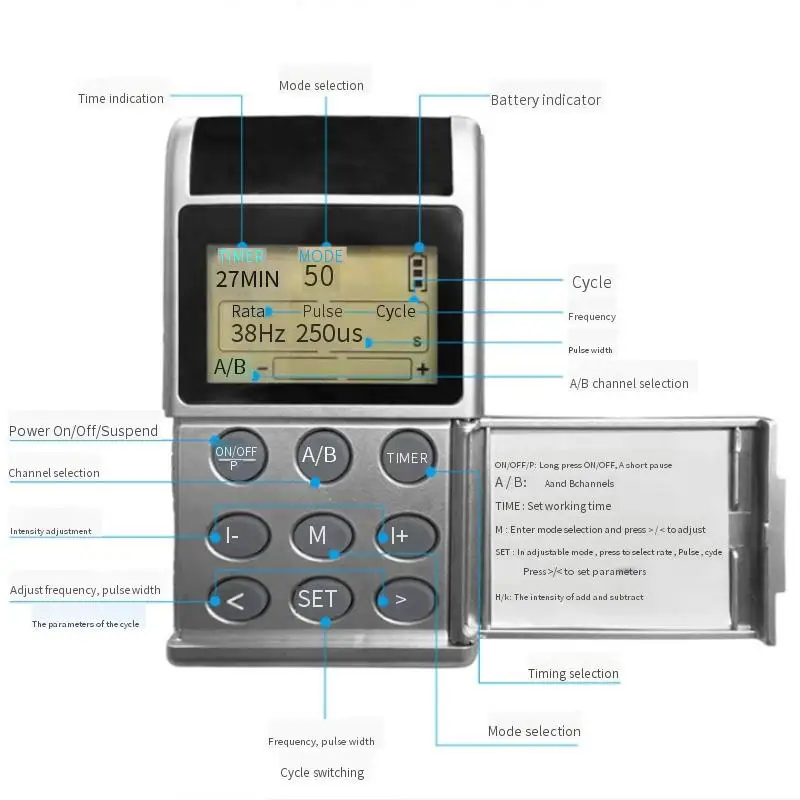

| 1 | 7.Adjustable mode operation (M13-M24): |
| 2 | (1) Set mode parameters: |
| 3 | For example, press the set key for a short time, and the RATA icon will flash. |
| 4 | Short press the or key to adjust the frequency parameter. The parameter setting range is 1-199 HZ, and the step is 1 HZ (adjust at 1 HZ interval). |
| 5 | Short press the set key to confirm the frequency value and switch to PULSE, and the PULSE icon will flash. |
| 6 | Short press the > or < key to adjust the pulse width parameter. The parameter setting range is 50-250 US, and the step is 10 US (adjusted at an interval of 10 US |
| 7 | ) Press the set key for a short time to determine the pulse width value and switch to the operation cycle CYCLE, and the cycle CYCLE icon flashes. |
| 8 | Short press the > or < key to adjust the operation cycle parameters. The parameter setting range is 1-30 seconds, and the step is 1s (adjusted at an interval of 1s). |
| 9 | After the above three parameters are set, press and hold the set key to confirm saving the parameter values, and the icon will no longer flash. |
| 10 | (2) Adjustable mode operation: |
| 11 | Adjust the mode to M13. At this time, M13 is equivalent to the fixed mode. Press the + or I-intensity key for a short time to start the therapy. Note: Out |
| 12 | Factory mode M1-M12 Fixed mode: M13-24 User-defined (single test mode at the factory). |
| 13 | (3): The parameters of the adjustable mode have preset values. In order to facilitate consumers to set the parameters, the 13-24 mode has been preset. |
| 14 | Parameter value, see the waveform parameter table, short press + or | to adjust the intensity under the preset parameter value, and the consumer can do it on one side. |
| 15 | Check and adjust the parameters, more convenient to find the right parameters. |
Model Name | FM-B1501A |

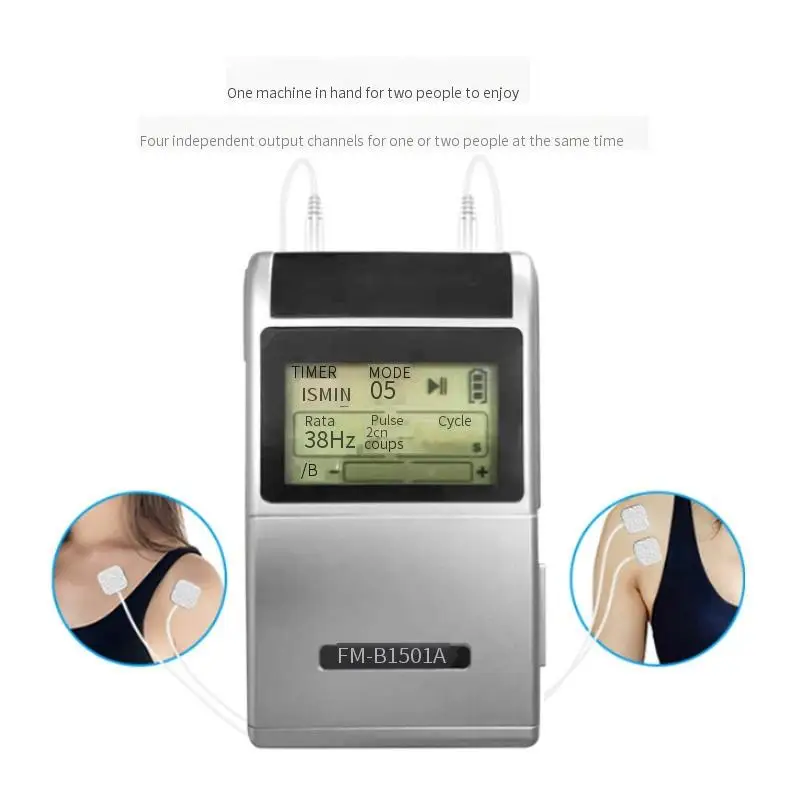

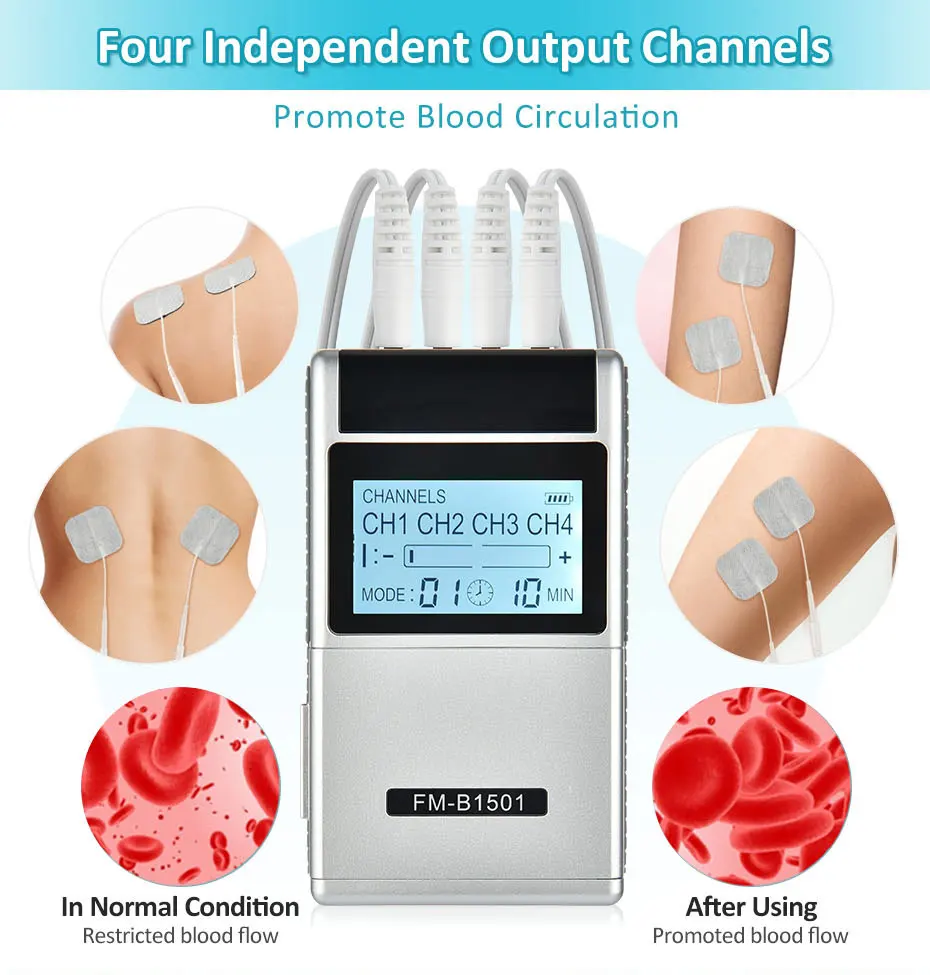

Channel | 4 Channels |
Amplitude | Adjustable, 0-100mA peak (500 ohm load) |
Size | 10.1cm (L) x 6.1cm (W) x 2.45cm (H) |
Weight | 250 grams ( Battery included) |
Wave Form | Asymmetrical Rectangular Biphasic Pulse |
Pulse Rate | 2~150 Hz, 1Hz / Step |
Pulse Width | 50~300 microseconds, 10 us / step |
Timer | 0~90 seconds, 1Sec./ step |
Compliance Meter | 60 sets of individual operation records |

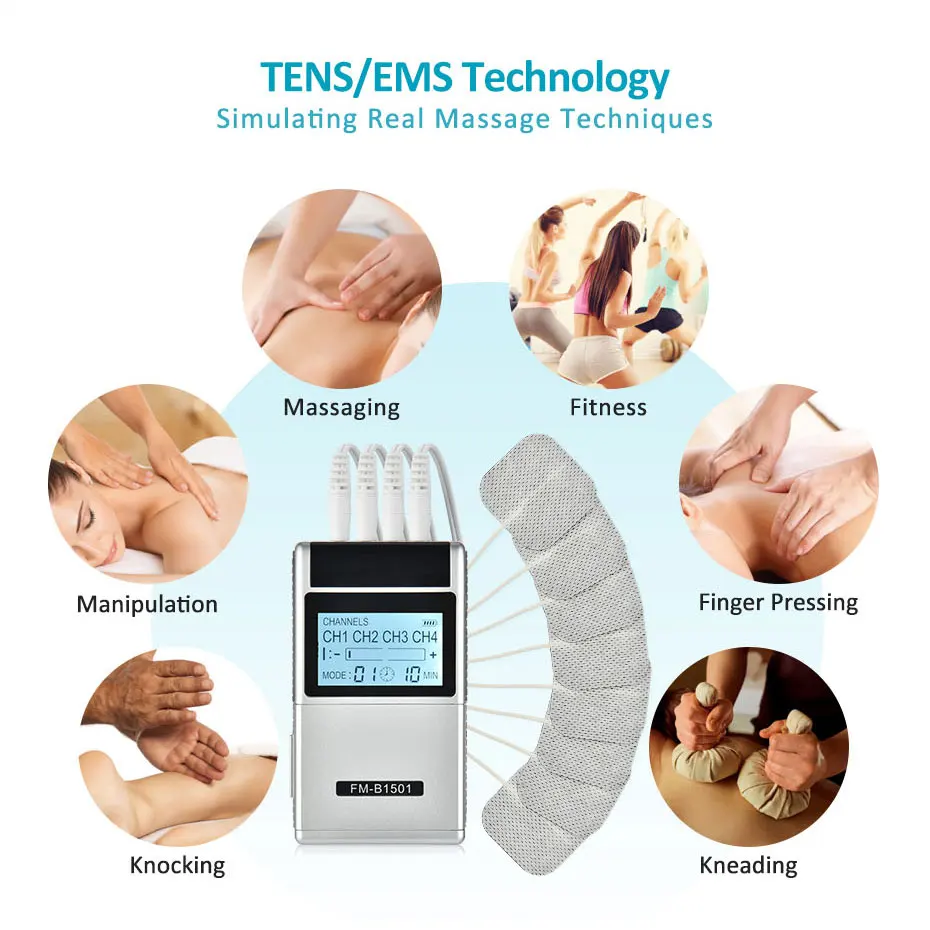

Stimulation Type | TENS + EMS |
Modes | TENS: Burst, Normal, Modulation, SD1(Strength Duration), SD2; EMS: Synchronous, Alternate |
Charging Type | 9V Battery |
Tolerance of Settings | ± 5% |
Tolerance of Output | ± 20% |
