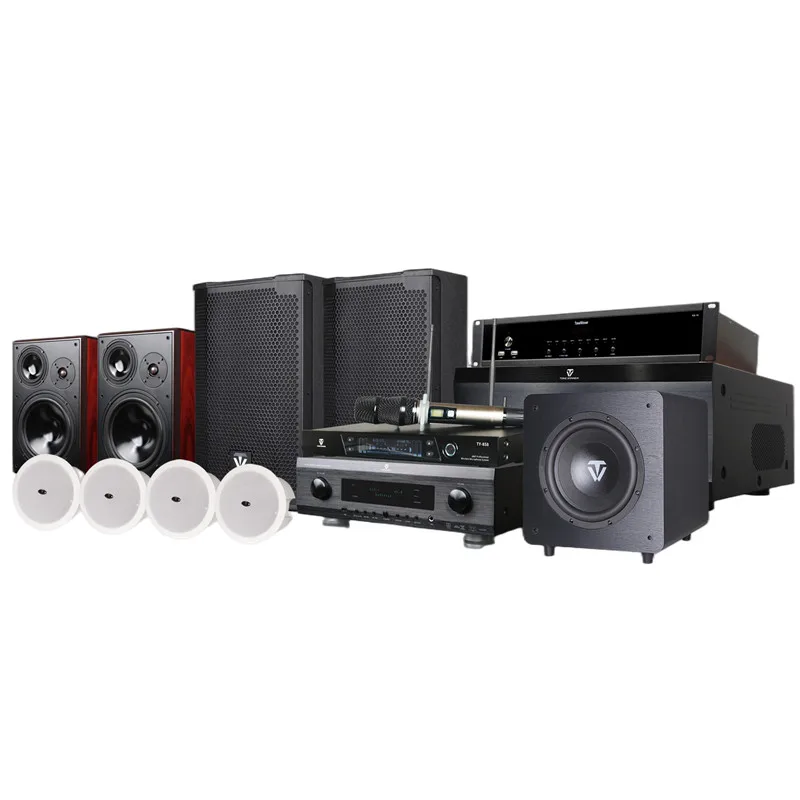

Tonewinner 7 channels 2000W home theatre karaoke system cinema surround sound av hifi audio system with microphone
- Category: >>>
- Supplier: Guangzhou Tonewinner Electronics Co. Ltd.
Share on (1600847451600):
Product Overview
Description
Product Description
Introduction
Dolby Atmos karaoke & home theatre system setup, If you don't want the karaoke system, you can contact me to replace the amplifier.

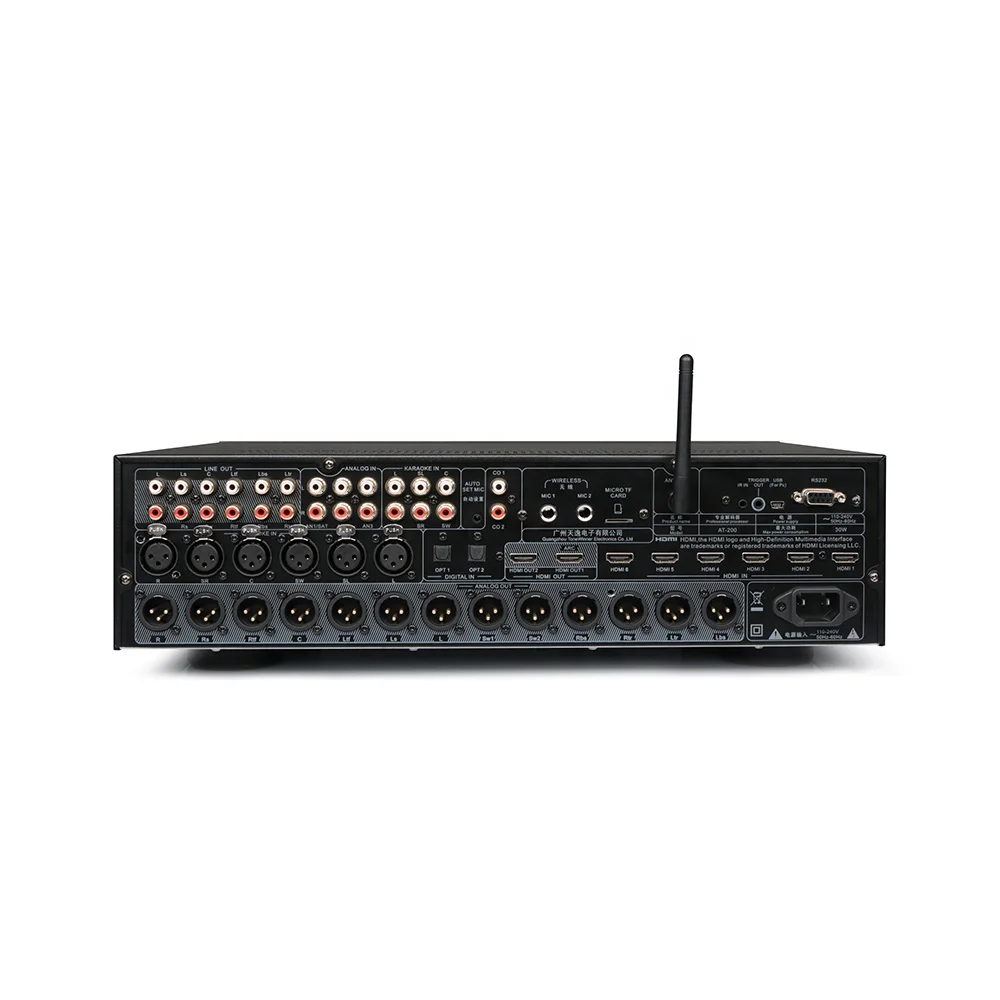

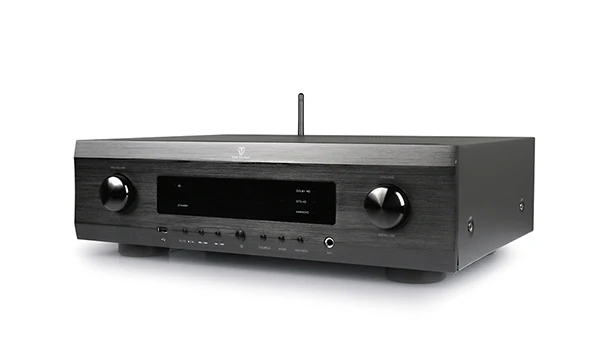

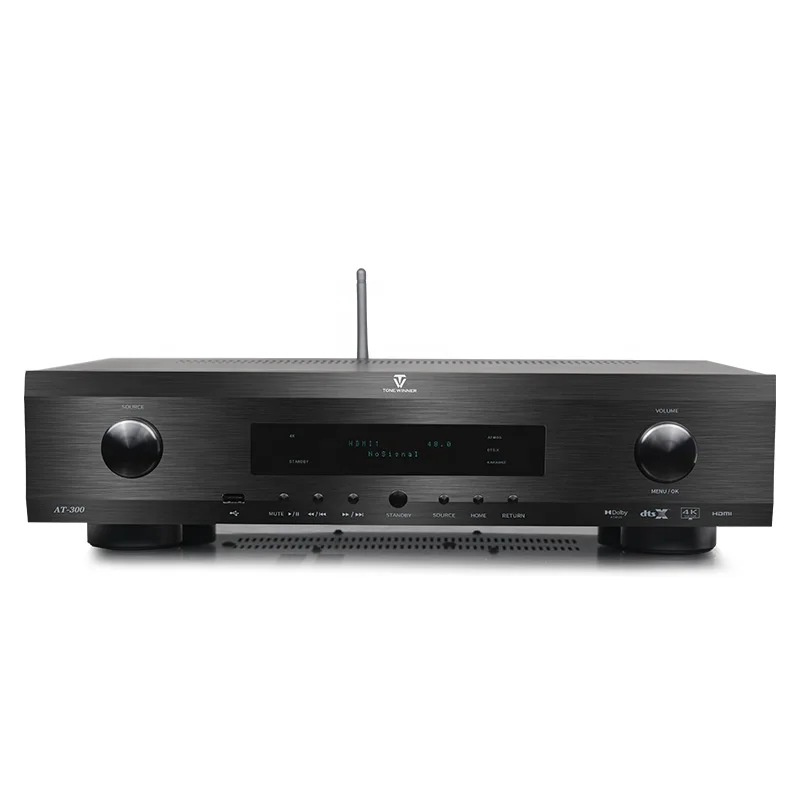

Mean Feature of the decoder AT-200
Audio processing:
* Support advanced Dolby Atmos, DTS:X audio decoding, and all backward HD audio formats decoding including Dolby True-HD, Dolby Digital Plus, DTS Master, DTS HI RES, etc.
* Audio and video matrix group output.
* HDMI 2.0 six inputs and two outputs; each input group is independently matrix matched.
* Support independent setting and storage of mode, volume & Karaoke.
* Smart room acoustic testing.
* OSD English menu; 5 band (bass) + 11band (full frequency channel) of EQ adjustment.
* Independent adjustment of each input group EQ.
* Up to1000 millisecond lip synchronization.
* Low frequency management: independent adjust the crossover and slope of front, center, surround, rear, sky channels; bass enhancement.
* Speaker layout: 5.1, 5.1.2, 5.1.4, 7.1, 7.1.2, 7.1.4; can support two subwoofers placement.
* 7.1.4 fully balanced ports and RCA output.
* One-click Theater/Karaoke mode switching (three options: built-in effect, external pure vocal, and external effect).
* Preset the power-on Karaoke volume and music volume.
* 7.1.4 immersive digital Karaoke effect; DSP digital karaoke sound effect; anti-howling design.
* Support external effects to enhance sound quality.
* Support Bluetooth wireless transmission.
* Support USB disk, TF card local music playback.
* USB Audio port for PC digital audio input.
* Support HDMI ARC.
* Support 2 optical, 2 coaxial, 3 stereo audio inputs.
* Support DRC dynamic range compression processing.
Video processing:
* HDMI 2.0 six in and two out; support audio and video matrix grouping.
* Support 3D, 4K Ultra HD transmission and processing, and all backward video formats.
* Support Dolby Vision.
* Support HDR10, HDR10+.
* Support HLG Hybrid Log-Gamma.
* OSD on screen English menu.
* Support HDMI CEC.
* Support management of HDMI outputs.
* Support advanced Dolby Atmos, DTS:X audio decoding, and all backward HD audio formats decoding including Dolby True-HD, Dolby Digital Plus, DTS Master, DTS HI RES, etc.
* Audio and video matrix group output.
* HDMI 2.0 six inputs and two outputs; each input group is independently matrix matched.
* Support independent setting and storage of mode, volume & Karaoke.
* Smart room acoustic testing.
* OSD English menu; 5 band (bass) + 11band (full frequency channel) of EQ adjustment.
* Independent adjustment of each input group EQ.
* Up to1000 millisecond lip synchronization.
* Low frequency management: independent adjust the crossover and slope of front, center, surround, rear, sky channels; bass enhancement.
* Speaker layout: 5.1, 5.1.2, 5.1.4, 7.1, 7.1.2, 7.1.4; can support two subwoofers placement.
* 7.1.4 fully balanced ports and RCA output.
* One-click Theater/Karaoke mode switching (three options: built-in effect, external pure vocal, and external effect).
* Preset the power-on Karaoke volume and music volume.
* 7.1.4 immersive digital Karaoke effect; DSP digital karaoke sound effect; anti-howling design.
* Support external effects to enhance sound quality.
* Support Bluetooth wireless transmission.
* Support USB disk, TF card local music playback.
* USB Audio port for PC digital audio input.
* Support HDMI ARC.
* Support 2 optical, 2 coaxial, 3 stereo audio inputs.
* Support DRC dynamic range compression processing.
Video processing:
* HDMI 2.0 six in and two out; support audio and video matrix grouping.
* Support 3D, 4K Ultra HD transmission and processing, and all backward video formats.
* Support Dolby Vision.
* Support HDR10, HDR10+.
* Support HLG Hybrid Log-Gamma.
* OSD on screen English menu.
* Support HDMI CEC.
* Support management of HDMI outputs.

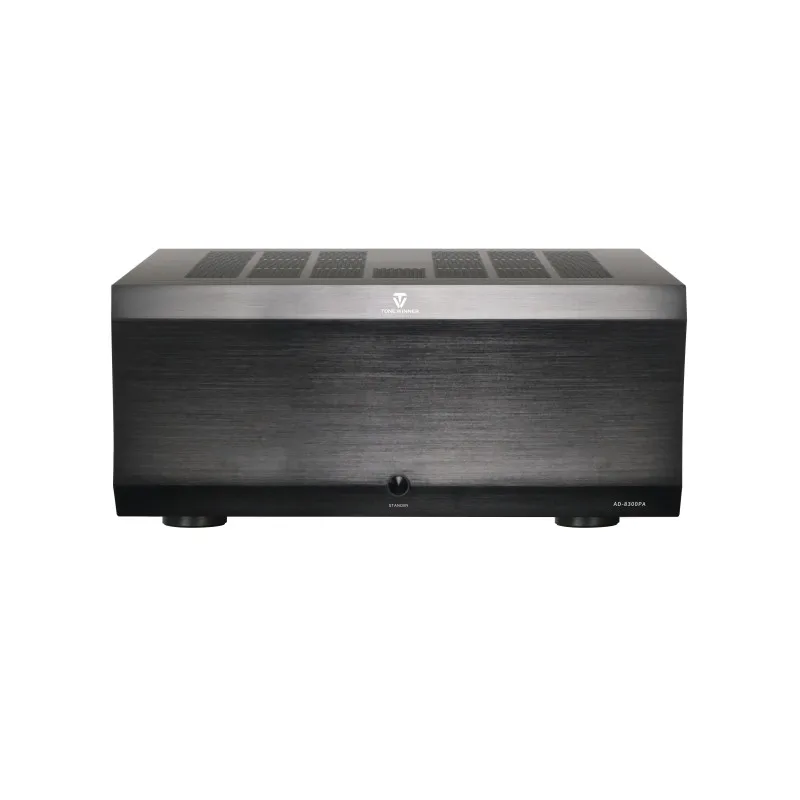

Mean Feature of the amplifier AD-8300PA
1.11 independent amplifier circuit modules, low distortion, high speed and high fidelity.
2. It has the memory of power-off in the state of power-on, and has four fan temperature control and wind speed control program.
3. Support power output 3*300Watt+8*155Watt 8ohm.
4. FL,FR,C channels use high power design.
5. It has a perfect amplifier protection circuit and power protection circuit.
2. It has the memory of power-off in the state of power-on, and has four fan temperature control and wind speed control program.
3. Support power output 3*300Watt+8*155Watt 8ohm.
4. FL,FR,C channels use high power design.
5. It has a perfect amplifier protection circuit and power protection circuit.
Specifications
Model | AT-200 decoder | Channel | 9.3.4/ 7.3.6 |
SNR | ≥98dB（A weighted，direct mode，1kHz） | THD | ≤0.01%（A weighted） |
Rated input impedance | 20kΩ（analog input） | Rated output impedance | 1kΩ |
Frequency | 10Hz-50kHz (+1/-3dB, analog direct) | Gain | ≥13dB (analog direct) |
Channel separation | ＞80dB (analog direct） | Input level | ≥2Vrms (analog direct) |
Power vlotage | ~100V-~240V （50Hz-60Hz） | Default volume range | The default volume range is 0-80. Actual gain mode: "-65-15" (-65 to + 15) |
N.W. | 5.3kg | Dimension | 431x317x130mm(W×D×H) |
Parameters | AD-8300PA(Amplifier) | Rated impedance | 8 ohms |
SNR | ≥110dB(A weight) | Unit gain | 29dB |
THD | ≤0.03%(1KHZ, normal working condition) | Unit size | 450mmX460mmX210mm |
Power output/channel | 300W*3+155W*8 (8Ω,THD=1%,1KHz) | N.W | 20KG |
Frequency range | 10Hz-118KHz(+1/-3dB) | Material | Aluminum alloy |
Channel | 11 | Accessories | Manual, guarantee card, power cord and signal wire |

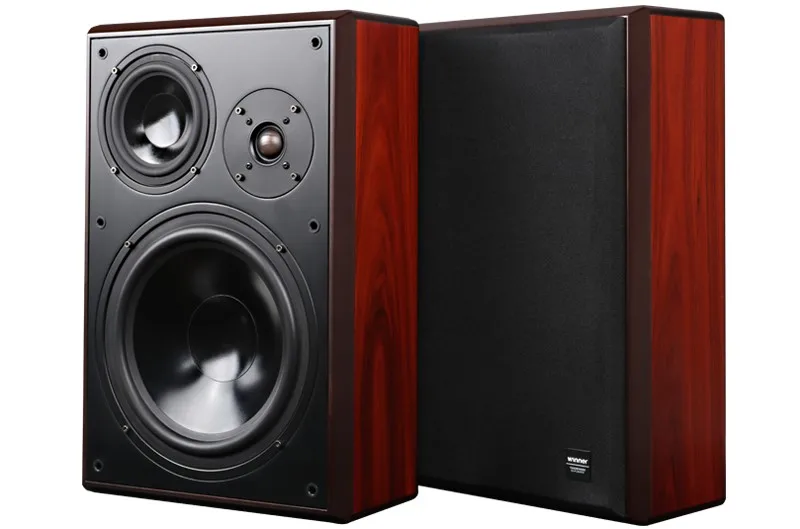

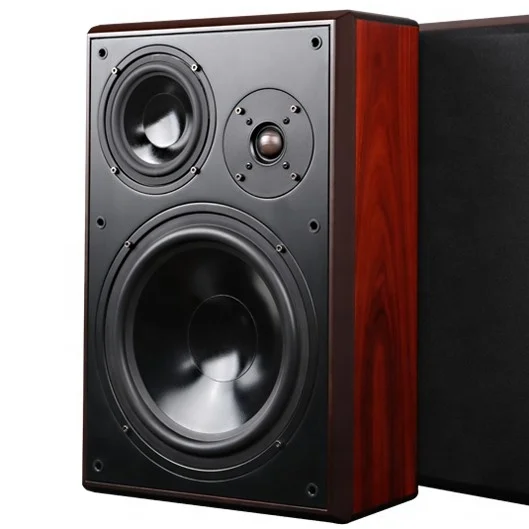

Parameters | TD-10（surround+center speaker) | Driver | 1*1"+1*5.25"+1*10" |
Sensitivity | 88dB | Frequance Range | 35Hz-20KHz |
Rated impedance | 6Ω | Rated Power | 100W |
N.W | 10kG/Pcs | Speaker Size | 320*480*165mm |

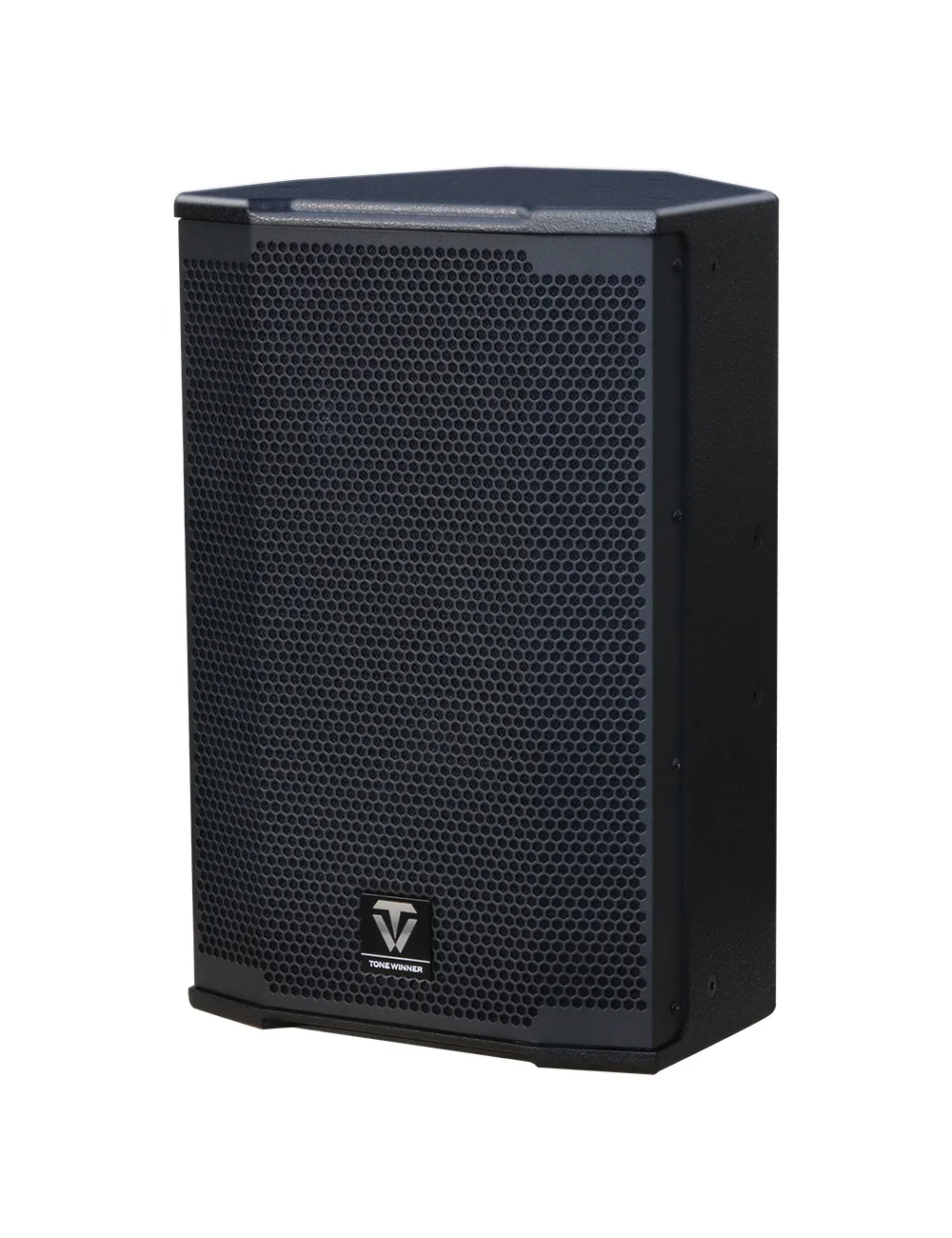

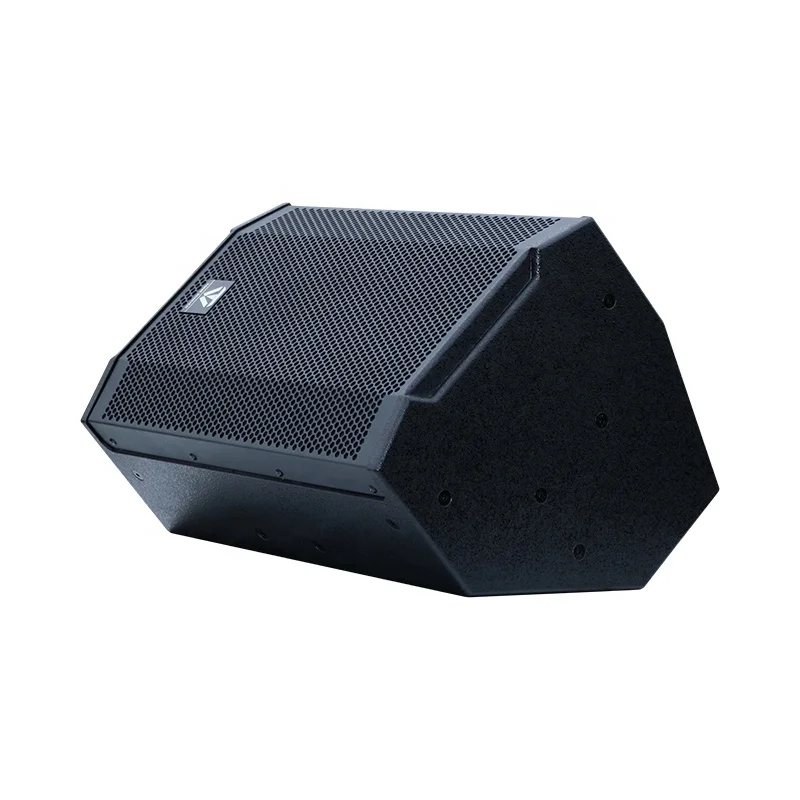

Parameters | CK-120(main speaker） | Driver | 1.7"×1+12"×1 |
Sensitivity | 98dB | Frequance Range | 50~20KHz |
Rated impedance | 6Ω | Rated Power range | Continuous :250WMusic signal: 500W PMPO: 750W |
Maximum voltage level output | 124dB | Crossover frequency | 1800Hz |
LF Drivers | 12"*1(320MM)φ64 | HF Drivers | 1.7"*1/φ44MM |
Dispersion/-6db | 80*70 | Pin Connctions | Neutrik Speakon NL4(Two inputs in parallel，NL +1/-1，+1/-1) |
BOXSTRUCTURE | Speaker cabinet use specially speker wood+ MDF，Surface is painting | NET | Grill with soft cloth |
Weight | 21.2Kg/PC（N.W）24KG/PC（G.W） | Size | 380×611×400mm |
HANGING STRUCTURE | 17*M8 multi points assembly ways | Package size | 492×686×472mm |

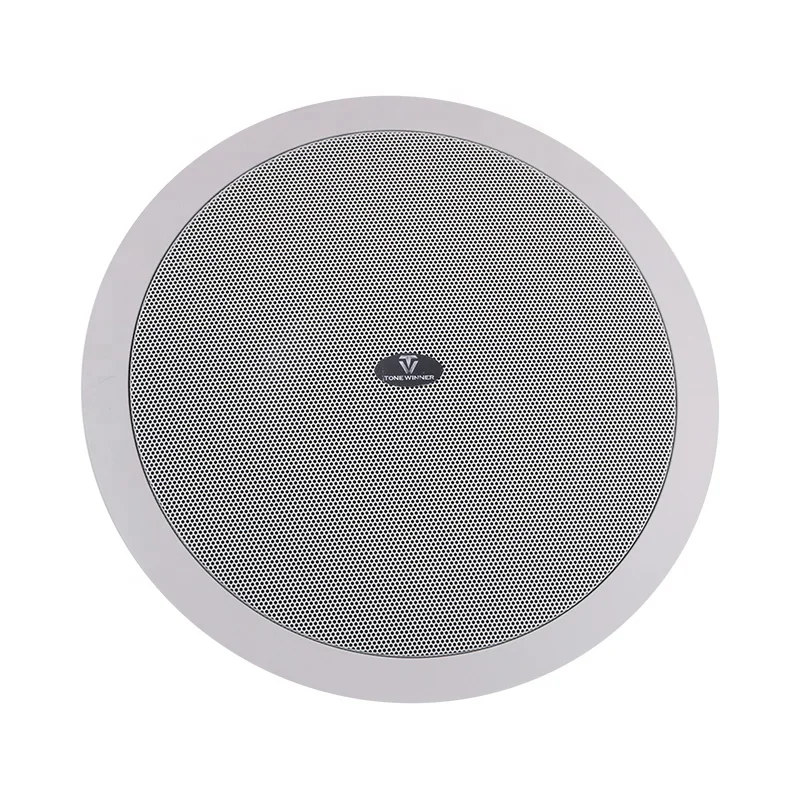

Parameters | QS-6+ (ceiling speaker) | Driver | 6"x1+1"x1 |
Sensitivity | 86dB | Frequance Range | 98Hz~20KHz |
Rated impedance | 8Ω | Rated Power output | 55W |
Input power | 15-110W | DC impedance | 6.4Ω+15% |
N.W. | 2KG/Pcs | G.W. | 5KG/Pairs |
Install hole size | ф206-216mm(diameter)*140（depth）mm | Dimensions | ф240(diameter)*145±1.5（depth）mm |

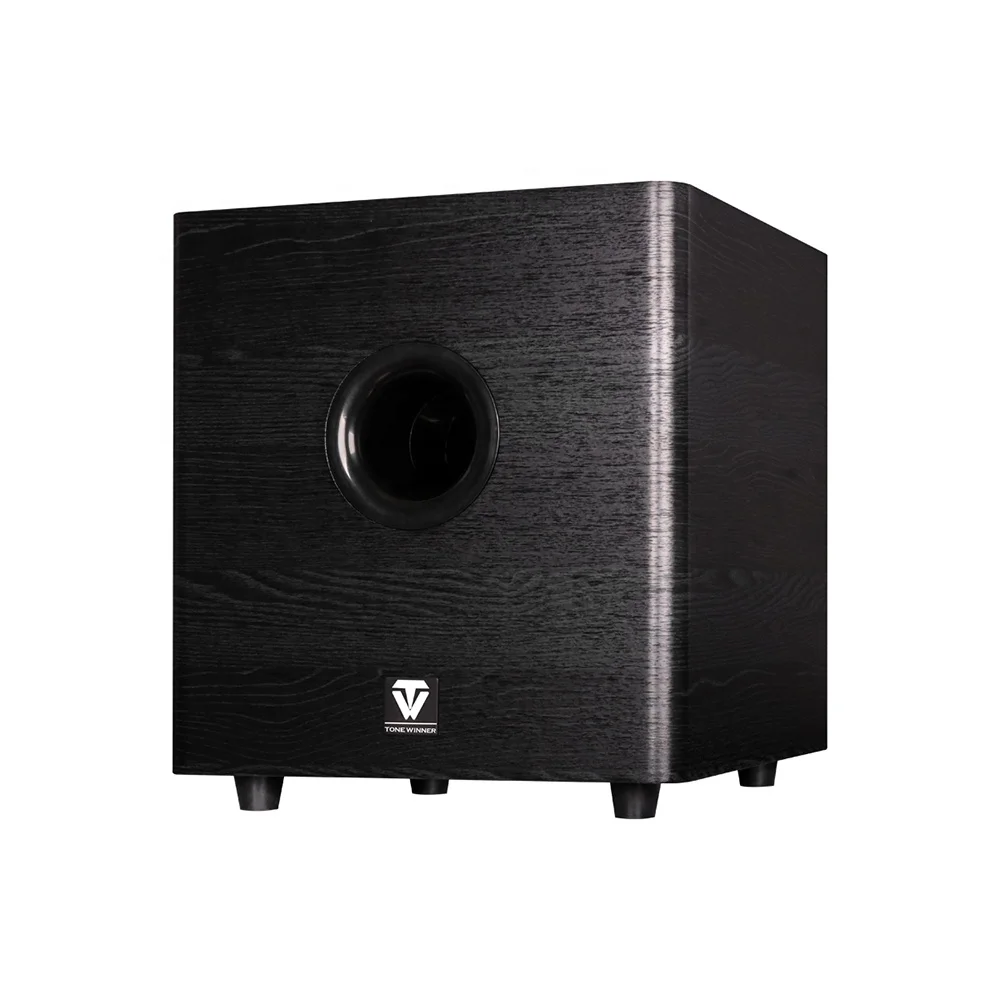

Model | SUB-12D (subwoofer） | Speaker Unit | 12 inch |
Minimum Power EMF | ≤350mv | Rated Inpedance | 4Ω |
Input level | ≤800mV RMS | SNR | ≥80dB(A weight） |
Output power | 600W | Power consumption | ≤900w |
N.W | 25kg/piece | G.W | 29kg/piece |
Size | 420×460×455mm(W×H×D） | Package Size | 538×557×525mm |
Model | TY-858 (Microphone) | Frequance Range | 40Hz-18KHz |
debugging method | FM-PLL phase-locked loop control | Binding mode | RF automatic frequency pairing |
THD | ≤1% | Receiving sensitivity | 95dB |
Output | Balanced (XLR) and 6.35mm | SNR | ≥100dB |
