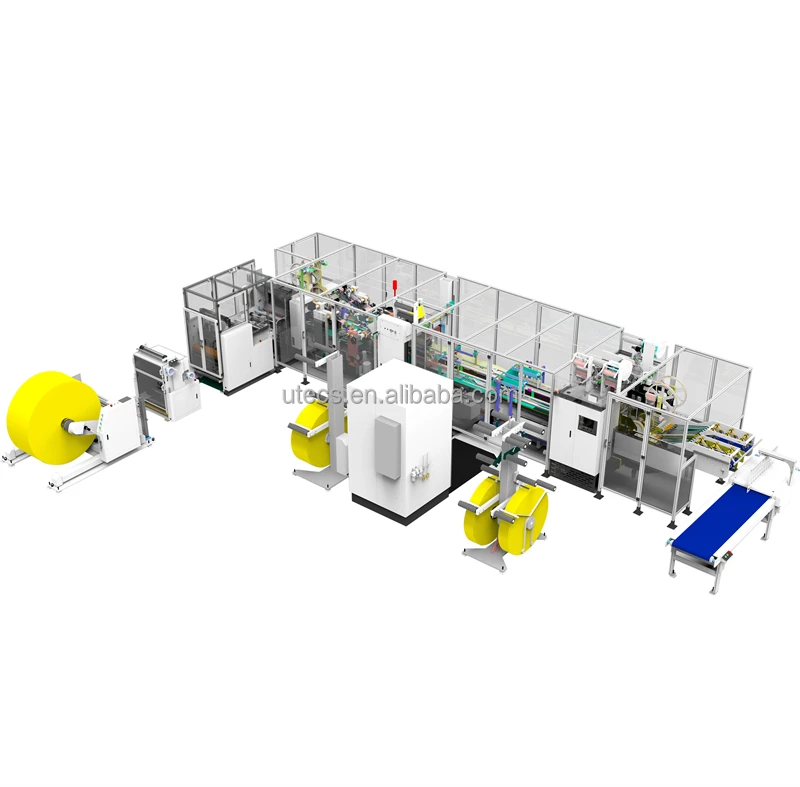

HT140 25kg 50kg laminated Plastic kraft laminated Polypropylene woven valve pocket sack bag Making Machine
- Category: >>>
- Supplier: Hangzhou Utecs International Co. Ltd.
Share on (1600847453541):
Product Overview
Description
HT140 25kg 50kg laminated Plastic kraft laminated Polypropylene woven valve pocket sack bag Making Machine
Videos
Video:https://www.youtube.com/watch?v=rmGIKq2STkE
Product Description
Description:
1, Intelligent: Multi-cylinder synchronous control system, Automatic bag size adjustment free of pulling the gear
2, Simple: 4 sets interconnected HMI bings an intuitive dynamic interface and efficient adjustment.
3, Covenient: Mobile APP can track real time monitoring of production status without manual registration
4, High Speed: Maxi production speed reaches 110-130 pcs per min.
5, Stable: Thick body with cast iron base ensures the high stability of the machine running in high speed with low waste rate.
Main Components:
1, Independent Transformer for Hot Air Gun: 90kg
2, Welding Way: High temperature welding gun (Maxi to 750 ℃)
3, Servo Motor: JAPAN PANASONIC SYSTEM
4, Frequency converter: JAPAN PASANOSIC
5, Speed Reduer: GERMANY ROUIST
6, Control System: UK TRIO (Motion controller)
7, Pneumatic Parts: JAPAN SMC, GERMANY FESTO
8, Imported high quality vent needles

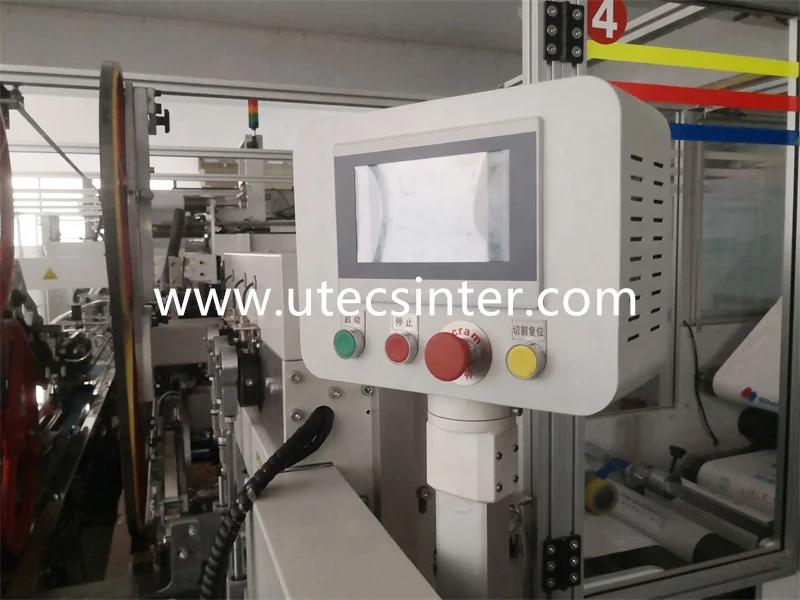

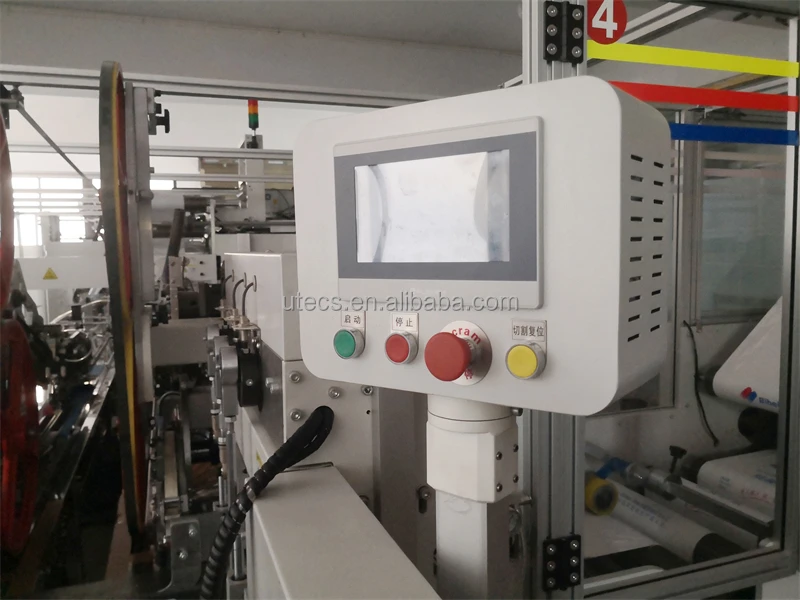

9, Multi touch screen linkage control, production data monitored on mobile app
10, Fast Intelligent size replacement system
Parameters:
Model | HT140 |
Bag width | 300-600mm |
Bag Length | 430-910mm |
Bag Botton Width | 80-160mm |
Bottom Center distance | 350-750mm |
Max-Speed | 130pcs/min |
Total Power | 140kw |
PP Woven Sheet Length | 530-1080mm |
Weight | 18000kgs |
Dimension (L*W*H) | 12*8*3m |
Valve Patch Size Range | |
Cutting Length | 20-200mm |
Outer Valve Opening Cutting Length | 80-300mm |
Width | 170-335mm |
Maxi Unwinding Weight | 300kg |
Unwinding Dia | 1100 |
| Unwinding Width | 370mm |
Cover & Bottom Patch Size Range | |
Cutting Length | 200-560mm |
Width | 75-175mm |
Maxi Unwinding Weight | 140kg |
Unwinding Dia | 1100 |
| Unwinding Width | 175mm |

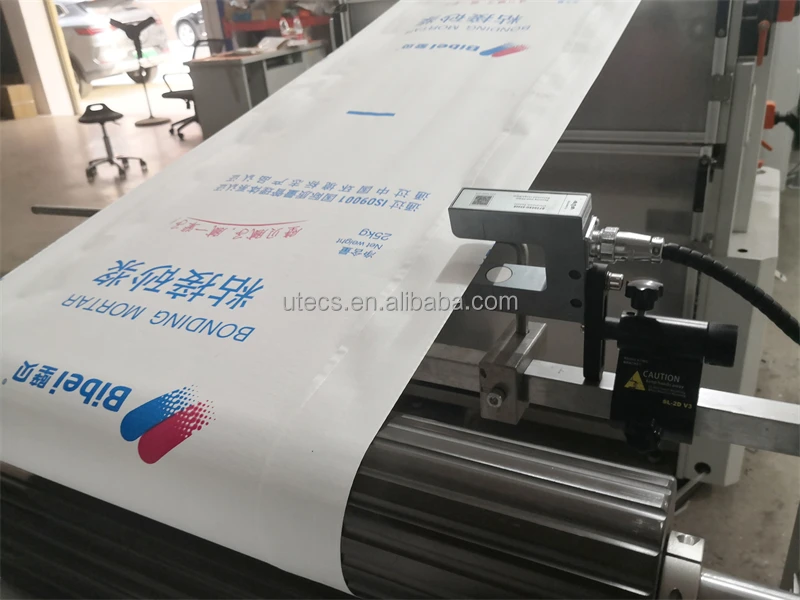

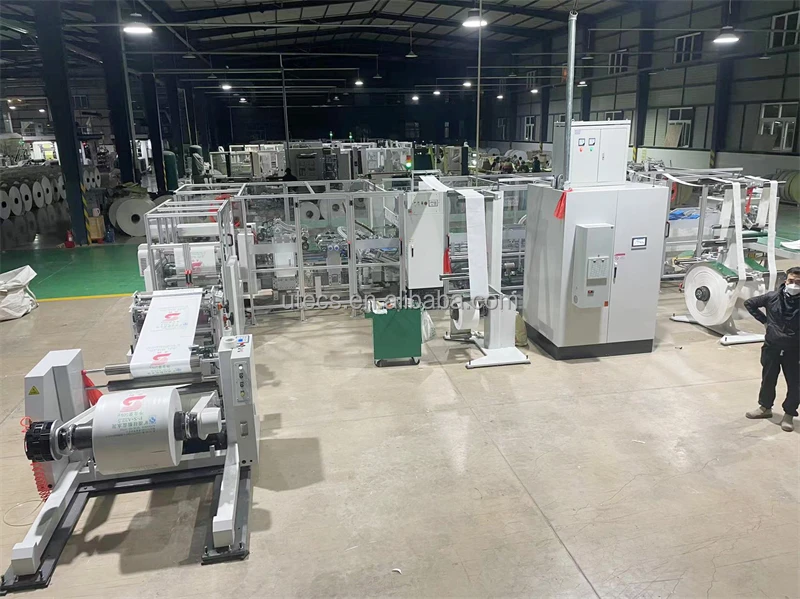

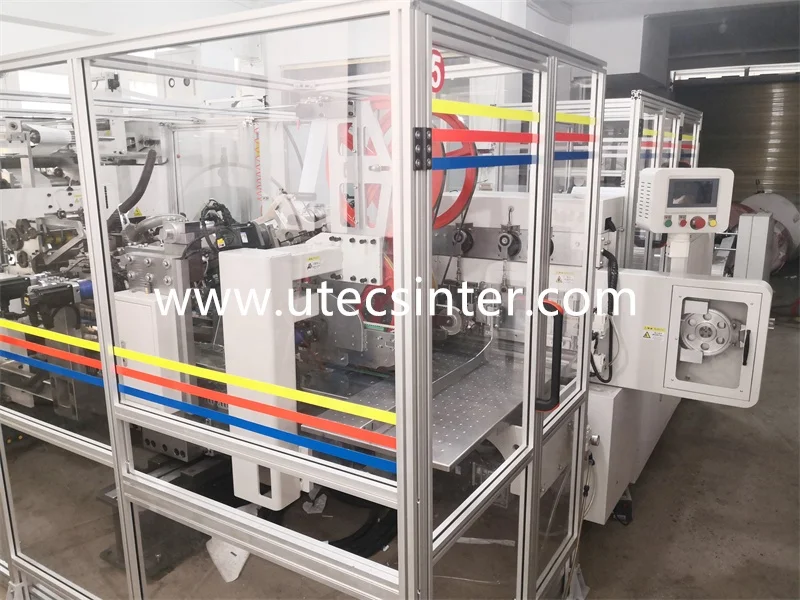

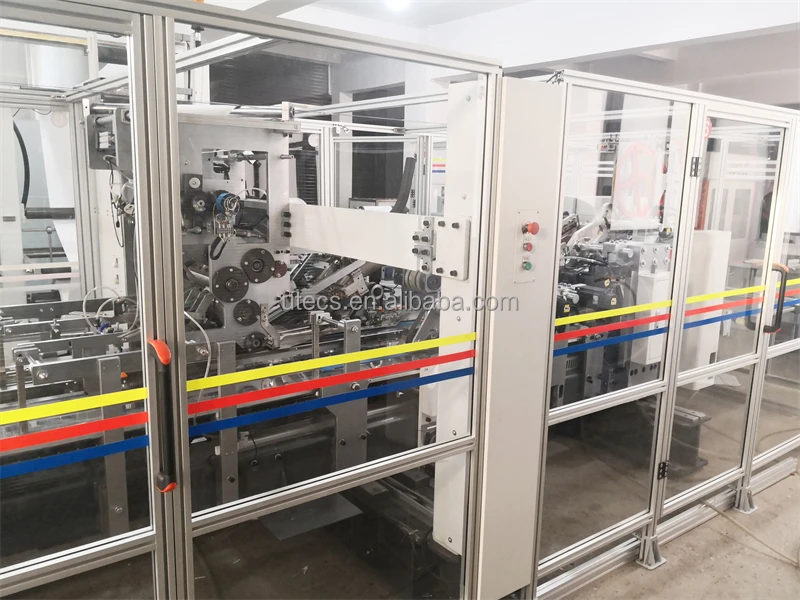

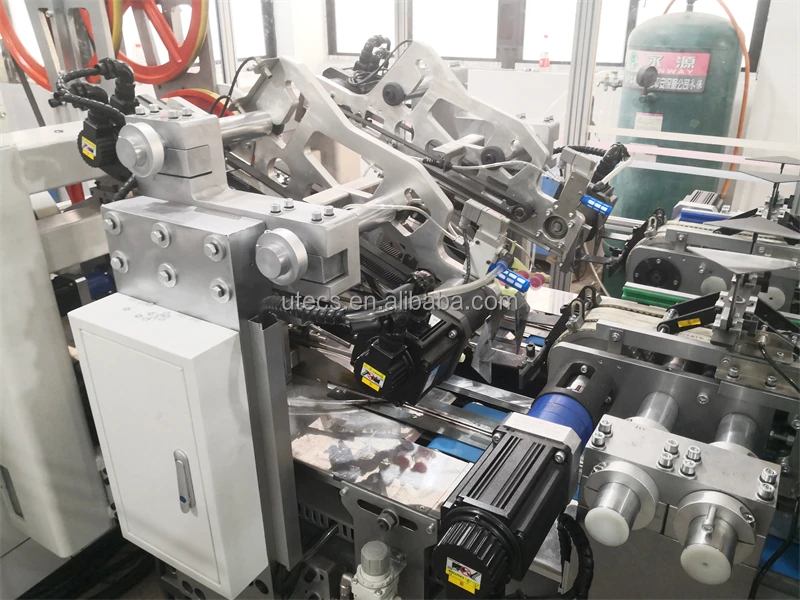

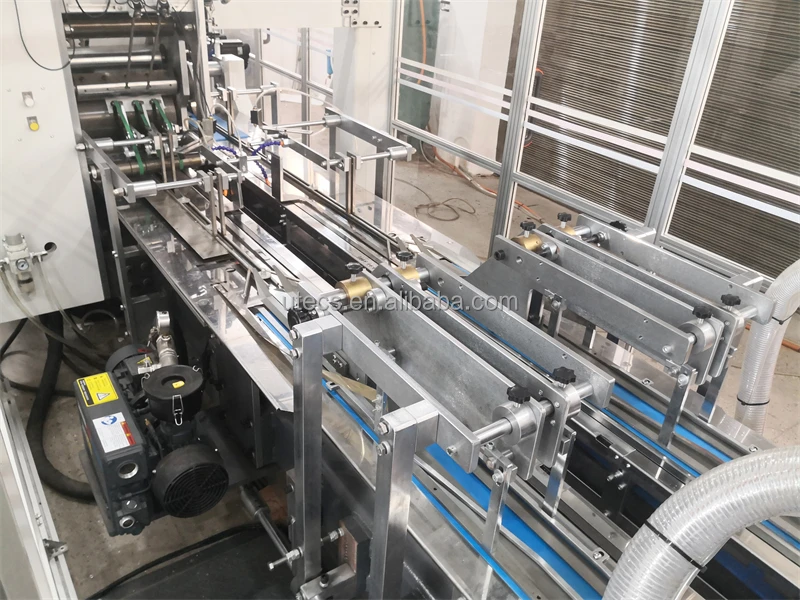

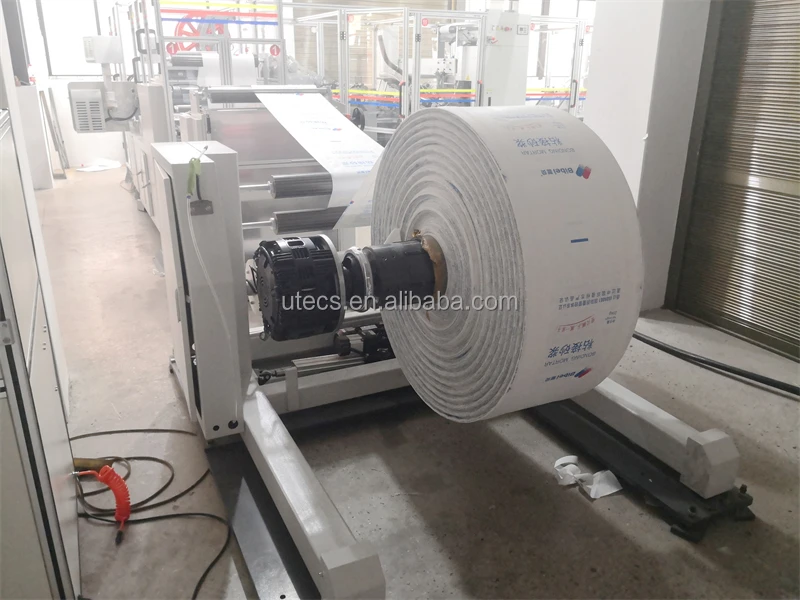

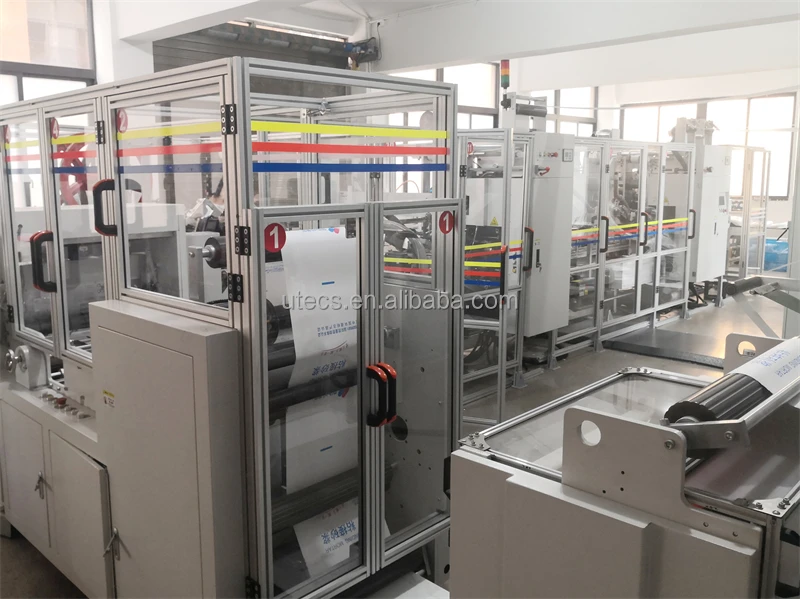

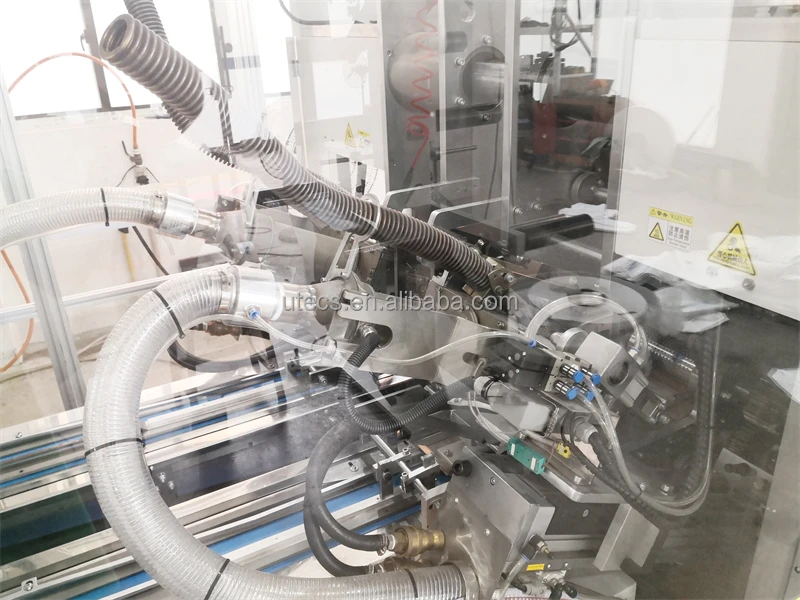

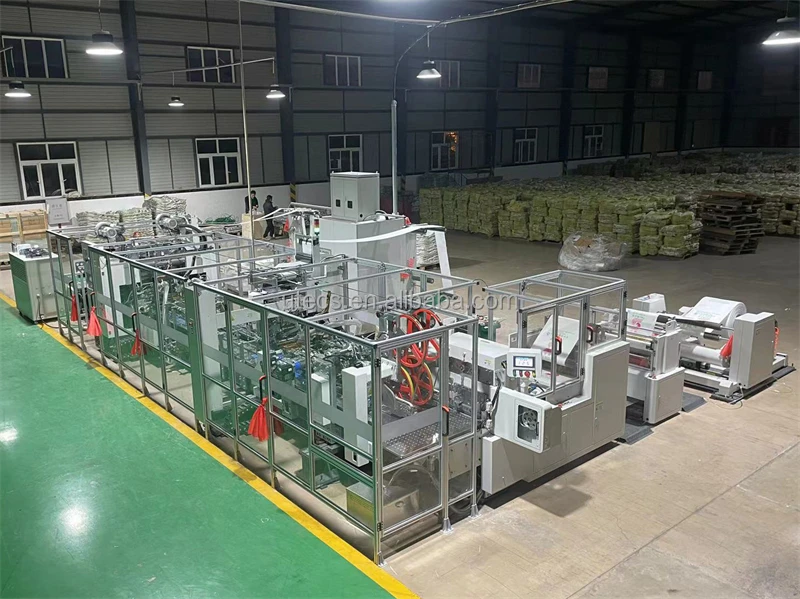

Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
Certifications
FAQ
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
