Product Overview
Description
Product Description
Grain storage bins, in another name is grain storage silos or steel grain storage silos, which is used for farm purpose, rice mill, flour mill, soybean-oil mill, animal feed mill plant, brewery plant and so on, the high quality steel grain storage sbins can be used to store grain (such as corn, maize, bulk wheat, corn, rice, paddy, sorghum, soya etc.), animal feed, cereal seeds, plastic pellet, wooden pellet etc.

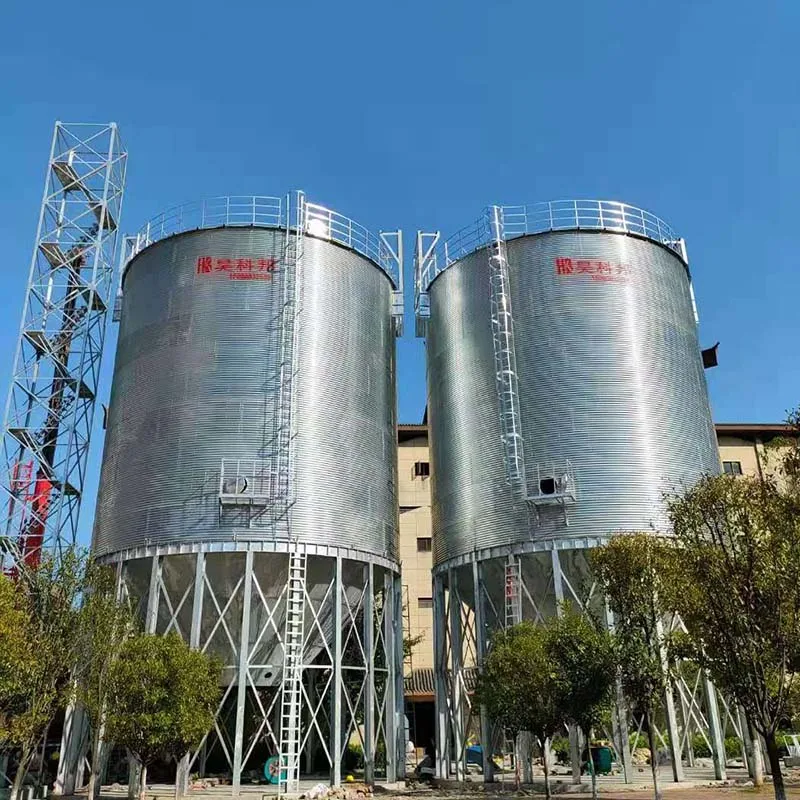

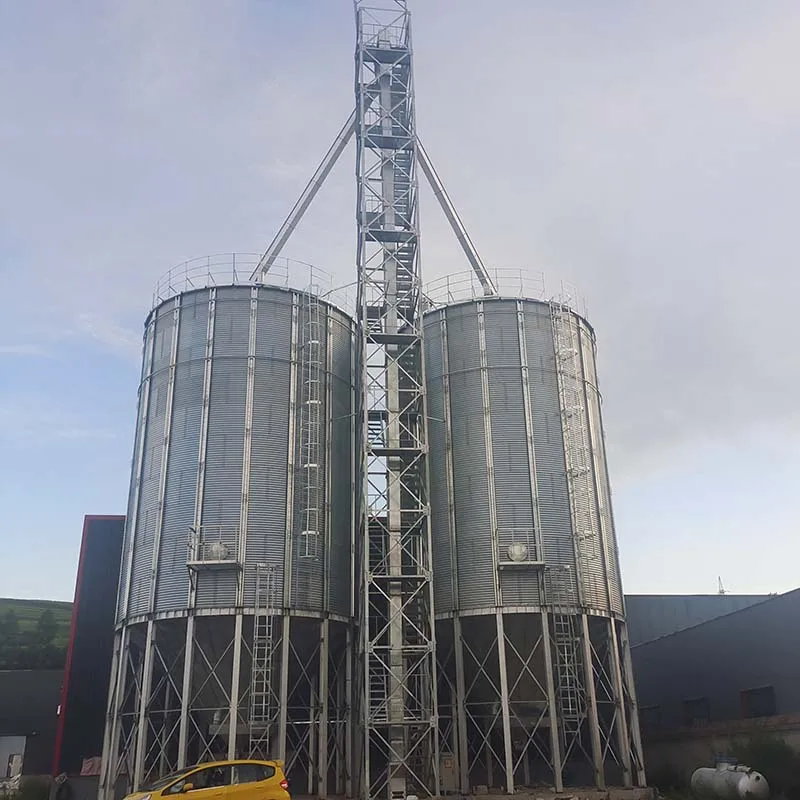

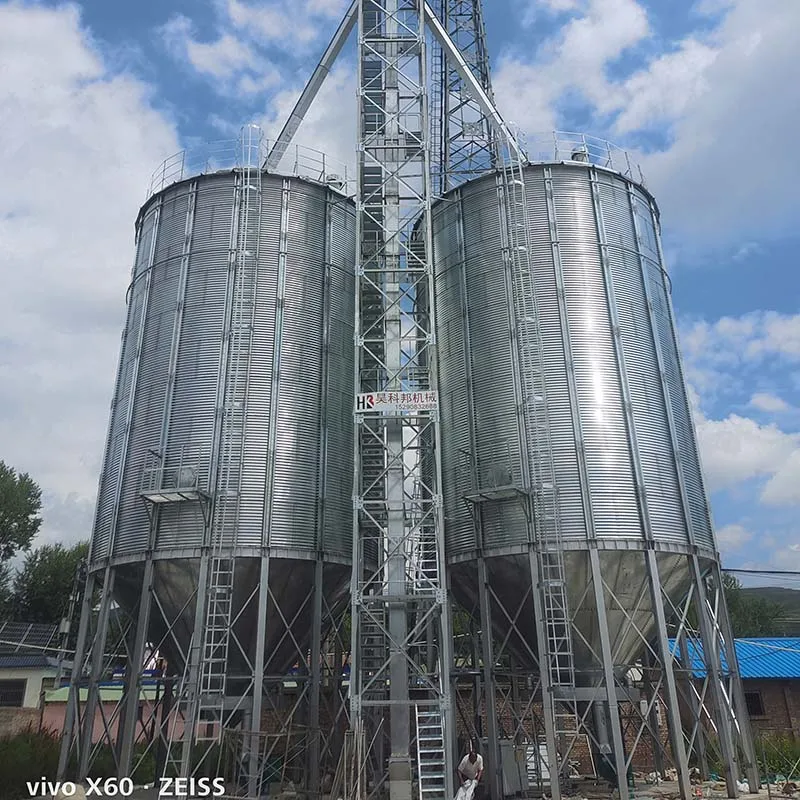

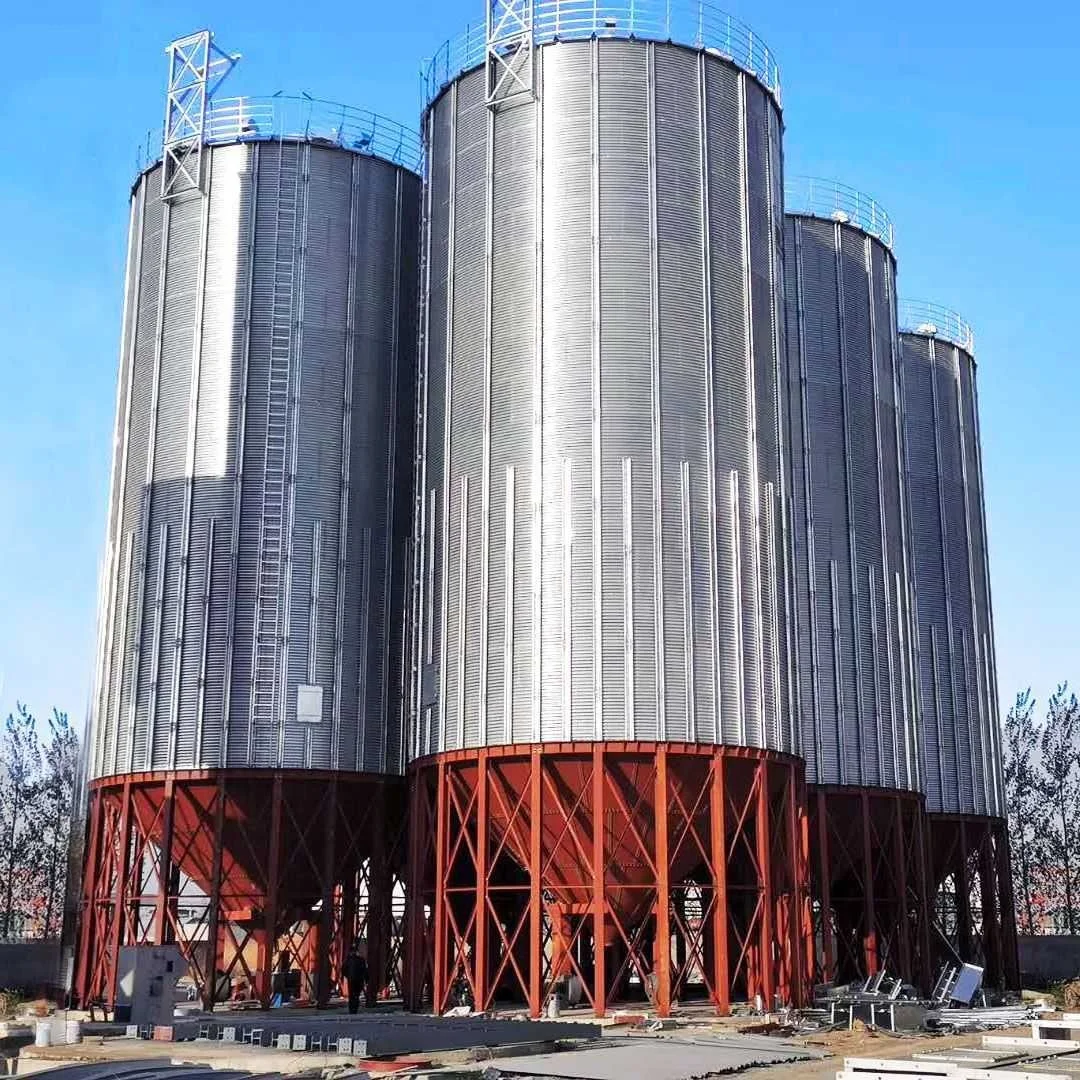

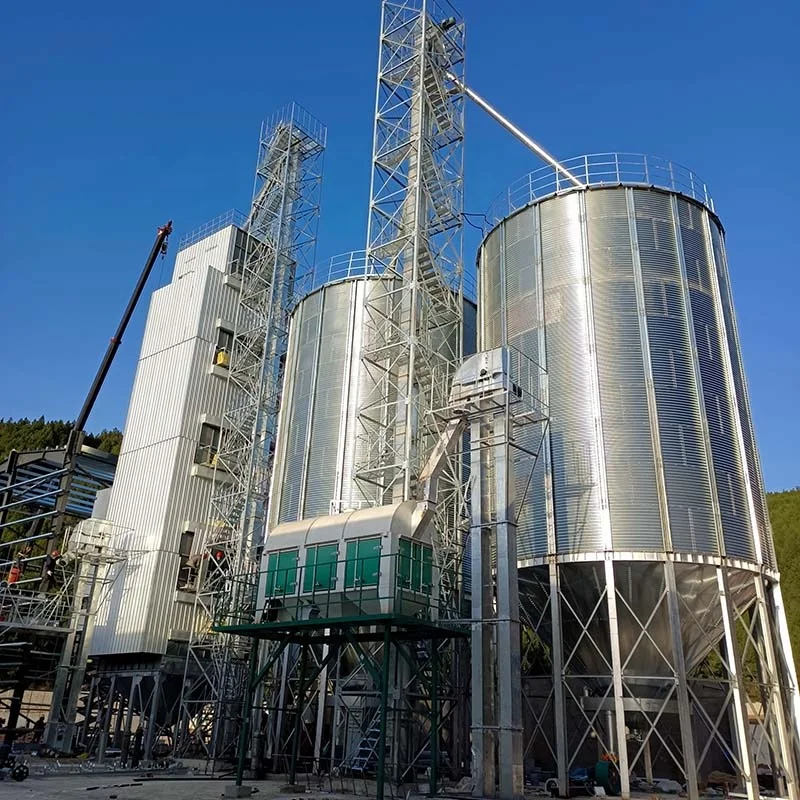

Below is the steel storage silo we did for our clients.
Specifications
| 1000 Ton Hopper Bottom Steel Silo Technical Parameter | |||||
| Project | Layer Number | V(m3) | C(t) | Dia(m) | H(m) |
| TCZK10013 | 13 | 1379 | 1034 | 10.084 | 23.61 |
| TCZK11010 | 10 | 1346 | 1009 | 11.000 | 20.95 |
| TCZK11909 | 9 | 1481 | 1111 | 11.917 | 20.55 |
| TCZK12809 | 9 | 1749 | 1312 | 12.834 | 21.27 |
| 1000 Ton Flat Bottom Steel Silo Technical Parameter | |||||
TCK10014 | 14 | 1335 | 1001 | 10.184 | 18.69 |
| TCK11012 | 12 | 1384 | 1038 | 13.51 | 16.72 |
| TCK11910 | 10 | 1385 | 1038 | 11.27 | 14.74 |
| TCK12810 | 10 | 1617 | 1213 | 11.27 | 15.00 |
| TCK13711 | 11 | 2036 | 1527 | 12.39 | 16.39 |
| TCK14612 | 12 | 2521 | 1890 | 13.51 | 17.77 |
| Contact us for more specifications | |||||
The above data is for reference only, for more details, please contact us
Details
 | The roof beam is made of C-shaped steel, the upper part is connected with the tio ring of the silo, the lower part is connected with the pillar of the silo,and the beam is horizontally connected by angle steel to form the framework of the silo top. |
The coaming of the silo is made of 275g/m2 galvanized steel plate. The coaming is gradually thicjened from top to bottom according to the stress of each layer. |  |
Accessory Equipment
 | Ventulation System Including fan and out ring air suxt, inner air duct, silo top induced draft fan and natural ventulation window auciliary ventilation, which can take the maximum amount of indoor heat and ensure the quality of grain. |
Clean up the system Cylinder promary cleaning screen Long screen body, goog cleaning effect. Fully enclosed frame, good sealing and dust proof performance. Small power, high output, stable and reliable operation. Self balancing vibrating screen Adiopt cibration motor, vibration damping rubber sprong and other preferred parts, with low noise and stable operation. |  |
 | Temperature measurement system The temperature measuring cable is suspended on the temperature measuring beam of the silo top framework, and the temperature sensors are distributed on the electricityon the cable. |
Dedusting system In the process of grain circulation and cleaning, there will be a lot of dust, which is not conducive to the quality of grain, further processing and encironmental sanitation. Dust remocal equipment can effectivel quppress dust. |  |
 | Fumigation system The generator delivers the gas to the silo through the pipeline, and the upper opening of the silo wall is connected with the pipeline back to the generator to form a circulation in the silo. |
