Product Overview
Description
Machine Details

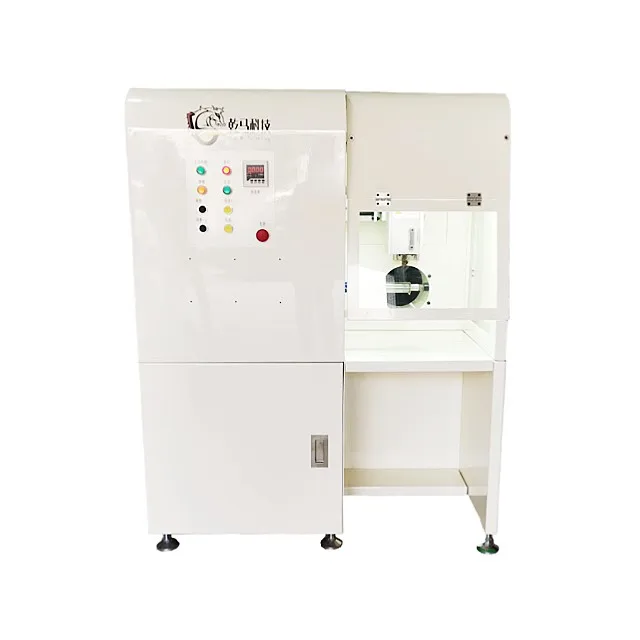

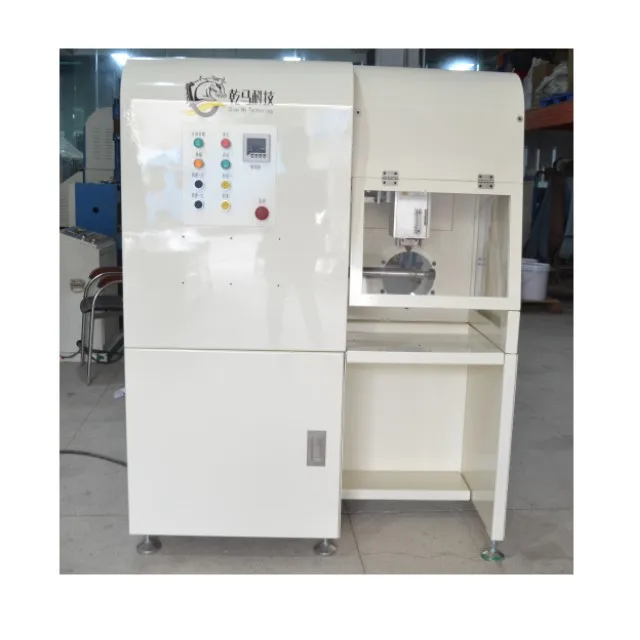

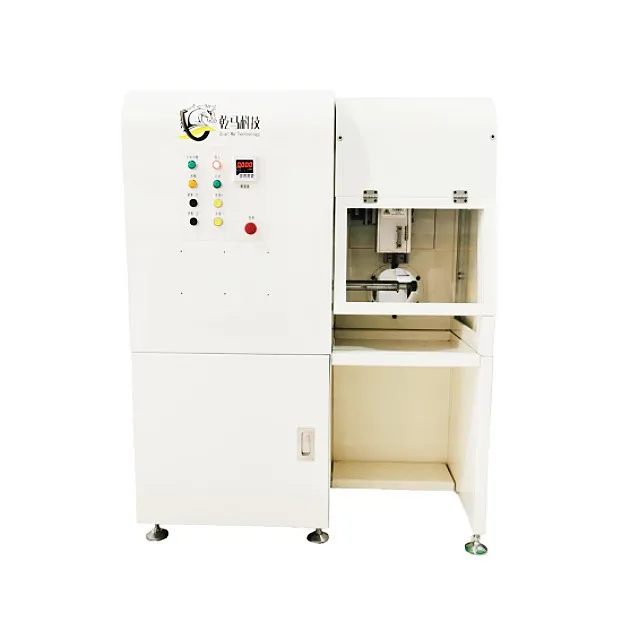

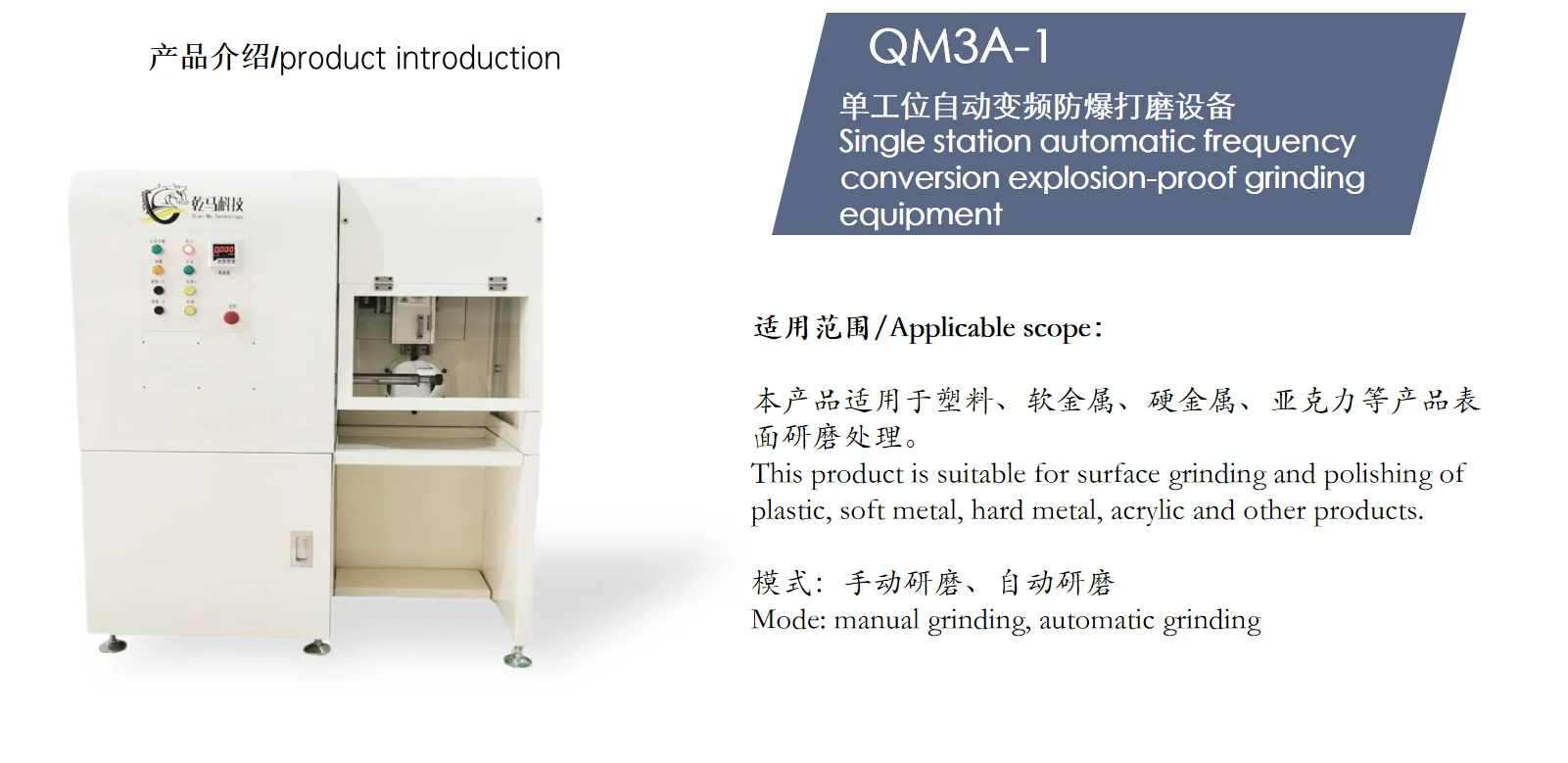

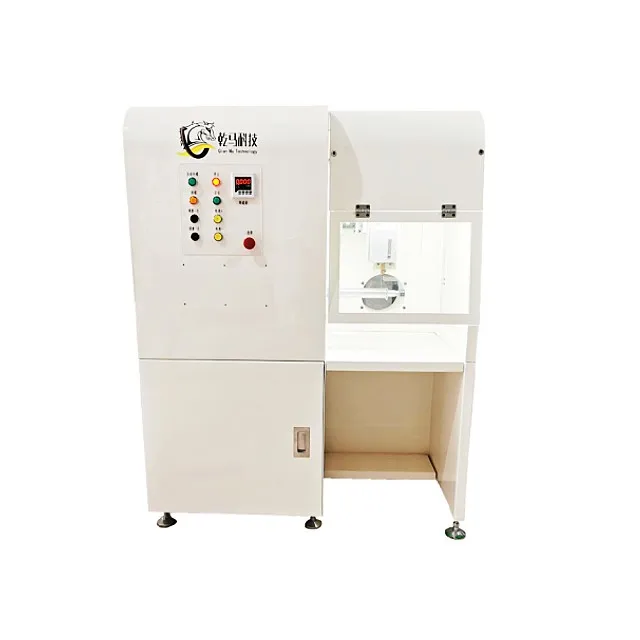

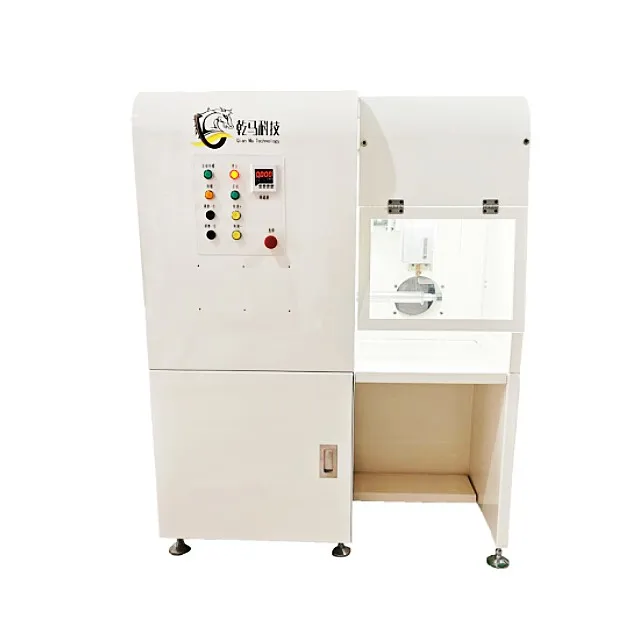

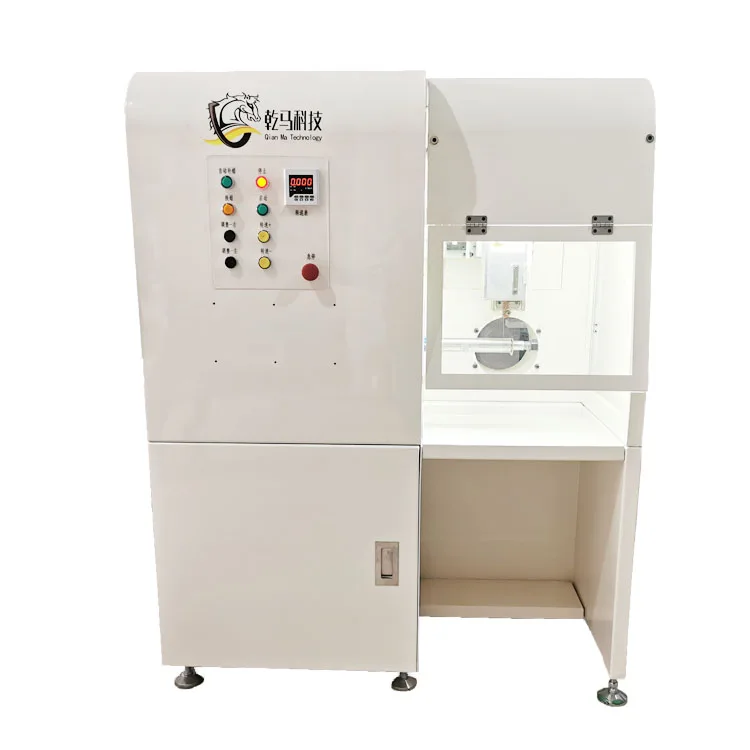

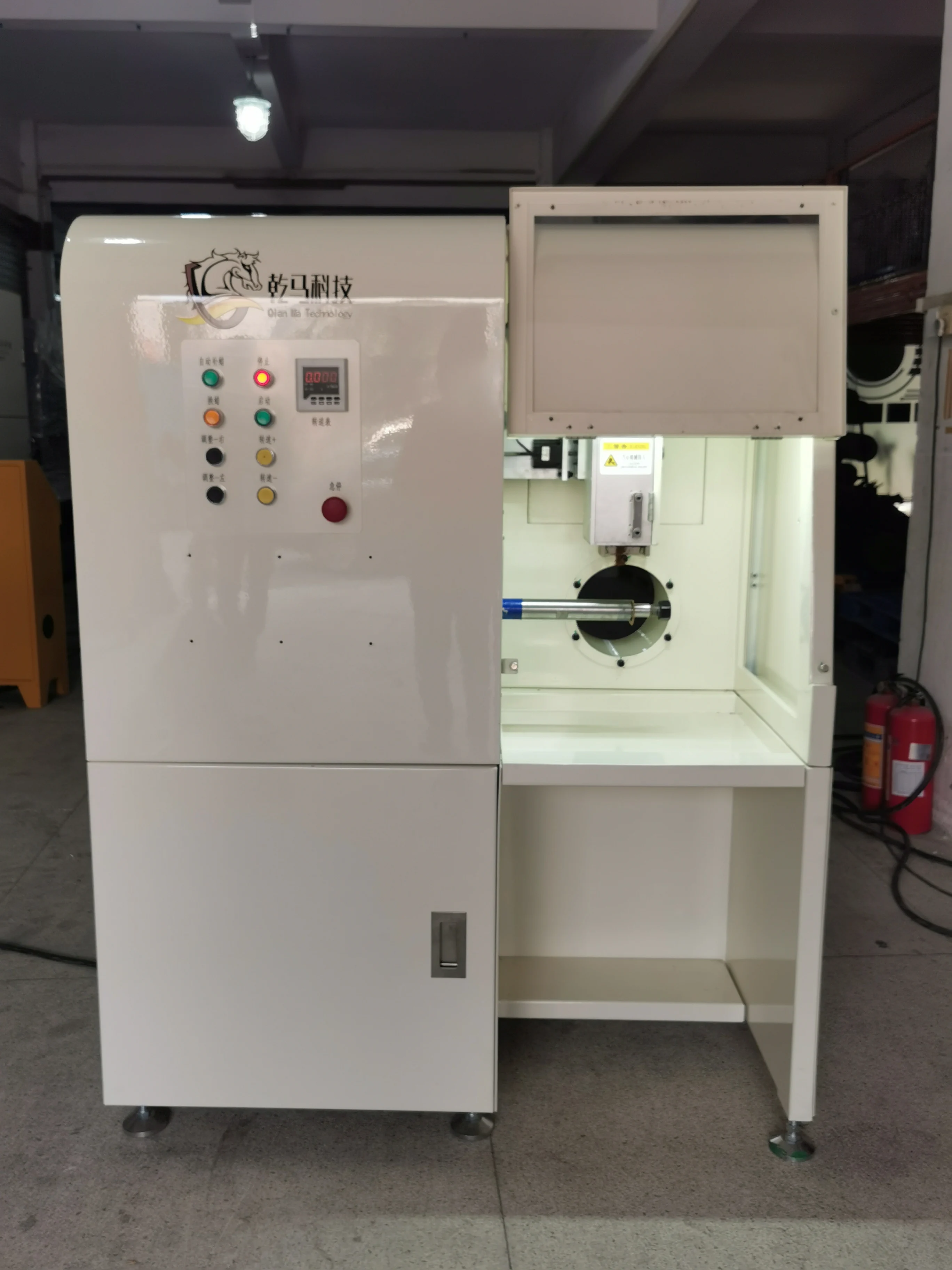

Single-station Plastic Clamping Line Grinding Equipment
The plastic mold line is the burr of the mold seam left when the plastic is injected, and it is prone to high temperature or excessive grinding during the removal process. The development of our machine has gone through many tests and has completed soft grinding. During the grinding process, no high temperature will be generated to prevent the surface of the product from burning due to high temperature. And through a process, the complete removal of the parting line is completed.
Device parameters | ||||||||
Product name: | single station plastic clamping line grinding equipment | |||||||
Model: | QM3A-1 | |||||||
Motor: | variable frequency explosion-proof motor: power 3KW, current 14A, | |||||||
Speed: | frequency conversion speed 300-2800 rpm. | |||||||
Voltage: | 380V | |||||||
Automatic wax filling time: | 1-60 seconds adjustable | |||||||
3-axis wax filling motor (X axis): | LN238S-E09050-155-S-220 | |||||||
3-axis wax filling motor (Y-axis): | ML23HSAP4200 | |||||||
3-axis wax filling motor (Z-axis): | ML23HS8P4150 | |||||||
Grinding wheel size | diameter 100MM-300MM, thickness 50MM middle hole: 20MM | |||||||

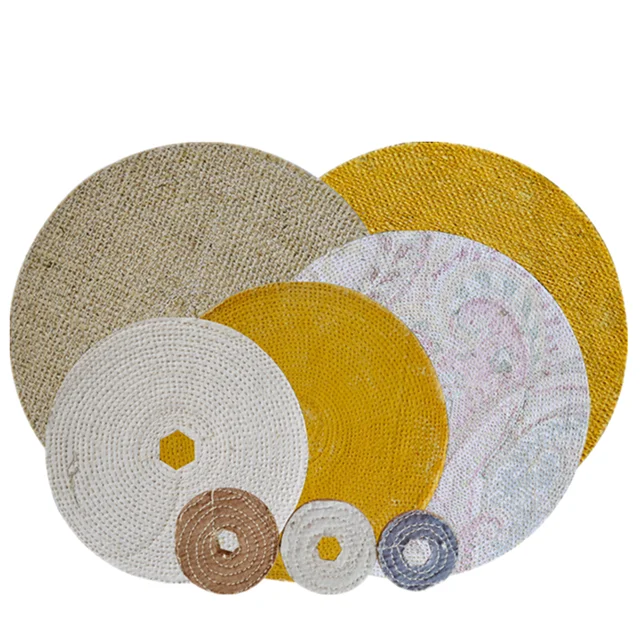

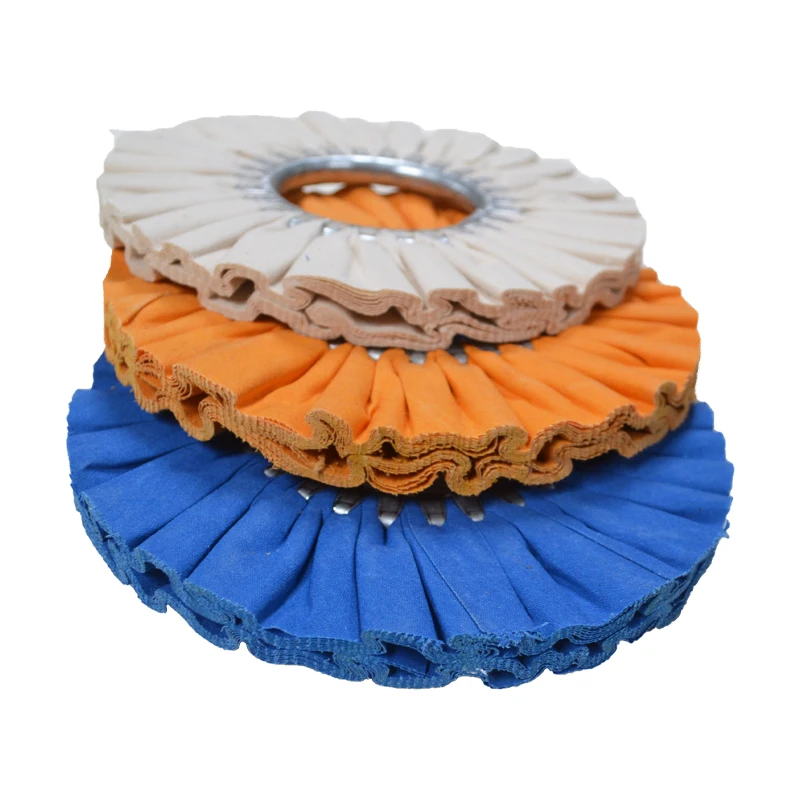

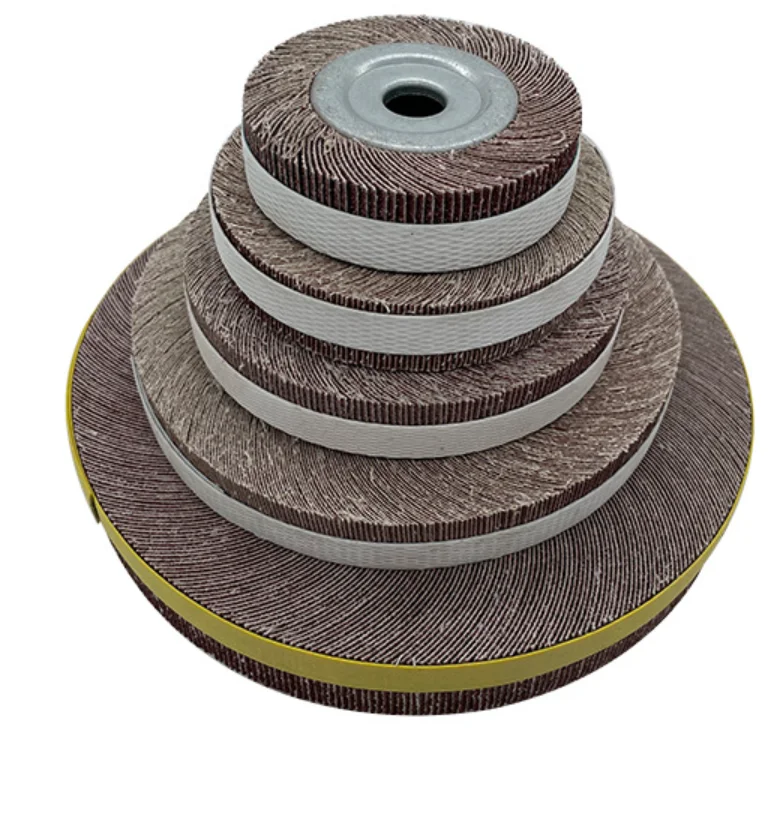

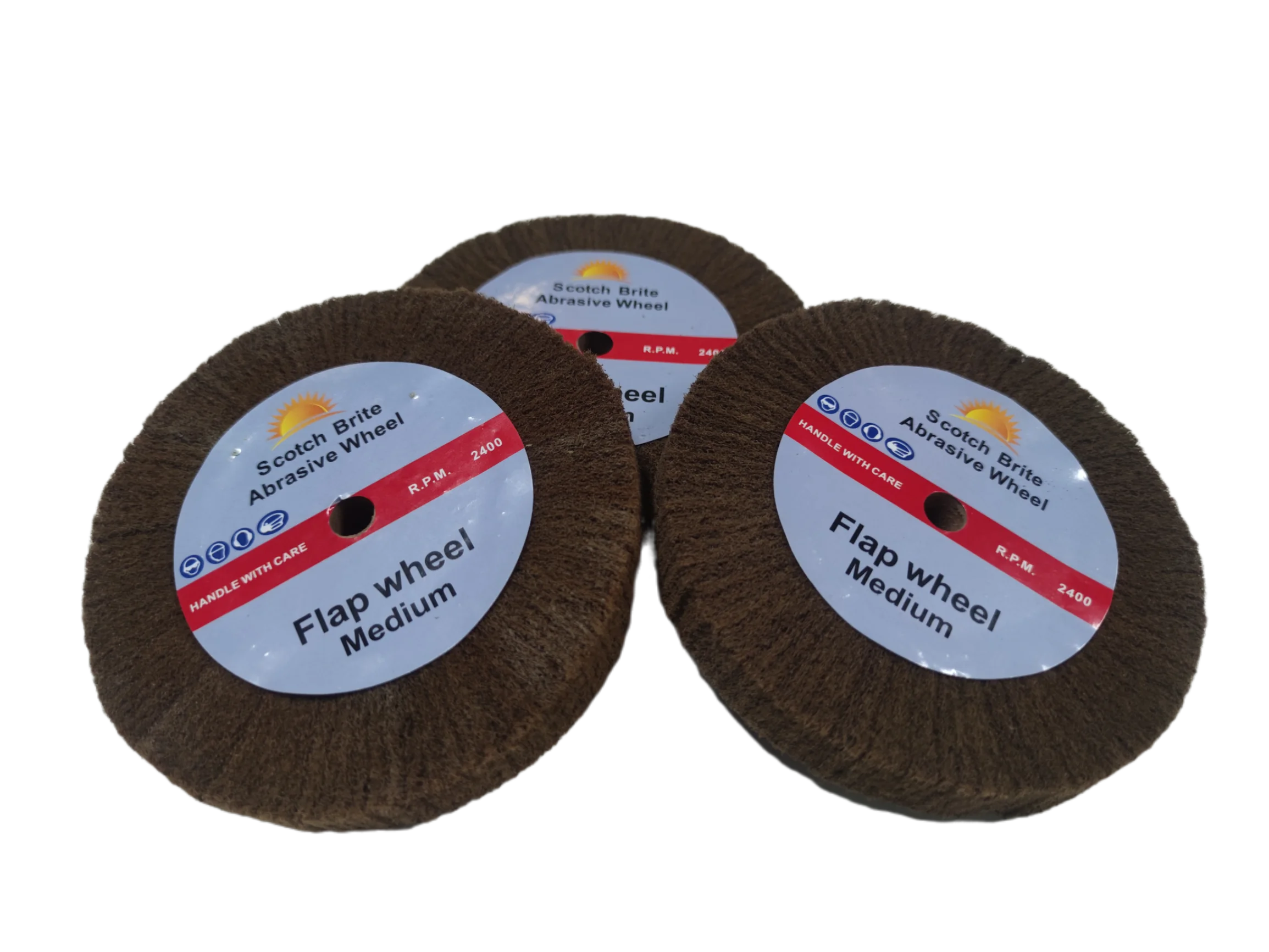

Grinding wheel size | cloth wheel, hemp wheel, drawing wheel, nylon wheel, thousand-page wheel and other grinding and polishing wheels | |||||||
Dimensions: | length 1300mm x width 780mm x height 1600mm | |||||||
Weight: | 245KG | |||||||

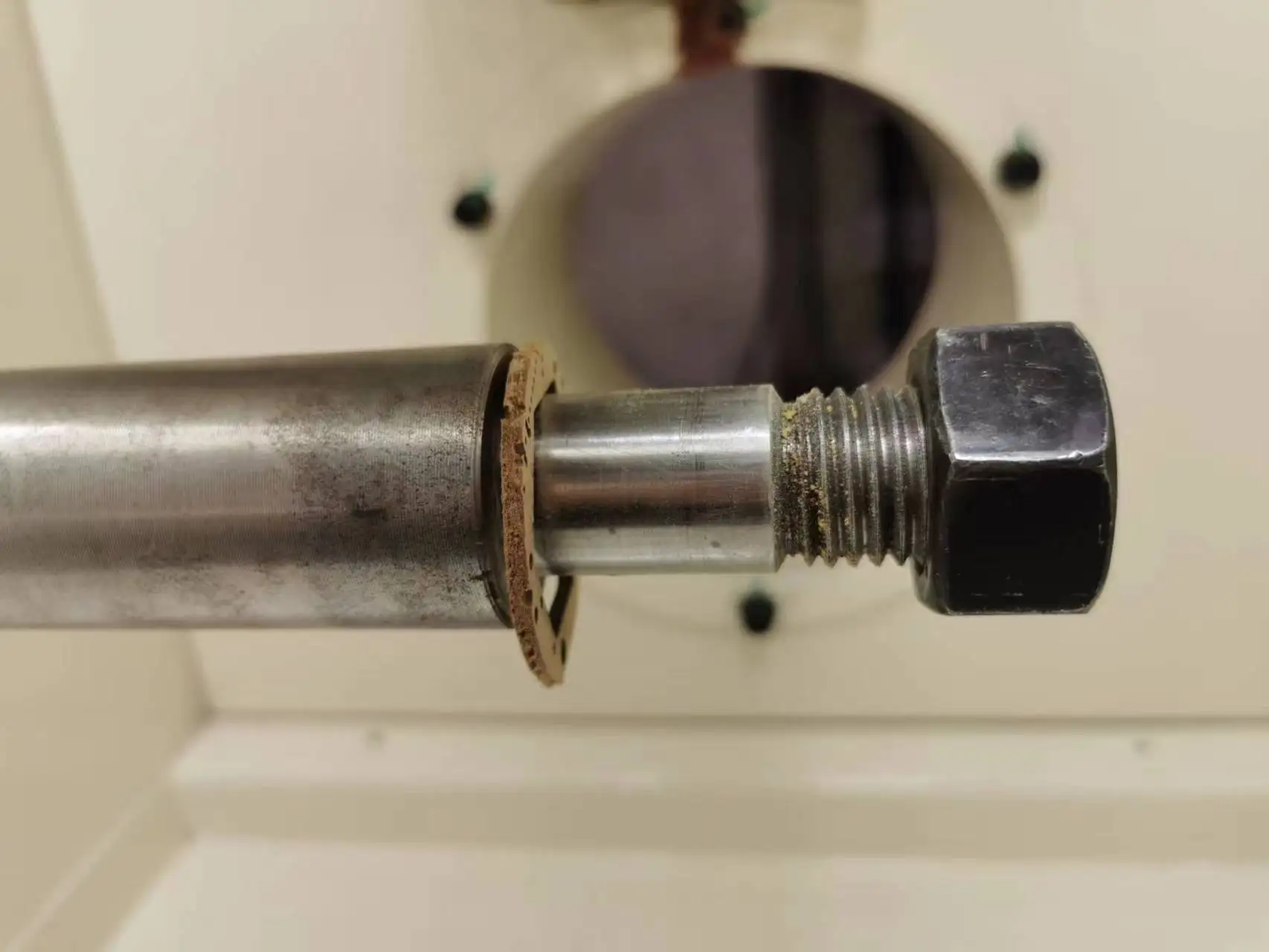

Double grinding head structure:
1. With a splint shaft, it can be equipped with a 20MM hole polishing wheel

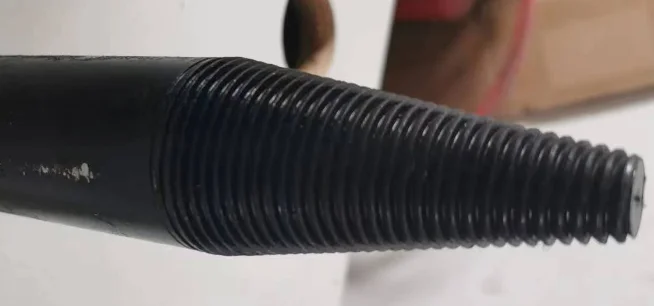

2. The sharp shaft structure can hold more than 12MM polishing wheels
3. Grinding wheel shafts of different sizes can be customized according to requirements.
1. With a splint shaft, it can be equipped with a 20MM hole polishing wheel
2. The sharp shaft structure can hold more than 12MM polishing wheels
3. Grinding wheel shafts of different sizes can be customized according to requirements.

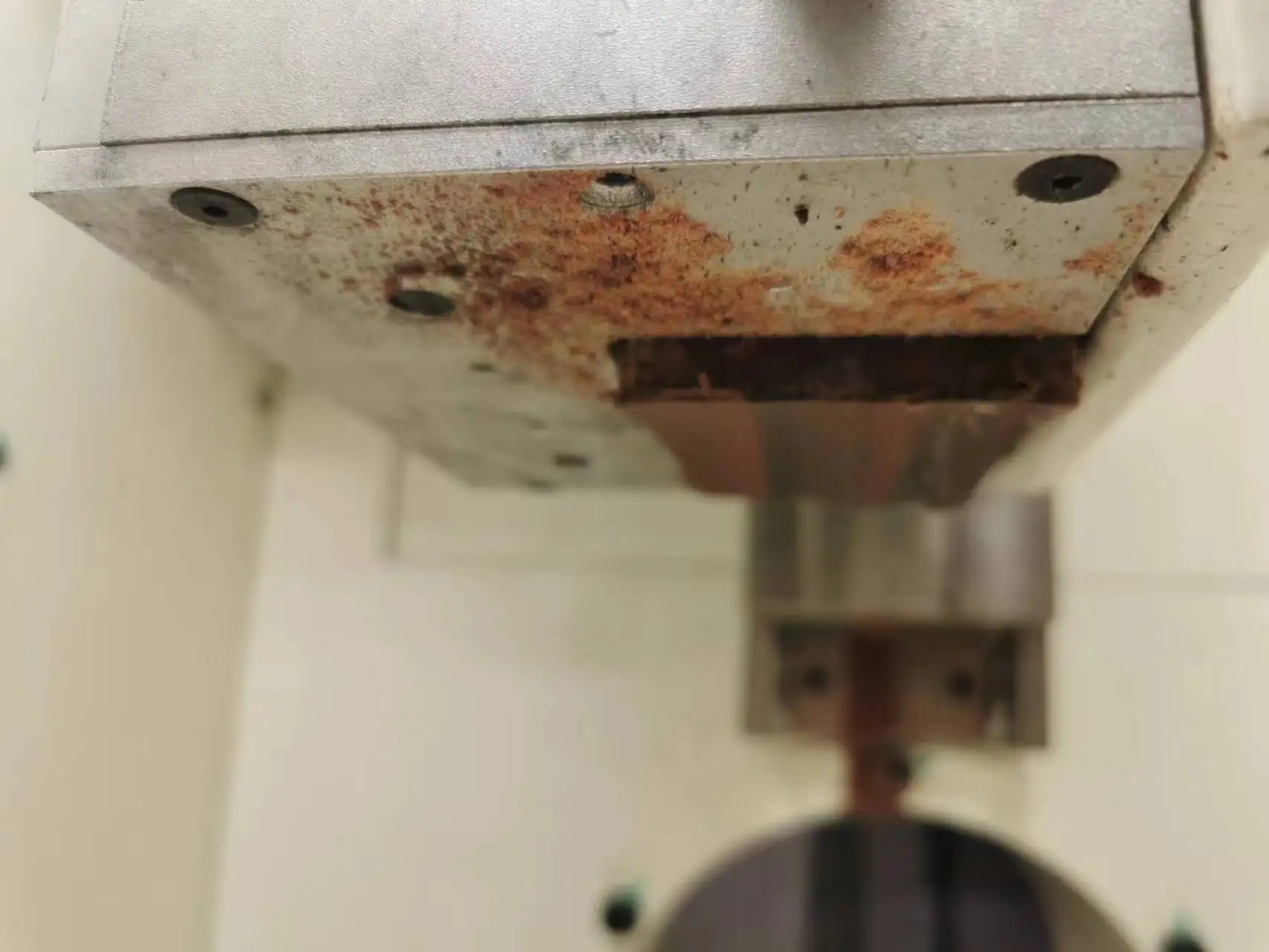

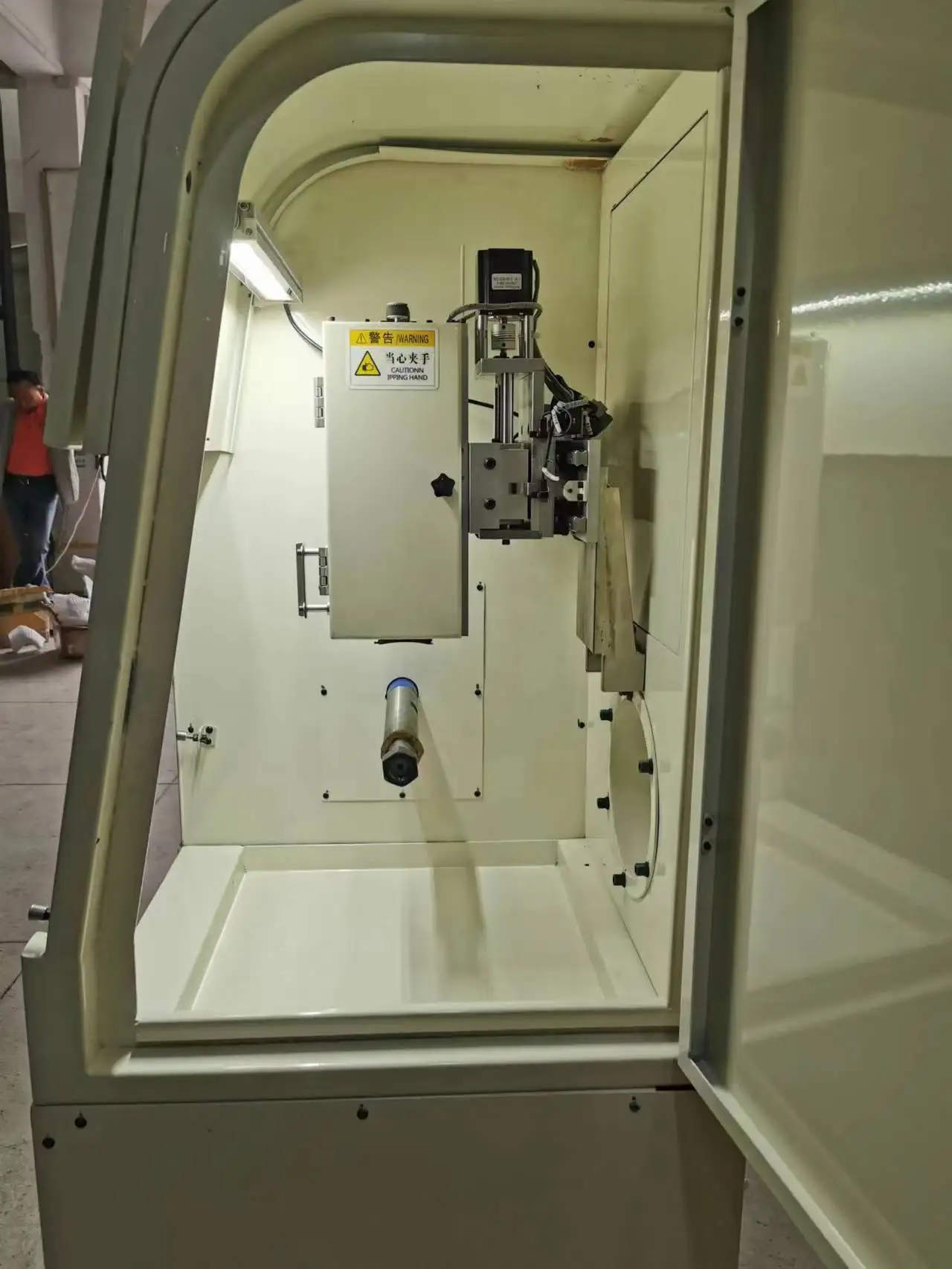

Automatic waxing of solid wax: It can automatically replenish wax, automatically adjust the position left and right, and manually adjust the wax replenishment time. Prevent untimely and dangerous manual wax replenishment.
Solid wax replacement: simple installation and replacement, controllable wax replenishment time and controllable polishing wax cost.
Solid wax replacement: simple installation and replacement, controllable wax replenishment time and controllable polishing wax cost.
Solid wax replacement: simple installation and replacement, controllable wax replenishment time and controllable polishing wax cost.
Different grinding wheels and polishing wheels can be installed to grind different metals, plastics, wood and other products,

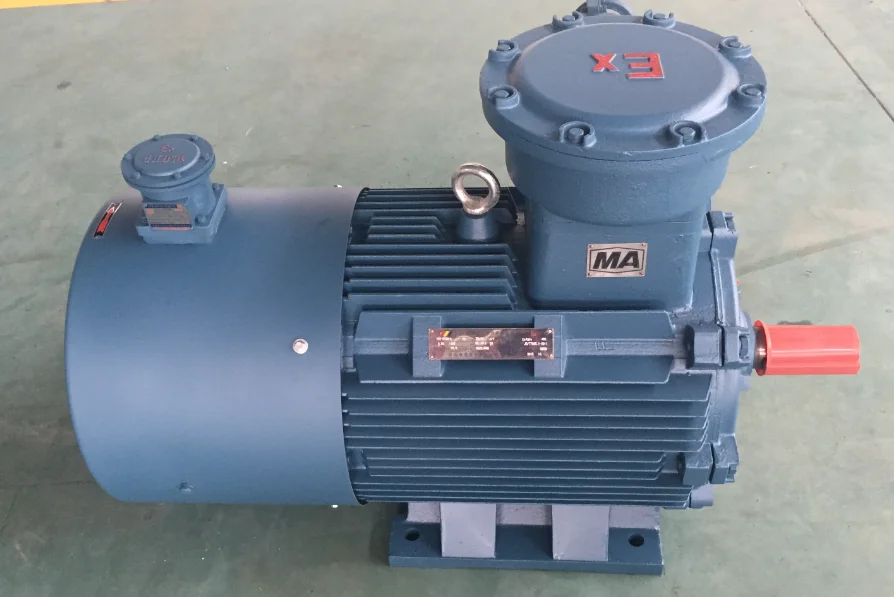

Using frequency conversion explosion-proof motor, grinding head speed 300-2800 rpm, adjustable. It can achieve explosion-proof effect for dusty flammable metals.

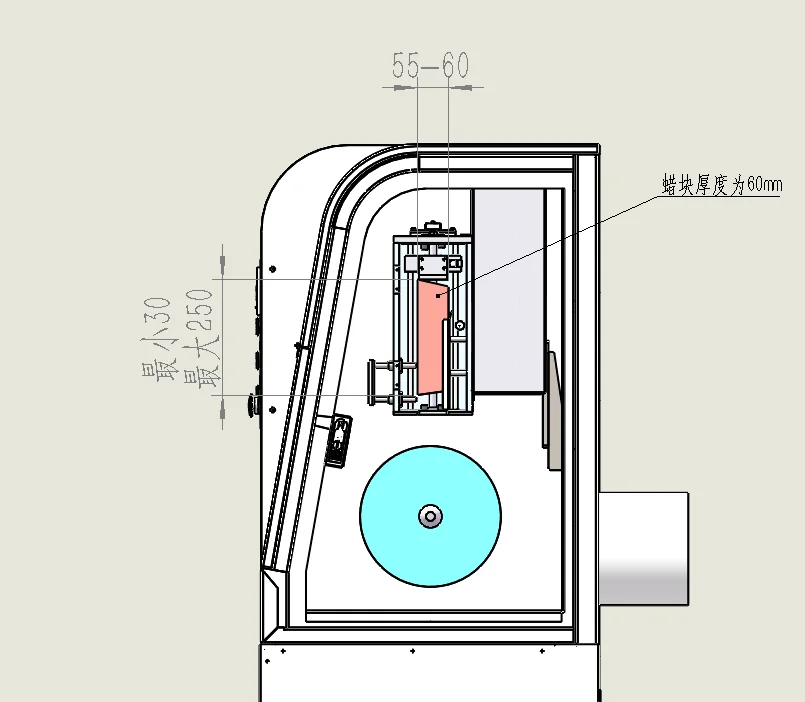

Dimensions of waxing device: For automatic waxing, many companies use liquid wax for waxing, which is costly and complicated to operate, and there are differences in product selection between solid wax and liquid wax. Some products must use solid wax. This piece of equipment is dedicated to the polishing and grinding of solid wax.
appearance design
The appearance is made of pure white paint, and the appearance design is beautiful and elegant. The working position is designed according to ergonomics, taking into account the comfort of the workers for sedentary work and the suitability of the grinding posture. The dust falling off during grinding can be cleaned in time every day by disassembling the tray device, ensuring that the equipment is easy to clean and conforms to the clean management system of the factory. The design tool is attached to the cover box, and workers can place sundries when they are not working at the post, and organize them according to the job post specifications.
Stainless Steel Products
Titanium products
Aluminum Metal Products
Bait parting line
Acrylic parting line
Automotive Plastic Handle Molding Line
It has strong applicability for surface treatment of various metal and plastic products, adjustable speed, automatic waxing, and strong practicability in slow grinding and polishing.

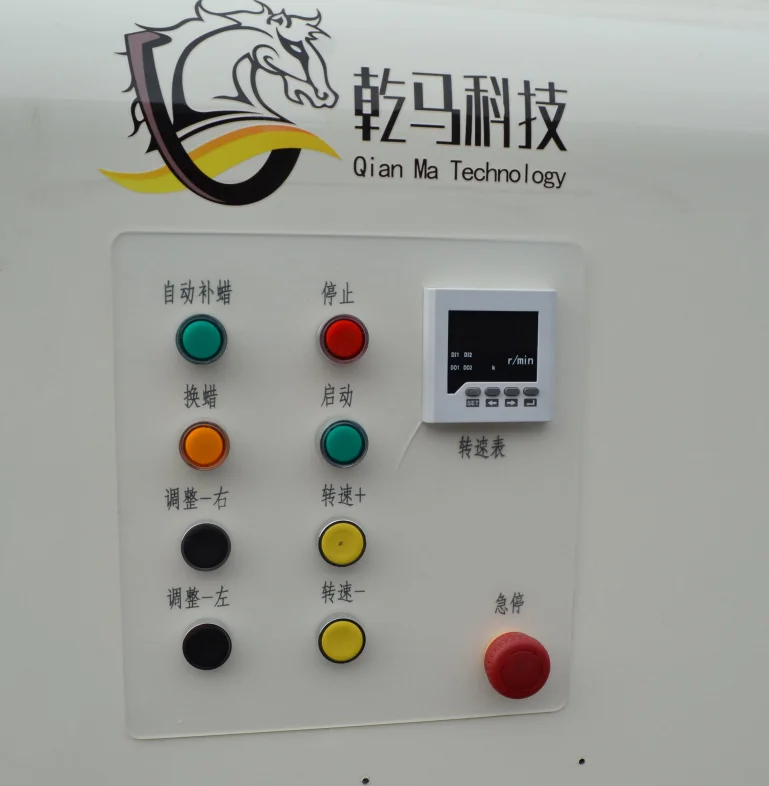

operation panel
1. Automatic wax replenishment: After pressing the button, the wax will be replenished automatically according to the set time (the light will only work when the button is pressed to start the state), press and hold the button for more than 3 seconds in the stop state, and start manual wax replenishment, release it to stop.
2. Wax change: When the polishing wax is exhausted (to the lower limit), the light flashes to prompt, press the 5 stop button to stop, press the button to return the wax replenishment mechanism to the manual wax change position, until the wax change is completed, the wax change lamp stops shiny. In the shutdown state, press for more than 3 seconds to trigger the forced wax change function, and the wax replenishment mechanism will return to the manual wax change position.
3. Adjustment-right: Manually adjust the polishing wax to move to the right, press button 5 to stop (the light is on) to adjust.
4. Adjustment-Left: Manually adjust the polishing wax to move to the left, press button 5 to stop (the light is on) to adjust.
5. Stop: Press the light to turn on, and the whole machine stops; in the stop state, switch the light switch.
6. Start: Press the light to turn on, and the whole machine starts to run; in the starting state, switch the light switch.
7. Speed +: Increase the speed of the polishing wheel, press the button 6 to start the state (the light is on) to adjust.
8. Speed -: Reduce the speed of the polishing wheel, press the button 6 to start the state (the light is on) to adjust.
9. Emergency stop: Press this button in an emergency, and the whole machine will stop (the main motor will still rotate with inertia until it stops), and the moving mechanism will remain in its current state and will not move.
10. Tachometer: Display the motor speed.
2. Wax change: When the polishing wax is exhausted (to the lower limit), the light flashes to prompt, press the 5 stop button to stop, press the button to return the wax replenishment mechanism to the manual wax change position, until the wax change is completed, the wax change lamp stops shiny. In the shutdown state, press for more than 3 seconds to trigger the forced wax change function, and the wax replenishment mechanism will return to the manual wax change position.
3. Adjustment-right: Manually adjust the polishing wax to move to the right, press button 5 to stop (the light is on) to adjust.
4. Adjustment-Left: Manually adjust the polishing wax to move to the left, press button 5 to stop (the light is on) to adjust.
5. Stop: Press the light to turn on, and the whole machine stops; in the stop state, switch the light switch.
6. Start: Press the light to turn on, and the whole machine starts to run; in the starting state, switch the light switch.
7. Speed +: Increase the speed of the polishing wheel, press the button 6 to start the state (the light is on) to adjust.
8. Speed -: Reduce the speed of the polishing wheel, press the button 6 to start the state (the light is on) to adjust.
9. Emergency stop: Press this button in an emergency, and the whole machine will stop (the main motor will still rotate with inertia until it stops), and the moving mechanism will remain in its current state and will not move.
10. Tachometer: Display the motor speed.
