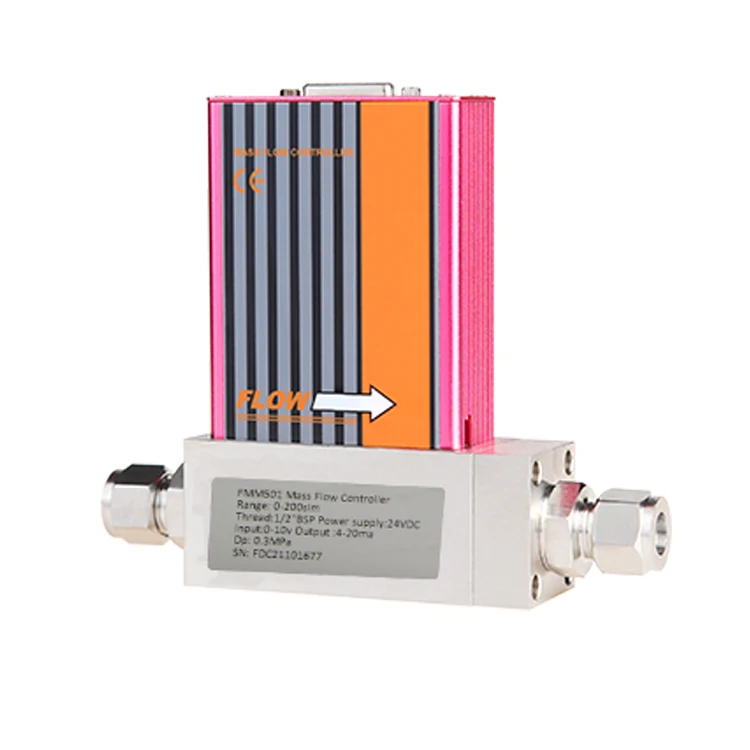

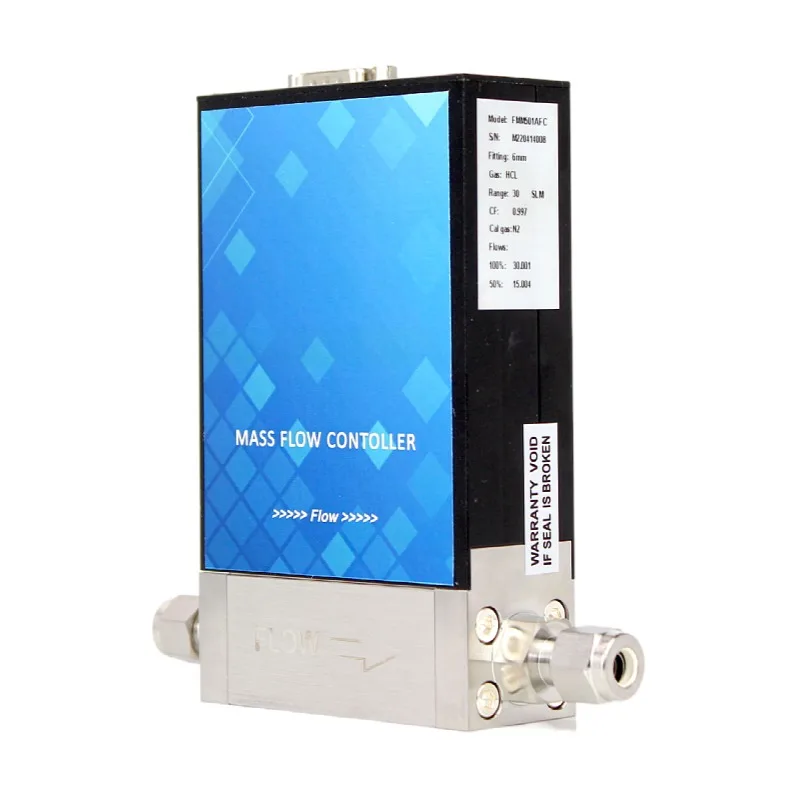

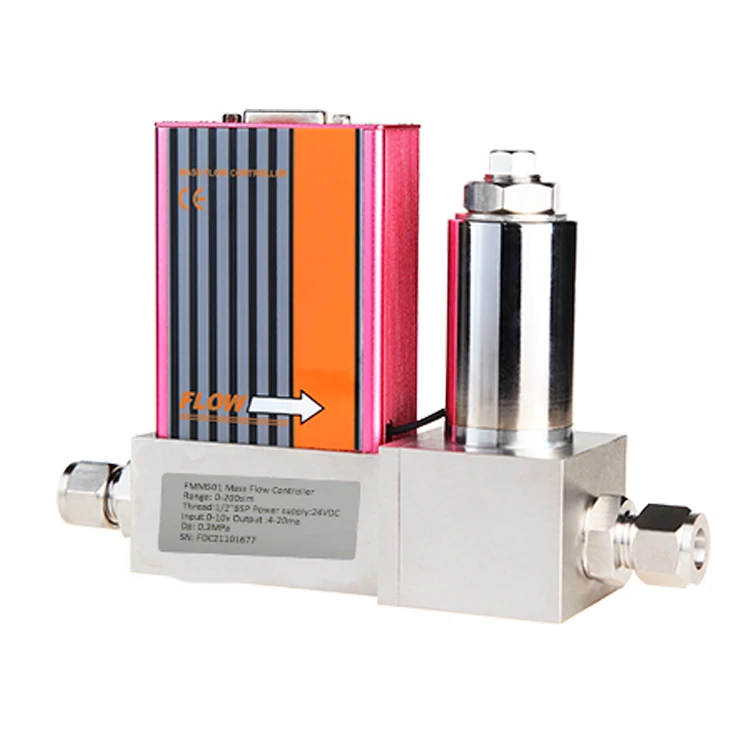

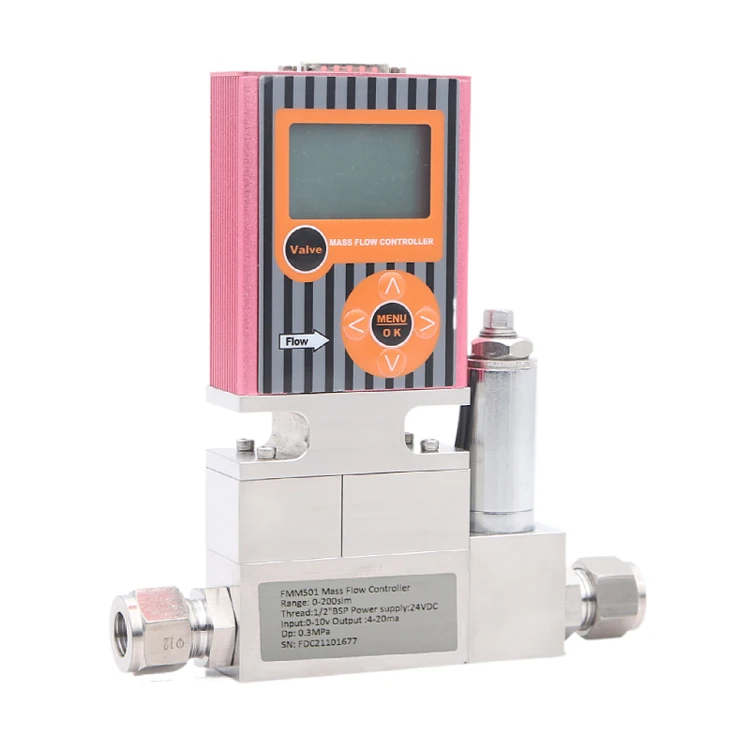

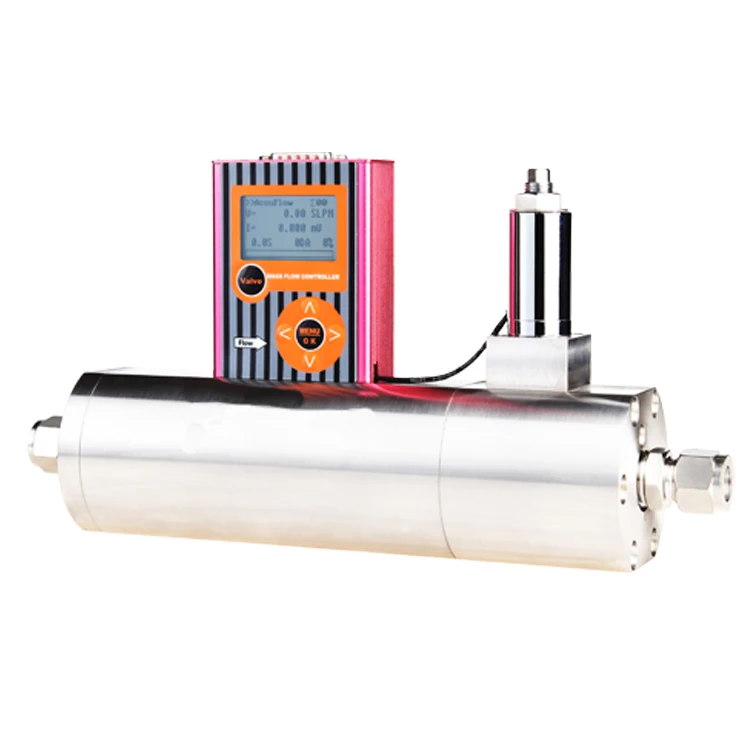

SENTEN FMM501 Best Selling Cheap RS485 Output Signal Gas Liquid Mass Flowmeter Flow Controller Flow sensor
- Category: >>>
- Supplier: Chengdu Sentec Technology Co. Ltd.
Share on (1600847497327):
Product Overview
Description
Related Products

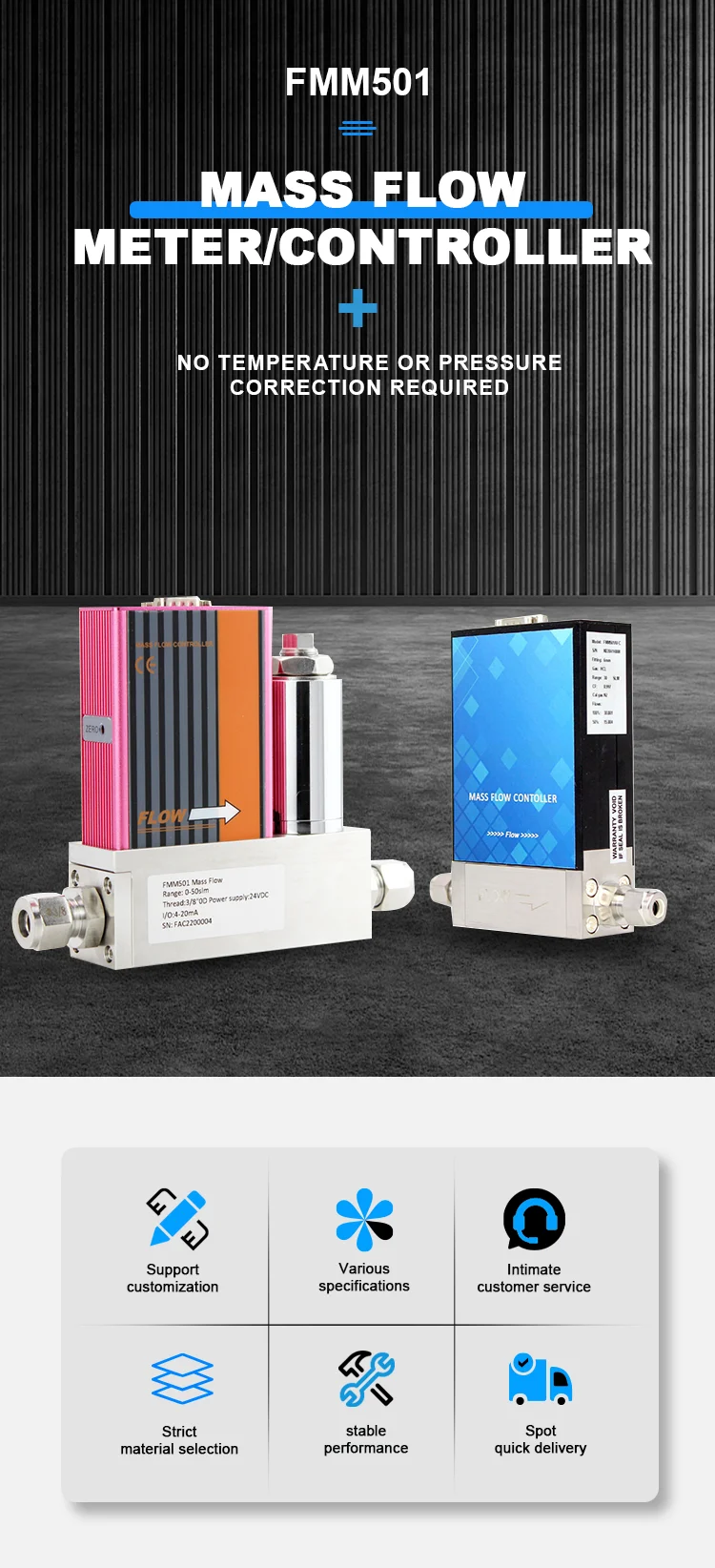

FMM501 Dmass series is a analog digital compatible mode instrument, can be adjusted by analog digital display controller or instrument panel, or PLC to set and display instantaneous flow. This product applies MultiFlow technology, can be built in a variety of gas, can adapt to a variety of range. More efforts can be made to reduce the cost of purchasing.
SPECIFICATIONS FOR ELECTROMAGNETIC FLOWMETER | |||
Technical indicators | MFC | MFM | |

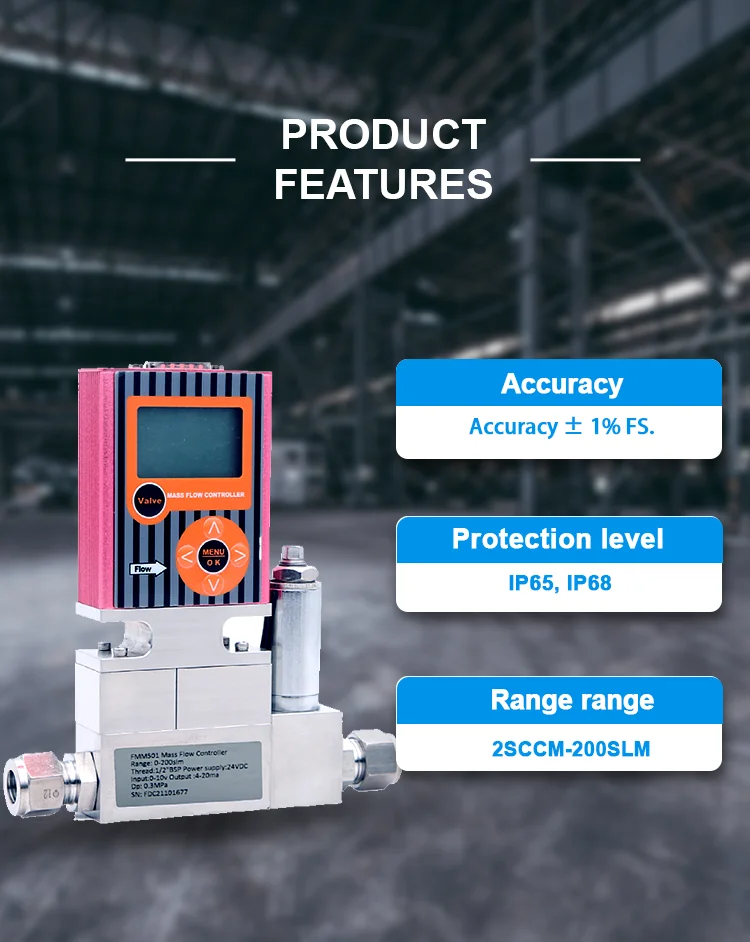

Range | 2SCCM-300SLM | ||
Accuracy | ±1% F.S | ||
temperature ±1℃ | |||
Linear | ±0.5% F.S℃ | ||
Repeatability | 0.2% F.S℃ | ||
Response time | ＜2s | ＜1s | |
Analog | 0-5v/4-20mA | ||
Communication | RS485 Modbus RTU | ||
Power supply | ±15V/24V | ||
Working temp | 0-50℃ | ||
Differential pressure | Dp: 0.05-1.0MPa | press drop: ＜30Kpa | |
Max pressure | 3Mpa/10Mpa | ||

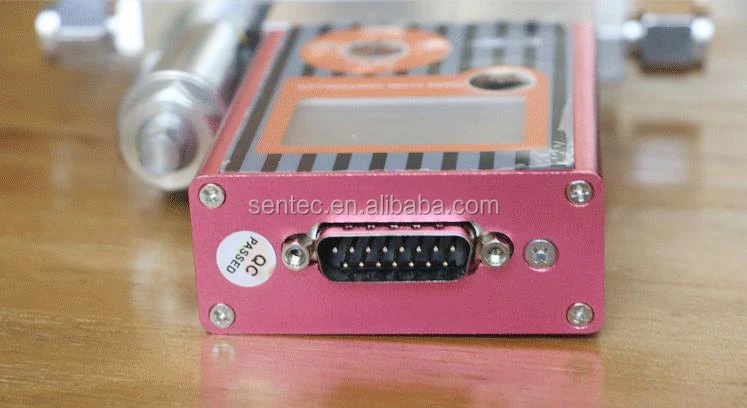

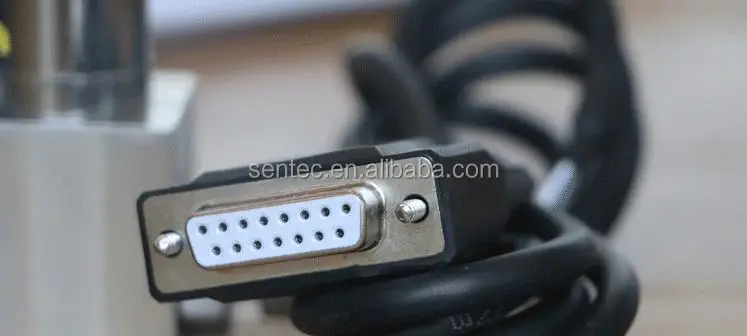

Electrical connection | DB15 | ||
Leakage rate | 1×10-8 SCCSHe | ||
Temp C.F | ±0.015% F.S/℃ | ||
Base material | 316 SST | ||

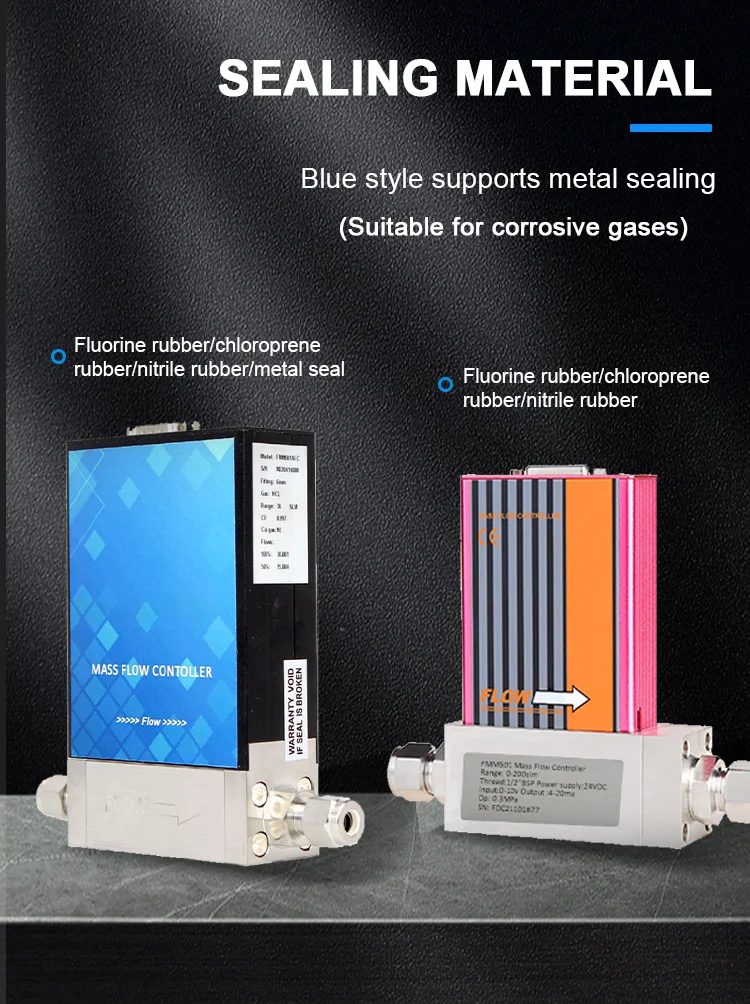

Sealing | PTFE/CR/NBR | ||
Fitting | 1/4" 3/8" 6mm 10mm | ||
SPECIFICATIONS FOR ELECTROMAGNETIC FLOWMETER | |||
Technical indicators | MFC | MFM | |
Range | 300SLM-3000SLM | ||
Accuracy | ±1% F.S | ||
temperature ±1℃ | |||
Linear | ±0.5% F.S℃ | ||
Repeatability | 0.2% F.S℃ | ||
Response time | ＜2s | ＜1s | |
Analog | 0-5v/4-20mA | ||
Communication | RS485 Modbus RTU | ||
Power supply | ±15V/24V | ||
Working temp | 0-50℃ | ||
Differential pressure | Dp: 0.05-1.0MPa | press drop: ＜30Kpa | |
Max pressure | 3Mpa/10Mpa | ||
Electrical connection | DB15 | ||
Leakage rate | 1×10-8 SCCSHe | ||
Temp C.F | ±0.015% F.S/℃ | ||
Base material | 316 SST | ||
Sealing | PTFE/CR/NBR | ||
Fitting | 1/4" 3/8" 6mm 10mm | ||
FAQ
1. Could I have prices of your products?
Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours
2. Can we print our logo/website/company name on products?
Yes, please advise the size and Pantone Code of the logo.
3. What's the lead time for regular order?
3~7 days for order quantity lower than 500pcs, For more quantity, usually 15 days.
4. Can I get a discount?
Yes, for the order quantity more than 50pcs, please contact us to get the best price.
5. What is your MOQ?
The MOQ of most of our products is 1PCS. You can also contact us to get a lower low MOQ.
6. How to contact you?
Email/Skype: sales04(@)cdsentec.com, Tel/wechat/whatsapp: +86 19158828073
The specific price is subject to the parameters, please contact us for the quotation,the consultation is free of charge.
