Product Overview


Product Description

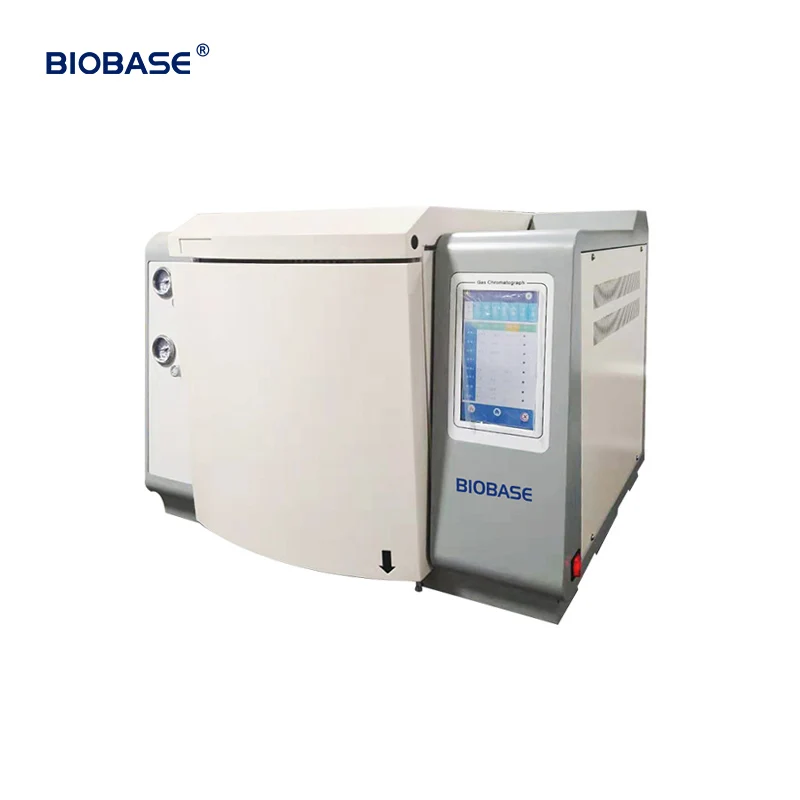

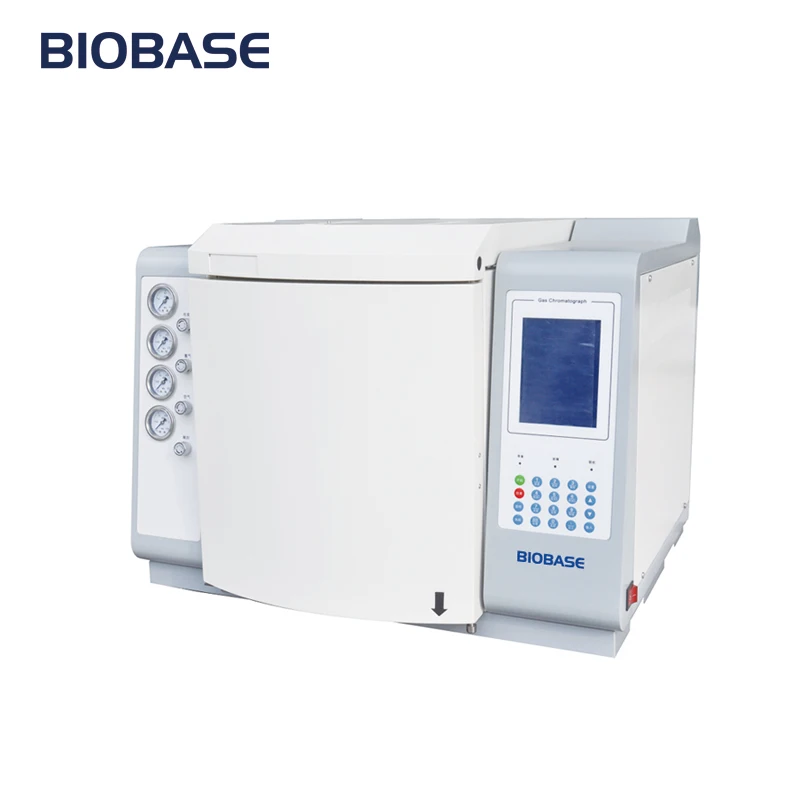

Gas Chromatograph BK-GC7820

1. 5.7-inch LCD display indicates temperature, time and gas flow.
2. Self-test, power protection, keyboard lock, automatic ignition and anti-power mutation interference function.
3. Can connect with Internet, realize data transfer and program upgrade automatically.
4. Equipped with a flame ionization detector. Can install3 detectors at the same time.
5. Can install packed column and capillary column at the same time
6. Double column compensation function, which can effectively restrain baseline drift and thein fluence of background noise.
7. Large capacity oven (300*280*180mm) can hold 2 pcs 0.32mm diameter capillary column (length: 80m).
8. Better thermal insulation effect: when the temp. of oven, vaporizing chamber and detector reach 300℃, the max. temp. of outer chamber is 40℃.
9. With chromatography workstation software to process data.

Product Parameters

Temp. Range
Temp. Accuracy
Temp. Program
Max. Temp. Heating Rate
Hydrogen Flame Ionization Detector
Detection limit:≤3×10-12g/s
Baseline drift:≤1x10-13A/30min
Linear range:≥107
ThermalConductivityDetector (Optional)
Sensitivity: >10000mv.ml/mg
(Sample: n-hexadecane)
Linear range:≥105
Electron Capture Detector (Optional)
Detection limit:≤1×10-14g/ml
(Sample:n-hexadecane δ-666)
Linear range: ≥104
Flame Photometric Detector (Optional)
Detection limit:≤2×10-11g/s(S ofthiophene)
Detection limit:≤1×10-12g/s(P ofmethyl parathion)
Linear range (S): ≥103
Linear range (P): ≥104
Nitrogen and Phosphorus Detector (Optional)
Detection limit:≤1×10-12g/s(Azobenzene)
Detection limit:≤1×10-12g/s(Marla sulfur phosphorous)
Linear range: ≥103
Power Supply
AC110/220V±10%, 50/60Hz
Standard Accessory
detector, Chromatography workstation software
Optional Accessory
Sample injection system, Chromatographic column.
Package Size (W*D*H)
Gross Weight

Hot Product

Our company's product range is very rich, the following are a few of our company's more popular products, if you just need it, welcome to contact us. we will introduce some our production for you according to your needs.

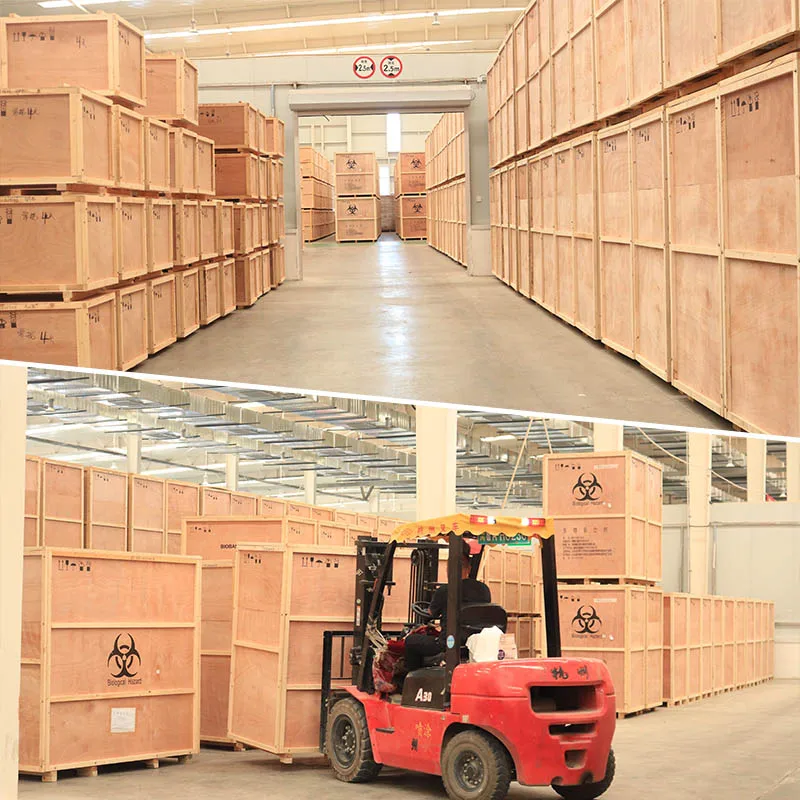

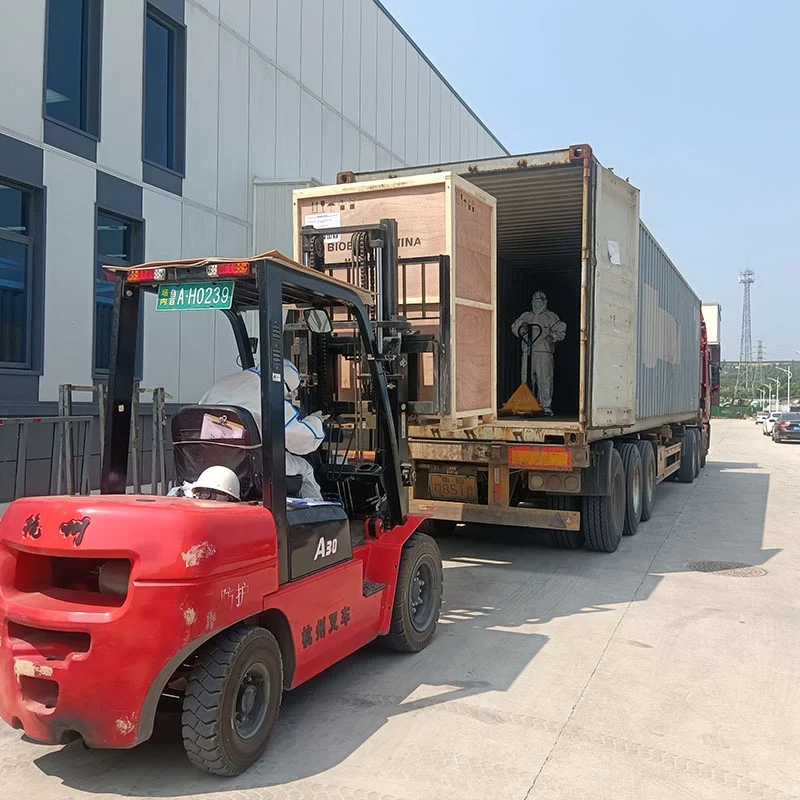

Package And Transport

Package: Wooden Box and Carton(with pallet)
1~7 workdays
Type of transportationOcean, Airlift, Road,Railway
Payment: AliPay、Paylater、L/C、T/T

After Service & Feedback

Our products are sold all over the world, we have very good customer feedback, which can prove that the quality of our products is very good, on the other hand, it can also prove that our various services such as pre-sales and after-sales can win the trust of customers.

International Exhibition

Our Project

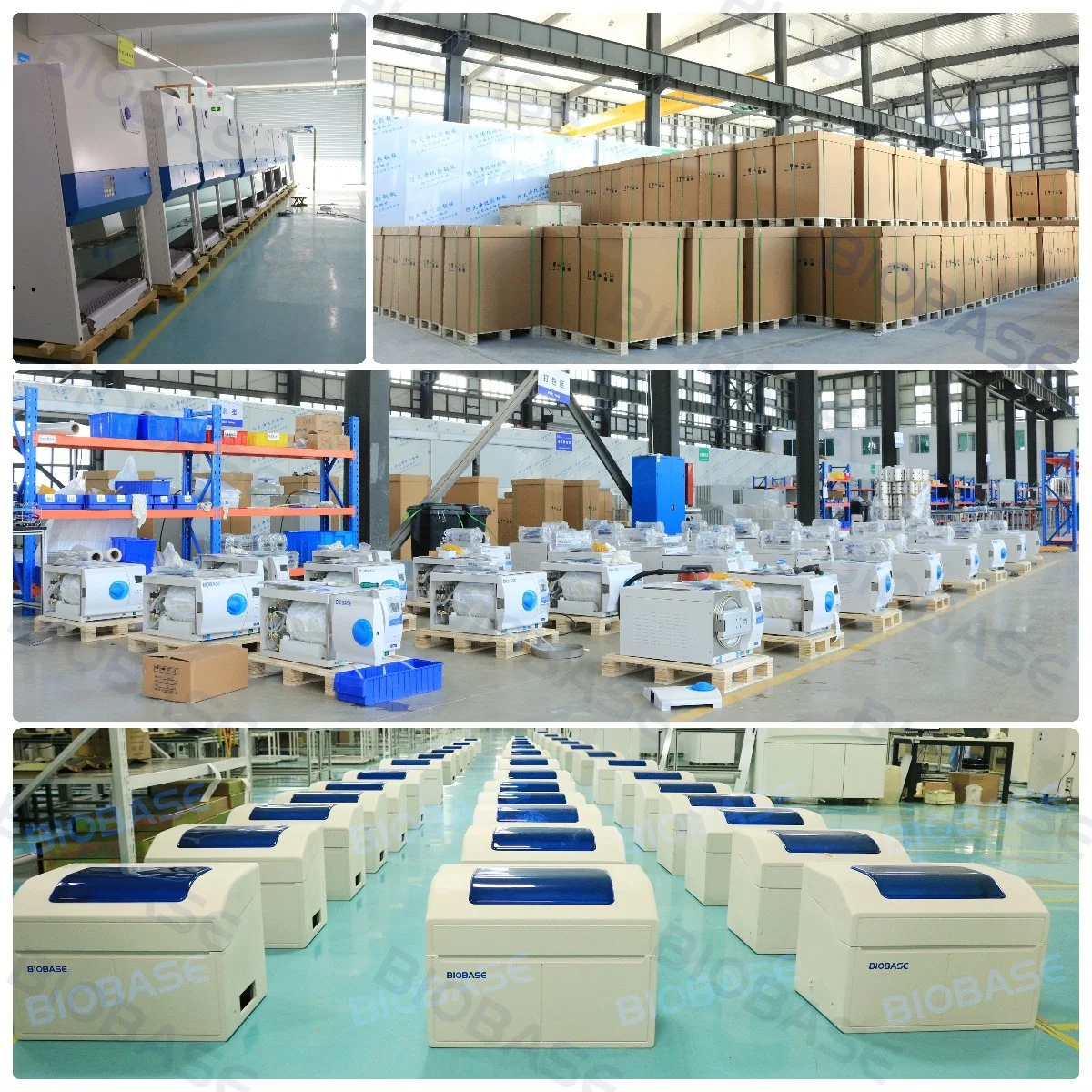

Company and factory
