RZLH C45T 50 80 times/min Advanced Automatic Easy setup Disposableroasting pan take away food paper container making machine
- Category: >>>
- Supplier: Wenzhou Ruizhi Packing Machinery Co. Ltd.
Share on (1600847626261):
Product Overview
Description

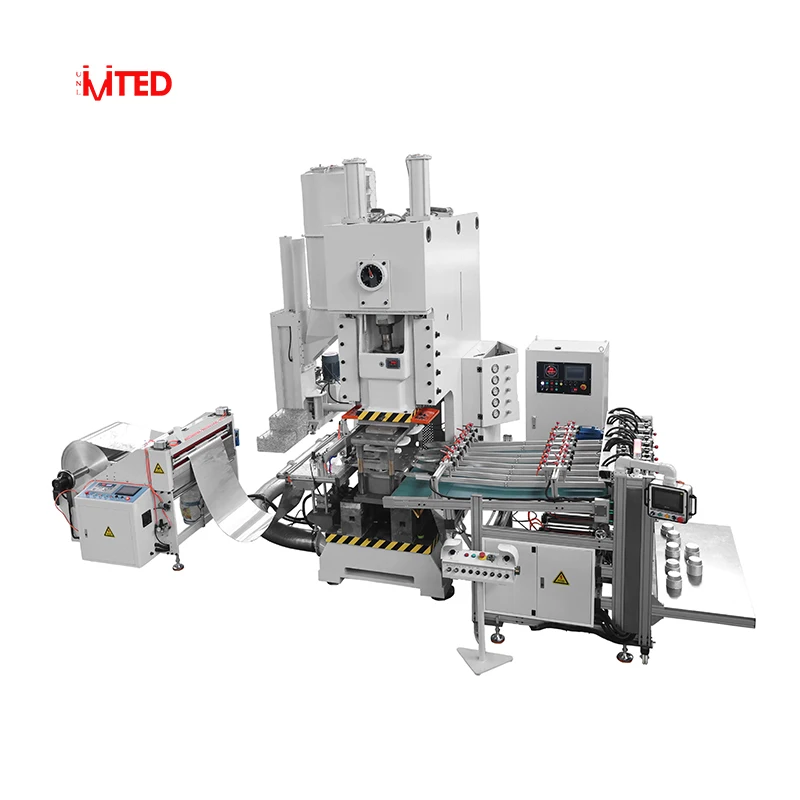

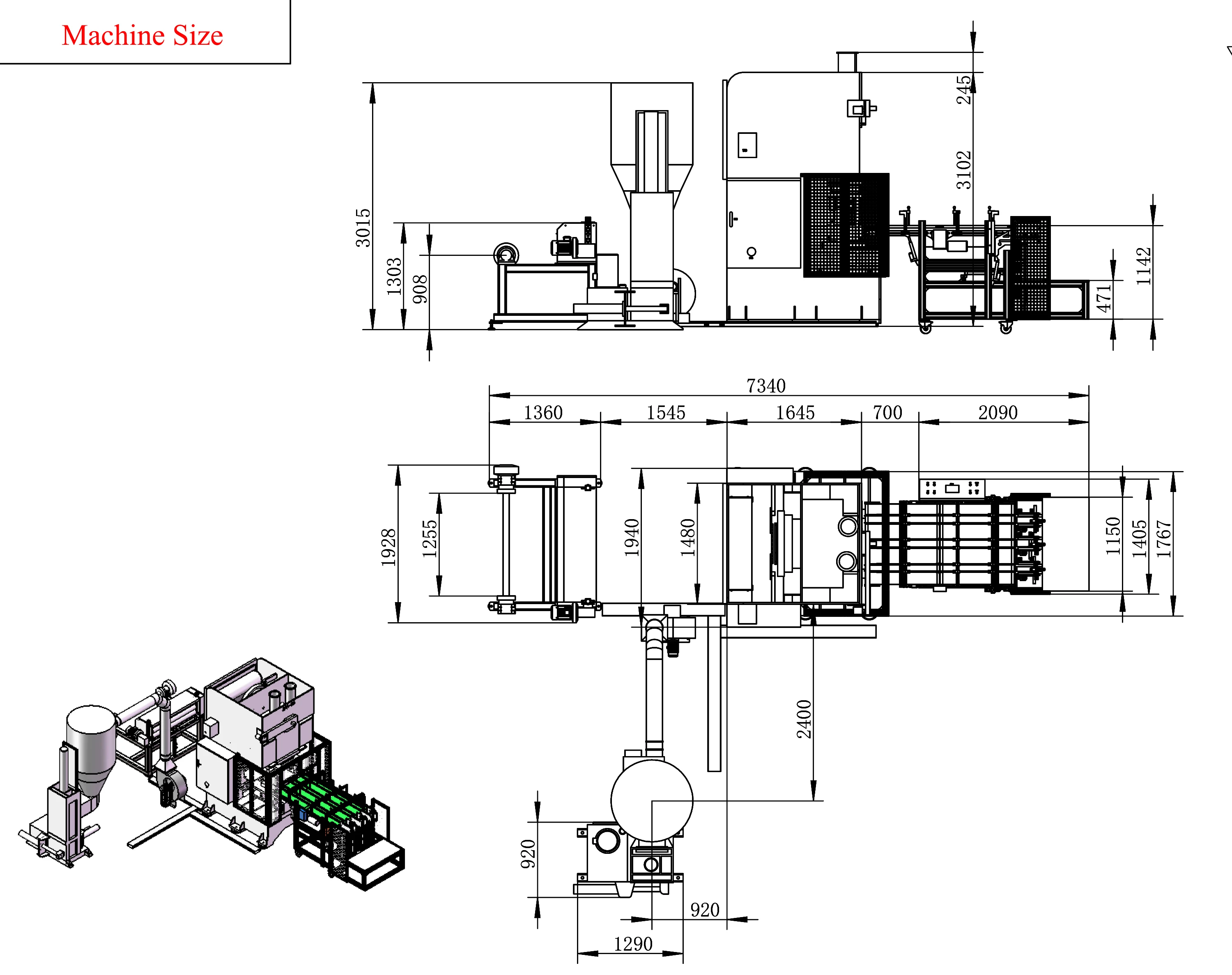

Aluminum foil container production line description
Components of this production line: 1. Auto-feeder with lubrication system 2. Punching machine 3. Auto-stacker 4. Auto-scrap collector 5. Electrical control system 6. Stamping mold Production Steps: Lubricating material------Feeding material------Punching by the press------Collecting product by the stacker------Collecting scrap by the scrap collector Our Advantage: 1. Our guarantee time is one year, if any component is damaged during guarantee time, we can send the component to the customer by DHL, TNT freely. 2. Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely. 3. Our factory provide the service for the customer forever, if the customer need operation help, can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service. Our factory also will make DVD to show the operation steps for the customer. Main features: 1、The production line can be configured with single-cavity and multi-cavity molds, which can increase the productivity exponentially. 2、Adopt high quality control system and electrical device to make the production more accurate, stable and safe. 3、We can design and customize the production line with different configurations and electrical devices according to customers' needs to meet different customers' demands. |

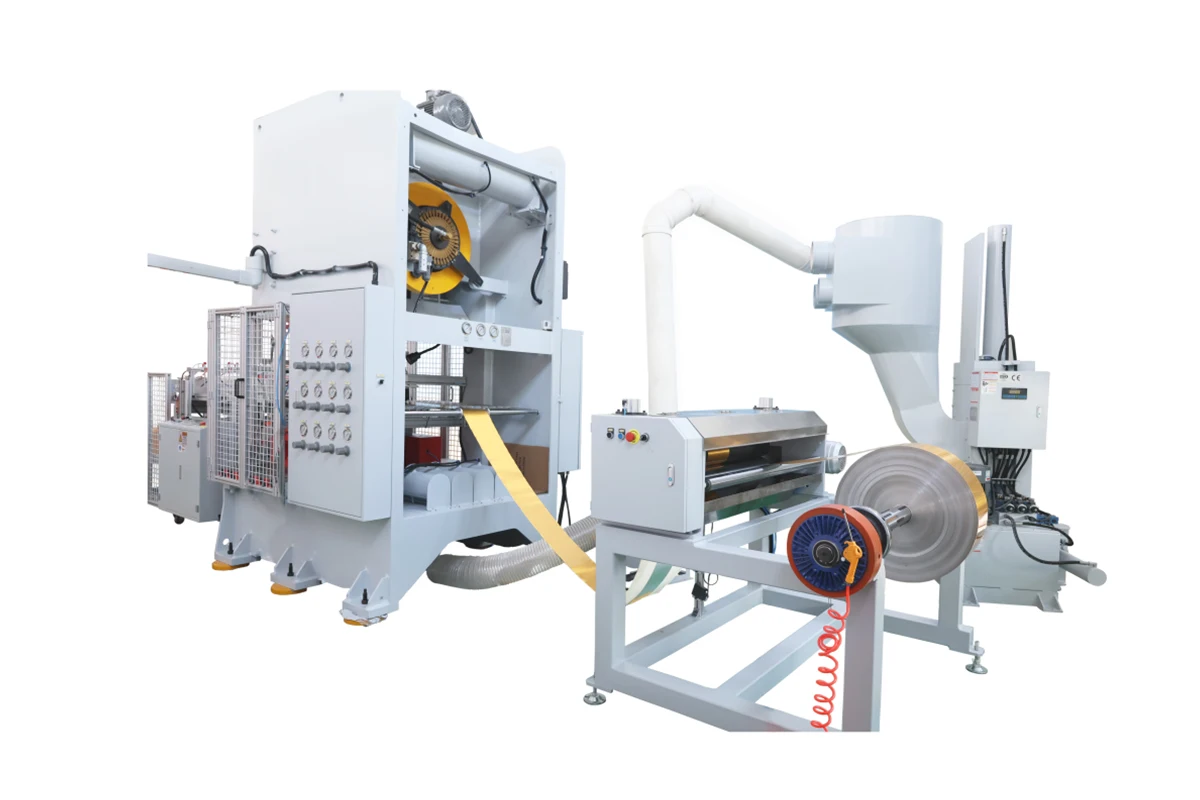

Forming Machine Description
MAIN TECHNICAL PARAMETERS | ||||
NAME | UNIT | RZLH-C45T | RZLH-C63T | RZLH-C80T |
NOMINAL FORCE | KN | 450 | 630 | 800 |
NOMINAL FORCE STROKE | mm | 4 | 4 | 5 |
SLIDER STROKE | mm | 220 | 240 | 260 |
TRIP TIMES/INVERTER | TIMES/MIN | 50-80 | 50-70 | 35-55 |
MAX. LOADING HEIGHT | mm | 760 | 780 | 820 |
MAX. ADJUSTMENT HEIGHT | mm | 60 | 80 | 100 |
SLIDER CENTER TO MACHINE | mm | 440 | 440 | 610 |
PLATE DIMENSION (front and back×left and right×thickness) | mm | 600×1000 | 1000×1000 | 1200×1400 |
SLIDER BOTTOM DIMENSION (front to back × left to right) | mm | 220×400 | 400×480 | 420×460 |
SHANK HOLE DIMENSION (diameter*depth) | mm | Φ50×60 | Φ50×80 | Φ50×80 |
BENCH PLATE THICKNESS | mm | 100 | 100 | 100 |
COLUMNS DISTANCE | mm | 630 | 680 | 760 |
MOTER POWER | kW | 7.5 | 11 | 11 |
AIRE PRESSURE | MPa | 0.55 | 0.55 | 0.55 |
Basic Configuration | ||
NO. | NAME | BRAND/ORGIN |
1 | Steel plate welded body, fireplace annealed | RUIZHI |
2 | Dry Type Clutch | High performance, high torque clutch |
3 | Bearings | Tile shaft |
4 | Simmerring oil seal | NAK |
5 | Safety duplex valve | ROSS |
6 | Electric grease main lubrication system | CNP |
7 | Manual lubrication pump for balance cylinder | ISHAN (Zhejiang or Taiwan) |
8 | Air source treatment two-piece, regulator | SMC |
9 | Main motor | Siemens |
10 | Programmable Controller PLC | Imported brands |
11 | Integrated panel (with electronic cam, LED indicator) | DUCH AUTOMATION |
12 | Preset counter (electronic cam built-in) | DUCH AUTOMATION |
13 | AC Contactors | Schneider |
14 | Two-handed button | Fuji |
15 | Switches, air switches | Schneider |
16 | Switching power supply | DELTA |
17 | Second-degree drop detection switch | Schneider |
18 | Five-hole power outlet | Schneider |
19 | Bolts, screws and other fasteners | JINGYI TAIWAN |
20 | Blowing pieces (blowing) device one group | AIRTAC TAIWAN |
21 | Copper rail | SPECIFIC ALLOY STEEL |

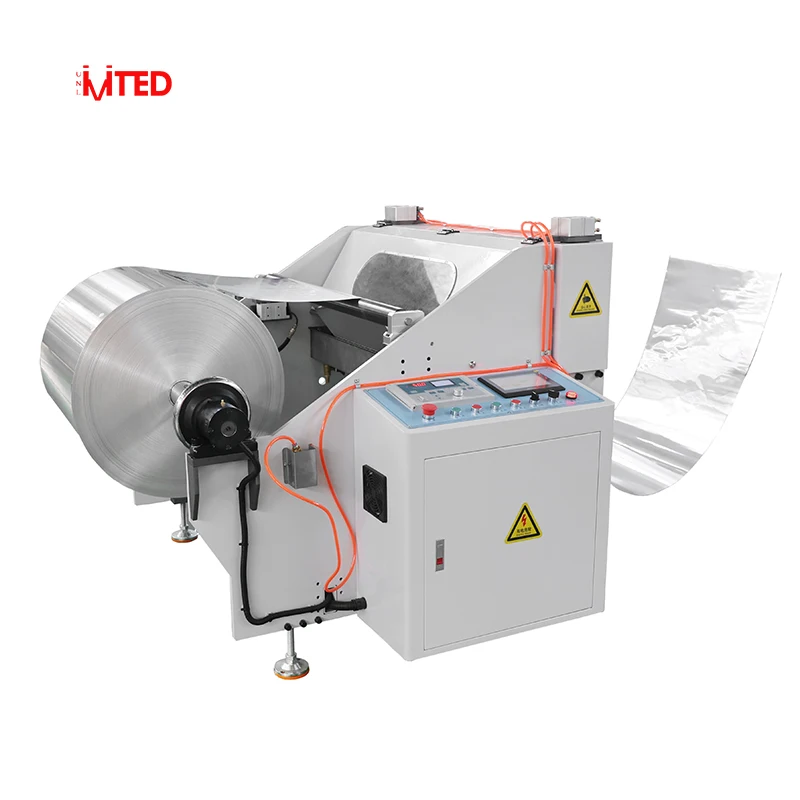

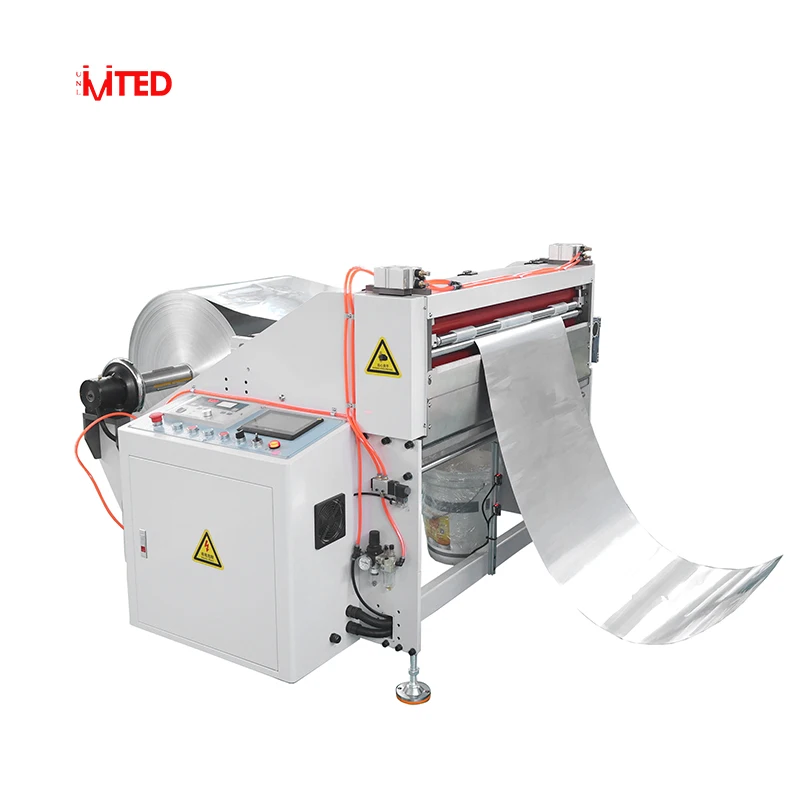

Feeder Description
Product characteristics 1. According to the new split body without high -end wrinkle -free products, the whole machine is installed on the punch on the bed, which is easy to install, saves time and effort, and easy to use; 2, the premium uses a safe sandwich, which is more convenient, efficient and safe. (3 -inch or 6 -inch gas rising oil can be selected.) The feeder is convenient for the feeder. It is easy to wear and the free -tension free tracking. 3, adopt imported material glue, three -axis oily structure, uniform, stable, not wrinkled, clean and oil -saving, long -term service life of the glue shaft; 4, the feed header part uses dual servo synchronous feeding, wearing planetary reducer, high accuracy, no partial subject, and more stable. Can meet the feeding needs of wrinkles and wrinkles. The interface is friendly, provides super -operating capabilities and flexibility, kind and intuitive, and powerful functions (such as language conversion product count and memory function, etc.); 5, no material stopping the bed, the material color label tracking. |
Main technical parameters | ||||||
TECHNICAL PARAMETERS | RZ-800 | RZ-900 | RZ-1000 | RZ-1200 | RZ-1300 | |
FEED WIDTH（mm） | 800 | 900 | 1000 | 1200 | 1300 | |
FEED THICKNESS（mm） | 0.03-0.2 | 0.03-0.2 | 0.03-0.2 | 0.03-0.2 | 0.03-0.2 | |
FEED SPEED（M/min） | 20 | 20 | 20 | 20 | 20 | |
FEED ACCURACY（mm） | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | |
POWER（Kw） | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | |
VOLTAGE（V） | 220 | 220 | 220 | 220 | 220 | |
BODY DIMENSION（mm） | L | 1220 | 1220 | 1220 | 1500 | 1500 |
W | 1500 | 1600 | 1700 | 1930 | 2030 | |
H | 1200 | 1200 | 1200 | 1300 | 1300 | |
HEAD DIMENSION（mm） | L | 600 | 600 | 600 | 600 | 600 |
W | 950 | 1050 | 1150 | 1400 | 1500 | |
H | 1070 | 1070 | 1070 | 1070 | 1070 | |
Stacker Description

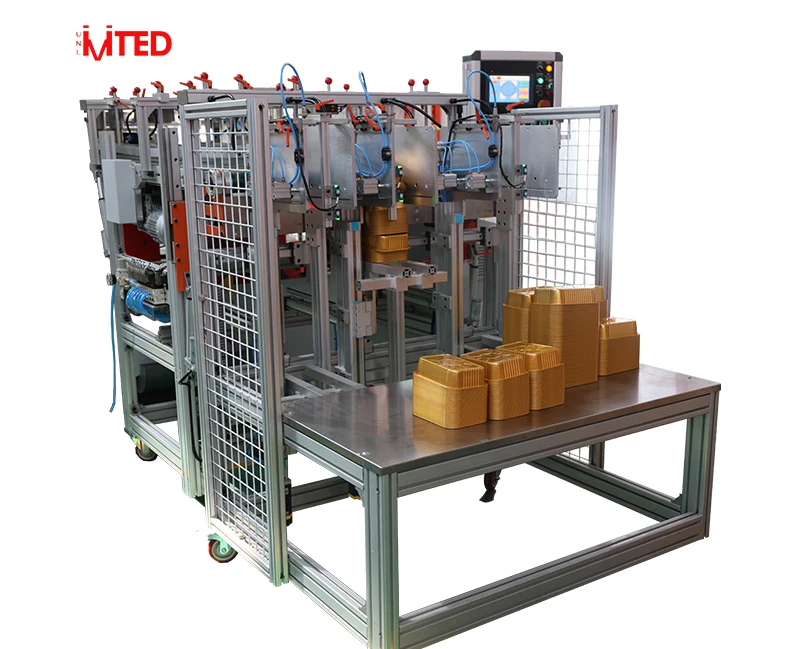

Product characteristics 1、Structure of the profile framework is beautiful and solid, which is in line with the collection of various aluminum foil lunch boxes, aluminum foil containers, and aluminum foil packaging box 2、The design uses no need to complete the adjustment of various aluminum foil containers. The operation is simple and convenient 3、The design is suitable for the use of various aluminum foil container molds, with detection of mold cards and materials, better protection to molds and equipment 4、The lifting platform is independent research and development of servo lifting structures, with high precision, fatigue resistance, and long service life |
Main technical parameters | ||||||
Technical Parameters | RZ-1 | RZ-2 | RZ-3 | RZ-4 | RZ-5 | |
Track | 1 Line | 2 Line | 3 Line | 4 Line | 5 Line | |
Thickness（mm） | 0.03-0.2 | |||||
Speed（M/min） | 20 | |||||
Motor Power（Kw） | 0.75 | 1.5 | ||||
Motor voltage（V） | 220 | |||||
Dimensions（mm） | L | 2610 | 2610 | 2610 | 2610 | 2610 |
W | 810 | 1130 | 1430 | 1622 | 1870 | |
H | 1550 | 1550 | 1550 | 1550 | 1550 | |
Basic Configuration | ||
NAME | NO./ SPECIFICATION | BRAND/MANUFACTURER |
Stacking mechanical cylinder | SC40x400S | SMC |
Touch screen | SMART 700IEV3 | MITSUBISHI |
PLC | FX3GA-60MR | MITSUBISHI |
Inverter | FR-D740-1 | MITSUBISHI |
AC contactor | LC1N0901 | Schneider |
Relay | RXM24VDC | Schneider |
Signal amplifier | FX-101-CC2/UFX101CC2 | panasonic |

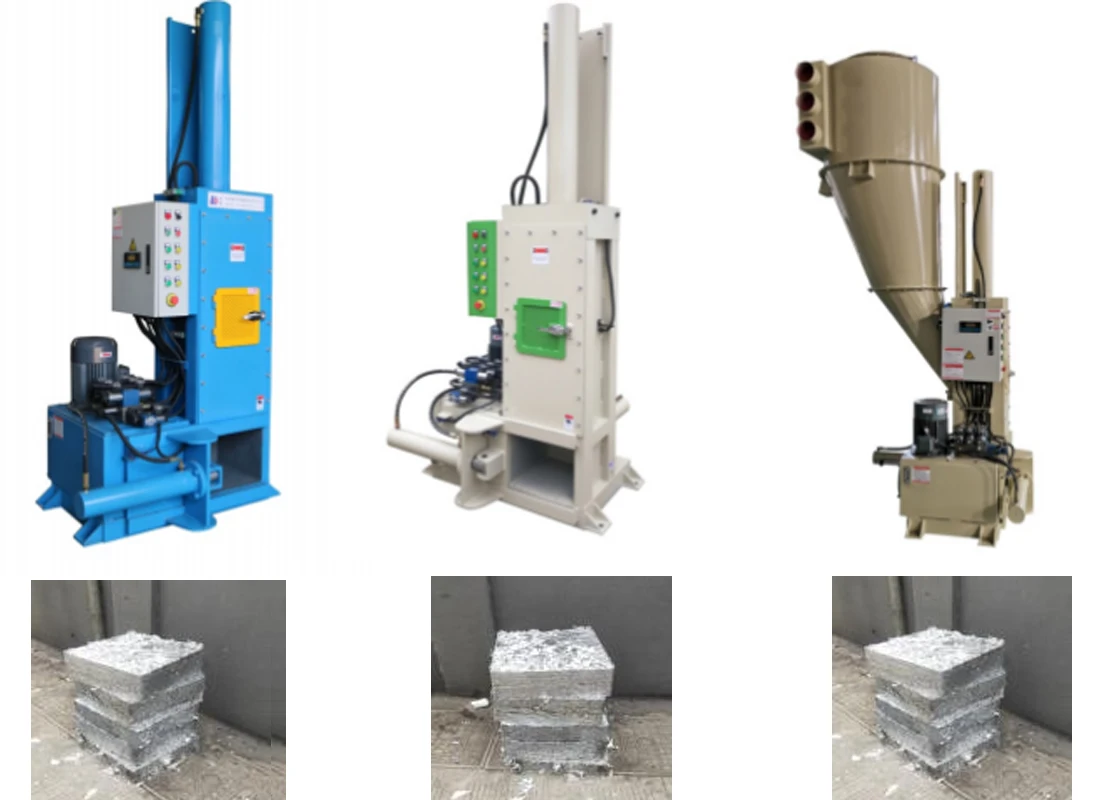

Scrap machine Description
Vertical aluminum foil block machine 1、Scope of application: It is applied to the collection, transportation and compression of the corners of the production lines such as aluminum foil lunch boxes, tinon boxes 2、Features: Full automatic work, you can directly connect to the product production line, and directly compress the air duct conveyor to the block machine. It saves the time of artificial collection and transportation; saves stacking space, facilitates transportation and storage; disposable compression molding, large compression ratio, high molding efficiency |
Pressure | 30 tons |
Main liquid voltage cylinder | YG140/90- 1000mm |
Blank Size | W300×H300 mm |
Packing Size | W400×D400×H(100~300)mm |
Packaged Weight | 10-30kg |
Hydraulic system pressure | 16 MPa |
Motor Power | 5.5 KW / 7.5HP |
Hydraulic Pump | CBTt-f320F3P7 |
Feeding Method | Air duct feeding |
Operation Mode | Fully automatic |
Power | 3P—200V/220V/380V/400V/415V—50/60Hz |
Hydraulic oil specification | L—HM 46 |
Effective volume of fuel tanks | 140L |
Host volume | 1350mm×1400mm×2750mm (L×W×H) |
Maximum volume of the separator | 4241 m³/ h |
Separator interface diameter | ≤ 150mm |
Weight | 1120kg (lead) +220kg (Splitter) |
Component brand configuration | |
Motor | Siemens BEIDE |
Hydraulic pump | SDH |
Hydraulic valve part | HYTEK |
PLC | MITSUBISHI |
Main control electrical appliances | SCHNEIDER |
Limit switch | SCHNEIDER |
Sample Display
Send us the sample style you want, We'll do the rest. |
Enterprise Advantage
We will send technician to your factory to install the machine, and teach your workers to use it |
FAQ
Q: Are you a factory or trading company? A：We are a factory, established in 2003, with a professional team to solve various problems of environmentally friendly Aluminum foil tableware for you Q: How does your factory do regarding quality control? A: We have a professional QC department in charge of products' quality. Q: How long is the warranty period? A: 12 months calculated from the date of shipment from our factory. During warranty period, except the artificial factor, the spares are free to replace，beyond the warranty time, the buyer needs to pay the spare charge and shipping cost. Q: How to install the machine? A: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary. Q: Where is your factory located? How can we visit there? A: Our factory is located in WENZHOU city,. We will provide transporation service during your visit at our factory. Q: What information should I let you know if I want to get a quotation? A: The size and thickness of the product, Send sample picture if available. Then we will recommend the right machine to you! |
