Product Overview

Description

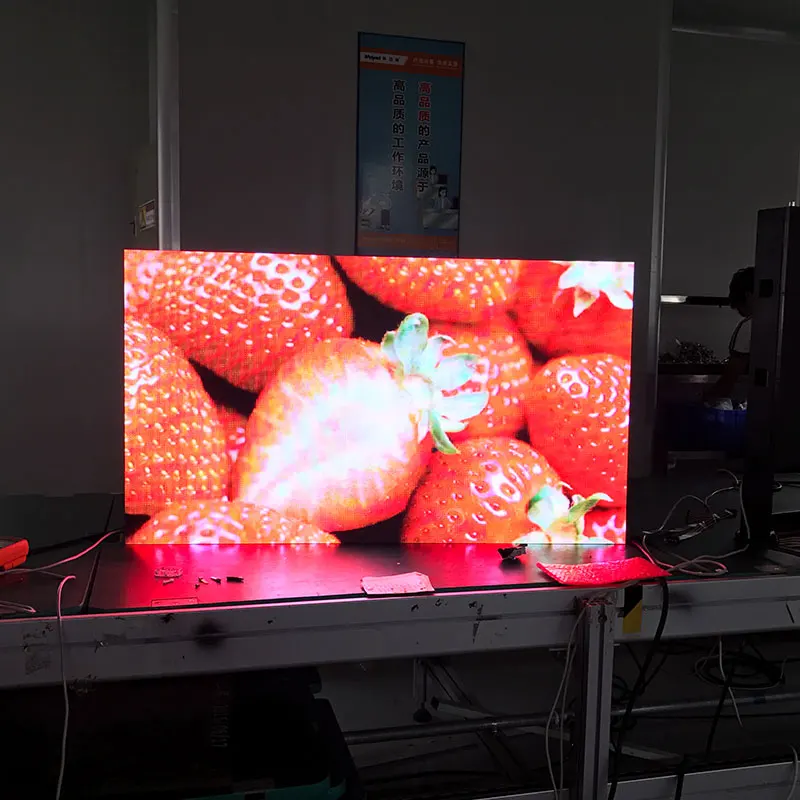

256*128mm P2 full color  indoor use LED sign



Pixel pitch			P2
Module Parameters		Pixel pitch	2mm
		Pixel Density	250000dots/m²
		LED type	SMD 1515
		LED Configuration	1R1G1B
		Module Resolution	128dots*64dots
		Module Size	256*128mm
		Drive Method	1/32
		Weight	0.39KG/pcs
Display  Parameters	Optical	Brightness	1000CD/m²
		Viewing angle	H/V 140/140
		Best Viewing Distance	2-80 m
		Grey Scale	14 Bit
	Power	Max power consumption	25W/pcs
		Ave power consumption	10W/pcs
		Working Voltage	220V / 110V
	Reliability	Working Temperature	-20 to 60 ℃
		Working Humidity	10-95% RH
		Life Span	100,000 Hours
		Pixel failing Rate	0.002%
		IP Rate	IP43

Advantages:

1.High Refresh Rate

2.High Brightness

3.Vivid Video Quality

4.Seamless Splicing











Our Services

 1.Reply enquiries in 24 hours.



2. Provide unique and professional solutions based on customer's requirement.



3.Market research and forecast for customer.



4)Protection of your sales area,ideas of design and all your private information



5)Top Quality+Reasonable Price+Responsible After Service

Trade Terms



1.Payment:T/T,30% deposits ,70% balance to be paid before delivering



2.By Air or Ship based on our customers' needs



3.Shipping port:ShenZhen,Mainland China



4.MOQ:1pc

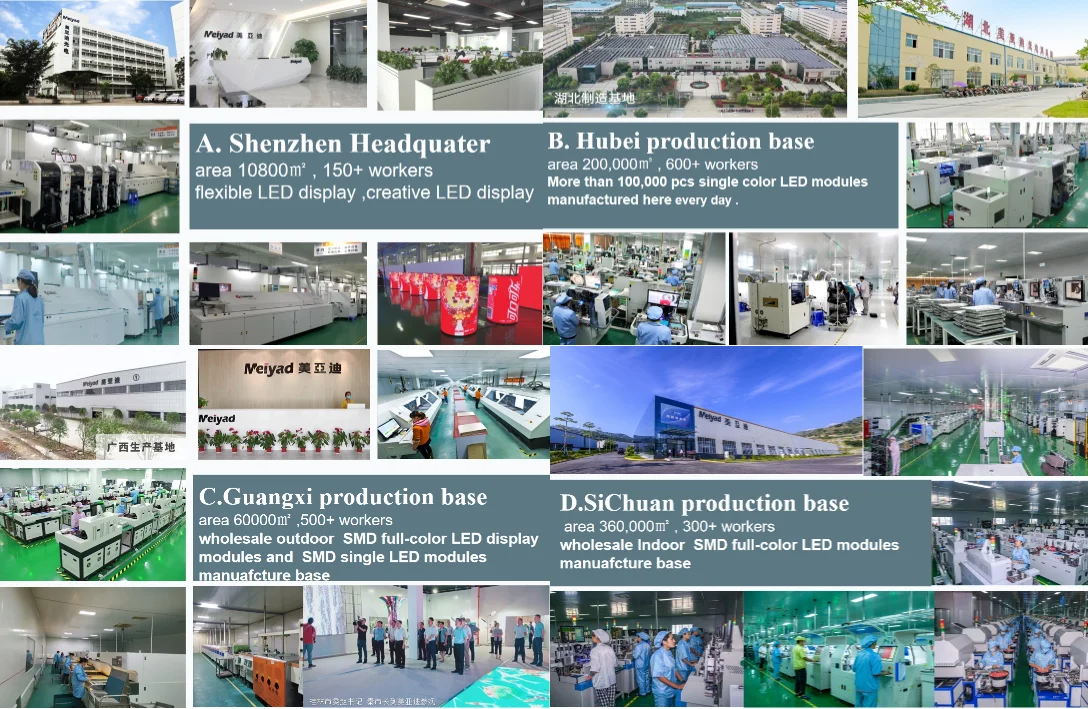

Company Information:



Meiyad Optoelectronic CO., LTD., as a national high-tech enterprise, which established in 2008, is always devoting in led display research &

development, manufacture, sales & service. Head office operating center and the largest manufacturing base in Shenzhen China. Powerful

support covering multinational branches / offices in Russia,Indonesia, Iran, India, and etc.

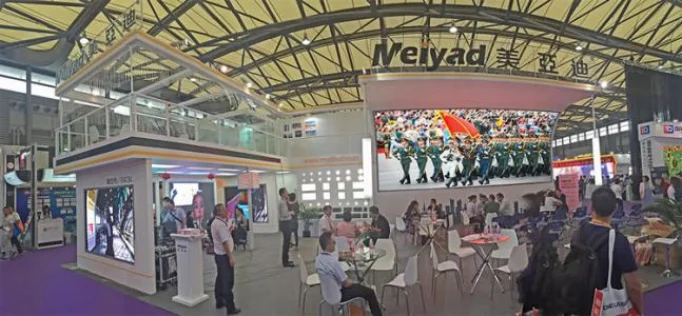

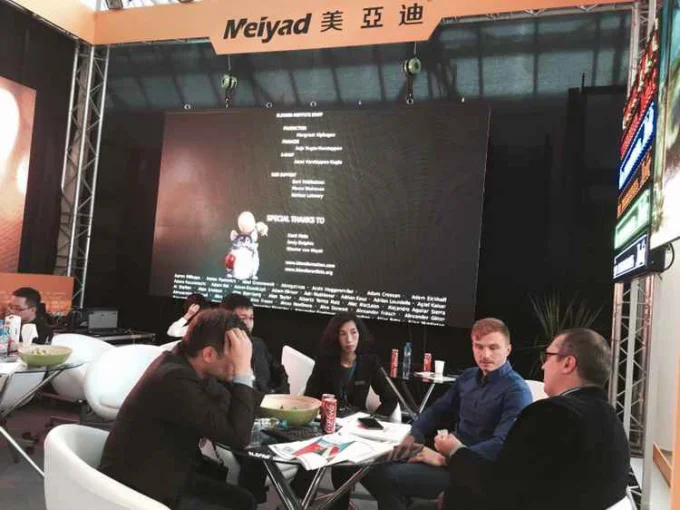

LED Fair

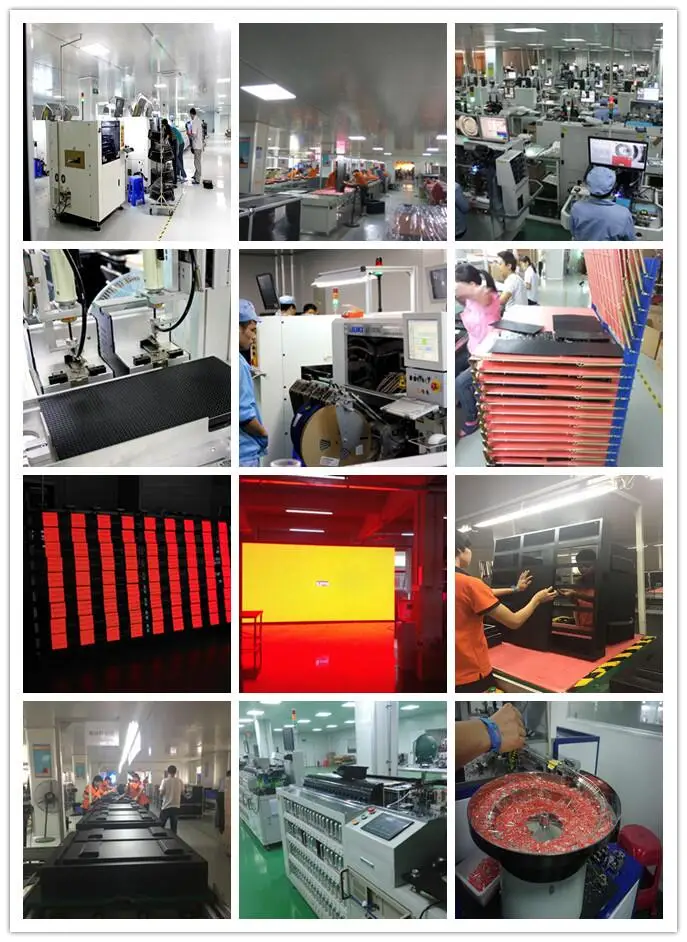

Product Process

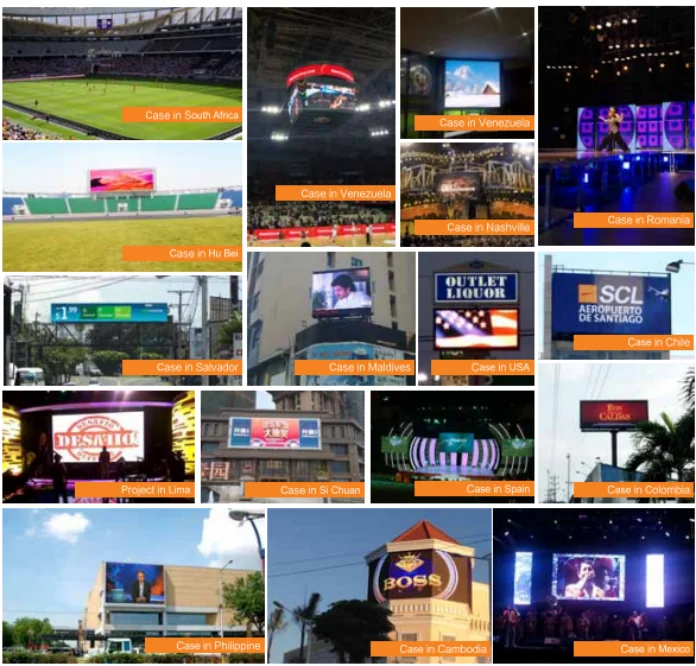

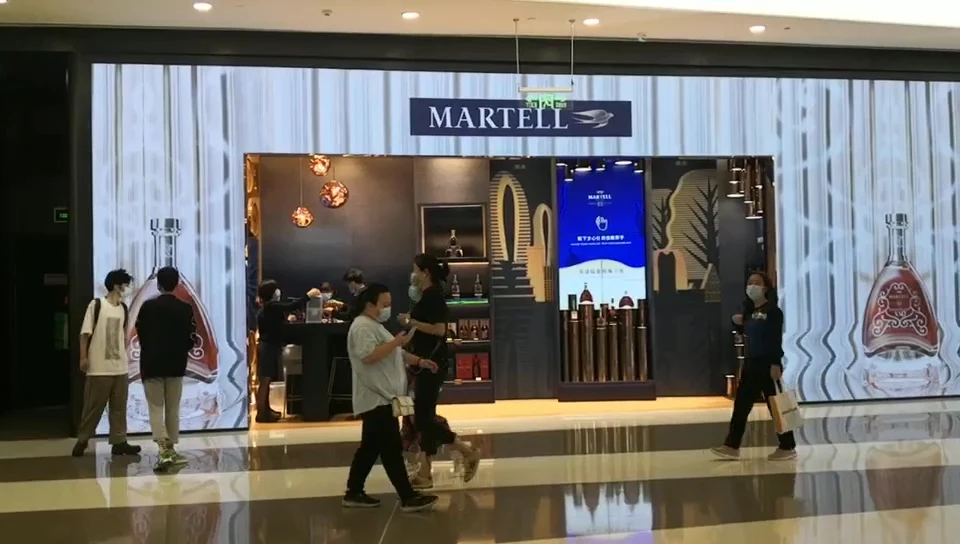

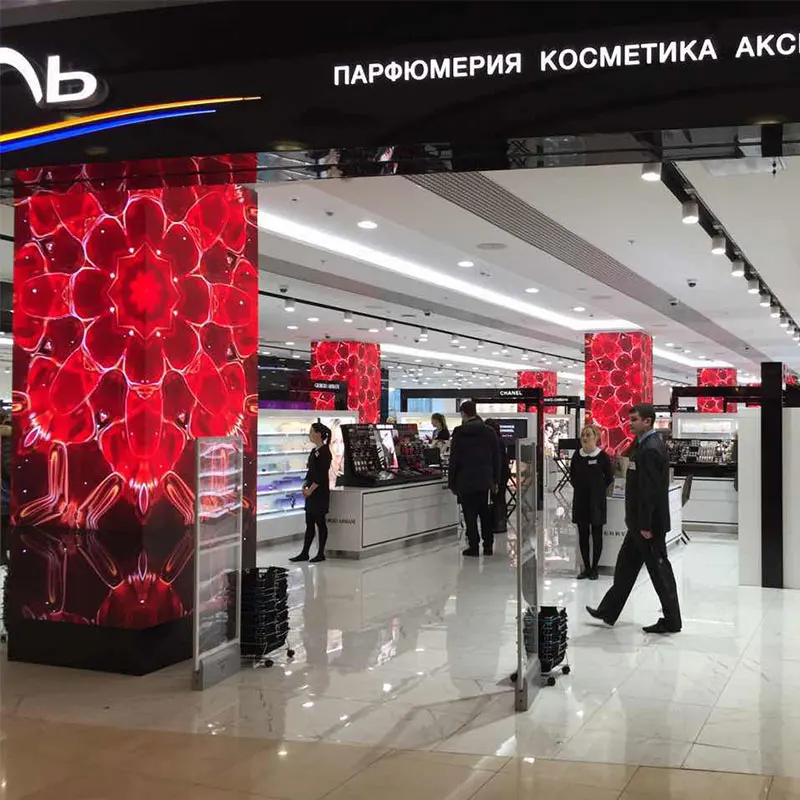

Company cases
