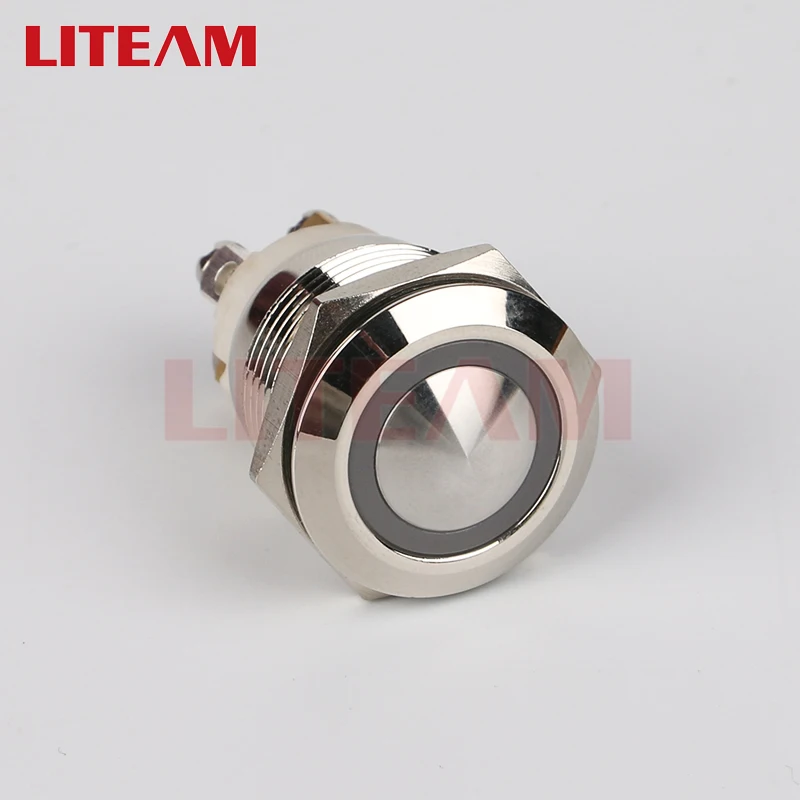

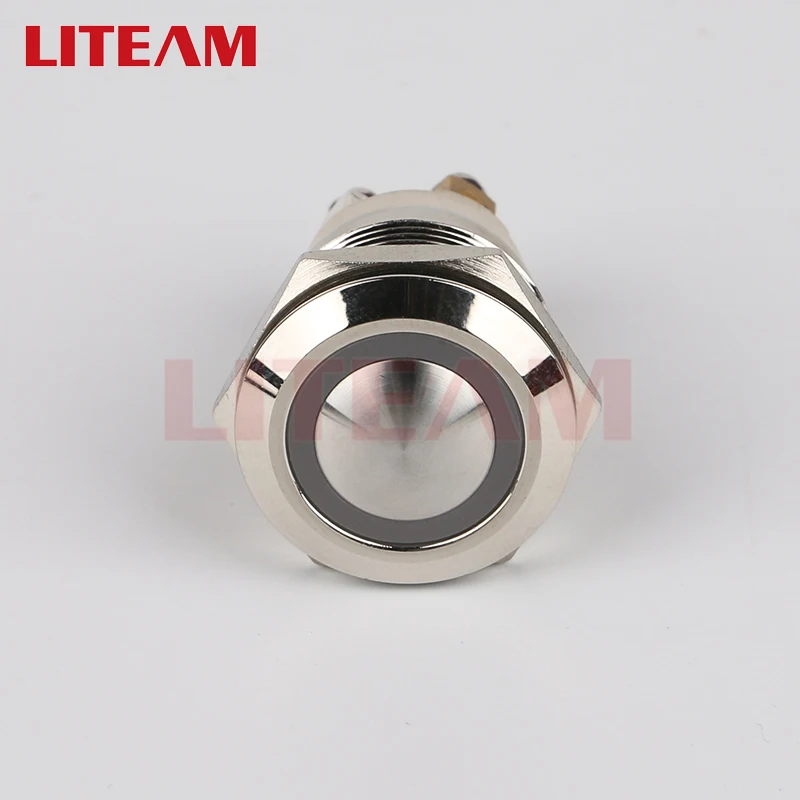

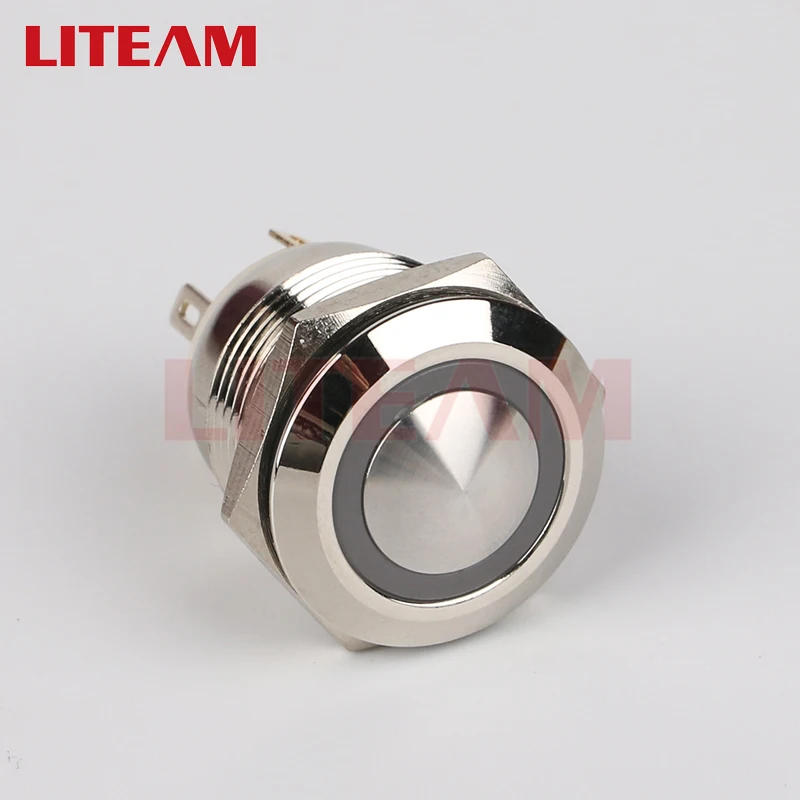

19mm Momentary Latching 12v 1no1nc Flat Round Head Ip65 On Off Dome Head 4pin Screw Terminal Waterproof Metal Push Button Switch
- Category: >>>
- Supplier: Yueqing Liteam Import & Export Co. Ltd.
Share on (1600847652632):
Product Overview
Description
LITEAM - Product Description
FEATURES:
1. Corrosion resistance, excellent impact resistance and vibration resistance.
2. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
2. The upper exposed part of the product has excellent characteristics: waterproof, dust-proof, oil-proof, pressure-resistant, and anti-corrosion.
3. The volume is small and exquisite, the exterior is delicate, economy applicable, cost-effective.
LITEAM - Service
√Personalized customization:
※ Customized LED Symbols；
※ Customized LED COLOR:
RED, GREEN, YELLOW, BLUE, WHITE , or No LED Illuminated ；
※ Customized LED Lamp:
Single-color Lamp/Bi-color Lamp/Tri-color Lamp ;
※ Shell Material:
Stainless Steel/Nickel Plated Brass/Aluminium oxide ；
※ Customized Shell COLOR:
BLACK, GOLD, RED, GREEN, BLUE...(Or the original color) ;
......
√Available to offer Samples/Trial orders.
......
⭐⭐⭐Welcome to send us an inquiry to discuss more details.
Switch Type : | Customized 19mm Metal Push Button Switch |
Model Number : | LT19B-10E/S |
Mounting Hole Size(Diameter) : | 19mm |
Head Type : | Dome Head |
Contact Configuration : | 1NO |
LED Lamp : | Ring Shaped LED Lamp |
LED Color : | RED, GREEN, YELLOW, BLUE, WHITE |
Operation Type : | Momentary |
Terminal Type : | Screw Terminal |
Shell Material : | Stainless Steel |
Switch Shell Color : | Silver Shell |
Brand Name : | LITEAM | LITEAM | |||||||
Certification : | CE | CE | |||||||
Rated Current : | 5A | Max. Voltage : | 250V | ||||||
Protection grade : | IP65/IP67/IP68; IK08/IK10 | Mechanical Life : | More than 1 million time | ||||||
Contact Resistance : | ≤50mΩ | Insulation Resistance : | ≥1000MΩ | ||||||
Working Environment Humidity : | Working Environment Humidity | Working Temperature : | -25°C ~ +55°C (No freezing; Air circulation) | ||||||
Vibration Resistance : | 50HZ, Amplitude ≈ 1.2mm | Accessories : | Nut, Waterproof O-ring | ||||||
Operation Type : | Momentary(Spring return) ; Latching(Self locking) | ||||||||
Contact Configuration Introduction : | NO=Normal Open ; NC=Normal Close | ||||||||
LITEAM
METAL
PUSH BUTTON SWITCH
-------------------------------------------
METAL HOUSING:
▨ Stainless Steel Shell
▨ Nickel Plated Brass Shell
▨ Aluminium Alloy Shell
▨ Stainless Steel Shell
▨ Nickel Plated Brass Shell
▨ Aluminium Alloy Shell
ADVANTAGES:
▨ Anti-corrosion
▨ Fire-proof
▨ Dust-proof
▨ Explosion-proof
▨ Waterproof
......
LITEAM
METAL
PUSH BUTTON SWITCH
-------------------------------------------
LED ILLUMINATED:
▨ High-brightness Pure Color LED Light
▨ Long Service Life
▨ Voltage Range: 3~250V
OR NON-ILLUMINATED
▨ Without LED Lamp
LITEAM
METAL
PUSH BUTTON SWITCH
METAL
PUSH BUTTON SWITCH
-------------------------------------------
PREMIUM WATERPROOF
▨ IP65 Waterproof Degree
▨ Waterproof Silicone Sealing Ring in Internal
▨ Waterproof Rubber O-ring Attached
LITEAM
METAL
PUSH BUTTON SWITCH
METAL
PUSH BUTTON SWITCH
-------------------------------------------
HIGH QUALITY
FIAME RESISTANCE BASE
▨ PA66 Nylon Base▨ More safe & reliable

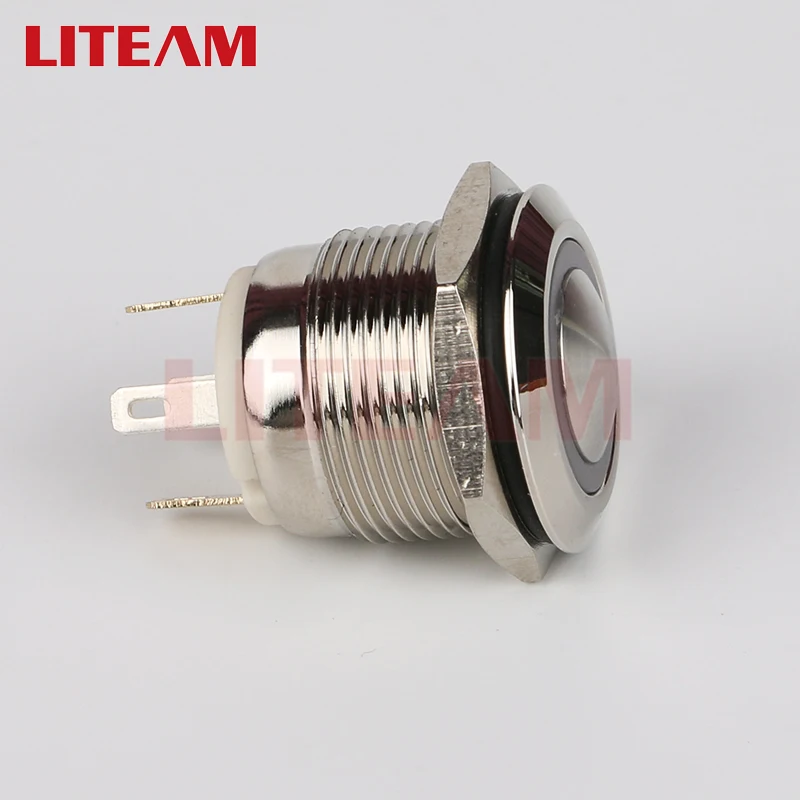

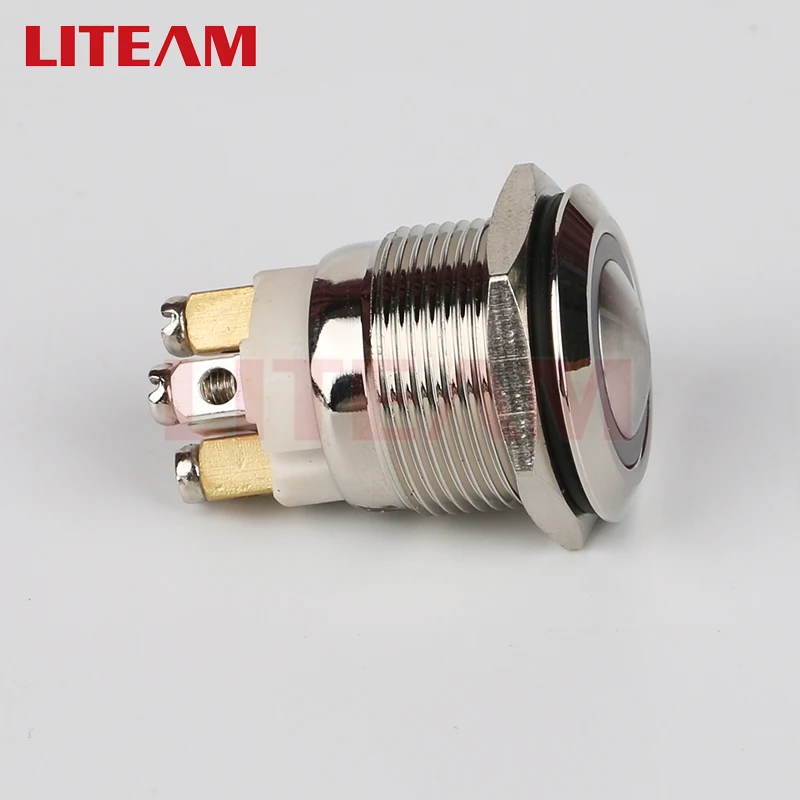

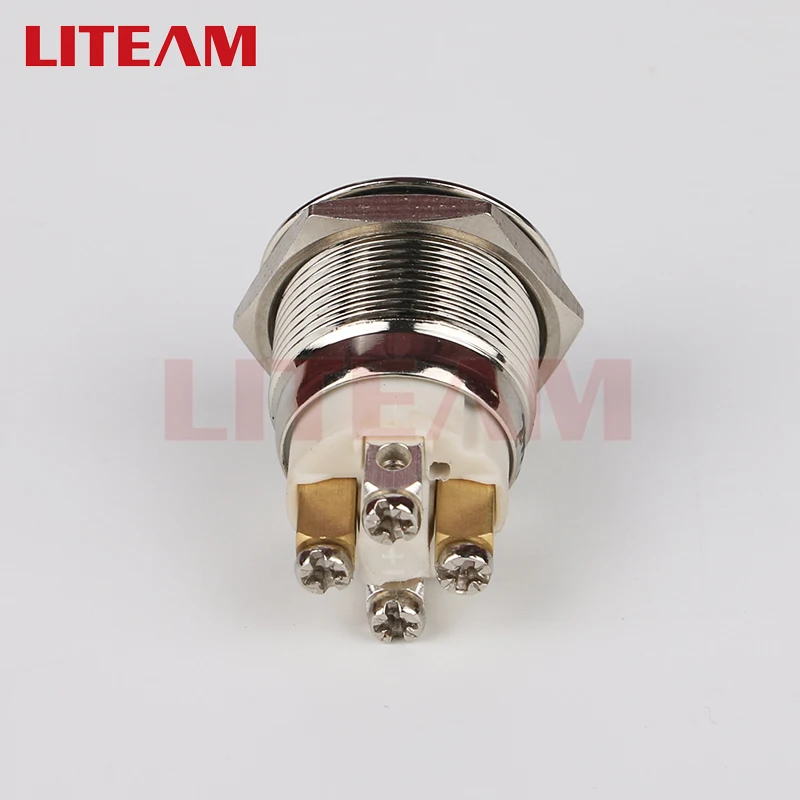

SCREW / SOLDER TERMINAL
▨ High Quality Silver Plated Contacts & Terminals
LITEAM
METAL
PUSH BUTTON SWITCH
METAL
PUSH BUTTON SWITCH
-------------------------------------------

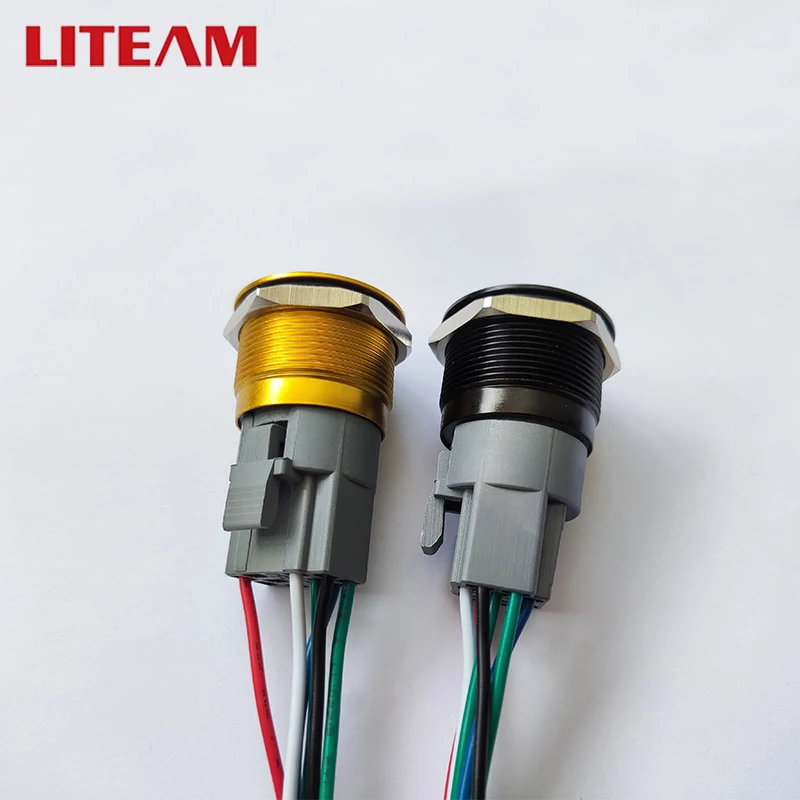

(SWITCH WITH PIN TERMINALS ONLY)
▨ High Quality Flame Resistant Material
▨ 15cm Long Cable Wire
▨ Matched for :
16mm, 19mm, 22mm, 25mm
Diameter Metal Switches
Related Top Picks
Apply Scenario
Wide Usage Range:
You can use this metal push button switch to replace the light switch or other control switches in the cars/ boats/ trucks, use it as a doorbell, entrance guard push button switch in the outdoors, or a replacement switch of household appliances, such as table lamp switch, PC power switch, Audio switch, or switch for device of instrument and meter industry ......
Product packaging
Company Profile
Yueqing Liteam Import & Export Co., Ltd. Established on 2013.Our Company is a professional manufacturer and exporter that is concerned with design, development and production of various switches, connector plugs&sockets.
We are located in Yueqing Zhejiang, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets.Our well-equipped facilities and excellent quality control throughout all stage of production enables us to guarantee total customer satisfaction.
If you are interested in any of our product or would like to discuss a custom order, please feel free to contact us. We are looking forward for forming successful business relationship with new clients around the world in the near future.
FAQ
1. Could I get some samples?
Sure, we're willing to offer samples to you for test our quality, and welcome to share us your after using experience/feedbacks, we will do our best to offer you a better services.
Sure, we're willing to offer samples to you for test our quality, and welcome to share us your after using experience/feedbacks, we will do our best to offer you a better services.
2. How to get a sample?
Send us an inquiry, and share us about your requirements of the product, we will help to check the best suitable product for you immediately.
3. When can I get the price?
The price will be quoted as soon as we confirmed the details/your requirements of the product.
4. Could you help to do some personalized customization design on the product?
Sure, welcome to contact us and show us the details of your designs.
5. What is the price of shipping?
Depending upon the port of delivery, prices varies. But no worry, we will always help to check the most best freight for you.
6. How soon could you delivery my order?
3~7 days for sample/trial order; 5~12 days for bulk order.
Send us an inquiry, and share us about your requirements of the product, we will help to check the best suitable product for you immediately.
3. When can I get the price?
The price will be quoted as soon as we confirmed the details/your requirements of the product.
4. Could you help to do some personalized customization design on the product?
Sure, welcome to contact us and show us the details of your designs.
5. What is the price of shipping?
Depending upon the port of delivery, prices varies. But no worry, we will always help to check the most best freight for you.
6. How soon could you delivery my order?
3~7 days for sample/trial order; 5~12 days for bulk order.
