Good adhesive PVDF powder for Lithium Ion Battery Binder PVDF Polyvinylidene Fluoride resin for LFP Electrodes bond raw material
- Category: >>>
- Supplier: Jiangsu FreChem Co. Ltd.
Share on (1600847655729):
Product Overview
Description
Product Description

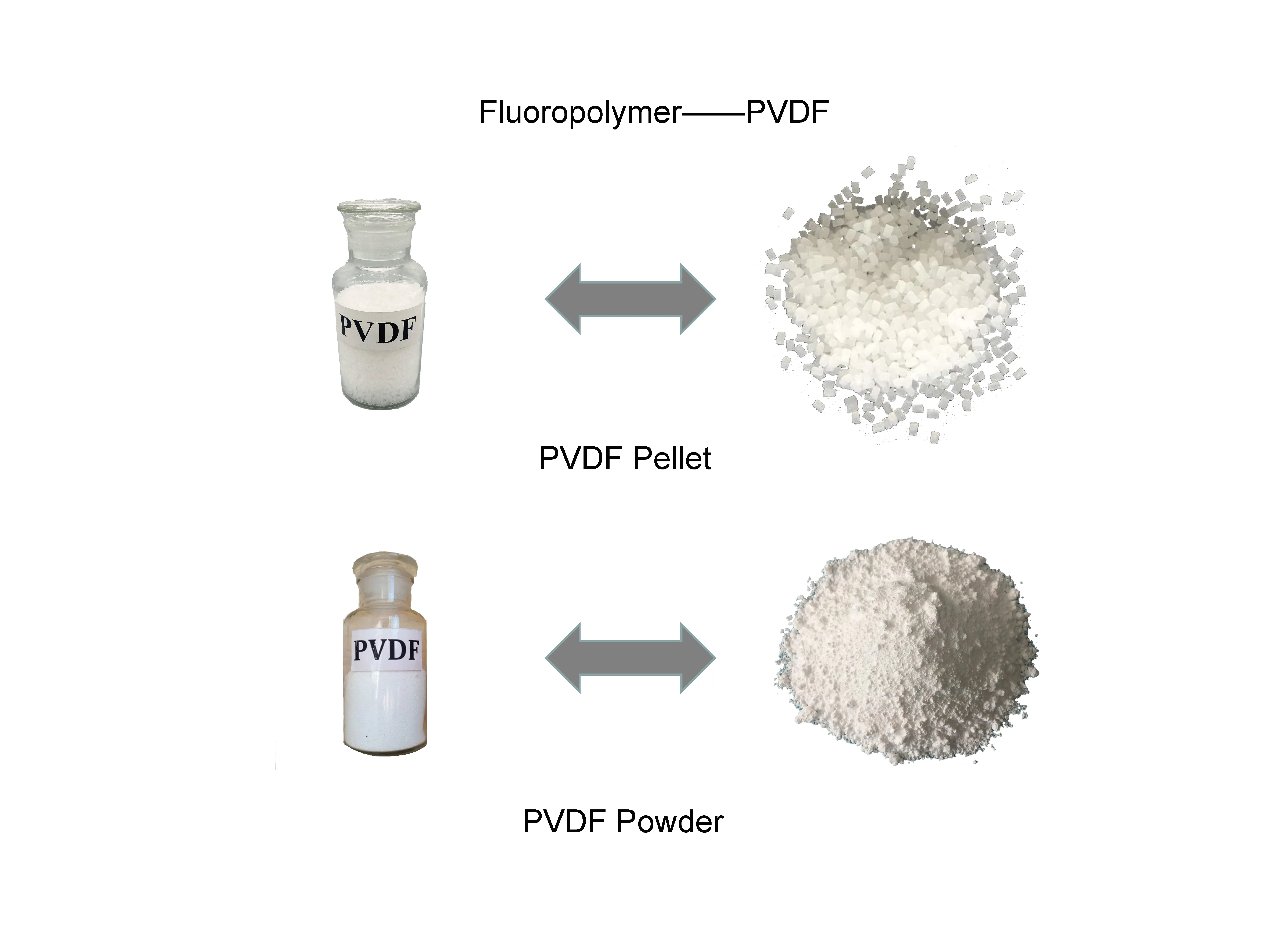

PVDF(Polyvinylidene fluoride)
PVDF is a highly non-reactive thermoplastic fluoropolymer produced by the polymerization of vinylidene difluoride. Its chemical formula is (C2H2F2)n.
PVDF is a specialty plastic used in applications requiring the highest purity, as well as resistance to solvents, acids and hydrocarbons. PVDF has low density 1.78 g/cm3 in comparison to other fluoropolymers, like polytetrafluoroethylene.

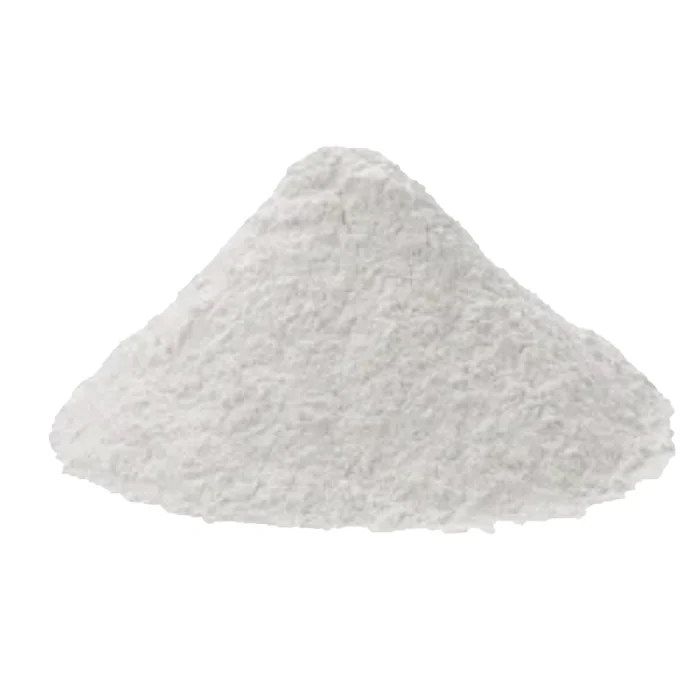

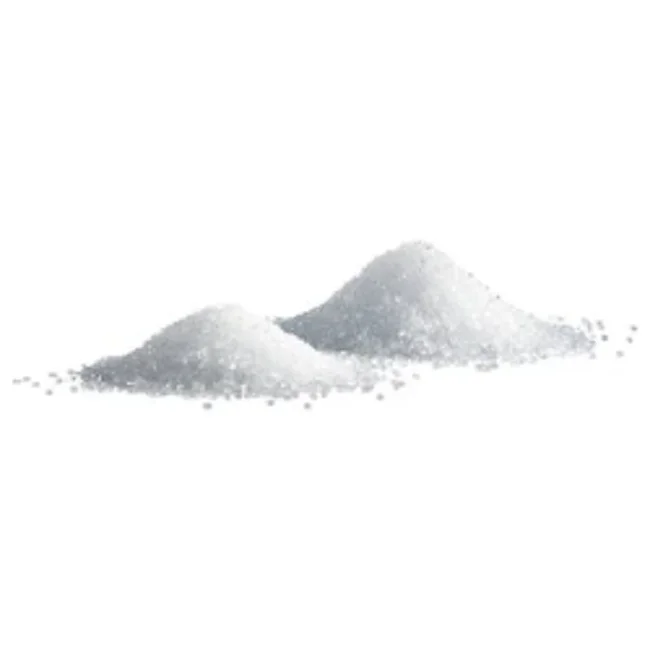

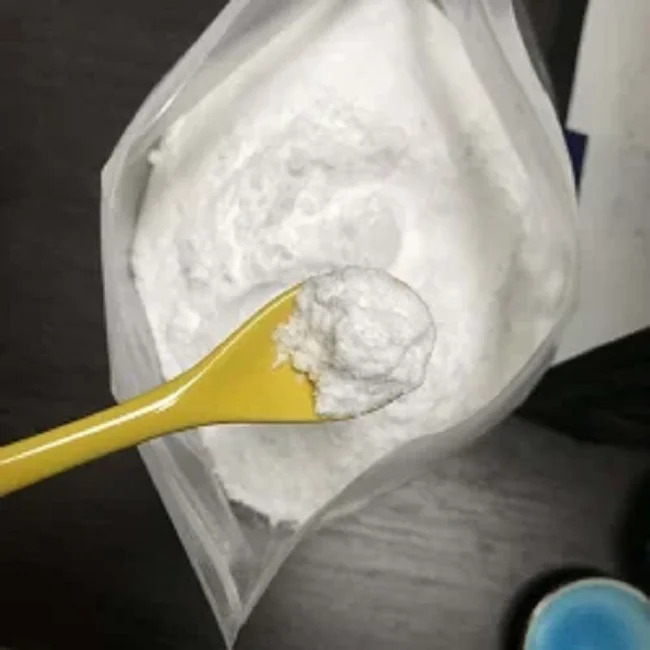

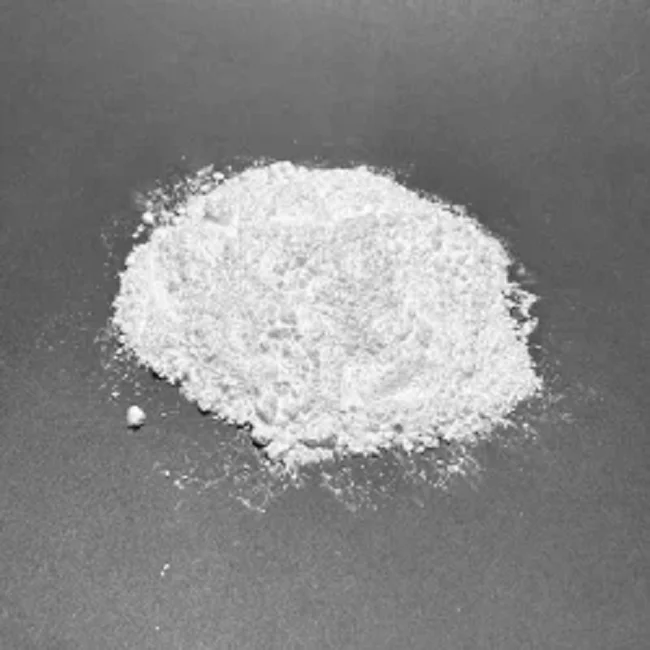

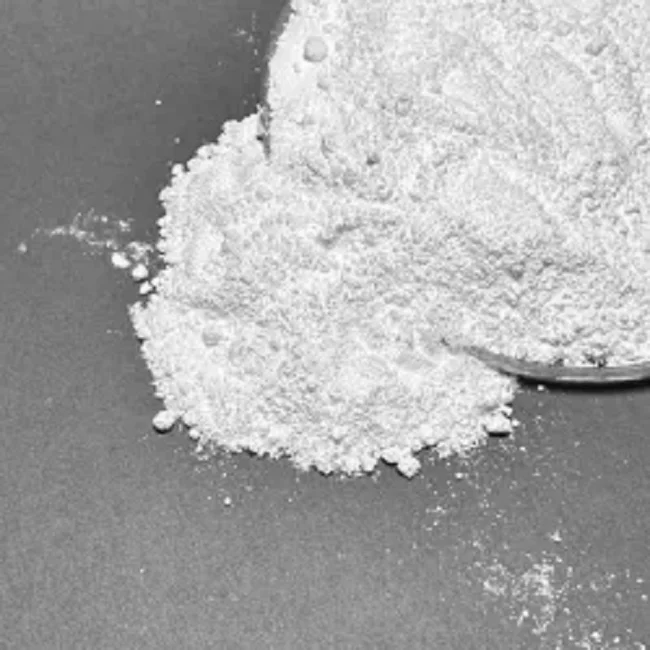

PVDF Powder
FR9202: Coating Grade
FR9203: PV board film Grade
FR9204: Water treatment film Grade
FR9205: Lithium battery Grade
PVDF Pellet
FR9201:
A: Compression molding Grade
B: Extrusion molding Grade
C: Injection molding Grade
Specification
Product Technical Property of PVDF FR9205
FR9205-PVDF powder, it is a resin is a lithium battery grade with super high molecular weight produced in the way of suspension polymerization. The molecules contain polar functional groups, which can improve the adhesion between active substances, metal plates and polymers, and effectively reduce the use of the formula. This grade is mainly used in power batteries with high capacity, high rate and high cycle.
Physical property | Unit | Value | Test Method |
Appearance | - | White powder | - |
Standard Relative Density | g/cm3 | 1.74~1.77 | ASTMD792, @23°C |
Rotational viscosity | Mpa·S | 8000~15000 (FR9205A) 16000~24000(FR9205B) | 1.0g PVDF: 10.0gNMP, 30°C, ASTM D2196 |
Water Content | % | ≤0.1 | GB/T6284 |
Thermal property | Unit | Value | Test Method |
Melting point | °C | 155~165 | ASTMD3418, 10°C/min |
Thermal decomposition | °C | ≥380 | GB/T33047 |
Metal impurity | Unit | Value | Test Method |
Zn | ppm | ≤10 | HG/T 3944 |
Ni | ppm | ≤10 | HG/T 3944 |
Fe | ppm | ≤10 | HG/T 3944 |
Cr | ppm | ≤10 | HG/T 3944 |
Daily storage in a clean, dry warehouse to prevent the impurities. This product is nontoxic and harmless at room temperature, but the processing temperature shall not exceed 350 ℃ so as to prevent toxic gas from decomposition.
Application
Packing & Shipping
About us
Jiangsu FreChem Co., Ltd.
FreChem is a professional research & development, manufacturer of high performance rubber compounds, special additives and fluorochemicals.
Starting from 2014, FreChem has now become one of the leading manufacturers of rubber compounds in China.
Thanks to our research & development capabilities, FreChem is able to provide highly qualified rubber compounds to global customers: Fluoroelastomer(FKM), Fluorosilicones(FVMQ),HNBR compounds, NBR compounds, EPDM compounds, SBR compounds, PVDF, PVDC, PTFE, PFA, FEP and so on.
FreChem expects to offer best solution as well as customization in order to meet customers’ special needs. The equipment and special know- how used in production control guarantee that our compounds respond to the customer requirement and provide high consistency standards.
Our vision is to become an excellent partners with customers and we will improve and focalize our skill on final application to develop compounds with high added value.
Starting from 2014, FreChem has now become one of the leading manufacturers of rubber compounds in China.
Thanks to our research & development capabilities, FreChem is able to provide highly qualified rubber compounds to global customers: Fluoroelastomer(FKM), Fluorosilicones(FVMQ),HNBR compounds, NBR compounds, EPDM compounds, SBR compounds, PVDF, PVDC, PTFE, PFA, FEP and so on.
FreChem expects to offer best solution as well as customization in order to meet customers’ special needs. The equipment and special know- how used in production control guarantee that our compounds respond to the customer requirement and provide high consistency standards.
Our vision is to become an excellent partners with customers and we will improve and focalize our skill on final application to develop compounds with high added value.
