Wireless CarPlay Module Camera System Android Auto Interface for BMW EVO X1 F49 X2 F39
- Category: Auto Electronics >>>
- Supplier: Guangzhou,Roadpassion,Electronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Name | Wireless CarPlay Module Camera System Android Auto Interface for BMW EVO X1 F49 X2 F39 |
Function | Car original screen upgraded: wireless carplay + android auto + mirror link +front/rear camera + USB media |
Output Format | for AHD/ CVBS output |
Installation Guide | Provided |
Compatible Vehicle | for BMW EVO A 2 3 4 5 X1 X2 X3 X4 X5 |
Model Number | RS-2913 |
* Product performance description
1. Wired/Wireless CarPlay
2. Wired/Wireless Android AUTO
3. Screen projection function (for Apple, Android)
4. USB multimedia playback (supports lossless audio, 720P video and picture playback)
5. Support original car rear view, retrofit rear view (CVBS/AHD), front view (time delay can be set) or DVR
2. Wired/Wireless Android AUTO
3. Screen projection function (for Apple, Android)
4. USB multimedia playback (supports lossless audio, 720P video and picture playback)
5. Support original car rear view, retrofit rear view (CVBS/AHD), front view (time delay can be set) or DVR
6. Support expansion and installation of 360 panorama (CVBS/AHD)
7. Support Mirroring.
8. Support audio EQ adjustment, music navigation volume adjustment separately
9. Support the original car MIC (reserved to install MIC), support the automatic correction function of call cancellation and echo.
10. Support original car Blue.tooth call function
11. Support AUX IN function, can expand digital TV
* Wireless CarPlay Parameter
1. running voltage : 9-16v, 14.4 v ( rated)
2. storage temperature : -30 - 85°C
3. operating temperature : -30 + 75 °C
4. ambient humidity : ≤98% (at 45°C), 65 + 5% (rated)
5. quiescent current : less than 3mA
6. shutdown current : 300mA (clock is on)
7. ≤ 1.5A, when the USB charging current is ≥ 3A, the host computer of the radio and receiver start the circuit protection function
to control the current below 1.5A to avoid burning the product.
to control the current below 1.5A to avoid burning the product.
RS-2913 For BMW EVO 6.5"/8.8"/10.25" | Car Model | Year |
BMW 1 | 17+ | |
BMW 2 | 17+ | |
BMW 3 G20 G21 G28 | 17+ | |
BMW 4 G22 G23 | 17+ | |
BMW 5 G30 G31 G38 | 17+ | |
BMW 7 G11 G12 | 17+ | |
BMW X1 F49 | 17-19 | |
BMW X2 F39 | 19+ | |
BMW X3 G01 | 16+ | |
BMW X4 G02 | 16+ | |
BMW X5 G05 | 17+ | |
BMW X6 G06 | 17+ | |
EVO MINI | 17-18 | |
I3 Electronic | 17-18 |
Details Images

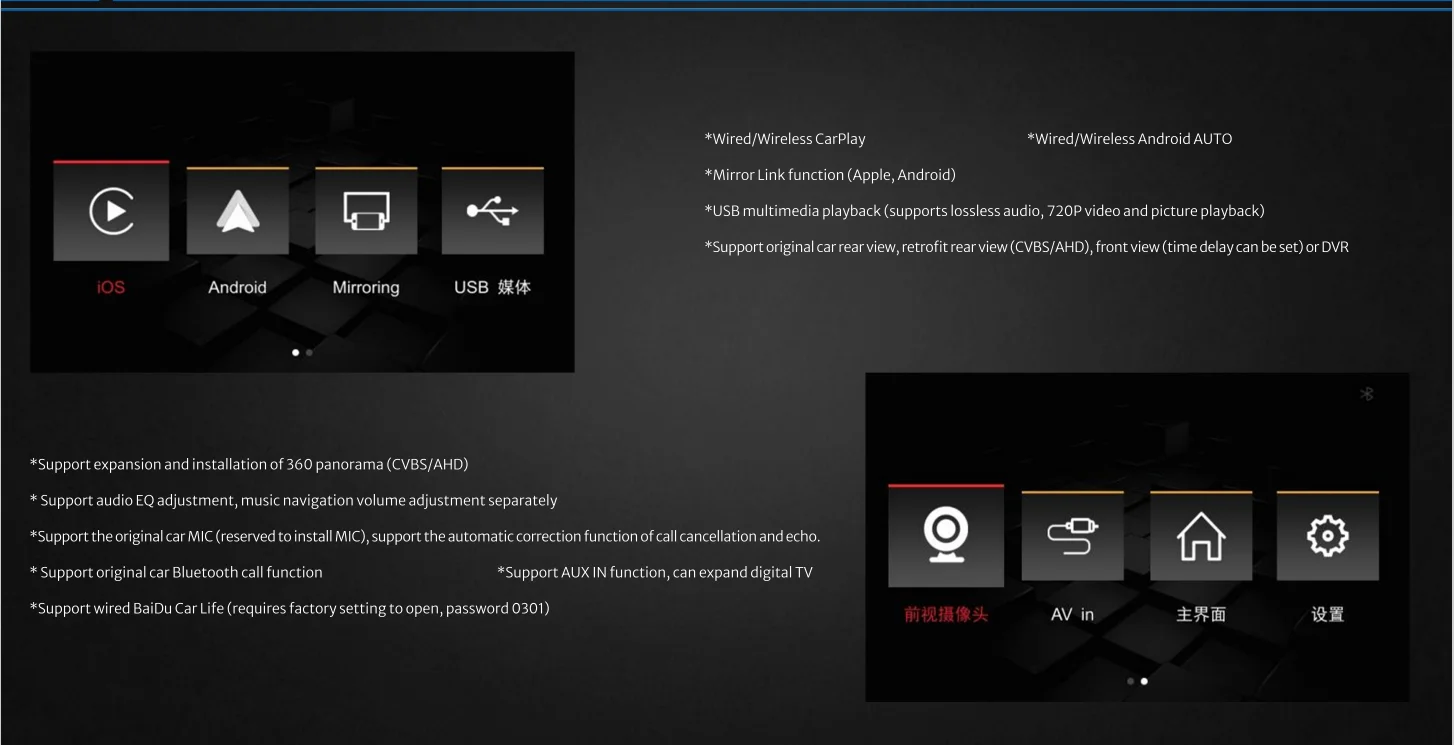

Wireless Carplay / Android Auto Interface Functions:
Carplay:
matching and connecting wireless carplay with phone via blue.tooht.
Android Auto:
matching and connecting android auto with phone via blue.tooht.
Mirroring:
unconnect carplay or android auto, then connect mirror link.
Original/Retrofit Rear/Front view
Support original rear view.
Allow to add aftermarket front and rear camera to assist parking with guidelines.
USB Media
Inserting a U disk will automatically jump to the USB playback interface, supporting lossless audio and 720P video playback.
Blue.tooth Phone Call
2. Press the telephone key to answer the call;
3. Hang up when adjusting the voice or calling;
4. Volume+ or Volume-
5. Press the button for 10s to reset the system
3. Hang up when adjusting the voice or calling;
4. Volume+ or Volume-
5. Press the button for 10s to reset the system
