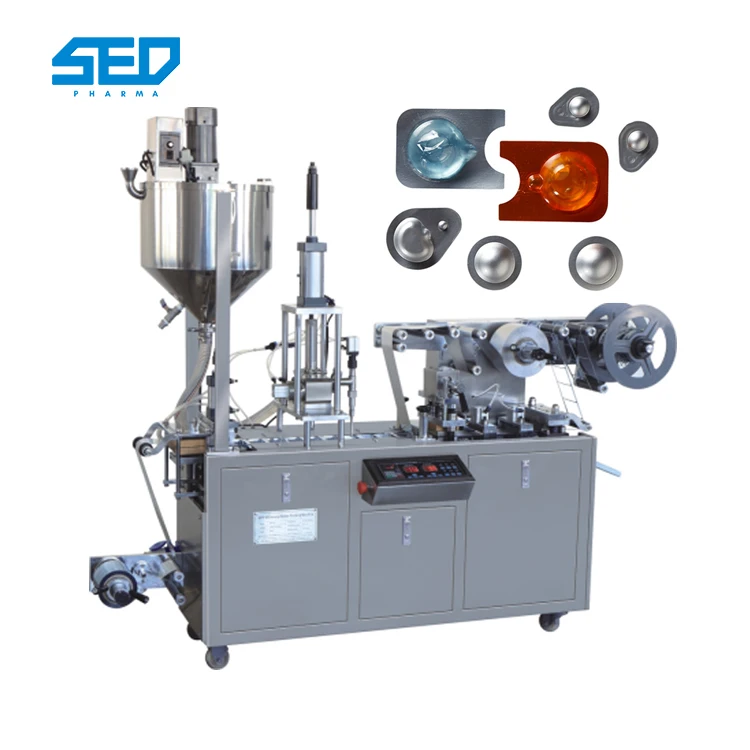

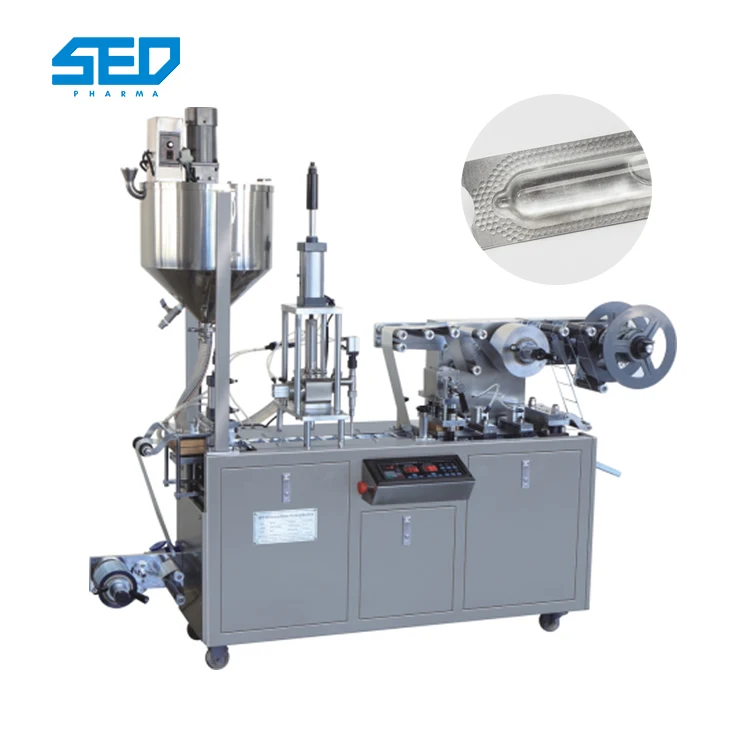

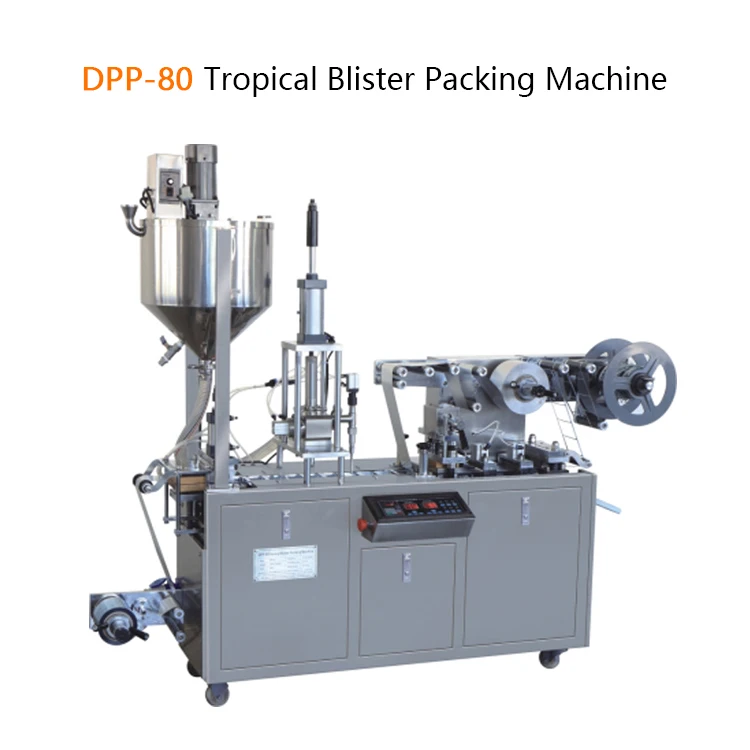

Laboratory Small Alu Alu Jam Chocolates Blister Packing Machine For Capsule Tablet
- Category: >>>
- Supplier: Hangzhou SED Imp.And Exp.Co. Ltd.
Share on (1600847679482):
Product Overview
Description
Products Description

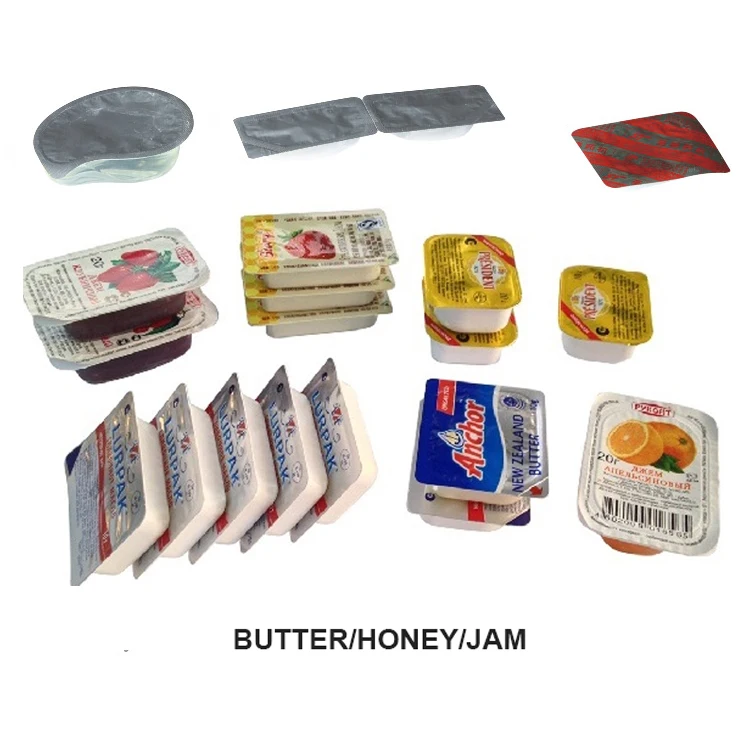

The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.
Model | SED-80P1-F |
Cutting Speed | 10-20times/min |
Capacity | 2400plates/hour |
Max forming area and depth | 70*105*25（mm） |
Standard scope range | 30-80mm(According to customer’s requirement) |
Standard blister size | 80*57mm ( According to customer’s requirement) |
Compressed air | 0.4-0.6Mpa |
Power | 220V 50Hz 2.8Kw |
PVC | 0.15-0.5*110(mm) |
PTP | 0.02-0.035*110(mm) |
mold cooling | Tap water or circulation water |
Dimension | 1840*900*1300(mm) |
Weight | 480（Kg） |
1. Adopting the latest domestic high-power transmission mechanism, the main drive shaft is driven by the chain, eliminating the error and noise of other gear transmissions.

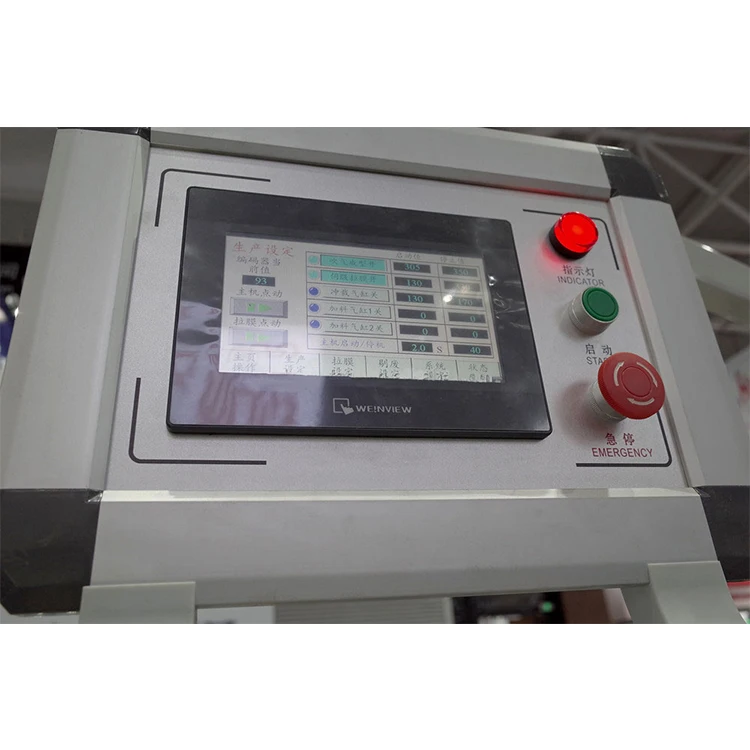

2. The electrical appliance adopts the imported control system, which can configure the missing material leakage compensation device and the missing particle detection rejection device according to the customer's requirements.
3. The whole machine adopts segmentation combination: PVC forming, feeding and heat sealing are one section, tropical aluminum cold forming, heat sealing and blanking can be divided into sections for split packaging.
4. The machine uses photoelectric control system, PVC, PTP, hard aluminum packaging automatic feeding, waste edge automatic punching device to ensure ultra-long-distance multi-station synchronization stability.

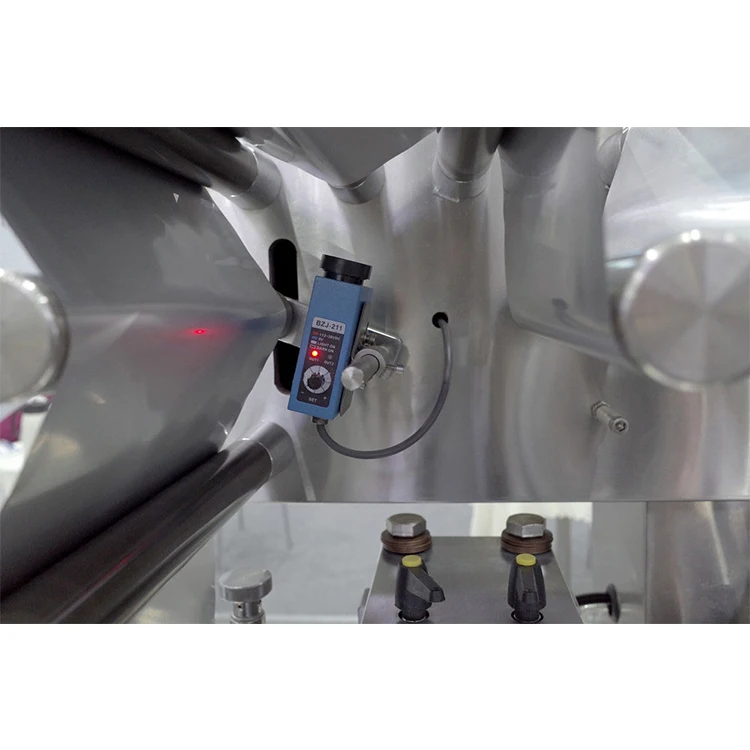

5. The machine can be equipped with a photoelectric detection and correction device, equipped with imported stepper motor traction, graphic printing and packaging, optimized packaging grade.
6. The machine applies: capsules, plain tablets, sugar coatings, capsules, injections, light food, electronic components blister sealed packaging.
2. The electrical appliance adopts the imported control system, which can configure the missing material leakage compensation device and the missing particle detection rejection device according to the customer's requirements.
3. The whole machine adopts segmentation combination: PVC forming, feeding and heat sealing are one section, tropical aluminum cold forming, heat sealing and blanking can be divided into sections for split packaging.
4. The machine uses photoelectric control system, PVC, PTP, hard aluminum packaging automatic feeding, waste edge automatic punching device to ensure ultra-long-distance multi-station synchronization stability.
5. The machine can be equipped with a photoelectric detection and correction device, equipped with imported stepper motor traction, graphic printing and packaging, optimized packaging grade.
6. The machine applies: capsules, plain tablets, sugar coatings, capsules, injections, light food, electronic components blister sealed packaging.

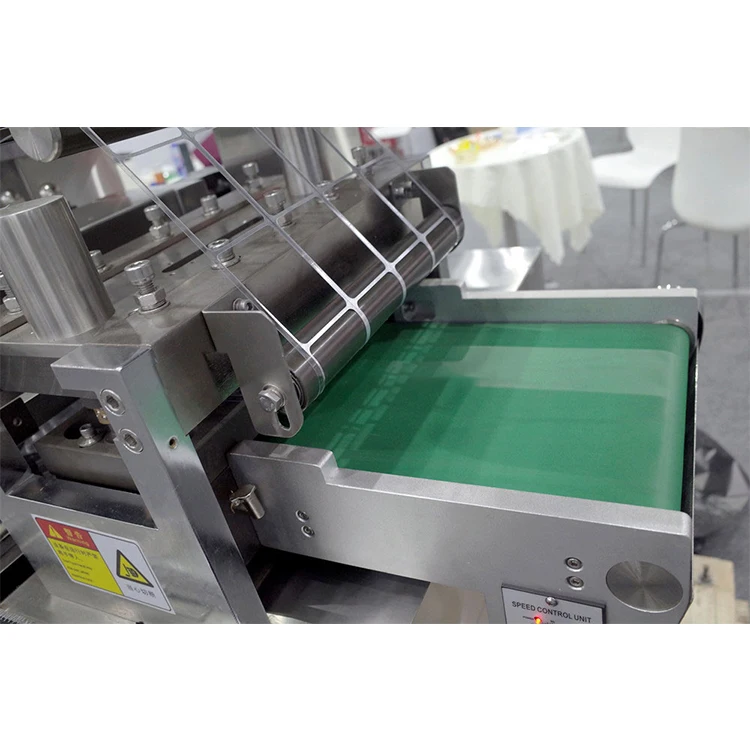

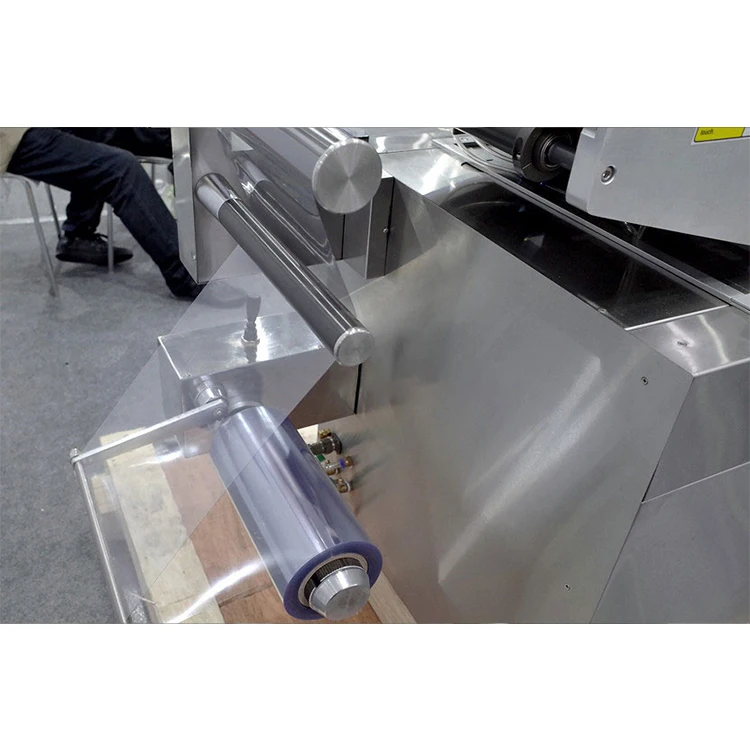

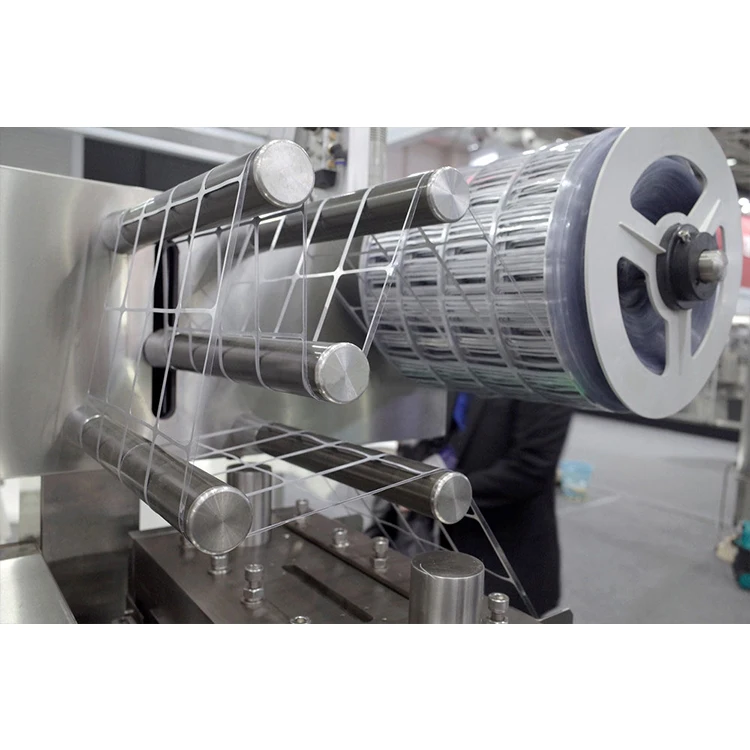

Details Images
