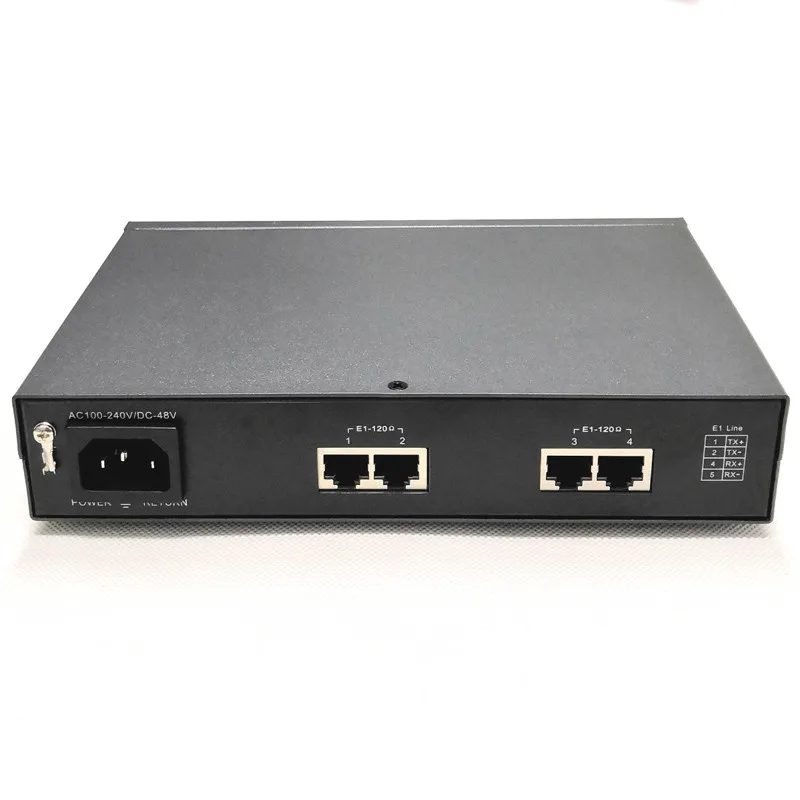

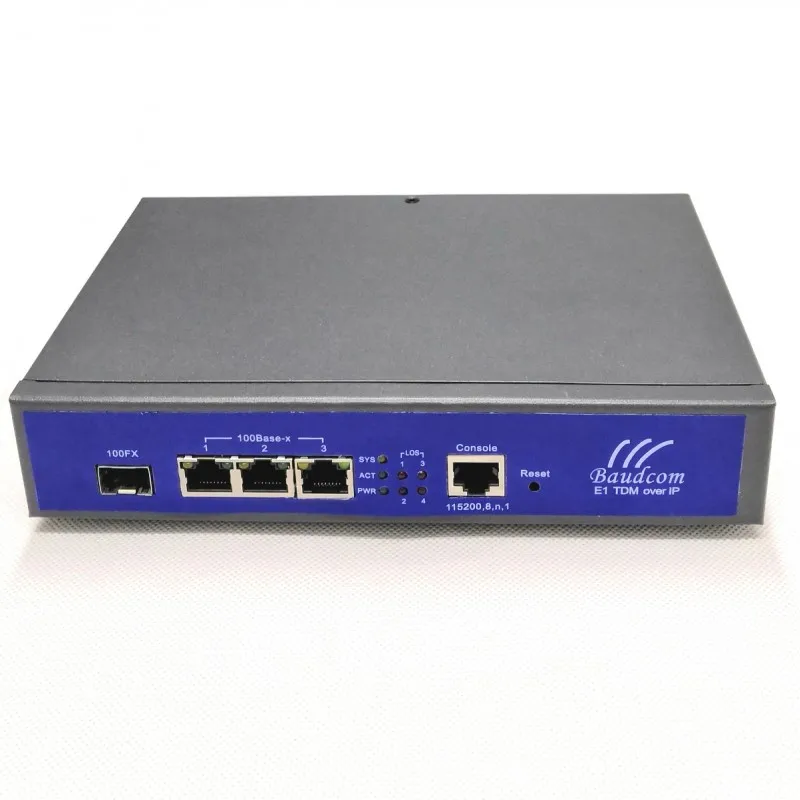

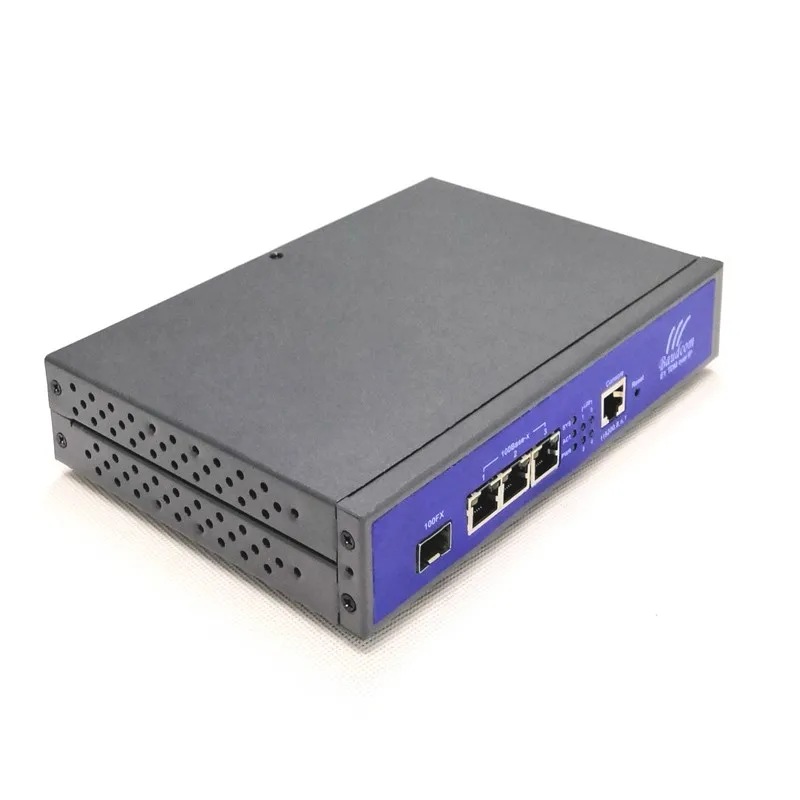

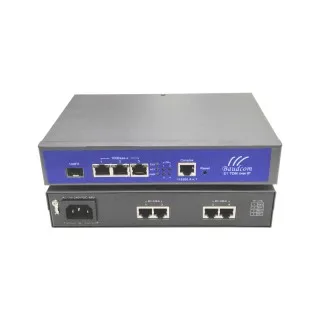

4 E1 over Ethernet fiber optical converter TDM over IP fiber media converter
- Category: >>>
- Supplier: Shanghai Baudcom Communication Device Co. Ltd.
Share on (1600847680644):
Product Overview
Description
Product Description
High transmission efficiency, minimal transmission delay, and high precision clock recovery are all features of the 4 E1 TDM over IP. 1E1 interface and IP internet transmission of 4 100MEthernet interfaces are supported.
The revolutionary TDM over IP technology used by the equipment transmits legacy E1 data over an existing Ethernet or IP network. With accurate timing signal and data bit stream reconstruction, the state-of-the-art design ensures the maximum availability. Predefined system parameter profiles that may be customized to meet the needs of various applications, simplifying the installation procedure and lowering maintenance costs.
It is a new generation of TDM over IP equipment that includes IP circuit emulation and can transport four E1s across an Ethernet or IP network. IEEE 802.3 compliant uplink and user data ports, as well as a 10/100M BaseT auto-sensed Ethernet port.
Ordering Information
| Product Model | Descriptions | Inquiry |
|---|---|---|
| BD-FE1-IP/AC | E1 over Fast Ethernet converter, framed E1, 3FE electrical ports and 1 FE optical port (SFP slot), power AC 220V | Request Price |
| BD-FE1-IP/DC | E1 over Fast Ethernet converter, framed E1, 3FE electrical ports and 1 FE optical port (SFP slot), power DC 48V | Request Price |
Features
- 4 E1 interface, E1 interface impedance support 75Ω and 120Ω
- Support L2TPv3/IPv4, UDP/IPv4, Metro Ethernet (MEF-8) and MPLS (MFA-8) and other agreements
- E1 interface complies with G.703, G.704 standard
- Each E1 support jitter buffer depth of 1-255msec
- Configure via CLI/Web
- Support VLAN tagging and QinQ function
- Support Qos setting
- Provide statistics for Ethernet+E1
- Support software and firmware upgrade
Specification
| Item | Description | |
| Model | BD-4FE1-IP | 4E1, 3FE electrical ports and 1 FE optical port |
| Interfaces | Uplink | 3 FE electrical ports and 1 FE optical port Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x Speed and duplex auto-negotiation or manual |
| E1 Port | 1 E1 Supported
Comply with G.703 G.704 Impedance: E1-120Ω or 75Ω | |
| Power | Supply | -48V DC or 220V (110V) AC power supply |
| Consumption | ≤10W | |
| Working Environment | Temperature | 0~ 50°C |
| Relative Humidity | ≤90% (non-condensing) | |

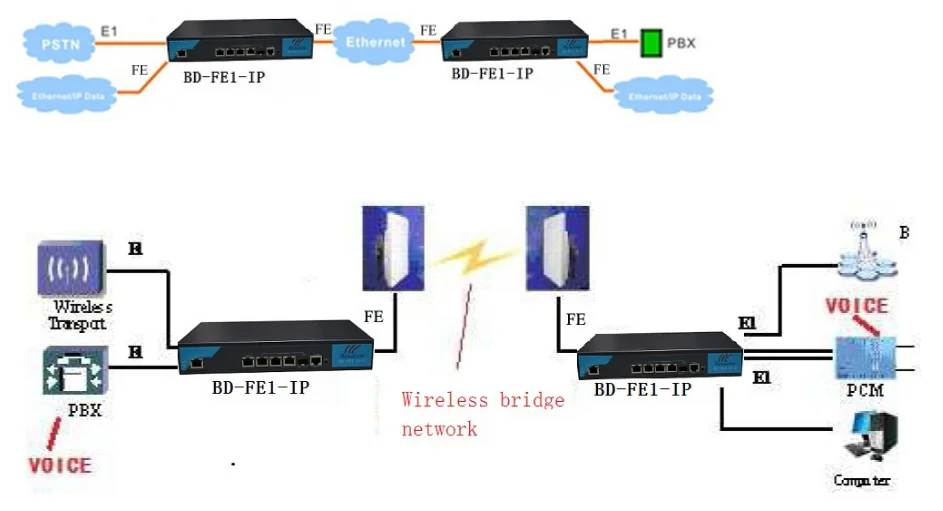

Application
Production&Testing
