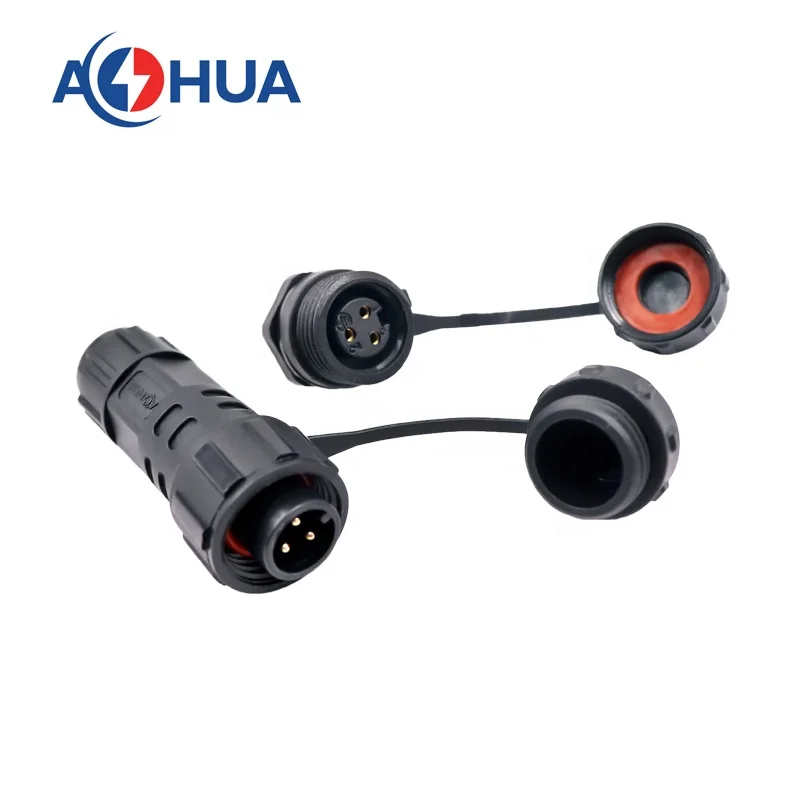

High-Quality Solder M20 Waterproof Circular Connector For 2 3 Pin
Items | Pins | Part Number | Wire Gauge | Cable OD |
M12 | 2 | AH-M12-0502FMZ/MFZ01112 | ≤1.0mm² | 2.6mm-7.5mm |
M16 | 2 | AH-M16-1002FMZ/MFZ01112 | ≤1.0mm² | 2.6mm-7.5mm |
M20 | 2 | AH-M20-1502MMZ/FFZ01112 | ≤1.5mm² | 5.5mm-10mm |
M25 | 2 | AH-M25-2502FMZ/MFZ01122 | ≤2.5mm² | 6mm-12mm |
Contact Numbers | 3 |
Voltage Rating | 300V |
Current Rating | 15A |
Wire Gauge | ≤1.5mm² |
Cable OD | 5.5mm-10mm |
Mechanical Life | 3000 mating cycles |
Operating Rating | -40°C~+105°C |
Waterproof Level | IP67/IP68 |
Seal Ring | 13*9*6.5/7.5/8.5/9.5/10mm |
Cable OD | Seal Ring |
2.6mm-7.5mm | 9*9*3.6/4.1/5.5/6.5/7.5mm |
5.5mm-10mm | 13*9*6.5/7.5/8.5/9.5/10mm |
6mm-12mm | 15.6*13*7/9/10/11/12/13mm |
Before get the quotation, please tell us the connection of waterproof connector.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.
(1)Type:Solder type or screw fixing type;
(2) The voltage rating:such as 110V;300V...
(3)The current rating:such as 10A,25A...
(4)Wire gauge:≤0.5mm²;≤0.75mm²;≤1.5mm²...
(5)Cable OD(over diameter): 5.5mm;6mm...
(6)Wire size:2*18AWG;3*20AWG...
Then AOHUA team will answer you and choose the correct waterproof connector for you within 24h.
Related Product
Our Advantages
Application
Advantage:
1. Connector: M20 waterproof connector,cable range:5.0-7.5mm/7.5-9.5mm,suit for most usually power cord,pack of 4 piece.
2.Quality:Assurance:IP67 advanced protetion,operating temperature:-40°C-+105°C.
3.Easy Install: The installation process is very simple.
4.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.
5. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
2.Quality:Assurance:IP67 advanced protetion,operating temperature:-40°C-+105°C.
3.Easy Install: The installation process is very simple.
4.High-Quality Materials: The Outdoor connector all are made high quality Nylon PA66,high temperature resistant,94V-0 flame retardant.
5. Suitable for LED billboards,LED tunnel lights,LED Road landscape lighting,LED outdoor display,LED Garden spike light and so on.
Further application in coastal,outdoor engineering,mining engineering,solar wind power,solar water heaters,various machinery and equipment.
Certification: | CE IP67 ROHS,TUV certification |
Packing: | 4 per pack(Comes with 2 sets of different sized grommets to accommodate different size wires.) |
Cable Range: | 5.0-7.5mm/7.5-9.5mm(If you use a cable which is too thin,then the seal won't even cover IP67!!) |
Waterproof rating: | IP67 adcanced waterproof connector |
Rated voltage: | ≤300V |
Rated current: | ≤15A |
Working Temperature: | -40°C~+150°C |
Materal: | palstic(nylon),seal ring(silicon) |
Color: | Black |
Connection method: | The solder plug is easy to install,male and female can be separated and easy to install. |
Scope of application: | connectors are suitable for quick connection of garden and outdoor dispalys,floof heating,beacons,cruise ships,LED billboards,LED tunnel lights,LED street lights,external wiring,ect. |

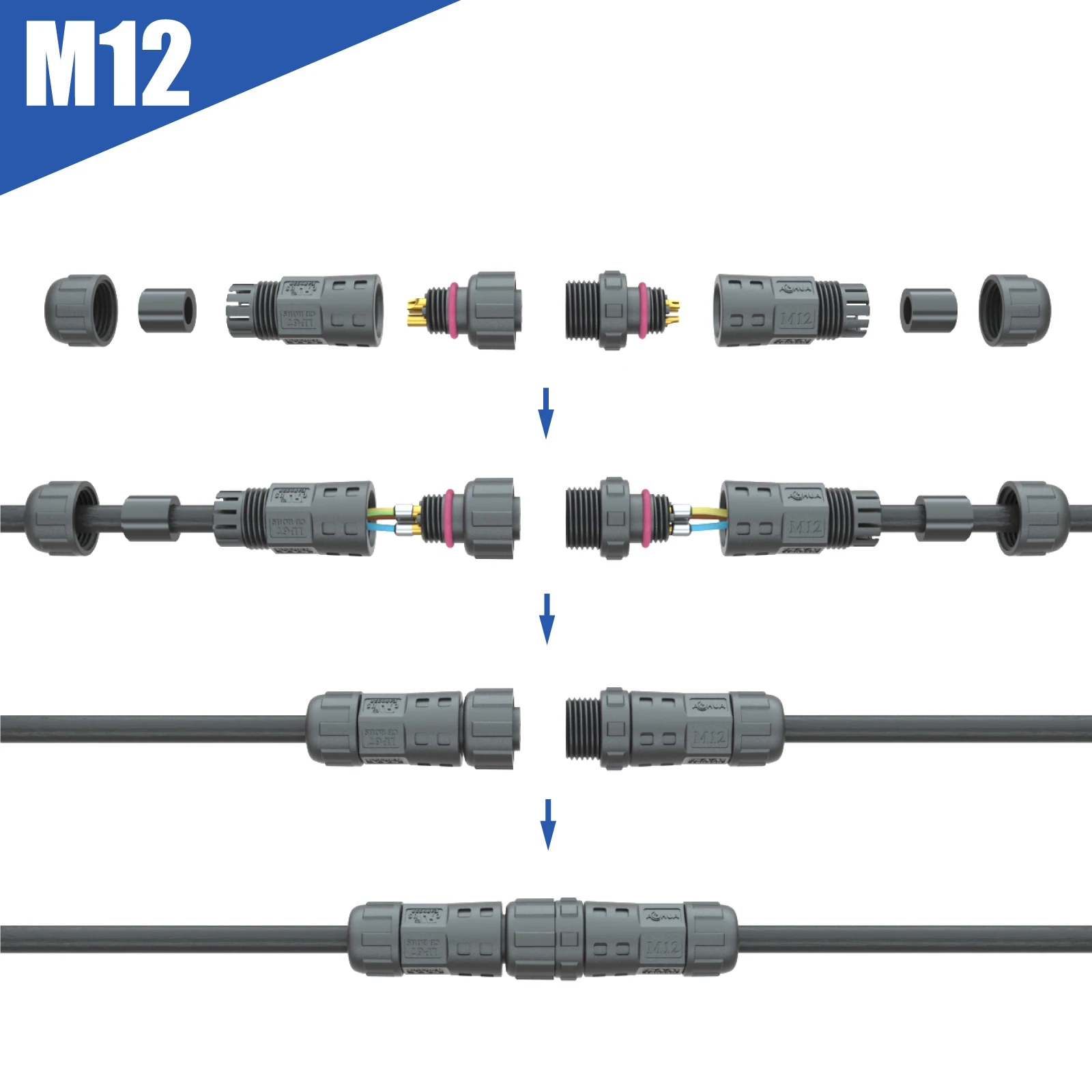

Useage: | Twist the port of the waterproof connector,insert the wire directly,tighten the screw with a screwdriver to secure the wire,and the close the cap, Please make sure connect the wire corrent. |
Note : | when finished,check that all nuts are tight. |
Assembly Connector | Wire to wire /Wire to panel waterproof connector,L/T screw type connector |
Over-mold Connector | Nylon/PVC /Metal /Aviation waterproof connector,DC connector |
T Connector | Over-mold T waterproof connector |
Y Connector | Over-mold Y waterproof connector |
Distributor Connector | M15/M18 Series(1to2/3/4/5/6) LED waterproof connector |
Details Pictures

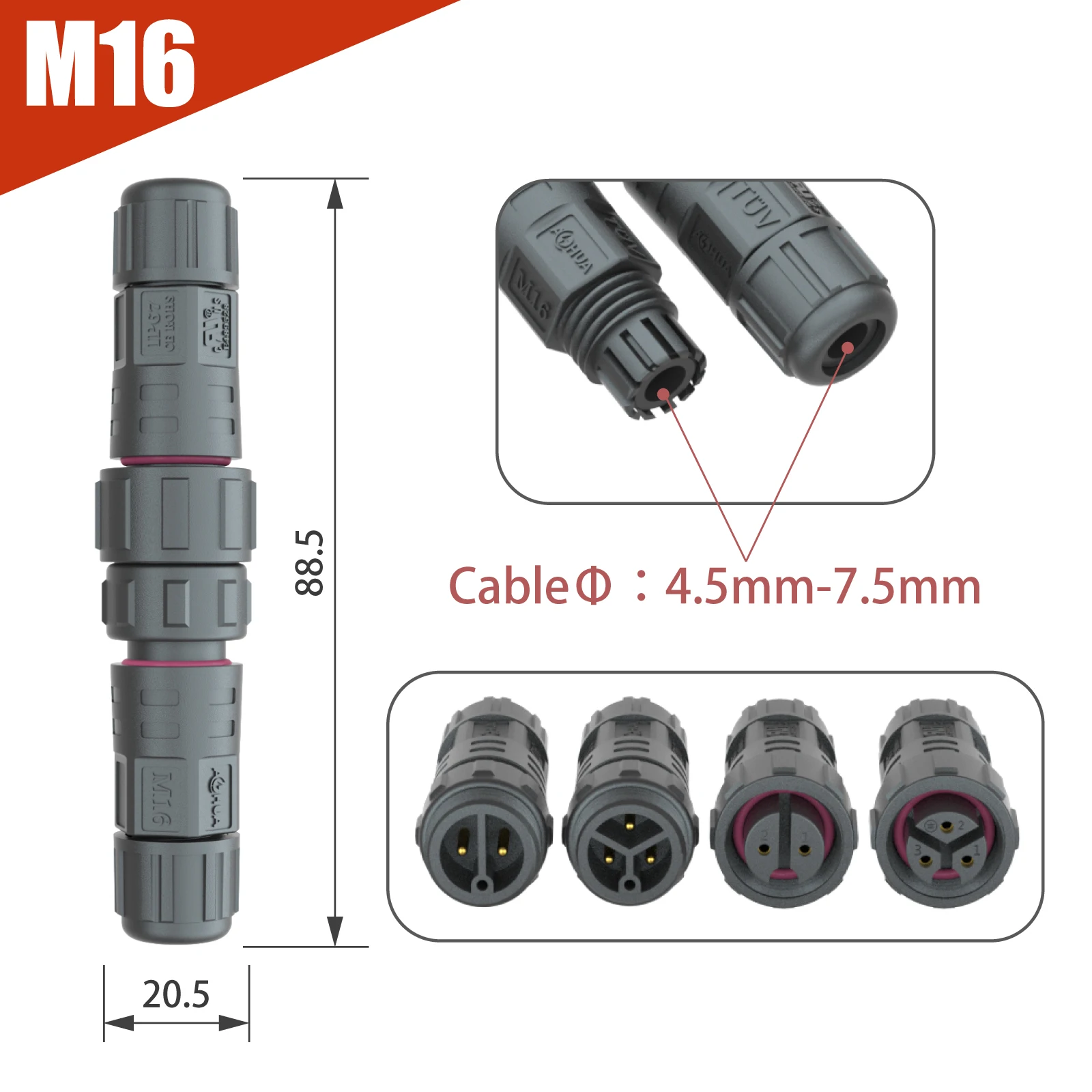

Assembly 2 PIN M12 Wire To Wire Connector
