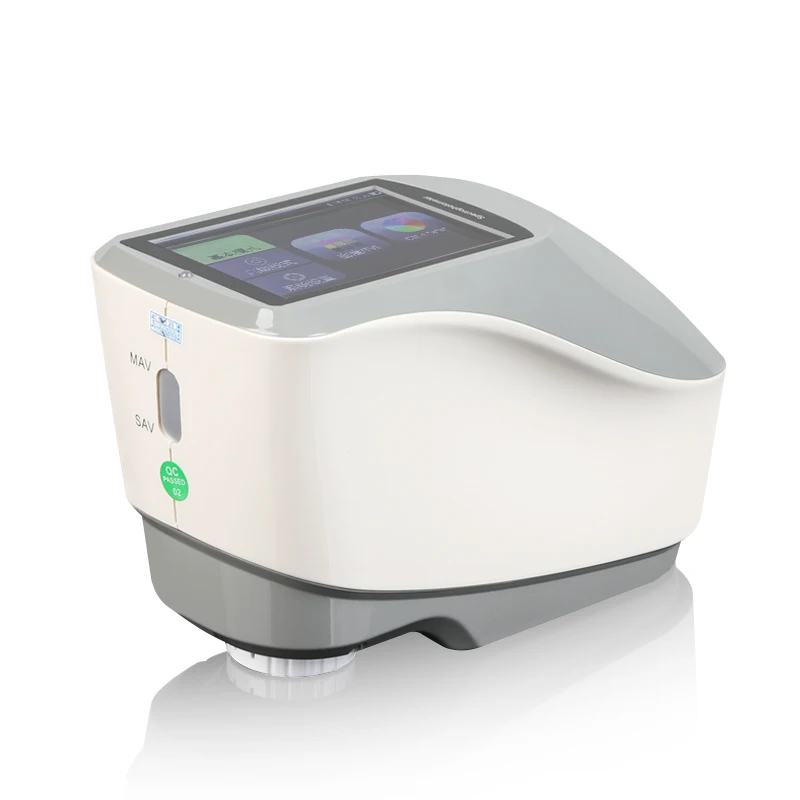

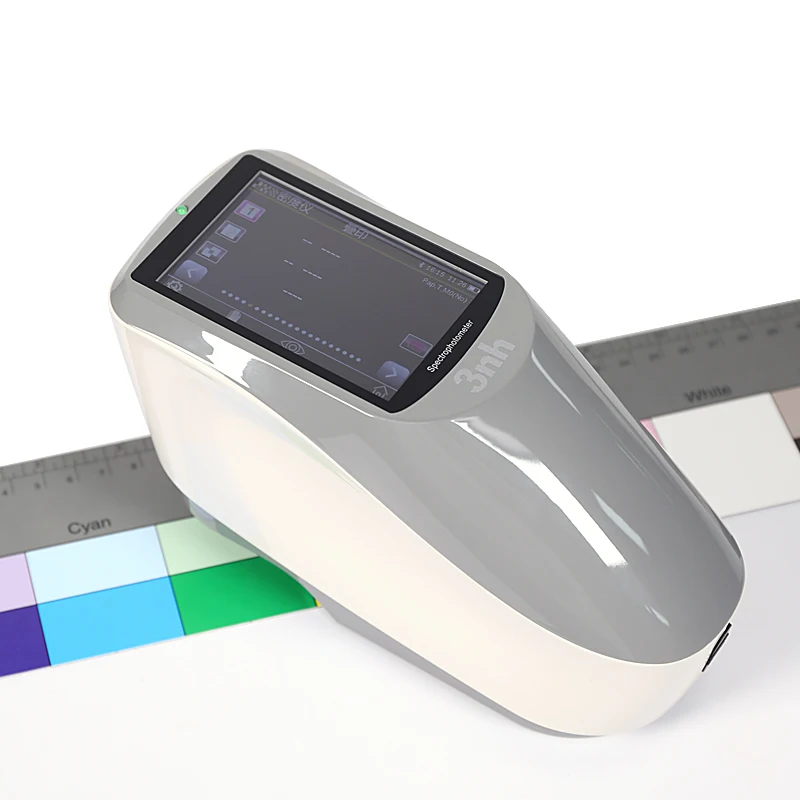

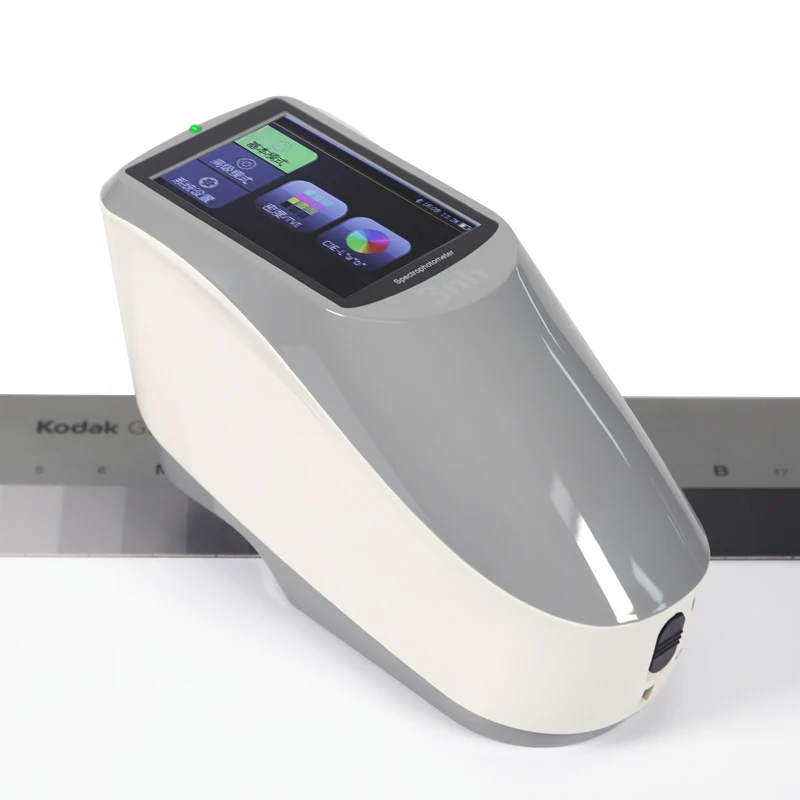

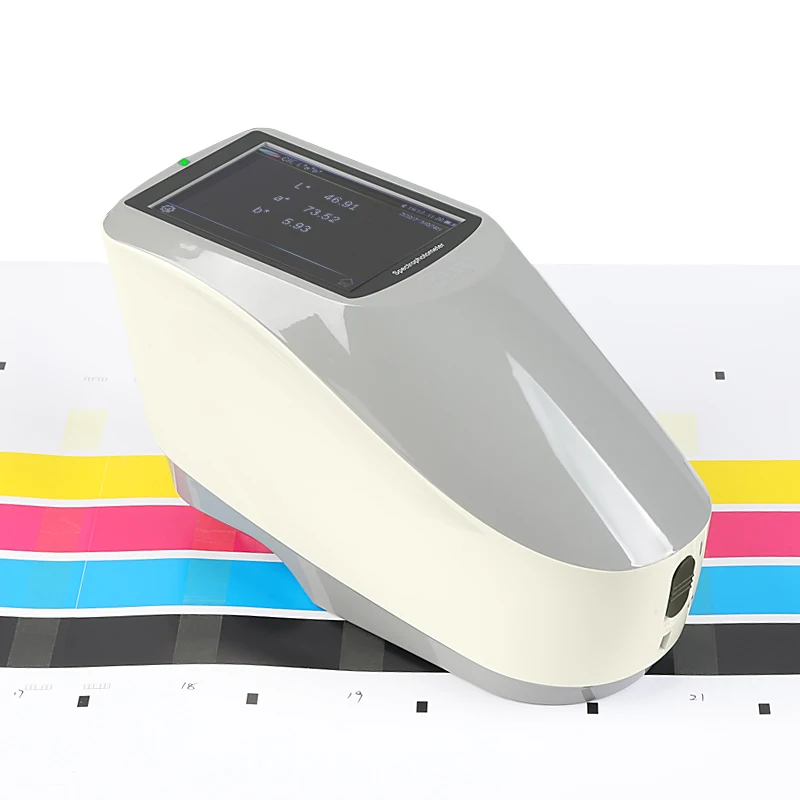

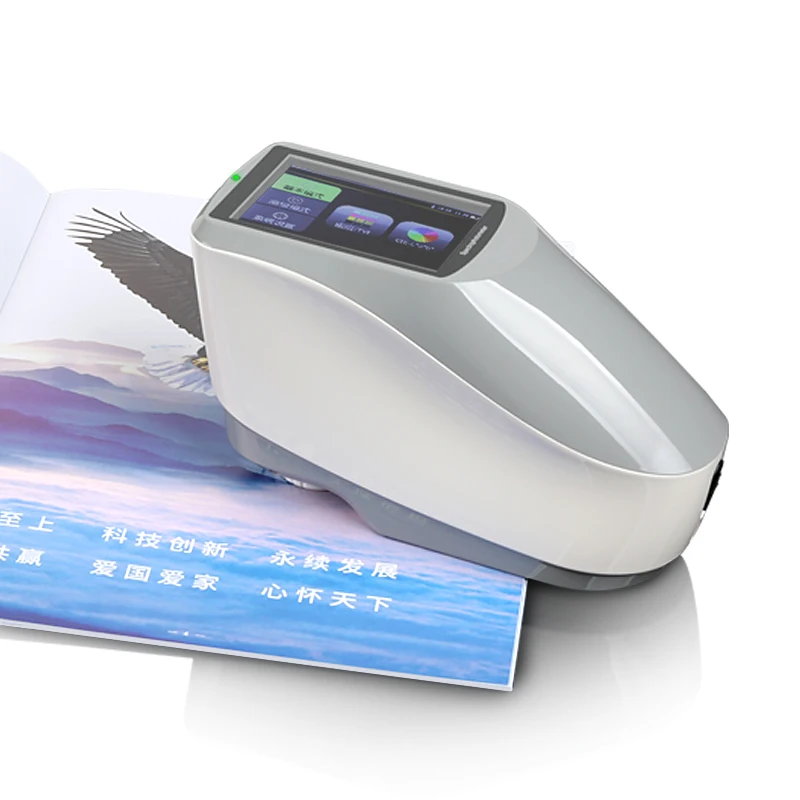

2mm aperture 45/0 spectral density meter for ink paint printing YD5050 spectrodensitometer
- Category: >>>
- Supplier: Shenzhen 3NH Technology Co. Ltd.
Share on (1600847726412):
Product Overview
Description
YD5050 spectro densitometer xrite CMYK CIE Lab color spectrophotometer

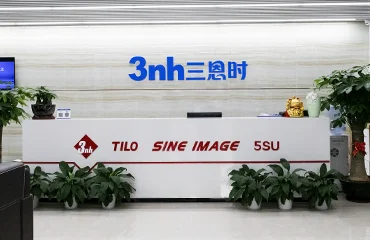

Company Information
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.
Our Certificates:
ISO9001:2008; CE; FCC; ROHS; TUV.
The parameters of test results are integrating with international standards. Our products are exported around the world. We can provide customization service which has been well received by customers.
Product Description
3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
| Model | YD5050 45/0 Spectrophotometer Densitometer |
Measurement Geometry | 45/0(45 ring-shaped illumination, 0 degree viewing angle);, ISO 5-4,CIE No.15 |
Features | Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm. |
Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
Wavelength Pitch & Half Bandwidth | 10nm |
| Measurement Condition | Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A) |
| Density Standards | ISO Status A, E, I, T |
Density index | Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level |
Measurement aperture | Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
Observer Angle | 2°/10° |
Illuminants | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Measurement Time | About 1.5s |
| Repeatability | Density: Within 0.01 D Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
Inter-instrument Error | Within ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) |
Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
Weight | about 600g |
Power source | Li-ion battery. 5000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Interface | USB |
Data memory | 20000pcs |
Language | Simplified Chinese, English, Traditional Chinese |
| Storage & Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover.Polarization filter box |
Optional Accessory | Micro Printer,Locating Plate |
| Notes: The specifications are subject to change without notice. |
Details
Features
For color and glossy measurement, there are three famous companes, Xrite from USA, Konimica Minolta from Japan, BYK from German, but now we, 3nh, are also famous all over the world. With our own R&D team, we focus on color for 21 years, and we have many models to compare with X-rite Konica Minolta BYK Machines.
All in all, First,at the some level, the price for our machine is much lower but performance is similar even better when compare withe Minolta,X-rite and BYK’s instrument; Second, for our partner, we normally give 2 years warranty; Third, if there are something wrong with 3nh machine, within the warranty, the repair fee is free while without the warranty, we only charge some cost price for it, less than RMB1000.But for Minolta,X-rite, BYK, the repair fee normally much than USD1000. And we 3nh offer the lifespan maintenance for all customers. Welcome customers all over the world to visit and order 3nh products in Shenzhen, China.
| 3nh Instrument | Description | Similar Models |
| YS6060 Spectrophotometer | d/8 | CI7800,CM3600A |
| YS4560 Spectrophotometer | 45/0 | BYK6801,CM2500C |
| YS4510 Spectrophotometer | 45/0 | CM2500C,CS600C |
| YS5050 Spectrophotometer | 45/0 | Exact basic, basic density meter |
| YS5010 Spectrophotometer | 45/0 | X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d |
| NS800 Spectrophotometer | 45/0 | BYK 6801 |
| NR60CP Colorimeter | d/8 | MINOLTA CR-10 plus |
| NHG268 Gloss Meter | 20,60,85 | BYK4563 |
| NHG60 Gloss Meter | 60 | BYK4561 |
| T90-7 Color Light Box | 7 illuminants | X-rite SpectraLight QC |
| YS3060 Spectrophotometer | d/8 | X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d |
| YS3010 Spectrophotometer | d/8 | X-rite Ci60; MINOLTA CM-2300d |
Our Services
For all of our machine, we provide 24 months warranty.
As a company with over 21 years experience in color analysis field, we have partner around the world, so please don't worry about the quality and after sale service for our machine.
