TESmart 2x1 HDMI KVM Switch 4K Auto Scan With EDID emulators support IR Remote Control 4K@60Hz 2 Port USB HDMI KVM Switch
- Category: >>>
- Supplier: Shenzhen Tesla Elec Technology Co. Ltd.
Share on (1600847729584):
Product Overview
Description
Product Description
2x1 HDMI KVM Switch 4K
#HKS0201B2U
This 2x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Features:

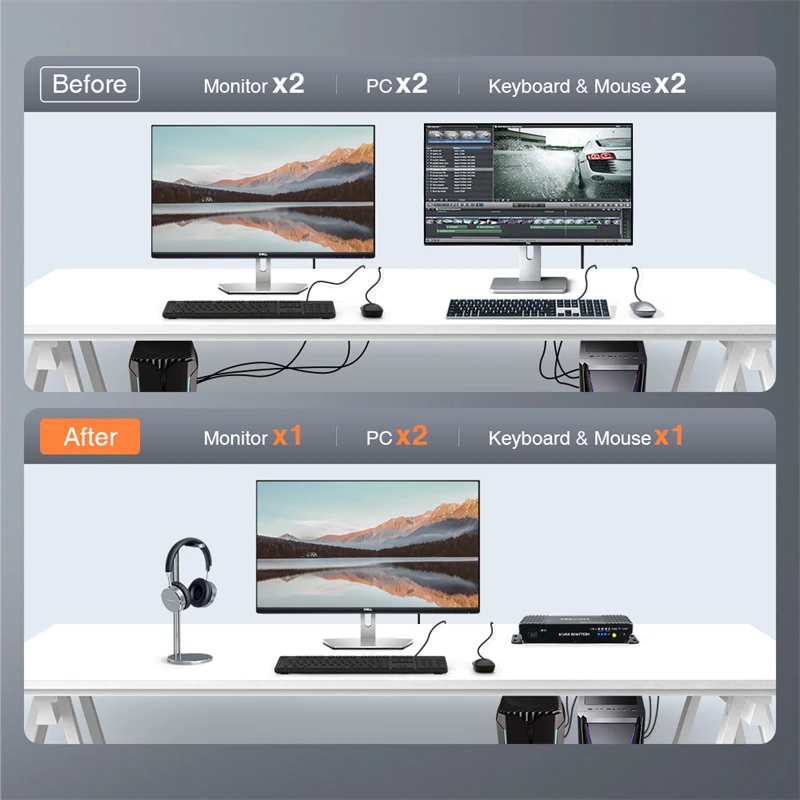

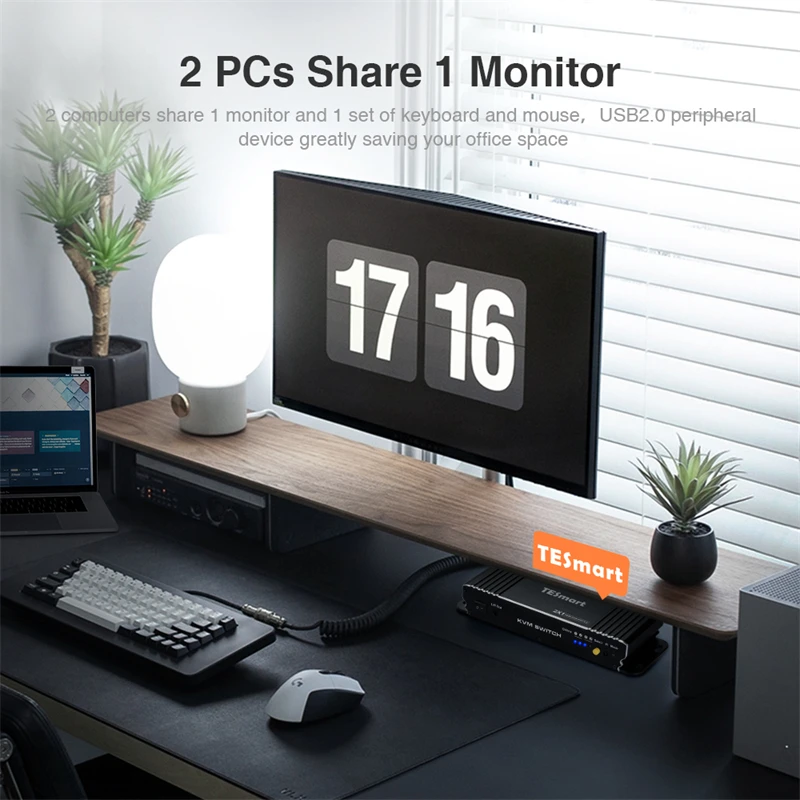

⭐Using only 1 set of keyboard, mouse and monitor to control 2 PCs
⭐Support auto switching to monitor computers in a specified time interval

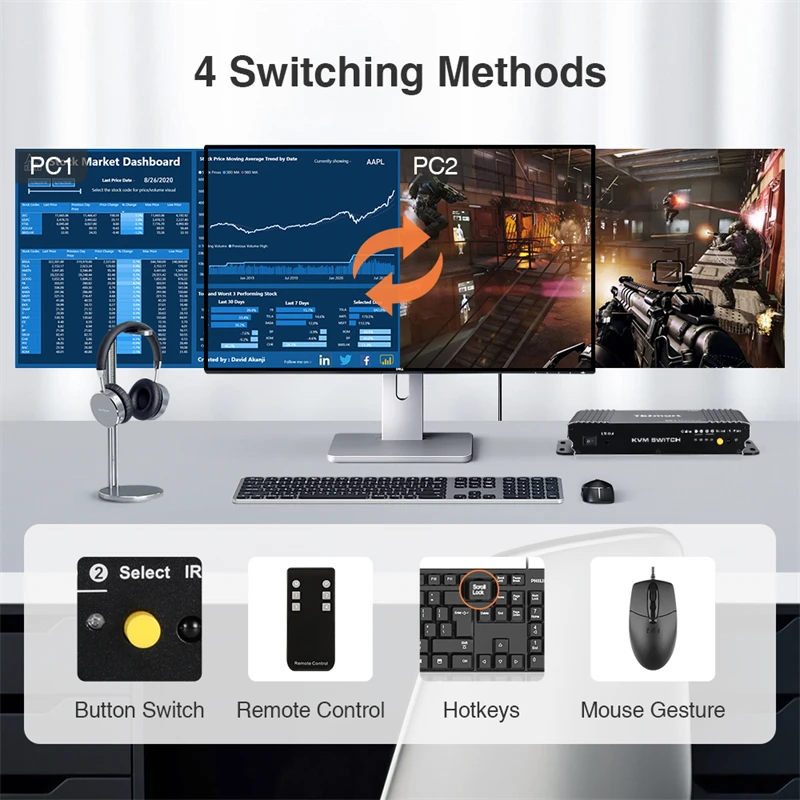

⭐Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
⭐Available to use keyboard and mouse without any delay after switch input sources
⭐Support resolution up to 3840*2160@60Hz 4:4:4
⭐HDCP 2.2 compliant
⭐Support USB 2.0 for printers, USB drives, etc
⭐With EDID emulators in each input port, keep PCs always having correct display information
⭐Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
⭐Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
⭐Support analog L/R audio output
⭐Support HDR 10 and Dolby Vision

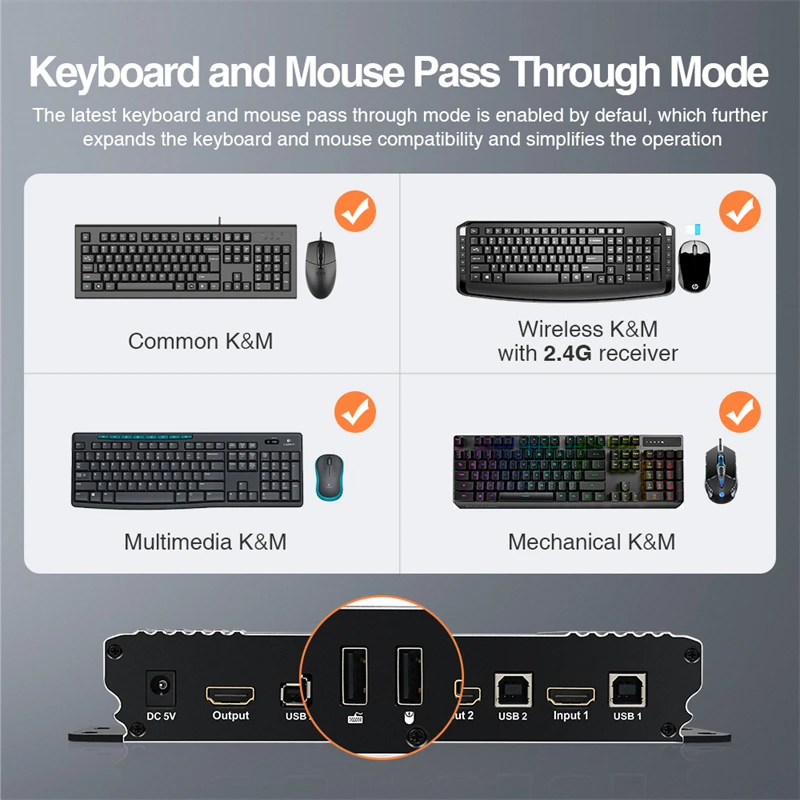

⭐Support keyboard and mouse pass through mode to improve KVM compatibility
Packing List:
1 * 2x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
⭐Using only 1 set of keyboard, mouse and monitor to control 2 PCs
⭐Support auto switching to monitor computers in a specified time interval
⭐Support front panel buttons, IR signals, keyboard hot keys and mouse gesture to control KVM to switch inputs
⭐Available to use keyboard and mouse without any delay after switch input sources
⭐Support resolution up to 3840*2160@60Hz 4:4:4
⭐HDCP 2.2 compliant
⭐Support USB 2.0 for printers, USB drives, etc
⭐With EDID emulators in each input port, keep PCs always having correct display information
⭐Support Unix/Windows/Debian/Ubuntu/Fedora /Mac OS X/Raspbian/Ubuntu for Raspberry Pi and other Linux based system.
⭐Support hot plugged, connect or disconnect devices to the KVM switch in any time and without turn off devices
⭐Support analog L/R audio output
⭐Support HDR 10 and Dolby Vision
⭐Support keyboard and mouse pass through mode to improve KVM compatibility
Packing List:
1 * 2x1 HDMI KVM Switch
1 * DC 5V Power Adapter
1 * IR Remote Control
1 * User manual
Specification
HKS0201B2U | 2x1 HDMI KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz 4:4:4 | |||
Auto to get EDID | Yes | |||
Data rate | 18 Gbps | |||
Auto scan interval | 5~254 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |||

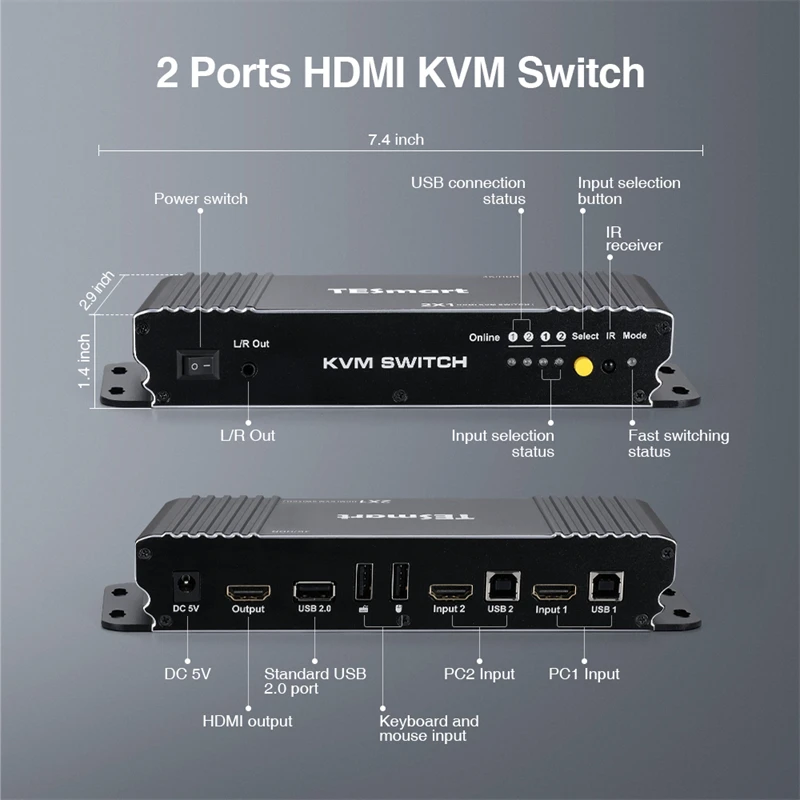

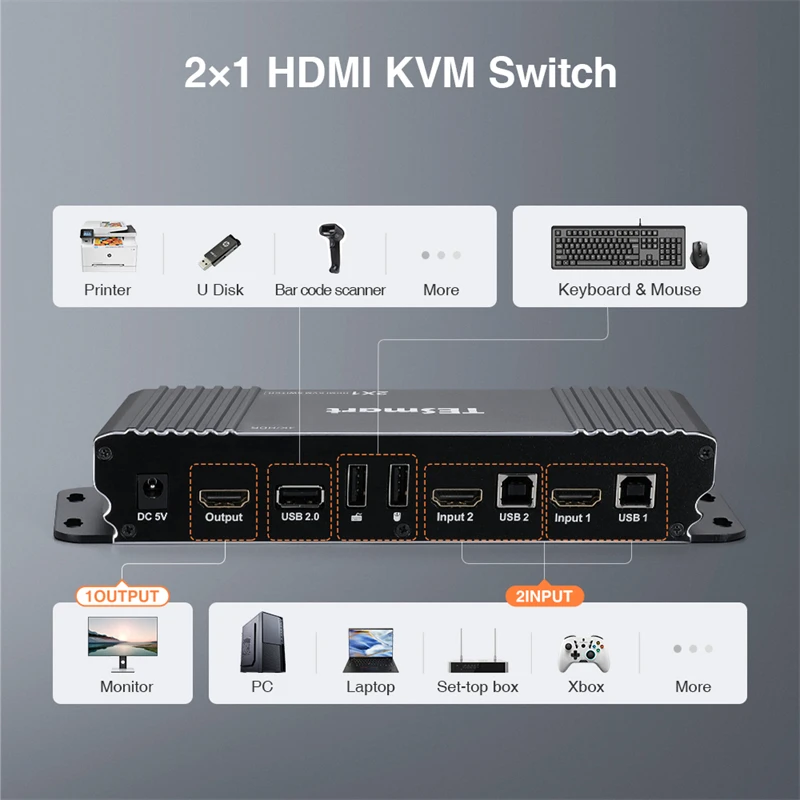

Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
System ports | USB Data | 2 * USB Type B | ||
L/R Audio output | 1 * AUX | |||
Video / Audio | 2 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Casing material | Aluminum Alloy | |||
Product | Dimension | 188 (L) x 72.5 (W) x 35 (H) mm | ||
Weight | 411g | |||
Item | Dimension | 245 (L) x 135 (W) x 90 (H) mm | ||
Weight | 955g | |||
Carton | Dimension | 515 (L) x 285 (W) x 470 (H) mm | ||
Quantity | 20pcs | |||
Total Weight | 19.95kg | |||
