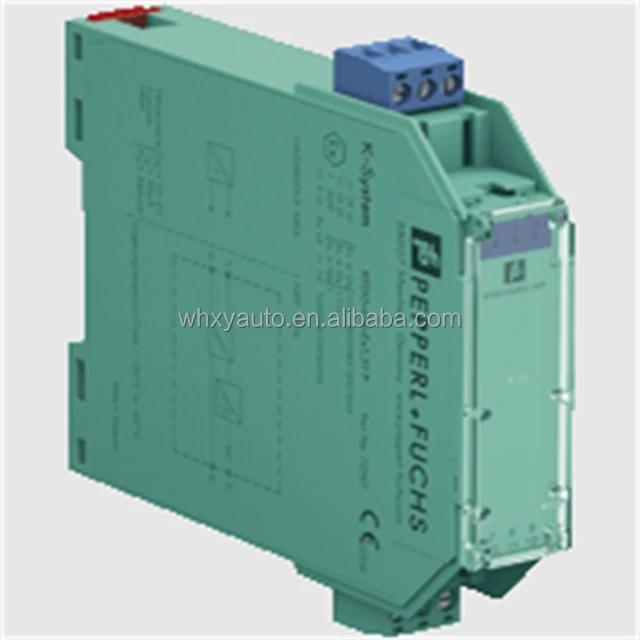

In Stock KFD2-CD-Ex1.32 Current/Voltage Driver isolated barrier

In Stock KFD2-CD-Ex1.32 Current/Voltage Driver isolated barrier



General specifications

Signal typeAnalog output

Functional safety related parameters

Safety Integrity Level (SIL)SIL 2

Supply

ConnectionPower Rail or terminals 7+, 8-

Rated voltage20 ... 35 V DC

Ripplewithin the supply tolerance

Rated currentcurrent output: ≤ 50 mA ; voltage output: ≤ 20 mA

Power dissipation1.2 W

Input

Connection sidecontrol side

Connectionterminals 9+, 10-, 11+

Voltage dropoptional current input: approx. 4 V at 20 mA

Input current≤ 100 µA up to 50 °C (122 °F) at 10 V

Limitoptional current input: Input current: approx. ≤40 mA

optional voltage input: input voltage: 12 V DC

Transmission rangeoptional current input: 0 ... 20 mA/optional voltage input: 0 ... 10 V

Output

Connection sidefield side

Connectionterminals 1+, 2-

Voltageoptional current output: 17 V at 20 mA/optional voltage output: 0 ... 10 V

Currentoptional current output: 0 ... 20 mA/optional voltage output: ≤ 20 mA

Loadoptional current output: max. 850 Ω

optional voltage output: output resistance max. 3 Ω

Transfer characteristics

Accuracy0.1 %

Deviation

After calibration≤ ± 0.1 % incl. non-linearity and hysteresis at 20 °C (68 °F)

Influence of ambient temperature≤ ± 0.01 %/K

Rise time< 10 ms

Galvanic isolation

Input/power supplyfunctional insulation, rated insulation voltage 50 V AC

Indicators/settings

Display elementsLED

Labelingspace for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EUEN 61326-1:2013 (industrial locations)

Conformity

Degree of protectionIEC 60529:2001

Protection against electrical shockUL 61010-1:2004

Ambient conditions

Ambient temperature-20 ... 60 °C (-4 ... 140 °F)

Mechanical specifications

Degree of protectionIP20

Connectionscrew terminals

Massapprox. 100 g

Dimensions20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1

Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
