Solar controller 10A 20A 30A12V24V Automatic identification of general purpose household power generation home system controller
Description:
PWM10 | PWM20 | PWM30 | PWM50S | |
Charging Current | 10A | 20A | 30A | 50A |
Discharging Current | 10A | 20A | 30A | 50A |
Max Solar input | 50V(for 24V battery) 25V(for 12V battery) | ||||||
Equalization | 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) | ||||||
Float charge | 13.7V(defaul,adjustable) | ||||||
Discharge stop | 10.7V(defaul,adjustable) | ||||||
Discharge reconnect | 12.6V(defaul,adjustable) | ||||||
USB output | 5V/3A | ||||||
Mounting holespacing | 147mm*60mm | ||||||
Dimensions | 133*70*35mm | ||||||
Packing Size | 150*80*40mm | ||||||
Packing Weight | 150g | ||||||
Self-consum | <10mA | ||||||
Operating temperature | -35°C~+60°C | ||||||
Installation linenumber | ≤5#AWG(6mm2) | ||||||
Storage temperature | -40°C-70°C | ||||||
30A Solar Charge Controller:
1: LCD display
2: Automatic identification 12V/24V
3:High performance chip
4: Automatic memory data storage
5: Multiple intelligent protection
6: PWM charging
7: Simple and easy to install
System connection

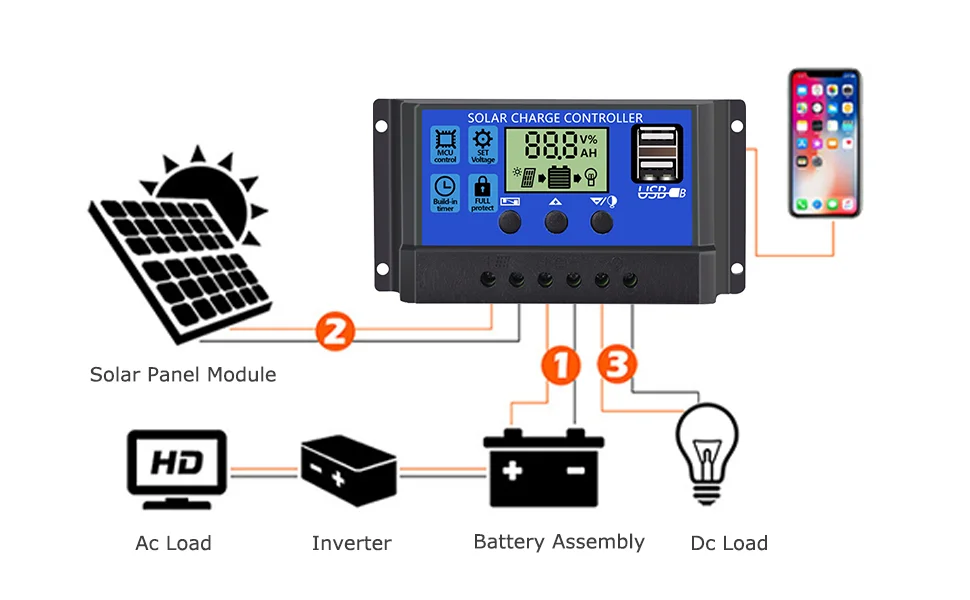

1. Connect the positive and negative terminals of the battery to the controlleraccording to the figure, and the controller will automatically detect the batteryvoltage.
2. Connect the positive and negative poles of the load to the controller according tothe diagram. and be careful not to reverse connection.
2. Connect the positive and negative poles of the load to the controller according tothe diagram. and be careful not to reverse connection.
3. Connect the solar panel to the controller as shown in the figure.
Panel status indicator and setting
Menu key: Switch to the parameter screen, or hold down the function key to enteror exit parameter setting
Flip up: On the parameter setting screen, tap once to add one step to the parameter
Flip down: On the parameter setting screen, tap once to lower the parameter one step down

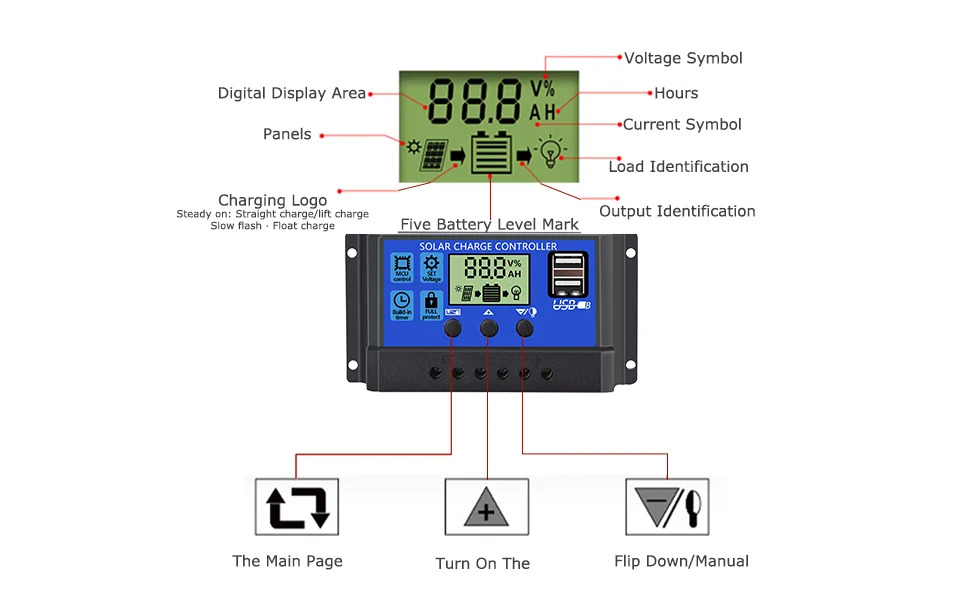

Browsing interface: Press the menu key to browse various aspects and parameters
Set parameters: On the screen 2-5, hold down 55 to scroll up to enter manualsetting. At this time, the numbers will blink. Press up or down to adjust parametervalues
Panel status indicator and setting
Menu key: Switch to the parameter screen, or hold down the function key to enteror exit parameter setting
Flip up: On the parameter setting screen, tap once to add one step to the parameter
Flip down: On the parameter setting screen, tap once to lower the parameter one step down
Browsing interface: Press the menu key to browse various aspects and parameters
Set parameters: On the screen 2-5, hold down 55 to scroll up to enter manualsetting. At this time, the numbers will blink. Press up or down to adjust parametervalues
USB charging life, supportmost USB port devices in themarket. Thickening the heatdissipation backplane toimprove the heat dissipationperformance of MOS tubeclose to the heat dissipationdesign.

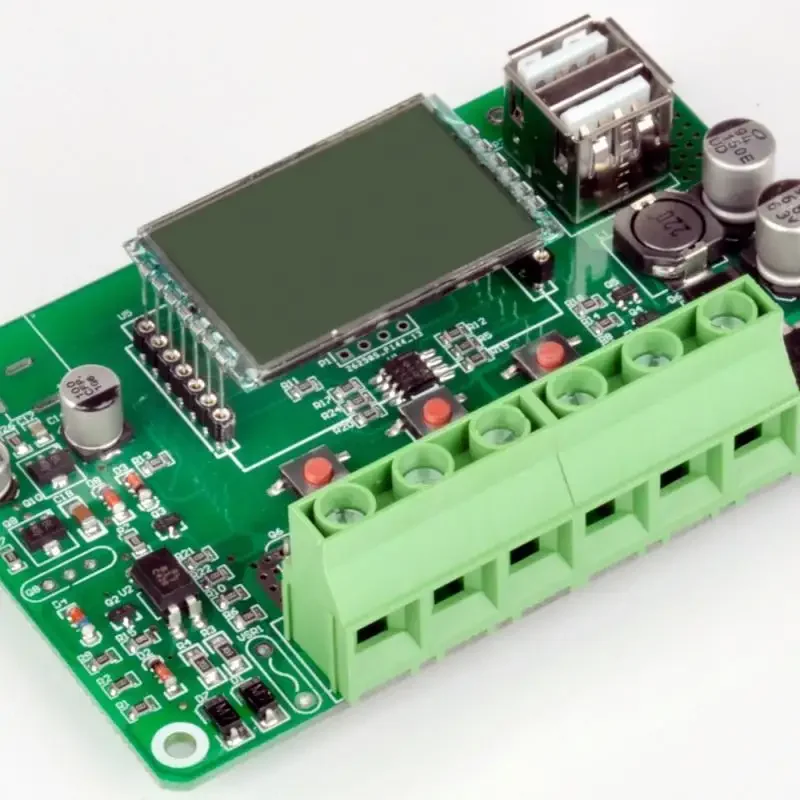

Standard size PBC board, fourscrews fixed PBC board,electronic components stableperformance, Dual mosfett'''a'aata'a'aay'atayReverse current protection,low heat production.
The connecting port with large section and large spacingcan be installed with 6mm wire. The spacing of 9.5mmincreases the insulation performance and the possibilityof installation, effectively reduces the voltage drop ofthe circuit and reduces the loss.
