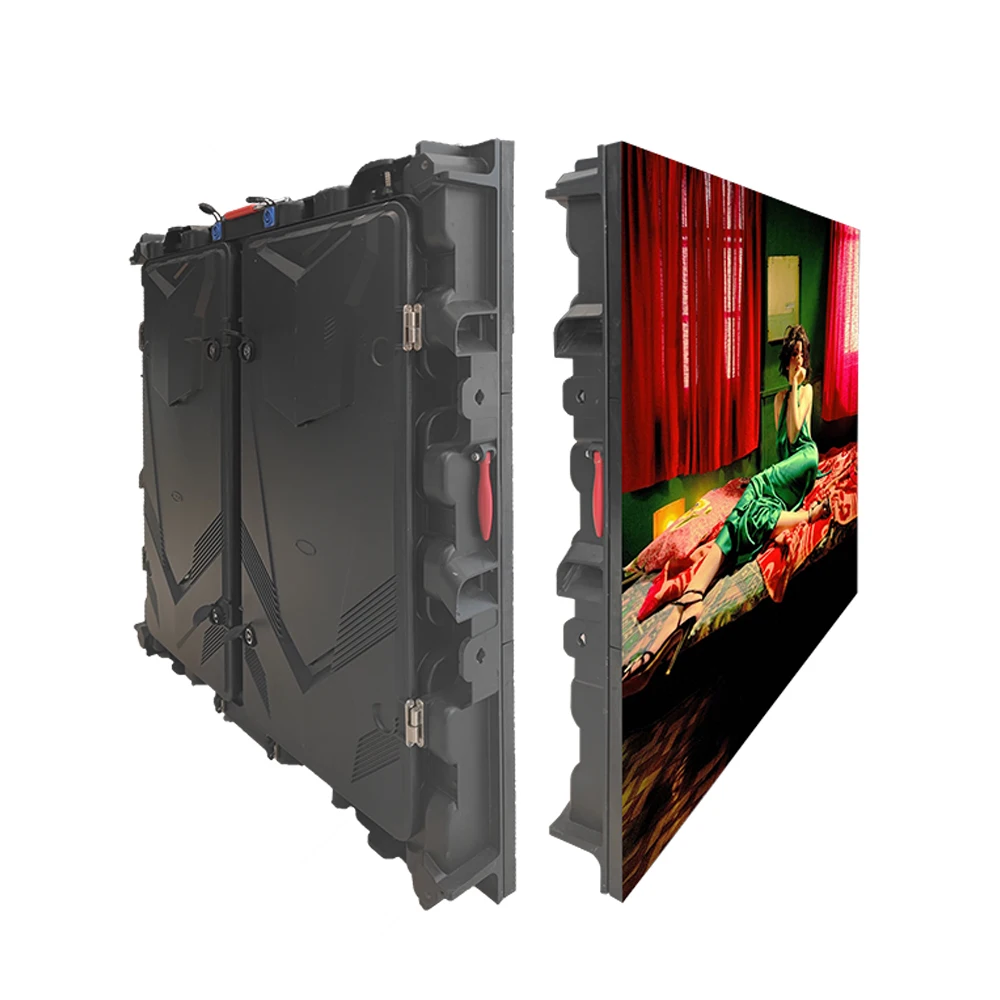

P4 4Mm Common Cathode Energy Saving Advertising Billboard Sign Pantallas De Publicidad Exterior Outdoor Led Display Screen
- Category: >>>
- Supplier: Shenzhen RAYBO LED Display Manufactory Co. Ltd.
Share on (1600847899151):
Product Overview
Description

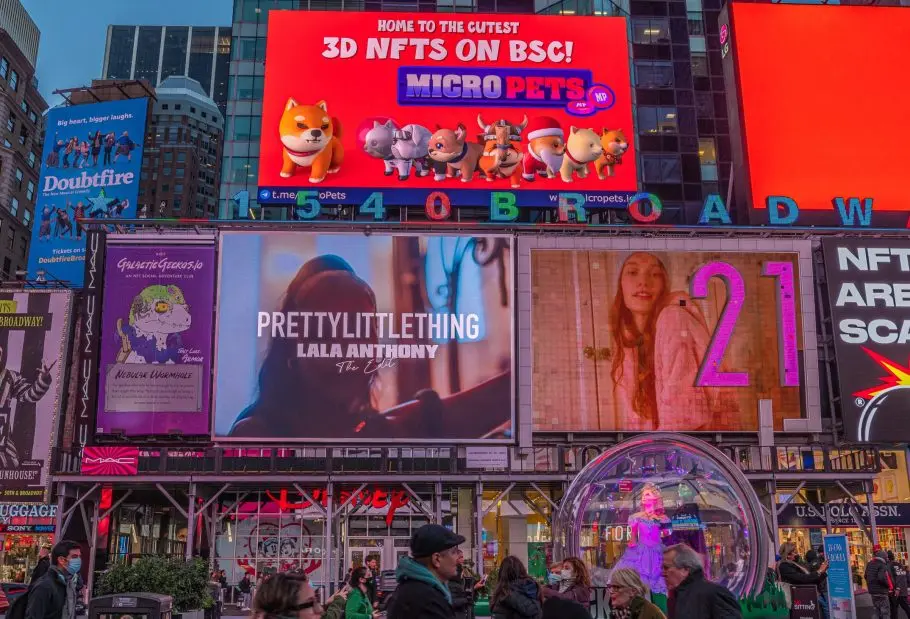

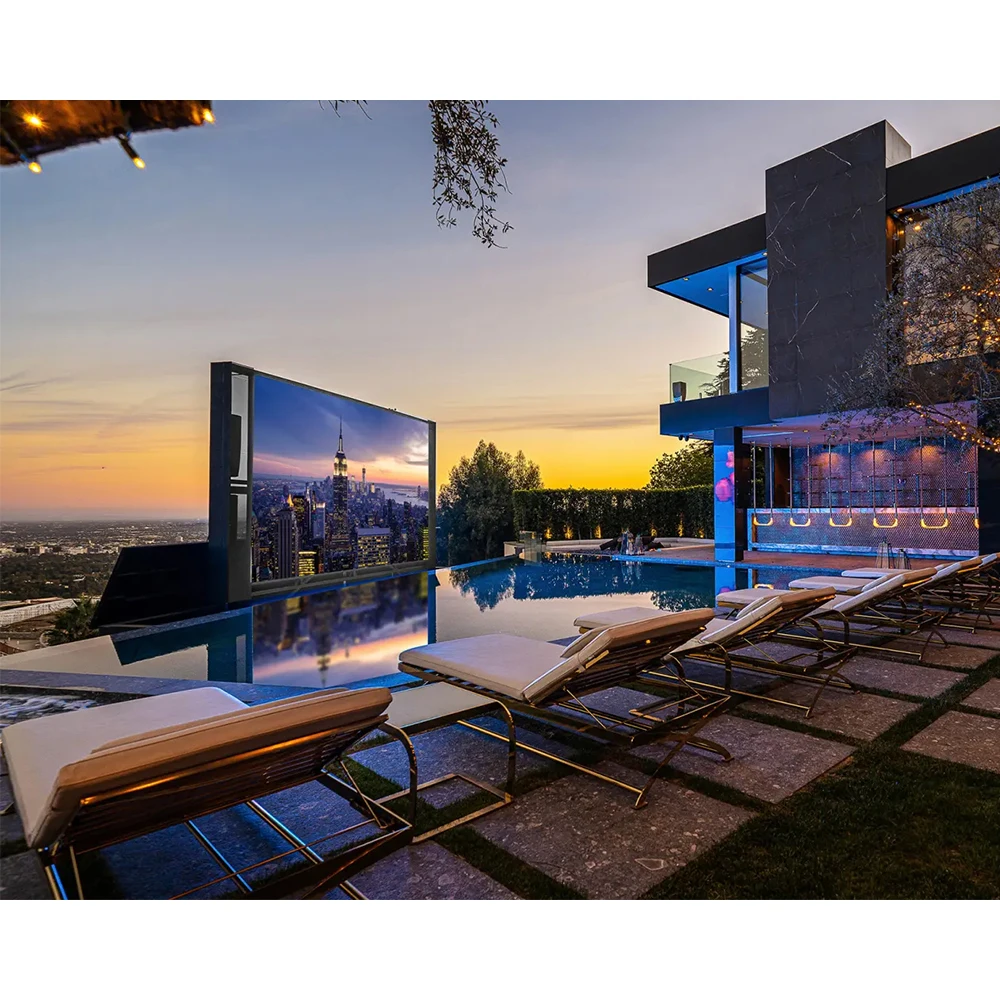

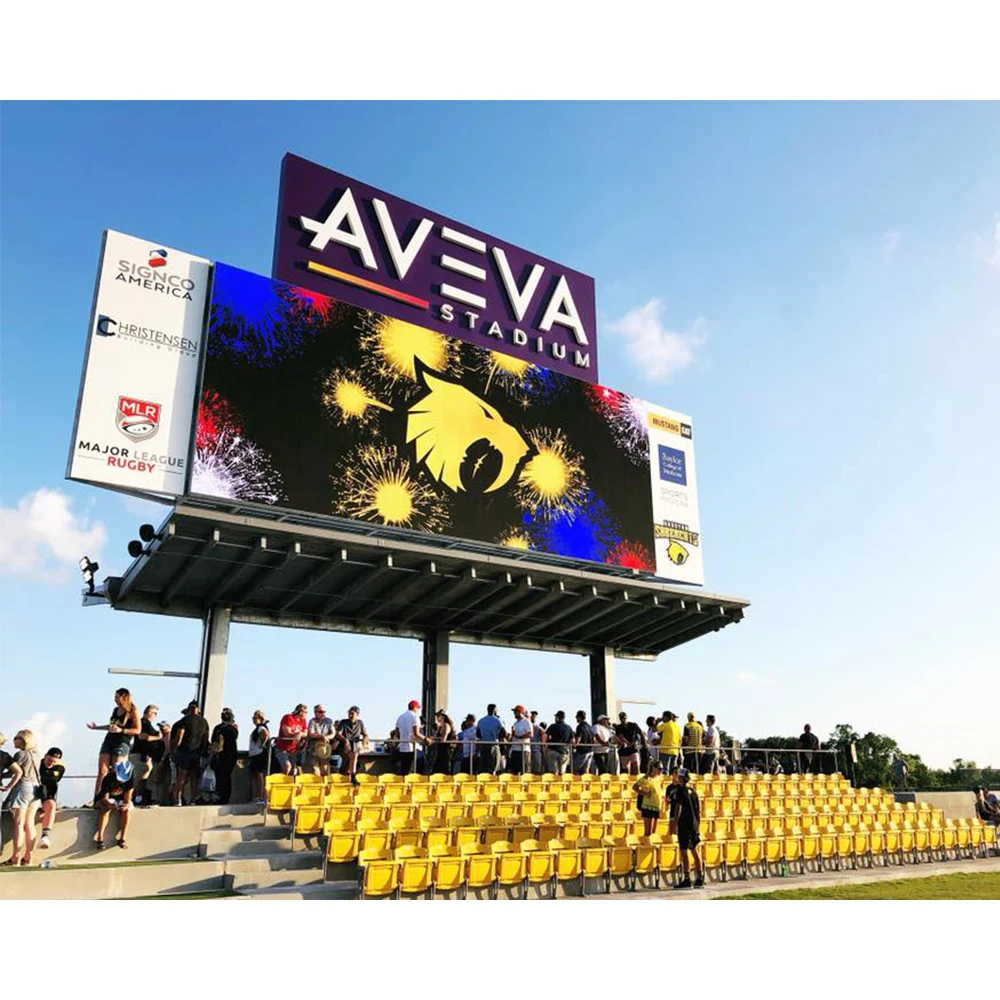

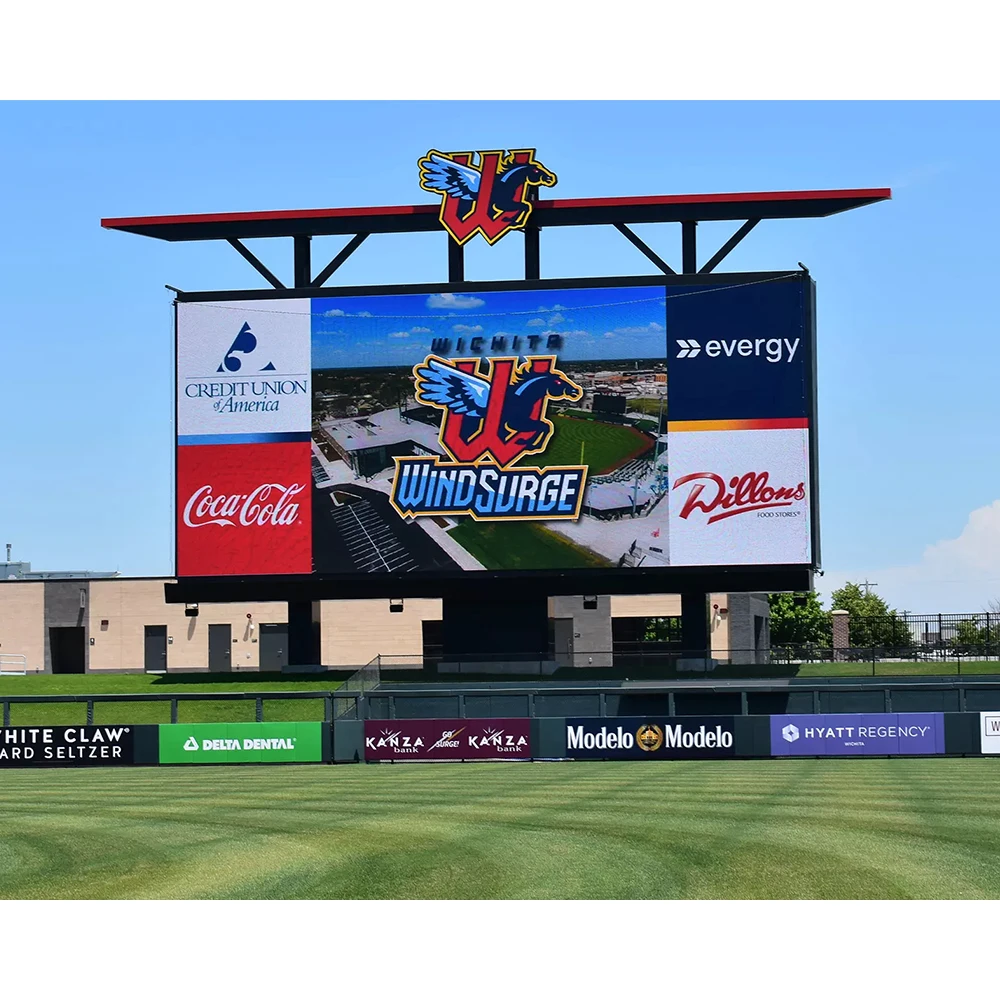

Project Cases
Outdoor P6.67
Pixel Pitch: 6.67mm
Screen Size: 7680*1920mm(8*2 panels)
Pixel Matrix Per Sq.m: 22500dots
Module Dimension: 320*320mm
Location: America
Outdoor P5.33
Pixel Pitch: 5.33mm
Screen Size: 5760*3840mm(6*4 panels)
Pixel Matrix Per Sq.m: 35200dots
Module Dimension: 320*320mm
Location: Australia
Pixel Matrix Per Sq.m: 35200dots
Module Dimension: 320*320mm
Location: Australia
Outdoor P10
Pixel Pitch: 10mm
Screen Size: 6720*1920mm(7*2 panels)
Pixel Matrix Per Sq.m: 10000dots
Module Dimension: 320*320mm
Location: Chicago
Pixel Matrix Per Sq.m: 10000dots
Module Dimension: 320*320mm
Location: Chicago

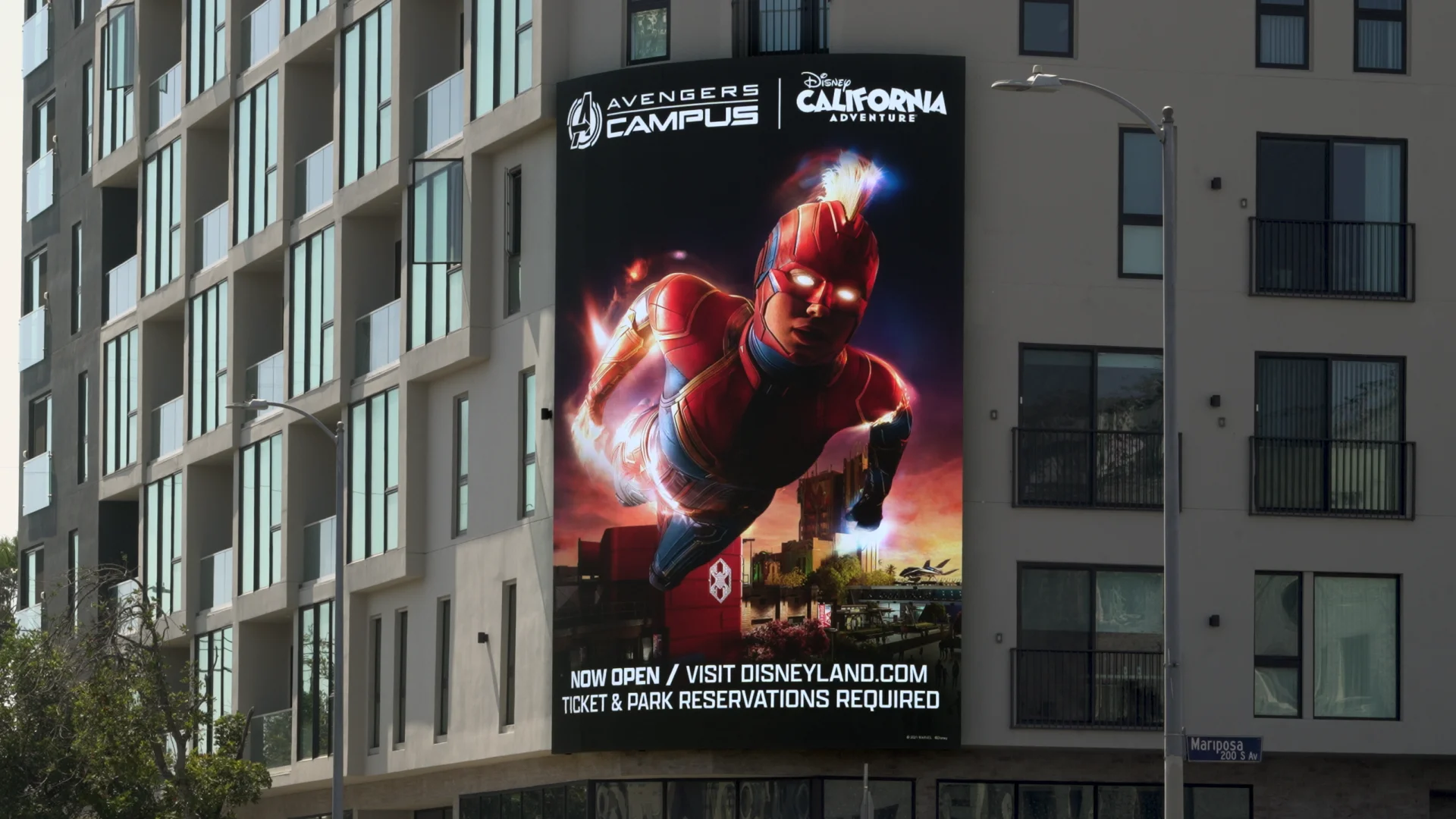

Outdoor P8
Pixel Pitch: 8mm
Screen Size: 1920*3840mm(2*4 panels)
Pixel Matrix Per Sq.m: 15625dots
Module Dimension: 320*320mm

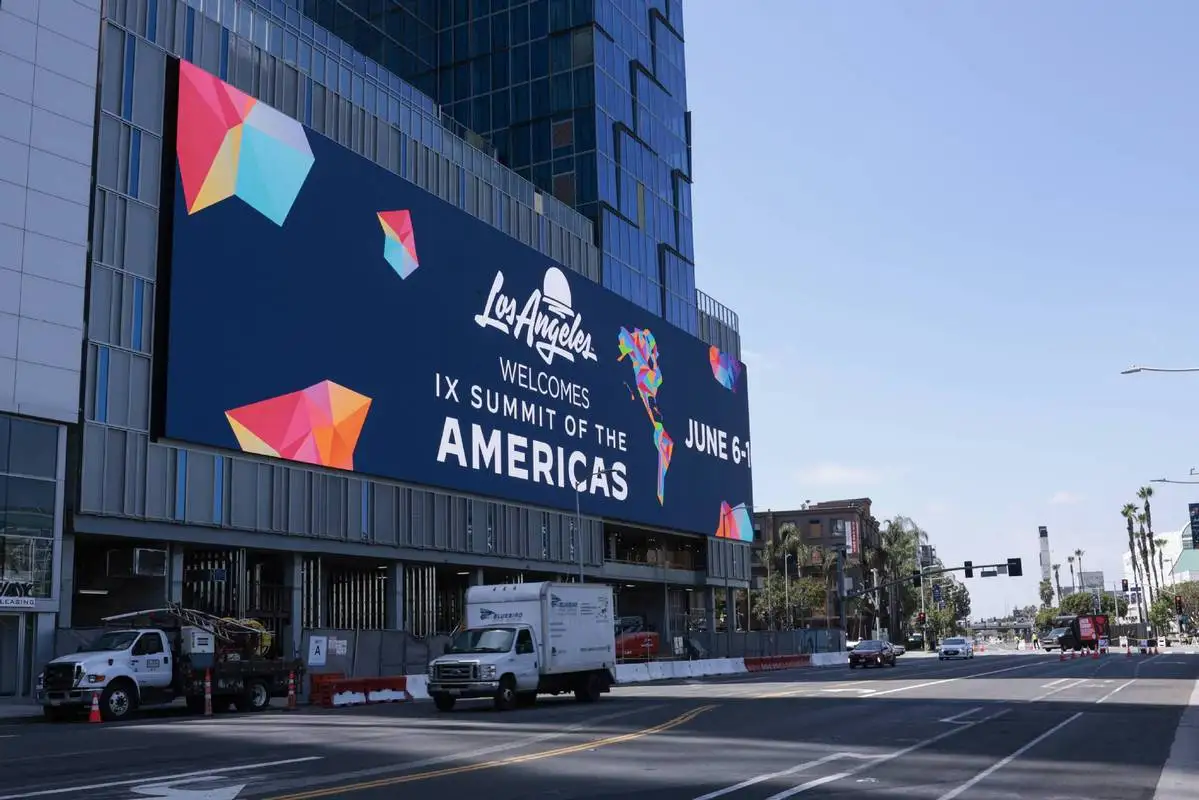

Location: Los Angeles
Pixel Matrix Per Sq.m: 15625dots
Module Dimension: 320*320mm
Location: Los Angeles
Outdoor P5.33
Pixel Pitch: 5.33mm
Screen Size: 5760*2880mm(6*3 panels)
Pixel Matrix Per Sq.m: 35200dots
Module Dimension: 320*320mm
Location: New York
Pixel Matrix Per Sq.m: 35200dots
Module Dimension: 320*320mm
Location: New York

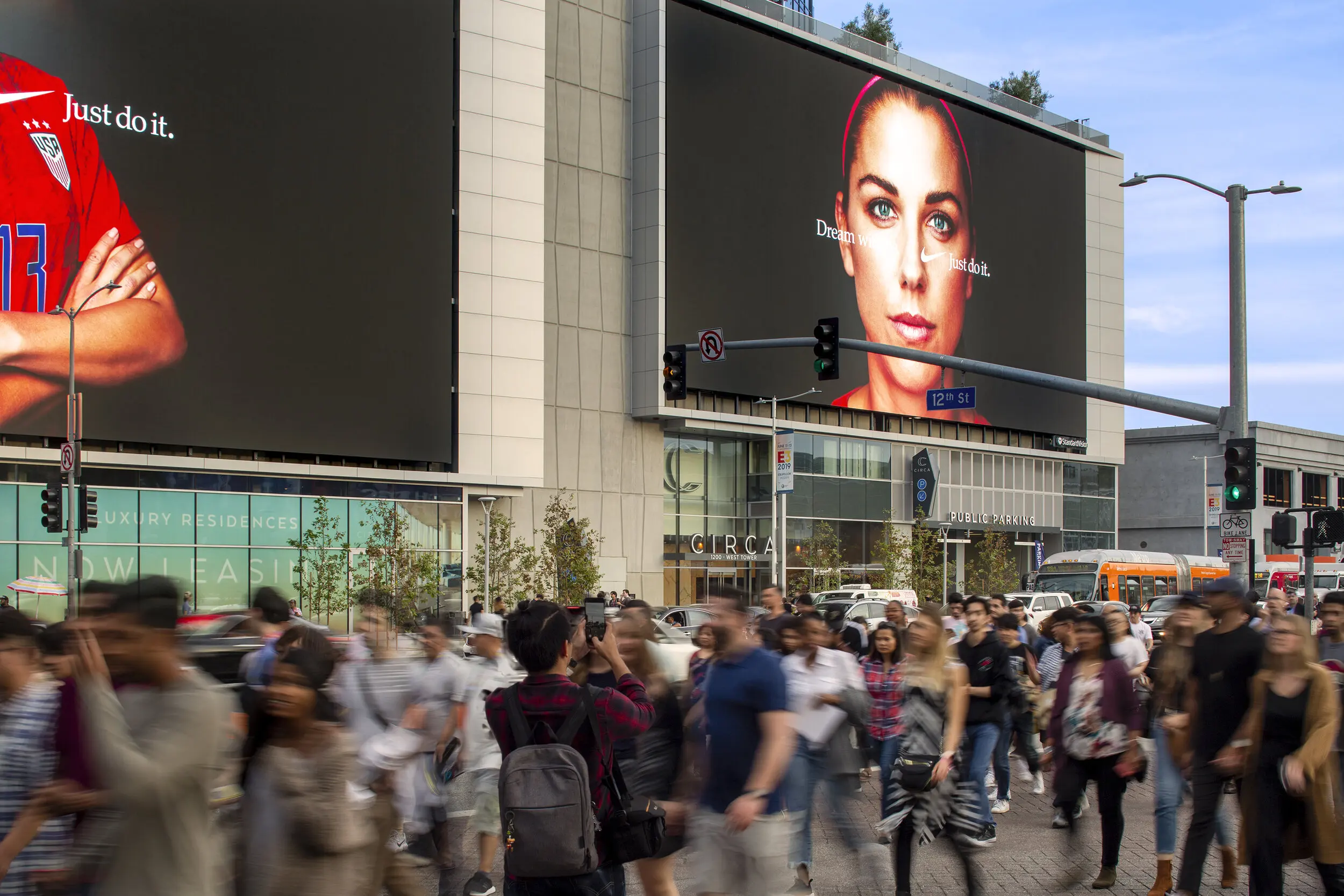

Outdoor P6.67
Pixel Pitch: 6.67mm
Screen Size: 4800*2880mm(5*3 panels)
Pixel Matrix Per Sq.m: 22500dots
Module Dimension: 320*320mm
Location: America
Pixel Matrix Per Sq.m: 22500dots
Module Dimension: 320*320mm
Location: America

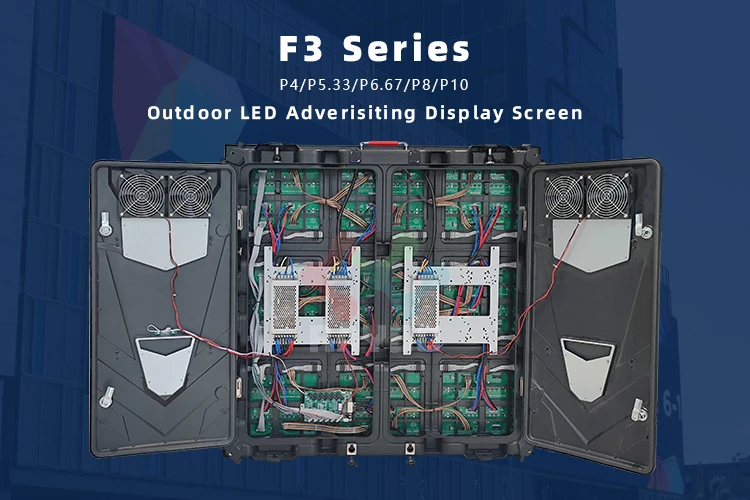

Products Description
Model | P4 | P5.33 | P6.67 | P8 | P10 |
Pixel Pitch(mm) | 4 | 5.33 | 6.67 | 8 | 10 |
Pixel Matrix Per Sq.m | 62500dots | 35200dots | 22500dots | 15625dots | 10000dots |
LEDs package | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
Brightness (cd/㎡) | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ | ≥6000cd/㎡ |
Scan | 1/10 | 1/8 | 1/6 | 1/5 | 1/4 |
Module Dimension | 320*320mm | 320*320mm | 320*320mm | 320*320mm | 320*320mm |
Cabinet Dimension | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm | 960*960*160mm |
Cabinet Resolution | 240*240dots | 180*180dots | 144*144dots | 120*120dots | 96*96dots |
Cabinet Material | Iron | Iron | Iron | Iron | Iron |
Cabinet Weight | 40KGs | 40KGs | 40KGs | 40KGs | 40KGs |
Max. Power Consumption | 800W | 800W | 800W | 800W | 800W |
Ave. Power Consumption | 200-300W | 200-300W | 200-300W | 200-300W | 200-300W |
Service Access | Front and Rear | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
Refresh Rate (HZ) | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ | 1920HZ/ 3840HZ |
Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 |
Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
Best Viewing Distance | 4-40m | 5-53m | 6-67m | 8-80m | 10-100m |
IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 |
Input Voltage (AC) | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ | 110V-240V, 50/60HZ |
Work Process
Why Choose Us
Company Profile
RAYBO LED Display Manufactory Co,. LTD is a manufactory that focus on the global LED market. We have more than 20 years experience in R&D, manufacturing, marketing of different kinds of indoor and outdoor LED display. Providing perfect solutions for our advertising, exhibition, church, stage, bar and stadium, etc industries customers. We are a one-stop solution provider of LED products from raw materials to after-sales services.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.
With the growth of experience in the industry, RAYBO has became a trendsetter in the LED industry by offering quality, customized and durable products worldwide. Our headquarter is located in Shenzhen, where is the world's largest LED display industry resource concentration center. Here, we have the most creative design team and high educated engeneer team to provide premium solutions. We also have the most advantage automatic production lines and professional test equipments in the industry, which is the fundation of a realiable manufatory.
All of our products are with CCC, CE, FCC, Rohs, etc certificates for global market. We have also passed ISO9OO1 quality certification as a member of China Optics and Optoelectronics Industry Association.
Currently, our products and services have been distributed to over 80 countries. We have valuable partners in US, Canada, Australia, UK, Italy, Mexico, Japan and Indonesia, etc. We have build strong partnership with local industries, and hope you will be the next.
Packing & Delivery
Mode of transportation | Advantage | Disadvantage | Advice |
Sea freight | Large volume, low shipping costs, and well-connected waterways. | Slow, the sailing risk is high, and the sailing date is not easy to be accurate | Bulk cargo Bulky cargo Loose time |
Air cargo | Safe, On Time, Shortened Delivery Times | Higher cost | valuable cargo Urgent need |
Land transportation | Fast delivery large capacity | Can only drive on fixed routes, poor flexibility | Select according to the delivery address |
Express | Short transit time | Volume weight restricted | Small cargo Accessories |
FAQ
A: We are based in Guangdong, China, we have more than 20 years experience in LED display screen. Strong technical force to ensure excellent quality.
Q: What can you buy from us?
A: Rental LED Display, Outdoor LED Display, Indoor LED Display, Transparent LED Screen, Floor Tile Screen, Creative Design LED Screen and Etc.
Q: Can I have a sample order for led screen?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: How can we guarantee quality?
A: 5 years warranty. Always a pre-production sample before mass production and final Inspection before shipment.
