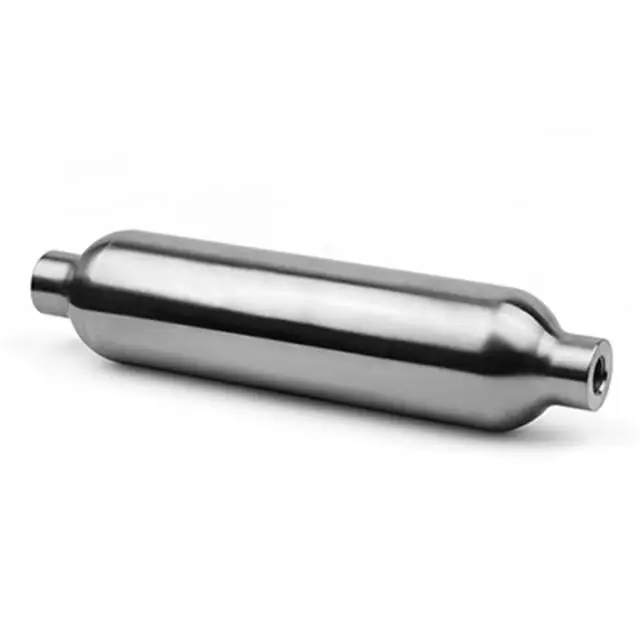

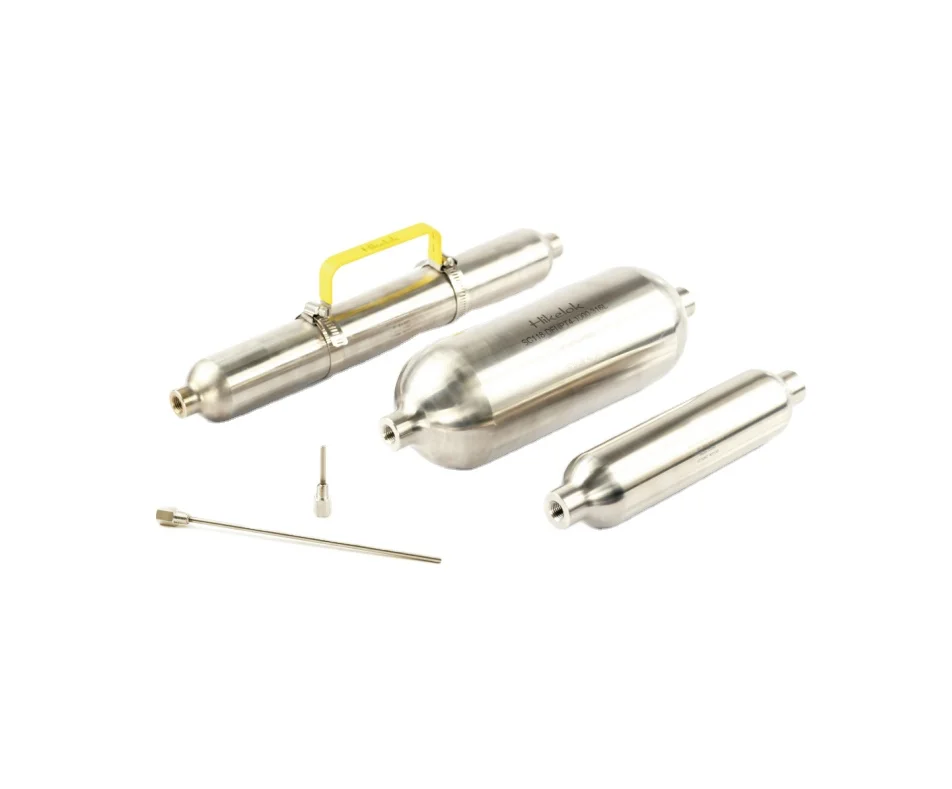

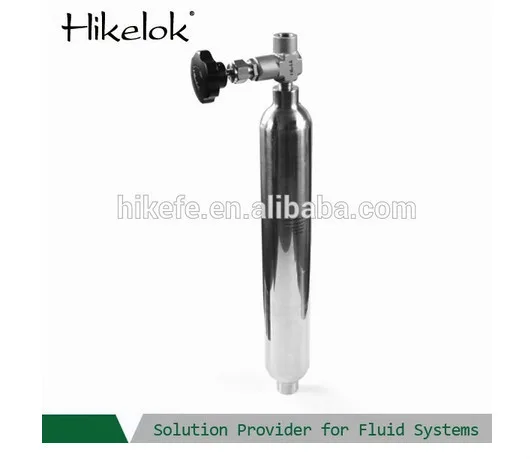

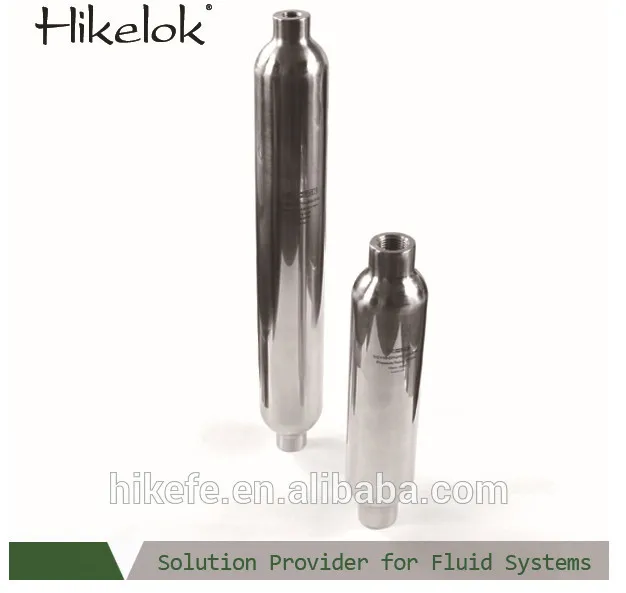

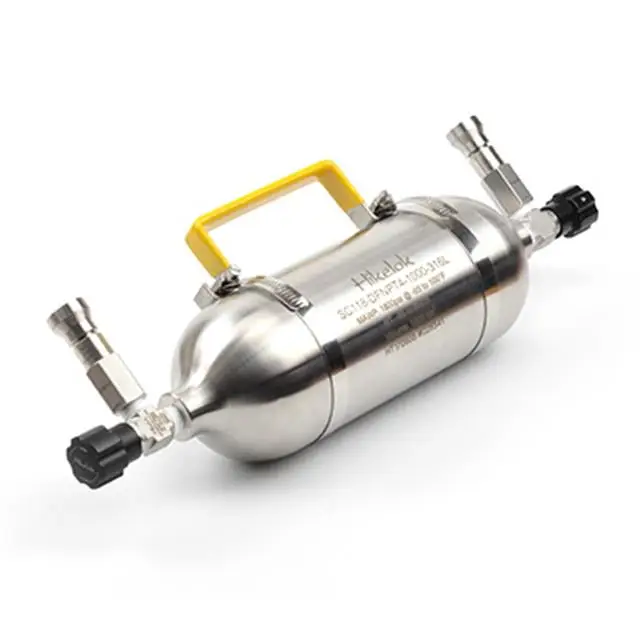

TPED Hikelok 500psi 1800 psi 1/4' female NPT stainless steel double end sampling cylinder sampling bomb
- Category: >>>
- Supplier: Sailuoke Fluid Equipment Inc.
Share on (1600848166366):
Product Overview
Description
Product Description
Product Name | Sample Cylinder |
Place of Origin | Sichuan, China |
Brand | Hikelok |
Model | SC1 |
Company Certificate | ISO 9001/ISO14001/ISO 45001 |
Connection 1 Size | 1/8 in. 1/4 in. 1/2 in. |
Connection 1 Type | Female NPT |
Connection 2 Size | 1/8 in. 1/4 in. 1/2 in. |
Connection 2 Type | Female NPT |
Max Working Pressure | 5000 psig (344 bar) |
Body Material | Stainless Steel 316L, 304L, Alloy 400 |
Cleaning Process | Standard Cleaning and Packaging (CP-01) |

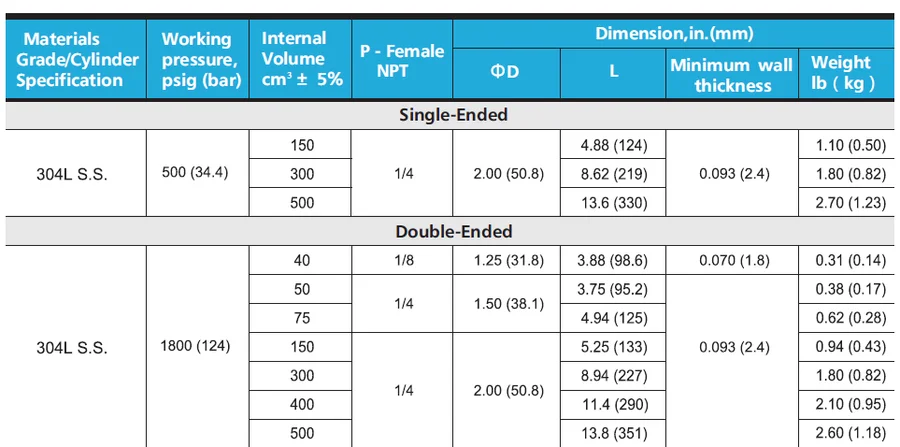

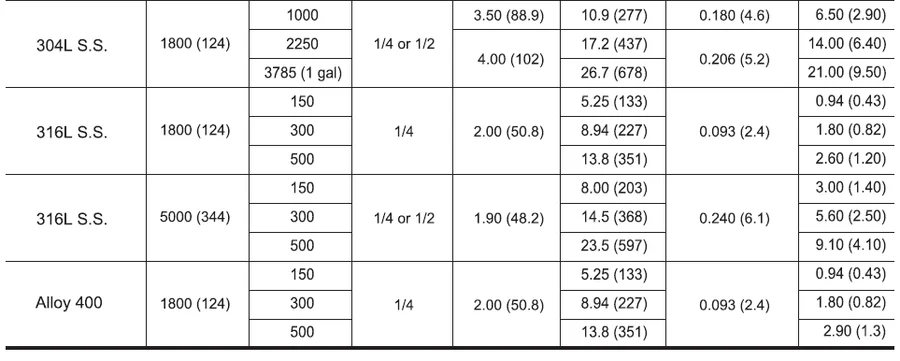

Specification
Feature
*Working pressure up to 5000 psig (344 bar)
*Internal volume from 40 to 3785 cm (1 gal)

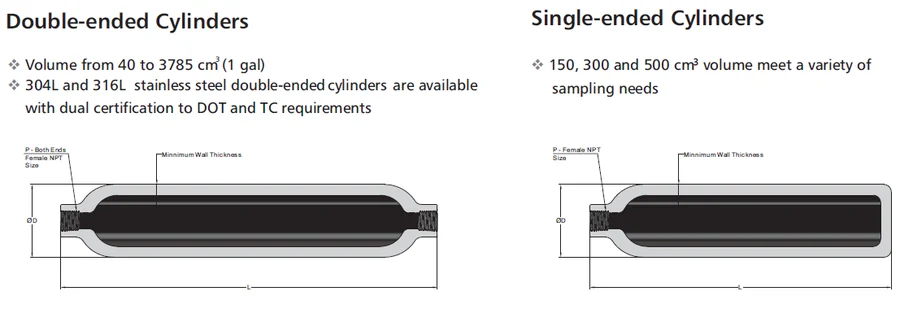

*Single-ended and double-ended
*Seamless tubing body provides consistent wall thickness, size and capacity
*Heavy wall end connections provide strength and resist flaring
*316L and 304L and alloy 400 stainless steel materials available
*Internal volume from 40 to 3785 cm (1 gal)
*Single-ended and double-ended
*Seamless tubing body provides consistent wall thickness, size and capacity
*Heavy wall end connections provide strength and resist flaring
*316L and 304L and alloy 400 stainless steel materials available
1. Internal PTFE coating, which provides a non-stick surface to aid in cleaning,can be supplied in any sample cylinder.
To order, add -T to the cylinder ordering number.
Example: SC118-DFNPT4-300-316L-T
2. Electropolishing provide a clean inside surface with a high degree of passivation.
To order, add -P to the cylinder ordering number.
Example: SC118-DFNPT4-300-316L-P
※ For rupture disc units and rupture disc tees please contact the Hikelok authorized representative
To order, add -T to the cylinder ordering number.
Example: SC118-DFNPT4-300-316L-T
2. Electropolishing provide a clean inside surface with a high degree of passivation.
To order, add -P to the cylinder ordering number.
Example: SC118-DFNPT4-300-316L-P
※ For rupture disc units and rupture disc tees please contact the Hikelok authorized representative
Company Information

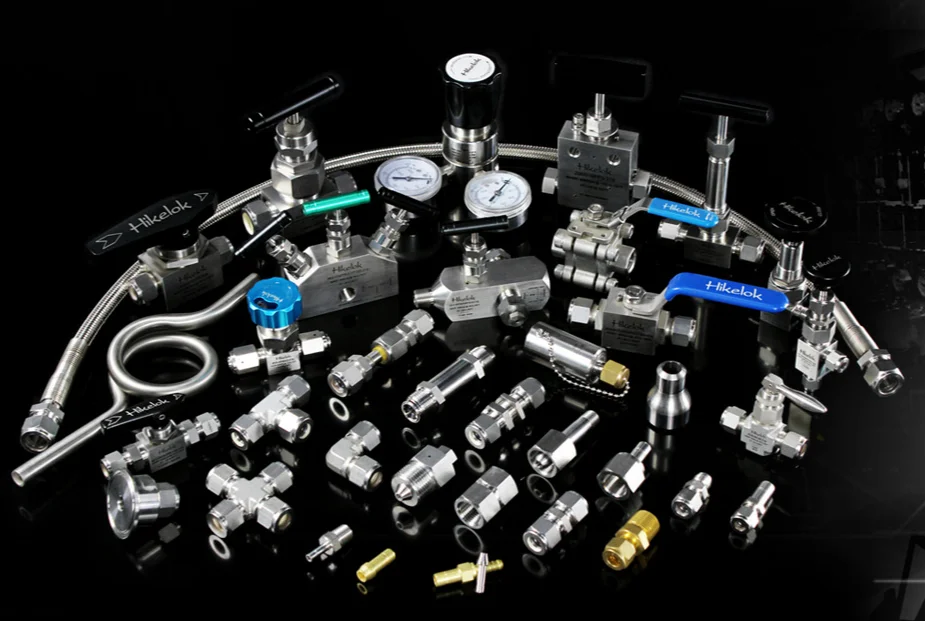

Hikelok have wide product range.
- Instrumentation Valves & Fittings, Ultra-high Pressure and Ultra-high Purity Valves & Fittings
- Application: Oil & Gas, Refinery, Thermal & Nuclear Power, CNG & LNG, Lab, Semi-conductor, Micro-electronics etc.
Hikelok is
- China Leading Manufacturer
- Compete with Swagelok, Parker brands
- ISO 9001:2015 certified
- Established in year 2011
- Instrumentation Valves & Fittings, Ultra-high Pressure and Ultra-high Purity Valves & Fittings
- Application: Oil & Gas, Refinery, Thermal & Nuclear Power, CNG & LNG, Lab, Semi-conductor, Micro-electronics etc.
Hikelok is
- China Leading Manufacturer
- Compete with Swagelok, Parker brands
- ISO 9001:2015 certified
- Established in year 2011

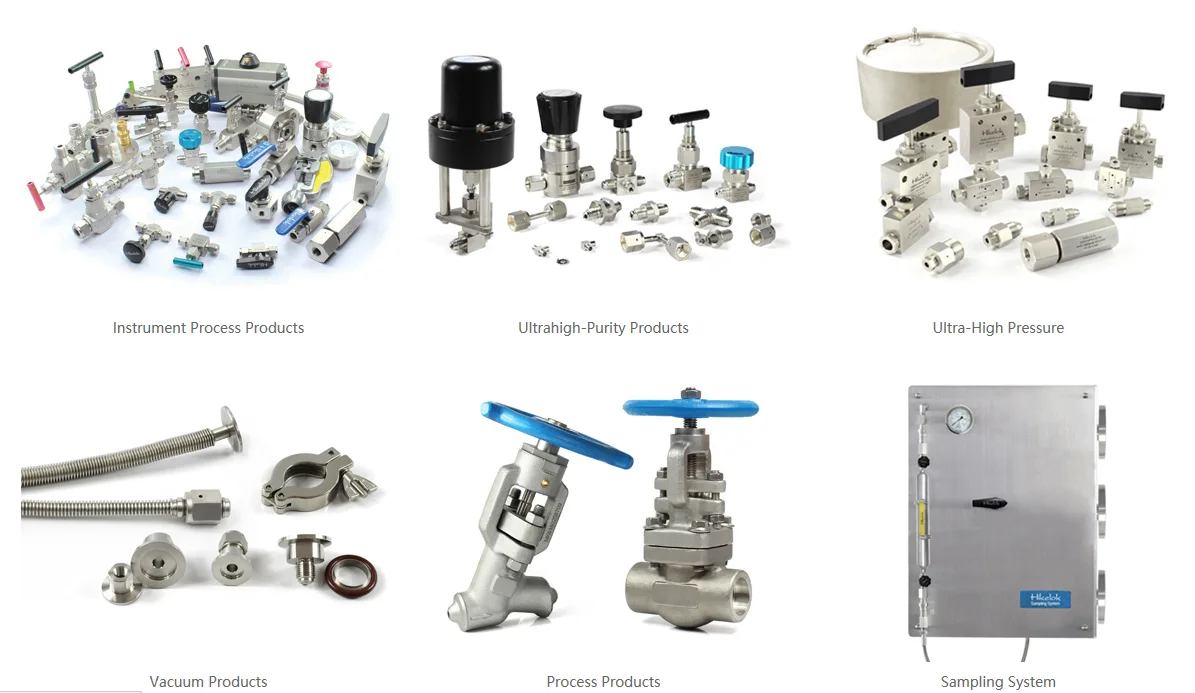

Main Products
--- Twin Ferrules Series Tube Fittings
--- Ball Valves
--- Check Valves
--- Needle Valves
--- Instrument Manifolds
--- Bellows-Sealed Valves
--- Relief Valve
--- Instrumentation Pipe Fittings
--- Matering Valves
--- Pressure Reducing Regulator
--- Block and Bleed Valves
--- Sample Cylinders
--- Root Valves
--- Air Headers
--- Tools
And so on.
Besides, if you can provide us drawings and we also can manufacture them as your requirements.
--- Ball Valves
--- Check Valves
--- Needle Valves
--- Instrument Manifolds
--- Bellows-Sealed Valves
--- Relief Valve
--- Instrumentation Pipe Fittings
--- Matering Valves
--- Pressure Reducing Regulator
--- Block and Bleed Valves
--- Sample Cylinders
--- Root Valves
--- Air Headers
--- Tools
And so on.
Besides, if you can provide us drawings and we also can manufacture them as your requirements.
Our Services
1.CAD
drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe,
trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are
the responsibilities of the system designer and user.
drawing
2.P&ID
3.Component selection
4.Bill of material
5.Professional services such as bending and welding
6.Testing to guarantee the system
7.Professional packaging and delivery
You should make a safe product selection. When selecting products, the total system design must be considered to ensure safe,
trouble-free performance, function, material compatibility, adequate ratings, proper installation, operation and maintenance are
the responsibilities of the system designer and user.
FAQ
1. What is the acceptable MOQ?
Most products MOQ is 1pc
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western union, L/C at sight.
Most products MOQ is 1pc
2. What is the Delivery time?
For samples,we usually have them in stock, so the delivery time will be quite short .
For normal order, the delivery time should be in 2 weeks.
3.What is the acceptable payment term?
T/T, Paypal ,Western union, L/C at sight.
Why Choose Us
1. Hikelok stainless steel ball valve are designed and manufactured to interchange and intermix with Swagelok® and major global brands.
2. Metal-to-metal seal connections, non-elastomeric seals were provided for leak-free connections.
3. Professional Team to keep good quality and offer the best solution.
4. 100% inspection before shipment.
5. Gold supplier authenticated by ALIBABA. Safe and easy to buy fromus.
6. Give you solutions within 24 hours.

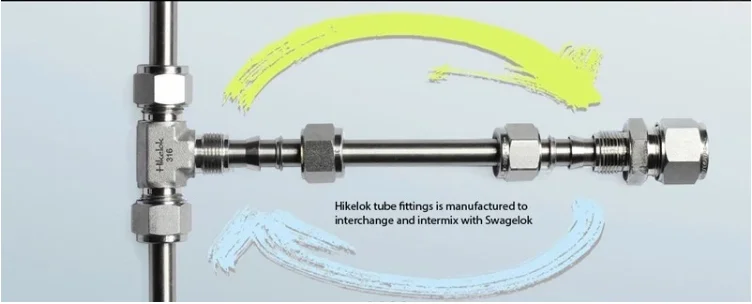

We are designed and manufactured to interchange and intermix with Swagelok® tube fittings.
Hikelok® is designed and precisely manufactured to intermix and interchange with major global brands.
2. Metal-to-metal seal connections, non-elastomeric seals were provided for leak-free connections.
3. Professional Team to keep good quality and offer the best solution.
4. 100% inspection before shipment.
5. Gold supplier authenticated by ALIBABA. Safe and easy to buy fromus.
6. Give you solutions within 24 hours.
