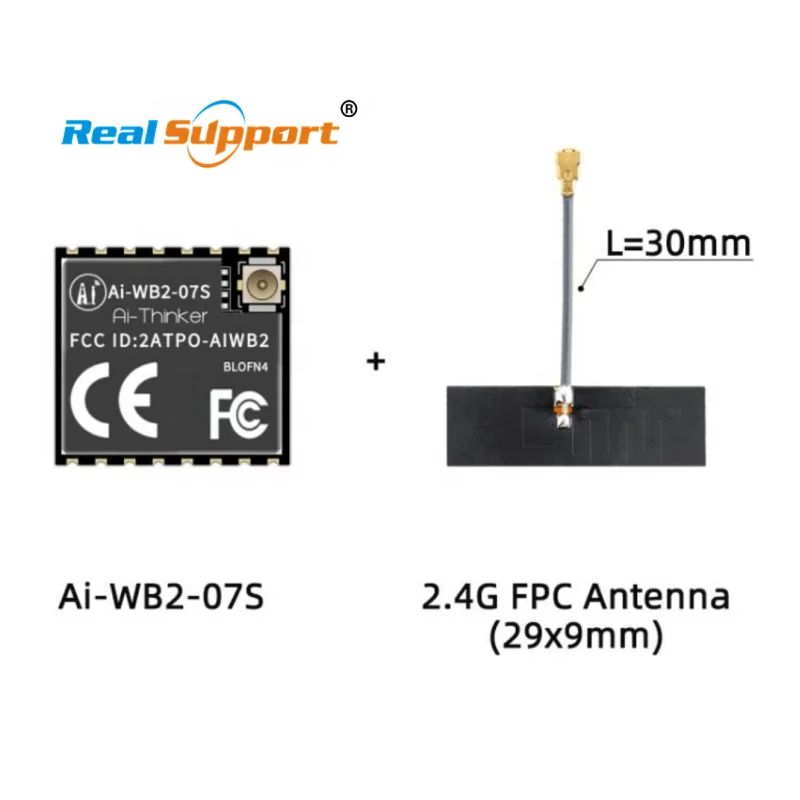

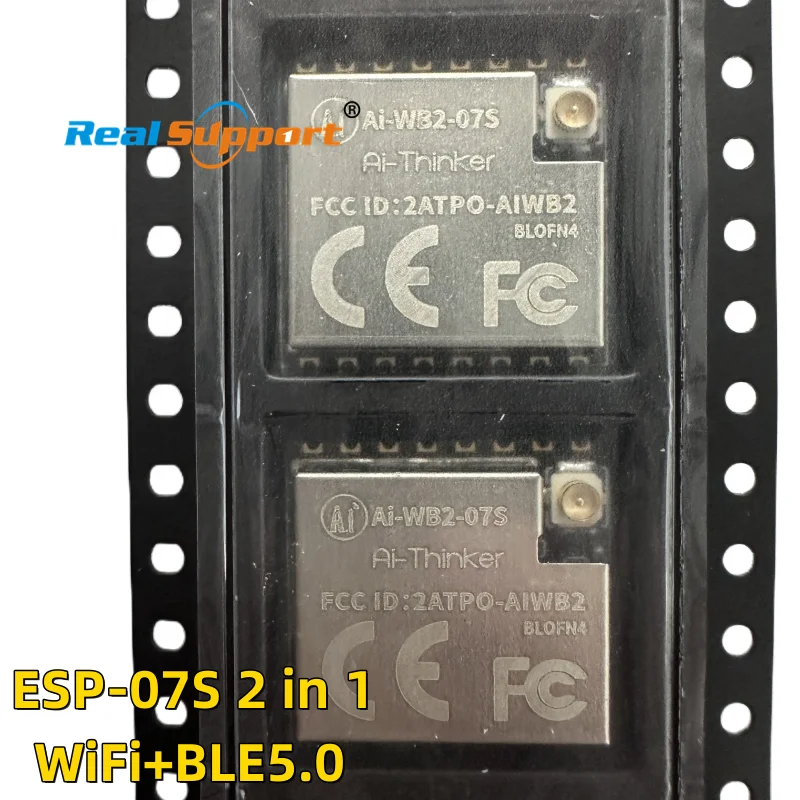

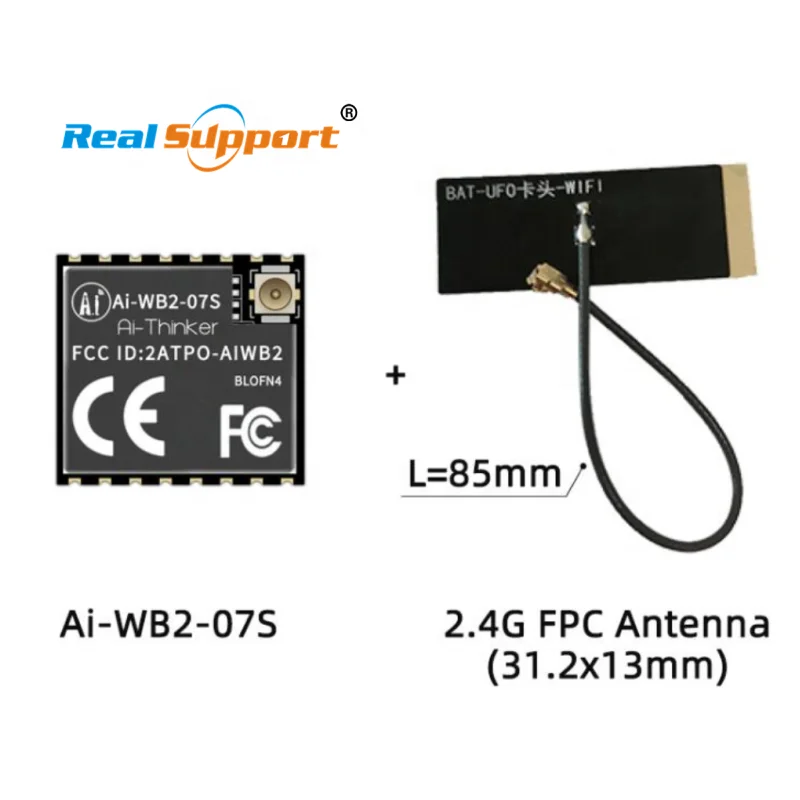

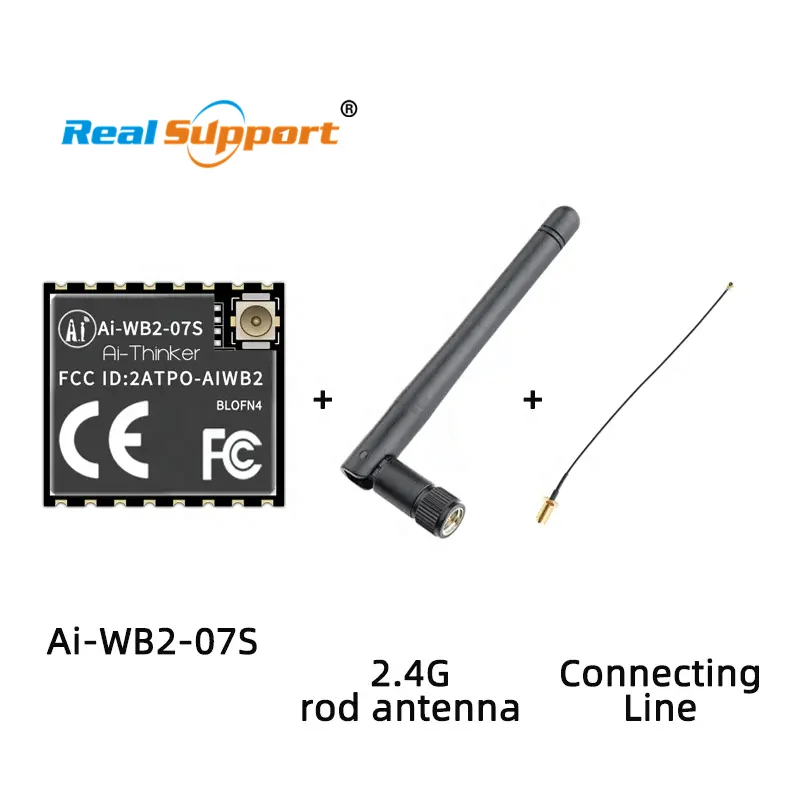

Ai Thinker Original Ai WB2 07S module with BL602 chip WiFi BLE5.0 combo use for smart devices
- Category: >>>
- Supplier: Real Support Electronic Co. Ltd.
Share on (1600848173603):
Product Overview
Description
Product Description
Model | Ai-WB2-07S |
Package | SMD-16 |

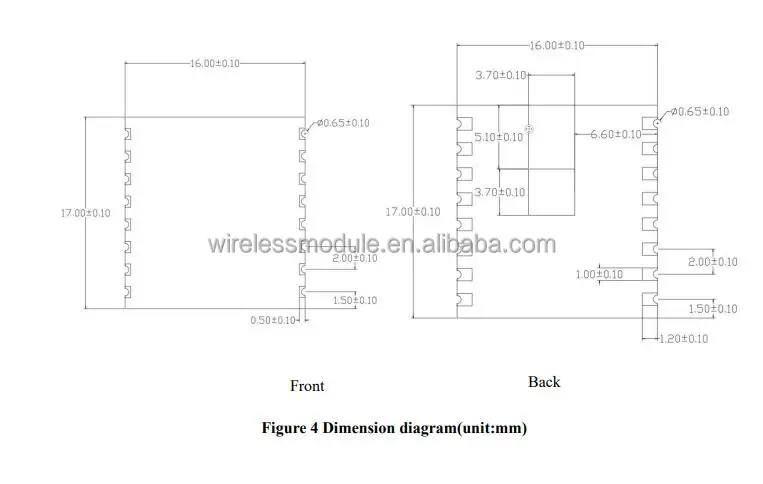

Size | 17.0*16.0*3.1(±0.2)mm |
Antenna | IPEX connector |
Frequency | 2400 ~ 2483.5MHz |
Operating temperature | -40℃ ~ 85℃ |
Storage temperature | -40℃ ~ 125℃, < 90%RH |
Power supply | Support voltage 2.7V ~ 3.6V,supply current ≥500mA |
Interface | UART/GPIO/ADC/PWM/I2C/SPI |
IO | 11 |
UART rate | Default 115200 bps |
Security | WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3 |
Flash Default | 4MByte,Support expansion |
Product Usage
Ai-WB2-07S
Ai-WB2-07S is a Wi-Fi & Blueteeth module. The module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISCCPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IRRemote, PWM, ADC, DAC, PIR and GPIO etc.
It can be widely used in Internet of Things(IoT), mobile devices, wearable electronic devices, smart home and other fields.
Characteristic
The package is SMD-16
Support IEEE 802.11 b/g/n protocol
Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
Support 20MHz bandwidth and Max rate is 72.2 Mbps
BLE BLE 5.0, BLE Mesh
Support Station + BLE mode, Station + SoftAP + BLE mode
Support 32-bit RISC CPU, 276KB RAM
Secure start-up, supports mirroring with ECC-256 signature
Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode
Support AES 128/192/256-bit encryption engine
Support SHA-1/224/256
Support true Random number generator (TRNG)
Public key Accelerator (PKA), support large number basic operations, software provide signature, verification and other application program interface
Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR, GPIO etc.
Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
Support a variety of sleep modes, deep sleep current 12μA
Universal AT instruction for quick start
Support secondary development, integrated Windows, Linux development environment
The package is SMD-16
Support IEEE 802.11 b/g/n protocol
Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
Support 20MHz bandwidth and Max rate is 72.2 Mbps
BLE BLE 5.0, BLE Mesh
Support Station + BLE mode, Station + SoftAP + BLE mode
Support 32-bit RISC CPU, 276KB RAM
Secure start-up, supports mirroring with ECC-256 signature
Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode
Support AES 128/192/256-bit encryption engine
Support SHA-1/224/256
Support true Random number generator (TRNG)
Public key Accelerator (PKA), support large number basic operations, software provide signature, verification and other application program interface
Support SDIO, SPI, UART, I2C, IR remote, PWM, ADC, DAC, PIR, GPIO etc.
Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
Support a variety of sleep modes, deep sleep current 12μA
Universal AT instruction for quick start
Support secondary development, integrated Windows, Linux development environment
