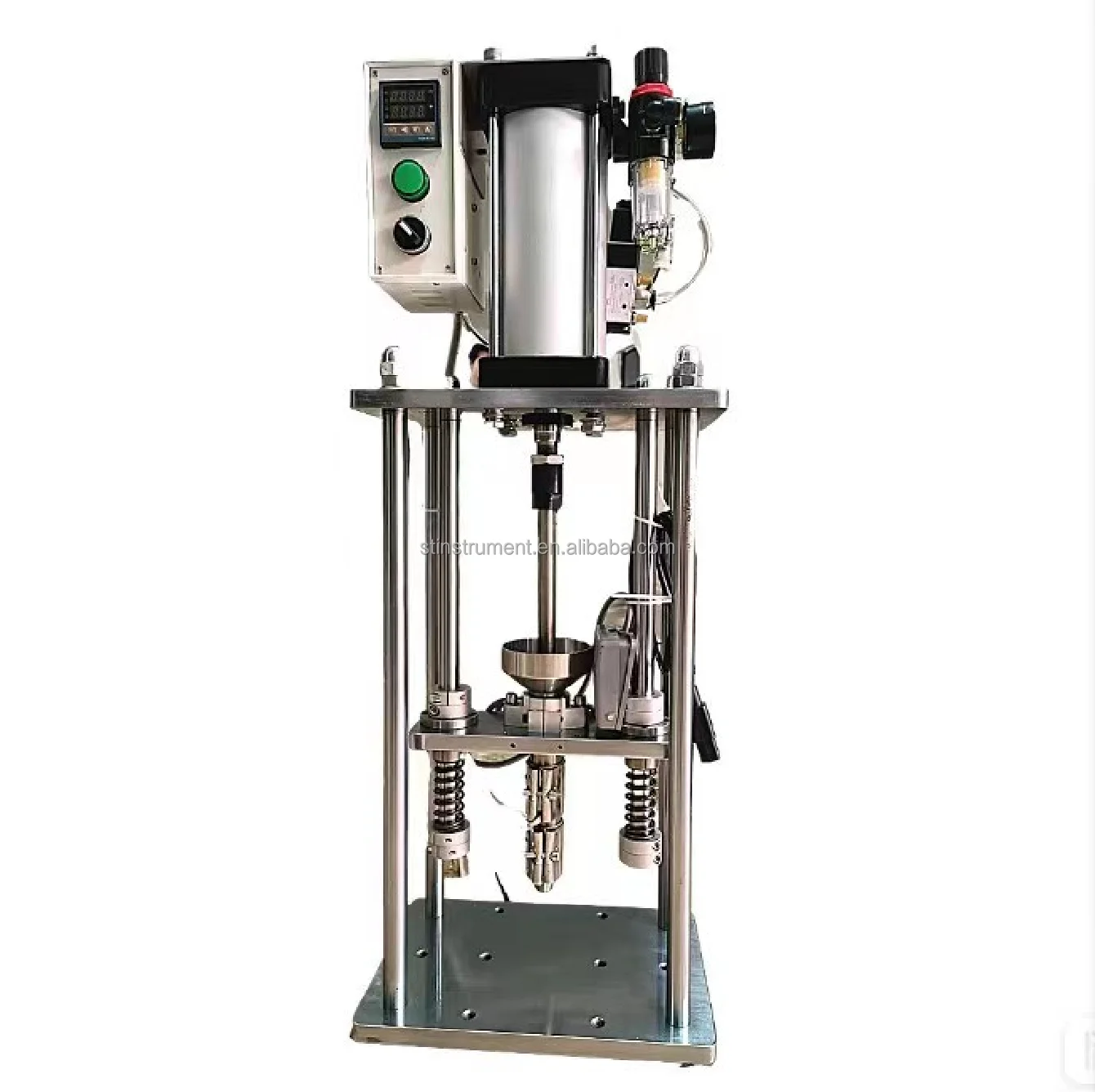

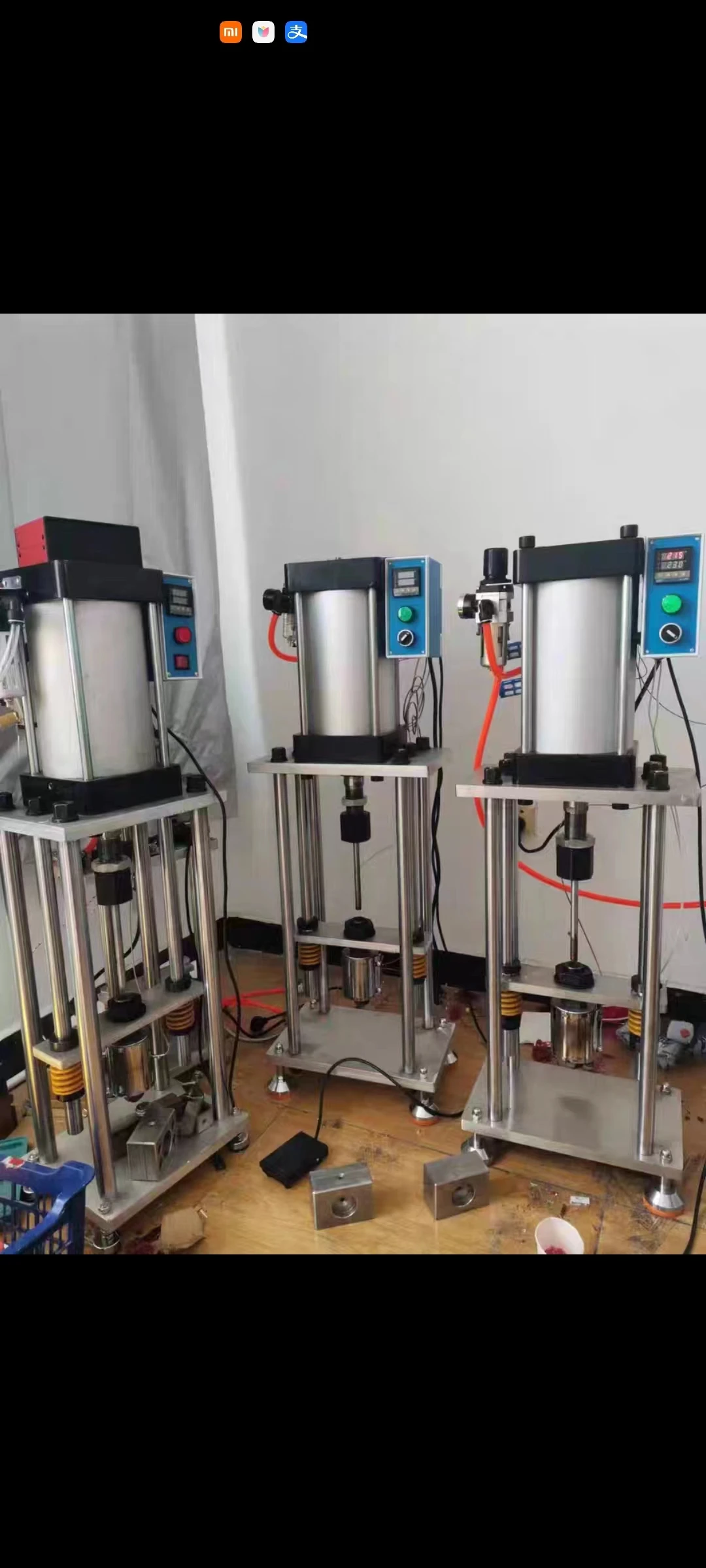

Air pressure Type Small Vertical Thermoplastics Injection Molding Machine

Name: Air pressure Type Small Vertical Thermoplastics Injection Molding Machine
SKU: 1600848254256
Availability: InStock

Price:

Quantity:

Product Description

Plastic Processed	PP, abs,ect.
Condition	New
Style	VERTICAL
Ejector Stroke(mm)	100mm
Ejector Force(kN)	8kN
Theoretical Shot Volume(cm³)	20cm³
Injection Rate (g/s)	5g/s
Machine Type	MINI desktop vertical injection molding machine
Injection Weight (g)	20g
Screw diameter (mm)	20mm
Weight (KG)	50kg
Place of Origin	China
	Guangdong
Open Stroke(mm)	20mm
Power (kW)	1kW
Key Selling Points	Semi-Automatic
Applicable Industries	Manufacturing Plant
Showroom Location	None
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Injection pressure	0.8T
Mold opening stroke	100mm
Dimension	750350550mm
Voltage	220V
Die size	149149140MM
