Product introduction

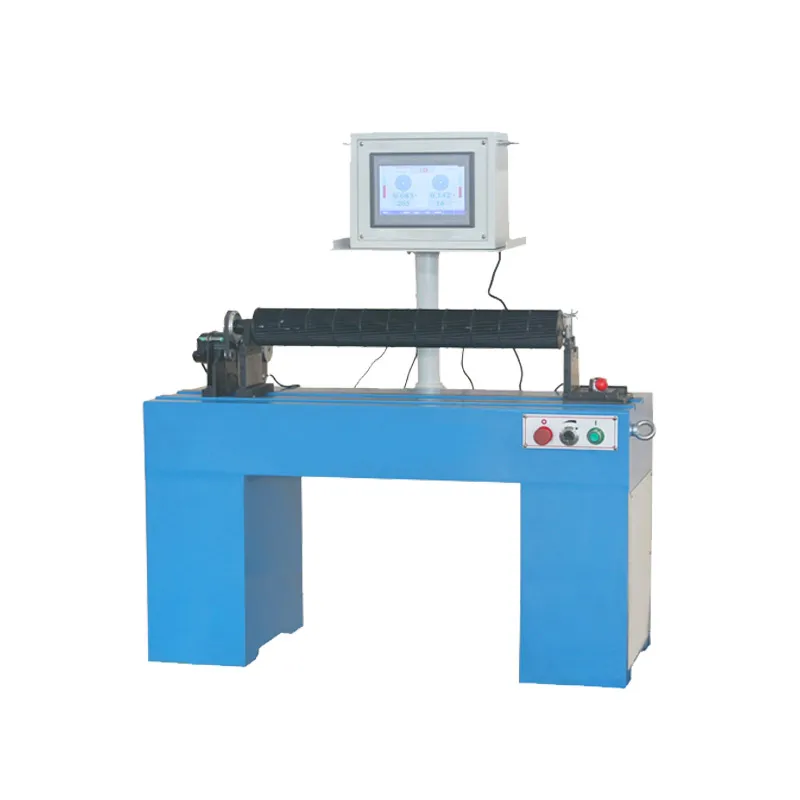

Cross Flow Blade Dynamic Balance Tester Dynamic Balance Testing Equipment Self-Driven Dynamic Balancing Machine
This machine is mainly used for balance correction of cross-flow fan blades of air conditioners and other similar rotating workpieces. The belt drive is adopted to ensure the balance quality and precision of the workpiece, and it has the characteristics of convenient loading and unloading, quick start and high work efficiency. The measuring system adopts a new type of computer to measure the electric control box. The speed, magnitude and phase are displayed intuitively. There are 6 types of rotors to choose from. The electromechanical transducer adopts piezoelectric sensor, which has large output, small size and stable performance.


Product Function
1, in the form of menu operation, can achieve man-machine dialogue 2, complete design of industrial computer, safe use, suitable for harsh production site environment normal use, Good stability
3, amplification, filtering, calculation and other circuits have been modular, easy maintenance 4, complete digital circuit calculation mode high precision, And use program control to bring feasible space for future upgrade of equipment.
5. Unbalance is directly displayed as "g" or "mg"
6, electromechanical transducer using piezoelectric ceramic sensor, its characteristics of small volume, large output, high sensitivity


Workpiece diameter
≤300mm
Balance speed
300-1500r/min (optional frequency converter can realize stepless frequency conversion speed regulation)
distance between two supports
250～1050mm
Support shaft diameter range
6～12mm
Minimum reachable residual inequality emar
≤0.5g.mm/kg
Unbalance reduction rate URR
≥90%
Machine load
≤1KVA
Power supply
220V
