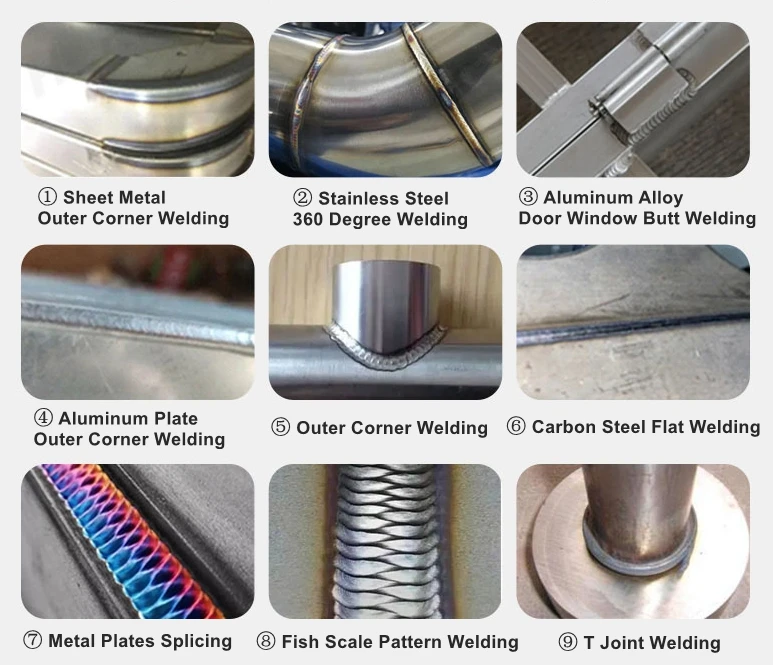

Laser Welding Test
Laser Cleaning Test
Laser Cutting Test

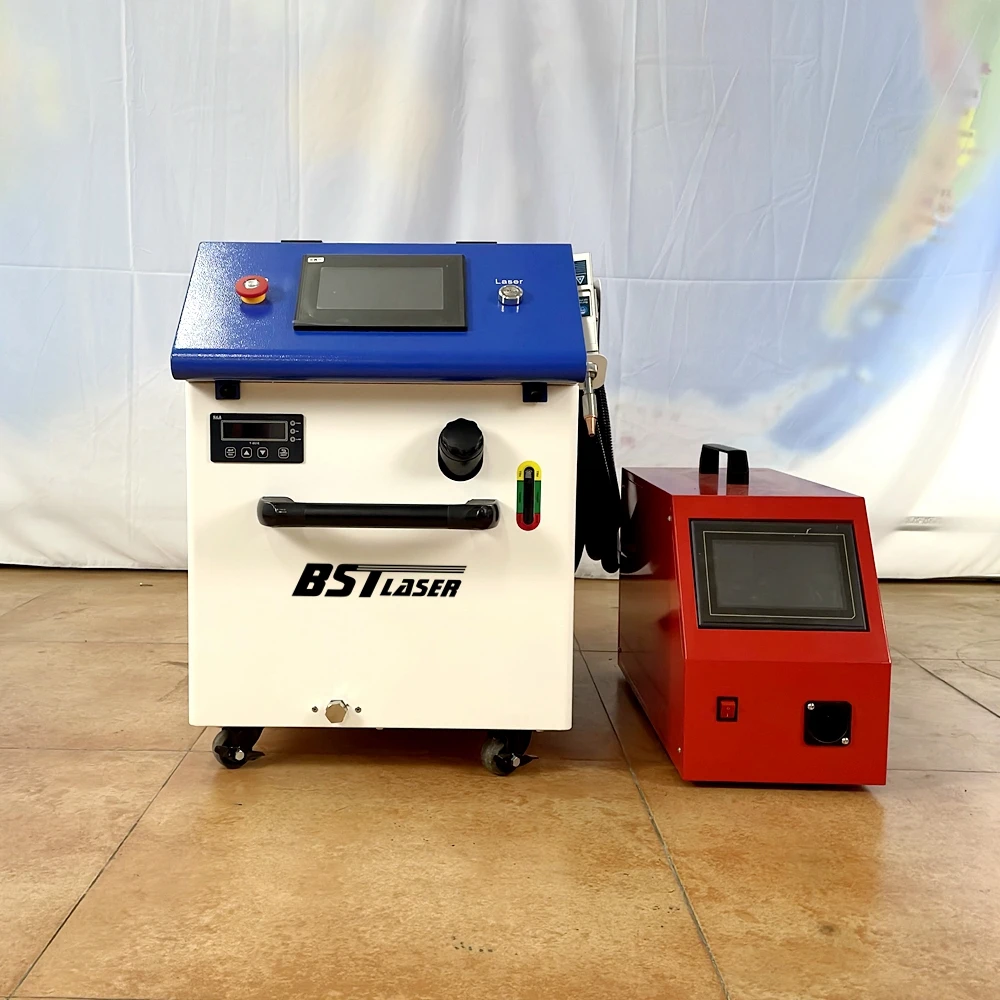

3 in 1 1000W 1500W Small Compact Micro Stainless Steel Aluminum Handheld Fiber Laser Cleaner Welder Cutter
Contact: BST Bonnie Wechat/Whatsapp: +86 18971376270 Mail: bonnie@bstlaser.com
Power:1500w (Specially designed for 1500w ）
Introducing the newest hot selling 3 in 1 fiber laser welding cleaning cutting machine!
* This amazing portable machine combines fiber laser welding, cutting, and cleaning capabilities, making it a versatile tool for a wide range of applications.
* Designed for portability, this 3 in 1 machine can be easily moved from one location to another, making it perfect for use in small workshops, job sites, or even for on-site repairs.
* Safety is a top priority with the 3 in 1 machine, with its advanced safety features and protective shielding to ensure that users are always protected.
* And the best part? This 3 in 1 machine is incredibly cost-effective, allowing small businesses and individuals to access high-quality laser technology without big expense.
With its wide range of applications, including metal welding, cutting, and surface cleaning, this 3 in 1 machine is a must tool for any workshop or job site. Don't miss out on this amazing new product!
Laser Welding System
Laser Cleaning System

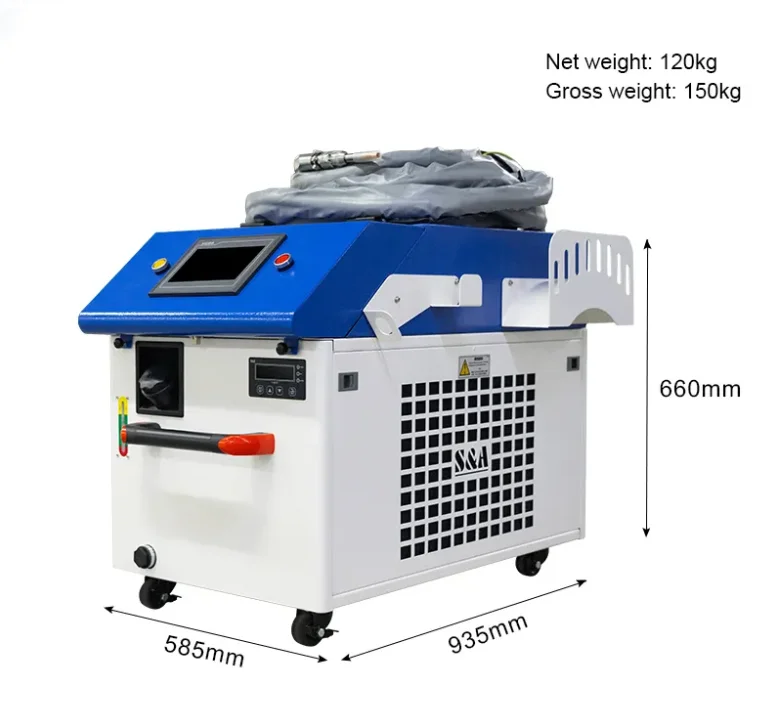

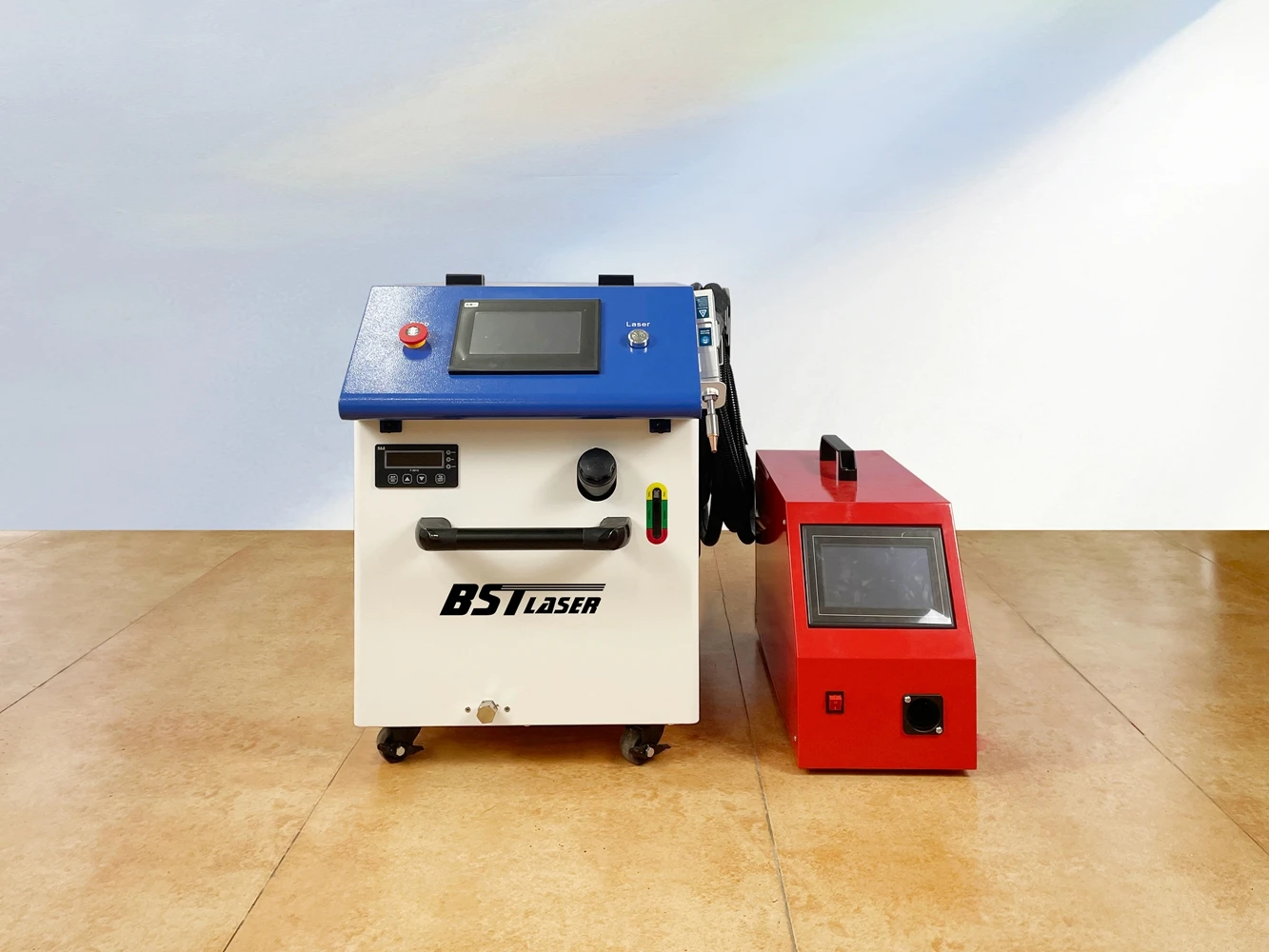

Small Mini Compact Handheld Fiber Laser Welding Machine
With auto welding+cutting+cleaning function
* Higher welding efficiency
* No parameters setup time
* No polishing after welding
* No parameters setup time
* No polishing after welding
*Controlling system supported 23 different languages
*Small and Compact size,suitable for ship by door to door service by air express
Check how hot the fiber laser welding machine is! Smooth welding quality, fast speed, easy to use...Receiving a lot of good praise!
Detailed Images

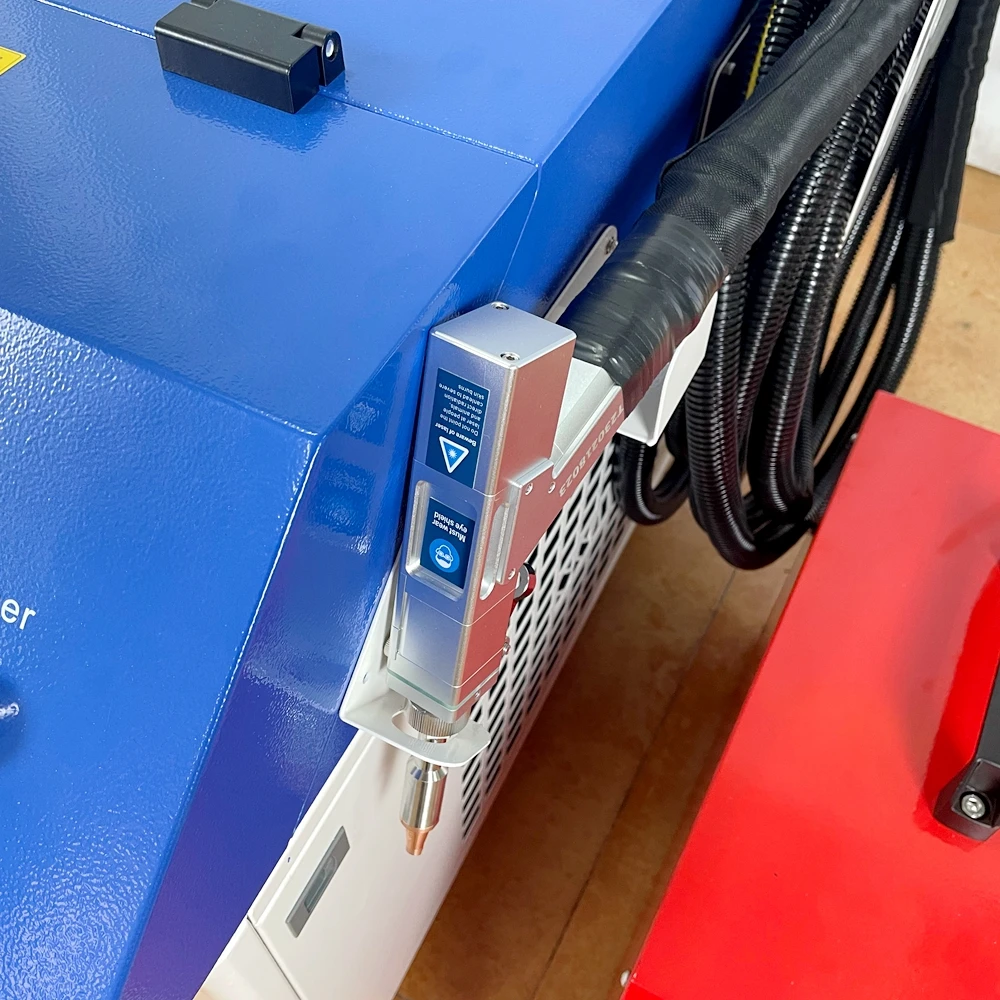

Handheld Fiber Laser Welding Head
1)Weight :0.8kg,Light and Powerful
2)Auto Welding+Cutting+Cleaning (width:0-20mm)
3)Adjusted Laser Beam 0.5-6mm
4)Equipped with 8 PCS Welding Nozzle
2)Auto Welding+Cutting+Cleaning (width:0-20mm)
3)Adjusted Laser Beam 0.5-6mm
4)Equipped with 8 PCS Welding Nozzle
English Control Panel
1)Simple design,just one button to control the machine on and off
2) With LCD touch screen control
Built in Water Chiller Cooling System
The fiber laser device and industrial water chiller are integrated in one part,which largely save the space and reduce the shipping costs
Controlling System
1) Supporting 19 languages :English Korean RussianJapanese German French Italian Spanish Portuguese Turkish etc.
2) One button to switch from welding to cleaning function

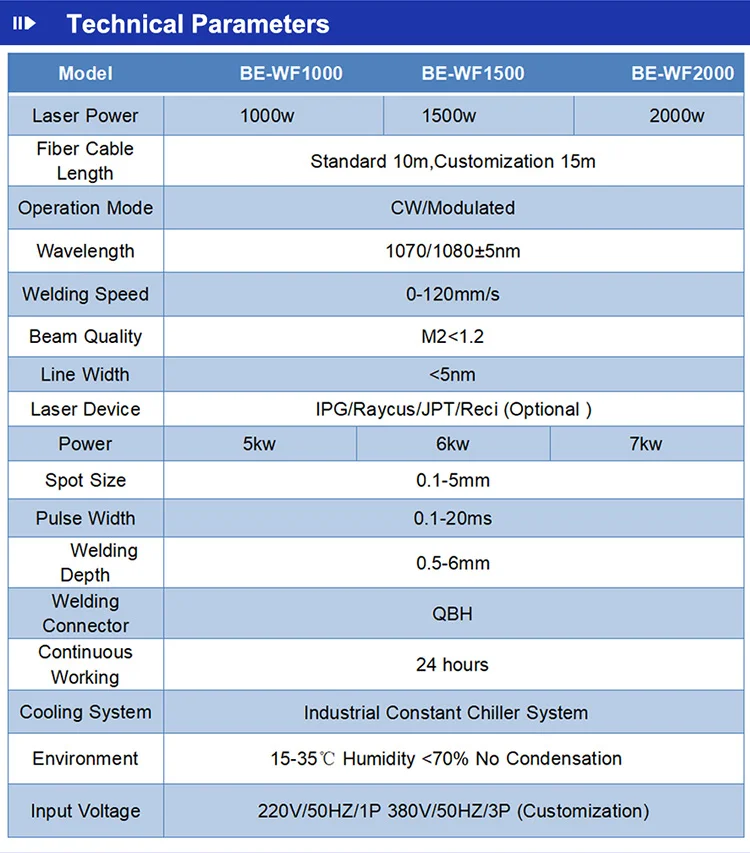

Technical Data
Comparison
Difference | Traditional Welding | Yag Laser welding | Fiber Laser Welding |
Heat effect to the workpiece | very high | low | low |
Deformation of the workpiece | big | small | small |
Bond strength to base metal | general | good | very good |
After-treatment | Polishing | No need to polish, or rarely polished | No need to polish, or rarely polished |
Welding speed | general | More than 2 times argon arc welding | More than 2 times argon arc welding |
Applicable material | stainless steel, carbon steel. galvanized sheet | stainless steel, Carbon steel. galvanized sheet | stainless steel, carbon steel. galvanized sheet |
Consumables | More consumables | Less consumables | Less consumables |
Operation difficulty | complex | general | simple |
Operator safety | Unsafe | Safety | Safety |
Environmental protection impact | Not environmentally friendly | Environmental protection | Environmental protection |
Welding fault tolerance | it is good | not good | it is good |
Swing welding | no | no | yes |
Spot width adjustable | no | no | yes |
Welding quality comparison | difference | general | Very good |
FAQ
Q1:Is fiber laser welding machine really faster than MIG and TIG welding?
A:Yes, fiber laser welding machine's travel speed is up to four times faster than traditional methods, fixturing is simpler or not necessary, and post-weld grinding or sanding is not needed or significantly reduced – all of which increases productivity while minimizing rework.
Q2: Is fiber laser welding machine really that easy to learn?
A:Yes, compared with MIG and TIG welding, either of which can take a lifetime to master,
fiber laser welding machine is quick to learn, allowing new users to make high-quality welds in
just a few hours.
A:Yes, compared with MIG and TIG welding, either of which can take a lifetime to master,
fiber laser welding machine is quick to learn, allowing new users to make high-quality welds in
just a few hours.
Q3: Does the machine comes with software?
A:Yes, the machine adopts integrated built-in software and controlling screen. It is user
friendly with powerful functions. Power, frequency, welding mode, gas blowing, duty cycle...all
easily setup.You can save those settings and recall them as needed. Additionally it supports 23 different languages like Chinese English Korean Russian Traditional Chinese Japanese German French Italian Spanish Portuguese Turkish Greek Czech Slovak Polish Thai Vietnamese Romanian
A:Yes, the machine adopts integrated built-in software and controlling screen. It is user
friendly with powerful functions. Power, frequency, welding mode, gas blowing, duty cycle...all
easily setup.You can save those settings and recall them as needed. Additionally it supports 23 different languages like Chinese English Korean Russian Traditional Chinese Japanese German French Italian Spanish Portuguese Turkish Greek Czech Slovak Polish Thai Vietnamese Romanian
Q4: Can fiber laser welding machine weld dissimilar metals or parts with different thicknesses?
A:Yes, you can easily weld dissimilar metals like copper to stainless steel or to aluminum, plus parts with different thicknesses across all weld joint types: tee, butt, corner, lap and edge
A:Yes, you can easily weld dissimilar metals like copper to stainless steel or to aluminum, plus parts with different thicknesses across all weld joint types: tee, butt, corner, lap and edge

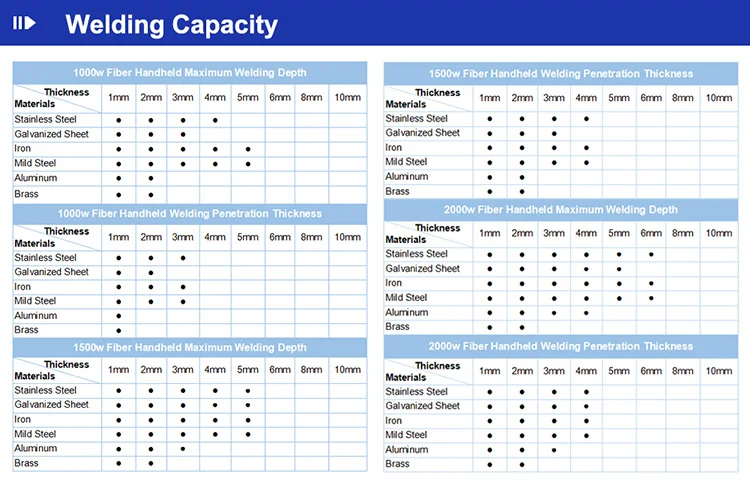

Q5: What is the maximum material thickness that can be welded?
A:For stainless steel, galvanized steel, mild steel and aluminum, you can weld single-sided up to 4 mm and double-sided up to 10 mm – copper single-sided up to 1 mm and double-sided up to 2 mm.
Q6: What about vertical welding or upside down welding?
A:It excels at both vertical and upside down welding since there are normally no consumables
and minimal spatter produced, making it safe and easy to weld in any position.
Q7: Is the laser beam constant or can it be pulsed?
A:Our machine offers 6 modes of operation to match your needs: Spot, line, circle, triangle, double triangle, cleaning, cutting
Q8: What is the duty cycle?
A:You can run at 100% duty cycle at the maximum 2000 watts of laser power.
A:For stainless steel, galvanized steel, mild steel and aluminum, you can weld single-sided up to 4 mm and double-sided up to 10 mm – copper single-sided up to 1 mm and double-sided up to 2 mm.
Q6: What about vertical welding or upside down welding?
A:It excels at both vertical and upside down welding since there are normally no consumables
and minimal spatter produced, making it safe and easy to weld in any position.
Q7: Is the laser beam constant or can it be pulsed?
A:Our machine offers 6 modes of operation to match your needs: Spot, line, circle, triangle, double triangle, cleaning, cutting
Q8: What is the duty cycle?
A:You can run at 100% duty cycle at the maximum 2000 watts of laser power.
Q9: What's wobble welding?
A:Wobble welding oscillates the beam back-and-forth at various frequencies to produces
wider seams and more aesthetic welds. It is also helpful for parts with poor fit-up. It comes
with optimized, preprogrammed wobble parameters and allows on-the-fly control of up to 6
mm of wobble welding at adjustable frequencies
A:Wobble welding oscillates the beam back-and-forth at various frequencies to produces
wider seams and more aesthetic welds. It is also helpful for parts with poor fit-up. It comes
with optimized, preprogrammed wobble parameters and allows on-the-fly control of up to 6
mm of wobble welding at adjustable frequencies
Q10: Is fiber laser safe for people's health and eyes?
A:Different from traditional welding machines, fiber laser welding machines’ hazard is
minimum. Just like working under hot sun, the UV ray is harmful to people and people has to
wear hat, glasses, sunscreen...such protective measures. We will send protective glasses
along with machine for free.
A:Different from traditional welding machines, fiber laser welding machines’ hazard is
minimum. Just like working under hot sun, the UV ray is harmful to people and people has to
wear hat, glasses, sunscreen...such protective measures. We will send protective glasses
along with machine for free.
Q11: Do you provide CE certificate?
A:Yes, as professional manufacture and exporter, we have European CE certificate for the
machine.
A:Yes, as professional manufacture and exporter, we have European CE certificate for the
machine.
Q12: Can fiber laser welding machine work with robot arm?
A:Yes, this machine can work with robot arm. The machine comes with signal input/output
port, so we can prepare the signal cable, which you connect to your robot.
Q13: Do you produce customized color or design style?
A:Yes, we collaborate with different agents/distributors and accept OEM orders. We can
produce customized color or design for bulk order.
Q14: What's the machine lifetime?
A:Machine lifetime over 10 years, almost free of maintenance and no consumables.

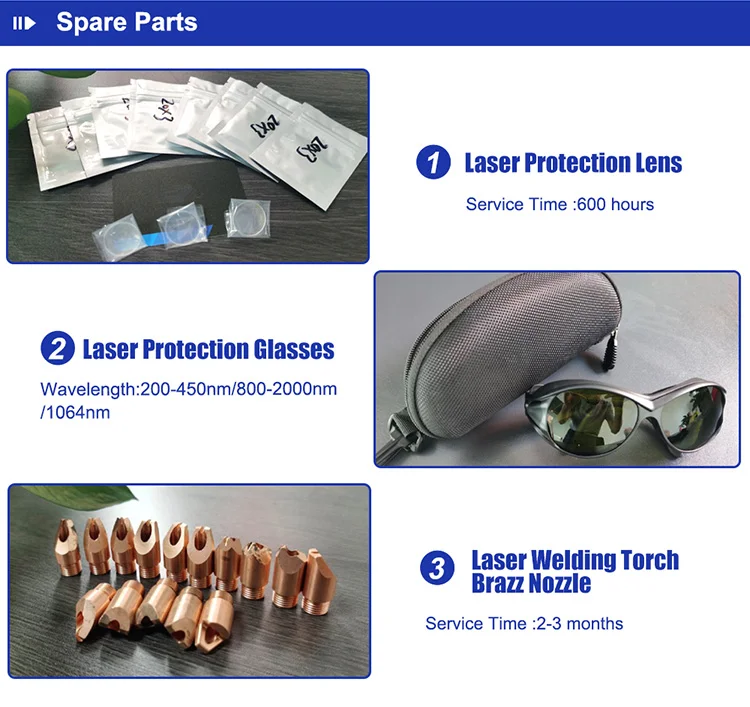

Q15: What about consumables?
A:The machine almost no consumables. Copper nozzles and protective lens need replace
after period use. Other parts do not need replace often.
A:Yes, this machine can work with robot arm. The machine comes with signal input/output
port, so we can prepare the signal cable, which you connect to your robot.
Q13: Do you produce customized color or design style?
A:Yes, we collaborate with different agents/distributors and accept OEM orders. We can
produce customized color or design for bulk order.
Q14: What's the machine lifetime?
A:Machine lifetime over 10 years, almost free of maintenance and no consumables.
Q15: What about consumables?
A:The machine almost no consumables. Copper nozzles and protective lens need replace
after period use. Other parts do not need replace often.
Q16: What about shipping?
A:We can ship by Air or Sea. Air delivery time 5-7 days. Sea delivery time 30 days. Exact
shipping cost depends on the address and machine weight/dimension.
Q17: What about payment?
A:T/T bank transfer, Alibaba trade assurance, western union, visa... Customers pay 30%
deposit, then we prepare the machine. After machine production finish, we test 48 hours and
sending testing videos for check. Only confirm, then customers make 70% balance and we
ship out machine.
Q18: What about training?
A:We provice detailed user manual and training video for the machine. Customer will feel like
engineer beside to learn step by step. 1 day training is enough for this machine. Meanwhile
we also provide 24 hours English technical service. Customers can contact us by email, whatsapp, wechat, phone...
Q19: What if it is broken down?
A:Pls contact us at once something wrong with the machine. Describe the problems by video
or photo, then our technician can detect the problem and provide solution. If some parts need
replace, customers send back the damaged parts, and we send out new parts during warranty.
If beyond warranty, we are still responsible for the machine and fix the parts. Fiber laser
source warranty 2 years, and whole machine warranty 1 year.
A:We can ship by Air or Sea. Air delivery time 5-7 days. Sea delivery time 30 days. Exact
shipping cost depends on the address and machine weight/dimension.
Q17: What about payment?
A:T/T bank transfer, Alibaba trade assurance, western union, visa... Customers pay 30%
deposit, then we prepare the machine. After machine production finish, we test 48 hours and
sending testing videos for check. Only confirm, then customers make 70% balance and we
ship out machine.
Q18: What about training?
A:We provice detailed user manual and training video for the machine. Customer will feel like
engineer beside to learn step by step. 1 day training is enough for this machine. Meanwhile
we also provide 24 hours English technical service. Customers can contact us by email, whatsapp, wechat, phone...
Q19: What if it is broken down?
A:Pls contact us at once something wrong with the machine. Describe the problems by video
or photo, then our technician can detect the problem and provide solution. If some parts need
replace, customers send back the damaged parts, and we send out new parts during warranty.
If beyond warranty, we are still responsible for the machine and fix the parts. Fiber laser
source warranty 2 years, and whole machine warranty 1 year.

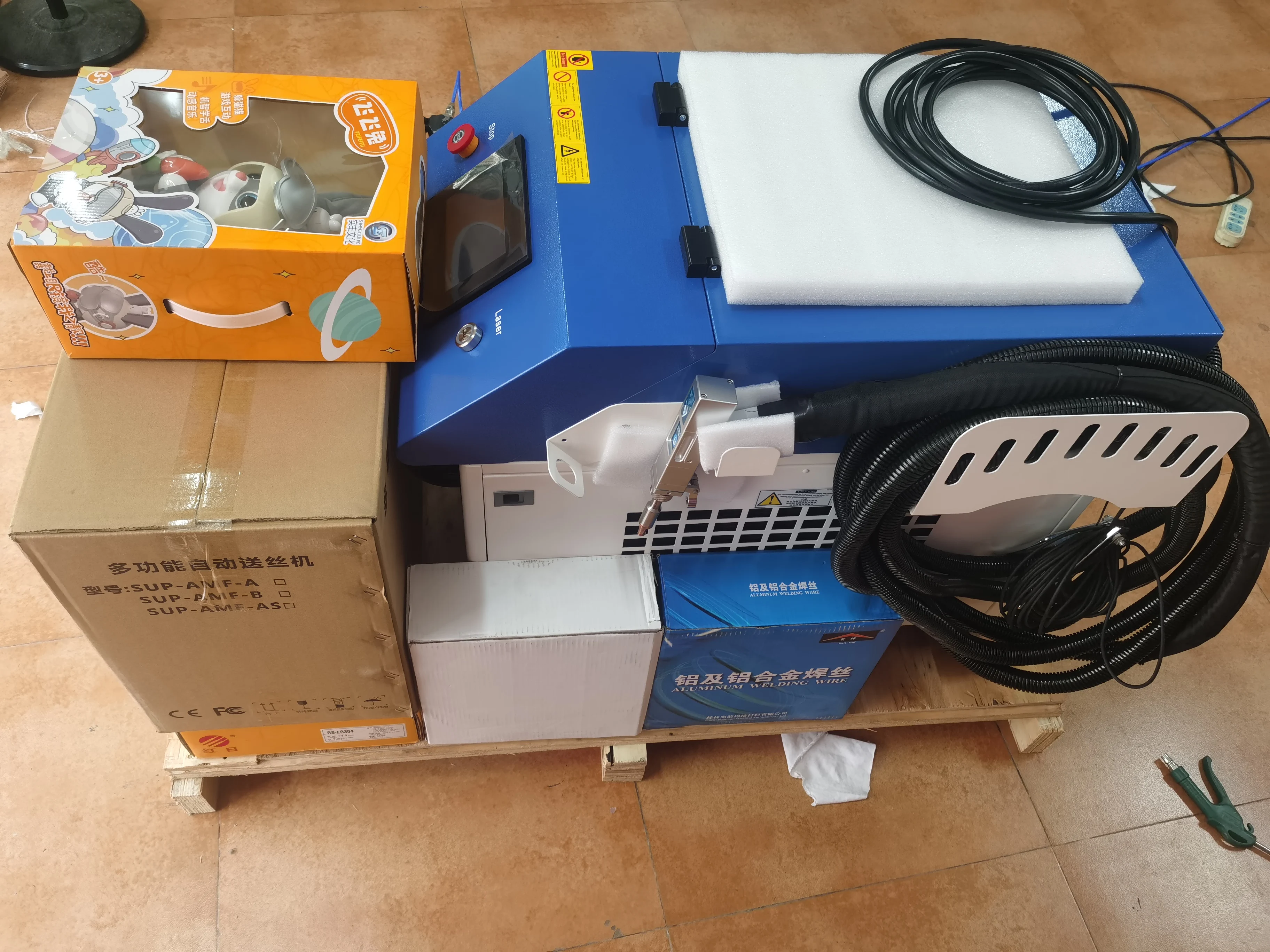

Packing & Delivery
1.Outside：we adopt wood craft case.
2.Middle: the machine is covered by foam, to protect the machine from shaking.
3. Inside layer, the machine is covered by thickening plastic bag for waterproof.
2.Middle: the machine is covered by foam, to protect the machine from shaking.
3. Inside layer, the machine is covered by thickening plastic bag for waterproof.
After Service
Stainless Steel Fiber Laser Welder after-sale service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Before Delivery:
* Check and test 1000w laser welding machine at least 10 times to make sure the machine's quality.
* Also we will send you the testing report and save the hand held laser welding machine's technical information for better after-sale service.
After-Sales Service:
* Training how to install the laser welding machine handheld.
* Training how to use the welder machines laser welding.
* Engineers available to service machinery overseas.
* Lifetime technical support and service by free.

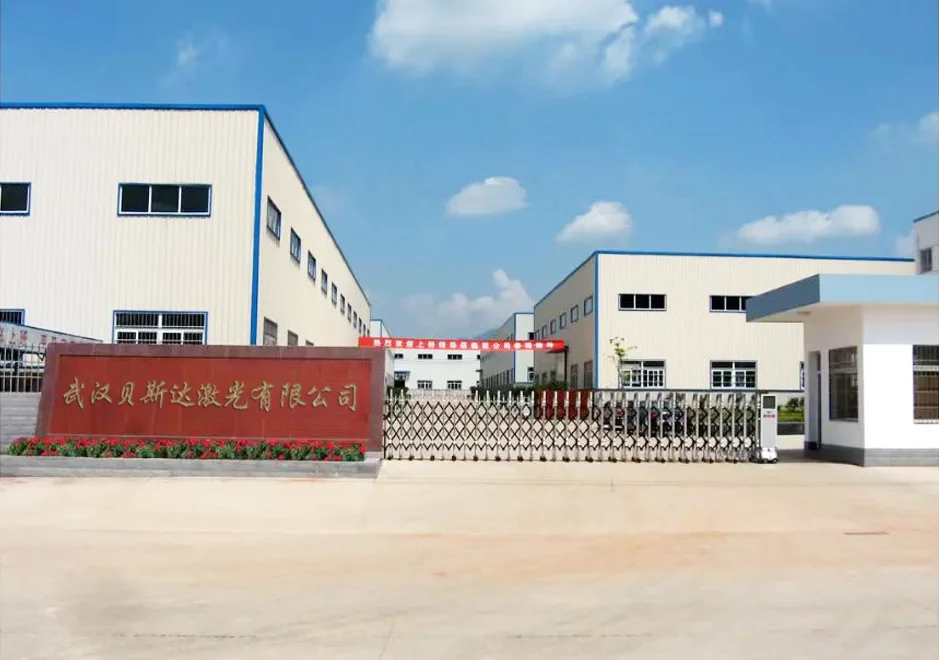

\t\t\t\t\t\t\t\t\tCompany Introduction \t\t\t\t\t\t\t

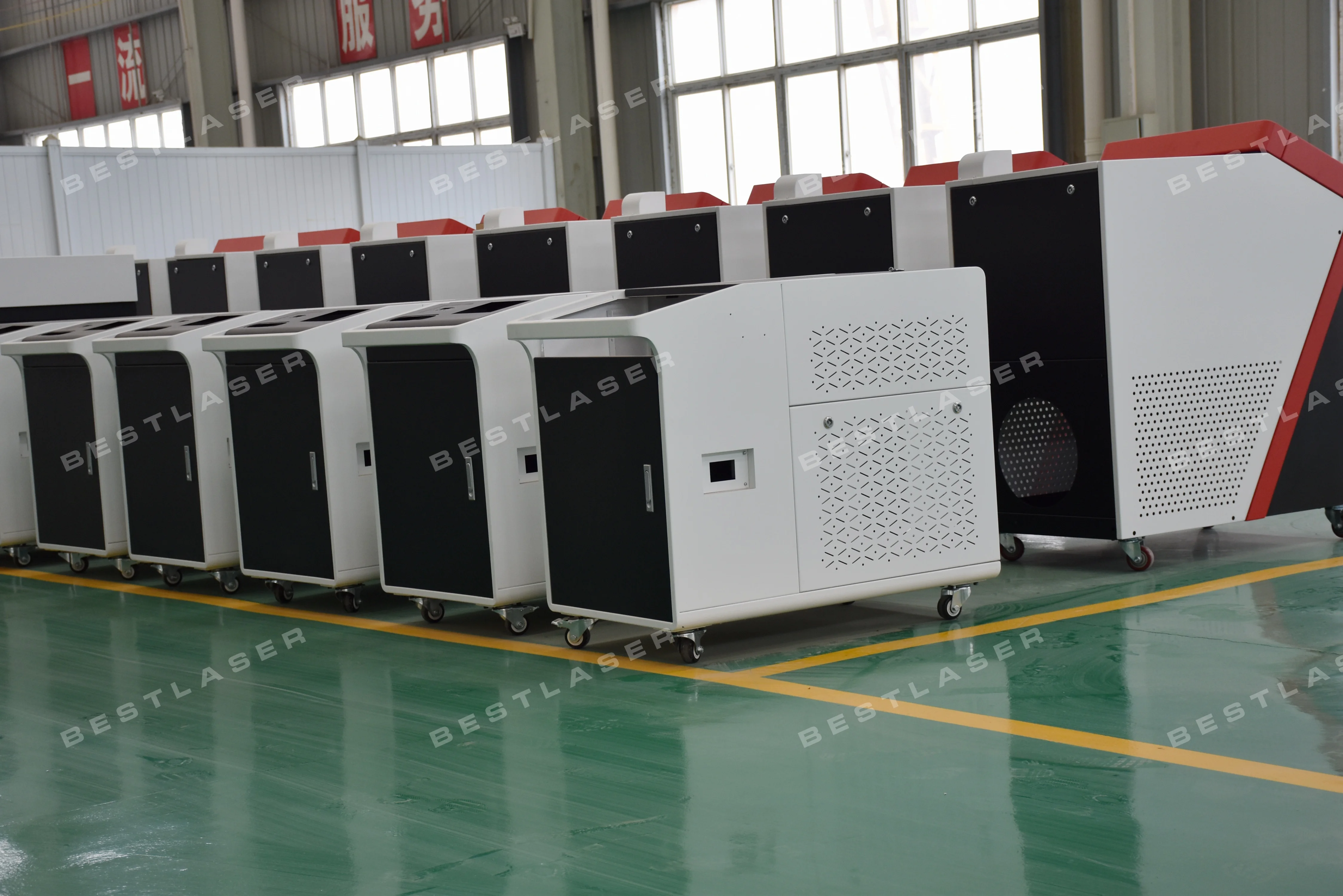

As 15 years Handheld Fiber Laser Welder manufacturer, Best Laser is committed to providing customers with high-quality, reliable laser machines.
As a result of our quality control measures, our welding machine laser, laser cutting machine, laser marking machine, laser engraving machine all have got CE certification.
High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
Contact
To recommend you suitable welding laser machine, here are some questions:
1. What's your welding material and thickness? such as stainless steel, carbon steel, aluminum...
2. What's your application requirements? mold repair, car bus train structure welding, advertising sign business...
