Product Overview
Description
Product Description

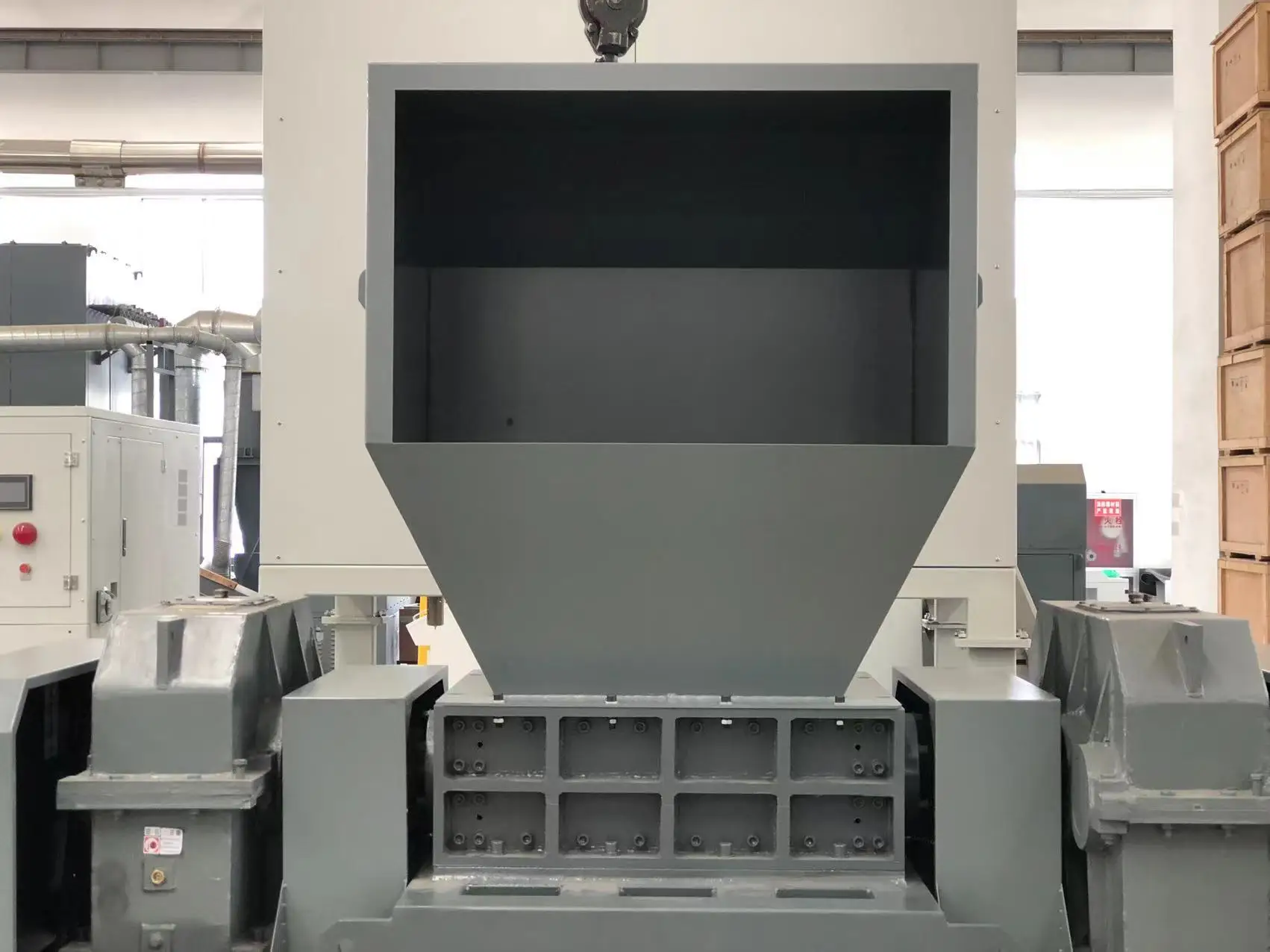

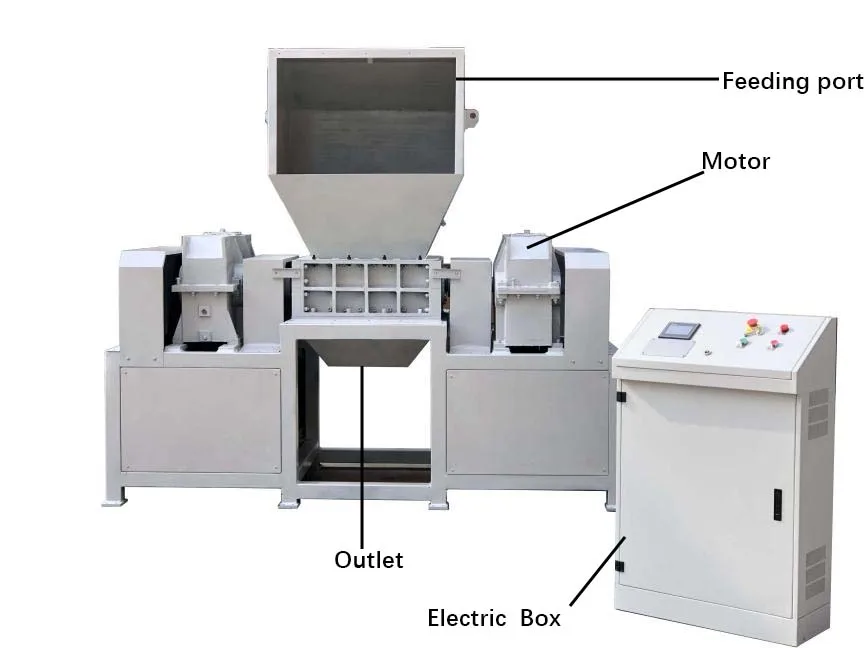

Multi Purpose waste recycling equipment double shaft shredder
SUPU SPT600 shredder is featured sophisticated design, robust structure, and high efficient shredding result, two shaft shredders are normally used first stage shredder for materials like truck tires, steel drums, organic waste, and MSW, With a two shaft shredder, once the materials is fed into the cutting chamber, the cutting blades with hooks will grab material and then shear it down to strips. The shreds are directly discharged after cutting without passing through a screen, so the size of shreds is quite random, custom blade widths can match your required sizing. Programmed Reveres rotation of the rotor shaft can prevent damages when overload.

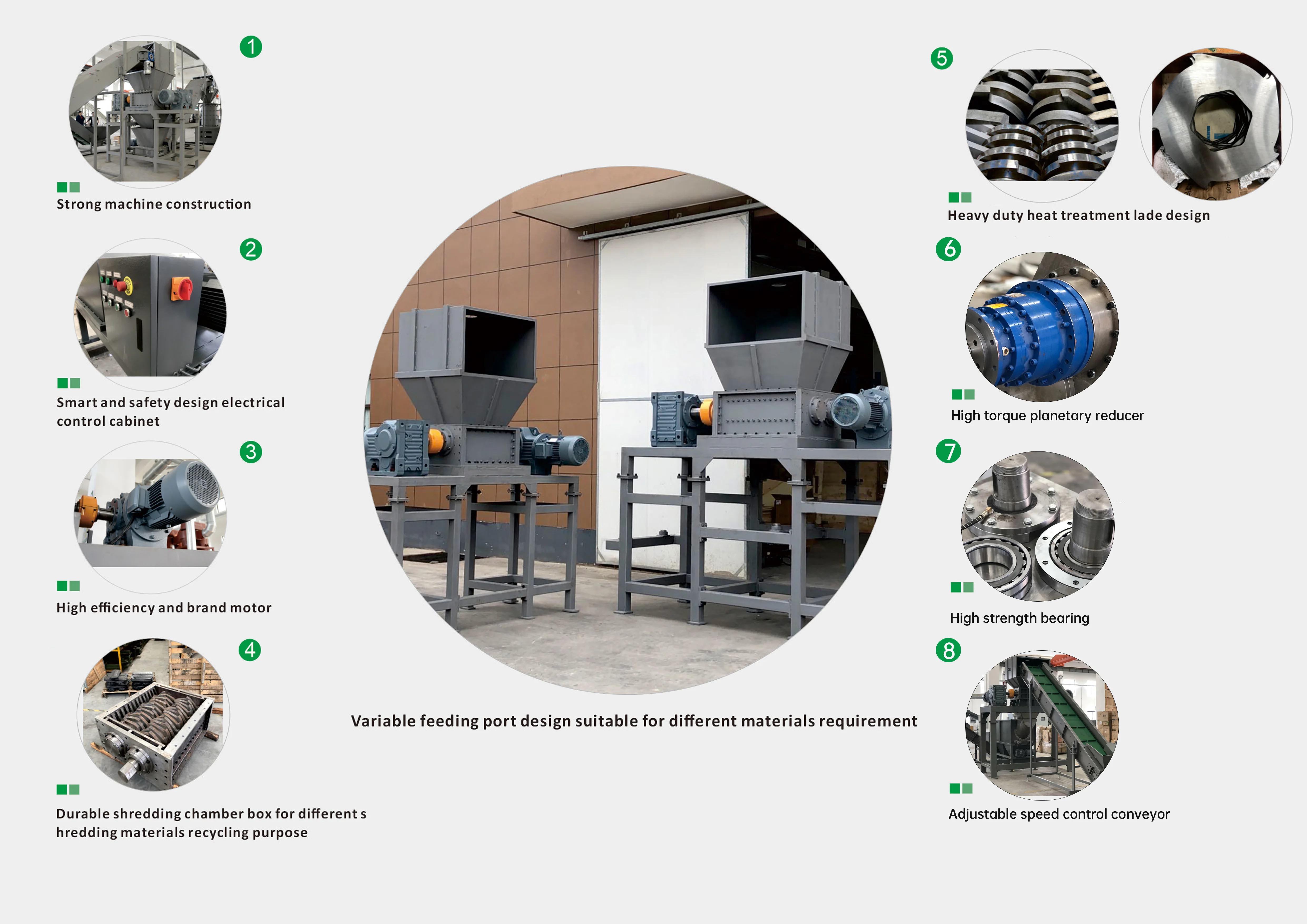

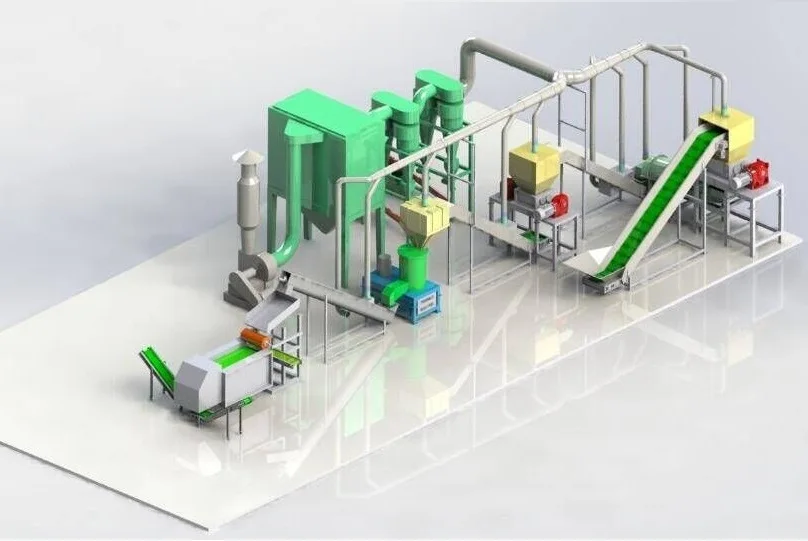

Modular design scheme to provide customers with a comprehensive integrated destruction system
According to the destruction requirements of customers,design the module selection scheme of equipment, such as the feeding system, crushing system, dust removal system, sorting system, crushing system, magnetic separation system, discharge system, briquetting system,etc., and design a mature and perfect destruction and recovery scheme for customers.

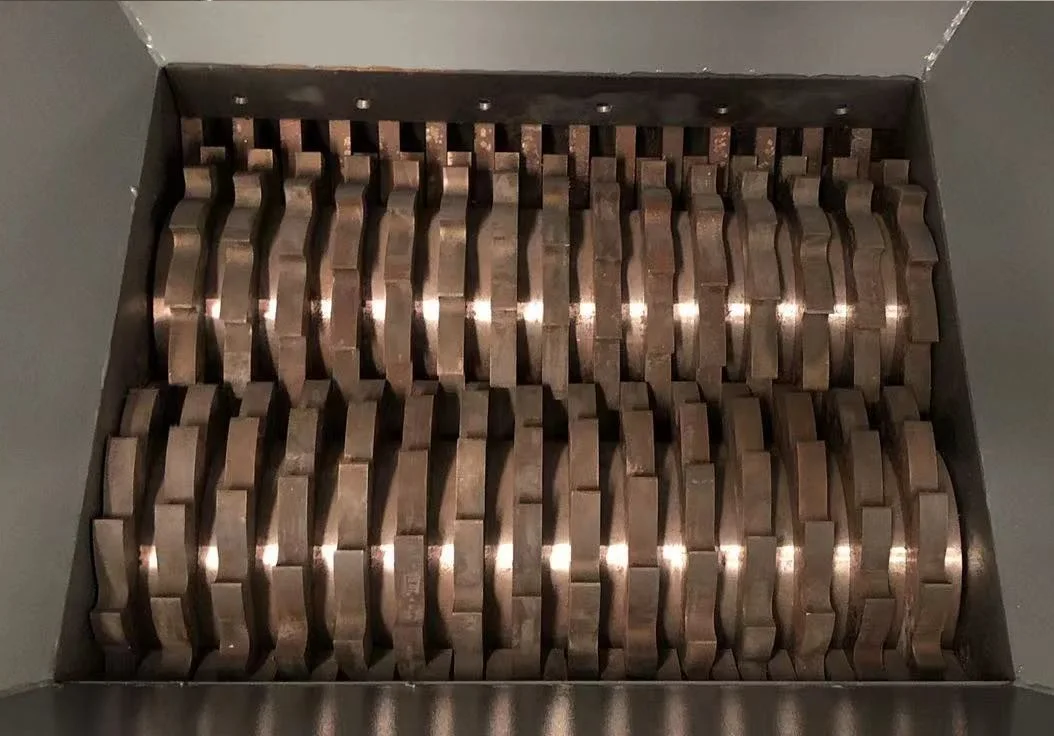

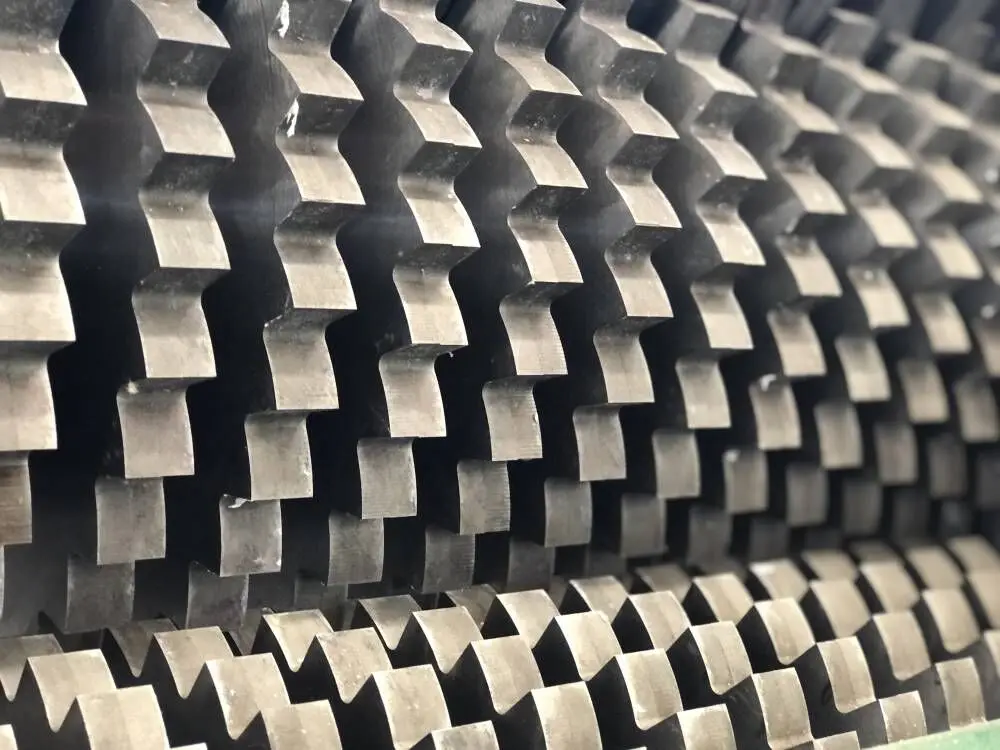

High strength shredding blade and shredding system
The core of our products is to shred the storage material, suchas WEEEs, Solid waste with metal, plastic, rubber, E-wasteinto the smallest size. Many materials contain a lot of metalso the requirements for shredding blade are very high standardOur shredding blade only have H13 grade materials. Theshredding balde are designed according to different crushingmaterials. And can adapt to high-strength crushing

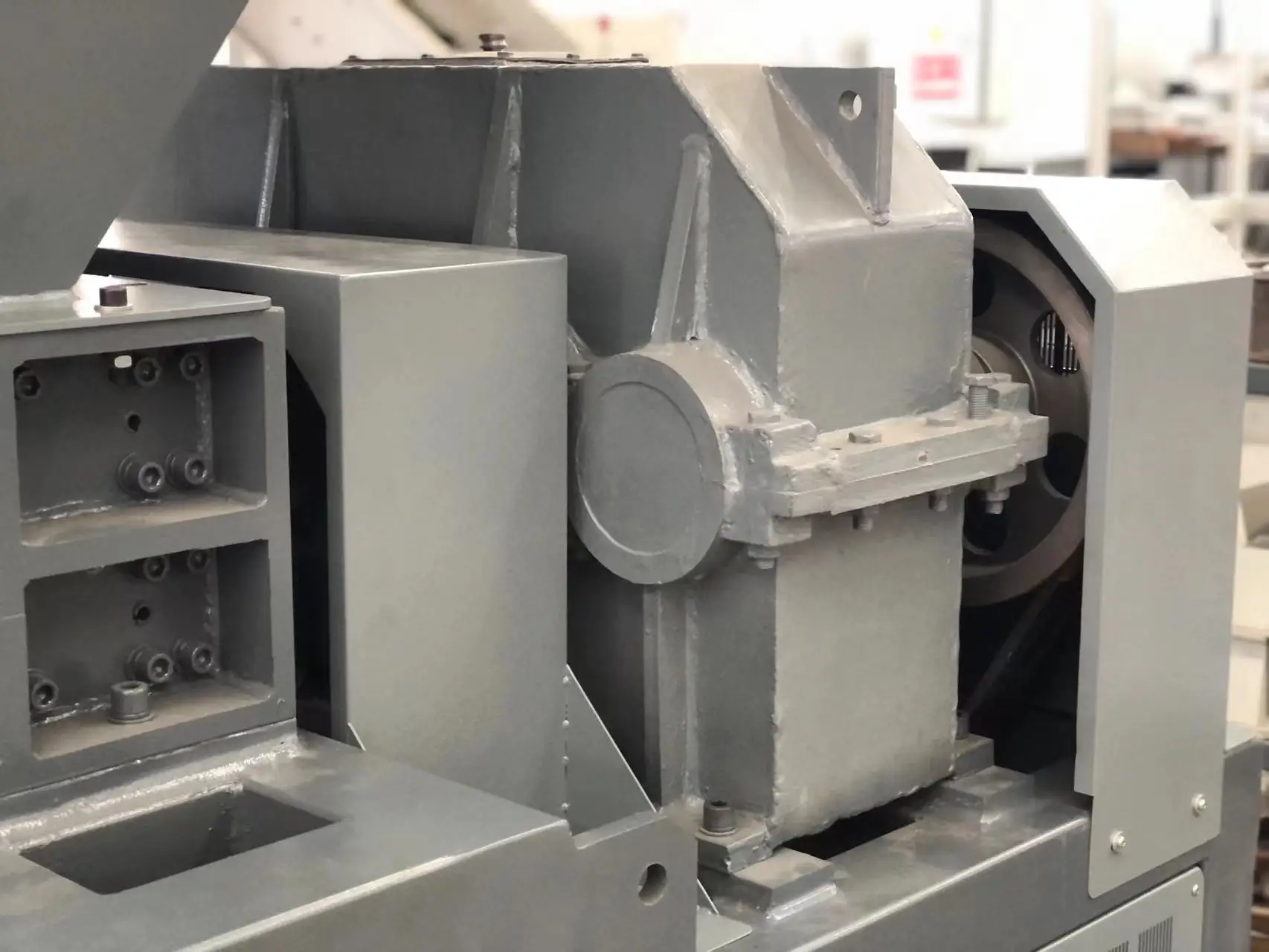

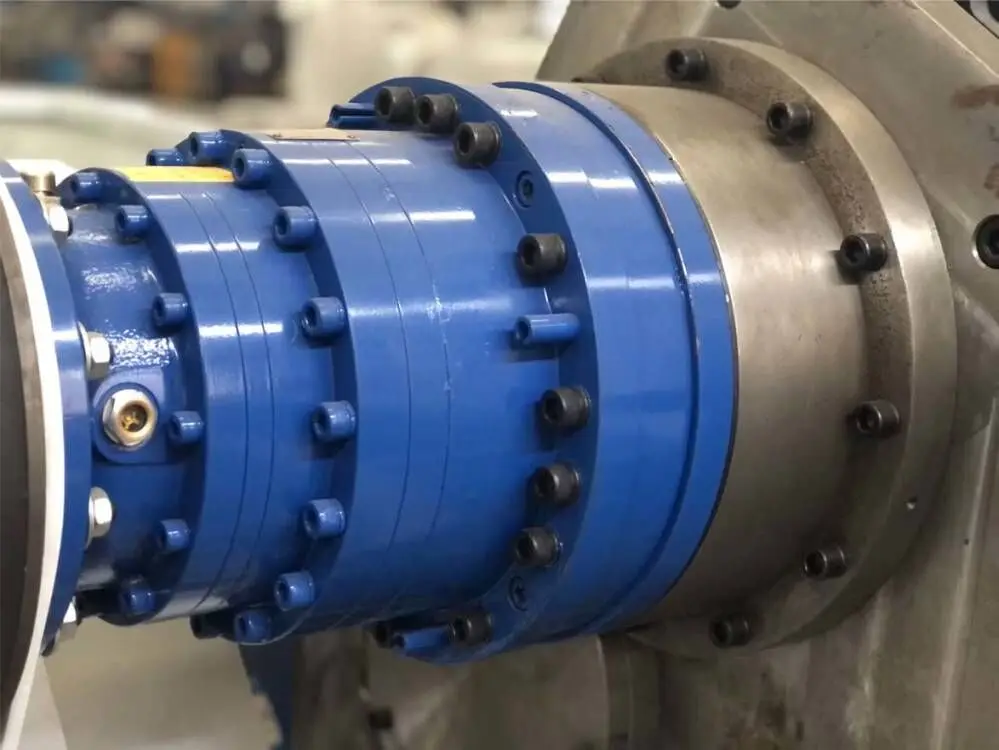

The planetary gearbox is used to reduce the speed to transmit the crushing force of high torque, which can tear the machine metal more easily than other gearbox.

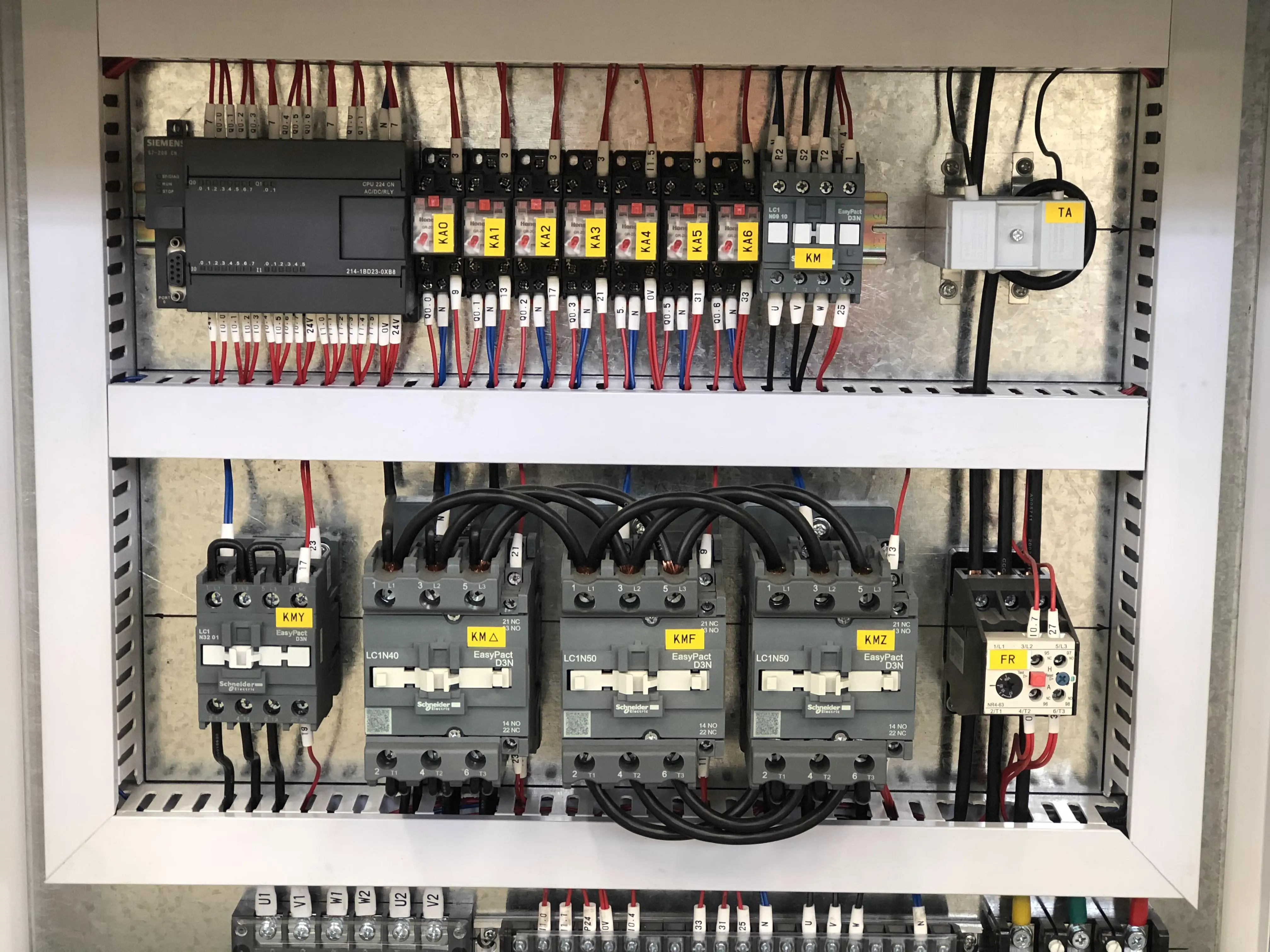

Intelligent PLC control system
The PLC electrical control system and industrial controlconfiguration software are adopted as the core control concept.Through the centralized monitoring and management of electricalequipment, as well as the implementation of logical interlockingand protection control of related equipment, the safe, stable andefficient operation of the whole system is ensured, and theautomatic control of equipment, starting, stopping, reversing andoverload automatic reversing control functions are realized. Theproduction can also be coordinated according to the equipmenton the customer's site.
Applications

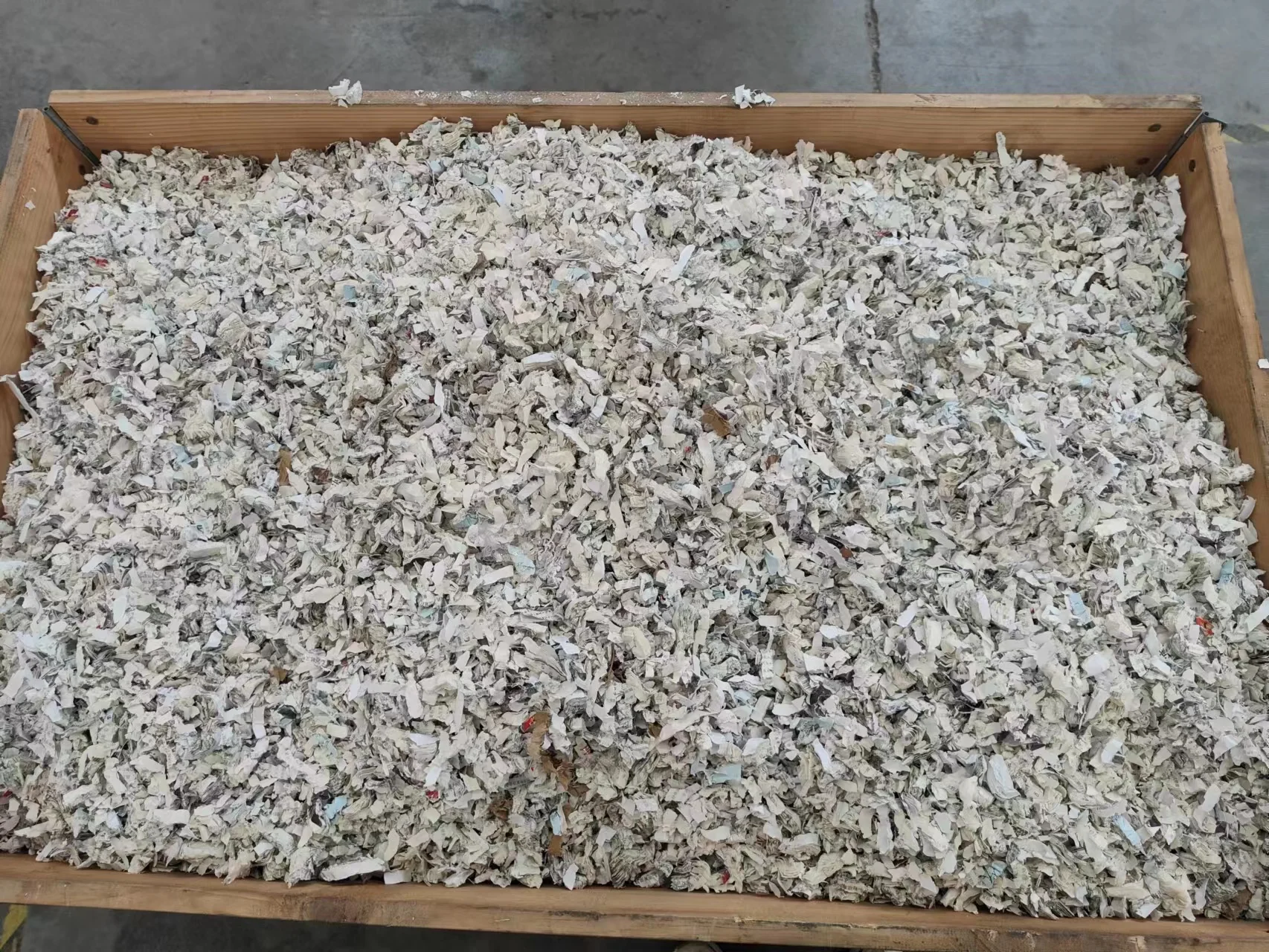

Shredding Effect
Specification
Item | Value |
Place of Origin | China |
Zhejiang | |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2023 |
Warranty of core components | 12 Months |
Core Components | PLC, Engine, Bearing, Gearbox, Motor |
Brand Name | Supu |
Material / Metal Processed | Stainless Steel, Aluminum |
Power (kW) | 37 |
Weight (KG) | 2700 |
Key Selling Points | Multifunctional |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Construction works , Other |
Showroom Location | United States |
Application | Paper/ Cardboard /Wood/Plastic/Tire |
Voltage/Frequence | 380 V /60 HZ |
Blades material | High Strength Alloy Steel |
Type | Customized |
Function | Multi-Purpose |
Capacity | 800-1000kg/H |
Machine Size | 1914*1600*2270 mm |
Cutting Chamber | 600*450 mm |

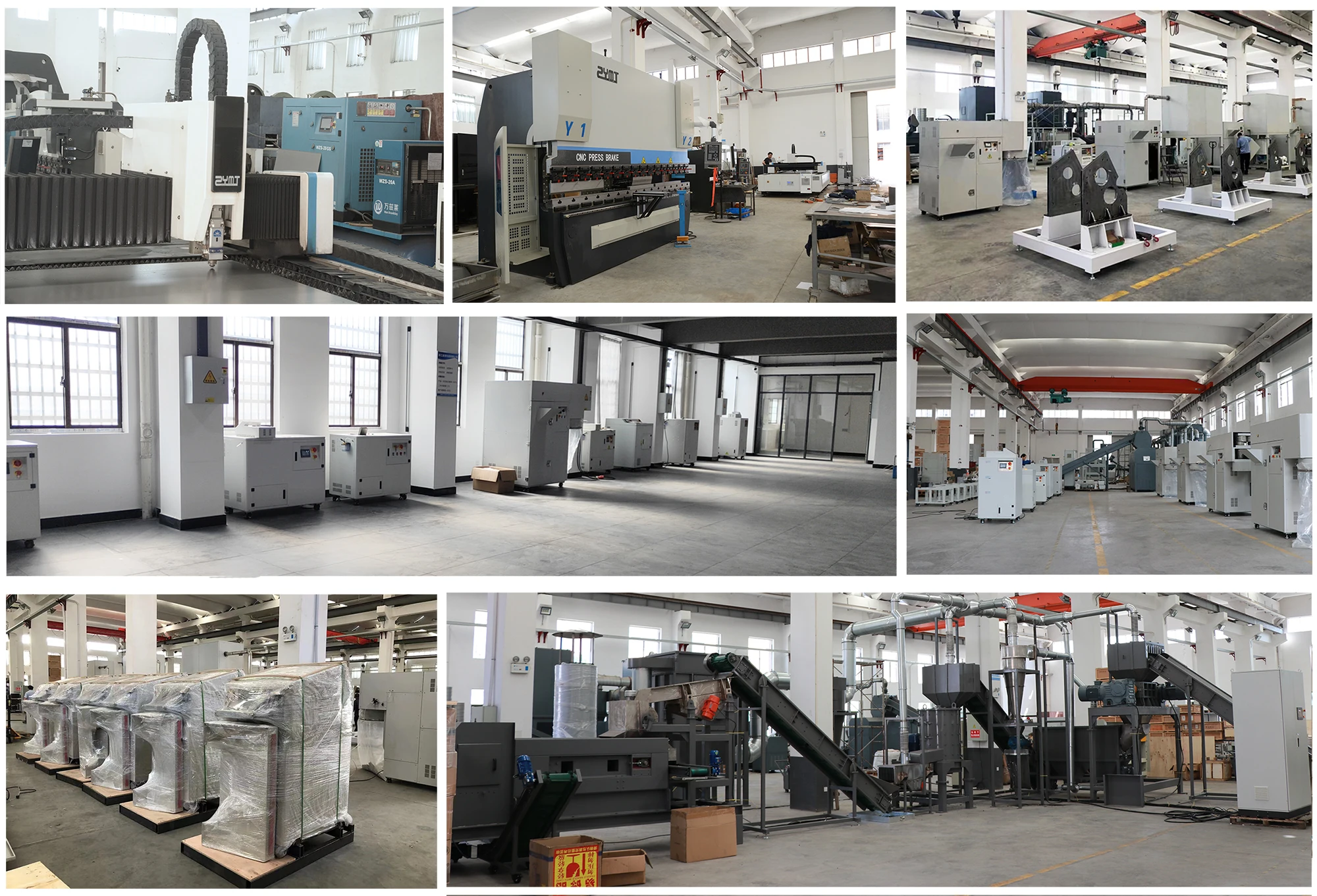

Workshop

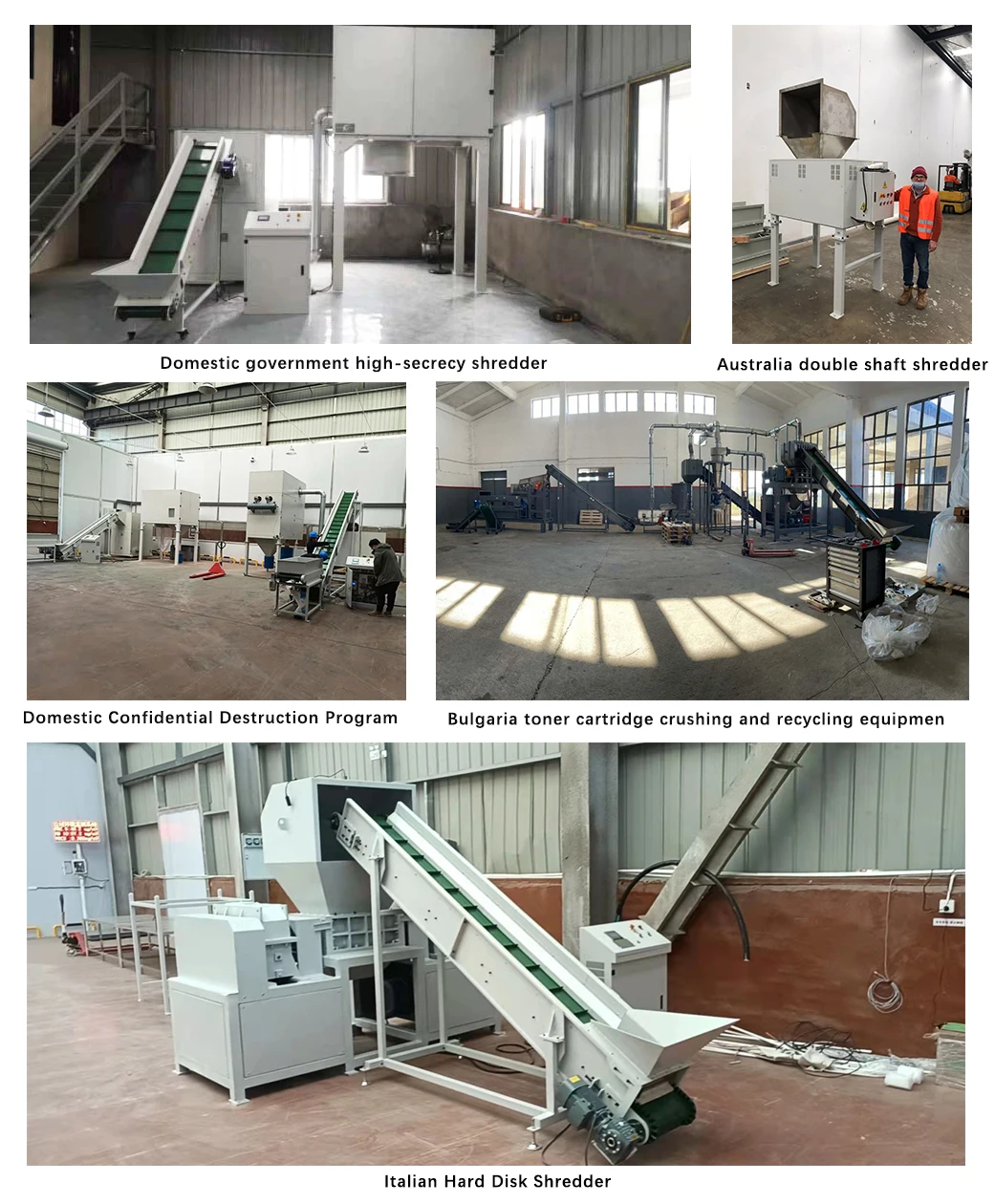

Customer Case
Exhibition
Packing & Delivery

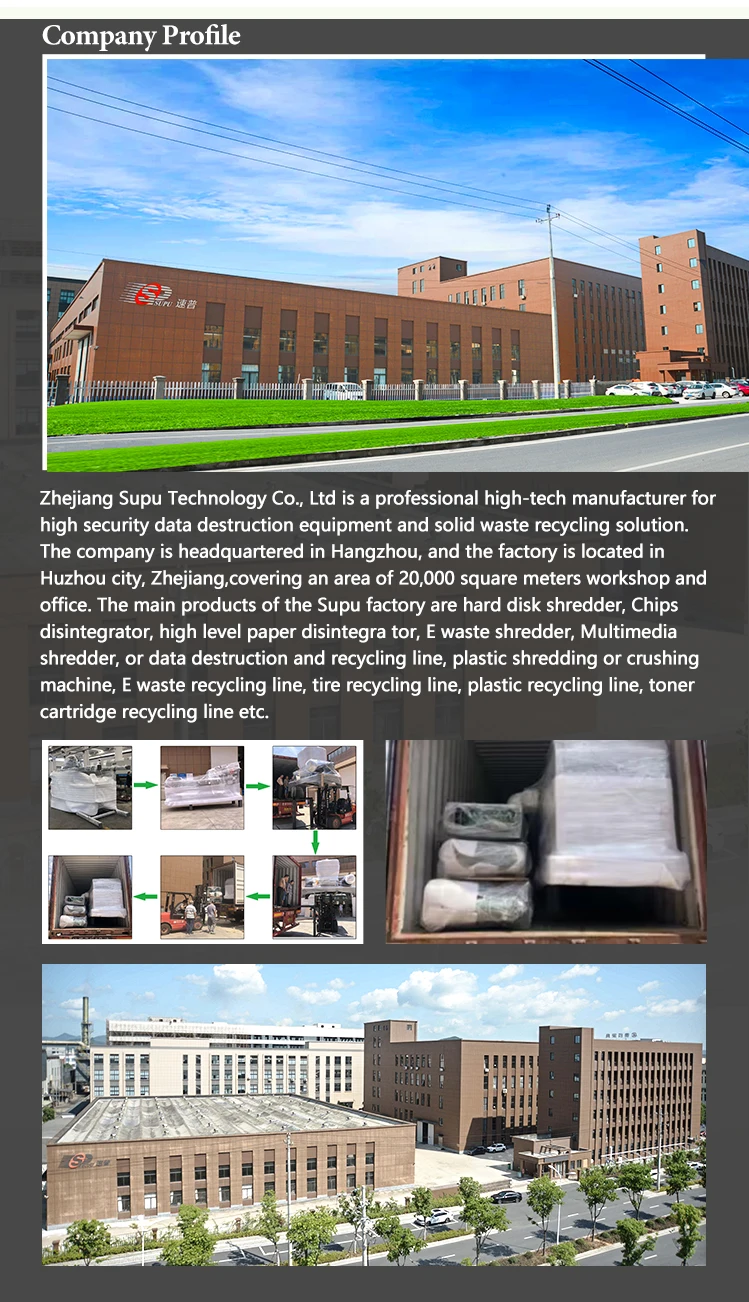

Company Profile
Zhejiang Supu Technology Co.,Ltd is a professional Manufacturer and Exporter for shredder & environmental protection equipment for renewable resources. We published our brand "Gator" for the shredding equipment include Industrial paper shredder ,E-media shredder, single shaft shredder, two shafts shredder, four shaft Shredder ,Baler and Several kinds of solutions ,such as high security data destruction solution, toner cartridges recycling line, printing industry waste discharge solution ,waste PCB recycling solution ,radiator recycling Solution etc, customer customization is available. Company adheres to the "innovation, quality, integrity, service," the concept of development, continuous innovation, is committed to creating international environmental protection products equipment well-known brand.
FAQ
1. After-sale services
1)7*24 hours technology support online
2)Free product instruction and repair video offer
3)Installation and maintenance services
2. Warranty Time
1) 12 months
2) Free spare part support during warranty time
3.Trade Terms
1) EXW or FOB
2)Payment Type :T/T
1)7*24 hours technology support online
2)Free product instruction and repair video offer
3)Installation and maintenance services
2. Warranty Time
1) 12 months
2) Free spare part support during warranty time
3.Trade Terms
1) EXW or FOB
2)Payment Type :T/T
