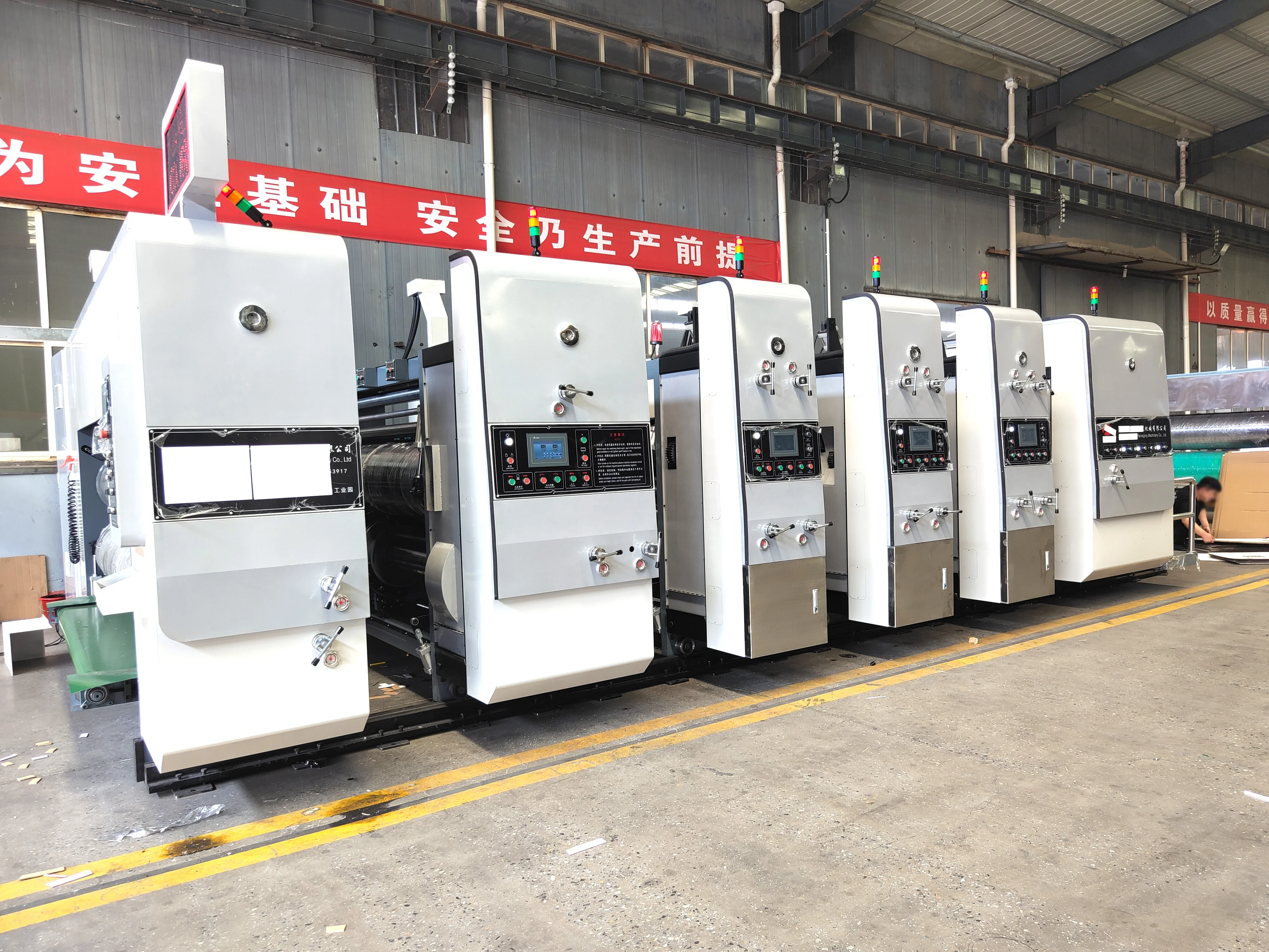

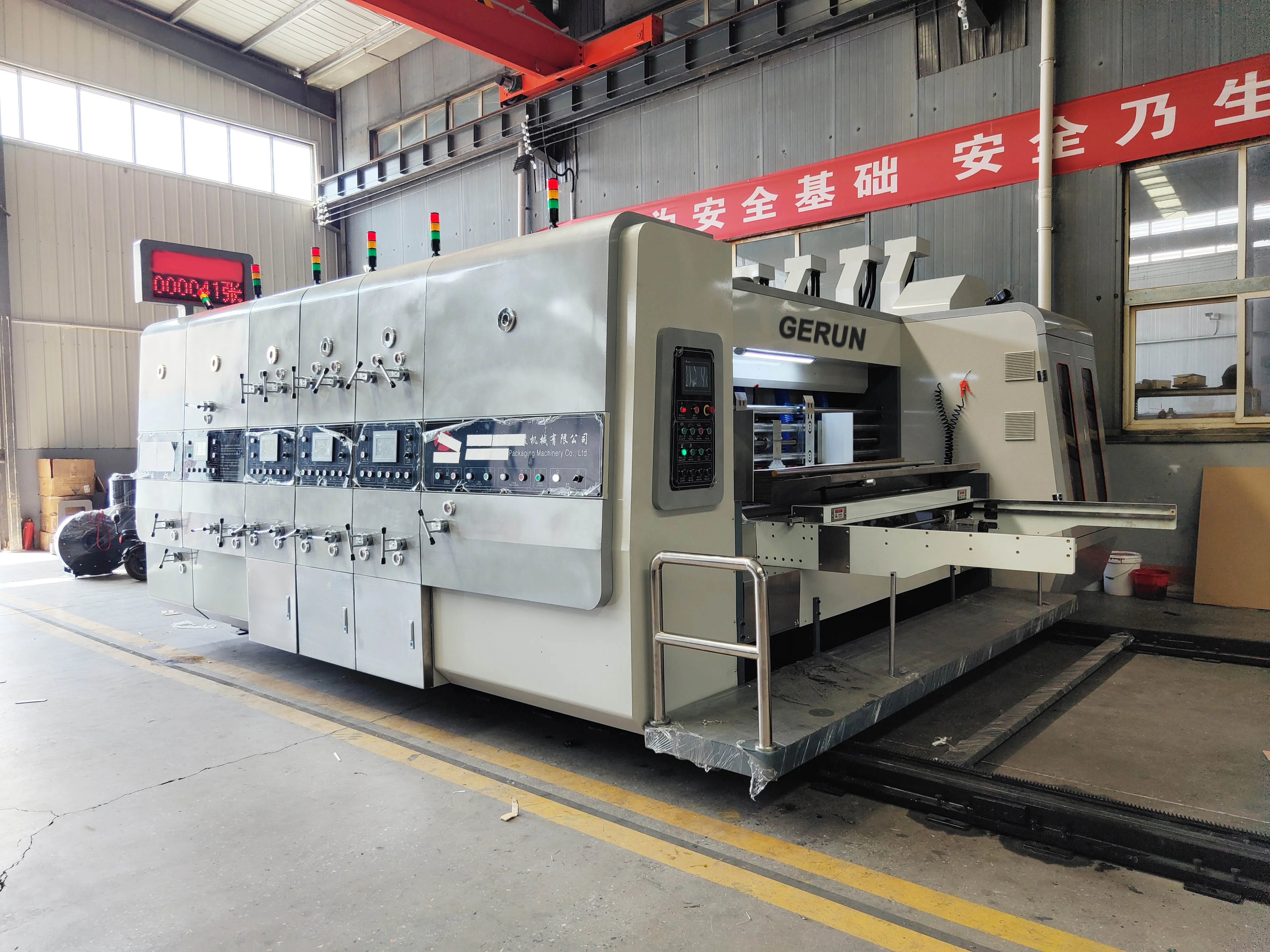

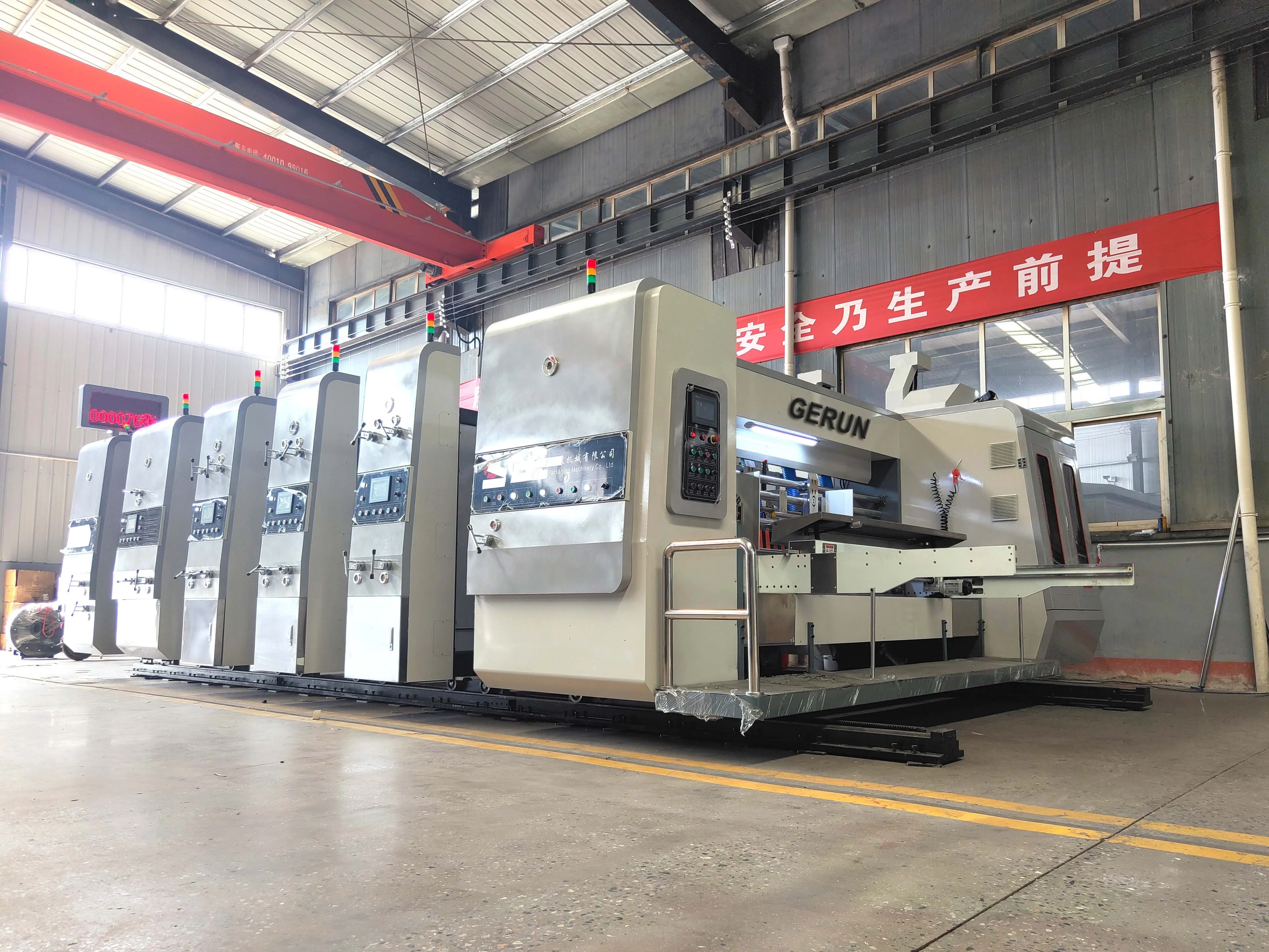

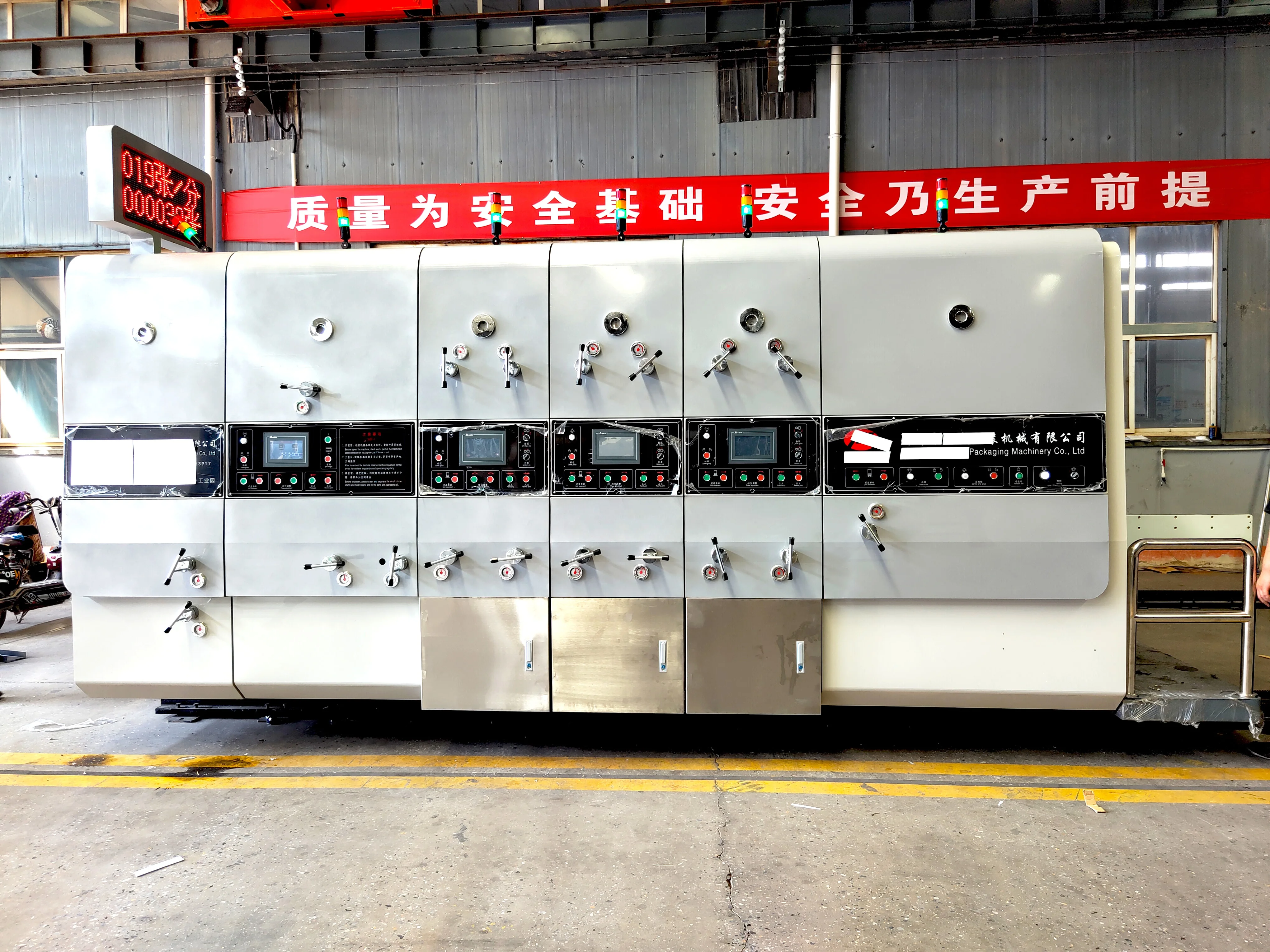

Printer Slotter Machine Corrugated Cardboard Sheet Box Maker

Product Overview

Description

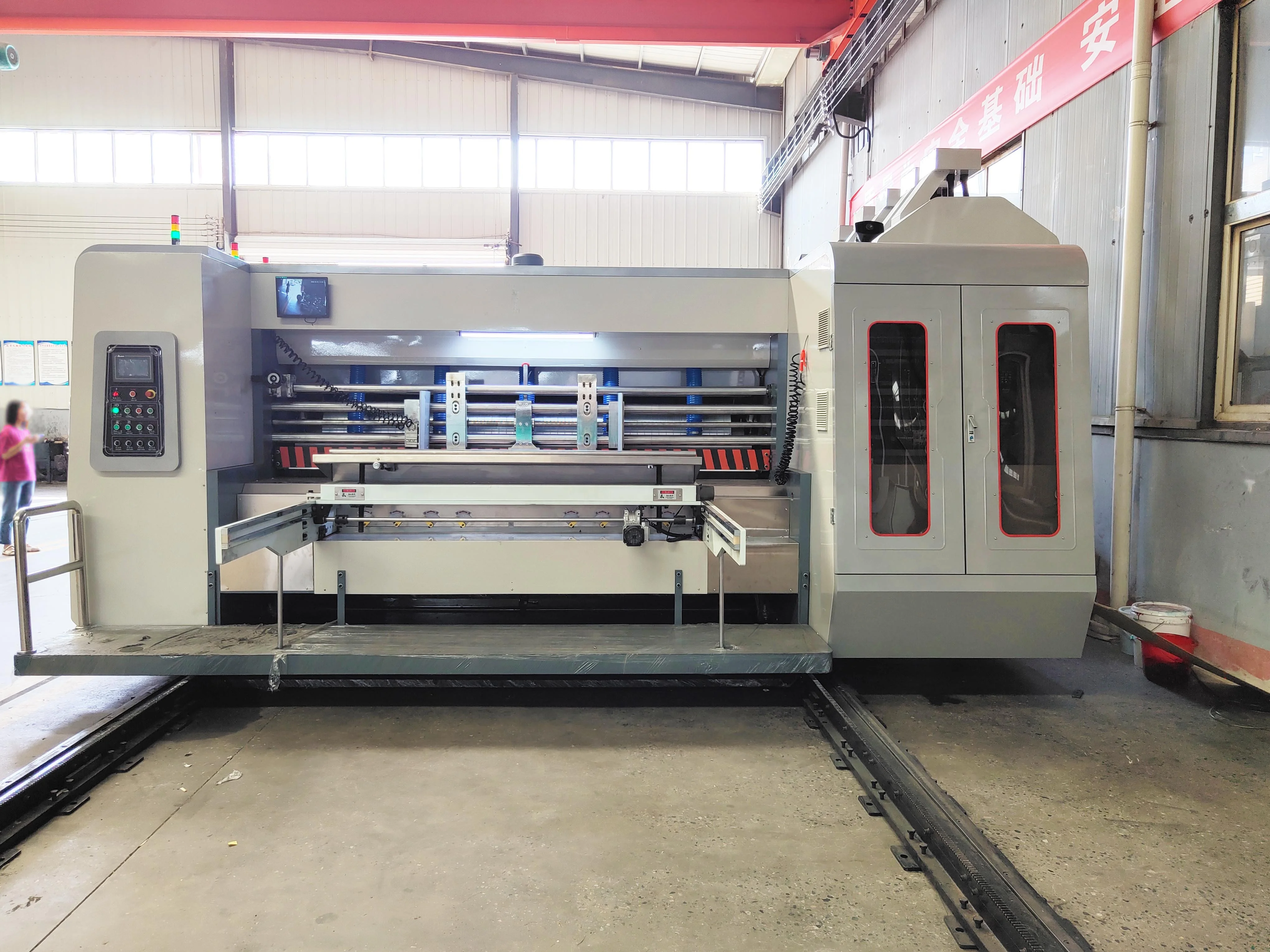

1. Lead edge feeding type.

2. Vacuum absorption assist paper feeding ensure stable high-speed operation. The air volume can be adjusted according to the camber of the paperboard.

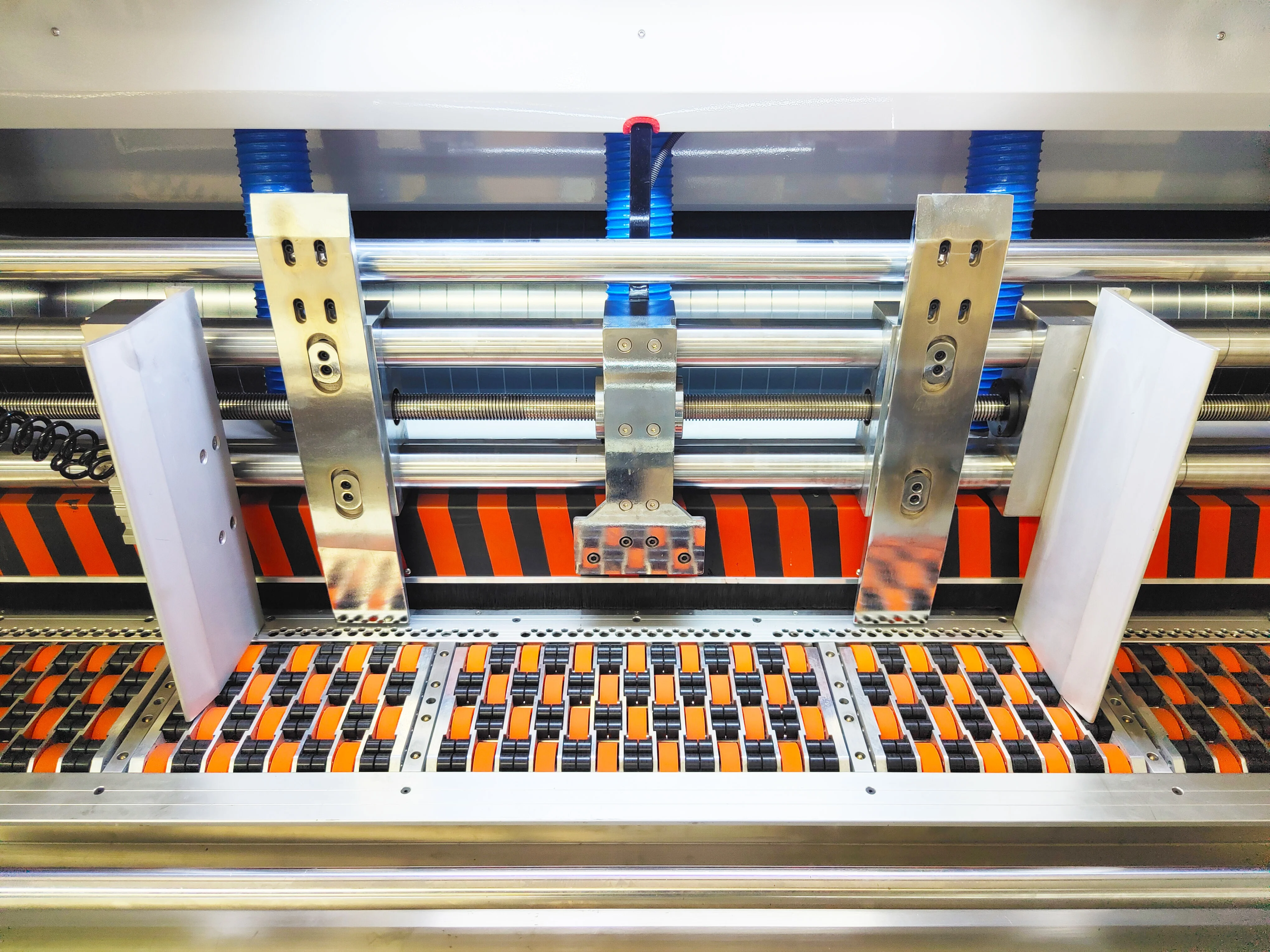

3. Front baffle can be electrically adjusted with scale on it, easily understood.

4. Side baffle can be adjusted electrically, with digital setting and pneumatic appliance.

5. Clutch of the machine is controlled electrically. With alarm.

6. Equipped with brust to sufficiently eliminate dust and scraps as well as foreign substances on the printing surface improve printing quality.

7. Skip feeding device with continuous feed or spacing feed options.

8. Pneumatic interlocking mechanism.

9. Equipped with dust clean device for the printing side of the paperboard and improve the printing quality.

10. PLC and color touch screen. Lower failure and higher efficiency, and is easy to learn and operate.

11. The main machine and fan motor applies transducer speed regulation,stable and energy saving.

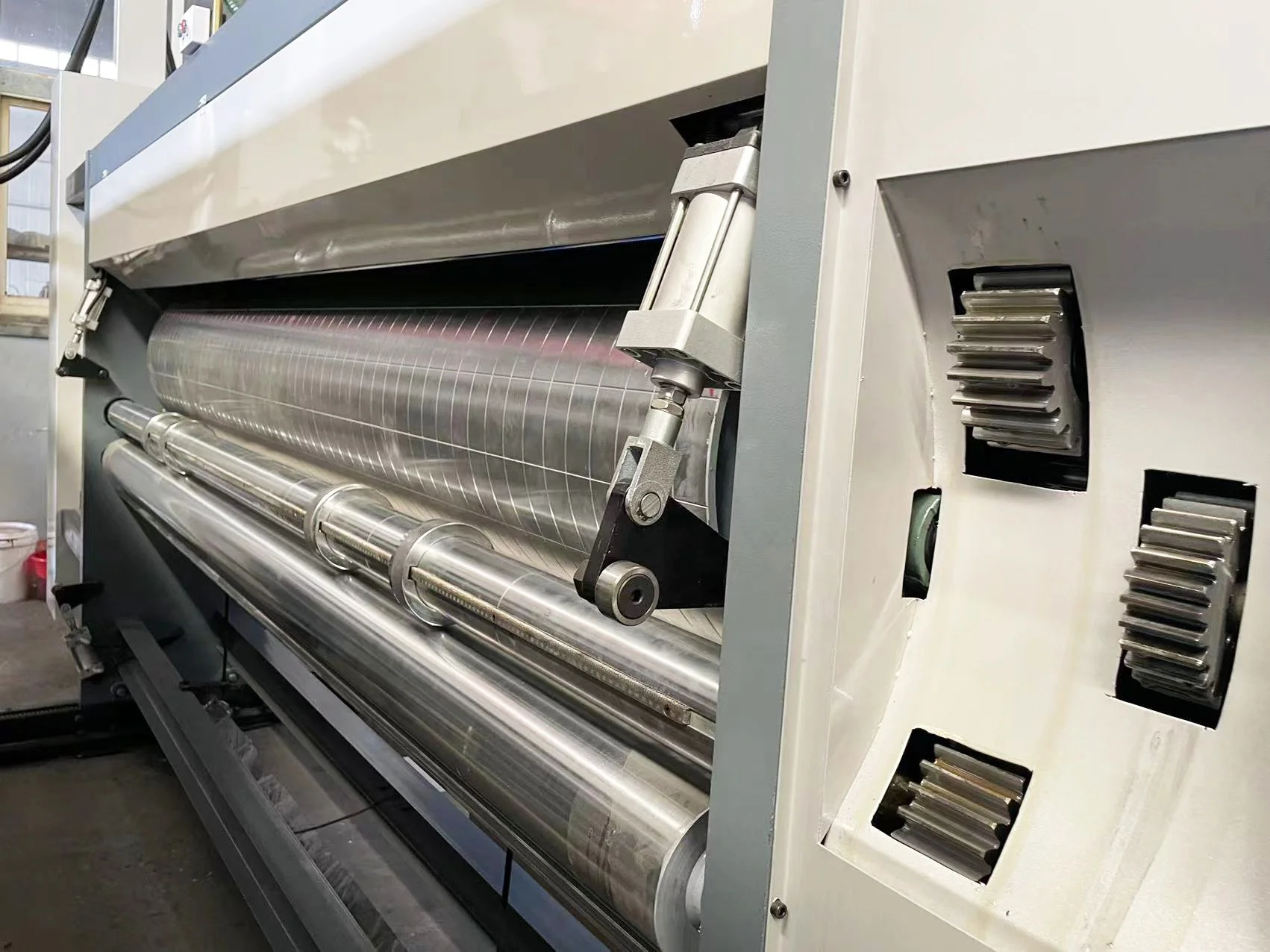

1. The printing roller and trace pressing roller: good quality SSTU, grinded and hard chrome-plated.

2. Hang printing plate system, it is easy to install and change printing plate. Foot switch operate.

3. International standard high-precision harmonic phasing device,PLC and touchscreen controlled 360 degree adjustment.

4. Special planet gear design enables long service life.

5. Equipped with auto braking device with braking mechanism to lock rotation of press plate roller and maintain the fixing point of original gears when the printing machine breaks away.

6. With auto reset system after cleaning.

7. Computerized digital axis adjustment,with adjustmental distance of ±10mm.

8. Equipped with auto raising device on the reticulate roll,separated the printing board when stopping feed paper.

9. All the intervals adopt computerized adjustment and digital setting.

10. Installed with ink roller rotation electrical machinery to prevent water ink drying while main machine stopping.

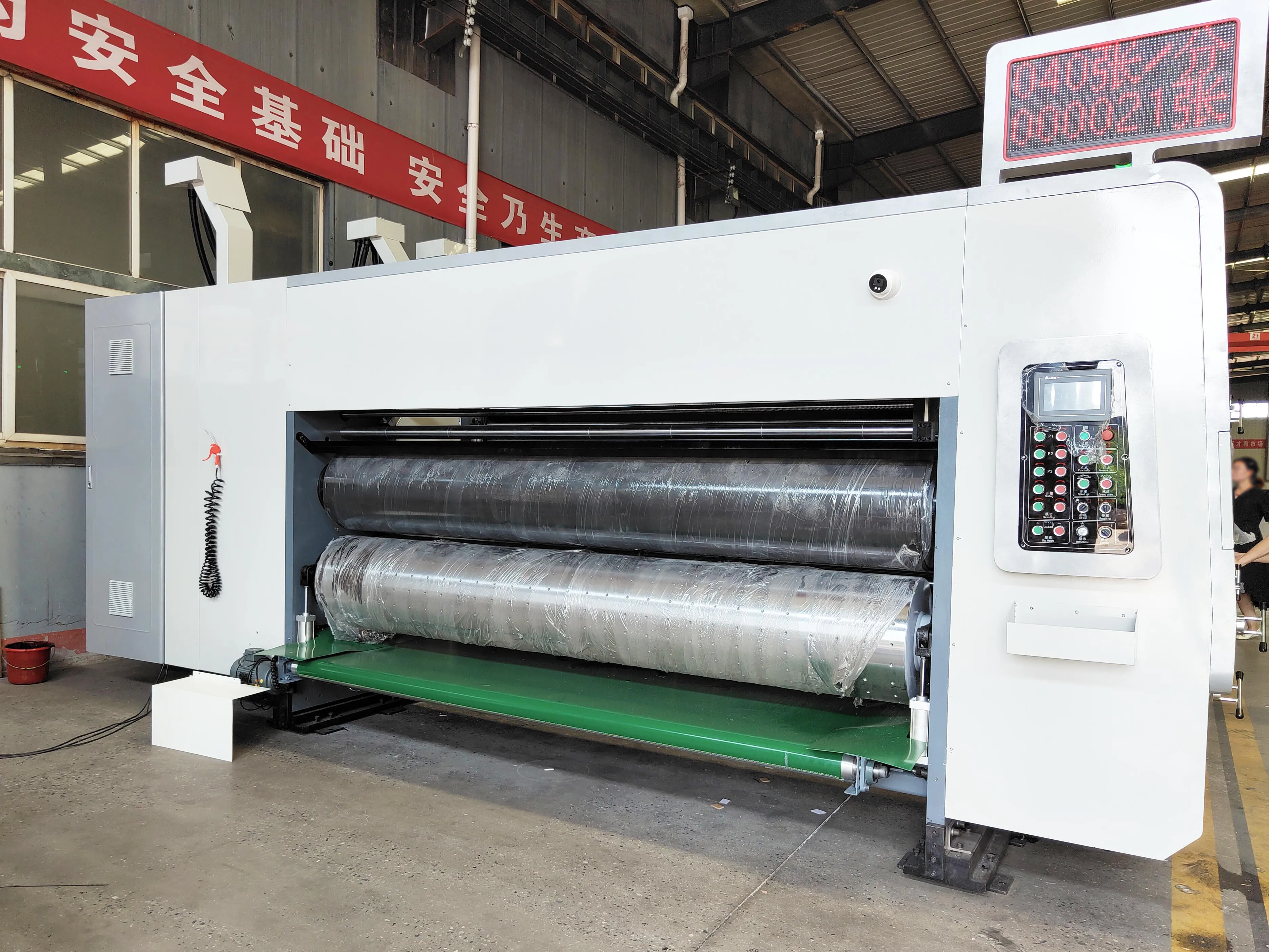

1 The rubber roller adopt mechanical control the position move left and right. The movement distance is 40mm.

2 The phase of the die-cutting unit adopt PLC and electric 360° adjust, accord the error to input the adjust data, can be adjusted while the machine running or stop. (PLC with touch screen adjustment as an option).

3 The horizontal moving of the die roller adopt PLC and electric adjustment, input the adjust data accord the error, adjusting distance is 10mm. (PLC withe touch screen adjustment as an option).

4 The space adjustment of rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust, decrease the rubber wear. Increase the rubber life.

5 The space adjustment between the feed rollers adopt self-locking structure.

6 The unique speed compensation device can make the rubber roller rolling running with the die roller, make the surface speed of the rubber cushion is completely controlled by the die roller, the shape to the carton sheet will absolutely equal to the die pattern.

7. There is a rubber repair device with the machine, the rubber can be used after be repaired.
