Product Overview
Description
Products Description

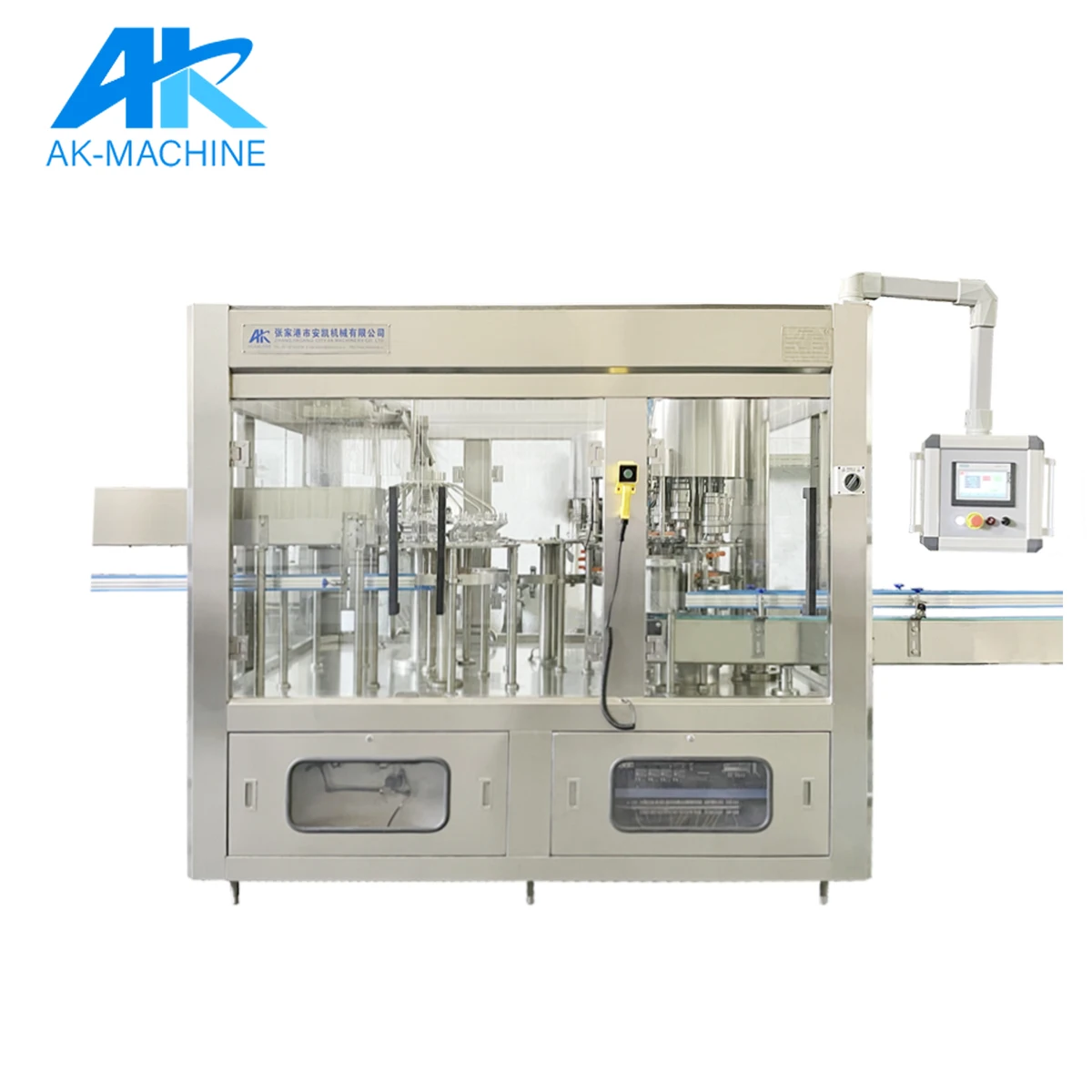

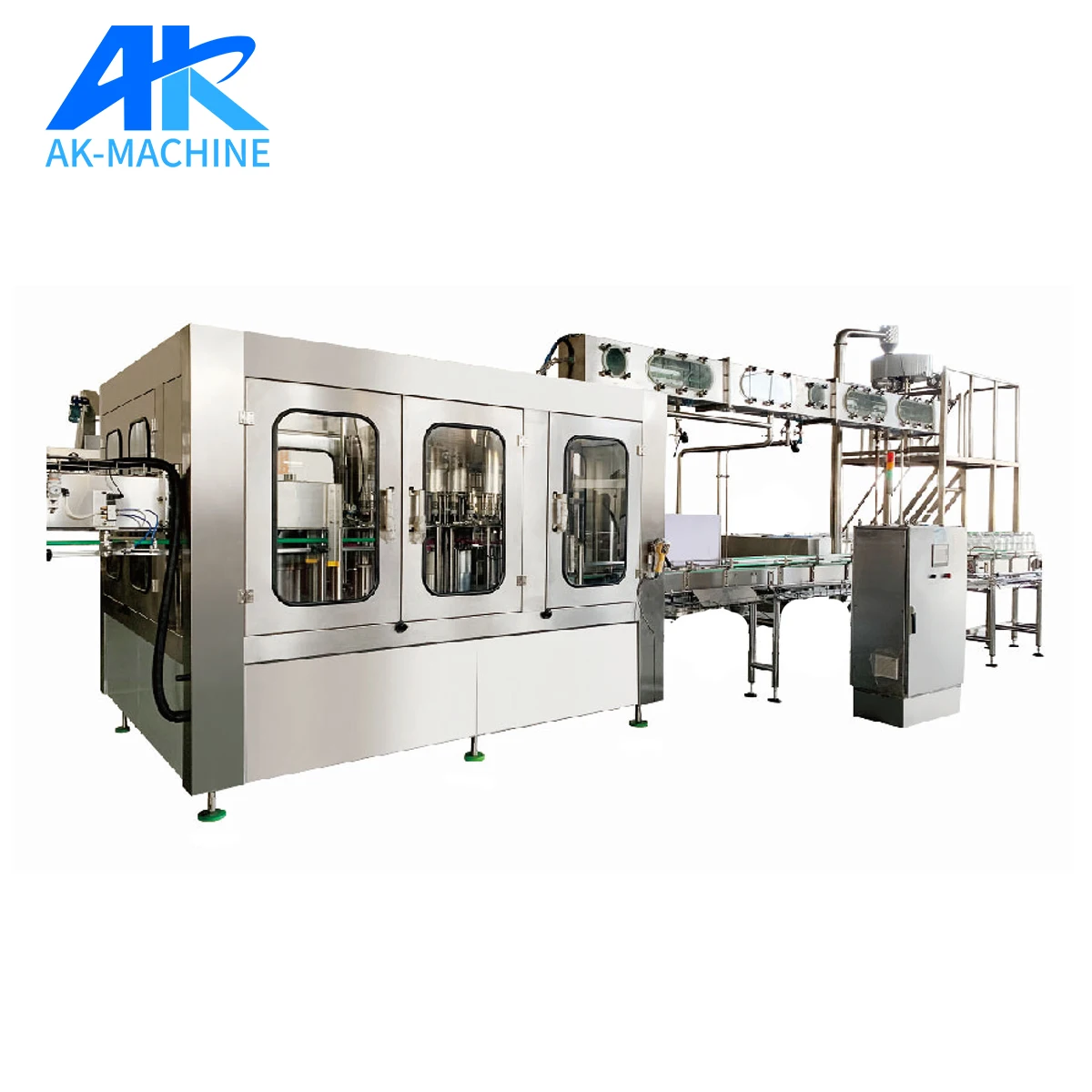

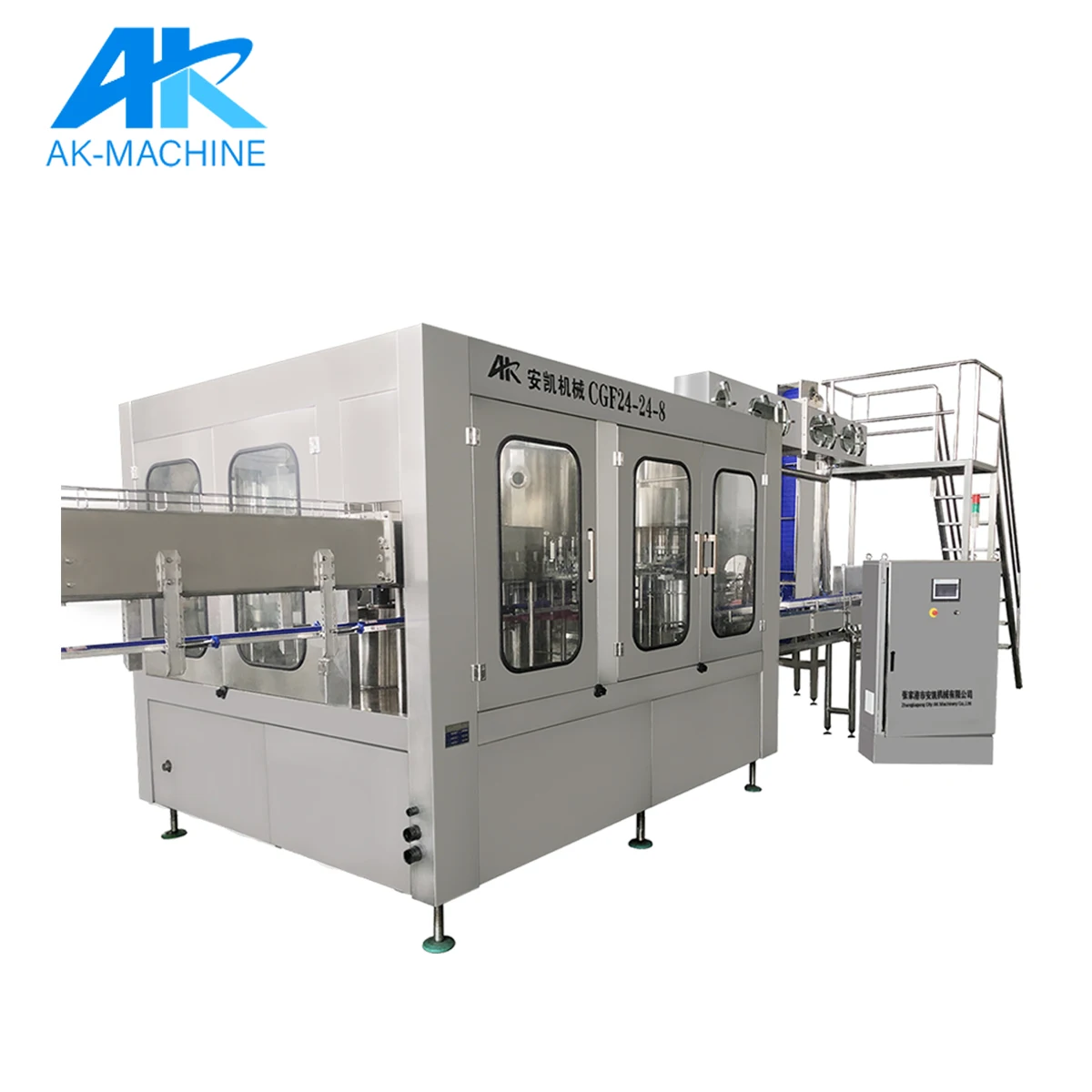

co2 Carbonated Soft Drinks Water Filling Machine Beverage Bottle Filling Machine
Machine Size | 2300*1800*2350 |
Production Capacity | 3000 bottles per hour |
Bottle Size | 250ml~2000ml |
Weight | 3500KG |
Bottle Material | PET Plastic |
Machine Material | Stainless Steel 304 |
Way Of Filling | Isobaric filling |
Pressure | 0.7Mpa |
Air Comsumption | 0.8m³/min |
DGF series carbonated Water Filling Machine apply to the production of carbonated drinks,carbonated beverage,carbonated water and low alcoholic drinks, etc.
Carbonated Water Filling Machine/ Filling Machine The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably
Carbonated Water Filling Machine/ Filling Machine The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably
Details Images
Washing Part of Carbonated Beverage Filling Machine
1. all rotating disk with stainless steel SUS304 welded together.
2. using this company original tilting bottles, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution. Bottle holder is made of stainless steel SUS304 manufacturing, health, and durable.
3.by high spray nozzle, blunt bottle of water
jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
transition thumbwheel of Carbonated Beverage Filling Machine
card bottle stainless steel wheel

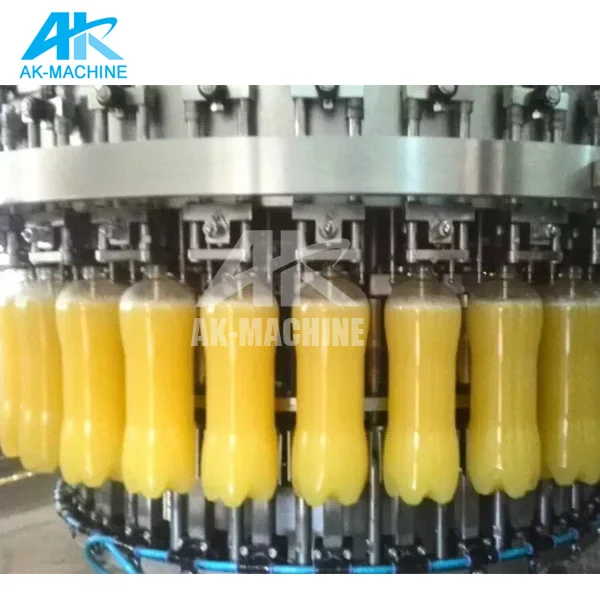

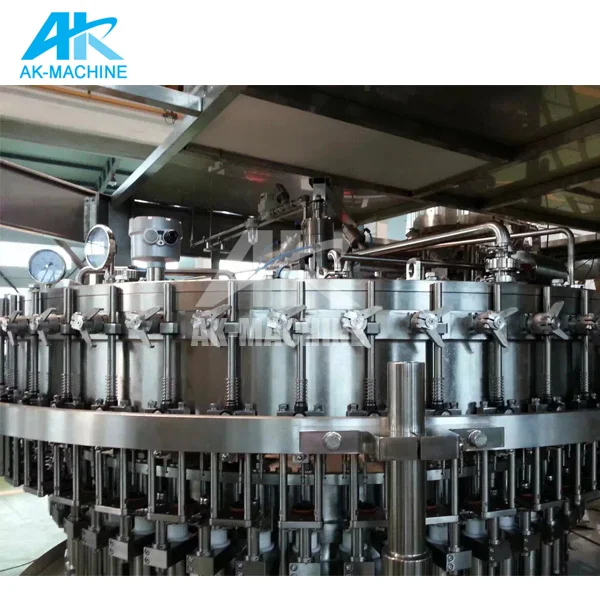

Filling Part of Carbonated Beverage Filling Machine
1. rotate all adopt the stainless steel SUS304 manufacturing.
2. filling method for Isobaric filling .
3. filling valve manufactured SUS304.
4. high precision, high speed liquid filling valve, liquid level
5. with the hydraulic cylinder, hydraulic cylinder is controlled by a float liquid level.
6. using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge.
2. filling method for Isobaric filling .
3. filling valve manufactured SUS304.
4. high precision, high speed liquid filling valve, liquid level
5. with the hydraulic cylinder, hydraulic cylinder is controlled by a float liquid level.
6. using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge.
Cappping Part of Carbonated Beverage Filling Machine
1. magnetic constant torque screw LIDS, screw cap effect is stable and reliable, block defect rate of 0.2% or less.
2. fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
3. high efficiency centrifugal principle, cover cover wear little.
2. fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
3. high efficiency centrifugal principle, cover cover wear little.
Certifications
Contact Us
Recommend Products
Product packaging
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time? A: Generally it is 20-30
days,if complete production line it is 45-60 days.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance.
Payment>=1000USD, 30% T/T in advance ,balance Before shippment.
